Haier HRF422TW1 User manual

INSTRUCTION MANUAL
2 DOORS NO FROST REFRIGERATOR
INDEX
FEATURES
INSTALLATION
OPERATION
CLEANING
CAUTION
TROUBLE SHOOTING
2
3
3
9
11
8
MODEL:
DIGITAL DISPLAY OPERATION 4
0060520803
Printed : 22 Jun.’15
HRF422TW1
HRF422TS1
HRF503TW1
HRF503TS1
HRF502TS1

2
FEATURES
1. Temperature Control Knob
2. Freezer Shelf
3. Freezer Compartment
4. Twist Ice Maker
5. Ice Cube Box
6. Chilled Room
7. Multi-Airflow Control Knob
8. Refrigerator Shelf
9. Refrigerator Lamp (LED)
10 Vegetable Crisper.
11. Adjustable Leg
12. Canned Food Rack
13. Bottle Rack
14. Utility Box
15. Egg Rack
16. Utility Rack
17. UV+LED+Platinum deodorizer
18. Water Tank
4
5
8
3 2
9
11
12
13
15
16
16
10 12
14
17 18
HRF502TS1HRF442TW1 , HRF442TS1
4
5
8
3 2
9
12
13
15
16
16
10 12
11
1
7
1
11
4
5
8
3 2
9
12
13
15
16
16
10 12
7
HRF503TW1 , HRF503TS1
Model Overall
Fresh food
compartment
(Gross storage)
Freezer
compartment
(Gross storage) (W x H x D (mm.))
Packing
(W x H x D (mm.))
HRF422TW1,
HRF422TS1
HRF503TW1,
HRF503TS1
HRF502TS1
254 Liter
336 Liter
336 Liter
110 Liter 723 x 694 x 1724
723 x 694 x 1809
723 x 749 x 1809
774 x 748 x 1816
774 x 748 x 1901
774x 803 x 1901
127 Liter
127 Liter

3
INSTALLATION
Select a place with strong, level floor. If the floor is not quite level, adjust the height of
the feet accordingly.
1.
Allow sufficient clearance between the refrigerator s’ back, also the side wall, so the door
can open fully and to minimize noise.
Avoid direct sunlight and heat. Direct sunlight may affect the enamel coating.
Heat sources nearby will cause higher electricity consumption.
2.
3.
5.
4. Avoid very moist place. Too much moisture in the air will cause frost to from very quickly
on the evaporator, and the refrigerator will have to be defrost very frequently.
After re-located, leave the fridge s 3-6 hours before switching it on. This intendtanding
to ensure a proper cooling system operation.
30 cm.
Refrigerator
Unit
10 .cm 15 .cm
2.4 meters
Ground Wire
OPERATION
Make a te t run
1. Your refrigerator is usually cleaned by manufacture, however you may want to
clean it before using with a soft towel cloth.
2.
3.
After cleaned, replace all parts in proper.
Keep the door open and plug the power cord into its own electrical outlet.
The interior lamp should lit.
4. Properly close the door.

4

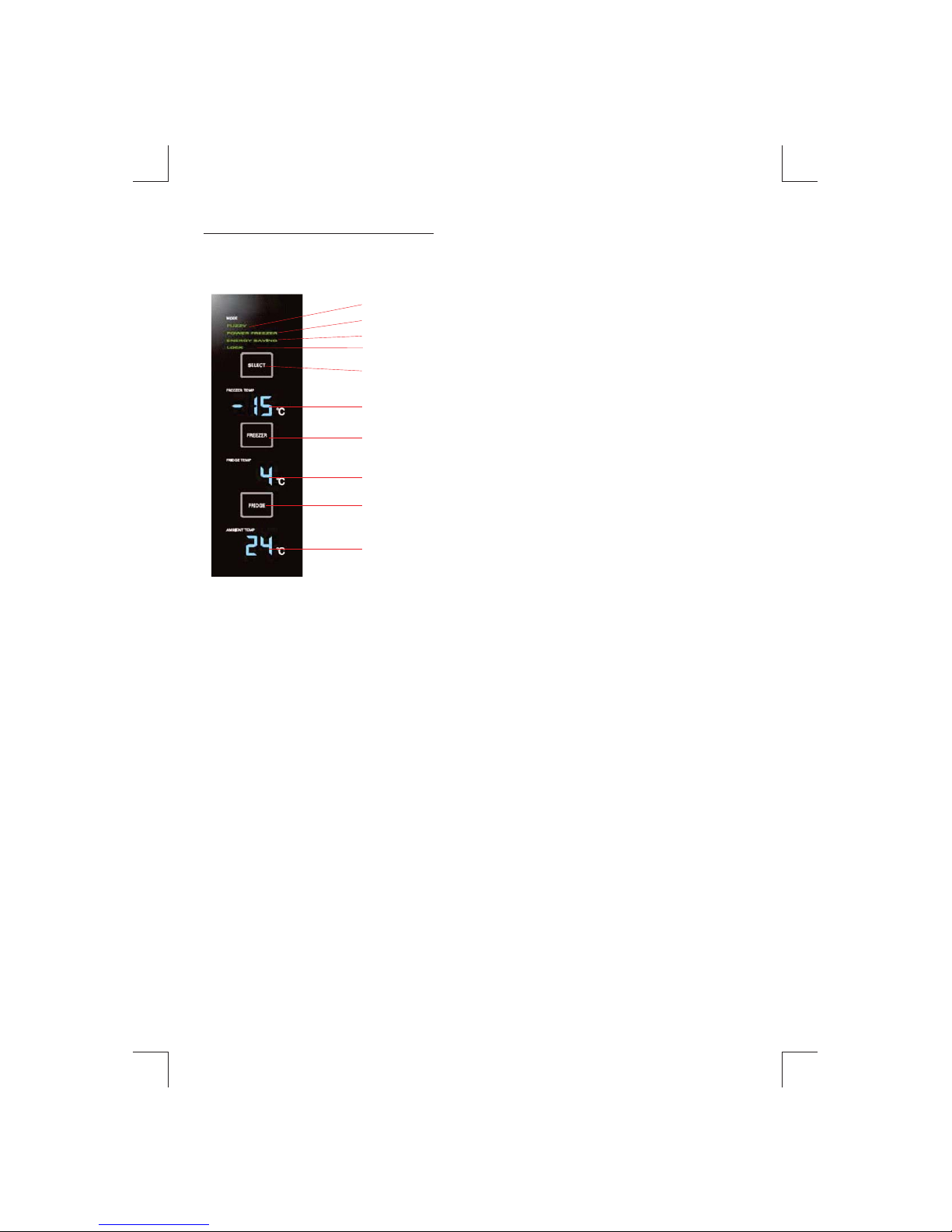

Digital Display Operation
A
B
E
F
G
Fuzzy Mode
In the Fuzzy Mode, the temperature inside the appliance is adjusted automatically according to
variations of the ambient temperature. Press key E upon, indicator A lights up an Fuzzy mode is
entered.
Power Freezer
It has been scientifically proven that a power freezer type device is necessary to freeze foods
quickly and thoroughly. Press key E, upon which indicator B lights up and the power freezer action
is turned on. Press key E again, upon which indicator B goes off.
H
I
J
A : Fuzzy Mode Indicator
B : Power Freezer Indicator
C : Energy Saving Indicator
D : Lock Indicator
E : Mode Selector
F : Freezer Temperature Display
G : Freezer Temperature Adjustment Key
H : Refrigerator Temperature Display
I : Refrigerator Temperature Adjustment Key
J : Ambient Temperature Display
C
D
Energy Saving
The refrigerator minimises energy consumption but maintains the temperature setting.
Press key E, upon which indicator C lights up and energy saving is turned on. Press key E again,
upon which indicator C goes off.
Remark : If Fuzzy mode, power freezer or energy saving is activated, Freezer and Refrigerator
temperature cannot adjusted.
Press key E once again, upon which indicator A goes off and Fuzzy mode is cancelled.
( HRF502TS1)

5
To lock the appliance, Press and hold button E for 5 seconds, under the lock
condition indicator D will light up.
Locking and Unlocking the appliance
Open door warning
If any door is open for more than 1 minute, the door alarm function will start to remind you to
close the door.
Press key G, upon which indicator F will flash. Each time key G is pressed,
the temperature setting is decreased by 1 C. Once the maximum of -24 Cํ ํ
is reached, the temperature will return to -14 Cํ
Press key I, upon which indicator H will flash, Each time key I is pressed,
the temperature setting is decreased by 1 C. Once the maximum of 8 C isํ ํ
reached, the temperature will return to 1 Cํ

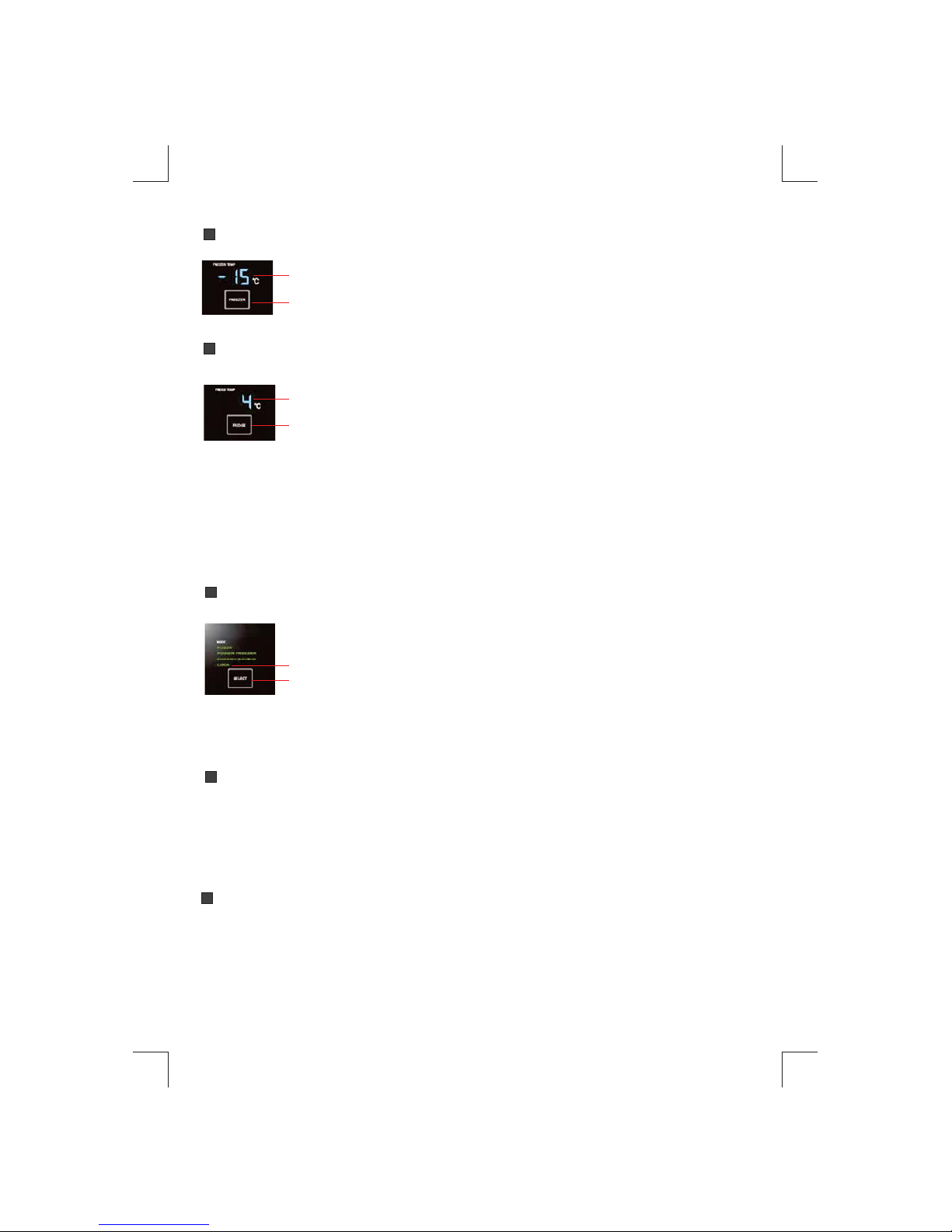

Freezer temperature adjustment
Refrigerator temperature adjustment
Remark : Freezer / Refrigerator temperature will indicate last setting temperature.
Remark :
To enter Power save function under lock condition, Press and hold button E and G 5 seconds.
Under Power save function interior light and freezer display are not turned on when each door
opened.
Power save function under lock condition,
Press and hold button E and G 5 seconds, Power save function is cancelled.
F
G
H
I
To unlock the appliance, Press and hold button E for 3 seconds, indicator D
will goes off.
D
E
The functions and temperature adjustment cannot be adjust when appliance has been
locked.
Remark:
-After insert plug to power supply30 seconds, display panel will go off if no any adjust
on display.
Display Panel will go off within 30 seconds after last press and will tuned on again when-
pressed.

Temperature Control
The refrigerator is equipped with 2 independent controls to control the degree of cooling
of the refrigerator and freezer compartment.
Freezer Compartment
MIN. : Minimum Setting for fairly cold in freezer compartment.
MAX. : Maximum Setting for the coldest in freezer compartment.
Refrigerator Compartment
MIN. : in compartment.Low volume of air circulation refrigerator
High volume of air circulation refrigeratorMAX. : in compartment.
Making Ice Cube
Ice cubes are made in wist ce akerT I M , turn the
lever clockwise to empty the ice into Ice Cube Box.
Store the ce ubes in the ce ube ox.i c I C B Do not
store wet ice cubes or they will stick together.
Do not use the “ ce ube ox” as an iceI C B making tray,
or it will be damaged.
How to Defro t
The defrosting will automatically operate. No manual control is required. The defrosted
water will drain into evaporation tray and automatically evaporated by condenser
heat radiation.
Di pen ing refrigerated water
(For )model with di pen ing water
To adjust button to unlock position.
Lightly press again at the lever so that refrigerated
water is supplied.
6
(HRF422TW1 , HRF422TS1 , HRF503TW1)

7

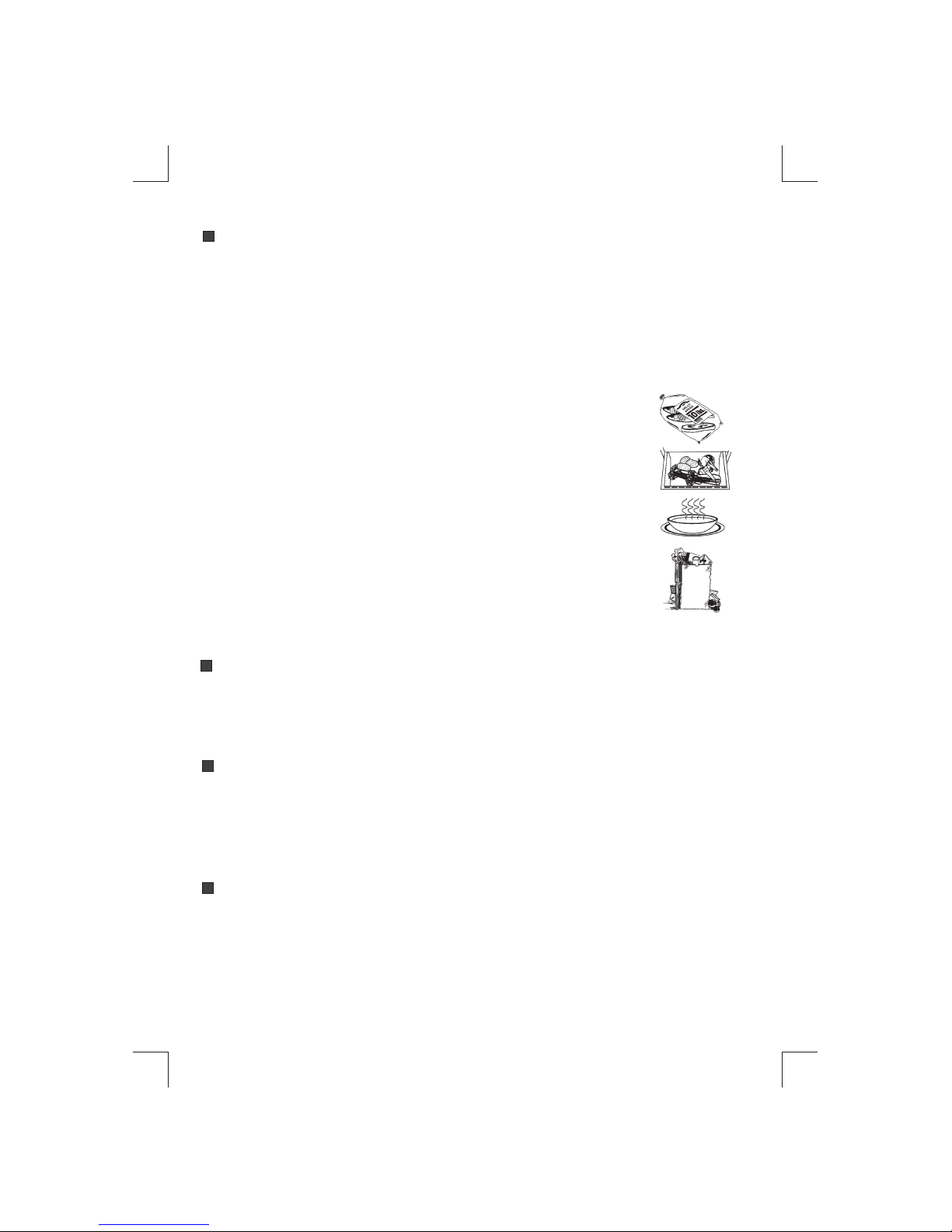

Food Storage
1.
2.
3.
4.
5.
6.
7.
8.
9.
Refrigerated air goes down at the rear of the fresh food compartment and rises up at
foodstuffs such as fish and meats which require quickthe front. Then, store the
refrigeration to the rear of the compartment.
Leave spaces among foodstuffs to help air circulation.
Wipe the water on the surface of the bottles before storing them.
Pre-cool hot foods, wrap them with plastic film or put them in the
airtight receptacle.
Foodstuffs which are easily dried should be well wrapped with waxed paper,
aluminum foil or plastic film.
Wrap fish and smoked meats in moisture-vapor-proof material to
prevent transfer for odors.
Be sure not to store bottles such as beer, cokes, etc. in the
freezer compartment.
Do not put vegetables which are liable to freeze at the rear part
of the shelves.
If planning to keep fresh fish and meats for a long period, wrap
freezer compartment.them in freezer paper and store in the
Lamp Replacement
If the illuminating does not work properly. In case of the replacement LED is needed,
it must be replaced by its service agent or similarly qualified person in order to
avoid hazard.
UV+LED
Inside the refrigerator compartment UV-LED + Platinum Deodorizer system is installed,
which is high efficiency eliminates the bacteria cause decomposition in a food.
This system operates (With a Yellow-Beam indicator).
Nano + Vitamin C
With refrigerant to disperse the bacteria and odor control to freeze the vegetable
and will keep the freshness of vegetables fruits. It will maintain the nutritional value
of food long lasting and increases the vitamin filter. That includes the bacteria control
to make the vegetables and fruits will not lose it food value, with deodorizer filter.

8
CLEANING
Before cleaning the refrigerator, you should always unplug it from the electrical outlet
and remove all food.
2. Both exterior and interior of refrigerator, wipe with damp and warming water until dry.
3. Cleaning warm water soft clean cloth.internal accessories using a and dry it with a
4. Cleaning door gasket with warm water and dry it with a soft clean cloth.
Wipe the control knob with a soft clean cloth. Never wash it with water because this
will cause an electric shock.
5.
Never use brushes, acids, chemical thinner, gasoline or benzine for cleaning any part
of the refrigerator.
6.
7. To remove odors from your fridge, mix a lemon skin and warm water. Wipe thoroughly
on odors surface and dry with a soft clean cloth. Do not use cologne, air freshener or
any other perfume.
8. Cleaning inside of the refrigerator and door gasket once a month. It is the best to clean
the freezer compartment every time when it is defrosted.
1.

9
Do not insert the power plug for many products at the same time or do not share
other product to the same power supply socket with .refrigerator
Set free o the back side of the refrigerator. Damaged powerthe power plug fr m
plug may cause fire due to overheating.
1.
Be careful not to place the power cord underneath of the refrigerator or other
.heavy objects. Damage to the power cord could cause a short circuit and fire
If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
2.
3.
4.

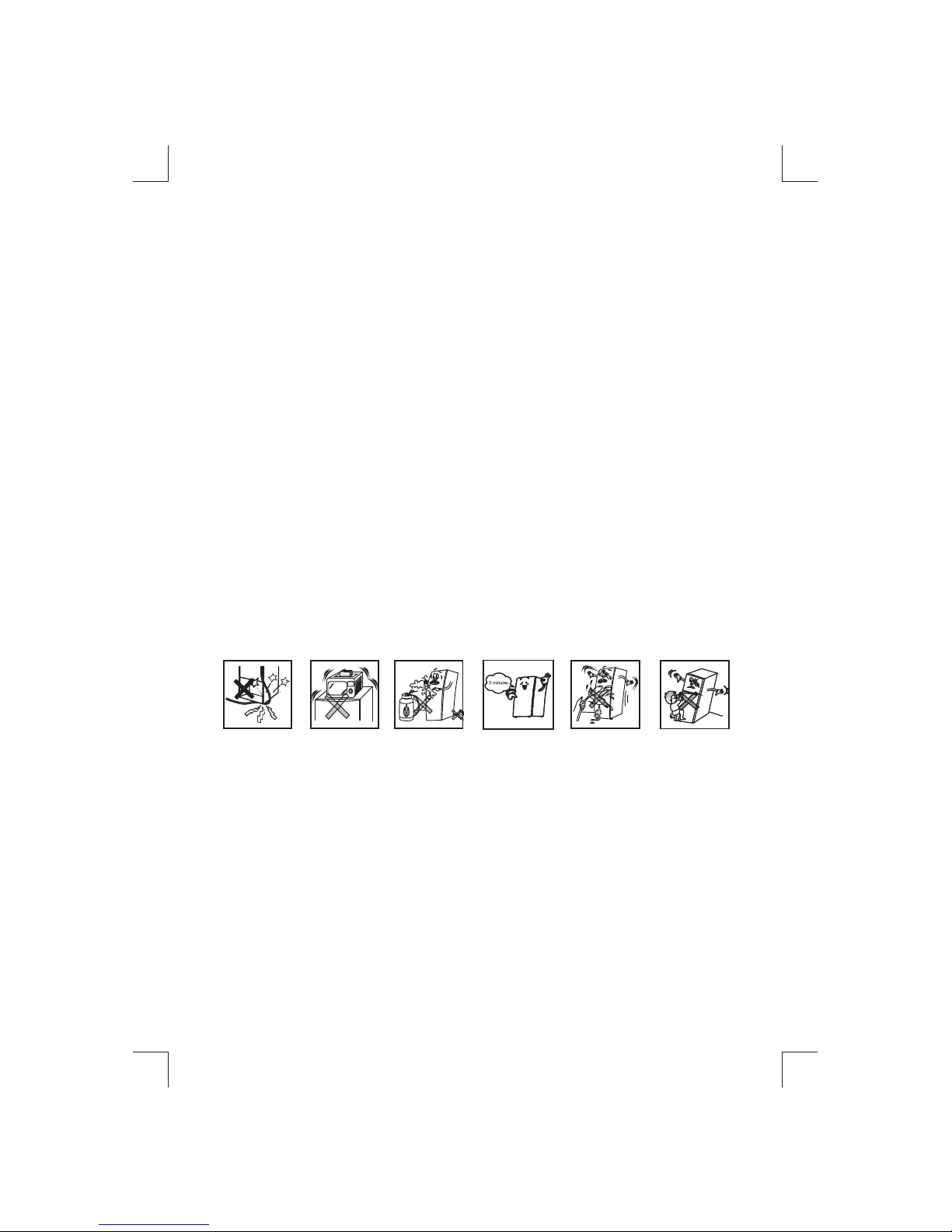

CAUTION
Do not place hot container or hot object on top of refrigeratorhigh temperature .
5.
6.
Do not place the inflammable or gas area, don't unpluggedrefrigerator close to
.during gas leakage due to can cause sparking fire and explosion
Frequently open door during the power failure should cause too fast losing cool.
I it consumptionf the door is not properly close should cause high electrical and
f spoil.ood in refrigerator become
15.
14.
Long period power failure such as power fluctuate, should promptly unplug the
. It will helppower cord and leave at least 5 minutes before plugging in again
prolong life.refrigerator and compressor
13.
Do not place water container on the top of refrigerator.
7.
Do not install the refrigerator in a moist or wet place.
Do not insert the power plug with a wet hand.
9.
8.
10.
Do not try to service the refrigerator yourself, please contact service agent.
Be sure grounding connection to prevent electric shock.
Do not take out the power plug by pull out the power cord.
11.
12.
Do not use a soaked water cloth wipe the refrigerator due to water may dr p intoo
.electrical parts and cause short circuit
When cleaning the refrigerator do not splash water directly to the refrigerator.
.Follow the cleaning instructions described in this manual
Do not use inflammable sprays near the refrigerator, because there is a danger
.of igniting
Do not hang on the refrigerator causeor climbing which will it collapse.
16.
17.
18.
19.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
20.

10
When not using refrigerator for long period, should disconnect the power ,plug
fromremove all the foods off compartment, defrosting and clean interior and
open until the unit dry and properly close the door.exterior parts then the door
Children should be supervised to ensure that they do not play with the appliance.
21.
22.
This fridge is Cyclopentane insulation, should be kept away from heat or flame
when it isn’t properly used.
Be ensure this refrigerator is disposed of correctly, you will help prevent potential
negative consequences of environment and human health, which could other
wise be caused by inappropriate waste handling of this product. For more detail,
please contact your local city office, your household waste disposal service.
23.
Do not store explosive substances such as aerosol can with flammable propellant
in this appliance.
24.
This appliance is intended to be used in household.
25.
- WARNING : Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
- WARNING : Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
- WARNING : Do not damage the refrigerant circuit.
- WARNING : Do not use electrical appliances inside the food storage compartments
of the appliance, unless they are of the type recommended by the manufacturer.
It is hazardous for anyone other than an Authorised Service
Person to service this appliance. In Queensland - the
authorized Service Person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants, to carry out
Servicing or repairs which involve the removal of covers.
“ 600This refrigerator may contain the flammable refrigerant isobutane - R a."

Motor operates for long
periods ...
Moisture collects
inside ...
Normal when refrigerator is first delivered to
your home - usually requires 24 hours to
completely cool down.
Large amounts of food placed in refrigerator
to be cooled or frozen.
Hot weather - frequent door openings.
Too frequent or too long door openings.
Door left open.
In humid weather, air carries moisture into
Temperature control is set too cold.
refrigerator when door is opened.
You put warm food in the refrigerator.
Before you call for service please check the table below. Your problems could be
rectified need service, please contact the store where youeasily . If you still
purchased or the nearest service center.
Not operating ...
Warmer than usual ...
Unusual sounds ...
Check i ...
When
Power supply cord is unplugged.
Too frequent or too long door openings.
Check the temperature control dial setting.
Large amounts of food placed in refrigerator.
You put warm food in the refrigerator.
The floor is weak or uneven.
Make sure the back of the refrigerator does
not touch the wall.
Temperature control in “0” or “OFF” position.
If home fuse blown or circuit breaker off ?
TROUBLE SHOOTING
Note : Normal working unit, the back and side cabinet should be warm.
11
