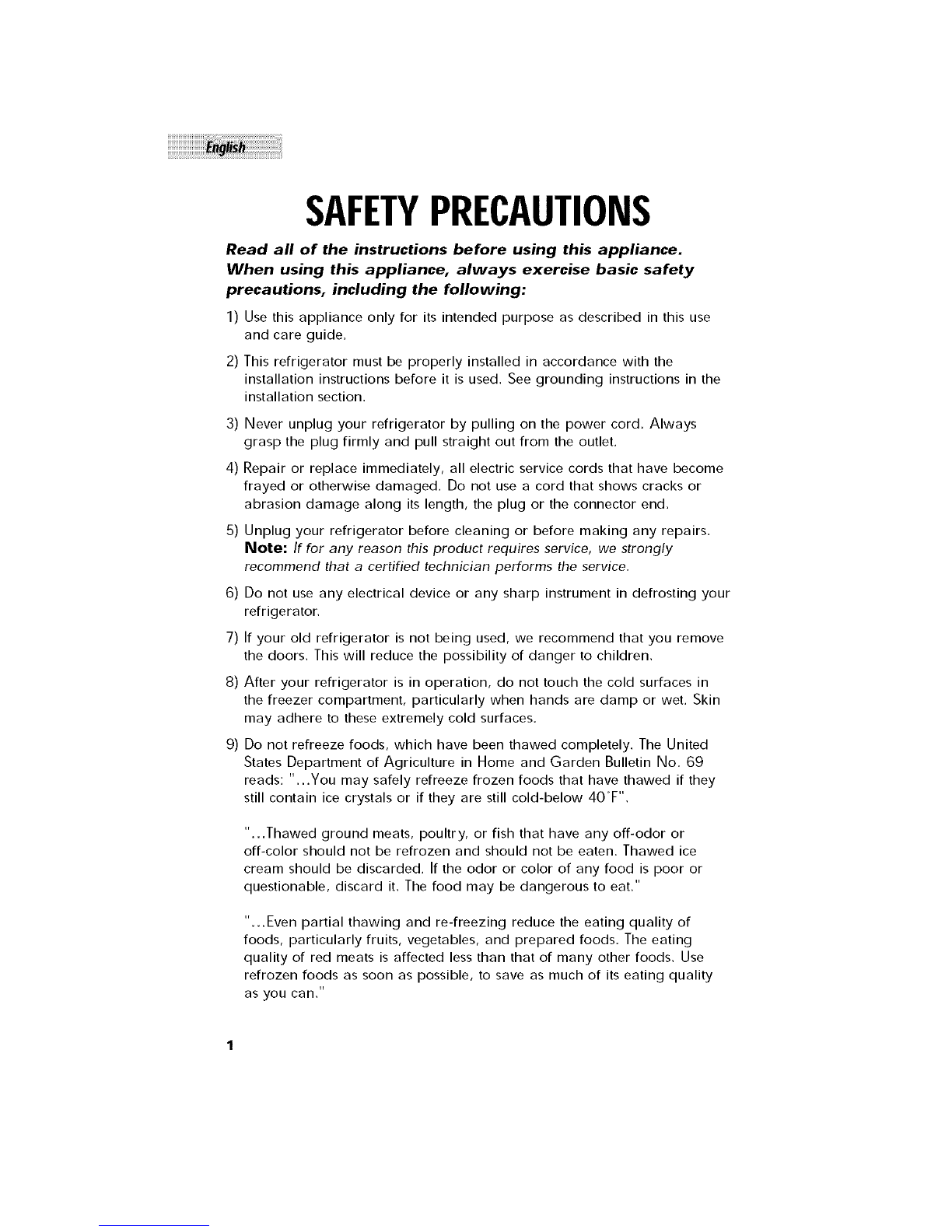

SAFETYPRECAUTIONS
Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
7) If your old refrigerator is not being used, we recommend that you remove
the doors. This will reduce the possibility of danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces in
the freezer compartment, particularly when hands are damp or wet. Skin
may adhere to these extremely cold surfaces.
9) Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: "...You may safely refreeze frozen foods that have thawed if they
still contain ice crystals or if they are still cold-below 40°F'',
"...Thawed ground meats, poultry, or fish that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
"...Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of its eating quality
as you can."

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiU!ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i ii
10) This refrigerator should not be recessed or built-in an enclosed cabinet. It
is designed for freestanding installation only.
1 1) Do not operate your refrigerator in the presence of explosive fumes,
SAVETHESEINSTRUCTIONS

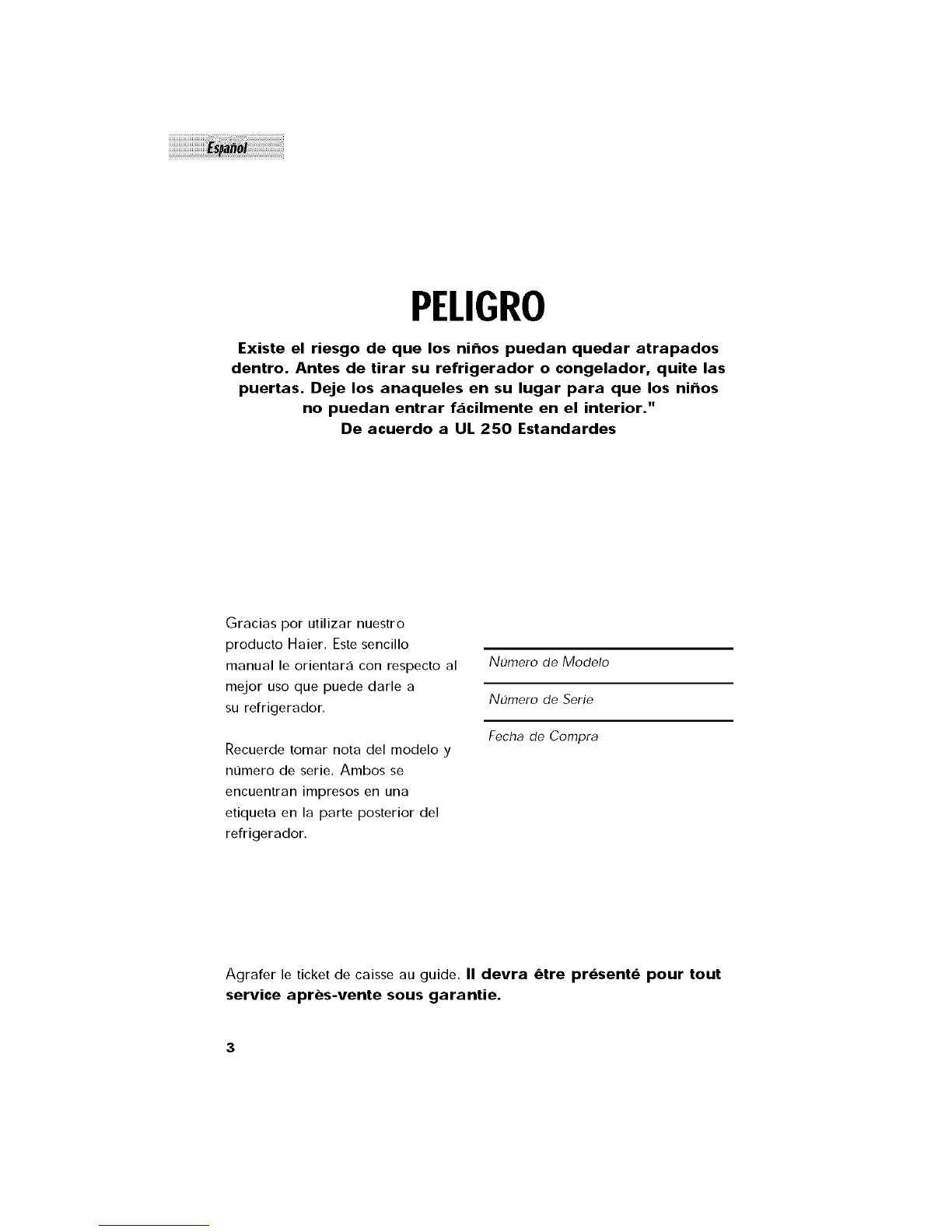

DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
As per UL 250 Standards
Thank you for using our Haler
product. This easy-to-use manual will
guide you in getting the best use of
your refrigerator.
Remember to record the model and
serial number. They are on a label in
back of the refrigerator,
Model number
.Serial number
Date of purchase
Staple your receipt to your manual. Vou will need it to obtain
warranty service.

PAGE

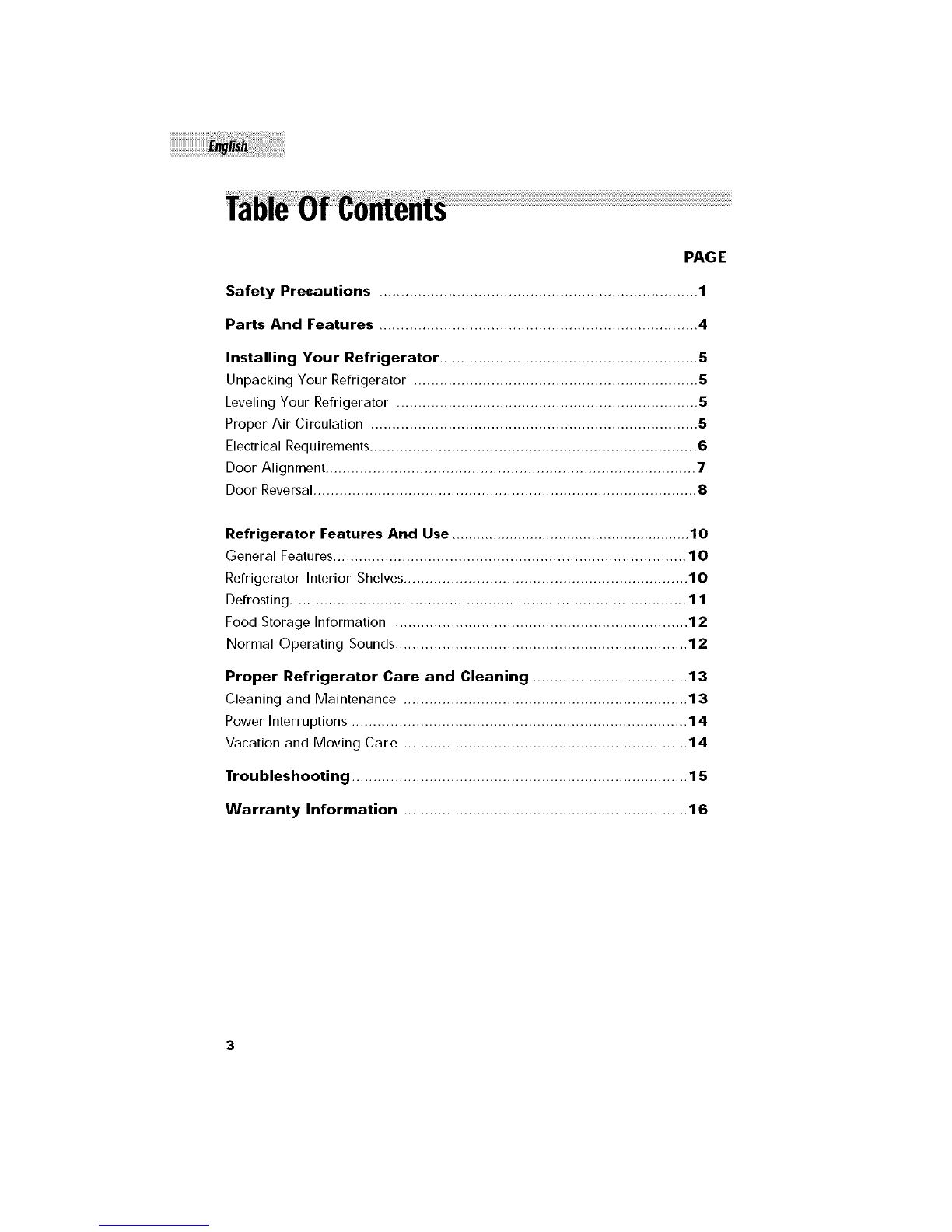

Safety Precautions .......................................................................... 1
Parts And Features .......................................................................... 4
Installing Your Refrigerator ............................................................ 5
Unpacking Your Refrigerator .................................................................. 5
Leveling Your Refrigerator ...................................................................... 5
Proper Air Circulation ............................................................................ 5
Electrical Requirements ............................................................................ 6
Door Alignment ...................................................................................... 7
Door Reversal......................................................................................... 8
Refrigerator Features And Use .......................................................... 10
General Features .................................................................................. 10
Refrigerator Interior Shelves.................................................................. 10
Defrosting ............................................................................................ 11
Food Storage Information .................................................................... 12
Normal Operating Sounds .................................................................... 12
Proper Refrigerator Care and Cleaning .................................... 13
Cleaning and Maintenance .................................................................. 13
Power Interruptions .............................................................................. 14
Vacation and Moving Care .................................................................. 14
Troubleshooting .............................................................................. 15
Warranty Information .................................................................. 16

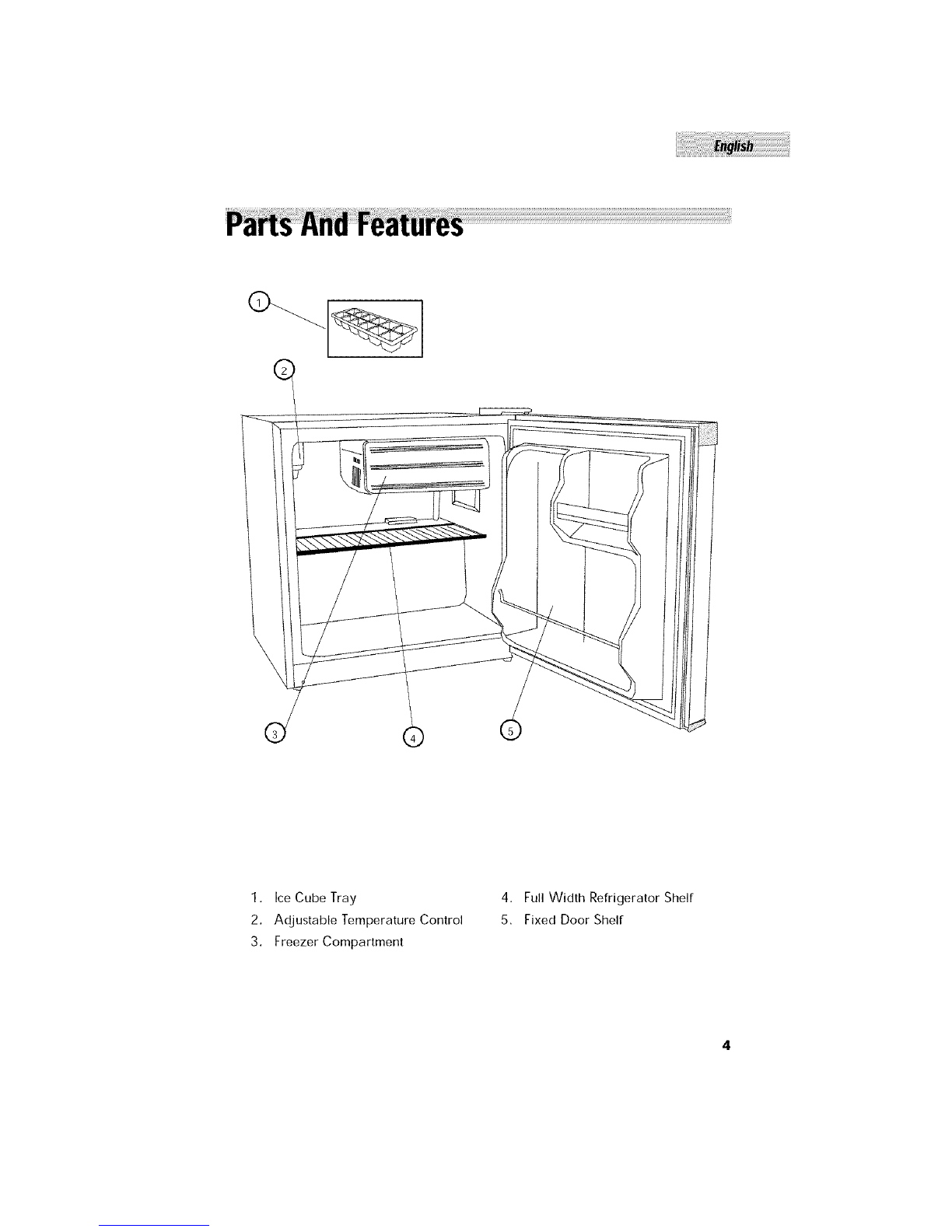

1. Ice Cube Tray
2. Adjustable Temperature Control
3. Freezer Compartment
4. Full Width Refrigerator Shelf
5. Fixed Door Shelf

Unpacking Your Refrigerator
1, Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and
outside,
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the refrigeraton
Proper Air Circulation
• To assure your refrigerator works at the maximum efficiency it
was designed for, you should install it in a location where there
is proper air circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides ............... 3/4 "(19mm)
Top .................... 2" (50ram)
Back .................. 2" (50mm)

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiU!i!
Emectrica_ Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the refrigerator.
• Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet, This is a dangerous practice
since it provides no effective grounding for the refrigerator and may
result in shock hazard,
Use of Extension Oord$
Avoid the use of an extension cord because of potential safety hazards
under certain conditions. If it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade grounding plug and a
3-slot outlet that will accept the plug. The marked rating of the extension
cord must be equal to or greater than the electrical rating of the
appliance.
Limitations
Do not install your refrigerator in any location not properly insulated or
heated e.g, garage etc. Your refrigerator was not designed to operate in
temperature settings below 55 ° Fahrenheit.
Select a suitable location for the refrigerator on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc, Any floor unevenness
should be corrected with the leveling legs located at the bottom,

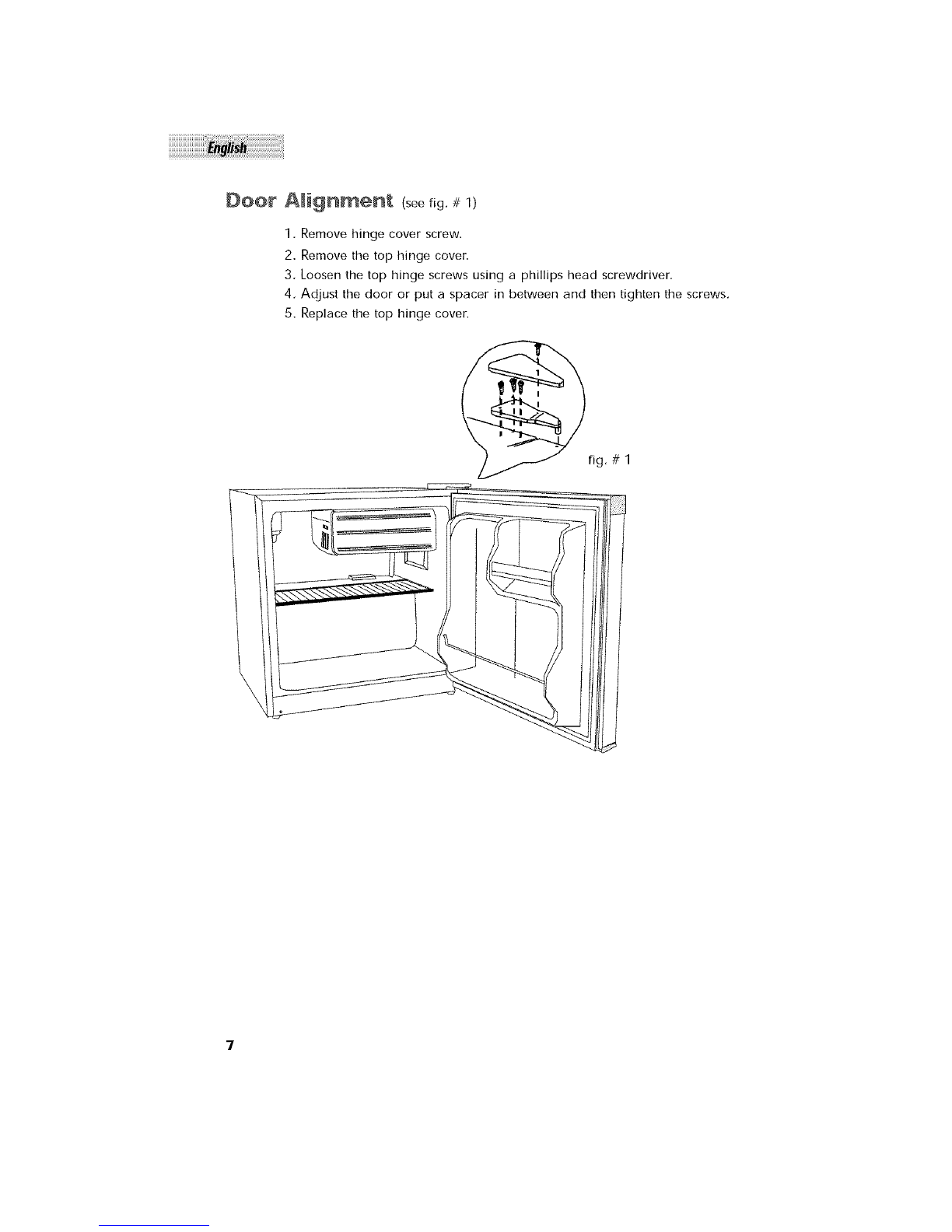

Door AIign_ent (seef_g.# 1)
1. Remove hinge cover screw.
2. Remove the top hinge cover.
3, Loosen the top hinge screws using a phillips head screwdriver.
4, Adjust the door or put a spacer in between and then tighten the screws,
5. Replace the top hinge cover.

Reversing the Door Hinge
1, Remove the top hinge cover screw and then remove
the top hinge cover. (see fig. # 1)
2, Using a Phillips Head Screwdriver, loosen and remove the
screws holding the top hinge in place, (see fig. # 1)
3. Remove the top hinge and carefully lift off the door.
4, Remove the screw hole plug from the opposite side and
insert the plug in the screw hole openings of the just
removed screws. (see fig. # 2)
5, Remove the door pin from the bracket of the lower
hinge by turning counter clockwise. Move the pin to the
opposite hole and tighten, (see fig. # 3)
6, Loosen the screws holding the lower hinge bracket
and remove the hinge.(see fig, # 3)
7, Align the holes in the lower hinge bracket to the
corresponding holes in the opposite side of the cabinet,
Insert and tighten the screws,(see fig. # 3)
8, Align the bottom hole on the left side of the door with the
pin of the lower hinge and slide into place.
screw hole plug
/
I I
I I
t-:iI f _ ......._ ....
i_
fig, #2

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i i i i i

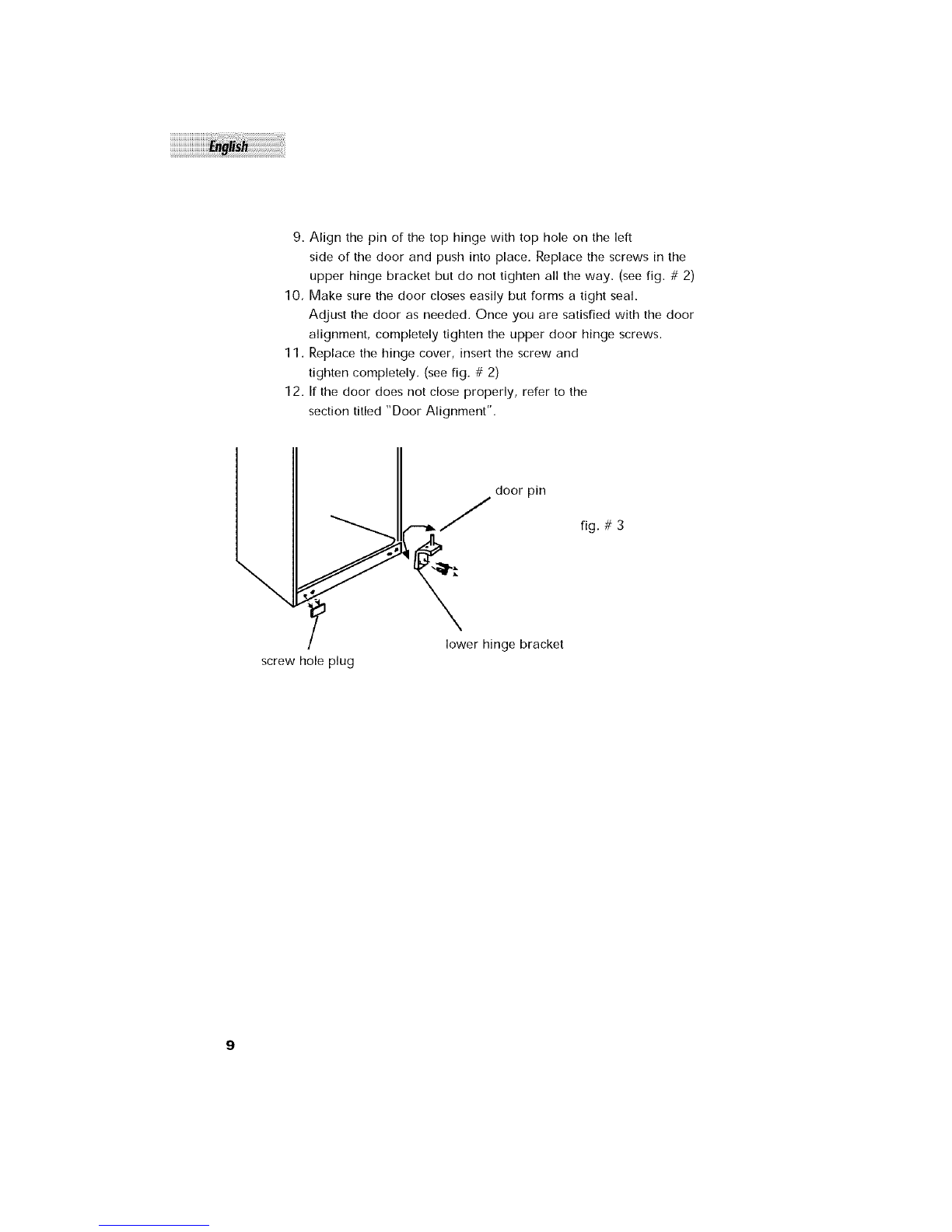

9. Align the pin of the top hinge with top hole on the left
side of the door and push into place. Replace the screws in the
upper hinge bracket but do not tighten all the way. (see fig. # 2)
10, Make sure the door closes easily but forms a tight seal.
Adjust the door as needed. Once you are satisfied with the door
alignment, completely tighten the upper door hinge screws,
11, Replace the hinge cover, insert the screw and
tighten completely, (see fig. # 2)
12. If the door does not close properly, refer to the
section titled "Door Alignment".
\
screw hole plug
door pin
lower hinge bracket
fig, # 3

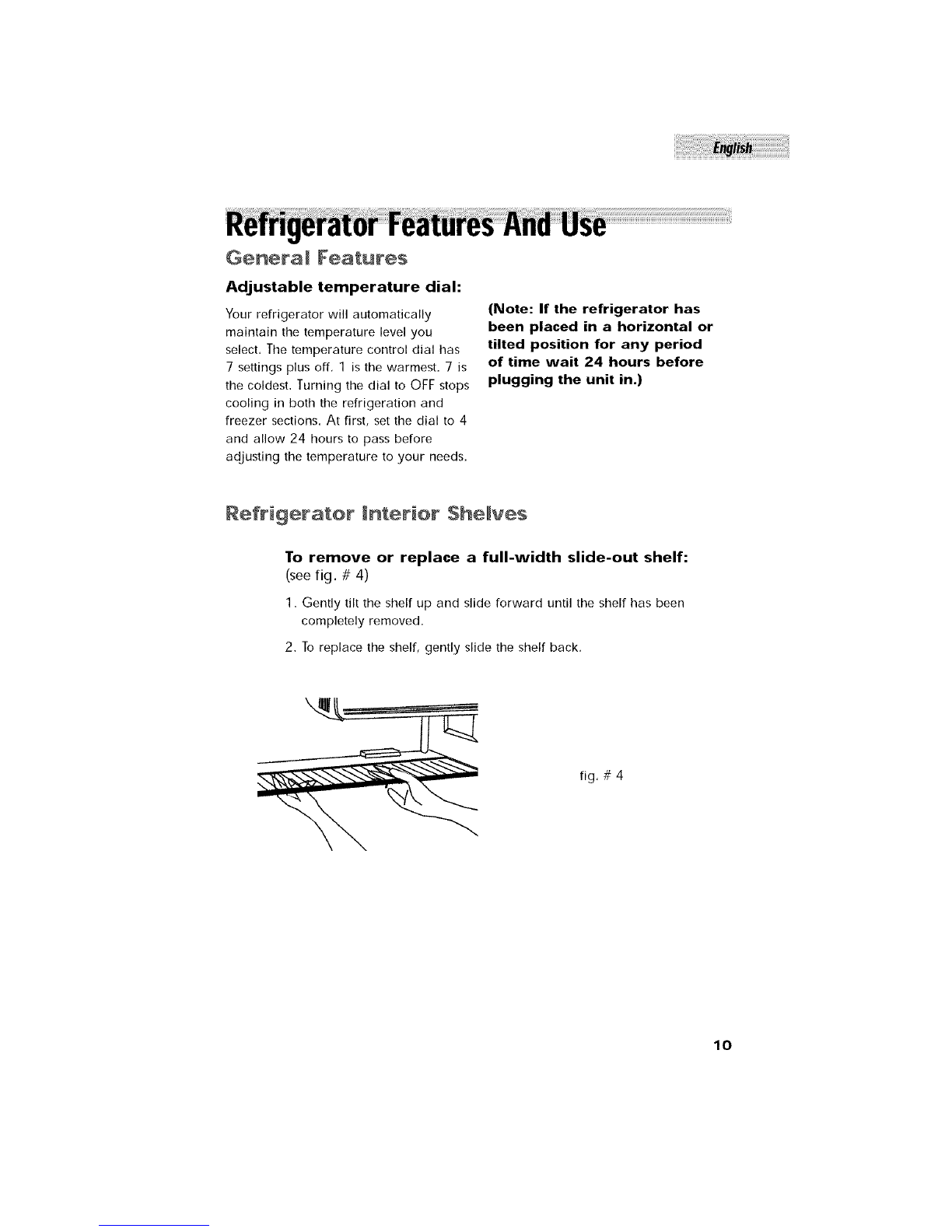

General Seatures
Adjustable temperature dial:
Your refrigerator will automatically
maintain the temperature level you
select. The temperature control dial has
7 settings plus off, 1 is the warmest. 7 is
the coldest. Turning the dial to OFF stops
cooling in both the refrigeration and
freezer sections. At first, set the dial to 4
and allow 24 hours to pass before
adjusting the temperature to your needs.
(Note: If the refrigerator has
been placed in a horizontal or
tilted position for any period
of time wait 24 hours before
plugging the unit in.)
Refrigerator Interior She_ve$
To remove or replace a full-width slide-out shelf:
(seefig # 4)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, gently slide the shelf back,
fig, #4
lO

D÷frosting Your Refrigerator (seeFig,#6)
•For maximum energy efficiency, defrost freezer section
whenever frost accumulates to a thickness of 1/4" or more
on freezer walls. Note that frost tends to accumulate
more during the summer months.
• To defrost, remove the food and ice cube tray from the freezer section.
Make sure the drip tray is under the freezer section and turn off the
thermostat. Defrosting may take a few hours.
• While defrosting, water will accumulate in the drip tray. The drip tray
may also need to be emptied during the defrost process.
Do not leave unattended. (see Fig. 6)
• After defrosting, empty and wipe down the drip tray, as well as the
interior of the refrigerator.
fig.# 6
drip tray
11

Food Storage Information
Fresh Food
• When storing fresh food, which is not prepackaged, be sure to wrap or
store food in airtight and moisture proof material unless otherwise
noted. This will ensure proper shelf life and prevent the transfer of
odors and tastes.
• Wipe containers before storing to avoid needless spills,
• Eggs should be stored in an upright position in their original carton to
maximize shelf life.
• Fruit should be washed and dried then stored in sealed plastic bags
before storing in the refrigerator.
• Vegetables with skins should be stored in plastic bags or containers,
• Leafy vegetables should be washed and drained and then stored in
plastic bags or containers,
• Hot food should be allowed to cool before storing in the refrigeration,
This will prevent unnecessary energy use,
• Fresh seafood should be used the same day as purchased,
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary, Follow the suggestions below for
safe storage:
Chicken
Ground Beef
Cold Cuts
Steaks/Roasts
Smoked/Cured Meats
All others
1-2 Days
1-2 Days
3-5 Days
3-5 Days
7-10 Days
1-2 Days
Norma Operating Sounds You May Hear
• Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off,
12

CMeaning and Maintenance
Warning: To avoid electric shock always unplug your
refrigerator before cleaning, Ignoring this warning
may result in death or injury.
Caution: Before using cleaning products, always read and
follow manufacturer's instructions and warnings to
avoid personal injury or product damage.
General:
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft cloth,
• Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your refrigerator,
Door Gaskets: Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of
gaskets will keep the gasket pliable and assure a good
seal.
13

Power Interruptions
•Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from AC outlet when a power
outage occurs. When power has been restored, replug power cord to
AC outlet. If outage is for a prolonged period, inspect and discard
spoiled or thawed food in freezer and refrigerator, Clean
refrigerator before reusing.
Vacation and Moving Oar÷
•For long vacations or absences, empty food from refrigerator and
freezer, move the temperature DIAL to the OFF position and clean the
refrigerator and door gaskets according to "General cleaning" section.
Prop doors open, so air can circulate inside.When moving always move
the refrigerator vertically. Do not move with the unit lying down. Possible
damage to the sealed system could occur.
14

Refrigerator Does Not Operate
• Check if thermostat control is not in the "OFF" position,
• Check if refrigerator is plugged in.
• Check if there is power at the ac outlet, by checking the circuit breaker.
Food temperature appears too warm
• Frequent door openings.
• Allow time for recently added warm food to reach fresh food or
freezer temperature,
• Check gaskets for proper seal,
• Adjust temperature control to colder setting.
Food temperature is too cold
• If temperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust.
Refrigerator runs too frequently
• This may be normal to maintain constant temperature during
high temperature and humid days.
• Doors may have been opened frequently or for an extended
period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build up on interior or exterior
of the refrigerator:
• This is normal during high humidity periods,
• Prolonged or frequent door openings,
• Check door gaskets for proper seal.
Refrigerator has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
Refrigerator door does not shut properly:
• Level the refrigerator.
• Re-align refrigerator door,
• Check for blockages e.g, food containers, crisper cover,
shelves, bins etc,
15

What is covered and for how
long?
This warranty covers all defects in
workmanship or materials for a period
of:
12 months labor (carry in only)
12 months parts
5 years sealed system
The warranty commences on the date
the item was purchased and the original
purchase receipt must be presented to
the authorized service center before
warranty repairs are rendered.
EXCEPTIONS: Commercial or
Rental Use warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
1. The mechanical and electrical parts,
which serve as a functional, purpose
of this appliance for a period of 12
months. This includes all parts except
finish, and trim.
2. The components of the sealed system
e.g. hermetic compressor, condenser
and evaporator from manufacturing
defects for a period of 5 years from
the date of purchase. Any damages
to such components caused by
mechanical abuse or improper
handling or shipping will not be
covered.
What will be done?
1, We will repair or replace, at our
discretion any mechanical or
electrical part which proves to be
defective in normal usage during the
warranty period so specified,
2, There will be no charge to the
purchaser for parts and labor on any
covered items during the initial 12
month period. Beyond this period
only parts are covered in the
remaining warranty. Labor is not
provided and must be paid by
the customer.
3. Contact your nearest authorized
service center. For the name of the
nearest service center please call
1-877-337-3639
THIS WARRANTY COVERS
APPLIANCES WITHIN THE
CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA.
IT DOES NOT COVER
THE FOLLOWING:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident,
alteration, lack of proper care and
maintenance or incorrect current or
voltage.
Damage from other than household use.
Damage from service by other than an
authorized dealer or service center.
Decorative trims or replaceable
light bulbs.
Transportation and shipping.
Labor (after the initial 12 months),
THIS LIMITED WARRANTY IS GIVEN IN
LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR, INCLUDING THE
WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE
The remedy provided in this warranty is
exclusive and is granted in lieu of all
other remedies.
This warranty does not cover incidental
or consequential damages, so the above
limitations may not apply to you. Some
States do not allow limitations on how
long an implied warranty lasts, so the
above limitations may not apply to you,
This warranty gives you specific legal
rights, and you may have other rights,
which vary, from state to state.
Haler America
New York, NY 10018
16

INSTRUCCIONESPRECAUTORIAS
Lea todas las instrucciones antes de utilizar este aparato.
Cuando utilice este aparato, siempre ejerza las precauciones
de seguridad basicas, incluyendo las siguientes:
1) Utilice este aparato exclusivamente para su uso especificado, segt]n se
describe en esta guia de uso y cuidados.
2) Este refrigerador debe ser instalado adecuadamente siguiendo las
instrucciones de instalacion antes de utilizarse, Observe las instrucciones
para conectarlo a tierra en la seccion de instalacion.
3) Nunca desconecte su refrigerador tirando del cordon electrico. Sujete
siernpre la clavija firmernente y retirela del contacto evitando torcerla.
4) Repare o reemplace inmediatamente cualquier cordon electrico que
rnuestre raspaduras o dahos. No utilice ningt]n cordon que rnuestre
senales de abrasion o grietas en su extension, clavija o terminal
de conexion.
5) Desconecte su congelador antes de lirnpiarlo o antes de hacer cualquier
reparacion. Nota: Si por alguna razdn este producto necesita ser
reparado, recornendarnos fuerternente que la reparacidn se Ileve a
cabo por un tecnico calificado.
6) No ernplee ningt]n aparato electrico o instrurnento punzocortante para
descongelar su refrigerador.
7) Si su antiguo refrigerador no esta siendo utilizado, recomendamos
quitarle las puertas. Esto reducira los riesgos de accidentes infantiles.
8) Una vez que su refrigerador se encuentre operando, no toque las
superficies frias en el cornpartirnento del congelador, especialrnente
si sus rnanos se encuentran ht]rnedas o rnojadas. Su piel puede
adherirse a estas superficies extrerrnadarnente frias.
9) No congele alirnentos que hayan sido previarnente descongelados en su
totalidad. El Departarnento de Agricultura de los Estados Unidos, en su
Boletin de Casa y Jardin No. 69 indica que: "...Usted puede volver a
congelar, sin correr ningt]n riesgo, aquellos alirnentos congelados que
hayan sido descongelados y que at]n contengan cristales de
hielo o que at]n se encuentren frios con una ternperatura por
debajo de los 4,5°C (40°F) ''.

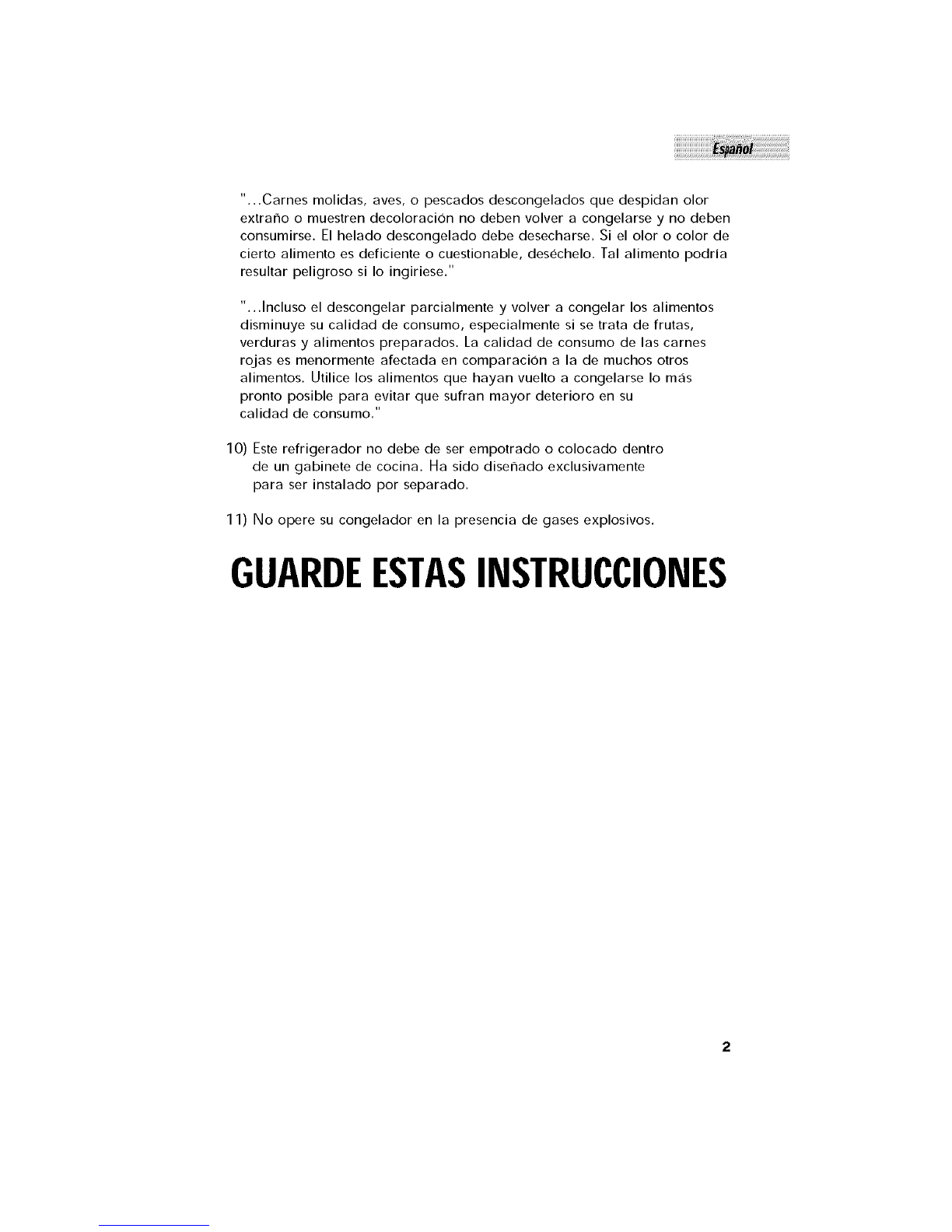

"...Carnes rnolidas, aves, o pescados descongelados que despidan olor
extrano o rnuestren decoloracion no deben volver a congelarse y no deben
consurnirse. El helado descongelado debe desecharse, Si el olor o color de
cierto alirnento es deficiente o cuestionable, desechelo. Tal alirnento podria
resultar peligroso si Io ingiriese,"
"...Incluso el descongelar parcialmente y volver a congelar los alimentos
disrninuye su calidad de consurno, especialrnente si se trata de frutas,
verduras y alirnentos preparados. La calidad de consurno de las carnes
rojas es rnenorrnente afectada en cornparacion a la de rnuchos otros
alirnentos. Utilice los alirnentos que hayan vuelto a congelarse Io rnas
pronto posible para evitar que sufran mayor deterioro en su
calidad de consurno."
10) Este refrigerador no debe de ser empotrado o colocado dentro
de un gabinete de cocina, Ha sido disenado exclusivarnente
para ser instalado por separado.
11) No opere su congelador en la presencia de gases explosivos.
GUARDEESTASINSTRUCCIONES

PELIGRO
Existe el riesgo de que los ni_os puedan quedar atrapados
dentro. Antes de tirar su refrigerador o congelador, quite las
puertas. Deje los anaqueles en su lugar para que los ni_os
no puedan entrar facilmente en el interior."
De acuerdo a UL 250 Estandardes
Oracias por utilizar nuestro
producto Haier. Este sencillo
manual le orientara con respecto al
mejor uso que puede darle a
su refrigerador,
Recuerde tomar nota del modelo y
nt]mero de serie. Ambos se
encuentran impresos en una
etiqueta en la parte posterior del
refrigerador.
Numero de Modeto
Numero de 5erie
Fecha de Compra
Agrafer le ticket de caisse au guide. II devra _tre presente pour tout
service apres-vente sous garantie.
