Please read this Operation Manual carefully before using the appliance.
Keep this Manual for future reference.
See the physical object for the appearance, color and the door pattern.
The instructions shall include the substance of the following:
This appliance is intended to be used in household and similar applications
such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

Safety instructions
Intended use: This appliance has been designed exclusively for use in dry-interior
households. Every other use is improper and may lead to injuries.
Hold the plug, not the cable, when unplugging the refrigerator.
Ensure that the power cable is not trapped by the refrigerator. Do not step on the
power cable.
Take care not to roll over the power cable or damage it when moving the
refrigerator.
When the power cable is damaged or the plug is worn, turn off the refrigerator and
consult an authorized service agent for replacement.
,
turn off the valve of the leaking gas, open the doors and windows and do not unplug
a plug in the power cable of the refrigerator or any other appliance.
Do not store medicines, bacteria or chemical agents in the refrigerator. This
refrigerator is a household appliance. It is not recommended to store materials that
require strict temperatures.
the refrigerator, to avoid personal injury caused by falling or electric shock caused
by contact with water.
Do not pull on the bottle racks in the door. The door may be puled askew, the
bottle rack may be pulled away, or the refrigerator may topple. Do not step on the
freezer storage compartment door or cabinet when putting in or taking out food.
Do not touch the inside surface of the freezer storage compartment when in
operation, especially with wet hands,as your hands may freeze onto the surface.
Close the doors only with the handles. The gap between the doors and the
cabinet is very narrow. Do not extend hands in these areas to avoid pinching
children standing within your range of door movement.
refngerator when cleaning, nor place the refrigerator in a damp area or location
where it might be splashed with water.
Disassembly and alteration of the refrigerator must be authorized. Any agitated
movement of the refrigerator may damage the cooling pipes. Property damage
or personal injury may result. Repair of the refrigerator must be performed by
professional personnel.
Never store bottled beer or beverages in the freezer, as these wil burst during
freezing.
refrigerant refrigerator
or

Safety instructions
Unplug the refrigerator in the event of a power interruption or before cleaning.
Allow at least 5 minutes before restarting the refrigerator, as frequent starting may
damage the compressor.
When discarding the refrigerator, to avoid the accidental trapping of children,
please remove the refrigerator doors, door seals and shelves and put them in an
appropriate place.
Do not use electrical devices inside the food storage comportments of the
appliance, unless they are of the type recommended by the manufacturer.
This appliance can be used by children age from 8 years and above.
Do not store too much food in the freezer storage compartment to avoid longer
operation time of the compressor or falling food. It is recommended not to exceed
the load line of the drawers. The total weight of the food should not exceed 30 kg.
To prevent the food from falling on the ground, do not pull open the freezer drawer
too strongly or at an angle.
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Children should be supervised to ensure that they do not play with the appliance.

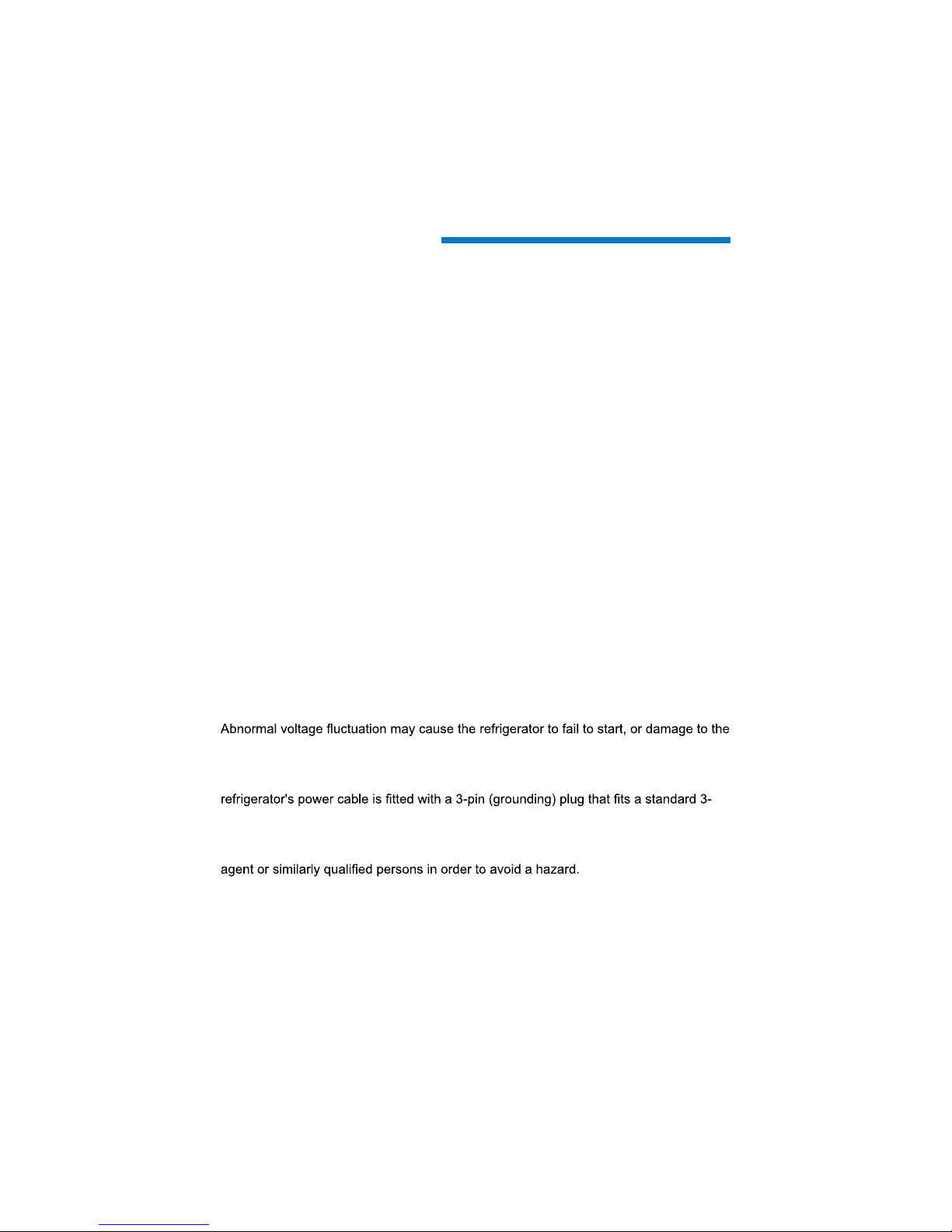

SAFETY INSTRUCTIONS FOR INSTALLATION
Never place the refrigerator in a damp area or location where it might be splashed with
water. Clean and dry water splashes and stains with a soft clean cloth.
The refrigerator should be placed in a well-ventilated place not far from a drink water
source. Ensure a space of at least 20 cm above and 5 cm around the refrigerator .
Keep ventilation openings in the appliance or in the in-built structure clear of
obstruction, The refrigerator is operated by a 220-240 VAC/50 Hz power supply.
temperature control or compressor, or there may be an abnormal noise when operating.
In such case, an automatic regulator shall be mounted.
A dedicated socket with reliable grounding must be provided for the refrigerator. The
pin (grounding) socket. Never cut off or disassemble the grounding.
The appliance must be positioned so that the plug remains accessible.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
Do not damage the refrigerant circuit.
100cm cavity would be required.

1
Product Features
Full width shelf design, more convenience for storing and taking food.
Fuzzy Function
The refrigerator can be automatically adjusted to the best refrigerating condition
according to the chamber temperature and ambient temperature .
Super large and super luxurious design
The refrigerator has super large capacity, super large refrigerating and freezing
chamber, as well as super luxurious interior design.
Fluoride-free, frostless, complete air cooling refrigeration, deep cooling,
and rapid freezing.
Defrost and pre-refrigeration
The refrigerator will make judgment on the temperature in the refrigerator before
defrosting, and the compressor will automatically and rapidly refrigerate after
defrosting.
Equipped with condensing unit, heat dissipation by blower,better
refrigeration effect, and long service life of compressor.
Open door alarm, touch-sensitive button, large-screen LED display.
Drawers have track way. They can be pushed and pulled smoothly.
Deodorant Brick
It separates the refrigerating chamber and freezing chamber, avoiding tainting.

2
Name of Components
Refrigerating Chamber
Freezing Chamber
Refr. Light
Refr. Shelf
Door Bin
Crisper
Full Width.
Drawer Cover
Full Width
Drawer
Ice Maker
Freezer Small
Drawer
Handle
Board
Freezer Large
Drawer
Decoration
Strip
Door Bin
Vertical Beam
Crisper Cover

3
Safety Notice
Dear user,
Thank you for using Haier Refrigerator! For your better understanding of the
instruction and better use of the product, we explain the signs appeared in the
instruction as follows:
Prohibit
All action with this sign is prohibited; it may cause product damages or
endanger the personal safety of users.
Warning
All action with this sign is related to the safe use of products and the
personal safety of users. Operation must follow the requirement strictly;
otherwise it may cause product damages or endanger the personal safety
of users.
Caution
Any action with this sign shall be paid more attention. Otherwise it will
cause product damages and other damages due to improper operation.
The refrigerator use AC 220-240V/50Hz
power supply.
Independent dedicated socket must be
used and reliably grounded.
The power cord of the refrigerator has three-
pin plug (for grounding) which complies with
standard. In no circumstances the third pin
of the power cord for grounding resected or
dismantled. After the refrigeratoris installed,
the plug shall be accessible to facilitate plug
in and out.
Warning! The plug of power cord shall be
When the power cord is damaged
When the power cord is damaged or the plug
is worn, do not use. If this occur,please contact
local customer servce.
Detach the power plug when:
1. Before cleaning and maintenance, please
detach the power plug of the refrigerator.
2. When replacing damaged lighting devices,
the power plug of the refrigerator shall be
detached to prevent electric shock.

4
Safety Notice
Do not damage the power cord
1. Do not pull the power cord to disconnect
the plug of refrigerator. The plug shall be held
tightly and directly detached from the socket.
2. The body of refrigerator shall not press on
the power cord and do NOT stamp on the
power cord.
3. Please be careful when moving the
refrigerator from the wall, do not press or
damage the power cord.
It Is recommended not to place appliance
such as power socket, regulated power
supply, microwave oven on the refrigerator,
and do not use electrical appliances Inside
the refrigerator to avoid electromagnetic
interference or other accident.
Do not store or use gasoline or other combust-
ibles around the refrigerator to avoid fire.
gas leaks
1. Close the valve which leaks the gas,
2. Open house door and window,
3. Do not unplug/plug the power plug of
refrigerator or other electrical appliance.
After the refrigerator is in operation, do
not touch the cold surface in the freezing
chamber, particularly when hands are damp
or wet. Skin may adhere to these extremely
cold surfaces.

5
Safety Notice
When open and close the door,the handle
shall be hold to open and close. The space
between the doors and between the doors
and the body Is small. Cautions shall be
made not to put your hands In these spaces
close the doors, do not let children approach
to avoid hurt the children.
refrigerator, and do not place the refrigerator
at wet place or the place which is easy to
be splashed with water to avoid the impact
to the electric insulation performance of
therefrigerator.
The refrigerator shall be placed far from heat
source and avoid direct sunshine to prevent
from impact to performance.
Do not place the refrigerator at damp or
wet place and the place which is easy to be
splashed with water. The splashed water
and dirt shall be wiped out with soft cloth in a
timely manner to avoid rustiness and impact
to electric insulation.
Dismantle and alter the refrigerator is
prohibited, and the refrigerating pipeline shall
not be damaged. The maintenance of the
refrigerator must be carried out by professional
personnel.
When the refrigerator falls into disuse, please
remove the door, door seal, and shelves, and
place them in proper location to avoid children
entering into the refrigerator and causing
accident.

6
Safety Notice

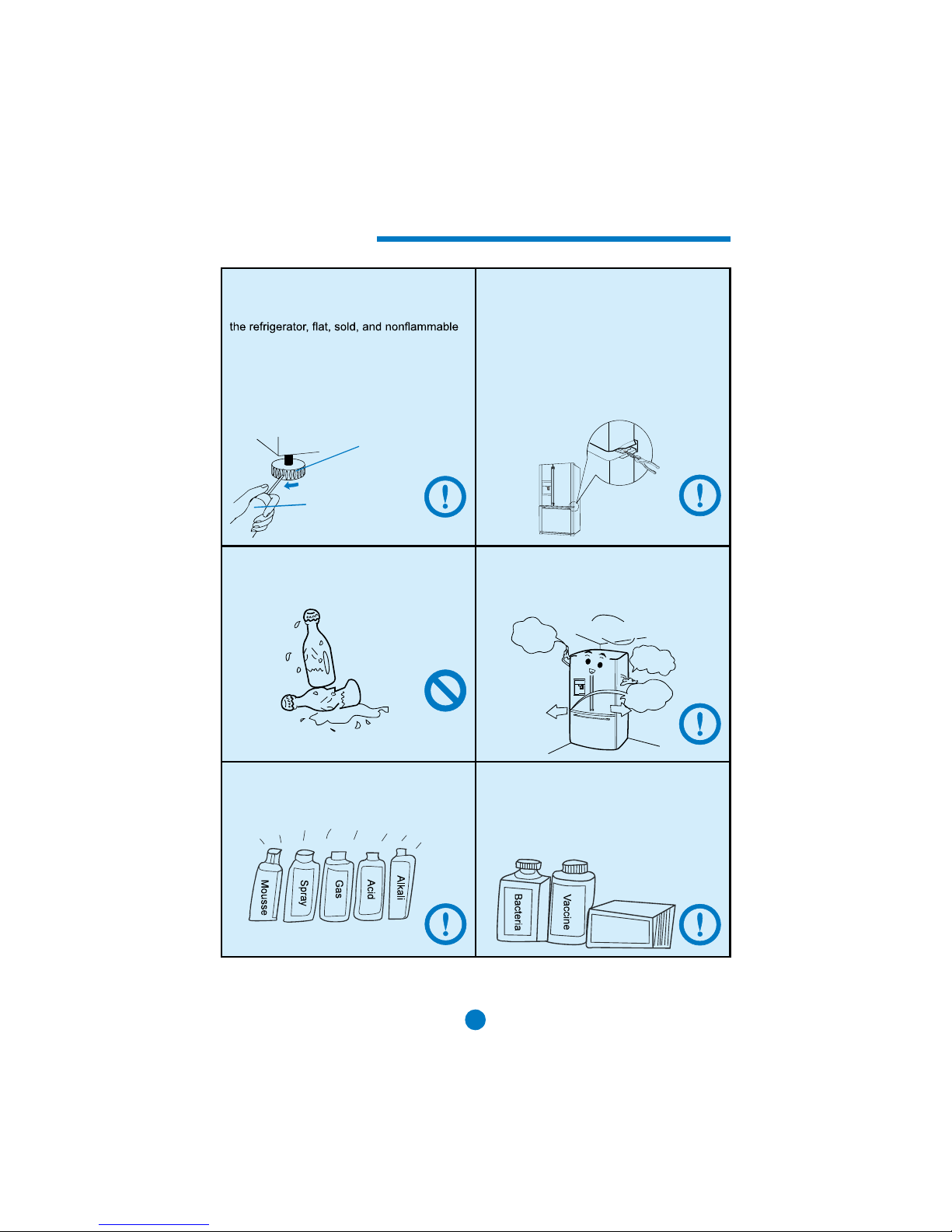

Leveling Your Refrigerator
solid ground. If it's necessary to block up
cushion block shall be used. Do not use
the package foam to block up. Adjustable
leveling legs can be adjusted by turning
them clockwise (as shown by the arrow) to
raise your refrigerator or by turning them
counterclockwise to lower your refrigerator if
your refrigerator is not leveled.
Door Alignment
If the two doors of refrigerating chamber is not
aligned, please align the doors as following:
1. Use one hand to raise the door at the hinge
in the middle.
2. The other hand insert a spacer with pliers,
as shown.
3. Insert remained spacers till the doors is
aligned. (3 cramp rings are provided with the
product)
Do not put bottled beer or drinks into the
freezing chamber to avoid frost cracking.
The refrigerator shall be placed in well-
ventilated place. Clearance of 20cm or above
shall be left around the refrigerator including
the back.100cm cavity would be required.
Never place combustibles, explosives,highly
corrosive acid/alkali in the refrigerator.
The product is household refrigerator.
According to the national standard, household
refrigerator is only suitable for food, cannot
be used for other purpose, such as storing
blood, chemicals, cosmetics, medicine, and
biological products.
Alignment
Leveling Leg
20cm or
above to
top
Distance
5cm
or above to
back
5cm or
above to left
and right
Flat Screwdriver
Chemical
agent
The Refrigerator shall be placed on flat and

7
Disassembly and Assembly of Door
Caution
Before disassembling and assembling the doors, please remove food on
the bottle seat,and remove the bottle seat, and then cut the power, shutdown
the water source to avoid personal injury, product or property loss. When
install and dismantle the doors, please contact the servicer centre of Haier.
Prevent children or pets from asphyxia due to being trapped in the refrigerator.
Do not let them play in the drawer.
Refr. Right Door Disassembly and Assembly
1.
hinge cover with screwdriver, and then
remove the upper hinge cover.
3. Raise the right door and remove proper
location.
2.
right hinge with hex driver, and move
forward the upper right hinge and the door,
and then remove right upper hinge.
4. Middle hinge may be removed if necessary.
5. The door can be installed by reverse steps.
Refr. Left Door Disassembly and Assembly
1.
hinge cover with screwdriver, and then
remove the upper hinge cover.
2. Disconnect the wire terminal, and separate
the connectors on the upper right corner
at the back. Remove humidity sensor, and
then remove the screw with hex driver.
Move forward the hinge, water pipe, and
door, and then remove the upper left hinge.

8
Disassembly and Assembly of Door
Refr. Left Door Disassembly and Assembly
Preparation
1. Remove all package
2. Check out the accessories and materials
Check out the items in the box according to the packing list. It varies, please make
query to the seller.
3. Place your refrigerator into proper location
4. It is better to clean your refrigerator before use (see section leaning for details)
5. Standing
After leveling and cleaning, the refrigerator shall be kept standing more than 6 hours
before connecting to power supply to ensure the normal running of the refrigerator.
3. Remove the left door and place It to proper
location.
4. Middle hinge may be removed if necessary.
5. The door can be installed by reverse steps.

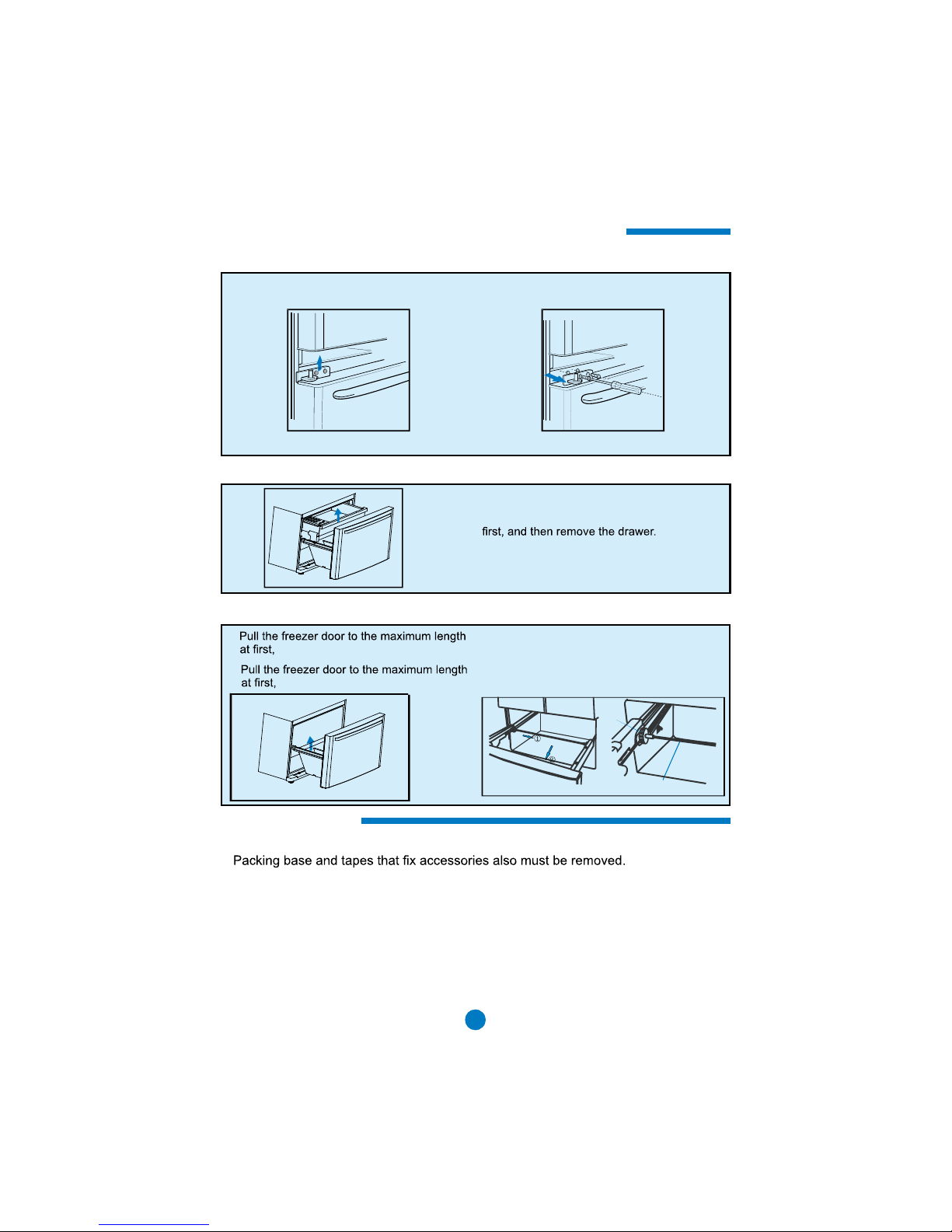

Disassembly and Assembly of Ice Receiving Drawer
1. Pull the drawer to the maximum length at
2. The Ice Receiving Drawer can be Install by
reverse steps.
1. Follow the direction of the arrow 1, pull
out the gear at the horizontal station.
2. Follow the direction of the arrow2, bend
pole of gear, and then splite.
Disassembly and Assembly of Freezer Drawer
1.
and then remove the drawer.
2.
and then remove the drawer.
Gear
Pole of gear
Let the refrigerator run for 6 hours before loading with food.

9
6. Install the bottom decorative strip
Open the door of refrigerating chamber, take out the decorative strip from the
(2 screws are provided with the product)
Caution
Please wear gloves when dismantle the bottom decorative strip and adjustable
leveling legs to avoid injury to your hands.
7. Disassembly and Assembly of the Handle of Refr. Door
door shell (Fig. 1). Take out one refr. handle, align the hole on the handle head to the
connector and install the handle to the connector. Take out inside-hexagonal spanner,
and use it to place the cap screw tight on the handle head (Fig. 2).
The handle can be dismantled by reverse steps.
8. Disassembly and Assembly of the Handle of Freezer Door
door shell (Fig. 3). Take out one freezer handle, align the hole on the handle head
to the connector and install the handle to the connector. Take out inside-hexagonal
spanner, and use it to place the cap screw tight on the handle head (Fig. 4).
The handle can be dismantled by reverse steps.
Preparation
(Fig. 1)
(Fig. 2)
(Fig. 3) (Fig. 4)
lace
place

10
Connecting the Water Supply Line
Cut the water pipe according to need and avoid bending the water pipe too much.
Usually, the pipe length should be less than 5m. If the water pipe is too long, the cold water
Insert one end of the water supply pipe into the water inlet on the rear of the appliance (Fig.4-12).
Connect the other end into the plastic adaptor. Screw the adaptor onto a suitable 1/2" BSP
connector water outlet.
to run until it is clear.
The water pipe cannot withstand heat. Keep it away from all heat sources.
from the outlet.
It cannot sterilise or destroy anything, so be certain to connect the water pipe to a drinkable water
source.
After the refrigerator is installed, put the water supply pipe in a suitable place to prevent
crushing and damage.
(Fig. 4-12)
Water pipe
The water pressure should be between 0.l5~0.6MPa for correct operation of the cold water
dispenser .

11
Getting Started
1. Power On
Immediately after the power on, the temperature is displayed as the actual temperature of the
refrigerating and freezing chamber. At this time, the set temperature for refrigerating is 5t, the set
temperature for freezing is -IffC, the buttons are in unlocked stutus.
refrigerator will run under the settings set at the last time. (See Power Outage Memory Function
for details)
2. Operation Mode of the Refrigerator
Caution
Within the applicable temperature range of the refrigerator, as long as you have
selected the Fuzzy Mode, you will not need to adjust other settings to maintain
the best freezing effect regardless of the ambient temperature changes.
You may select one of the two modes bellow to set your refrigerator as needed.
(1) Fuzzy Mode: We recommend using the Fuzzy Mode, unless there is a special need to use
otherwise. (See Fuzzy Function Setting for details)
(2) Manual Mode: The temperature can be set by using temperature control button. (See
Temperature Setting and Adjustment for details)
3. Put the food into your refrigerator
cooled At this time, food can be put into the refrigerator.
Note: small freezer drawer may be removed before putting food into
large freezer drawer in order to put more food.
4. If you have lots of fresh food (such as fresh meat) put
intoFreezing Chamber, please start Super Freezing function
12 hour before.
Caution
When the temperature setting changes, the inner temperature will be balanced
after a while.The length of the period depends on the changes made to the
temperature setting, the ambient temperature, door-open times, and the food
stored in the refrigerator.

12
Product Function
A. Function Selection Select Super Freezing,
Fuzzy, Holiday and Lock.
B.
the selected function;
C. Freezing Temperature Control Button:adjust
freezing temperature;
D. Refrigerating Temperature Control Button:
adjust refrigerating temperature;
E. Freezing Temperature Display Icon F. Refrigerating Temperature Display Icon
H. Holiday Icon I. Fuzzy Icon
K.
Super Freezing Icon Lock Icon
1. Holiday Function Setting
In the unlocked status, press "Function Select Button", select the Holiday function, at this time
displays, and enter the Holiday function; If you want to exit the Holiday function, please press
f, and
the Holiday function is exited.
Caution
Before activating the Holiday function, please empty the refrigerating chamber to
avoid food spoilage.
2. Fuzzy Function Setting
In Fuzzy status, refrigerator will adjust the temperature setting automatically according to the
ambient temperature and the temperature within the refrigerator.
No manual control is required. In the unlocked status, press "Function Select Button", select the
the Fuzzy Icon will display and enter the function of Fuzzy; If you want to exit the Fuzzy function,
please press the "Function Select Button", select the Fuzzy function, the "Fuzzy Icon" is still
f and the
Fuzzy function is exited.
J
J.
K
will
will
switch
switch

13
Product Function
3.
4.
Super Freezing Function Setting
Super Freezing function is designed to maintain the nutritional value of food inside the freezing
chamber, it will completely freeze the food in a short time. In the unlocked status, press "Function
Select Button", select the Super Freezing function, at this time the "Super Freezing Icon" is
enter the Super Freezing function; If you want to exit the Super Freezing function, please press
will off, and the Super Freezing function is exited.
Caution
Select Super Freezing functions in Fuzzy status, the Fuzzy status will exit
automatically; additionally, select Fuzzy function in Super Cooling or Super
Freezing status, the Super Freezing Caution status will exit automatically.
5.
Lock/Unlock Functions Setting
In unlocked status, press "Function Select Button", select the Lock function, the "Lock Icon" blinks,
Lock Icon will be off and the locked status is exited. In the locked status, the functional controls
of refrigerating temperature, freezing temperature,Holiday, Fuzzy,and Super Freezing are not
available.
Temperature Setting and Control
(1 ) Controi of Freezing Temperature
In the unlocked status, press "Freezing Chamber Temperature Control Button", the original
freezing chamber setting temperature start to blink. Enter freezing chamber temperature setting
status, since then for each single press of this button, the freezing chamber setting temperature is
displayed in cyclic form by "-14, -15, -16, -17,-18,-19, -20, -21, -22", if no button-pressing operation

14
Product Function
(2) Control of refrigerating Temperature
In the unlocked status, press" Refrigerating Temperature Control Button ", the original refrigerating
chamber setting temperature start to blink. Enter refrigerating chamber temperature setting status,
since then for each single press of this button, the refrigerating chamber setting temperature is
displayed in cyclic form by "09, 08, 07, 06, 05, 04, 03, 02, 01", if no button-pressing operation is
(3) ln the status of Holiday, Fuzzy the refrigerating temperature
control is not available; in Fuzzy and Super Freezing status, the freezing temperature control is not
available.
7. Alarm Function
Open-door Alarm Function. When the refrigerator door is left open fora long-term period or not
closed in tight, the refrigerator will sound a buzzer in a time interval to reminding you close the
door immediately.
8. Energy-saving Display Control Function
30 seconds after button-pressing operation, display screen backlight will be off, this could save
electric energy. When pressing any key or opening the door, resume the display panel lighted
status. The corresponding press-button light will activate for button-pressing operation
9. Power Outage Memory Function
When refrigerator has a power outage, the instantaneous working status during the outage is
memorized. After the power is on, the refrigerator will still run according to the setting tags and
function states before the power outage.
Caution
The Lock function is not memorised. The refrigerator is at unlocked status when
the power is on.

15
How to save energy
(1) lnstall the appliance in a cool, well ventilated room, far from a heat source (radiator, cooker,
etc.), not in direct sunlight.
(2) The time and frequency for opening of the doors should as short as possible, For example,
store food in an organized way will reduce your time when you take something out from the
appliance.
(3) Store the food covered or packaged.
(4) Let the hot food or drinks to cool down before placing them in the appliance.
(5) When thawing frozen food, place it in the refrigerator compartment. You can use the low
temperature of the frozen food cool the food in the refrigerator compartment.
(6) Do not store too much food in the appliance, this may block air circulation.
(7) Temperature setting , the lower the temperature set in the compartment, the higher the energy
consumption. So it is better to set a higher temperature if your food storage condition is optimal.
(8) Keep the large freezing drawer closed, take out the small freezing drawer, and then take out
and put the food in the small freezing drawer; in this way, larger using space can be achieved and
power consumption of refrigerator can be reduced.
About Refrigerating Chamber
Please put the frequent use or short-term storage
food into refrigerating chamber
Adjusting the temperature level can maintain the average
temperature between 0-10 "C For most of the areas in the
refrigerating chamber, but it can not make long-term preservation
for food, and the refrigerating chamber can only be used as a
short-term storage chamber.
The height of shelf is adjustable
Adjust the shelf to a suitable height for food storage. Please
remove the shelf when adjusting the height. To remove :
raise the shelf in upwards incline direction, then lift it up,
and the shelf is removed. When placing it, push-in the joint
along the pad tolower front-end of the shelf and then insert into
the groove.
Caution
Make sure the both ends of shelf are on level position. If it can not be level,
the shelf may fall or the food may drop out.
Lift up and take out Upwards
incline
removing

16
About Refrigerating Chamber
The Remove of Crisper Cover
First take out the Crisper Cover and put it to a suitable position,
then uplift the back-end of the cover in a direction(l), then pull it
out in a direction (2).
Full Wid. Drawer
1. Left slide the moisture control knob to increase the cool air
access to the full wid. drawer, so a relatively low temperature is
kept in the full wid. Drawer.
2. Right slide the moisture control knob to decrease the cool air
access to the full wid. drawer, so a relatively high temperature is
kept in the full wid. drawer.
Storage area recommendation for
different kinds of food
Due to the cold air circulation inside the
refrigerator, there are temperature variations at
different parts inside the refrigerator, so different
kinds of food should be placed in different
temperature zones.
(1) eggs, butter and cheese, etc
(2) zip-top can, tin can and seasoning, etc
(3) beverages and other kinds of bottled foods
(4) pickled food, tin can, etc
(5) meat products and snack foods, etc
(6) wheaten food, noodle, tin, milk and tofu, etc
(7) fruits, vegetable and salad, etc
(8) cooked meat and sausages, etc
Refrigerating Chamber Light and Its
Replacement
Parameters for each light: DC12V, 1W The light is LED
light with low energy consumption and long operation
life. If any unusual activity occurres, do not remove it at
your own discretion, please contact after-sale service
personnel immediately for a replacement.
Temperature
Control Panel
