Haier HTF-452WM7 User manual

GB
User Manual
Refrigerator-Freezer
HTF-452WM7

Thank You
GB
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
oce.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
Risk of injury or suocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of
the refrigerant circuit is not damaged before being properly disposed of. Disconnect
the appliance from the mains supply. Cut o the mains cable and dispose of it. Remove
the trays and drawers as well as the door catch and seals, to prevent children and pets
to get closed in the appliance.
2

GB
Content
Safety information .......................................................................................................................... .4
Intended use..................................................................................................................................... .8
Product description........................................................................................................................ .9
Control panel...................................................................................................................................10
Use.....................................................................................................................................................11
Equipment .......................................................................................................................................19
Care and cleaning...........................................................................................................................22
Troubleshooting .............................................................................................................................25
Installation........................................................................................................................................28
Technical data .................................................................................................................................31
Customer service...........................................................................................................................32

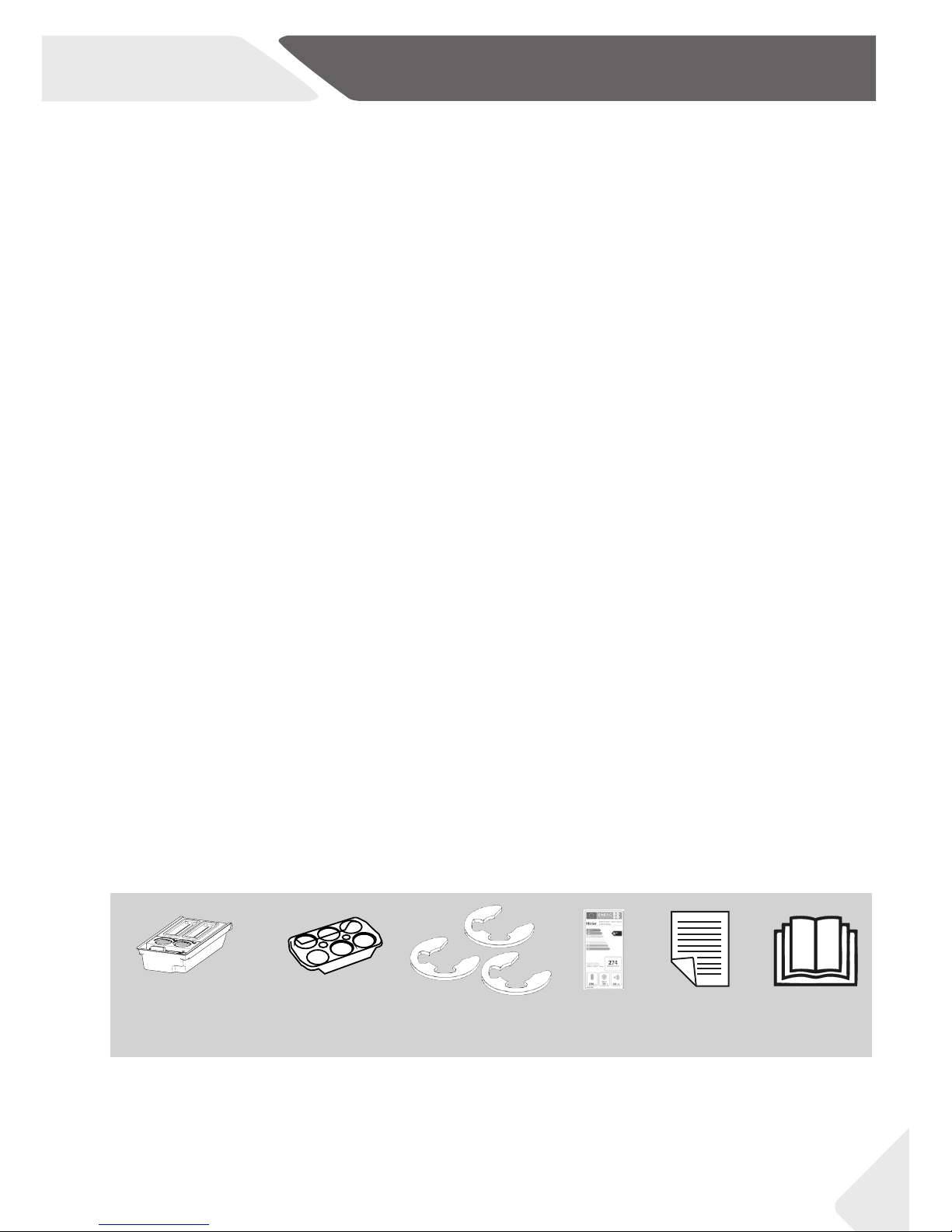

Accessories
Check the accessories and literature in accordance with this list:
Energy-
lable
Egg trays
Ice maker with
ice scoop User
manual
Warranty
card
3 spacers
3

Safety information
GB
Before switching on the appliance for the rst time read the fol-
lowing safety hints!:
WARNING!
Before rst use
▶Make sure there is no transport damage.
▶Remove all packaging and keep out of children´s reach.
▶Wait at least two hours before installing the appliance in order to
ensure the refrigerant circuit is fully ecient.
▶Handle the appliance always with at least two persons because
it is heavy.
Installation
▶The appliance should be placed in a well-ventilated place. Ensure
a space of at least 10 cm above and around the appliance.
▶Never place the appliance in a damp area or location where it
might be splashed with water. Clean and dry water splashes and
stains with a soft clean cloth.
▶Do not install the appliance in direct sunlight or in the near of
heat sources(e.g. stoves, heaters).
▶Install and level the appliance in an area suitable for its size and
use.
▶Keep ventilation openings in the appliance or in the in-built
structure clear of obstruction.
▶Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electri-
cian.
▶The appliance is operated by a 220-240 VAC/50 Hz power sup-
ply. Abnormal voltage uctuation may cause the appliance to
fail to start, or damage to the temperature control or compres-
sor, or there may be an abnormal noise when operating. In such
case, an automatic regulator shall be mounted.
▶Do not use multi-plug adapters and extension cables.
▶Ensure that the power cable is not trapped by the refrigerator.
Do not step on the power cable.
4

GB
Safety information
WARNING!
▶Use a separate earthed socket for the power supply which is
easy accessible. The appliance must be earthed.
Only for UK: The appliance’s power cable is tted with 3-cord
(grounding) plug that ts a standard 3-cord (grounded) socket.
Never cut o or dismount the third pin (grounding). After the
appliance is installed, the plug should be accessible.
▶Do not damage the refrigerant circuit.
Daily use
▶This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶Children shall not play with the appliance.
▶If cool gas or other inammable gas is leaking in the vicinity of
the appliance, turn o the valve of the leaking gas, open the
doors and windows and do not unplug a plug in the power cable
of the refrigerator or any other appliance.
▶Notice that the appliance is set for operation at a specic am-
bient range between 10 and 43°C. The appliance may not work
properly if it is left for a long period at a temperature above or
below the indicated range.
▶Do not place unstable articles (heavy objects, containers lled
with water) on top of the refrigerator, to ovoid personal injury
caused by falling or electric shock caused by contact with water.
▶Do not pull on the door shelves. The door may be pulled slant,
the bottle rack, may be pulled away, or the appliance may topple.
▶Open and close the doors only with the handles. The gap be-
tween the doors and between the doors and the cabinet is very
narrow. Do not extend your hands in these areas to avoid pinch-
ing your ngers. Open or close the refrigerator doors only when
there are no children standing within the range of door move-
ment.
5

Safety information
GB
WARNING!
▶Do not store or use inammable, explosive or corrosive materi-
als in the appliance or in the vicinity.
▶Do not store medicines, bacteria or chemical agents in the ap-
pliance. This appliance is a household appliance. It is not recom-
mended to store materials that require strict temperatures.
▶Never store liquids in bottles or cans (besides high percentage
spirits) especially carbonated beverages in the freezer, as these
will burst during freezing.
▶Check the condition of food if a warming in the freezer has taken
place.
▶Only use drinking water.
▶Do not set unnecessarily low temperature in the refrigerator
compartment. Minus temperatures may occur at high settings.
Attention: Bottles can burst
▶Do not touch frozen goods with wet hands (wear gloves). Espe-
cially do not eat ice lollies immediately after removal from the
freezer compartment. There is the risk to freeze or the forma-
tion of frost blisters. FIRST aid: keep immediately under running
cold water. Do not pull away!
▶Do not touch the inside surface of the freezer storage com-
partment when in operation, especially with wet hands, as your
hands may freeze onto the surface.
▶Unplug the appliance in the event of a power interruption or be-
fore cleaning. Allow at least 5 minutes before restarting the ap-
pliance, as frequent starting may damage the compressor.
▶Do not use electrical devices inside the food storage compart-
ments of the appliance, unless they are of the type recommend-
ed by the manufacturer.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance. Allow at least 5 minutes be-
fore restarting the appliance, as frequent starting may damage
the compressor.
6

GB
Safety information
WARNING!
▶Hold the plug, not the cable, when unplugging the appliance.
▶Do not clean the appliance with hard brushes, wire brushes, de-
tergent powder, petrol, amyl acetate, acetone and similar organ-
ic solutions, acid or alkaline solutions. Please clean with special
refrigerator detergent to avoid damage.
▶Do not scrape o frost and ice with sharp objects. Do not use
sprays, electric heaters like heater, hair dryer, steam cleaners or
other sources of heat in order to avoid damage to the plastic
parts.
▶Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
▶If the supply cord is damaged, it must be replaced by the manu-
facturer, its service agent or similarly qualied persons in order
to avoid a hazard.
▶Do not try to repair, disassemble or modify the appliance by
yourself. In case of repair please contact our customer service.
▶Eliminate the dust on the back of the unit at least once in the year
to avoid hazard by re, as well as increased energy consumption.
▶Do not spray or ush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass shelves with hot water. Sudden tem-
perature change may cause the glass to break.
Refrigerant gas information
WARNING!
The appliance contains the ammable refrigerant ISOBUTANE
(R600a). Make sure the refrigerant circuit is not damaged during
transportation or installation. Leaking refrigerant may cause eye
injuries or ignite. If a damage has occurred, keep away open re
sources, thoroughly ventilate the room, do not plug or unplug the
power cords of the appliance or any other appliance. Inform the
customer service.
In case of eyes get into contact with the refrigerant, rinse immedi-
ately it under running water and call immediately the eye specialist.
7

Intended use
GB
Intended use
This appliance is intended for cooling and freezing food. It has been designed exclusively
for use in household and similar applications such as sta kitchen areas in shops, oces
and other working environments; farm houses and by clients in hotels, motels and other
residential type environments as well as in bed-and-breakfast and catering business. It is
not intended for commercial or industrial use.
Changes or modications to the device are not allowed. Unintended use may cause haz-
ards and loss of warranty claims.
Standards and directives
This product meets the requirements of all applicable EC directives with the correspond-
ing harmonised standards, which provide for CE marking.
CAUTION!
When you close the door, the vertical door strip on
the left door should be bent inside (1).
If you try to close the left door and the vertical door
strip is unbent (2), you should bend it rstly, other-
wise the door strip will hit the xing shaft or right
door. Thus a damage to the door slip or a leak will
occur.
There is a heating thread inside the frame. The tem-
perature of the surface will rise a little, which is nor-
mal and won´t aect the function of appliance.
1.
2.
8

GB
Product description
A: Refrigerator compartment
1 Bottle holder/Door rack
2 Glass shelves
3 Humidity drawer
4 Door strip
5 Ceiling lamp
6 Rating plate
7 Air duct and sensor
(behind panel)
8 Water tank
9 Water dispenser
10 O.K.-temperature indicator (optional)
11 Air duct (behind drawers)
12 My Zone drawer
B: Freezer compartment
13 Ice maker with ice scoop
14 Freezing tray
15 Freezer storage drawer
16 Ceiling lamp
17 Air duct
18 Adjustable feet
Notice
Due to technical changes and dierent models, some of the illustrations in this manual
may dier from your model.
9
will be
modied
A
B
14
12
13
16
3
6
4
15
1
5
7
18
9
10
11
2
1
17
18
9

Control panel
GB
Control panel
A
B
C
D
E
F
G
a
b
c
f
g
d
e
Smart
Before rst use
▶Remove all packaging materials, keep them out of children`s reach and dispose
them in an environmentally friendly manner.
▶Clean the inside and outside of the appliance with water and a mild detergent before
putting any food in it.
▶After the appliance has been levelled and cleaned, wait for at least 2-5 hours before
connecting it to the power supply. See Section INSTALLATION.
▶Precool the compartments at high settings before loading with food. The function
Power- Freeze helps to cool down the freezer compartment quickly.
▶The refrigerator temperature and freezer temperature are automatically set to 5° C
and -18° C respectively. These are the recommended settings. If desired, you can
change these temperatures manually. Please see ADJUST THE TEMPERATURE.
Buttons:
A Fridge selector
B Freezer selector
C My Zone selector
D Power-Freeze selector
E Smart mode selector
F Holiday mode selector
G Panel lock selector
Indicators:
a Temperature fridge
b Temperature freezer
c My Zone mode
d Power-Freeze function
e Smart mode
f Holiday mode
g Panel lock
10

GB
Use
Notice
▶The appliance is preset to the recommended temperature of 5°C (refrigerator) and
- 18°C (freezer). Under normal ambient condition you need not to set a temperature.
▶The presetting mode for the My Zone compartment is “Fruit & Vegetables”.
▶When the appliance is switched on after disconnection from the main power supply, it
may take up to 12 hours for the correct temperatures to be reached.
Empty the appliance before switching o. To switch o the appliance, pull the power cord
out of the power socket.
Notice
The control panel is automatically blocked against
activation if the doors are closed and 30 seconds no
button is pressed. For any settings the control panel
must be unlocked.
Select the working mode
You may need to select one of the following two ways to set the appliance:
1) Smart mode
Under smart mode, the appliance can automatically adjust the temperature setting ac-
cording to the ambient temperature and temperature change in the appliance. If you do
not have any special requirements, we recommend that you use smart mode (refer to
SMART MODE).
11
Switch on /o the appliance
The appliance is in operation as soon as it is connected to the power supply.
When the appliance is powered on for the rst time, the actual refrigerator and freezer
temperatures are displayed. The display will ash. If the doors are closed it will switch o
after 30 seconds.
Maybe the panel lock is active.
Standby-mode
The display screen turns o automatically 30 seconds after pressing a key. The display will
be automatically locked. It lights up automatically when pressing any key or opening any
door (Alarm does not light up the display screen).
Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly
touched with the nger.

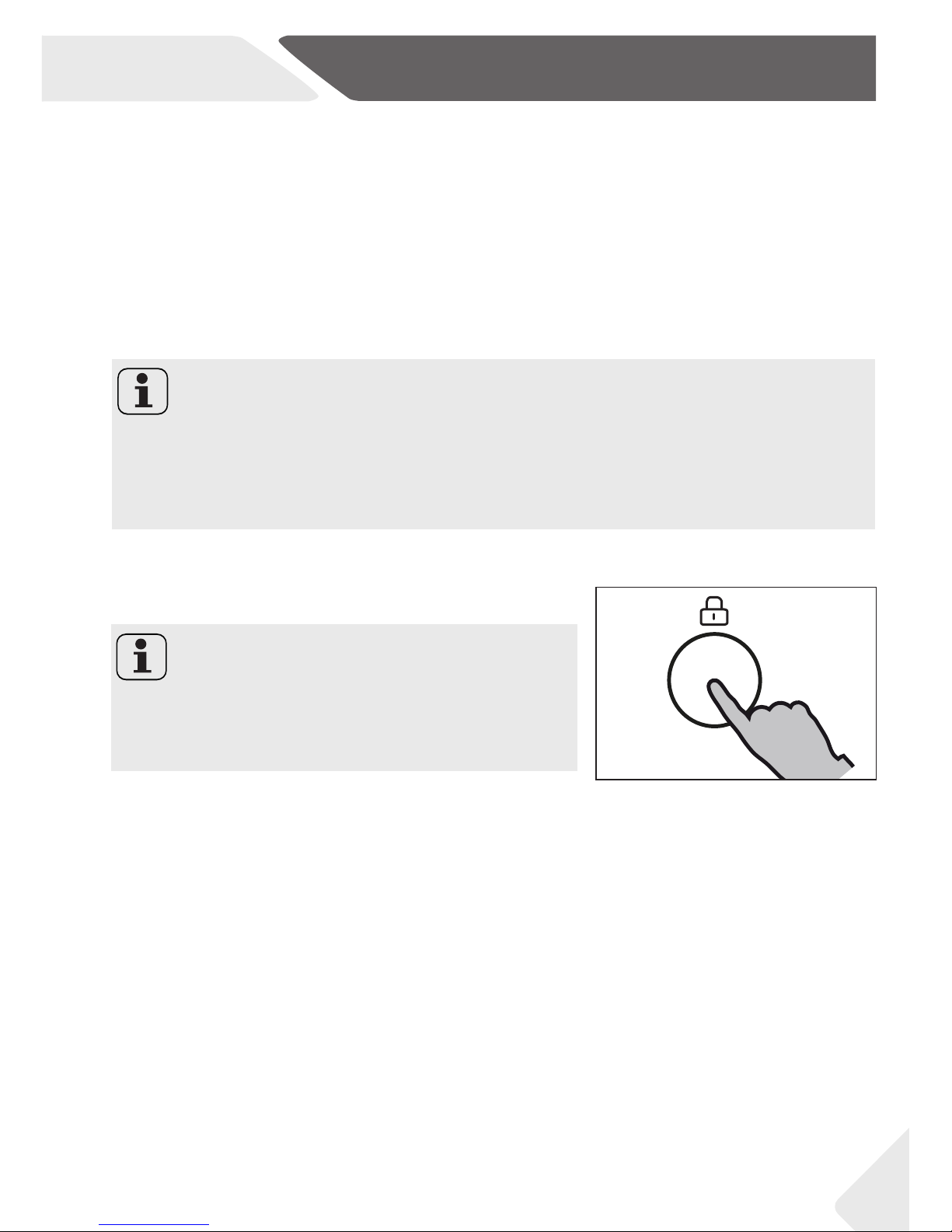

Lock/unlock panel
Lock
Hold 3 Sec.
▶Touch button “G” for 3 seconds to block all panel
elements against activation. The buzzer alarms
and the related indicator “g” is now displayed.
▶For unlocking press again the button.

Use
GB
The indoor temperatures are inuenced by the follow-
ing factors:
▶Ambient temperature
▶Frequency of door opening
▶Amount of stored foods
▶Installation of the appliance
2) Manual adjusting mode:
If you want to manually adjust the temperature of the appliance in order to store a par-
ticular food, you can set the temperature via a temperature adjusting button (refer to
ADJUST THE TEMPERATURE).
12
Adjust the temperature for fridge

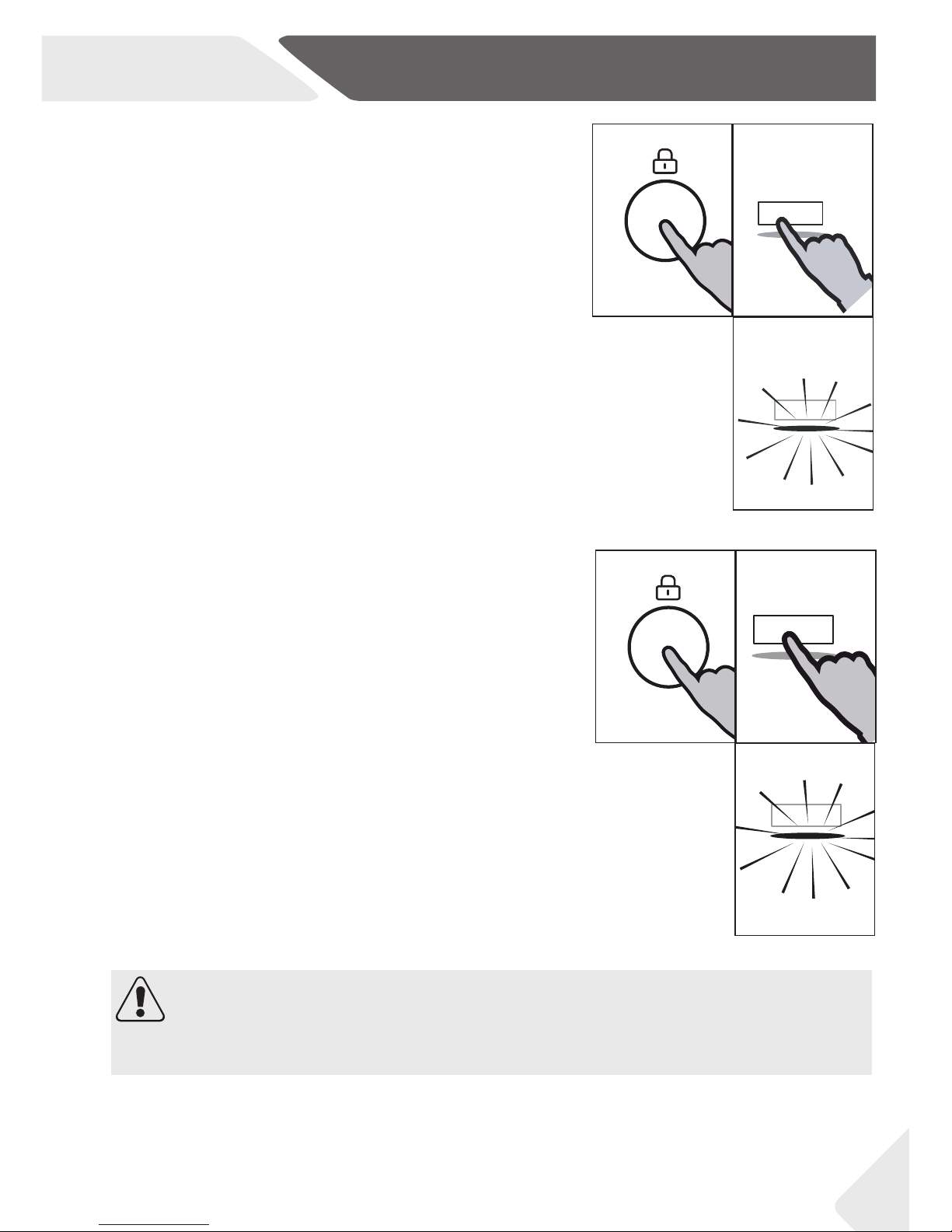

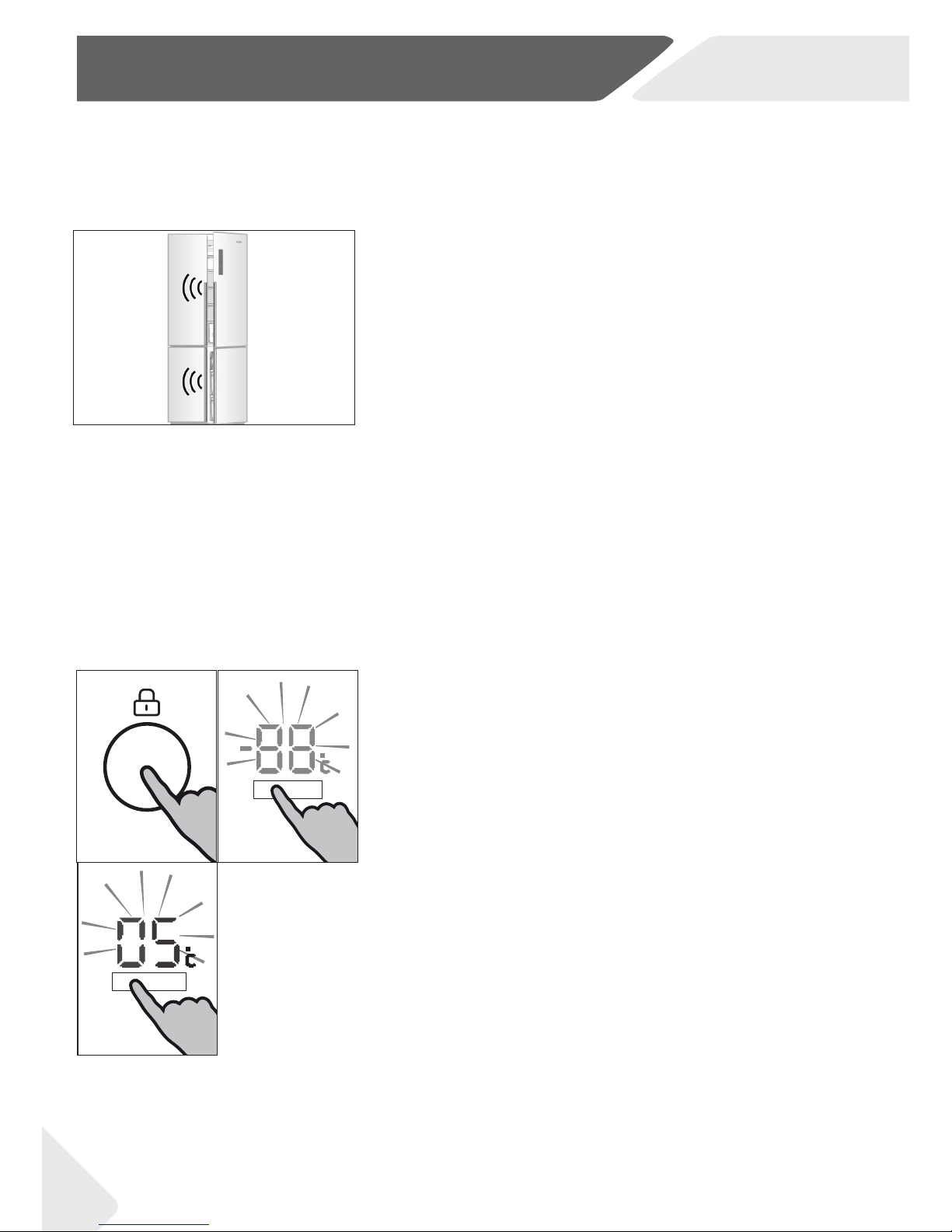

1. Unlock the panel by pressing button “G” if it is
locked.
2. Press button „A“ (Fridge) for select the fridge
compartment. An alarm sounds.
3. Press button “A” to set the refrigerator tempera-
ture.
The temperature increases in sequences of 1°C
from a minimum of 1°C to a maximum of 7°C,
switching to 1°C again when pressing further.
The optimum temperature in the refrigerator is
5 ° C. Colder temperatures mean unnecessary
energy consumption.
If no key is operated in 5 sec., the setting conrms au-
tomatically.
1. 2.
3.
Fridge
Fridge
Lock
Hold 3 Sec.
Door opening alarm
When one of the doors is opened for more than 1 min-
ute, the door opening alarm will sound. The alarm can
be silenced by either closing the door or touching the
control panel. If the door is left open for more than 7
minutes, the light inside the compartment and control
panel illumination will automatically switch o.
Adjust the temperature

GB
Use
Notice
The Power-freeze function will automatically switch o :
▶after 50 hours. The appliance is then operated at the previously set temperature.
▶by setting the Smart mode.
Notice
The temperature in the corresponding compartment cannot be adjusted if any other
function (Power-Freeze, Holiday or Smart mode) is activated or the display is locked. The
corresponding indicator will ash accompanying with a buzzer.
Power Freeze function
Fresh food should be frozen as quickly as possible to
the core. This preserved the best nutritional value, ap-
pearance and taste. The Power Freeze function ac-
celerates the freezing of fresh food and protects the
goods already stored from undesirable warming. If
you need to freeze a large amount of food once, it is
recommended to set the Power Freeze function on
ahead for 24 h before the usage of frozen room. The
function setting temperature is below -24 °C.
1. Unlock the panel by pressing button “G” if it is
locked.
2. Press button “D” (Power-Frz.).
3. Indicator “d” illuminates and the function is acti-
vated.
By repeating the above steps or selecting the smart
mode this function can be switched o again.
Power Frz.
3.
Lock
Hold 3 Sec.
1.
Power Frz.
2.
13
Adjust the temperature for freezer
1. Unlock the panel by pressing button “G” if it is
locked.
2. Press button “B” (Freezer) for select the freezer
compartment. An alarm sounds.
3. Press button “B” (Freezer) to set the freezer tem-
perature.
The temperature increases in sequences of
1°C from a minimum of -15°C to a maximum of
-24°C, switching to -15°C again when pressing
further.
The optimum temperature in the freezer is -18°C.
Colder temperatures mean unnecessary energy
consumption.
If no key is operated in 5 sec., the setting conrms au-
tomatically.
2.
Freezer
3.
Freezer
1.
Lock
Hold 3 Sec.

Use
GB
Notice
▶Due to dierent water contents of meat, some meat with more moisture will be fro-
zen at temperatures lower than 0°C. So “immediately cut” meat should be stored in
My-Zone box, with temperatures min. 0°C.
▶Cold-sensitive fruits like pineapple, avocado, bananas, grapefruits and vegetables
such as potatoes, aubergines, beans, cucumbers, zucchini and tomatoes and cheese
should not be stored in the My Zone box.
▶When you chose “0°C Fresh” or “Low Humidity”, set the temperature of the refrige-
rating compartment in the middle level (5°C), in order to preserve your food in the
optimal storage environment.
14
My Zone drawer
The fridge compartment is equipped with a My Zone
drawer. In accordance with the food’s storage de-
mands, the most suitable temperature can be se-
lected to get the optimal nutritional value of the foods.
Following modes are available:
▶Low Humidity
suitable to store dry fruit and other dry food with
low water content like like butter, fats and oils or
chocolate.
▶Fruit & Vegetable
suitable to store vegetable and fruit.
▶0° Fresh
suitable to store of fresh food such as meat or in-
stant products. Most foods stay fresh at 0 ° C, but
not frozen.

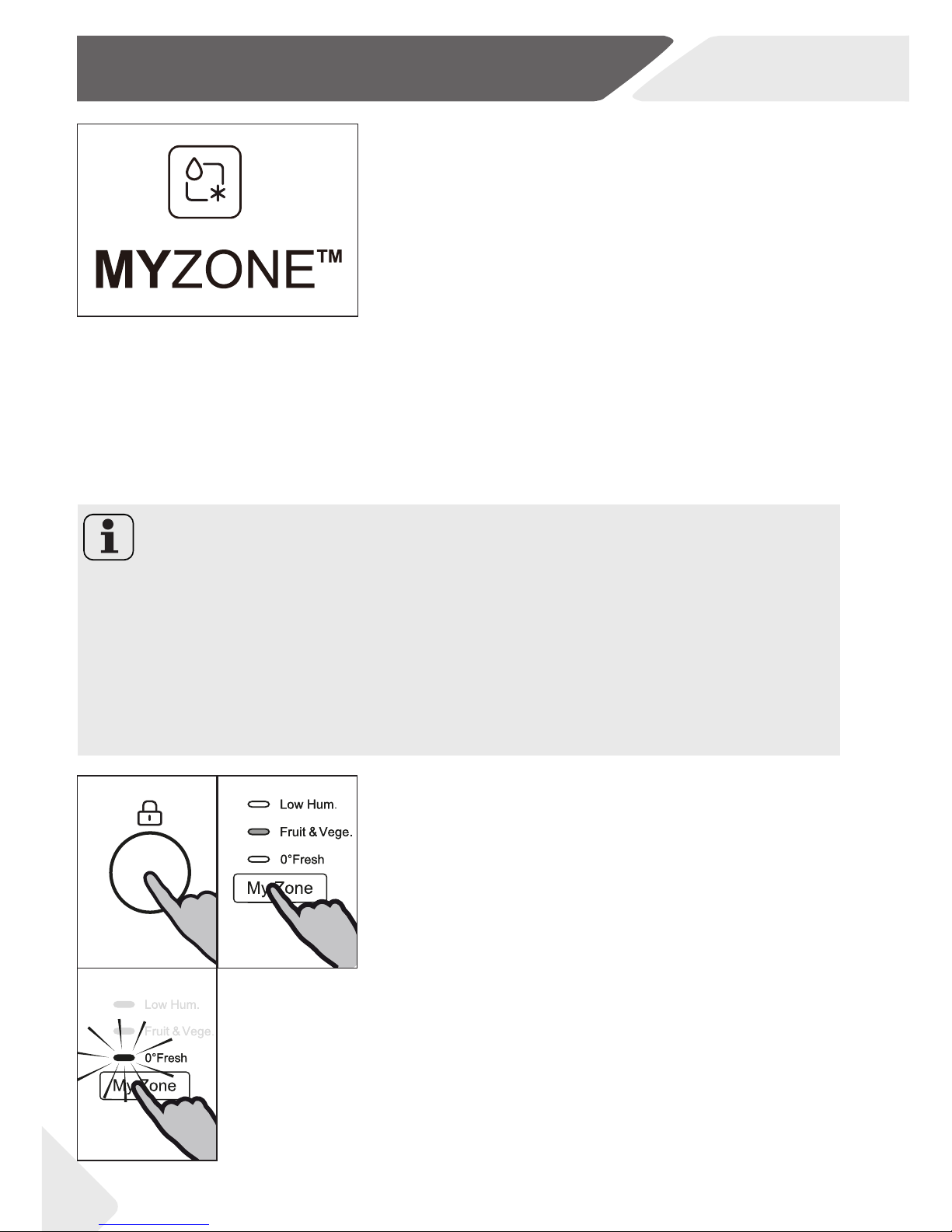

Select the My Zone box mode
1. Unlock the panel by pressing button “G” if it is
locked.
2. Press button “C” (My Zone) for select the My Zone
box. An alarm sounds and the indicator “c” of last
used MY Zone box mode will be displayed.
3. Press sequentially button “C” (My Zone) until the
required indicator illuminates. The mode is activa-
ted.
Lock
Hold 3 Sec.
1. 2.
3.

GB
Use
WARNING!
During the holiday function no goods must be stored in the refrigerator compartment.
The temperature of + 17 ° C is too high for storing food.
15
Smart mode
In the Smart mode, the appliance can automatically
adjust the temperature setting according to the ambi-
ent temperature and temperature change in the appli-
ance. This function is totally hand free.
1. Unlock the panel by pressing button “G” if it is
locked.
2. Press button “E” (Smart). An alarm sounds.
3. Indicator “e” illuminates and the function is activa-
ted.
By repeating the above steps or selecting an other
function this function can be switched o again.
Lock
Hold 3 Sec.
1.
Smart
2.
Smart
3.
Holiday function
This function sets the refrigerator temperature per-
manently to 17°C.
This allows to keep the door of the empty refrigera-
tor closed without causing an odour or mold - during
a long absence (e.g. during holiday). The freezer com-
partment is free for your setting.
1. Unlock the panel by pressing button “G” if it is
locked.
2. Press button F (Holiday). An alarm sounds.
3. Indicator „f„ illuminates and the function is activa-
ted.
By repeating the above steps or selecting the smart
mode this function can be switched o again.
Lock
Hold 3 Sec.
1. 2.
Holiday
3.
Holiday

Use
GB
Water dispenser
With the water dispenser cool drinking water can be tapped.
The water tank should be cleaned before rst use (see CARE AND CLEANING).
WARNING!
Use drinking water only.
1. Ensure that the water tank is properly inserted
(see EQUIPMENT)
2. Rotate and lift the round lid (A) and ll the water
tank up with fresh drinking water.
3. Fill water only up to the mark (1,8 l); as it could
overow when the door opens and closes.
4. Close the round lid until it clicks into place.
A
C
Notice
▶Before relling dispose residual water and clean the water tank.
▶When you don‘t need water for a long time, please empty the water tank and insert
the cleaned tank.
▶The cover (C) on the water tank is additionally used to save energy. If you do not want
to get water from the water dispenser for a long period, please still install the cover
because of better insulating and saving energy.
Filling the water tank
Getting water from the dispenser
1. Place a glass underneath the water outlet.
2. Push it gently against the water dispenser lever
with your glass.
Make sure the glass is in line with the dispenser to
prevent the water from splashing out.
WATER DISPENSER
16

GB
Use
17
Tips on storing fresh food
Storing into the refrigerator compartment
▶Keep your fridge temperature below 5°C.
▶Hot food must be cooled to room temperature before storing in the appliance.
▶Foods stored in the refrigerator should be washed and dried before storing
▶Food to be stored should be properly sealed to avoid odour or taste alterations.
▶Do not store excessive quantities of food. Leave spaces between foods to allow cold
air owing around them, for a better and more homogeneous cooling.
▶Foods eaten daily should be stored at the front of the shelf.
▶Leave a gap between foods and the inner walls, allowing air owing. In special way
don’t store foods against the rear wall: foods could freeze against rear wall. Avoid di-
rect contact of food (especially oily or acidic food) with the inner liner, as oil/acid can
erode the inner liner. Clean away oily/acid dirt whenever it is found.
▶Defreeze frozen food in the fridge storage compartment. This way, you can use the
frozen food to decrease the temperature in the compartment and save energy.
▶The ageing process of fruit and vegetables such as courgettes, melons, papaya, ba-
nana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advis-
able to store them in the refrigerator. However, the ripening of strongly green fruits
can be promoted for a certain period. Onions, garlic, ginger and other root vegeta-
bles should also be stored at room temperature.
▶Unpleasant odours inside the fridge are a sign that something has spilled and clean-
ing is required. See CARE AND CLEANING.
▶Dierent foods should be placed in dierent areas according to their properties:
1 Butter, cheese, etc.
2 Eggs, cans, canned food, spices, etc.
3 Drinks and bottled foods.
4 Pickled foods, canned food, etc.
5 Meat products, snack foods, etc.
6 Pasta, canned food, milk, tofu, dairy etc.
7 Cooked meat, sausages, etc.
8 My Zone drawer: Fruit & Vege. (fruits and veg-
etables) 0° fresh(raw fresh food) Low Humidity (dry
fruits, butter oils, chocolate)
9 Humidity Zone: Fruit, vegetables, salad, etc.
3
1
2
3
14
5
6
7
8
9

Use
GB
Storage into the freezer compartment
▶Keep the freezer temperature at- 18°C.
▶24 hours before freezing switch on the Power-freeze function; -for small quantities
of food 4-6 hours are sucient.
▶Hot food must be cooled to room temperature before storing in the freezer com-
partment.
▶Food cut into small portions will freeze faster and be easier to defrost and cook. The
recommended weight for each portion is less than 2.5 kg
▶It is better to pack food before putting it into the freezer. The outside of the pack-
aging must be dry to avoid bags sticking together. Packaging materials should be
odour-free, airtight, non-poisonous and nontoxic.
▶In order to avoid expiration of storage periods, please note the freezing date, time
limit and name of the food on the packaging according to the storage periods of dif-
ferent foods.
▶WARNING!: Acid, alkali and salt etc. could erode the internal surface of the freezer.
Do not place the food having these substances (e.g. sea sh) directly on the internal
surface. Salt water in the freezer should be cleaned up immediately.
▶Do not exceed the food storage times recommended by the manufacturers. Only
take the required amount of food out of the freezer.
▶Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is
rst cooked, otherwise it may bless edible.
▶Do not load excessive quantities of fresh food in the freezer compartment. Refer
to the freezing capacity of the freezer – See TECHNICAL DATA or data at the type
plate.
▶Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12
months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12
months)
▶When freezing fresh food, avoid bringing it in contact with already frozen food. Risk
of thawing!
When storing commercially frozen foods, please follow these guidelines:
▶Always follow manufacturers’ guidelines for the length of time you should store food
for. Do not exceed these guidelines!
▶Try to keep the length of time between purchase and storage as short as possible to
preserve food quality.
▶Buy frozen foods, which have been stored at a temperature of –18 °C or below.
▶Avoid buying food which has ice or frost on the packaging – This indicates that the
products might have been partially defrosted and refrozen at some point – temper-
ature rises aect the quality of food.
18

GB
Equipment
Notice:
Ensure that all ends of a shelf are level.
Notice:
Do not remove the plastic cover inside the two
zones. They maintain the humidity.
19
Multi-air-ow
The refrigerator is equipped with a multi-air-ow sys-
tem, with which cool air ows are located on every shelf
level. This helps to maintain a uniform temperature to
ensure that your food is kept fresher for longer.
My-Zone drawer
For the use and setting of the My Zone drawer, please
check section USE (My- Zone drawer).
Adjustable shelves
The height of the shelves can be adjusted to t your
storage needs.
1. To relocate a shelf, remove it rst by uplifting its
hind edge (1) and pulling it out (2).
2. To reinstall it, put it on the lugs on both sides and
push it to the most rearward position until the rear
of the shelf is xed inside the slots in the sides
Humidity-Zone drawer
In this compartment the humidity level is around 85%.
It is controlled automatically by the system and is suita-
ble to store fruits,vegetables, salads etc. HUMIDITY ZONE
Removable door racks
The door racks can be removed for cleaning:
Place hands on each side of the rack, lift it upwards (1)
and pull it out (2).
In order to insert the door rack, the above steps are
carried out in reverse order.
1
2
1

Equipment
GB
Notice:
When the appliance is switched on, it may take up to 12 hours for the correct tempera-
tures to be reached.
Removable water tank
The water tank can be removed and reinstalled for
cleaning in the same way as the door racks.
Insert water tank
Place the water tank in the position that the water out-
let (B) ts into the opening of the door. Make sure that
the water tank is locked.
A
B
Notice:
▶If the water tank is not properly inserted, water can drip from the connection.
▶Do not use excessive force when removing or installing the water tank, to avoid dam-
aging the tank.
20
OPTIONAL: OK-temperature indicator
The OK-temperature indicator can be used to deter-
mine temperatures below +4°C. Gradually reduce the
temperature if the sign does not indicate “OK”.
Removable freezer drawer
To remove the drawer out, pull out to the maximum ex-
tent (1), lift and remove (2).
In order to insert the drawer, the above steps are car-
ried out in reverse order.
1
2 2
Storing large items
Large items of e.g. frozen food can be stored after:
▶removing and overturning by 180° the upper freez-
ing tray, or
▶after removing both upper freezing trays as well as
the middle freezer drawer and storing the food di-
rectly on the shelf.
