EN
User Manual
Refrigerator-Freezer
HTF-540DGG7

Thank You EN
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
oce.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
Risk of injury or suocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of
the refrigerant circuit is not damaged before being properly disposed of. Disconnect
the appliance from the mains supply. Cut o the mains cable and dispose of it. Remove
the trays and drawers as well as the door catch and seals, to prevent children and pets
to get closed in the appliance.
Old appliances still have some residual value. An environmentally friendly method of dis-
posal will ensure that valuable raw materials can be recovered and used again.
Cyclopentane, a ammable substance not harmful to ozone, is used as an expander for
the insulationg foam.
By ensuring this product is disposed of corectly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused.
For more detailed information about recycling of this product, please contact your local
council, your household waste disposal service or the shop where you purchased the pro-
duct, handled by the professionals.
2

EN Content
Safety information ........................................................................................................................... 4
Intended use ......................................................................................................................................9
Product description .......................................................................................................................11
Control panel ...................................................................................................................................12
Use .....................................................................................................................................................13
Equipment .......................................................................................................................................20
Care and cleaning ...........................................................................................................................23
Troubleshooting .............................................................................................................................25
Installation ........................................................................................................................................28
Technical data .................................................................................................................................31
Customer service ...........................................................................................................................33
Accessories
Check the accessories and literature in accordance with this list:
Energy-
label
2 Egg trays
Ice cube tray User
manual
Warranty
card
3 spacers
3

Safety information EN
Before switching on the appliance for the rst time read the fol-
lowing safety hints!:
WARNING!
Before rst use
▶Make sure there is no transport damage.
▶Remove all packaging and keep out of children´s reach.
▶Wait at least two hours before installing the appliance in order to
ensure the refrigerant circuit is fully ecient.
▶Handle the appliance always with at least two persons because it
is heavy.
Installation
▶The appliance should be placed in a well-ventilated place. Ensure a
space of at least 10 cm above and around the appliance.
▶Never place the appliance in a damp area or location where it
might be splashed with water. Clean and dry water splashes and
stains with a soft clean cloth.
▶Do not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
▶Install and level the appliance in an area suitable for its size and use.
▶Keep ventilation openings in the appliance or in the in-built struc-
ture clear of obstruction.
▶Make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician.
▶The appliance is operated by a 220-240 VAC/50 Hz power sup-
ply. Abnormal voltage uctuation may cause the appliance to fail
to start, or damage to the temperature control or compressor, or
there may be an abnormal noise when operating. In such case, an
automatic regulator shall be mounted.
▶Do not use multi-plug adapters and extension cables.
▶Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
▶Ensure that the power cable is not trapped by the refrigerator. Do
not step on the power cable.
4

EN Safety information
WARNING!
▶Use a separate earthed socket for the power supply which is easy
accessible. The appliance must be earthed.
Only for UK: The appliance’s power cable is tted with 3-cord
(grounding) plug that ts a standard 3-cord (grounded) socket.
Never cut o or dismount the third pin (grounding). After the ap-
pliance is installed, the plug should be accessible.
▶Do not damage the refrigerant circuit.
Daily use
▶This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶Children aged from 3 to 8 years are allowed to load and unload, but
not allowed to clean or install the refrigerating appliances.
▶Keep away children under 3 years of age from the appliance unless
they are constantly supervised.
▶Children shall not play with the appliance.
▶If cool gas or other inammable gas is leaking in the vicinity of the
appliance, turn o the valve of the leaking gas, open the doors and
windows and do not unplug a plug in the power cable of the refrig-
erator or any other appliance.
▶Notice that the appliance is set for operation at a specic ambient
range between 10 and 43°C. The appliance may not work properly
if it is left for a long period at a temperature above or below the
indicated range.
▶Do not place unstable articles (heavy objects, containers lled with
water) on top of the refrigerator, to ovoid personal injury caused
by falling or electric shock caused by contact with water.
▶Do not pull on the door shelves. The door may be pulled slant, the
bottle rack, may be pulled away, or the appliance may topple.
▶Open and close the doors only with the handles. The gap between
the doors and between the doors and the cabinet is very narrow.
Do not extend your hands in these areas to avoid pinching your
ngers. Open or close the refrigerator doors only when there are
no children standing within the range of door movement.
5

Safety information EN
WARNING!
▶Do not store or use inammable, explosive or corrosive materials
in the appliance or in the vicinity.
▶Do not store medicines, bacteria or chemical agents in the ap-
pliance. This appliance is a household appliance. It is not recom-
mended to store materials that require strict temperatures.
▶Never store liquids in bottles or cans (besides high percentage
spirits) especially carbonated beverages in the freezer, as these
will burst during freezing.
▶Check the condition of food if a warming in the freezer has taken
place.
▶Do not set unnecessarily low temperature in the refrigerator com-
partment. Minus temperatures may occur at high settings. Atten-
tion: Bottles can burst
▶Do not touch frozen goods with wet hands (wear gloves). Espe-
cially do not eat ice lollies immediately after removal from the
freezer compartment. There is the risk to freeze or the formation
of frost blisters. FIRST aid: keep immediately under running cold
water. Do not pull away!
▶Do not touch the inside surface of the freezer storage compart-
ment when in operation, especially with wet hands, as your hands
may freeze onto the surface.
▶Unplug the appliance in the event of a power interruption or be-
fore cleaning. Allow at least 7 minutes before restarting the appli-
ance, as frequent starting may damage the compressor.
▶Do not use electrical devices inside the food storage compart-
ments of the appliance, unless they are of the type recommend-
ed by the manufacturer.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance. Allow at least 7 minutes be-
fore restarting the appliance, as frequent starting may damage
the compressor.
6

EN Safety information
WARNING!
▶Hold the plug, not the cable, when unplugging the appliance.
▶Do not clean the appliance with hard brushes, wire brushes, de-
tergent powder, petrol, amyl acetate, acetone and similar organic
solutions, acid or alkaline solutions. Please clean with special re-
frigerator detergent to avoid damage.
▶Do not scrape o frost and ice with sharp objects. Do not use
sprays, electric heaters like heater, hair dryer, steam cleaners or
other sources of heat in order to avoid damage to the plastic parts.
▶Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the man-
ufacturer.
▶If the supply cord is damaged, it must be replaced by the manu-
facturer, its service agent or similarly qualied persons in order to
avoid a hazard.
▶Do not try to repair, disassemble or modify the appliance by your-
self. In case of repair please contact our customer service.
▶Eliminate the dust on the back of the unit at least once in the year
to avoid hazard by re, as well as increased energy consumption.
▶Do not spray or ush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass shelves with hot water. Sudden tem-
perature change may cause the glass to break.
7

Safety information EN
Refrigerant gas information
WARNING!
The appliance contains the ammable refrigerant ISOBUTANE
(R600a). Make sure the refrigerant circuit is not damaged during
transportation or installation. Leaking refrigerant may cause eye
injuries or ignite. If a damage has occurred, keep away open re
sources, thoroughly ventilate the room, do not plug or unplug the
power cords of the appliance or any other appliance. Inform the
customer service.
In case of eyes get into contact with the refrigerant, rinse immedi-
ately it under running water and call immediately the eye specialist.
8

EN Intended use
Intended use
This appliance is intended for cooling and freezing food. It has been designed exclusively
for use in household and similar applications such as sta kitchen areas in shops, oces
and other working environments; farm houses and by clients in hotels, motels and other
residential type environments as well as in bed-and-breakfast and catering business. It is
not intended for commercial or industrial use.
Changes or modications to the device are not allowed. Unintended use may cause haz-
ards and loss of warranty claims.
Standards and directives
This product meets the requirements of all applicable EC directives with the correspond-
ing harmonised standards, which provide for CE marking.
9

Intended use EN

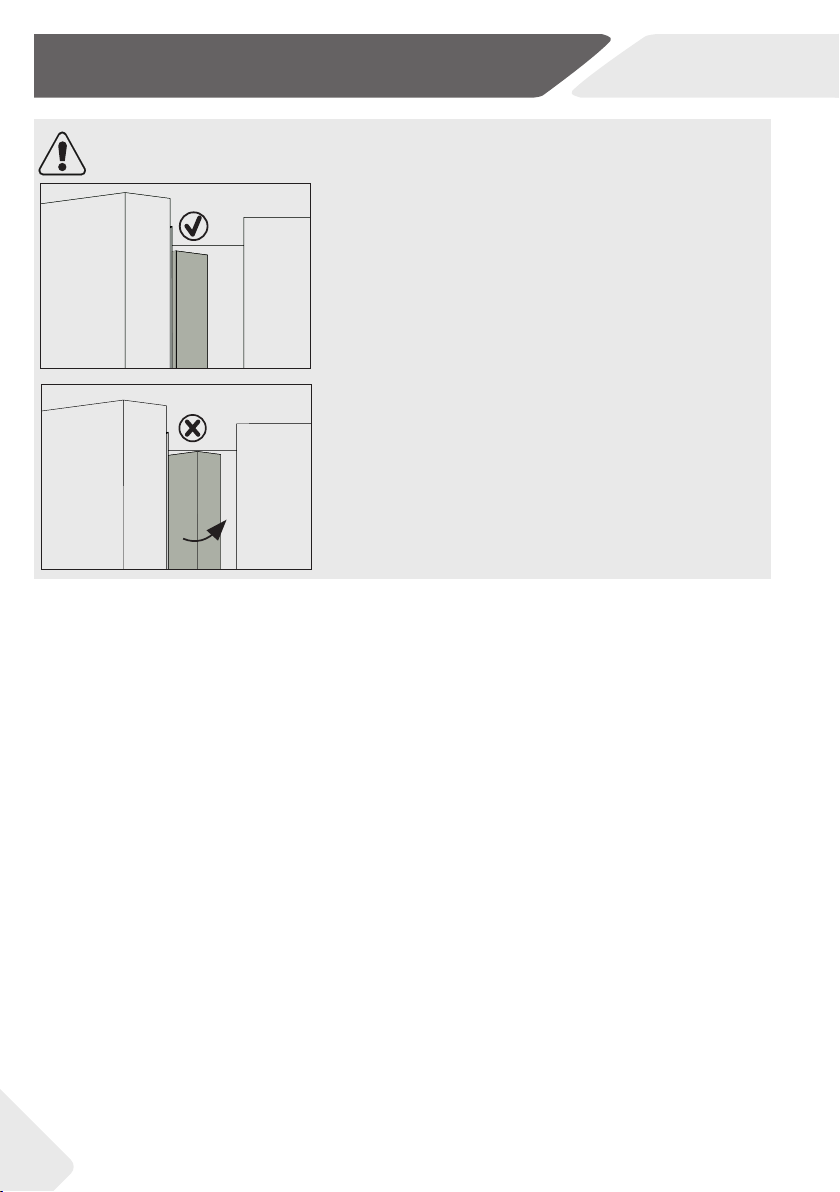

CAUTION!
When you close the door, the vertical door strip on
the left door should be bent inside (1).
If you try to close the left door and the vertical door
strip is unbent (2), you should bend it rstly, other-
wise the door strip will hit the xing shaft or right
door. Thus a damage to the door slip or a leak will
occur.
There is a heating thread inside the frame. The tem-
perature of the surface will rise a little, which is nor-
mal and won´t aect the function of appliance.
1.
2.
10

EN Product description

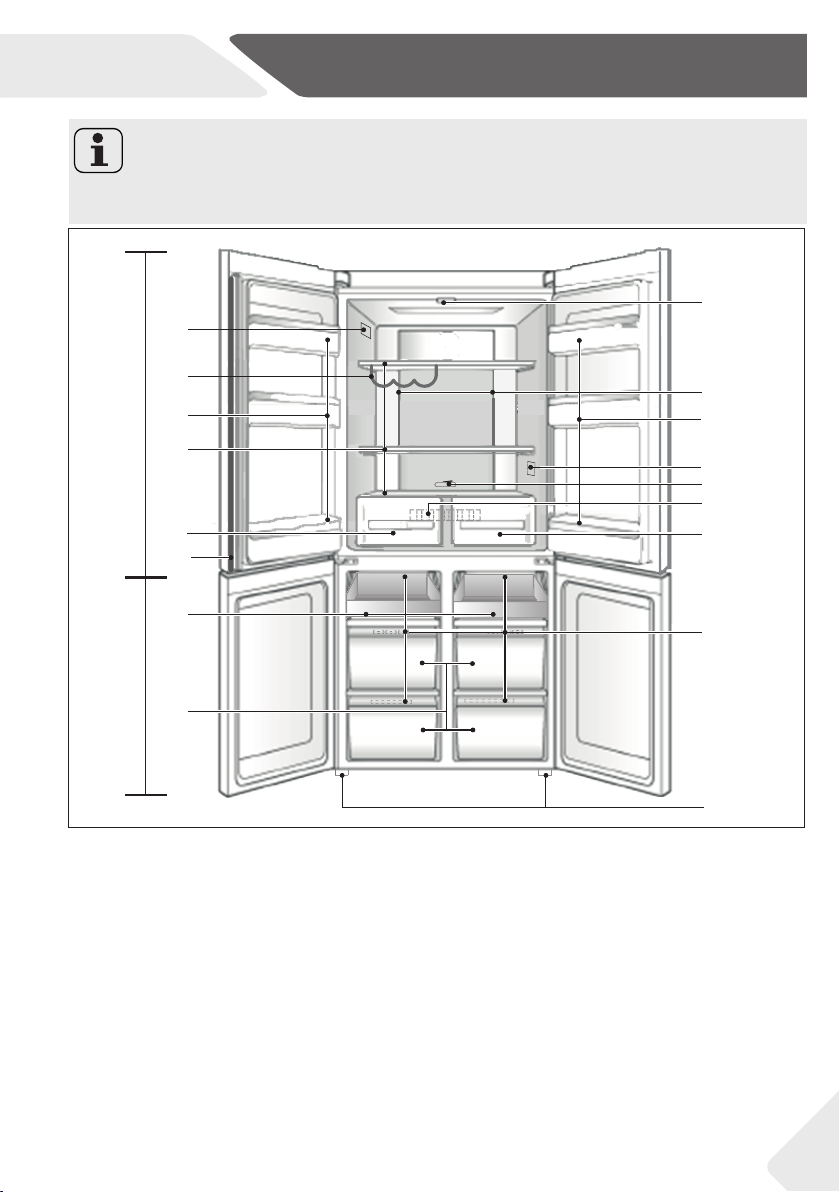

A: Refrigerator compartment
1 Bottle holder/Door rack
2 Glass shelves
3 Rating plate
4 Wine rack
5 Humidity box
6 Vertical beam
7 Ceiling lamp
8 Air duct and sensor (behind panel)
9 O.K.-temperature indicator (optional)
10 MyZone slider
11 Air duct (behind drawers)
12 MyZone box
B: Freezer compartment
13 Sliding shelf
14 Freeze box
15 Air duct
16 Adjustable feet
Notice
Due to technical changes and dierent models, some of the illustrations in this manual
may dier from your model.
11
will be
modied
A
B
13
14
16
5
6
15
1
7
8
1
9
11
12
2
10
3
4
Fruit&Vegetable Chiller

Control panel EN
Control panel
Before rst use
▶Remove all packaging materials, keep them out of children`s reach and dispose
them in an environmentally friendly manner.
▶Clean the inside and outside of the appliance with water and a mild detergent before
putting any food in it.
▶After the appliance has been levelled and cleaned, wait for at least 2-5 hours before
connecting it to the power supply. See Section INSTALLATION.
▶Precool the compartments at high settings before loading with food. The function
Power- Freeze helps to cool down the freezer compartment quickly.
▶The refrigerator temperature and freezer temperature are automatically set to 5° C
and -18° C respectively. These are the recommended settings. If desired, you can
change these temperatures manually. Please see ADJUST THE TEMPERATURE.
a
b
c1
c2
d
e
f
A
B
C
D
E
F

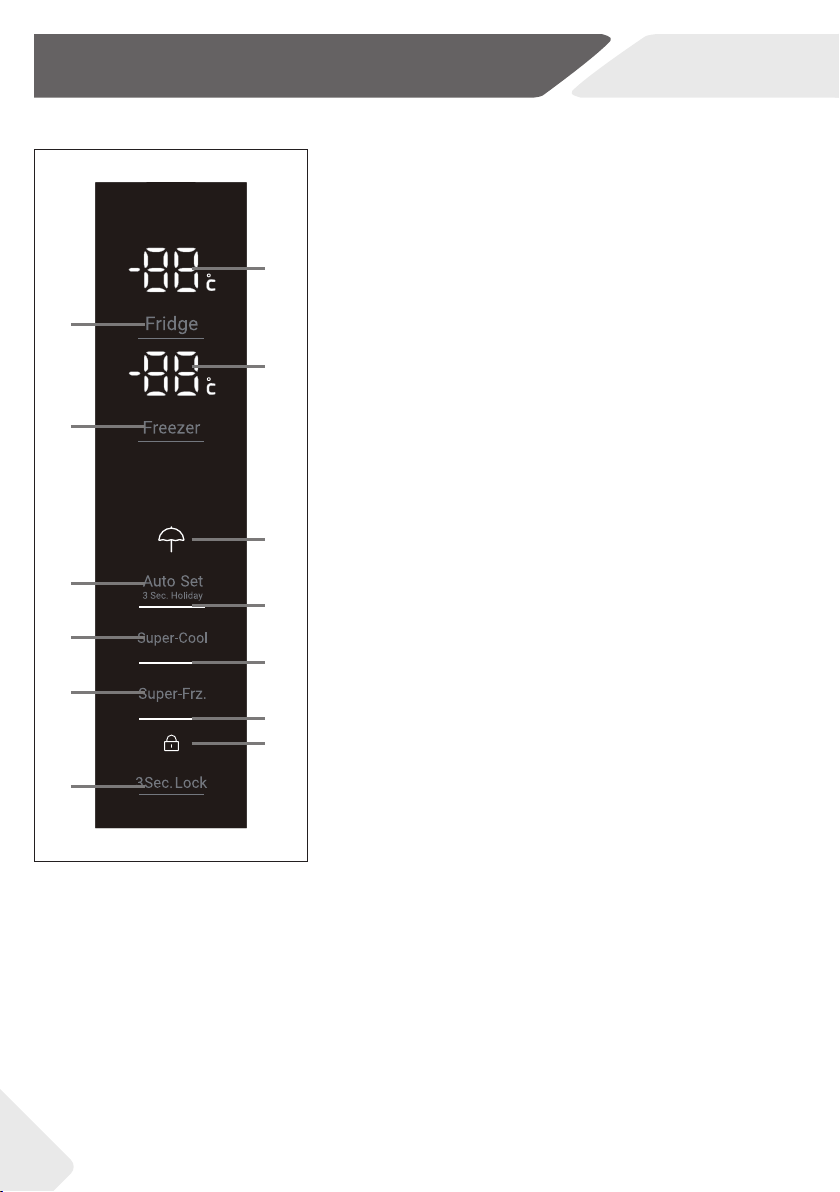

Buttons:
A Fridge selector
B Freezer selector
C Auto Set mode and holiday function selector
D Super-Cool selector
E Super-Freeze selector
F Panel lock selector
Indicators:
a Temperature fridge
b Temperature freezer
c1 holiday mode
c2 Auto Set mode
d Super-Cool function
e Super-Freeze function
f Panel lock
12

EN Use
Notice
▶The appliance is preset to the recommended temperature of 5°C (refrigerator) and
- 18°C (freezer). Under normal ambient condition you need not to set a temperature.
▶When the appliance is switched on after disconnection from the main power supply, it
may take up to 12 hours for the correct temperatures to be reached.
Empty the appliance before switching o. To switch o the appliance, pull the power cord
out of the power socket.
Notice
The control panel is automatically blocked against
activation if the doors are closed and 30 seconds no
button is pressed. For any settings the control panel
must be unlocked.
13
Switch on /o the appliance
The appliance is in operation as soon as it is connected to the power supply.
When the appliance is powered on for the rst time, the actual refrigerator and freezer
temperatures are displayed. The display will ash. If the doors are closed it will switch o
after 30 seconds.
Maybe the panel lock is active.
Standby-mode
The display screen turns o automatically 30 seconds after pressing a key. The display will
be automatically locked. It lights up automatically when pressing any key or opening any
door (Alarm does not light up the display screen).
Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly
touched with the nger.
Lock/unlock panel
▶Touch button “F” for 3 seconds to block all panel el-
ements against activation. The buzzer alarms and
the related indicator “f” is now displayed; the light-
ening of the panel is switched o. The icon ashes
if a button will be pressed, when the panel lock is
activated. The change is not running.
▶For unlocking press again the button.

Use EN
The indoor temperatures are inuenced by the follow-
ing factors:
▶Ambient temperature
▶Frequency of door opening
▶Amount of stored foods
▶Installation of the appliance
Select the working mode
You may need to select one of the following two ways to set the appliance:
1) Auto Set mode
Under Auto Set mode, the appliance can automatically adjust the temperature setting ac-
cording to the ambient temperature and temperature change in the appliance. If you do
not have any special requirements, we recommend that you use Auto Set mode (refer to
Auto Set mode later on).
2) Manual adjusting mode:
If you want to manually adjust the temperature of the appliance in order to store a par-
ticular food, you can set the temperature via a temperature adjusting button (refer to
ADJUST THE TEMPERATURE).
14
Adjust the temperature for fridge
1. Unlock the panel by pressing button “F” if it is
locked.
2. Press button „A“ (Fridge) for select the fridge com-
partment. An alarm sounds. The actual tempera-
ture in the refrigerator compartment is displayed.
3. Press button “A” to set the fridge tempera-
ture. A signal will sound at each key press.
The temperature increases in sequences of 1°C
from a minimum of 1°C (OF) to a maximum of
9°C, switching to 1°C again when pressing further.
The optimum temperature in the refrigerator is
5 °C. Colder temperatures mean unnecessary
energy consumption.
If no key is operated in 5 sec., the setting conrms au-
tomatically.
Door opening alarm
When the refrigerator door is opened for more than 1
minute, the door opening alarm will sound. The alarm
can be silenced by either closing the door or touching
the control panel. If the door is left open for more than
7 minutes, the light inside the compartment and con-
trol panel illumination will automatically switch o.
Adjust the temperature
1. 2.
3.
Fridge
Fridge

EN Use
Notice
The temperature in the corresponding compartment cannot be adjusted if any other
function (Power-Freeze, Super-Cool, Holiday or Auto Set mode) is activated or the dis-
play is locked. The corresponding indicator will ash accompanying with a buzzer.
15
Adjust the temperature for freezer
1. Unlock the panel by pressing button “F” if it is
locked.
2. Press button “B” (Freezer) for select the freezer
compartment. An alarm sounds. The actual tem-
perature in the freezer compartment is displayed.
3. Press button “B” (Freezer) to set the freezer tem-
perature. A signal will sound at each key press.
The temperature increases in sequences of
1°C from a minimum of -14°C to a maximum of
-24°C, switching to -14°C again when pressing
further.
The optimum temperature in the freezer is -18°C.
Colder temperatures mean unnecessary energy
consumption.
If no key is operated in 5 sec., the setting conrms au-
tomatically.
2.
Freezer
3.
Freezer
1.
Auto Set mode
In the Auto Set mode, the appliance can automatically
adjust the temperature setting according to the ambi-
ent temperature and temperature change in the appli-
ance. This function is totally hand free.
1. Unlock the panel by pressing button “F” if it is
locked.
2. Press button “C” (Auto Set). An alarm sounds.
3. Indicator “c2” illuminates and the function is acti-
vated.
By repeating the above steps or selecting an other
function this function can be switched o again.
3.
sec. holiday
1. 2.

Use EN
WARNING!
During the holiday function no goods must be stored in the refrigerator compartment.
The temperature of + 17 ° C is too high for storing food.
Super-Cool function
Switch on the Super-Cool function if larger quantity
of food should be stored (for example after the pur-
chase). The Power-Cool function accelerates the
cooling of fresh food and protects the goods already
stored from undesirable warming. The factory setting
temperature is 0 to +1°C.
1. Unlock the panel by pressing button “F” if it is
locked.
2. Press button “D” (Super-Cool).
3. Indicator “d” illuminates and the function is acti-
vated.
By repeating the above steps or selecting an other
function this function can be switched o again.
1. 2.
3.
Notice
This function will be automatically disabled after 3 hours.
16
Holiday function
This function sets the refrigerator temperature per-
manently to 17°C.
This allows to keep the door of the empty refrigera-
tor closed without causing an odour or mold - during
a long absence (e.g. during holiday). The freezer com-
partment is free for your setting.
1. Unlock the panel by pressing button “F” if it is
locked.
2. Press button “C” (Auto Set) for 3 seconds.
3. Indicator “c1” illuminates .and the function is acti-
vated.
By repeating the above steps or selecting an other
function this function can be switched o again.
1.
3 sec. holiday
2.
3.

EN Use
Notice
The Super-Freeze function will automatically switch o after 50 hours. The appliance is
then operated at the previously set temperature.
Super-Freeze function
Fresh food should be frozen as quickly as possible to
the core. This preserved the best nutritional value, ap-
pearance and taste. The Super-Freeze function ac-
celerates the freezing of fresh food and protects the
goods already stored from undesirable warming. If
you need to freeze a large amount of food once, it is
recommended to set the Super-Freeze function on
ahead for 24 h before the usage of frozen room. The
function setting temperature is below -24 °C.
1. Unlock the panel by pressing button “F” if it is
locked.
2. Press button “E” (Super-Freeze).
3. Indicator “e” illuminates and the function is acti-
vated.
By repeating the above steps or selecting an other
function this function can be switched o again.
1. 2.
3.
WARNING!
▶Empty the appliance before switching o.
▶Keep the door of the refrigerating compartment open, when Refrigerator o func-
tion is activated, in order to avoid odour or mold..
17

Use EN
Notice
▶Please keep the distance more than 10 mm between the food placed and air duct or
sensors to ensure the cooling eect.
18
Tips on storing fresh food
Storing into the refrigerator compartment
▶Keep your fridge temperature below 5°C.
▶Hot food must be cooled to room temperature before storing in the appliance.
▶Foods stored in the refrigerator should be washed and dried before storing
▶Food to be stored should be properly sealed to avoid odour or taste alterations.
▶Do not store excessive quantities of food. Leave spaces between foods to allow cold
air owing around them, for a better and more homogeneous cooling.
▶Foods eaten daily should be stored at the front of the shelf.
▶Leave a gap between foods and the inner walls, allowing air owing. In special way
don’t store foods against the rear wall: foods could freeze against rear wall. Avoid di-
rect contact of food (especially oily or acidic food) with the inner liner, as oil/acid can
erode the inner liner. Clean away oily/acid dirt whenever it is found.
▶Defreeze frozen food in the fridge storage compartment. This way, you can use the
frozen food to decrease the temperature in the compartment and save energy.
▶The ageing process of fruit and vegetables such as courgettes, melons, papaya, ba-
nana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advis-
able to store them in the refrigerator. However, the ripening of strongly green fruits
can be promoted for a certain period. Onions, garlic, ginger and other root vegeta-
bles should also be stored at room temperature.
▶Unpleasant odours inside the fridge are a sign that something has spilled and clean-
ing is required. See CARE AND CLEANING.
▶Dierent foods should be placed in dierent areas according to their properties:
1 Butter, cheese, etc.
2 Eggs, cans, canned food, spices, etc.
3 Drinks and bottled foods.
4 Pickled foods, canned food, etc.
5 Meat products, snack foods, pasta, canned
food, milk, tofu, dairy etc.
6 Cooked meat, sausages, etc.
7 My Zone drawer : dry fruits, butter oils, choco-
late
8 Humidity box drawer: Fruit, vegetables, salad,
etc.
2
3
1
4
5
2
7
8
3
1
6
Fruit&Vegetable Chiller
