Haier 29FV6 User manual

29FV6
34FV6
29FV6
34FV6
COLOUR TELEVISION
OPERATING
INSTRUCTIONS
2
◆Digital I C bus control
◆Auto search tuning & 250 programs stored
◆Full infrared remote control
◆Multi-picture modes selection
◆Multi-function timer, appointing program
0090507287

2

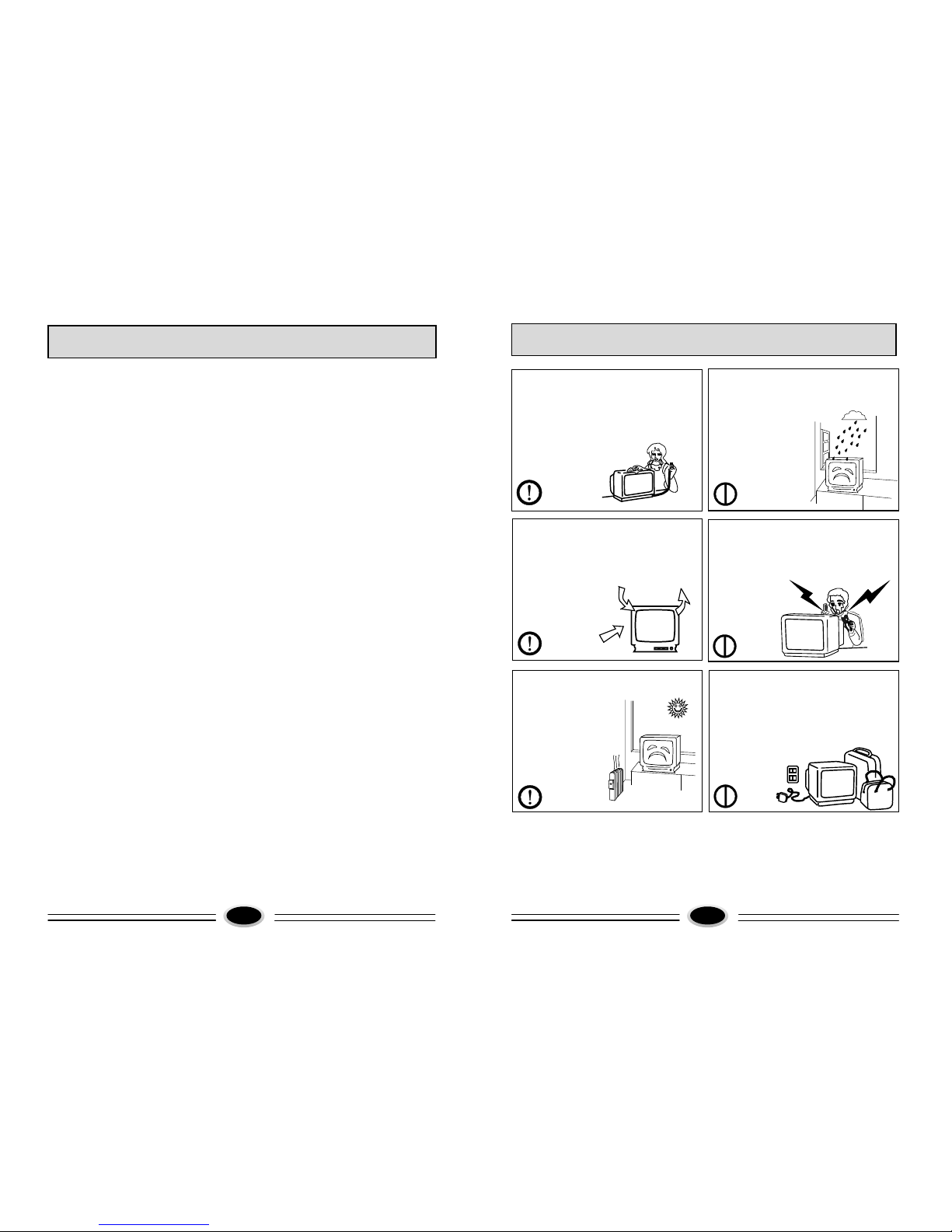

WARNING AND CAUTIONS
1. When you clean the TV set, please pull
out the power plug from AC outlet.
Or may result in electric shock, fire or
damage to the TV set. Don't clean the
cabinet and the screen with benzene,
petrol and other chemicals.
4. Do not place the TV set near rain
or moisture as it may cause an electric
shock, or the TV set to catch fire. The TV
set must only be used
in dry indoor location.
2. In order to prolong the using life of the
TV set, please place it at a well ventilated
location.
5. The back cover must only be removed
by a registered electrical service person.
Removing the back cover may result in
electric shock, fire or damage to
the TV set.
3. Don't place the TV
set in direct sunlight
or near heat source.
6. If the TV set is not going to be used for
a long time, or there is a severe thunder &
lightening storm, it is recommended that
the TV set be disconnected from the AC
power outlet and the aerial plug
removed.
Explanation on the display tube
When the picture tube requires cleaning, please disconnect the power and use a
dry soft cotton cloth. Do not use any cleaner or abrasive cloth.
1
CONTENTS
Contents..................................................................................................................................1
Warning and Cautions............................................................................................................2
Basic Feature.........................................................................................................................3
Technical Specification..........................................................................................................3
Function Buttons and External Sockets.................................................................................4
AV Connection.......................................................................................................................5
Remote Controller .................................................................................................................6
Control Your TV.....................................................................................................................7
Tuning Procedure................................................................................................................10
Menu Operation...................................................................................................................11
Preparing for Operations.....................................................................................................14

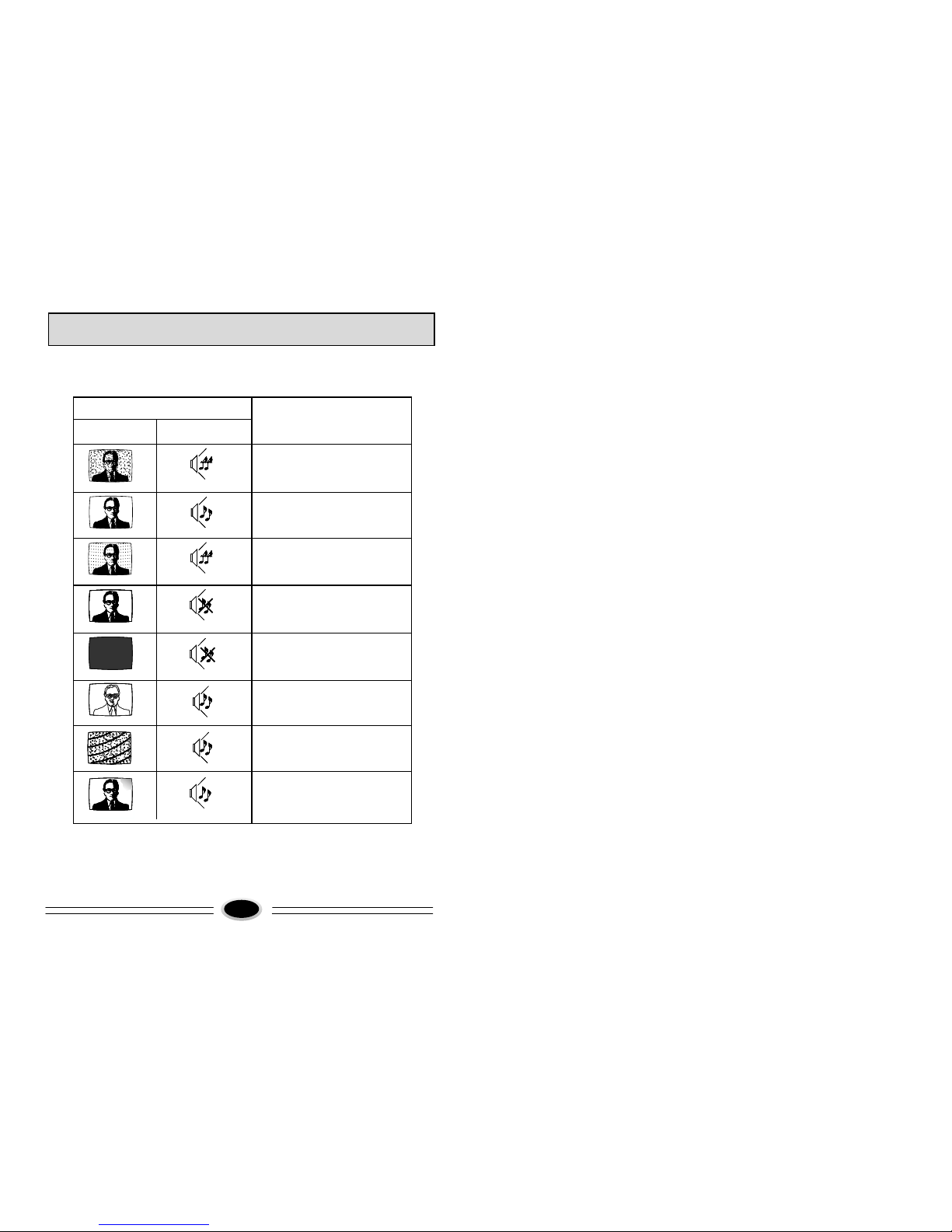

Trouble Shooting Guide......................................................................................................15

3
BASIC FEATURE
2
◆Digital I C bus control
◆Auto search tuning & 250 programs stored
◆Full infrared remote control
◆Multi-picture modes selection
◆Multi-function timer, appointing program
TECHNICAL SPECIFICATION
1.POWER SUPPLY: See rating plate
2.COLOUR SYSTEM: PAL SECAM N TSC4.43/3.58(AV)
3.AUDIO SYSTEM: B/G D/K
4.CRT: 29"/
5.ANTENNA INPUT : 75Ω Standard Coaxial Cable
6.SOUND OUTPUT POWER:
7.POWER CONSUMPTION: See rating plate
8.NET WEIGHT(kg): 45.5 (29FV6 )
64.5 (34FV6)
9.NET DIMENSION(mm): 753
34"
5W + 5W
x 500 x 573 (29FV6 )
898 x 567 x 669 (34FV6 )
Supplied accessories:
Infrared remote control handset 1
Battery(AA) 2
Operating instruction 1
Design and specifications are subject to change without notice.
4

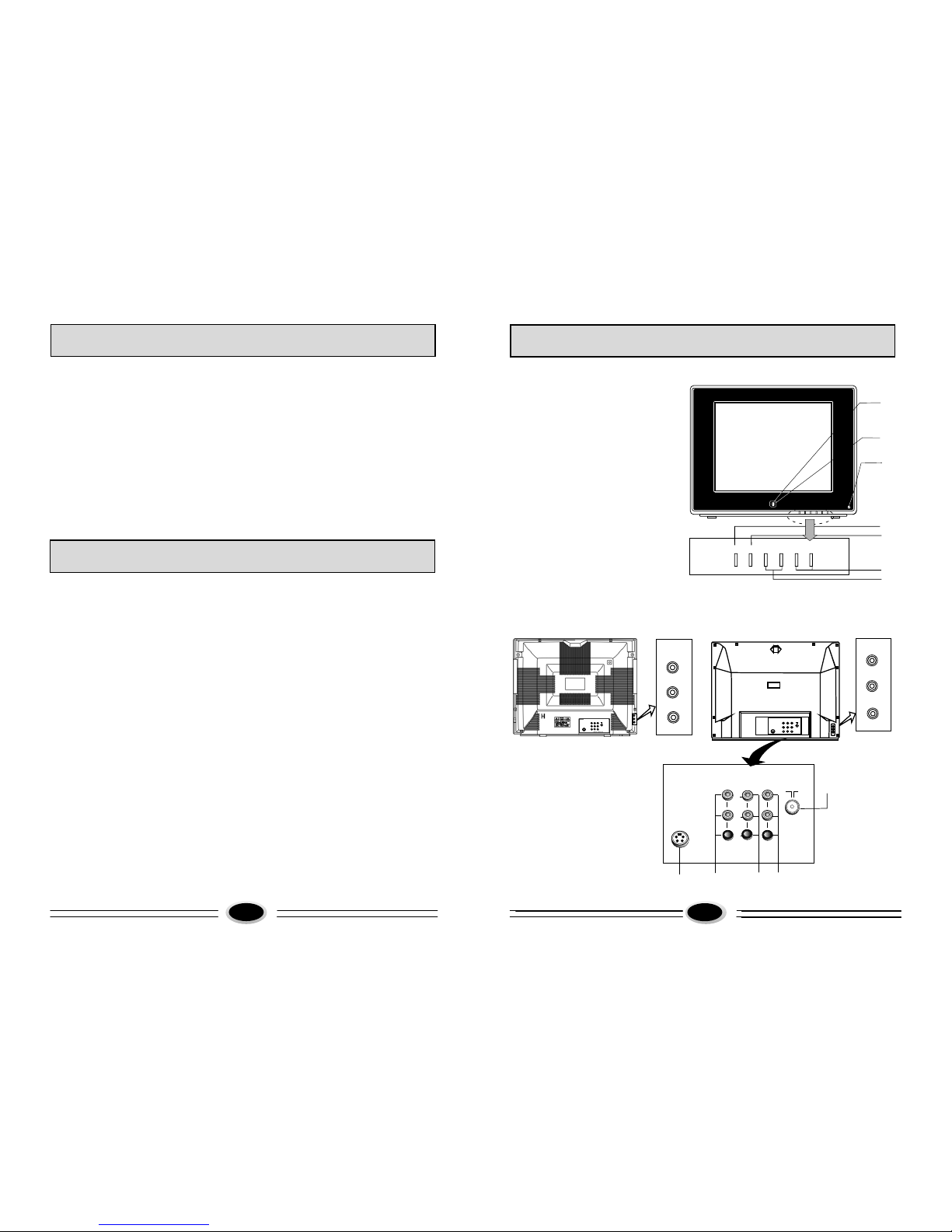

FUNCTION BUTTONS AND EXTERNAL SOCKETS
1.Front panel
(1)Remote sensor: let the remote
controller aim here, the TV set
can receive remote control signal.
(2)Power switch: press the button to
turn on the TV set ,press the button
again to turn off the TV set.
(3)Power indicator: the indicator lights
in standby status .The indicator
glints when you use remote
controller.
(4)Menu button
(5)Program up/down button
(6)Volume up/down button
(7)TV/AV switch button
(4)
(7)
(6)
(5)
(3)
(2)
(1)
MENU - +VOL
TV/AV
-CH+
(1) S-VIDEO input
(2) AUDIO/VIDEO input
(3) YUV-DVD component input

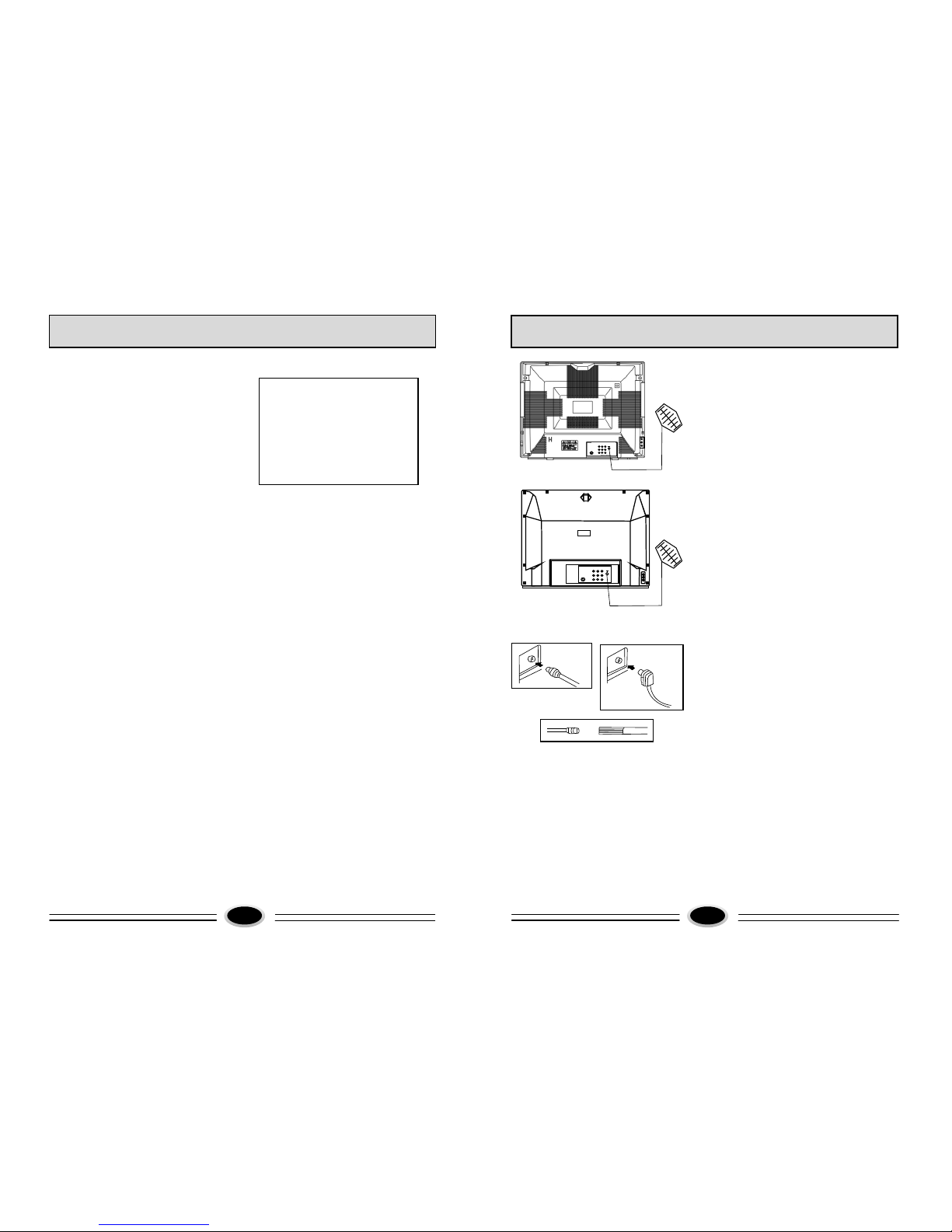

(4) Antenna input
(5) AUDIO/VIDEO output
(1) (2) (3)
(4)
S-VHS
3
Y
Cb
Cr
OUT
IN
VIDEO
AUDIO
L
R
IN
(5)
2. Audio and video rear connections
VIDEO
AUDIO-R
AUDIO-L
VIDEO
L
AUDIO
R
34FV6
29FV6

REMOTE CONTROLLER
6
TV/AV Select
(P8)
Sound Volume
Up/Down
（Ref. P7 ）
Power/Standby
(Ref. P7 )
Program Up/Down
（Ref. P7 .）
MENU
(Ref.P11.)
Mute
(Ref.P 8 )
Lock
(Ref.P9)
Call
(Ref.P8)
Direct Access Numeric
Keys
(Ref.P7)
Quick View
(Ref.P8)
ZOOM
(Ref.P7)
Picture Effect
(Ref.P9)
?
-/--
2
1 3
4 5 6
7 8 9
0 QV
TIMER SOUND
V+
V-
P+
MENU
P-
PIC
TV/AV
Picture MENU
(Ref.P11)
Time MENU
(Ref.P12)
Sound MENU
(Ref.P11)
Ref.
5
AV CONNECTION
W
R
G
B
Direction of signal
white（left audio）
red（C /right audio ）
blue（C ）
green
（video）
（Y）
yellow
r
b
Y
Note:
1.When receives s-video signal, you must remove video signal; when receive
video signal, you must remove s-video signal.
2.When receive front video signal, you must remove back video signal; when
receive back video signal, you must remove front video signal.
W
RB
G R
DVD(with DVD component)
VCR (without S-VIDEO terminal)
YW R
o d o u
Taui o t
VCR (with S-VIDEO terminal)
W R
s e tTo -vido outpu
vou
To ide otput
o
T c mpo ent ut
o n o
S-VHS
3
Y
Cb
Cr
OUT
IN
VIDEO
AUDIO
L
R
IN
34FV6
29FV6

You can select your video
source by the [TV/AV] key.
7. MUTE
By pushing this key, sound
output will be muted.
Push [MUTE] again or Volume
Up/Down, and sound Volume
will return.
8. Quick View
Program will quick back
to the previous program
being watched.
9. CALL
Program No.
Colour system
Clock
Sleep
TV/AV MODE
This key will call the on
screen display.
Push again to remove the
on screen display.
Menu MODE
Pressing the [?]key,
current menu will
exit directly.
7 8
TV/AV
6. TV/AV Selection
MUTE
QV 10
2
AV1
TV
?
1
PAL
B/G
15:15
SLEEP 120
CONTROL YOUR TV
1. Power/Stand-By ON/OFF
With Mains status On, you can also turn off using Remote
Control Hand Set.
This status is called Stand-By mode. In this mode; You
can also turn on the
TV by pushing the Channel Up/Down
keys on the front controls.
There is an Automatic Power OFF function in the TV. With no
signal condition,
the TV will automatically turn off after 10 minutes.
2. Program Up/Down
Push [P+] key to change Program Up.
Push [P-] key to change Program Down.
CONTROL YOUR TV
3
2
1
1
VOLUME 15
|||||||------------
V-
V+
P+
MENU
P-
-/--
2
1 3
4 5 6
7 8 9
0
V- V+
P+
MENU
P-
3.
Direct Access Tuning
Using the numeric keys on Remote
Control Hand Piece, channel can be
selected directly from 0 to 249 channels.
Or repeatedly press the -/-- button to
select the desired mode then press numeric buttons.
“-” 1 digit mode
“ ”-- 2 digit mode
“--- ” 3 digit mode(Max Ch. 249)
Volume Control
Push [V+] key for Volume Up.
Push [V-] key for Volume Down.
ZOOM
Push [ZOOM] key to change as follows:
NORMAL WIDE ZOOM
W ID E p icture height is reduce, ZOOM picture height is expand.
__
4.
__
5.
“ ”
TV
AV1
AV2
S-VIDEO
YUV
