Haier HT-2599AV User manual

HT-2599HT-2599
COLOUR TELEVISION
OPERATING
INSTRUCTIONS
◆Stage curtain for open and close effect
2
◆Digital I C bus control
◆Auto search tuning & 218 programs stored
◆Full infrared remote control
◆Multi-picture modes selection
◆Multi-function timer,appointing programme

WARNING AND CAUTIONS
1. When you clean the TV set, please pull
out the power plug from AC outlet.
Or may result in electric shock, fire or
damage to the TV set. Don't clean the
cabinet and the screen with benzene,
petrol and other chemicals.
4. Do not place the TV set near rain
or moisture as it may cause an electric
shock, or the TV set to catch fire. The TV
set must only be used
in dry indoor location.
2. In order to prolong the using life of the
TV set, please place it at a well ventilated
location.
5. The back cover must only be removed
by a registered electrical service person.
Removing the back cover may result in
electric shock, fire or damage to
the TV set.
3. Don't place the TV
set in direct sunlight
or near heat source.
6. If the TV set is not going to be used for
a long time, or there is a severe thunder &
lightening storm, it is recommended that
the TV set be disconnected from the AC
power outlet and the aerial plug
removed.
Explanation on the display tube
When the picture tube requires cleaning, please disconnect the power and use a
dry soft cotton cloth. Do not use any cleaner or abrasive cloth.
1
CONTENTS
Warning and cautions.............................................................................................1
Basic feature...........................................................................................................2
Technical specification...........................................................................................2
Preparing for operations.........................................................................................3
Function buttons and external sockets....................................................................4
AV connection.........................................................................................................5
Remote controller guide..........................................................................................6
Power supply...........................................................................................................7
Tuning procedure....................................................................................................7
Picture adjustment...................................................................................................9
Other functions......................................................................................................10
Multi function timer...............................................................................................14
Lock function.........................................................................................................15
Trouble shooting guide..........................................................................................17

BASIC FEATURE
●I C bus control
●218 programs stored
●Display full functions on the screen and infrared remote control
●Multi picture modes and sound modes selection
●Auto searching, function selecting and program number skipping
●Multi function timer
●Progammes scanning
●Game, multi-function lock
●Stage curtain for open and close effect
2
TECHNICAL SPECIFICATION
1.POWER SUPPLY: See rating plate
2.COLOUR SYSTEM: PAL N TSC4.43/3.58(AV)
3.AUDIO SYSTEM: B/G
4.CRT: 25"
5.ANTENNA INPUT : 75Ω Standard Coaxial Cable
6.SOUND OUTPUT POWER: 5W
7.POWER CONSUMPTION: See rating plate
8.NET WEIGHT(kg): 29
9.NET DIMENSION(mm): 688 x 480 x 526
Supplied accessories:
Infrared remote control handset 1
Battery(AA) 2
Operating instruction 1
Design and specifications are subject to change without notice.
2
Figure A Figure B
Antenna cable
with a plug
Figure C Figure D
Antenna feeder
Antenna adapter
75-300Ω
Coaxial cable(75Ω) twin-lead cable(300Ω)

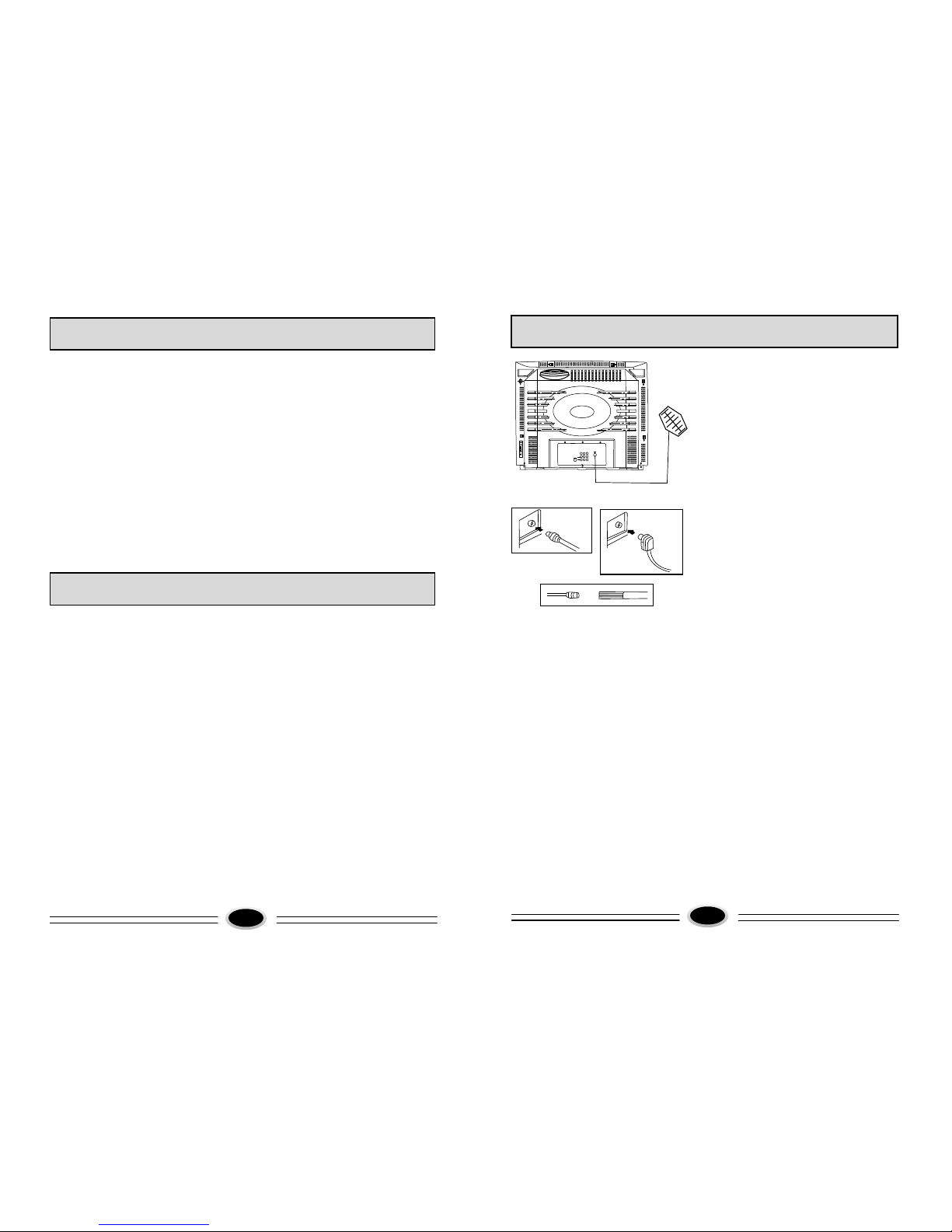

Antenna connection
Connect an antenna to the antenna socket on
the TV set, we recommend using a Cable TV
system for better picture and audio quality.
1.If you use a coaxial cable(75Ω),insert the
antenna plug (see figure C) into 75Ωsocket
(see figure A).
2.If you use a twin-lead cable(300Ω),please
shape the cable as figure D, and connect the
leads to antenna adapter and then insert the
antenna adapter into the 75Ωsocket (see
figure B).
Power source wire connection
Insert the power plug into AC outlet.
Install and replace batteries of the
remote control unit:
1.Place the remote control unit with the face
down, then open the battery cover of the
unit.
2.Place the two"AA"size batteries, matching
the + and - signs on each battery to the +
and -signs of the battery compartment.
3.Close the cover of the battery compartment.
NOTE:
(1)Don't drop or wet or dismantle the unit.
(2)If you don't intend to use the unit for a
long period or the electricity of the
batteries is used up, remove the batteries
to prevent batteries acid from leaking
into the battery compartment.
(3)Replace the two old batteries at the
same time.
(4)Don't use charge battery (Ni-cd )and
don't mix battery type.
(5)Don't throw your batteries into a fire.
Dispose of your batteries in a required
place.
PREPARING FOR OPERATIONS
3
合理安放 Antenna

AV CONNECTION
5
FUNCTION BUTTONS AND EXTERNAL SOCKETS
4
1.Front Panel
(1)Power switch: press the button to turn on the TV set ,press the button again to
turn off the TV set.
(2)Program up/down button
(3)Volume up/down button
(4)TV/AV switch button
(5)Menu button
(6)Power indicator: the indicator lights in standby status .The indicator glints
when you use remote controller.
(7)Remote sensor: let the remote
controller aim here, the TV set
can receive remote control signal.
2.The sockets on the rear and side panel
(1)Antenna socket
(2)Audio/Video socket
(3)S-Video socket
(4)DVD component socket
(5)Video input socket
(6)Audio(L) input socket
(7)Audio(R) input socket
W
RB
G R
DVD(with DVD component)
W
R
G
B
Direction of signal
white（left audio）
red（C /right audio ）
blue（C ）
green（Y）
yellow（video）
r
b
Y
VCR (without S-VIDEO terminal)
YW R
To adio ut
uo
VCR (with S-VIDEO terminal)
W R
s- e tp
To vidoou ut
v oTo ideo utput
o mp et u
Tcoon n o t
Note:
1.When receive s-video signal, you must remove video signal; when receive
video signal, you must remove s-video signal.
2.When receive front video signal, you must remove back video signal; when
receive back video signal, you must remove front video signal.
(1)
(2)
(4)
(3)
VIDEO
IN
L AUDIO R
S-VIDEO
3
YCb Cr
OUT
VIDEO
IN
L AUDIO R
YCb Cr
OUT
S-VIDEO
(1)
(2)
(3)
(4)
(5)
MENU TV/AV
－ ＋ － ＋
P
(7)
(6)
VIDEO
L
AUDIO
R
(5)
(6)
(7)

Remote control functions
TV/AV exchanging button
Mute button
Numeric button
One/two/three digital buttons
Picture mode selection
Volume up/dwon button
1
2
3
4
5
6
11
15
16
17
17
18
16
3
15
14
13
12
11
1 2 3
4 5 6
7 8 9
0
TV/AV
SCAN
LOCK
SYSTEM
DISPLAY
-/-- BAR
MENU
CH+
RESTART
WIDE
PRE
FIRE
FIRE
MIX
SHORT
SECOND
EXIT
LIGHT
NARROW
BACK
SELC.PIC SELC.VOL
CH-
VOL- VOL+
1
2
5
4
6
7
8
9
10
7Recall
8Calendar/game selection
9
10
Second timer button
Volume mode selection
12 Display
13 Invalid button
14 System preset button
Lock preset button
Scan button
DC standby button
18 Sleep timer
Programme promote
10
Note :Because there is no bar function in the TV,"LONG", "SHORT",
“WIDE", "NARROW" buttons are invalid.
6
20
19
19
20
Program number up/down button
Menu button
REMOTE CONTROLLER GUIDE POWER SUPPLY
1.Power supply (switch on/off to set main power supply).
Press power switch button and the set shall be under normal receiving condition.
Press it again and the power shall be off.
2.Standby button (remote control power supply).
Press the button and the set enters standby condition, press it again and the set
enters normal receiving condition.
1.Preparation
Connect the aerial and power supply
wire, press power switch button, the
power indicator will light after a few
seconds.
2.Auto-search
The TV set will automatically search all
programs, after the search is finished, all
.
fine tuned programs will be stored automatically.
(1)Press [MENU] buttons, let TUNING menu display on the screen.
(2)Press [-CH+] buttons, and select AUTO MEMORY item.
(3)Press [VOL+] button, the TV set will begin to search programs from program
number 0. After the searching is finished, program number 0 will display on
the screen.
(4)During auto-search, if you want to stop searching, press [VOL-] button.
3.Semi-Auto search
You can preset the program you need to the pointed channel.
TUNING PROCEDURE
POSITION 1
BAND UHF
SKIP OFF
SEARCH UP
MFT DOWN
AUTO MEMORY
SELECT ADJUST
TUNING
7
