Haier LET32T1000HF User manual

Please read this manual carefully before operating the unit, and keep it
for future reference.
DIGITAL LED LCD TELEVISION
INSTRUCTION MANUAL
Model: LET32T1000HF
LET42T1000HF
LET39Z18HF
LET46Z18HF

Contents
EN-1 Digital LED LCD Television Instruction Manual
Contents
Safety Warnings 2
Welcome............................................................... 2
Important Information........................................ 2
About Your LED LCD TV 5
Installing the Stand ........................................... 5
Front Control Panel ............................................. 7
Rear Terminal Control..........................................8
Get to Know Your Remote Control...................... 9
Connecting Your TV ........................................... 10
Antenna Connection..........................................................10
Improve Your Signal ...........................................................10
Connect Your PC to the TV...............................................10
Connect a DVD Player to Your TV ..................................10
Connect a DVD Player or VCR to Your TV....................10
SCART Input ..........................................................................10
HDMI Input ............................................................................10
Mount Your TV onto the Wall ..........................................10
Preparation of Your Remote Control................ 11
Battery Installation..............................................................11
Battery Caution ....................................................................11
Getting Started 11
Setting up........................................................... 11
Location..................................................................................11
Connection............................................................................11
Switching Your TV On ........................................................11
Tuning Your TV................................................... 12
Switching to an External Source Other Than TV......12
Auto Search (Antenna or Cable) ....................................12
Digital Manual Search(Antenna)....................................13
Digital Manual Search(Cable) .........................................13
Analog Manual Search ......................................................13
Skip...........................................................................................14
Sort...........................................................................................14
Edit............................................................................................14
Using Your TV ..................................................... 15
How to Select the TV Program .......................................15
How to Adjust Volume.......................................................15
Adjusting Picture Settings................................ 15
Changing the Picture Setting .........................................15
Adjusting Sound Setting................................... 16
Changing the Sound Setting ............................ 16
Function Settings .............................................. 17
Lock Menu Setting............................................. 18
Shortcut Menu Display...................................... 20
Using the features 21
Teletext Functions ............................................. 21
Teletext....................................................................................21
USB Mode........................................................... 22
To Use the USB Device.......................................................22
Connecting a USB Device.................................................22
USB Media Menu operation ............................................22
To play pictures....................................................................23
To play music ........................................................................23
To play movie........................................................................24
To play text ............................................................................24
Using External USB Disk For Recording........... 25
Time Shift ...............................................................................25
Recording...............................................................................25
Reference Sections 26
Troubleshooting ................................................ 26
Appendix.............................................................28
27

Safety Warnings
Digital LED LCD Television Instruction Manual EN-2
En
Welcome
Thanks for buying this 32"/39"/42"/46" Full HD Digital LED LCD TV. This guide will help you to set up and begin using
your TV.
Firstly, check the contents of your box with the parts checklist below:
32"/39"/42"/46" Full HD Digital LED LCD TVt
Remote controlt
AAA batteryt ×2
Instruction Manualt
Warrantyt
TV Standt
Screws for TV standt
Component audio adaptert
Cover bottomt
Now you can get started!
Important Information
READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.
WARNING:
moisture. Attention should be paid to avoid accidental scratches or impacts onto the screen.
The ventilation should not be impeded by covering the ventilation openings with items, such
as newspaper, table-cloths, curtains, etc.
CAUTION: ƷThe main plug is used as disconnect device which shall remain readily operable.
ƷPlease read this manual carefully before using your television and keep this manual in a
good place for future reference.
ƷTo achieve the best performance of your television, read this User‘s Manual carefully and
properly store it for future reference.
ƷInformation of screen displays and figures in the User’s Manual may vary due to technical
innovations.
ƷUnauthorized disassembly of this product is prohibited.
TruSurround XT, SRS and the symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated
under license from SRS Labs, Inc.
TruSurround XT® creates a truly immersive surround sound experience with rich bass and clear dialog from only two
speakers.
times.
WARNING
*To avoid electric hazards, it is strongly suggested that the back cover not be opened, as
there is no any accessory inside the casing.
*If necessary, please contact authorized after-sales services.
could result in serious injury by high voltage.
*An exclamation mark in a triangle: Major part or accessory of which technical
must be followed i t is to be replaced.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
fi

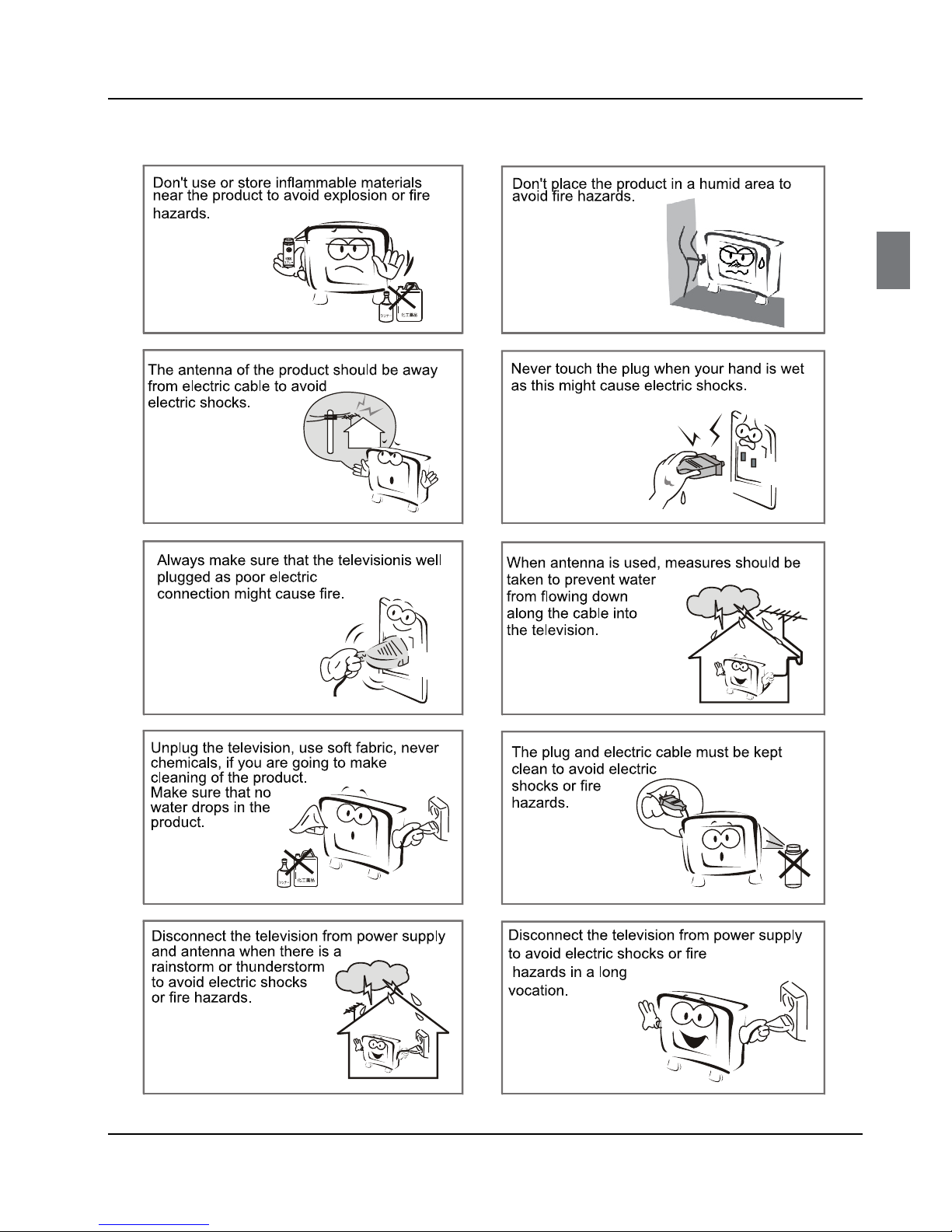

Safety Warnings

Safety Warningss
EN-3 Digital LED LCD Television Instruction Manual
Do not locate the product close to water or
oil(ie, cooking oil or lubricating oil), which may
cause fire hazards.

Safety Warnings
Digital LED LCD Television Instruction Manual EN-4
En

AboutyourLEDLCD TV
EN-5 Digital LED LCD Television Instruction Manual
About Your LED LCD TV
Installing the Stand
Only 32"42" LED LCD Model
1. Put the stand on the TV set
2. Screw the stand in the positions with the screws supplied (4 x B4 x 16).
(Put your TV on the table with its rear cabinet facing upwards.)
Screws:4xB4X16

About your LED LCD TV
Digital LED LCD Television Instruction Manual EN-6
En
Installing the Stand
Only 39"46" LED LCD Model
(Put your TV on the table with its rear cabinet facing upwards.)
1. Put the rear board on the stand neck, and fix the rear board with the
screws supplied (4 x B4 x 12F).
2. Put the rear board on the rear cabinet of TV, and fix the rear board with the
screws supplied (4 x M4 x 14).
Screws: 2xB4X12F
Screws:
4xM4X14
Screws: 2xB4X12F
Front Back

About your LED LCD TV
EN-7 Digital LED LCD Television Instruction Manual
Front Control Panel
1INPUT Toggles between all the available input
sources.
2
3
4
POWER
5
CH-
TV channel down.
6
CH+
TV channel up.
7
MENU
Press to select the main menu.
1
4
5
6
7
2
3
VOL- Press to decrease the volume.
VOL+ Press to increase the volume.
32" 42" 39" 46"

About your LED LCD TV
Digital LED LCD Television Instruction Manual EN-8
En
4PC input
5PC
AUDIO input
6SCART input
11 USB
12
13 Earphone output
1HDMI1 IN input
2HDMI2 IN input
3HDMI3 IN
input
Rear Terminals Control
HDMI1 IN HDMI2 IN HDMI3 IN PC AUDIO SCART
YPbPr VIDEO R-AUDIO-L ANT IN COAXIAL USB COMMON INTERFACE
13
10
9
8
7
12
11
1456
23
Common Interface
9input
10
ANTENNA
COAXIAL
YPbPr
input
7
8AV
input

About your LED LCD TV
EN-9 Digital LED LCD Television Instruction Manual
Get to Know Your Remote Control
When using the remote control, aim it towards the remote sensor on the TV.
abc def
ghi jkl mno
pqrs tuv wxyz
Note
RED button, GREEN button,BLUE
button and YELLOW button are fast
text button in analog signal. Function
button in DVBT (just reference the
OSD)
1POWER
2No Function
3
No Function
4Picture Mode
5Sound Mode
6Display Information
7Sleep Button
8DTV Audio/NICAM
9Screen Button
10 Channel List
11 Display or Close Subtitle
12 Numerical Keys
13
Source
14 Q.View
15 Volume Selection
16 Channel Selection
17 Mute
18 Menu
19 Electronic Programme Guide
20 Favourite
21 OK Button
22 Cursor Mover Button
23 STAR T RECORD
24 Exit
25 USB REPEAT
26 Teletext Index / USB Zoom
27 USB PLAY/PAUSE
28 USB STOP
29
Teletext Red Button / USB Fast Rewind
30
Teletext Green Button / USB Fast Forward
31 Teletext Yellow Button / USB Previous File
32 Teletext Blue Button / USB Next File
33 Teletext Text
34 Teletext Mix
35
Teletext Subcode
36 Teletext Hold
37 Teletext Reveal
38 Teletext Size
39
REC.LIST
40
No Function
RECORD
ANGLE/REC.LIST

About your LED LCD TV
Digital LED LCD Television Instruction Manual EN-10
En
Connecting Your TV
Antenna Connection
Connect your aerial to the back of the TV into the
ANTENNA IN socket.
Improve Your Signal
To improve picture quality in a poor signal area, use a
signal amplifier (not supplied).
Connect Your PC to the TV
You can use your TV as a monitor for your personal
computer by connecting it with a VGA cable (not
supplied).
Read your computer user guide and check it has a
VGA connector.
Connect a D type 15-pin VGA interface cable to the
VGA video interface connector on the PC. Connect
the other end of the cable to the PC interface
connector on the TV. Tighten the screws on the
VGA connectors and connect the audio cable (not
supplied) to the audio input socket on the back of
the TV.
Turn on the power of the TV firstly and then the PC.
Press the button on the TV or TV remote control to
set the video input mode to PC.
Once the image shows, if there is noise present,
change the PC mode to another resolution,
change the refresh rate to another rate or adjust
the brightness and contrast on the menu until the
picture is clear.
Connect a DVD Player to Your TV
Connect the DVD video outputs (Y, Pb, Pr) to the
COMPONENT (Y, Pb, Pr) IN socket on your TV.
Turn on the DVD player and insert a DVD.
Press the SOURCE button to select COMPONENT
mode.
Refer to the DVD player user guide for operating
instructions.
DVD
Connect a DVD Player or VCR to Your
TV
There are two ways in which you can connect a DVD
player or VCR to your TV. Make sure that both the TV and
them.
SCART Input
Connect the scart lead from the external device
(DVD player, Set-top box or games console) to the
TV scart socket.
Press the SOURCE button to select SCART mode.
Press the PLAY button on the external device.
HDMI Input
Connect the cable from the HDMI device to the TV
HDMI socket.
Press the SOURCE button to select HDMI mode.
Refer to the HDMI device user guide for how to
operate.
Mount Your TV onto the Wall
You can mount your TV onto the wall by using a wall
bracket (not supplied). Use M6 machine screws (4
pcs) to screw the TV onto the bracket (not supplied).

AboutyourLEDLCD TV
EN-11 Digital LED LCD Television Instruction Manual
Preparation of Your
Remote Control
Battery Installation
Place the remote control face down, then open the
cover of the battery compartment.
Install two AAA batteries. (The + and - symbol of the
battery must match with the marks on the remote).
Close the cover of the battery compartment.
Battery Caution
Conrm there is no object between the remote control
and the remote sensor of the TVset.
Sunshine or other strong light will interfere with the
signal sent by the remote control.Avoid using nearby
Do not putthe remote control in direct heat or in adamp
place as you may damage the remote.
Please use two AAA 1.5V batteries. Do not mix battery
types. Install the batteries at the correct polarities. Do
not use rechargeablebatteries. IfyourTVis to be stored
for aperiod of time, removethe batteries from the
remote control.
Do not throw away the battery with common domestic
according to local regulation.
Getting Started
Setting up
Location
You will need to place yourTVnear yourplugsocket
(so the power cablecan comfortablyreach) and within
reach of youraerial socket or extension lead.
Connection
Insert yourTVaerial lead into the Antenna inputat
the side of the TV.
Insert the batteries into the remote control.Make
sure they are inserted the right way around,
matching the polarity as indicated inside the battery
compartment.
Switching Your TV On
Press the POWER button on the right of the TV
once. Aindicator light will appear in the right of
the screen.
Press POWER on the remote control.The TVwill turn
on. This may take afew moments, and this display will
appear on the screen when the TVis turned on for the
rst time.
Press OK button on the remote control to enter the
Backlight Mode menu.

Getting Started
Digital LED LCD Television Instruction Manual EN-12
En
device to the TV, you will need to tell the TV to display
the content from it. Simply press SOURCE which will
bring up the source menu in the left corner of the screen,
use the and button to highlight the required
source and press OK select.
For details of how to plug in other equipment see
Connecting your TV on page 10.
Press  button to select Tuner Mode
Press  button to sele and press
OK button to enter the Language menu.
ct HOME MODE
Press  button to sele
and press
OK button to enter the Shop mode menu.
The shop mode will display on the screen, and you could
not do any operation except pressing EXIT button to exit.
ct SHOP MODE
Press  button to sele and press
OK button to enter the Country menu.
ct language
Press  button to sele and press
OK button to enter the Tuner mode menu.
ct Country
Press  button to sele and press
OK button to enter the Channel Scan menu.
ct Tuner MODE
Press  button to sele and press OK button
to start auto scan, it may take a few minutes to complete.
ct SCAN
and Country .
Press  button to select you needed.
Press  button to select Channels , press OK
button to enter.
Press  button to select the Channel scan, and
press OK button to start searching.
(Antenna or Cable)
Tuning Your TV
Switching to an External Source
Other Than TV
If you have attached a DVD player or similar external
Auto Search (Antenna or Cable)
Press MENU
HOME MODE
SHOP MODE
button.
Press  button to select Tuning , press button
to enter.

Getting Started
EN-13 Digital LED LCD Television Instruction Manual
Once a channel is located, you can press OK button
to save it.
Press EXIT button to exit.
Analog Manual Search
Follow the below steps when you need a manual search.
Press MENU button , Press  button to select
Tuning , press button to enter.
Press  button to set Antenna (Antenna or Cable)
and Country .
Press  button to select you needed.
Press  button to select Channels , press OK
button to enter.
Press  button to select Analog
Manual Scan, press OK button to enter.
l
ect
Enter Select Exit
Press the number button on the remote control to
set Frequency(MHz).
Press  button to select Search Up and press OK
button to search the higher frequency channel.
Select Search Down and press OK button to search
the lower frequency channel.
Once a channel is located, you can press OK button
to save it.
Press EXIT button to exit.
Digital Manual Search(Cable)
Press MENU button.
Press  button to select Tuning , press button
to enter.
Press  button to set Antenna ( Cable ) and
Country .
Press  button to select you needed.
Press  button to select Channels , press OK
button to enter.
Press the number button on the remote control to
set Frequency(KHz).
Press button to set Modulation you want.
Press the number button on the remote control to
set Symbol Rate(Ksym/s).
Press OK button to start searching,
Press EXIT button to stop auto search during
searching.
Note
It may take a few moment to complete the Auto
Search.
Press Menu button to exit DTV search ,ATV search
will go on.

Getting Started
Digital LED LCD Television Instruction Manual EN-14
En
Press  button to select the number position you
want to remove to, press OK button to con rm.
You can press the EXIT button to cancel the changes
at anytime.
Edit
Press  button to select Edit . Press OK button to
enter the sub-menu.
Press Ok button to enter the menu you want and
change the option you want.
Common Interface
The common interface (CI) slot is designed to accept the
Conditional Access (CA) Module and Smart card in order
to view the pay TV programmes and additional services.
Contact your Common Interface service provider to get
more information about the modules and subscription.
Please noted that CA modules and smart cards are
neither supplied nor optional accessories from us.
Warning
t
the Common Interface slot.
Skip
Press MENU button.
Press  button to select Tuning , press OK button
to enter.
Press  button to select Channels . Press OK
button to enter the sub-menu.
Press  button to select Skip . Press button to
enter the sub-menu.
Press  button to select the channel and press
OK button to select the channel to skip.
Sort
Press  button to select Sort. Press OK button to
enter the sub-menu.
Press  button to select the channel you want
and press OK button to select the channel.

Getting Started
EN-15 Digital LED LCD Television Instruction Manual
Using Your TV
How to Select the TV Program
Using Program number button Enter the channel
number with the number keypad on the remote
control.
Using P+/P- button.
Press the P+/P- button to select a channel number.
How to Adjust Volume
Press V+/V- button on the remote control or the bottom
of the TV to adjust the volume level.
Adjusting Picture
Settings
Changing the Picture Setting
Press MENU button.then press button to select
Picture , press OK button to enter..
Press  button to select the item requires
adjusting.
Press button to adjust the selection item.
When you are satis ed with your choice, press the
EXIT button to return to normal viewing or press
Insert the CAM correctly, then Smart Card to the CI
slot that is located at the side of the TV.
CI Slot
CAM
Smart Card
Turn on the TV and it will display the below message
if the CA module is detected. Wait for few moments
until the card is activated.
Press the OK button to enter and use the and 
button to select the option you need and press the
“OK” button.
Detailed information on the CI card used is
displayed.
Press OK button to access the card menu. Refer to
the module instruction manual for setting details.

Getting Started
Digital LED LCD Television Instruction Manual EN-16
En
MENU button to return to the previous menu.
Contrast
This will adjust the intensity of bright parts in the
picture but keep the dark parts unchanged.
Brightness
This will adjust the light output of the complete
picture.
Colour
This will adjust the saturation level of the colours to
suit your personal preference.
Sharpness
This will adjust the sharpness of ne details in the
picture.
Tint
Allows you to select the colour mix (Tint) of the
picture.
Note
The Tint function is only available in NTSC mode.
Mode
This will select the picture mode. Select Standard/
/User/Vivid/Eco/Cinema/sport according to the
program.
You can quickly select the desired mode by P.MODE
button on the remote control.
Colour temperature
Press button to set Colour temperature as User,
Cool,Standard,Warm.
This will increase or decrease Warm (red) standard and
Cool (blue) colours to suit personal preferences.
Select Cool to give the white colour a blue tint,
Standard to give the white colour a neutral tint, Warm
to give the white colour a red tint.
Advanced Video
DNRij
To adjust the level of reducing the digital noise.
Press
To adjust the level of MPEG NR.Press  button to
Active Contrast
To adjust the level of luminance of the picture.
Press  button to set Active Contrast as On / Off.
Adjusting Sound
Setting
Changing the Sound Setting
Press MENU button.
Press button to select Sound , press OK button
to enter.
Press  button to select the item requires
adjusting.
Press  button to adjust the selection item.
When you are satis ed with your choice, press the
EXIT button to return to normal viewing or press
MENU button to return to the previous menu.
Balance
This will adjust the output of the right and left
speakers to obtain the best stereo reproduction for
your listening position.
Medium strong
Auto
Medium or strong.
Bass
To adjust the lower-pitched sounds.
Treble
To adjust the higher-pitched sounds
Sourround
This will control the Woofer output.
Press  button to select Surround.
Press  button to set Surround as OFF, ON.
Equalizer
This sound setting can be adjusted to suit your
personal preference.
MPEG NRij
Sound mode
This sound setting can be adjusted to suit your
personal preference.

Getting Started
EN-17 Digital LED LCD Television Instruction Manual
AVL(Automatic volume control)
To adjust the volume of each channel automatically
to a normal level to ensure the volume is the same.
Press 
Type
Press  button to set the type as
Normal or Visually Impaired.
Visually Impaired
This function actives When Type is Visually
Impaired.
ijVolume
To adjust the volume of Visually Impaired audio.
SPDIF Type
This will control the SPDIF Type.
Press button to select SPDIF Type.
Press button to set SPDIF Type. As OFF,
Auto,PCM.
SPDIF Delay
To adjust the sound to make the video and audio
playing at the same time. This function actives
when Digital Audio Output is PCM.
Function Settings
Press MENU button.
Press
 button to select Function , press OK
button to enter.
Press  button to select the item requires adjusting.
Press button to adjust the selection item.
When you are satis ed with your choice, press the
EXIT button to return to normal viewing or press
MENU button to return to the previous menu.
Language
To select the menu language.
Screen Mode
To set the picture proportion, press button to
select Auto/16:9/4:3/Zoom1/Zoom2 . You can
quickly select the desired mode by SCREEN button on
the remote control.
16:9 modet
Choose 16:9 when you want to adjust the picture
horizontally, in a linear proportion to ll the entire
screen.
4:3 modet
Choose 4:3 when you want to view a picture
with an original 4:3 aspect ratio, with gray bars
appearing at both the left and right sides.
Zoom1t
Choose Zoom1 when you want to view the picture
without any alteration. However, the top and
bottom portions of the picture will be cropped.
Zoom2t
Choose Zoom2 when you want the picture to be
altered, both vertically extended and cropped.
alteration and screen coverage.
Blue Screen
This will select the character background colour.
Note
The Blue Screen function is only available for
ATV mode.
Time
Time Zonet
Press button to select the appropriate time
zone
Sound Type
Set the sound output type
Speaker
ij
Press  Speaker

Getting Started
Digital LED LCD Television Instruction Manual EN-18
En
Timet
Press OK button to enter the submenu.
Auto Synchronization: Pressbutton to
to set the time manually.
Date: Pressbutton to select the position and
digits button to set the date.
Time:Pressbutton to select the position and
digits button to set the time.
:Pressbutton to select once,
adjusted.
Timer: Press digits button to switch on AM and
PM.
SleeptTimer
Pressbutton to select the number of minutes: To
,40Minutes
,60Minutes,90Minutes or 120Minutes.
Subtitle
multimedia.
Subtitleij
Press 
Digital Subtitle Language 1.ij
To adjust the default digital subtitle language.
Digital Subtitle Language 2.ij
To adjust the second default digital subtitle
language.
Subtitle Typeij
Press button to set Subtitle Type as Normal and
Hearing Impaired.
Teletext
To set the mode of Teletext.
Digital Teletext Languageij
To adjust the default digital Teletext language.
Decoding Page Languageij
To adjust the decoding page language.
Reset default
To recover to the default value.
Audio Language 1st
Press  button to set Audio Language.
To select the default audio language for a digital
channel. This function actives when in digital channel.
Audio Language 2nd
To select the second default audio language for a
digital channel. This function actives when in digital
channel.
1
According to the latest ERP regulation,
this unit will switch off itself automatically
if no change in status within the last 4
hours of operation.
Auto Sleep
Lock Menu Setting
Using this function can control the tuner, program,
source volume and so on. Pressing MENU on the remote
control, press  button to select Lock menu, press 
button to enter, and you will be required to enter the
password. The initial password of the television is 0000. If
you forget your password, you can always input 9443 to
regain control.

OSD Timer
To set how long you want the menus to appear
on-screen. Each press of  button repeatedly to
select the number of preset seconds, the Time will be
Shop Mode
Press 
5sec
Frist Time Installation
2
,50Minutes
t
Audio Language

Getting Started
EN-19 Digital LED LCD Television Instruction Manual
Change Password
Press  button to select Change Password
item. Press button to enter the submenu.
you can change the password .
System Lock
Press  button to select System Lock.
Press  button to set On or
Channel BLock
Pressbutton to select the channel you want to
lock.
Parental Guidance
Press  button to select parental lock. Press 
button to select OFF or 4-18 to limit the age of
children who will watch TV.
Clear ALL
Press  button to select Clear Lock mode.
Pressbutton to unlock all set modes, setting all lock
HOTEL SETTING
Press MENU button and press1,0,0,1,0,8 button to enter
the menu:
Hotel Mode Operation:
Turn on/off the Hotel Mode.
Max Volume:
Set the max volume for the TV.
Default Volume:
Set the default volume for the TV when
it turns on.
Keypad Lock :
Prohibite the input source for the TV.
Remote Controller Lock:
Clear all the locks above.
OSD Menu Display
Press button to set this function as off or on.

Remote Controller Lock
Source Lock
Default Source
Default Program
TV Back up to USB
USB Restore to TV
