Haier 50FREE-3 User manual

Please read this manual
carefully before using.
Retain it for future reference.
Fully Automatic Washing Machine
This manual is for
50FREE-3
User's manual

Contents
Names of the parts 1
Safety precautions 2
Installation and adjustment 4
Install the water inlet hose 6
Preparation before washing 8
Put in the laundries 8
Add the detergent 9

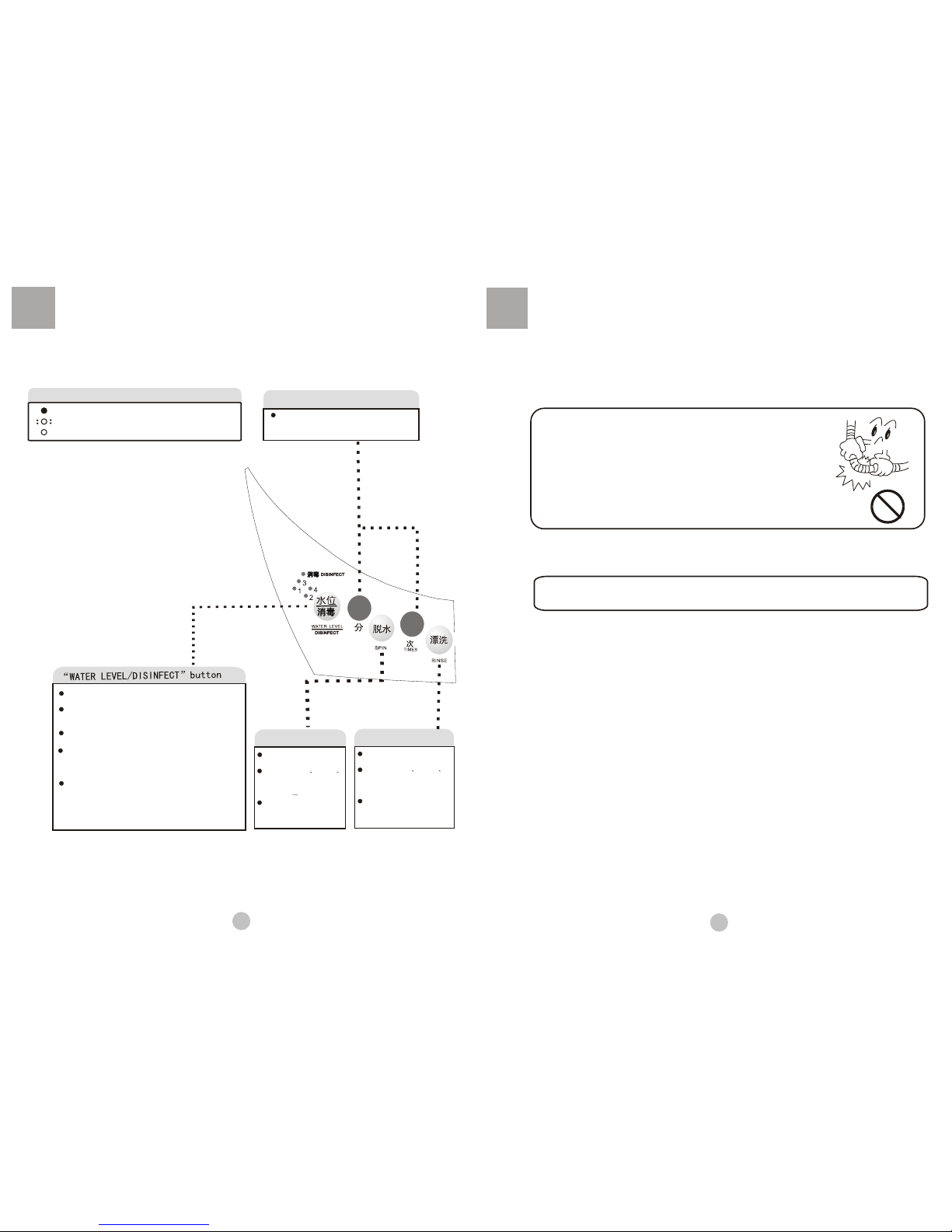

Use the operation buttons 10
Close the top lid 14
Washing finished 14
Disposal after washing 15
Packing list 17
Trouble shooting Answer to question 16
Specification table the cover 2
Packing list
17
Automatic washing machine
User's manual
Warranty card
Inner cover component
One
Inside in inner tub of washing
machine
One
Bottom plate
One
Quantity
One
Tapping screws
Eight
One
One
The side of connection between the water inlet
hose and the washing machine
The side of connection between the jointer of
the water inlet hose and the water faucet
Rated washing / spinning capacity
Water level/Water quantity (about)
Max water consumption
Injection pressure
3.0kg (weight ofstandard dry cloth)
High/33L, Medium/22L, Low/14L
0.03Mpa-0.78Mpa
Specification
Specification
Rated washing / spinning capacity
Water level/Water quantity (about)
Injection pressure
3.3kg (weight ofstandard dry cloth)
1/16L 2/21L 3/26L 4/32L
0.03Mpa-1Mpa
Specification
Specification
Between the upper cushion of the
washing machine package and the
upper seal of the package carton

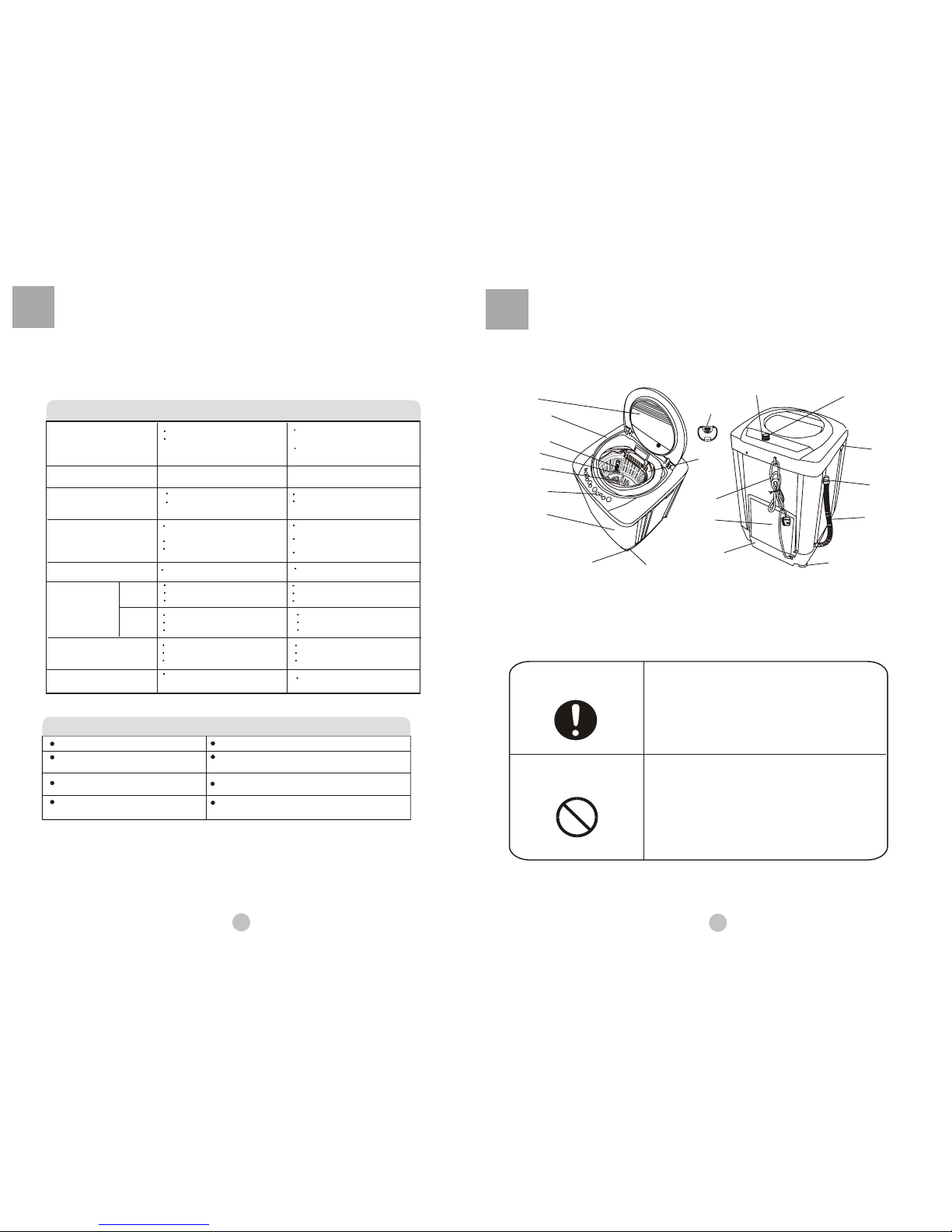

Names of the parts
Adjustable foot Adjustable foot
film
Water inlet valve
Water-absorption
gasket
Toplid
Control
panel seat
Lint filter
Inner tub
Pulsator
Control
panelfilm
Cabinet
Power
cord
Handle
Drain
hose
Back
cover
Base
Hook
Out tub
cover
Fixed foot(3 pcs)
Inner cover
components
The pulsator pausesduring water
inlet in washand rinse. It is toavoid splashing duringwater inlet
There may be some water flowing out of the
drain hose in the first use of the machine.
It is the water remained performance inspection
by the factory.
Common phenomena
Phenomena Explanation
The spinning is intermittent when it starts.
Select spin program, but it does not work.
Balance the laundries to avoid slanting.
The program is setting the drain time , certain
period is needed before it starts spinning.
The safety switch acts, and the
spinning cannot work. The
digitron displays E3.
The water filling does not work, or is
slow, the digital displays E4.
The drainage cannot work, or is too slow.
The digitron displays E1.
It stops running in midway. The digitron
displays E2.
The top lid is not closed. Close the top lid.
Is the drain hose put down?
Is the drain hose blocked?
Put down the drain hose. Open and close the
top lid once.
Clean the foreign material. Open and close
The top Lid Once.
Are the laundries put slantingly?
Is the machine slanting?
Reorder the laundries. Close the top lid.
The machine will start running after 10
seconds of being placed horizontally.
Is the water tap opened, or is there water
supply failure?
Is the water inlet valve blocked?
Is the water pressure too low?
Open the water tap. Open and close
the top lid once.
Clean the water inlet valve then open
and close the top lid once.
Open and close the top lid once.
The water level sensor is bad. Please contact the after-sales
service department.
Is the machine slanting?
Are the laundries put slantingly in spinning?
Are there any foreign materials?
Is the jointer of water
inlet hose loose or awry?
Adjust the machine to be even
Reorder the laundries and close the top lid.
Remove the foreign materials.
Fasten the jointer properly.
The water tap leaks
The digitron displays F1.
There's abnormal sound
inside the machine
Phenomena The reason How to settle
Trouble-shooting answer to question
(If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns
sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special
maintenance department or after-sale service department of our company. Do not repair it by yourself.
The machine does
not act
Not wash
Not spin
Is there power failure?
Is the power plug inserted tightly?
Is the water level reached preset position?
Please use it when there's power supply.
Insert the power plug tightly.
Fill water to the preset position.
Is the power plug inserted tightly?
Is the top lid closed reliably?
Are the laundries set flat?
Insert the power plug tightly.
Close the top lid.
Set the laundries flat.
16 1
Meaning and description of the symbols
Contents marked with that symbol are actions forbidden
to perform. Performing of those action may result in
damage of the machine or influence the personal safety of
the users.
Contents marked with that symbol are related to the
safety of the product and the personal safety of the users.
Please operate in strict conformity to the contents.
Warning sign
Forbidden sign

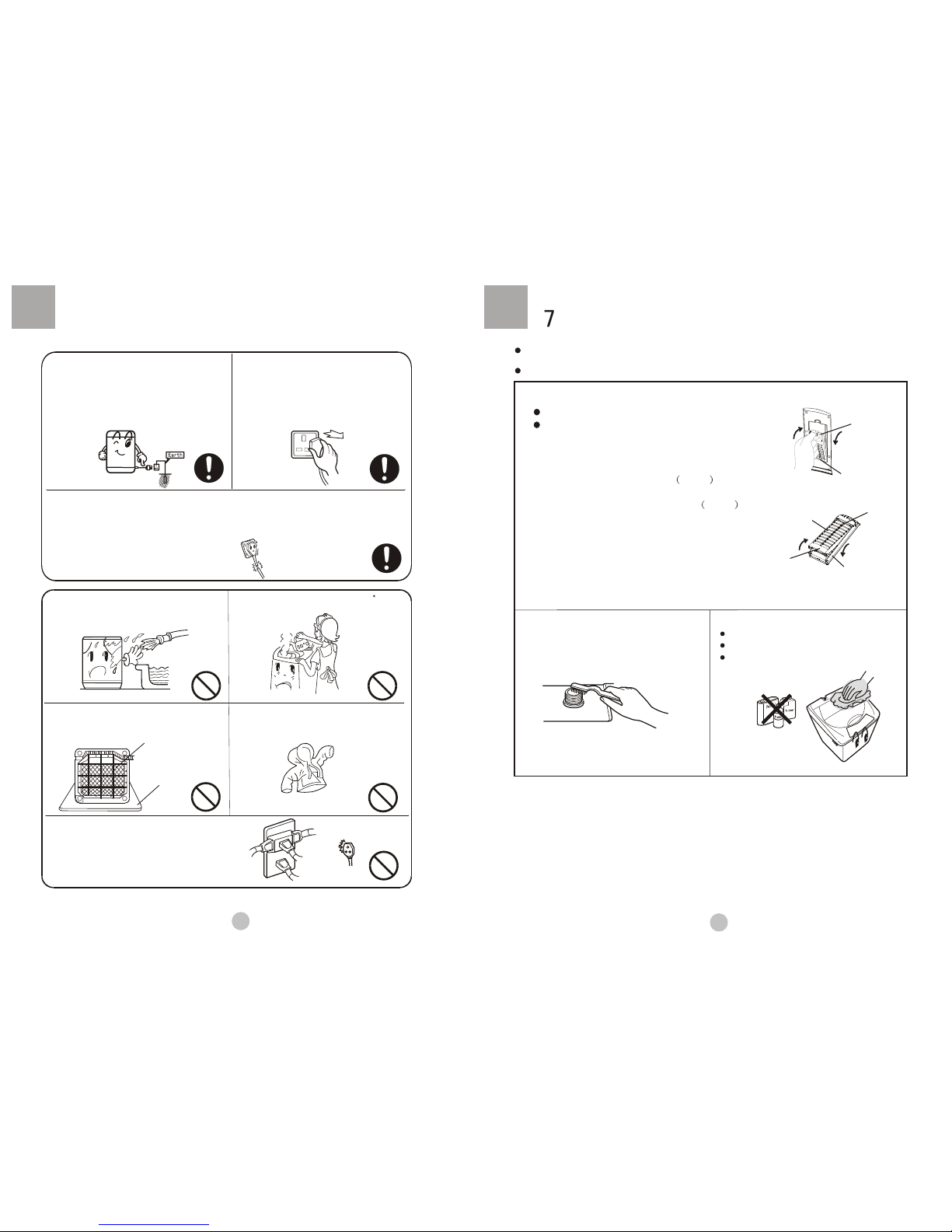

Safety precautions
Please insert the power cord into special rece-
ptacle with rated voltage.If the power cord is
three-phase wire,please use three-phase rec-
eptacle.The earthing terminal of the receptacle
must be earthed reliably.If it is two-phase wire,
please guarantee that the earthing wire is ear-
thed reliably.If possible ,please adopt electric
leakage protector.
Do not damage the power cord,bend ,extend,twist,bind or alter it by force.Do not press or
nip it with weight.If the power cord or the power plug is bad, or the power plug becomes
flexible,to avoid risk it is required to have it replaced by the technicians of our special
shop or the costomer care agent. Keep the pin of the power plug clean,if the
power plug is polluted with dust,please wipe with dry cloth carefully.
The power cord plug should be convenient
to be pluged in or pluged out with hand
while the washing machine runs normally.
Be sure to pull the plug out and close the
water tap when the machine is idle,when
moving the machine,or when cleaning
the machine.Do not use wet hand to ins-
ert or pull out the power plug.
In case the washing machine is installed
on ground with carpet, do not block the
ventilation hole with carpet.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not use water hotter above 50 C .
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Not put wet laundries on the control panel.
soft items
The ventilation holes
at the bottom
1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid for some time (
about 1 hour), then close the top lid.
4.Hang up the power cord and drain hose.
3.Be sure to pull off the power plug before maintenance.
2.Do not store water in the washing machine for a long period. Drain the water completely after each using.
The filter screen of the water inlet valve is likely to be
blocked by foreign materials and influence the water
inlet.
Please clean it with brush every two months.
If the cabinet is dirty, wipe it with wet cloth
Do not flush it directly with water.
Wipe it with neutral detergent.
Do not wipe it with thinner, petrol, alcohol etc.
After using, please clean the lint and foreign materials of the lint filter etc. in time. Otherwise it may influence
your using the machine.
Disposal after washing
Please first pull off the power plug from the receptacle before cleaning.
215
Figure 2
The back cover of lint filter
Install
Dismantle
Down
Up
Figure 1
Down
Dismantle
Install
Up
The front cover of lint filter
Lint filter:
The lint filter must be used during washing.
It must be cleaned in time after each using.
1.Push down the spring piece of the top lint filter to
make the claws out of the filter cover, and then
pull out the lint filter to get it down. figure1
2.Pull the back of the lint filter, and then you can get
down it off the front cover of the lint filter. figure2
3.Sweep the rubbish in the lint filter.
4.Put the back of the lint filter into the front cover .
5.Put the lint filter into filter cover, and make it tight .
6.Make sure the lint filter well installed, or it can
influence your use.

When selecting SAVE wash program, wash, rinse and spin are set
automatically.
Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.Do not let the children
climb the washing machine.
Petrol
Thinner
To prevent your laundries and washing
machine from damage,be sure to take
out all of the foreign materials from your
pocket,such as coins,buttons,sand or
hair pins etc.
Before washing,please check if the water
tap is open ,and if the water inlet pipe is
connected properly.
It is suggested to use low-foaming was-
hing powder
Please keep the lint filter in good condition,
and install it to proper position. If the lint
filter is lost or damaged, please contact
costomer care agent of our company.
XQBM33-200
XQBM33-200
Dismantle Install
Safety precautions
Program Water
level Wash(minutes)
1About 10
About 4
About 6 About 31
STANDARD 1~4 About 43About 18
About 4
1~4 SOAK+WASH
about 40
About 65
HEAVY
Water Level and Time Table for Each Program (self programming not included)
Rinse(minutes) Spin(minutes) Total time(minutes)
Saving water program, total about 10 minutes
Rinse twice, about 17
Save
GENTLE
Rinse twice, about 17
Rinse twice, about 17 About 4
1~4
Totaltime will add 3 9 minutes duringDISINFECT selected
*
*
*
Total time: including the normal water inlet time and drain time.
Spin time: the time from intermittent running to finishing

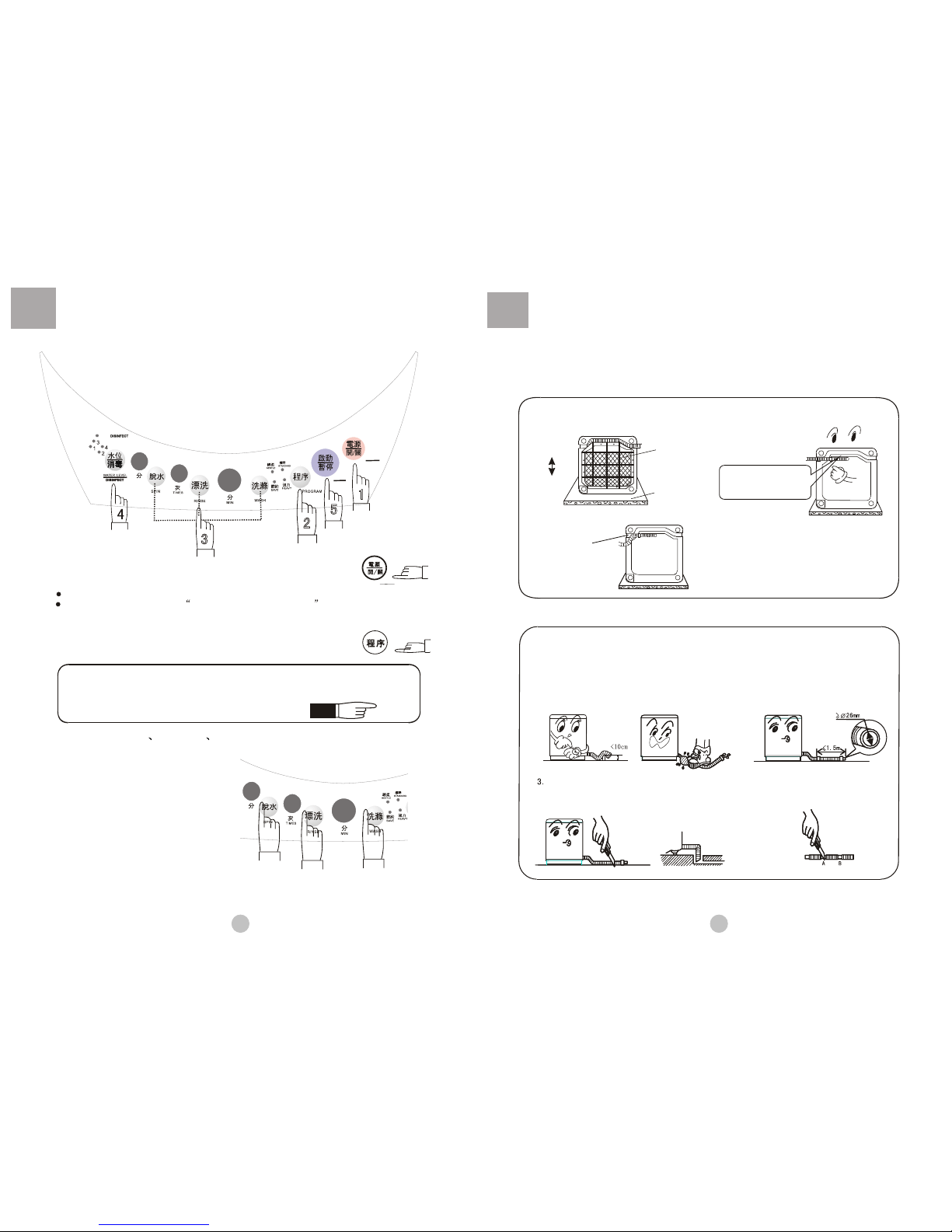

START
PAUSE
5 Push START/PAUSE button
5 Close the top lid
If you open the top lid, the machine will stop
working except for water filling and draining
6 Washing finished
The power will be switched off automatically
after the finishing of the washing.
Attention:
3
14
After the finishing of
the washing,It will
give an alarm

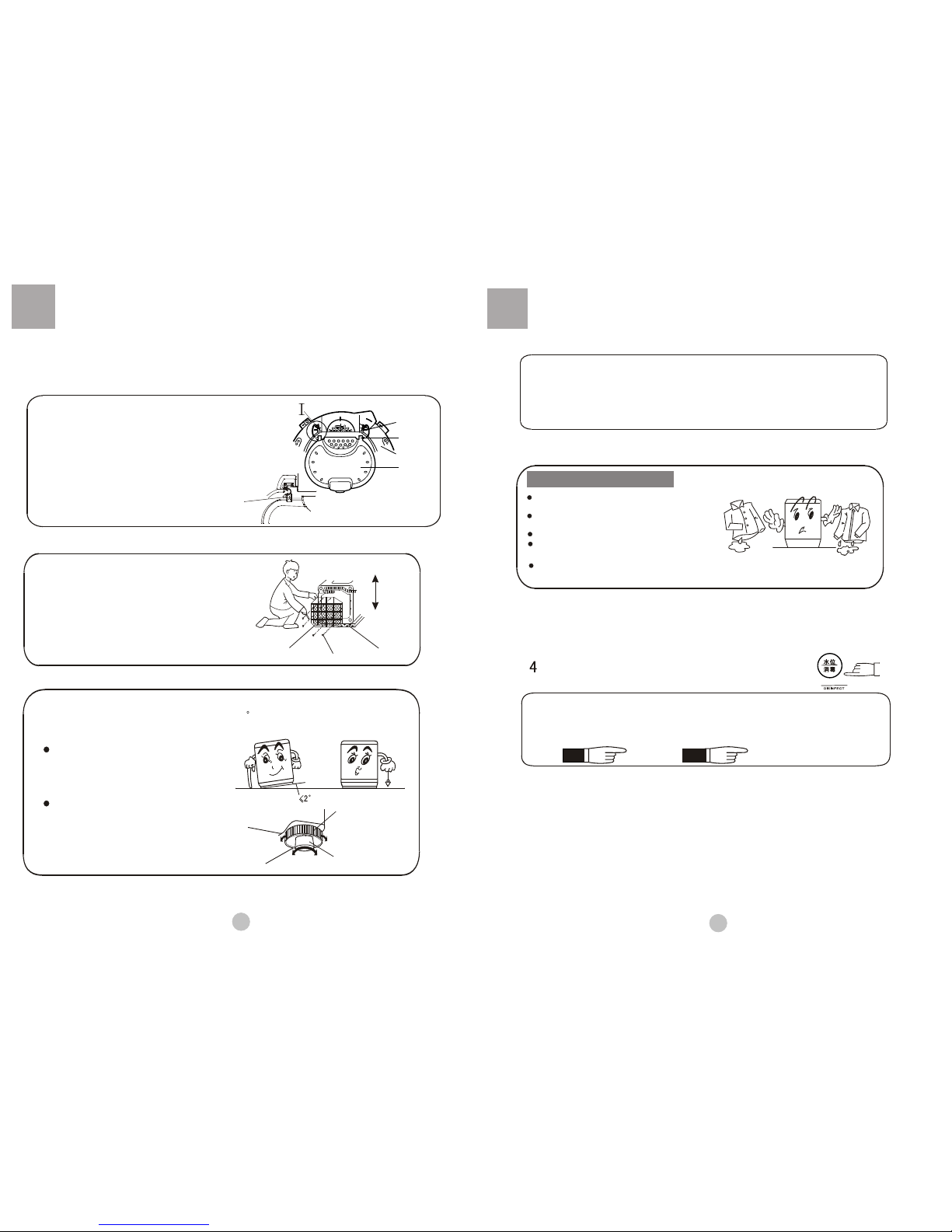

The washing machine shall be more than 20mm away from the wall.The largest allowed
slope of the supporting base of the machine is 2 . The slanting or rough ground will
result in unstable running or stoppage of the machine. Please adjust it with following
methods:
Confirm it's horizontal:
Adjust the adjustable foot:
Hang the lead line to confirm if it is horizontal.
Install the bottom plate
After you open the package, please lean
the washing machine gently down on soft
items ( like the towel cloth, blanket, etc. ).
Install the bottom plate to the bottom of
the machine with the eight screws by
a cross screwdriver, then lift the machine
up gently. See to the figure:
Adjust the installation position
soft items
Bottom plate Screw
Loosen Fasten
High Low
adjustable nut
adjustable foot
Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
Back
Front
1.To twist the adjustable foot, please first
lift up the side of the foot slightly, loosen
the adjustable nut, and twist the foot.
2.Fasten the nut after adjustment.
Inner cover shaft
Outer tub cover
shaft groove
Outer tub cover
Inner cover
1.Open the top lid of the washing machine.
2.Put the inner cover component on the outer tub cover, aiming
the inner cover shaft to the installation hole of the corresponding
outer tub cover shaft groove.
3.Firstly insert the inner cover shaft of Iside into the correspon
-ding outer tub cover shaft groove, then push the another inner
cover shaft into the corresponding outer tub cover shaft groove.
Please install to designated position to guarantee there are no
dropping or abnormal sound in opening and closing of the inner
cover, and the operation shall be smooth. Do not dismount the
inner cover component after washing.
Page 9
Page 10
WATER LEV EL
After switching on the power, the washing machine will set to common program including"wash, rinse,
spin "automatically.To select other procedures, push the " WASH"," RINSE"or "SPIN" button to select the
time of wash and spin, and the times of rinse. After switching on the power,if you push one of the
button among "RINSE"and"
SPIN the digitron of the former procedures will turn off automatically. The
former procedures will not run. For instance: after switchingon the power. If you push the "SPIN" button
first, it will execute spin singly after starting.
Even there's no water in the tub, a certain period is
required before spin starting.
Separate the laundries that are not colorfast from
other laundries in washing.
Do not use the HEAVY program for the woollen textiles.
The pulsator will not rotate unless the water is
filled to water level .
Attention
After the machine starts operation, you can set the program and procedure during washing,
set spinning time during rinsing but can not make setting in other cases.
Press " WATER LEVEL "button,
select suitable water level
After switching on the power, select a suitable water level to detect the cloth. To select other water level.Refer
to "water level, water quantity and desoge of powder"in Page 9 and "WATER LEVEL/DISINFECT"button in Page
10 for the selection.
413
Section •enlarging
Push
Install the inner cover

MIN START
PAU SE
POWER
ON/OFF
Steps of using the operation buttons
and description of the steps
1 Push the POWER ON/OFF button to
switch on the power
2 Push the PROGRAM SELECTION button to
select the suitable automatic program
MIN START
PAU SE
POWER
ON/OFF
b
3 Push WASH RINSE SPIN button to select
suitable programs
After switching onthe power,DISINFECT is not selected
Toselect DISINFECT,push WATER LEVEL/DISINFECT over 2 seconds,
the DISINFECT function works,then push 2 or 3 to select a suitable program.
POWER
ON/OFF
PROGRAM
1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not trample or press the drain hose.
If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 26mm, and the length shall
not exceed 1.5m.
If the extrahose is too long, cut it
either atA or at B point.
1.Lean the machine down gently with the front
surface facing the ground. Loosen the eight
screws by a cross screwdriver.
3.Extend the drain hose from the left side. Push the
drain hose into the groove with hands.
4.Install the bottom plate (as per indicated before),
then lift the machine up gently.
2.Pull out the drain hose from the groove at the
right side.
Back
Front
Bottom plate
Soft item
Use groove at
this side after
direction changing
Push the drain hose
into the groove with
How to change the direction of the drain hose
Usage of the drain hose
The drain hose shall drain smoothly
5
12
Page11
After switching on the power, the machine will set to STANDARD program automatically. To select other
program, push the PROGRAM SELECTION button till the corresponding indicator is on. Refer to the
PROGRAM SELECTION button in Page 11.
For example: select QUICK WASH for the quick washing of
the laundries with light dirt.
SAVE wash

Install the water inlet hose
611
START
PAU SE
POWER
ON/OFF
Push the POWER ON/OFF button to switch on
the power. When the power is on,pushit again
to switch off the power.
PushtheP
OWER ON/OFF buttontosw
itch on
thepower. Ift
he START/PAUSEbutton is not
pushed, the washing machinew
ill automatically
switch off thepowera
fter 5 minutes.
Power On/Off button
During operation of programs, it displays the remained time (minute).
In case of abnormal phenomenon, it displays the abnormal symbol (see to Page 16)
Wash remain time indicator digitron
The program is selectedbut not on,It displays the total minutes
of the program
Page 16
Start/Pause button
After the power is switched on, push it to
Start the machine
During working, push it to pause working.
During pause, push it to resume working.
Push the WASH buttonto set the wash
procedure.
During STANDARD GENTLE HEAVY
programs, push theWASH button to set
different wash time (STANDARD from0 to
25minutes GENTLE from 0 to 15
minutes;HEAVY from 30 to 50 minutes or 0
minutes )
During SAVE program, push the WASH
button, the machine have no reaction.
WASH button
PROGRAM SELECTION button
You can select from the following four programs.
Program
STANDARD
HEAVY
GENTLE
SAVE
Normal wash
Large, thick or heavily soiled laundry
Woollen textiles or underwear
10 min quick wash for load below 2 kg
2. Connect the other ends to the water inlet valve .
Water absorption cushion
Jointer of the water inlet hose
Jointer of the
water inlet valve
Figure 1
Figure 2
1. Attach the water inlet hoses to the water faucet. Using pliers, tighten
the coupling. ( As figure 1)
NOTE: Do not over tighten. Damage to the
valves can result.
( As figure 2)

MIN
RINSE button
SPIN button
Push WATER LEVEL/DISINFECT button to select a
suitable water level.
A.
4 Use the operation buttons
Description of the function of the buttons
Mode and meaning of the indicator light
Flashing: indicate the runningprogram
On: indicate the programabout to run, orindicate the selected mode
During operation of programs, it displays the
remained time (minute) or remained times of
the corresponding procedure
Digital tube
Push the RINSE button to set
the rinse procedure.
During STANDARD GENTLE
HEAVY programs,push the RINSE
button to set different rinse times
( 0, 1, 2, 3, 4 times)
During SAVE program,push
the rinse button,the machine have
no reaction
Push the SPIN button to set
the spin procedure.
During STANDARD GENTLE
HEAVY programs,push the
spin button to set different spin
minutes ( 0 9 minites)
During SAVE program,push
the spin button,the machine have
no reaction
After the machine is started, You shall push the START/
-PAUSE button and then push WATER LEVEL/DISINF
-ECT button make new setting.
During SAVE program,WATER LEVEL/DISINFECT
will not be changed.
During operation of wash and rinse program, you can
push down the water level button to add water. When you
release the button, or it reaches the overflow water level,
the machine will stop adding water .
Push WATER LEVEL/DISINFECT over 2
seconds , DISINFECT tube is light;Push
WATER LEVEL/DISINFECT over 2 seconds again,
DISINFECT tube is off and the DISINFECT function
is canceled.During the washing maching working,
push START/PAUSE button ,you can make
new selected.
7
10
Off
Check the connection between the water inlet
hose and the water tap
1.Swaying the hose gently to confirm if it is fastened
stable.
2.After installation, open the tap to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if the connection
between the water inlet hose and the water tap, is firm,
so as to prevent dropping from improve Installation
position.
1.Close the water tap.
2. Pull off the water inlet hose from the water tap and washer
Take down the water inlet hose

The capacity of washing and spinning of the machine refer to the largest weight
of the standard laundries under dry condition that can be washed or spun in
one time. One time washing quantity shall be lower than the rated capacity.
The thicknesses, size, type of the cloth will influence the actual washing capacity.
It is suitable for one time washing to put in reasonable amount of laundries and
the laundries can be turned round in washing.
Do not select 4 water level for laundries smaller than 0.8kg, so as to avoid
splashing of water.
2 Put in the laundries
Confirm if
there's special
requirment for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator is running,
the buttons of the laundries
may cause noise. For the
sake of discretion,please
put the laundries with buttons
into other laundries.
Preparation before washing
1.Connect the water inlet hose and open the water tap .
2.Confirm that the washing machine isearthed reliably . The
insert the powerplug into the receptacle. Do not connect the
earth terminal to the gas pipe and tap water pipe.
3.Put down the drain hose.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
1 Preparation before washing
Pay attention to followings before washing the laundries
a.Please check if the laundries are applicable for washing.
b.Separate those not colorfast from other laundries.
c.For laundries not waterabsorbing,please put them into water with hands.
d.For laundries with much soil,please remove the soil first.You can add detergent on the
part with serious soil directly.It is much easier to remove the soil by that mean.
e.For laundries likely to get lint ball or with long fiber,please first turn the inside out before
putting them into the water.
f.Do not put the laundries polluted with chemicals directly into the washing machine.
Fill water to decided level. Dilute the whitener
with container. Pour it slowly into the washing
tub.
Avoid using whitener on laundries with color
or pattern as they are prone to lose color.
The whitener shall not touch the laundries
directly.
Refer to the user's manual for the usage and
quantity of the whitener.
For powder whitener, please dissolve it before
use.
1.5~3.3
1.5
4
3
2
1
About 32L About 42.7g About 26.7g
About 26L About 34.7g About 21.7g
About 16L About 21.3g About 13.3g
About 21L About 28g About 17.5g
Direct dissolved in the machine
1.Fill water to "1" level.
2.Add the power. Run for 30 seconds to
dissolve it completely.
3.Put in the laundries. Select suitable water level.
The instant dissolving of the washing powder:
1.Prepare warm water of 30 C and a container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
Washing powder with poor quality or not used
for a long period may get blocked. Please
clean the detergent box in time.
Different washing powders have different
dosage. Please refer to the usage manual of
the washing powder for the details.
3 Add the detergent
How to usethe whitener
Standard usage quantity of the detergent and water
quantity
How to use the washing
powder
Laundries
quantity(kg)
Water level Water quantity Common powder
(Add 40g in each
30L water)
Concentrated
powder
(Add 25g in each
30L water)
89
