Haier HBS800 User manual

Front Load Washing Machine Model:HBS800/1000TXV
FRONT LOADING WASHING MACHINE
Service Manual
Suited model:
HBS800/1000TXV
Features：
300mm diameter porthole, door may be open at a 180 degrees.
Class-A energy-saving; Homocentric tubs with higher energy efficiency
Multi-gear speed controller
Unique gasket design featuring no residual water hidden inside
Delay time adjustive
Large wash load capacity 5kg
SerialNumber: Version:1.00 Edition: 2006-3
SMHBS800TXV01

Front Load Washing Machine Model:HBS800/1000TXV
Page 1
1．Contents----------------------------------------------------------------------------------------1
2．Product code illumination and series introduction-----------------------------------2
3．Features ---------------------------------------------------------------------------------------3
4．Specification ----------------------------------------------------------------------------------4
5．Matters Needing Attention----------------------------------------------------------------6
6．Installation ------------------------------------------------------------------------------------9
7．Net dimension -------------------------------------------------------------------------------11
8．Names of the parts-------------------------------------------------------------------------12
9．Operational Functions --------------------------------------------------------------------13

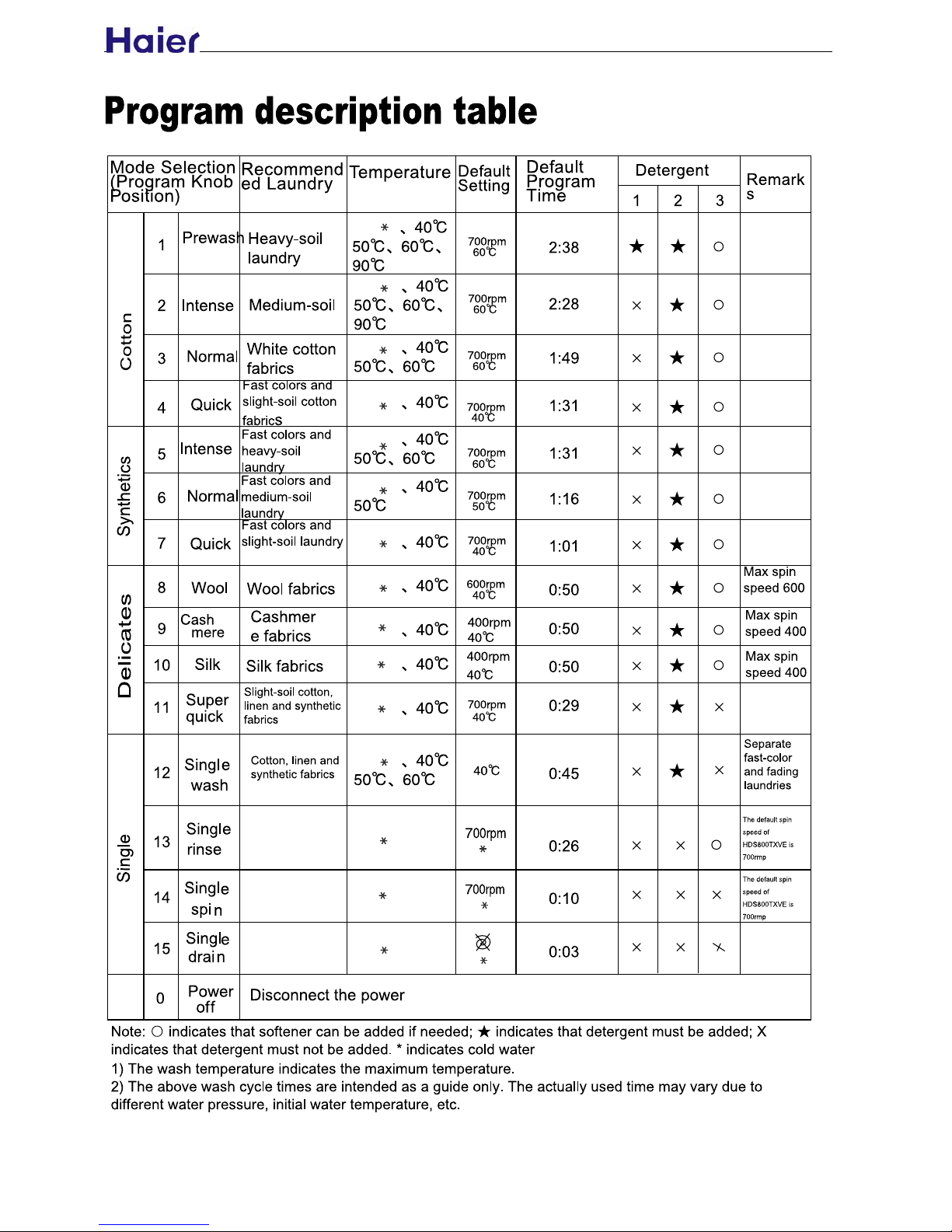

10．Program description table---------------------------------------------------------------15
11.Error display and Trouble shooting---------------------------------------------------16
12．Wiring circuit ------------------------------------------------------------------------------24
13．Exploded view and list of parts-------------------------------------------------------25
Contents

Front Load Washing Machine Model:HBS800/1000TXV
Page 2
PRODUCT CODE ILLUMINATION AND SERIES INTRODUCTION
Model code rule description
Model identification：
HBS 800 T X V
A B C E
Examples：
HBS1000TXV
It represents HBS series appearanc e ，with big window、180°opening window、1000rpm spin
speed.Spin speed is adjustive from 0 to 1000rpm，temprature is also adjustive. it’s controlled
by computer.
D
A：Serial code
B：Max spin speed
C：Temprature adjustive
D：
E：Spin speed adjustive
Stainless steel drum

Front Load Washing Machine Model:HBS800/1000TXVE
Page 3
FEATURES
●300mm diameter porthole, door may be open at a 180 degrees.
Facilitate view of wash process, facilitate unloading and easy to use with large port.
●Multi-gear speed controller
According to different costuming，you can slect corresponding spin speed．
●Unique gasket design featuring no residual water hidden inside.
By the unique gasket，washing machine can left no residual water hidden between outer drum and
board.
●Delay time adjustive.
According to different costuming，you can slect delay time，from 0.5h to 24h.

Front Load Washing Machine Model:HBS800/1000TXV
Page ４
SPECIFICATION
washing machines 2005.11 HBS1000TXV HBS800TXV
Last update
1. Product identification
Description of appliance Washing machine Washing machine
Type of appliance(FS = standing, BI = built-in FS FS
Supplier own brand Haier Haier
Supplier bar code EAN
Commercial Brand / Model
Commercial bar code EAN TBC TBC
2. Key-Features
Energy efficiency class A A
Washing performance class B C
Spin efficiency class D D
Programs n° 11 11
Capacity Kg 5 5
Spin speed (max. / optional) rpm 1200-400 1000-400
Noise level（ｓｏｕｎｄ ｐｒｅｓｓｕｒｅ ｌｅｖｅｌ）dB(A) 72 72
Energy consumption per wash circle kWh 0.95 0.95
Water consumption per wash cycle Ｌ49 49
Annual average energy consumption * kWh 285 285
Annual average water consumption* Ｌ14700 14700
Residual dampness (spin result) % 68% 69%
Spin speed selector switch (steps) rpm l l
Adjustable thermostat (water temp. adjust from - to)
°C
90 - T90 - T
Drum capacity kg / l
５/３９ ５ /３９
Auto water level adjust (depending on volume of filled in laundry)
AWL l
Washing time (max.) min 192 192
Certification's (CE / ISO 9001 / ISO 9002) CE / ISO 9001 CE / ISO 9001
Approvals (VDE/GS / TÜV/GS / IMQ) TÜV/GS (Rhl.) TÜV/GS (Rhl.)
* per average 200 wash cycles (EN60456) ðT= COLD
3. Basics data
Unit dimensions (H x W x D) cm 85 x 59,5 x 40 85 x 59,5 x 40
Net weight kg 76 76
Voltage/frequency V/Hz 220~230V/50Hz 220~230V/50Hz
Input power / main fuse (intensity) W / A 2100/10 2100/10
Work top / removable
l/l l/l
Control M= electromechanical, E= electronic, F= fuzzy E E
Drum S = stainless steel / Z = zinc coated S S
Tub P = Polyprop./ S = stainless steel S S
Door:
aesthetic (R= round, Y= big eye, Q= square) R R
Diameter ｃｍ 30 30
Outer door frame S= stainless steel / M= metal / P= plastic
P P
Inner door G= glass / P= plastic G G
Detergent compartments n° 3 3
- -

Page ５
Front Load Washing Machine Model:HBS800/1000TXV
Removable compartment for liquid detergent l l
Delay timer (from - to) h1-24 1-24
Self cleaning suds pump l l
Water inlet hose cold water / hot water
Water drain hose / -support
l/l l/l
Adjustable feet n° 4 4
4. Safety systems
Auto door lock ADL
Motor overheating protection MOP l l
No heating without water NHW l
Auto water cool-down (before drain 90°C boiled water)
AWC
Water protection WRP
Acqua Stop kit
Child protection
5. Programs
1) COTTON PREWASH (90°C/60°C/40°C/※)n° 1 1
2) COTTON (60°C/40°C/※)n° 1 1
3) SYNTHETIC (40°C/※)n° 1 1
4)WOOL n° 1 1
5)CASHMERE n° 1 1
6)SILK n° 1 1
7)QUICK WASH n° 1 1
8)SINGEL WASH n° 1 1
9)SINGEL RINSE n° 1 1
10)Drain n° 1 1
11)Spin n° 1 1
Optional function keys (additional program settings) - -
Ｐｒｏｇｒａｍ button（ｗｉｔｈ ｐｏｗｅｒ ｓｗｉｔｃｈ） l
Start ／pause
Extra riｎse ｋｅｙ
Strong wash
Load
Delay timer
ｓｐｅｅｄ
ｔｅｍｐｅｒａｔｕｒｅ
Packing dimensions & loadability - -
Packing dimensions (H x W x D) ｃｍ 90×64×66 90×64×66
Gross weight ｋｇ 82 82
40' Container load ｐｃｓ - -
40' HC load capacity ｐｃｓ 208 208
Logistic / recicling information RS
Packing weight ｋｇ 6 6
Packing materials / Recycling symbols REzY REzY
Carton (weight) ｇｒ 0 0
Polistyren (weight) ｇｒ 1000 1000
Polyetylene foil (weight)
ｇｒ 500 500
Other packing materials (weight)
ｇｒ - -
Wood (weight) ｋｇ - -
Service - -
6. User instruction (languages) D / F / I / GB / E / P / NL D / F / I / GB / E / P / NL
Max. failure rate (12 Months after sales to end customer)
%
l/l/
--
l l
l
ll
ll
--
ll
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l

Front Load Washing Machine Model:HBS800/1000TXV
Page 6

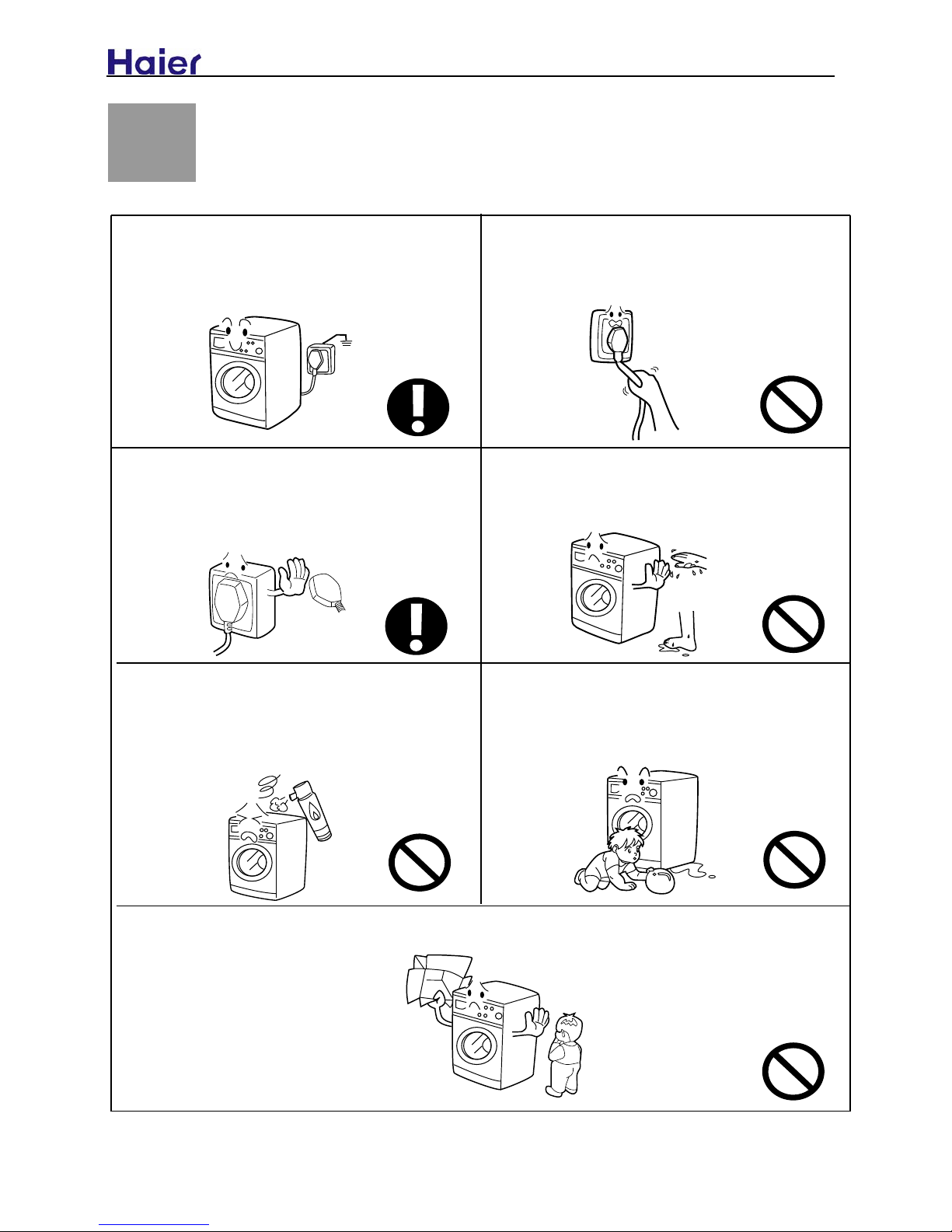

Matters Needing Attention
● Ｓａｆｅｔｙ
１．
.A separate earthed socket is required for the
power supply. The washing machine must be
positioned so that the plug is accessible.
2. Hold the plug and not the electric cable
when unplugging the washing machine.
3.Fuses in the power circuit should be rated for 15A.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
4. Do not touch or use the washing machine bare-
footed or when the hands or feet are wet.
5.Do not use flammable detergent or dry clean
ing agent; do not use flammable spray in
close vicinity to the washing machine; do not
remove or insert the plug in the presence of
flammable gas.
6. The door of the washing machine will become hot
during the heating process. Avoid contact with the
door during the heating process. For safety, keep
children away from the washing machine.
７． Ｋｅｅｐ ｃｈｉｌｄｒｅｎ ａｗａｙ ｆｒｏｍ ｔｈｅ ｐａｃｋｉｎｇ ｍａｔｅｒｉａｌｓ ａｆｔｅｒ ｕｎｐａｃｋｅｄ．

Front Load Washing Machine Model:HBS800/1000TXV
Page 7

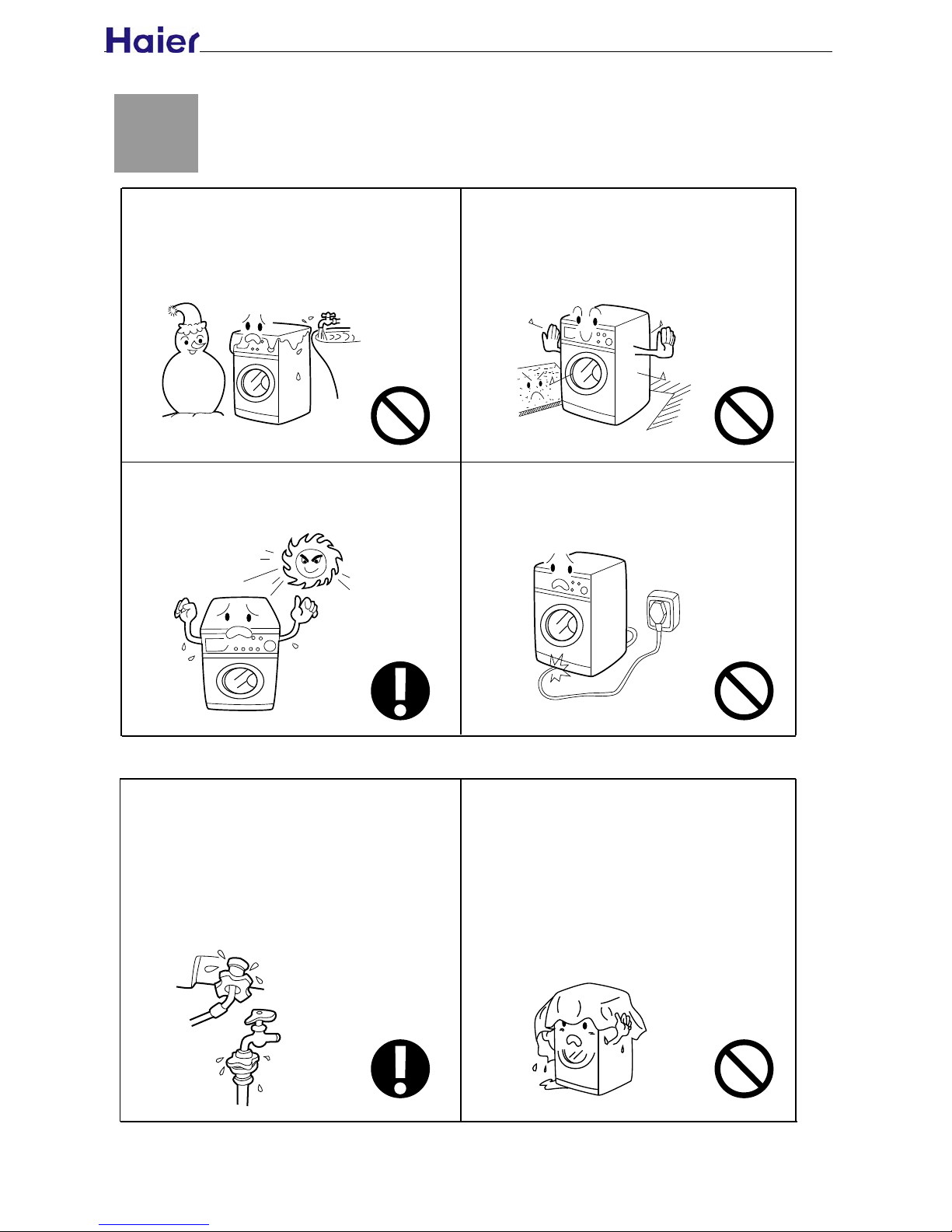

9.The carpet must not obstruct the ventilation
openings in the base of the washing machine.
８.The washing machine should not be install-
ed outdoors or in a damp place. In the
event of water leakage or splashes allow
the machine to dry naturally.
10.Keep away from heat sources and direct sun-
light to prevent plastic and rubber components
from aging.
11.During installation, ensure that the electric
cable is not trapped by the washing machine
and avoid damage to the electric cable.
●DuringUse
1. Before use, check the joints of the filling hose, the
tap and the drainage hose for possible problems
from water pressure fluctuations. If joints are loose
or there is leakage, turn off the tap and repair. Do
not use the washing machine until the hoses are
properly fixed.
２．Keep the door slightly open when the washing
machine is not in use to prevent formation of
odors; do not cover the washing machine with
plastic cover so that inside dampness cannot
be kept in.
Matters Needing Attention

Front Load Washing Machine Model:HBS800/1000TXV
Page 8
3. Do not place heavy, heating source or wet
articles on the top of the washing machine.
4. Do not hot wash foam rubber or sponge-like
materials.
6. Do not open the detergent distribution drawer
during the wash cycle..
7. The door is fitted with a self-lock device and will not open until
2~3 minutes after the washing machine stops. Do not force
the door open. Do not open the door if water level can reach
the porthole.
8.After each wash program, turn off the tap to
prevent leakage; and unplug the washing
machine and wipe clean the lower part of
the porthole.
Steel wires in bras will pop
out during washing; never
wash bras containing steel
wires.
5. Before washing, do up zippers, buttons and
clothes straps and put small articles, such as
socks, laces or bras, into a washing bag or a
pillow.
Matters Needing Attention

Front Load Washing Machine Model:HBS800/1000TXV
Page 9
●

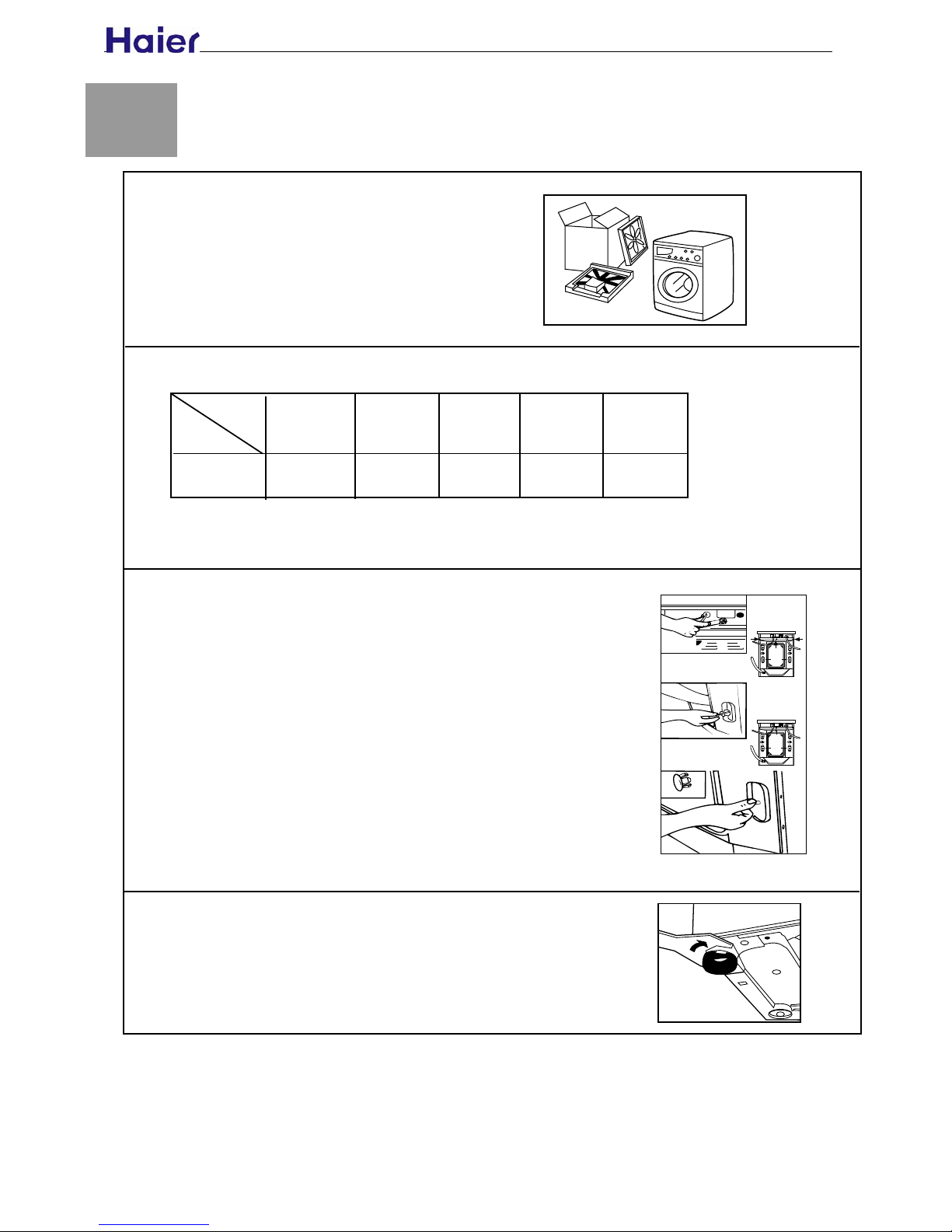

Ｒｅｍｏｖｅ ａｌｌ ｔｈｅ ｐａｃｋｉｎｇ ｍａｔｅｒｉａｌｓ （ｉｎｃｌｕｄｉｎｇ ｔｈｅ ｆｏａｍ ｂａｓｅ）
ｔｏ ｐｒｅｖｅｎｔ ｖｉｂｒａｔｉｏｎ ｄｕｒｉｎｇ ｕｓｅ， ａｓ ｓｈｏｗｎ ｉｎ Ｆｉｇ． １．
Ｕｐｏｎ ｏｐｅｎｉｎｇ ｏｆ ｔｈｅ ｐａｃｋａｇｅ， ｗａｔｅｒ ｄｒｏｐｓ ｍａｙ ｂｅ ｓｅｅｎ ｏｎ ｔｈｅ
ｐｌａｓｔｉｃ ｂａｇ ａｎｄ ｔｈｅ ｐｏｒｔｈｏｌｅ． Ｔｈｉｓ ｉｓ ｎｏｒｍａｌ ｐｈｅｎｏｍｅｎｏｎ
ｒｅｓｕｌｔｉｎｇ ｆｒｏｍ ｗａｔｅｒ ｔｅｓｔ ｉｎ ｔｈｅ ｆａｃｔｏｒｙ．
Fig. 1
●
Check attachments and materials with reference to the following
●
Dismantle the packing bolts as shown in Fig. 2.
The packing bolts are designed for clamping anti-vibration components
inside of the washing machine during the transportation process.
Beforeuse:
1. Remove the back plate;
2. Remove the three packing bolts on the back plate and take out the
rubber hose;
3. Replace the back plate;
4. Fill the holes left by the packing bolts with plastic plugs.
(Attention: The packing bolts and rubber hose should be kept in a safe
place for later use)
Fig．３
●
Adjusting the washing machine
There are adjustable feet under the bottom of the washing machine.
Before use, the washing machine should be adjusted, as shown in
Fig. 3, so that it is level.
Fig.
２
Ｑｕｔｙ
Ｎａｍｅ Ｏｐｅｒａｔｉｏｎ
ｍａｎｕａｌ
１
１１１
３
Ｑｕａｌｉｔｙ
ｃｅｒｔｉｆｉｃａｔｅ
Ｗａｔｅｒ
ｈｏｓｅ
Ｄｒａｉｎａｇｅ
ｈｏｌｄｅｒ
Ｐｌａｓｔｉｃ
ｐｌｕｇｓ
Installation

Front Load Washing Machine Model:HBS800/1000TXV
Page 10
１００ｃｍ
８０ｃｍ
The height of the drainage outlet must be 80-100cm. To prevent the drainage hose from dropping off,
fix it to the drainage hose clip at the back of the washing machine.
Before connecting to the power supply, check:
Joining the Inlet Hose to the Washing Machine
Connect of water inlet valve
Ｗａｔｅｒ ｉｎｌｅｔ ｈｏｓｅ ｏｕｔ
1. Connect the nut on the inlet hose to the connector on the water valve.
２． Ｔｉｇｈｔｅｎ ｔｈｅ ｎｕｔ ｔｏ ｓｅｃｕｒｅ ｔｈｅ ｈｏｓｅ
Installation
Ｄｒａｉｎａｇｅ Ｈｏｓｅ
Use the drainage holder to keep the end of the drainage hose retained and to prevent the outflow
of water. It is recommended that drainage hose extensions not be used; if an extension is needed,
please consult a serviceman. The additional hose should be no more than 250cm (overextended
hoses could lead to siphonage). Note: The drainage hose should not be submerged in water and
should be securely fixed and leak-free.The appliance is to be connected to the waster mains using
new hose-sets and that old hose-sets should not be reused.
Connecting to the Power Supply
The socket is adequate for the maximum power of the washing machine (For safety, fuses in the power circuit should be rated
for no less than 15A).
The power outlet should be capable of accepting the washing machine plug. The washing machine must be earthed before
use.
Supplementary earth cable should not be necessary if the socket is connected to the earth
Supplementary earth cable shoulde be installed on the upper back of the washing machine andconnected to an earth if the
power supply socket has no earth connection
The voltage should meet the requirement.

Front Load Washing Machine Model:HBS800/1000TXV
Page 11
height: 850mm / width: 595mm / depth:395mm
NET DIMENSION
595
850
400

Front Load Washing
Machine Model:HBS800/1000TXV
Page 12
Names of the parts
Base board

Front Load Washing Machine Model:HBS800/1000TXV
Page 13
HBS800TXV

Front Load Washing Machine Model:HBS800/1000TXV
Page 14
Functions

Front Load Washing Machine Model:HBS800/1000TXV
Page 15
－
800rpm
800rpm
800rpm
800rpm
800rpm
800rpm
800rpm
800rpm
800rpm
800rpm

Front Load Washing Machine Model:HBS800/1000TXV
Page 16
HBS800TXV Error Display and Troubleshooting
Error message:Door is not properly shut 20s after program is started.
Troubleshooting:
N
Pushing the door to Check Whether Door
is properly shut or not
Y
Error message:Drainage error, water not emptied within 4 min.
Troubleshooting:
Y
Cut off the power and then turn on again.
Check the voltage between brown wire and
blue wire of door lock, is it between AC
220-240V?
N
Door lock is broken and need
replacing, then make sure wire is
connected properly.
N
Check the voltage between brown wire
and blue wire of PCB, is it between AC
220-240V?
Check if drain pump acts by touching
pump position Y
Check if drain pump or
drain pipe is jammed, and
open the filter and clean
N
Cut off the power and choose spin program to
start, then check the import voltage of drain
pump, is it between AC 220-240V?
Replace drain pump
N
Cut off power and pull out water level
pressure switch wire connection. Set spin
program to start. Check the export voltage to
drain pump, is it between AC 220-240V?
Replace PCB
Y
Replace
PCB
Connect the wire properly
Check if the wire connecting door lock
and PCB is loose .
N
Check if water is emptied Y
Cut off power and water level pressure switch wire
connection, measure the resistance of 1 and 3 pin, is it
infinite? If not, it is water level pressure switch failure
and replace it. If it is, then repair and check PCB and
wire as followed.
N
N
Y
Y
The wire between
PCB and drain
pump is not
connected
properly.
Replace the wire.
220-240v
Shut the door properly.
220-240v
PCB

Front Load Washing Machine Model:HBS800/1000TXV
Page 17

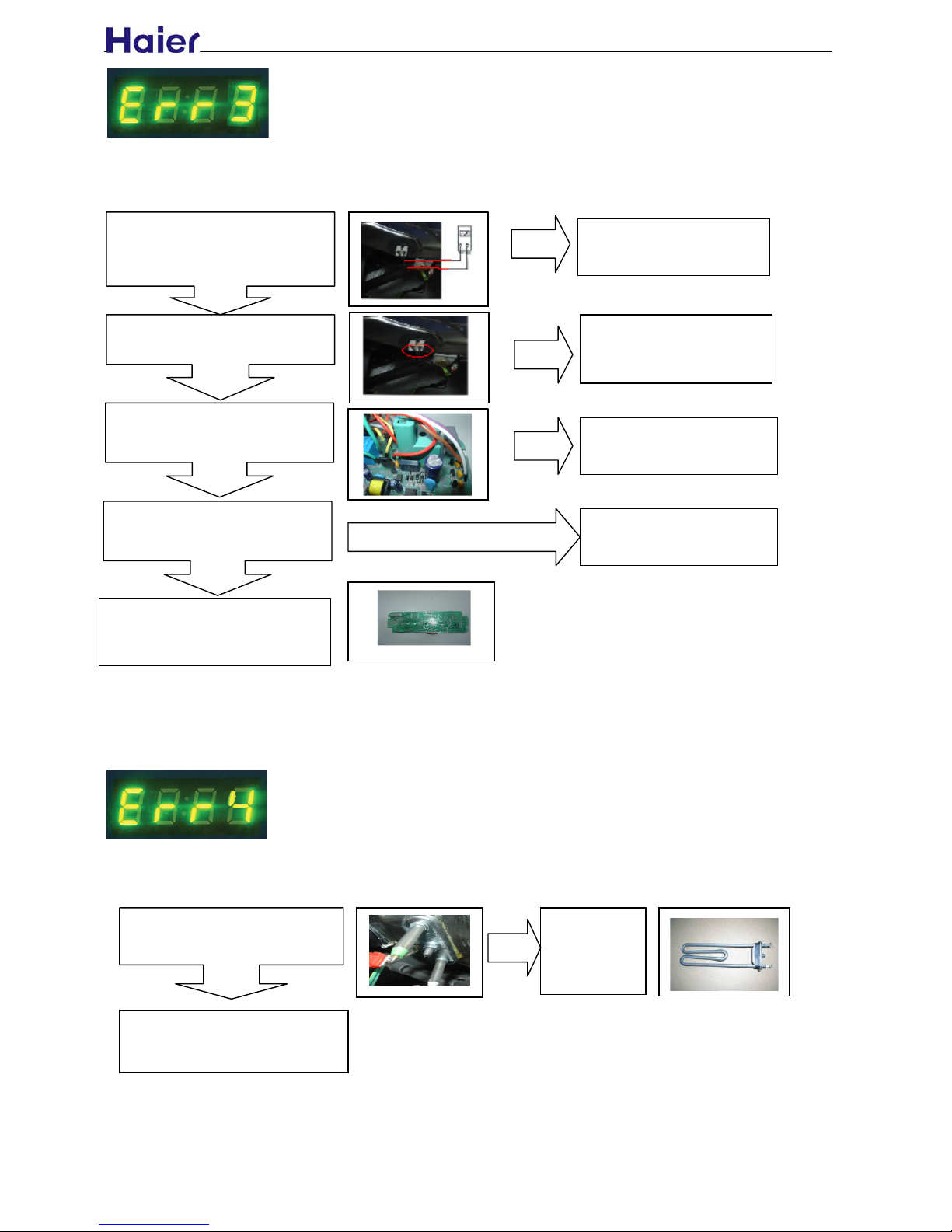

Error message:Temperature sensor is not properly connected or damaged (display at the end of a
program).
Troubleshooting:
Error message:The heater may be broken
Troubleshooting:
NTC exist open circuit .Replace it
Y
Cut off power, check the resistance of
two pins of heater element by multimeter,
is it between 32-35
Ω ?
Heater element
must be broken,
please replace it
Y
Check if NTC is connected properly
Cut off power and measure the resistance
of temperature sensor by multimeter, is
it between 5-14k Ω ?
Y
N
Connect NTC well
N
N
Check the
black wires of NTC,
are they connected well?
Y
Disconnect from PCB,
and measure if the resistance between
of PCB is it infinite?
N
Replace PCB
Connect all wires well
N
Replace wire
Y
PCB
two
the two black wires
the two black wires
The control wire may be broken,
otherwise PCB must be broken.
Please replace the broken one.

Front Load Washing Machine Model:HBS800/1000TXV
Page 18

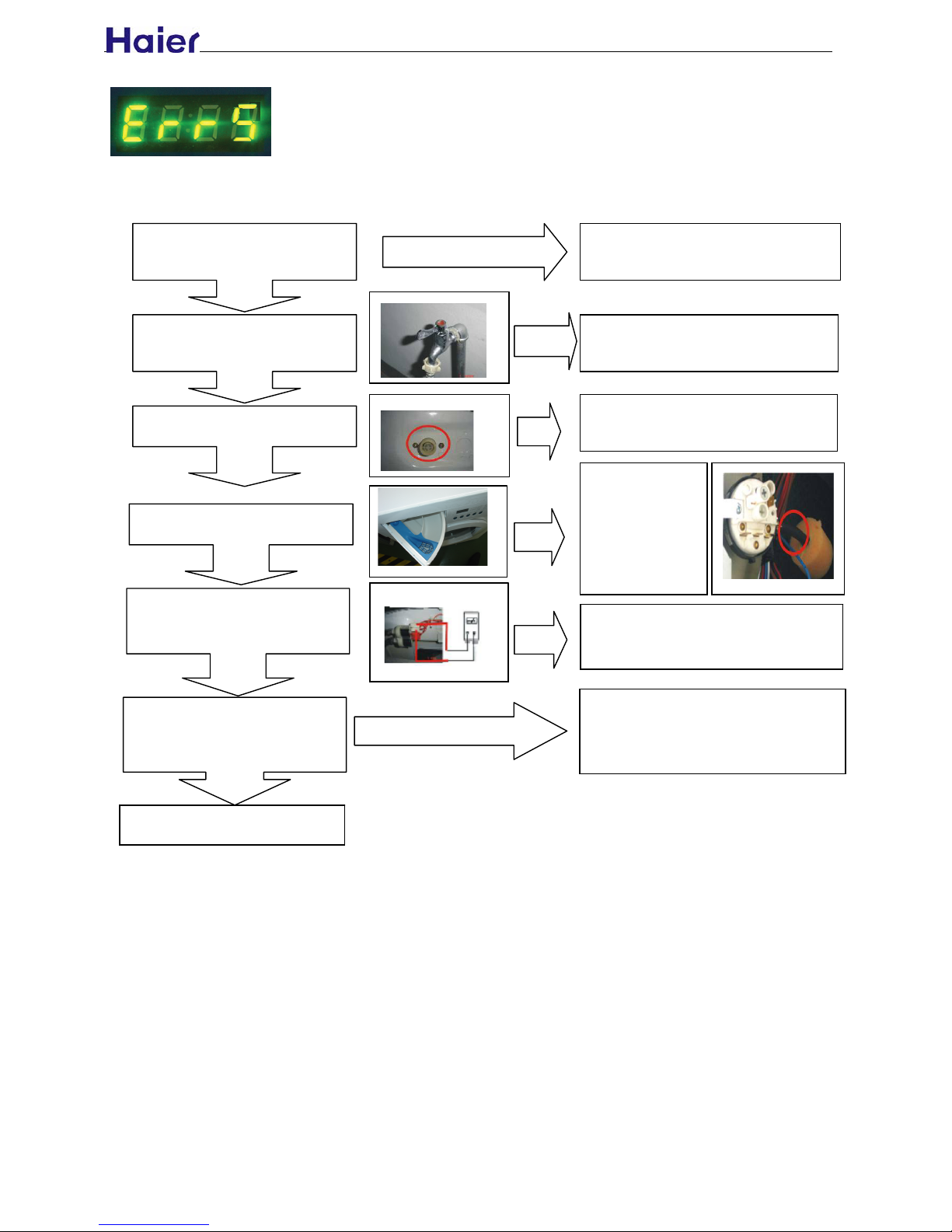

Error message:The required water level is not reached within 8 min
Troubleshooting:
N
Check if inlet valve is jammed
Clean inlet valve
N
Draw out the dispenser and check if water is
entering
Observe if the height of
drain pipe not reach 80
cm. If water level
pressures switch and
the hose is leaking gas
N
Turn on power, and set pre-wash mode, then
start. Check the import voltage of
electromagnetic valve by multimeter,
is it between AC 220-240V?
Electromagnetic valve must be broken, please replace
it.
N
Check if tap is closed or water pressure is too
low (usual between0.2 -1 MPa)
Open the tap or wait for normal water pressure to use
The wire connected PCB and inlet valve is not
properly. Please reconnect it or replace it.
Y
Y
Y
Y
Y
Check if water is leaking from washer
bottom. inlet pipe. drain pipe or other
pipe connection
Y Readjust or replace the broken parts
Replace PCB
N
N
Check if export voltage from PCB to
electromagnetic valve, is it between AC
220-240V?
220-240V

Front Load Washing Machine Model:HBS800/1000TXV
Page 19

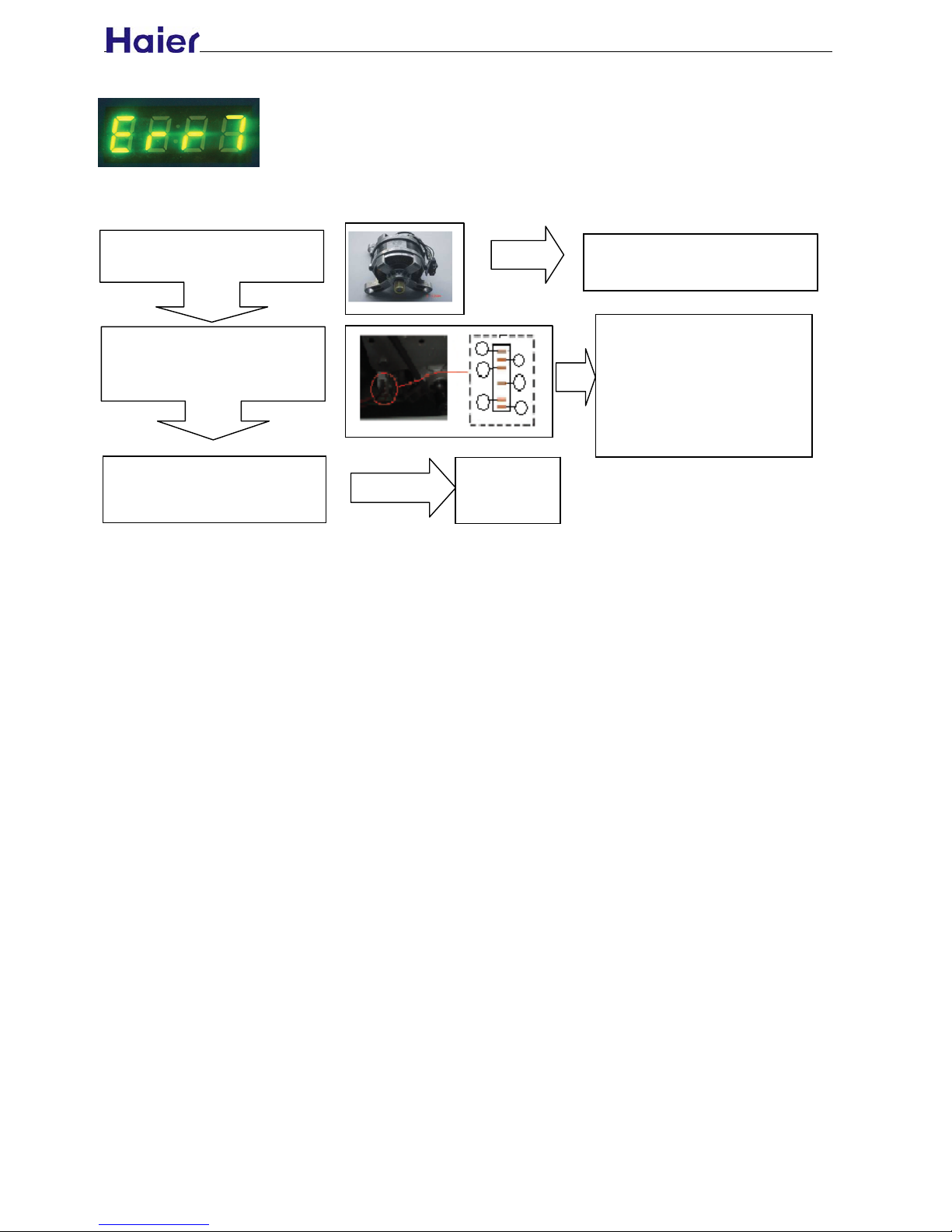

Error message. Motor overheat protection or is damaged.
Troubleshooting:
Y
Cut off power and check if motor wires
are connected well
Reconnect well
N
N
Put the motor in normal temperature about
ten minutes, and then test again. If the
resistance is natural, it is caused by
overheated protection. Then check and
deal with overload, abnormal voltage. If
not, please replace motor
Y
Measure if resistance of motor winding by
multimeter, is it as followed? 4-5:5
5-6:5 4-6:5
Y Repair wires
Pull out the wire connection of motor
.
Then check if circuit is open by multimeter
１
２
３
５
７８
