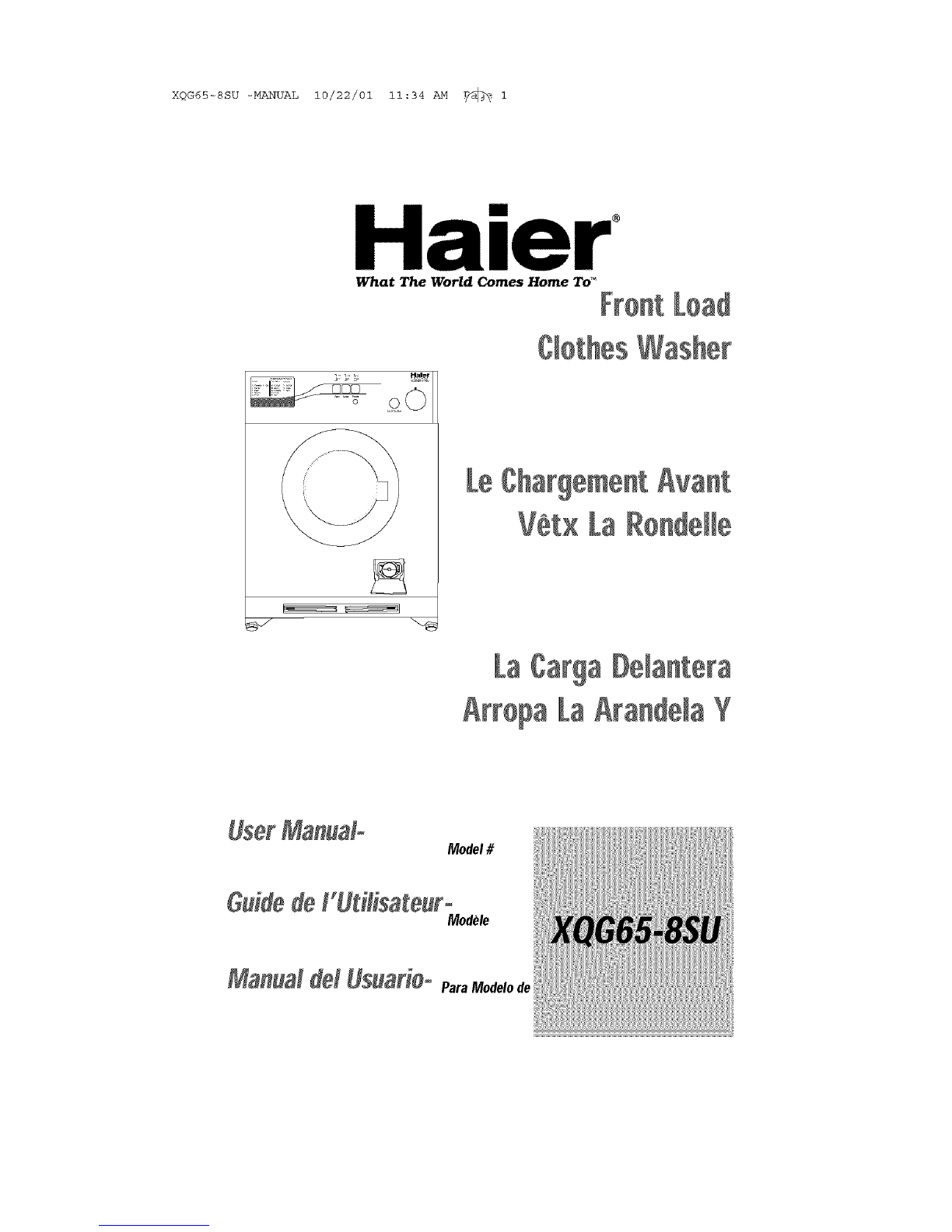

Haier XQG65-8SU User manual

XQG65-8SU -MANUAL 10/22/01 11:34 AM _ 1
What The World Comes Home To _[fontLoad
Clothes Washer
LeChargementAvant
Vetx LaRondeJJe
Lagarga IDelantera
ArropaILaArandelag
UserManual- Model#
GuidedeFUtilisateu>
Modele
Ma_a_ de_ U$_a_ _ParaModelode

XQG65-8SU -MANUAL 10/22/01 11:34 AM F/_ 2
IMPORTANTSAFETYINSTRUCTIONS
Warning - To reduce the risk of fire, electric shock, or injury
to persons when using your appliance, follow basic
precautions, including the following:
1. Read all instructions before using the appliance.
2. Use this appliance only for its intended purpose as described in this use and
care guide,
3. Use only detergents or softeners recommended for use in this appliance and
keep them out of the reach of children,
4. This appliance must be properly installed in accordance with the installation
instructions before it is used,
5. Never unplug your appliance by pulling on the power cord. Always grasp the
plug firmly and pull straight out from the outlet.
6. Replace immediately worn power cords, loose plugs/power outlets,
7. Unplug your appliance before cleaning or before making any repairs.
8, If your old appliance is not being used, we recommend that you
remove the door. This will reduce the possibility of danger to children,
9, Do not operate your appliance in the presence of explosive fumes,
10, Do not use this appliance to wash clothes soaked, spotted or washed in
gasoline, dry cleaning solvents or any other explosive or flammable substances
that could ignite and explode,
11. Clothes or rags used to clean flammable or explosive materials should not be
washed in this appliance till all traces of this material has been removed, to
avoid an accident,
12, Do not add or mix any flammable or explosive substances to the wash,
13. Do not try to remove clothes while the tub is moving. Let it come to a complete
stop before use,
14, The appliance loading door must be closed when tub is spinning,
15, Do not operate your appliance when parts are missing or parts are broken.
16, Do not use this appliance for commercial clothes washing.
17, Do not operate this appliance unless all enclosure panels are properly in place,
18, Do not tamper with controls,
19. To reduce risk of injury do not allow children to play in or on the appliance.
Close supervision of children is necessary when the appliance is used
near children,

XQG65-8SU -MANUAL 10/22/01 11:34 AM F/_ 3

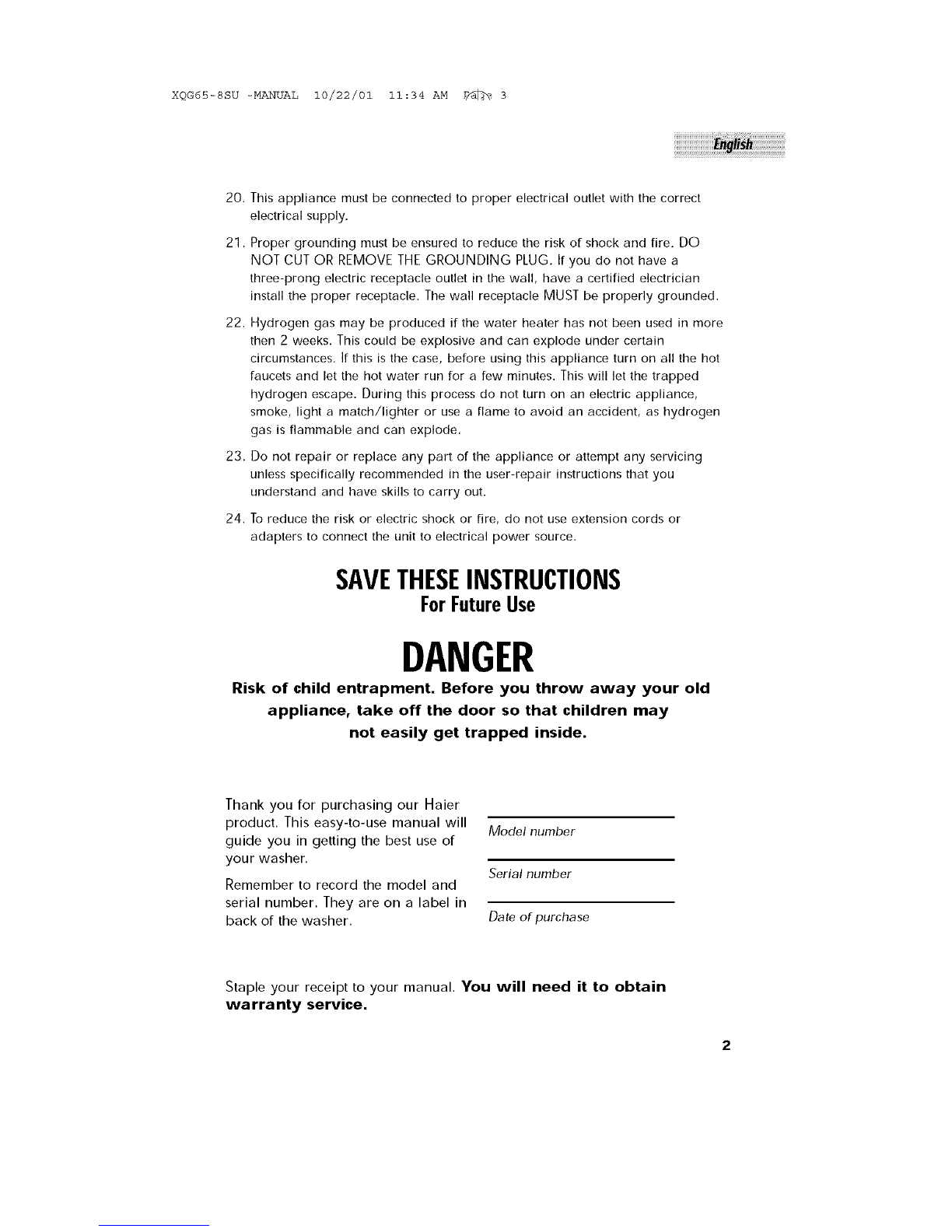

20. This appliance must be connected to proper electrical outlet with the correct
electrical supply.
21. Proper grounding must be ensured to reduce the risk of shock and fire. DO
NOT CUT OR REMOVE THE GROUNDING PLUG, If you do not have a
three-prong electric receptacle outlet in the wall, have a certified electrician
install the proper receptacle. The wall receptacle MUST be properly grounded.
22. Hydrogen gas may be produced if the water heater has not been used in more
then 2 weeks, This could be explosive and can explode under certain
circumstances. If this is the case, before using this appliance turn on all the hot
faucets and let the hot water run for a few minutes. This will let the trapped
hydrogen escape. During this process do not turn on an electric appliance,
smoke, light a match/lighter or use a flame to avoid an accident, as hydrogen
gas is flammable and can explode,
23. Do not repair or replace any part of the appliance or attempt any servicing
unless specifically recommended in the user-repair instructions that you
understand and have skills to carry out.
24. To reduce the risk or electric shock or fire, do not use extension cords or
adapters to connect the unit to electrical power source,
SAVETHESEINSTRUCTIONS
ForFutureUse
DANGER
Risk of child entrapment. Before you throw away your old
appliance, take off the door so that children may
not easily get trapped inside.
Thank you for purchasing our Haier
product. This easy-to-use manual will
guide you in getting the best use of
your washer.
Remember to record the model and
serial number. They are on a label in
back of the washer.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.

xe_6s-ssu-_UAL I0/22/0111:34AM _ 4

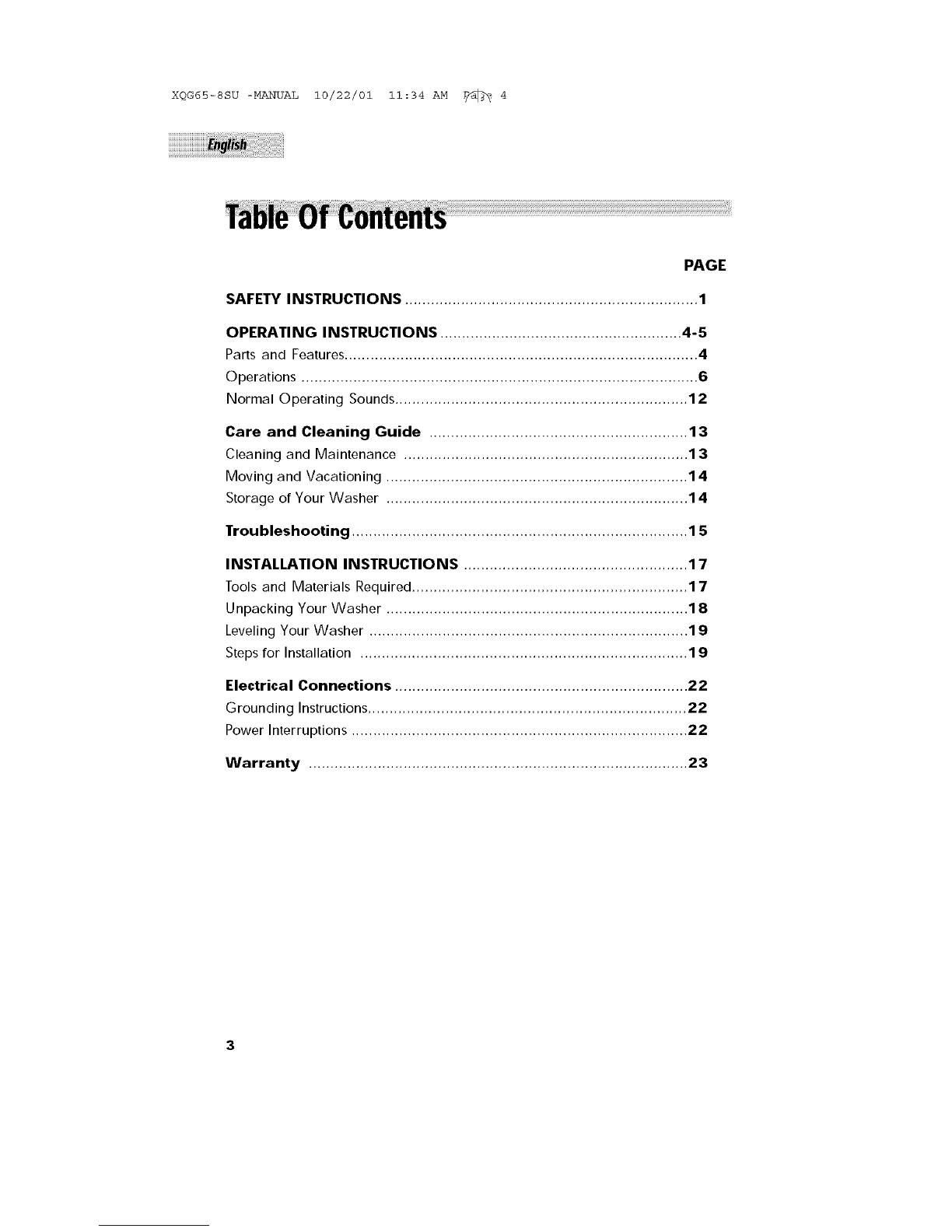

PAGE
SAFETY INSTRUCTIONS .................................................................... 1
OPERATING INSTRUCTIONS ........................................................ 4-5
Parts and Features.................................................................................. 4
Operations ............................................................................................ 6
Normal Operating Sounds .................................................................... 12
Care and Cleaning Guide ............................................................ 13
Cleaning and Maintenance .................................................................. 13
Moving and Vacationing ...................................................................... 14
Storage of Your Washer ...................................................................... 14
Troubleshooting .............................................................................. 15
INSTALLATION INSTRUCTIONS .................................................... 17
Tools and Materials Required ................................................................ 17
Unpacking Your Washer ...................................................................... 18
Leveling Your Washer .......................................................................... 19
Steps for Installation ............................................................................ 19
Electrical Connections .................................................................... 22
Grounding Instructions .......................................................................... 22
Power Interruptions .............................................................................. 22
Warranty ........................................................................................ 23

xe_6s-ssu-_UAL I0/22/0111:34AM _m_ S
Pailsand [ea[ures
©J
b
1. Wash Cycle Selector Knob
2, Door Button
3. Power "On" Indicator Light
4. Power "On/OFF" Button
5. Load Rinse Level Selector Button
6, Spin Cycle "On/Off"
Selector Button
7. Wash Cycle Reference Chart
8. Detergent/Softener Dispenser
9. See Through Glass
Window Door
10. Front Adjustable Leveling Legs
11. Caster Release Levers
12. Lint Trap

XQG65-8SU -MANUAL 10/22/01 11:34 AM F_ 6
0
\
0

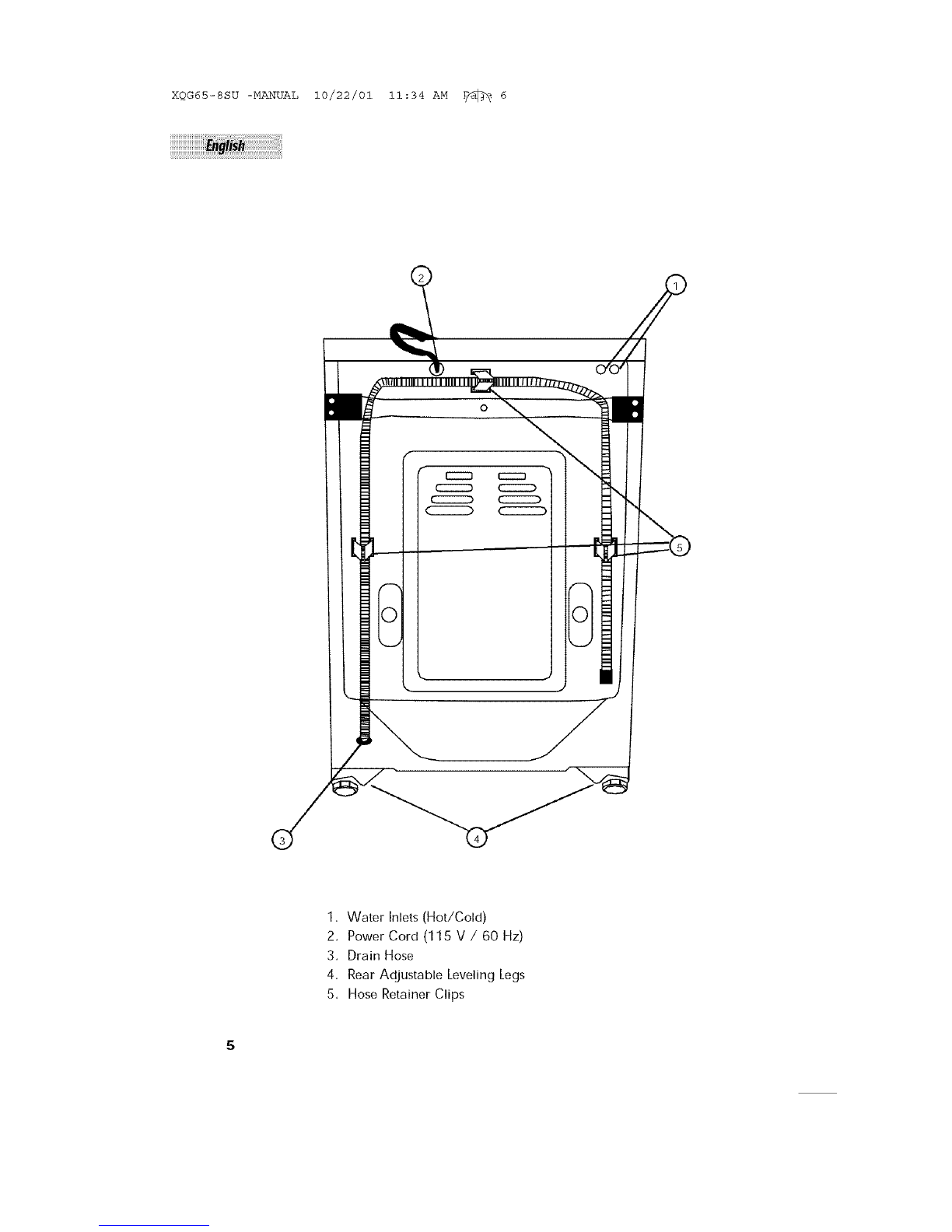

1. Water Inlets (Hot/Cold)
2. Power Cord (115 V /60 Hz)
3. Drain Hose
4. Rear Adjustable leveling legs
5. Hose Retainer Clips

XQ_6S-ssu-Mm_UALI0/22/0111:34AM _ 7

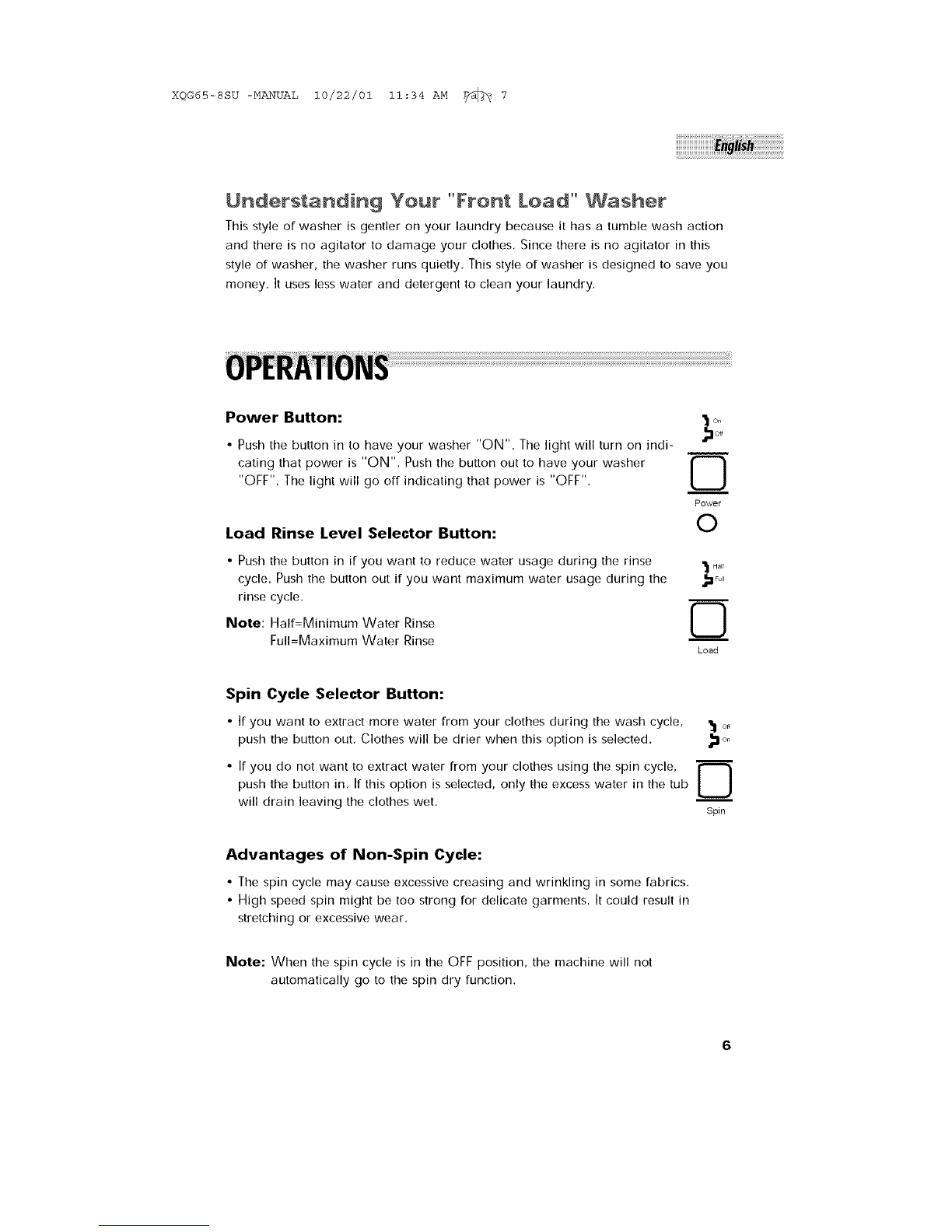

Understanding Your "Front bad" Washer
This style of washer is gentler on your laundry because it has a tumble wash action
and there is no agitator to damage your clothes, Since there is no agitator in this
style of washer, the washer runs quietly, This style of washer is designed to save you
money. It uses less water and detergent to clean your laundry.
Power Button:
• Push the button in to have your washer "ON" The light will turn on indi-
cating that power is "ON" Push the button out to have your washer
"OFF". The light will go off indicating that power is "OFF".
Load Rinse Level Selector Button:
0n
off
Power
0
• Push the button in if you want to reduce water usage during the rinse _Haf
cycle. Push the button out if you want maximum water usage during the _,_F_,
rinse cycle.
Note: Half=Minimum Water Rinse I I
Full=Maximum Water Rinse Load
Spin Cycle Selector Button:
• If you want to extract more water from your clothes during the wash cycle, '_1o_
push the button out. Clothes will be drier when this option is selected. ._oo
• If you do not want to extract water from your clothes using the spin cycle,
push the button in, If this option is selected, only the excess water in the tub U
will drain leaving the clothes wet, Spin
Advantages of Non-Spin Cycle:
• The spin cycle may cause excessive creasing and wrinkling in some fabrics.
• High speed spin might be too strong for delicate garments. It could result in
stretching or excessive wear.
Note: When the spin cycle is in the OFF position, the machine will not
automatically go to the spin dry function.

XQG65-8SU -MANUAL 10/22/01 11:34 AM }f_l_ 8
Note: Button In means OFF, button Out means ON,
Door Button:
•Push the button to open the door, This washer has built-in safety
lock device. You must wait 3 minutes to open the door after the
machine has stopped, ©
Door Button
Note: If you want to open the door in the middle of the cycle to add or remove
clothes, push the button to OF[ position. To resume the cycle at that point,
simply close the door and push the power button to ON position,
Wash Cycle
• Before you begin washing your clothes, read the cycle reference chart for your
clothes carefully. It is located on the front upper left corner on your washer.
Note: Turn the knob CLOCKWISE to your desired setting when selecting the cycle

XQG65-8SU -MANUAL 10/22/01 11:34 AM F/_T_ 9
Below is the cycle reference chart for your clothes.
Cotton Cycle Synthetics
1-Pre-wash A-Normal
2-Normal B-Quick
3-Quick C-Express
4-Express D-Rinse
5-Rinse E-Spin
Delicate
I-Normal
II-Rinse
Ill-Spin
• Select the appropriate cycle from 1 to 4 for cottons, from A to C for synthetics or I
for delicates on your cycle selector knob.
Follow the steps below to select the proper cycle:
1. Select proper cycle number, letter or Roman numeral on the cycle reference chart.
2, Turn the knob clockwise to matching symbol, Make sure to line up the symbol
indicator on the control panel,
3. Push the power "ON" button.
Cotton Cycle:
Pre-Wash Cycle: The purpose of this cycle is that if you want to pre-wash heavily
soiled clothes before the actual wash cycle begins. This cycle is configured in such a
manner that it will go through Normal--}_"-Quick-'>"Express wash cycles time mode
including rinse and spin cycles automatically to complete the wash. The total time
for this cycle is approximately 147 minutes when selected,
Normal Wash Cycle: This is used for work & play, household linens, normal to
lightly soiled and cotton clothes. This cycle is approximately 130 minutes,
Quick Wash Cycle: This is used for a small load of lightly soiled items that needs
to be washed quickly. This cycle is approximately 80 minutes,
Express Wash Cycle: This is also used for small load of lightly soiled items that
needs to be washed quickly. This cycle is approximately 60 minutes,
Synthetics Cycle:
Normal Wash Cycle: This cycle is used for soiled permanent press, silks,
woolens, nylon and acrylic fabrics. This cycle is approximately 60 minutes.
Quick Wash Cycle: This is used for a small load of lightly soiled items that needs
to be washed quickly. This cycle is approximately 45 minutes.
Express Wash Cycle: This cycle is same as quick wash cycle except the time
difference, This cycle is approximately 40 minutes.

XQG6S-SSU-M_mUAI_I0/22/0111:34AM _ I0
Delicate Cycle:
Normal Wash Cycle: This cycle is used for delicate fabrics that are often
washed by hand. This cycle is approximately 30 minutes.
Note: If the Spin Cycle is at "OFf" position before starting a cycle, the machine
will automatically switch to drain and shut off,
The water temperature is preset so when you select wash cycle it will set the proper
temperature for that wash load,
Please see the chart below to understand the proper temperature for each cycle;
Type of Cycle Type of Temperature
Cotton Cycle
Pre-Wash Cold
Normal Hot
Quick Warm
Express Cold
Rinse Cold
Synthetic Cycle
Normal Warm
Quick Warm
Express Cold
Rinse Cold
Delicate Cycle
Normal Cold
Rinse Cold
Note: Hot water needs to be at a temperature of at least 120 degree [ 140
Degree [ (49 Degree C - 60 Degree C) for the soap to dissolve and to avoid
soap residue remaining on clothes, If your water temperature is not at above
described level when washing your clothes, you need to regulate your water
heater to maintain that temperature,

xe_6s-ssu-_UAL I0/22/0111:34AM _ 11
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii,i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i

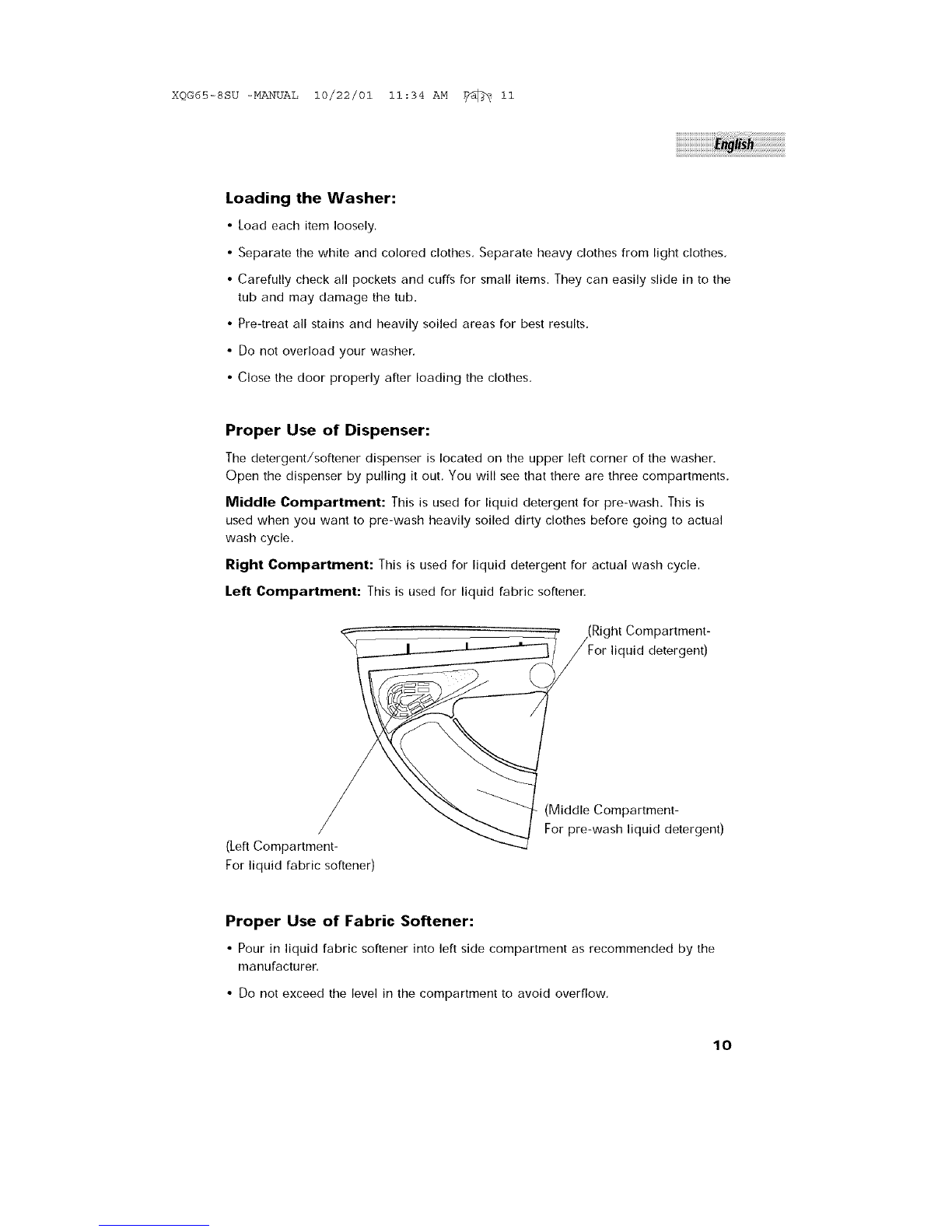

Loading the Washer:
• Load each item loosely.
• Separate the white and colored clothes, Separate heavy clothes from light clothes,
• Carefully check all pockets and cuffs for small items. They can easily slide in to the
tub and may damage the tub.
• Pre-treat all stains and heavily soiled areas for best results,
• Do not overload your washer,
• Close the door properly after loading the clothes.
Proper Use of Dispenser:
The detergent/softener dispenser is located on the upper left corner of the washer.
Open the dispenser by pulling it out, You will see that there are three compartments,
Middle Compartment: This is used for liquid detergent for pre-wash. This is
used when you want to pre-wash heavily soiled dirty clothes before going to actual
wash cycle.
Right Compartment: This is used for liquid detergent for actual wash cycle.
/eft Compartment: This is used for liquid fabric softener.
(Right Compartment-
liquid detergent)
(Left Compartment-
For liquid fabric softener)
(Middle Compartment-
For pre-wash liquid detergent)
Proper Use of Fabric Softener:
• Pour in liquid fabric softener into left side compartment as recommended by the
manufacturer,
• Do not exceed the level in the compartment to avoid overflow,
lO

XQ_65-ssc-M_mUALI0/22/0111:34AM _ 12
Proper Use of Detergent:
Low-Susding is recommended for front load style washers. This type of detergent
prevents damage to your washing machine; which may be caused by excess
amount of suds entering the condensing compartment.
Note: You can use less or more detergent depending on the size of the load, water
type in your area whether it is soft or hard and whether the clothes are
heavily soiled or lightly soiled. Besides the performance of the washing
machine the quality of the detergent also affect the washing result.
Warning: • Never pour fabric softener directly onto clothes because it will stain
your clothes or you may get spots on your clothes,
• Do not use powder form of softener into dispenser otherwise it will
clog up the dispenser, This dispenser is only designed for liquid form,
Lint Trap
• Lint trap is located on the bottom front right corner behind the small door cover.
Push to open the door cover, To remove the lint trap, turn the knob to counter
clockwise position, This will unlock the lint trap, To put it back, turn the knob to
clockwise position, This will lock the lint trap.
• Please clean the lint trap before and after each use, but do not remove for any
reason while the machine is in operation,
11

XQG65-8SU -MANUAL 10/22/01 ii:34 AM F/_T_ 13
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii,i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii !i
Casters
For your convenience, your machine comes with casters so you can move it
wherever you want to Casters are located on the bottom front right and left side of
the machine Put both hands in the small gap where caster levers are located
Simply pull them out toward you When the machine is moved to appropriate
location just push caster levers back into their in position
Norma Op÷rating Sounds
The following sounds are normally heard during the
operation of the washer:
• Tumbling sounds: This is normal as the heavy wet clothes in the Washer are
continuously being tossed around
• Air rushing noise: This happens when the Washer tub spins at very high RPM
• Wash and Rinse cycles going on and off will also make clicking sounds
12

XQG65-8SU -MANUAL 10/22/01 11:34 AM F/_ 14
Warning: Always unplug your appliance to avoid electric shock before cleaning,
Ignoring this warning may result in death or injury. Before using clean-
ing products, always read and follow manufacturer's instructions and
warnings to avoid personal injury or product damage,
OMeaning and P aintenanc÷
Use only damp or sudsy cloth for cleaning control panel.
• To avoid any kind of damage to cabinet finish, wipe appliance cabinet as need-
ed. If you spill liquid/powdered softener, bleach or detergent on the cabinet, wipe
cabinet immediately because it can damage the finish,
• Do not use any abrasive, harsh chemicals, ammonia, chlorine bleach,
concentrated detergent, solvents or metal scouring pads. Some of these chemicals
may dissolve, damage and/or discolor your appliance,
• Remove pins or other sharp objects from clothes to prevent scratching
interior parts.
• Lint trap needs to be cleaned before and after each use for your appliance to
operate at optimum efficiency. DO NOT USE YOUR WASHER WITHOUT
THE LINT TRAP IN PLACE.
• The Detergent Dispenser Compartment has a removable insert, Over time, this
compartment may accumulate dried detergent, dirt and debris, You must remove
the insert, then rinse in a sink or remove debris with a soft brush,
13

XQG65-8SU -MANUAL 10/22/01 ii:34 AM _ 15
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸ i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii
Moving & Vacationing
•Turn off water supply faucets and disconnect hoses. Drain water from all hoses.
This will prevent from damaging due to water leakage if the hoses accidentally get
ruptured or they become loose.
• Disconnect electrical plug.
• Dry inner wash tub. If moving washer, disconnect drain hose.
• Turn the leveling legs clockwise all the way in.
• Reinstall both shipping bolts and metal brackets in the back to prevent internal
part from shaking when appliance is moving to another location.
• To prevent mold or mildew, leave door open so moisture inside machine
can evaporate.
Storage of Your Appliance in Cold Environment
• This appliance must be stored at room temperature.
• If you just got delivery of this appliance when outside temperature is below
freezing, do not operate until this appliance has warmed to room temperature.
• Do not install or operate this appliance in the area where room temperature is
below freezing.
14

XQ_6S-ssu-MiNUALI0/22/0111:34AM _m_ 16

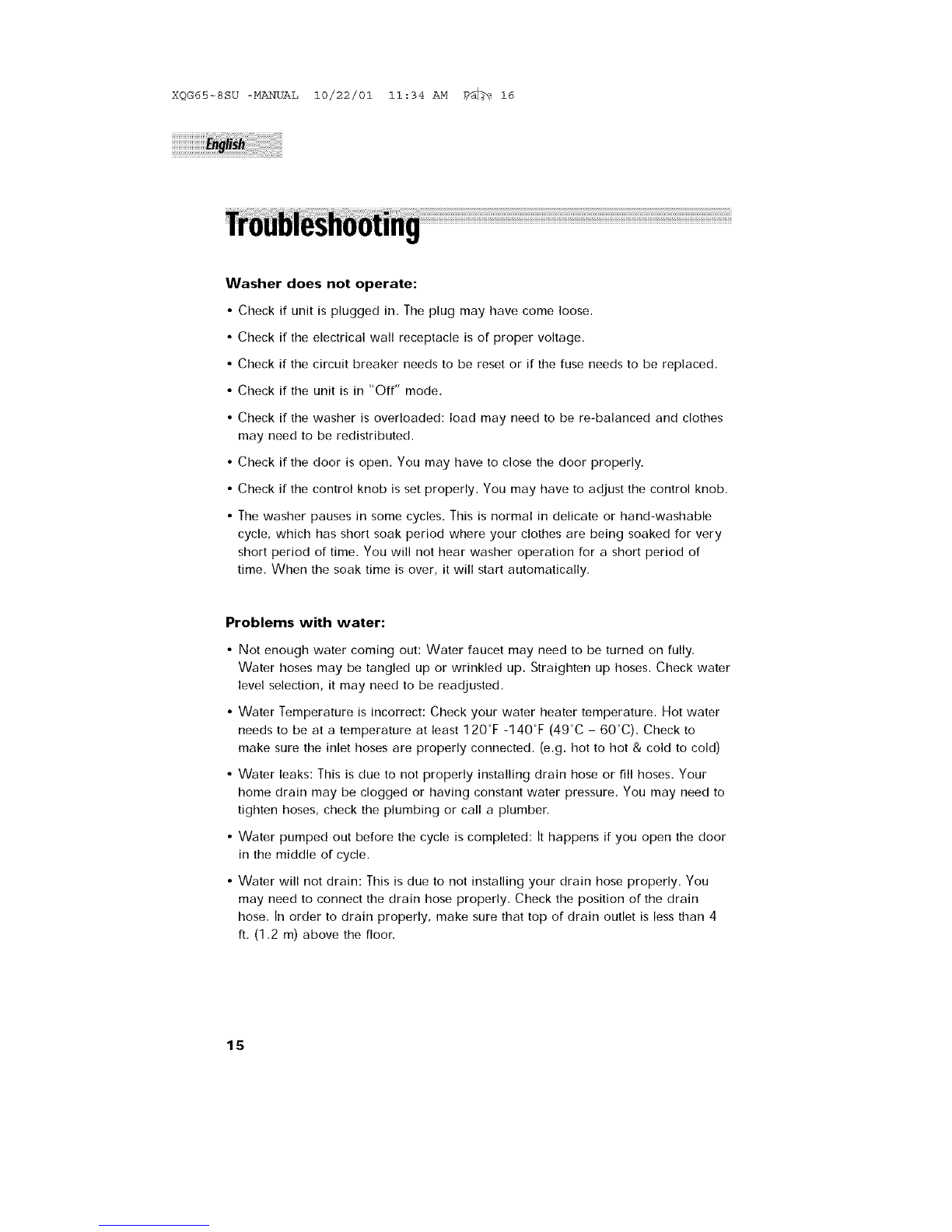

Washer does not operate:
• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is of proper voltage.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the unit is in "Off" mode,
• Check if the washer is overloaded: load may need to be re-balanced and clothes
may need to be redistributed.
•Check if the door is open, You may have to close the door properly.
• Check if the control knob is set properly. You may have to adjust the control knob.
• The washer pauses in some cycles. This is normal in delicate or hand-washable
cycle, which has short soak period where your clothes are being soaked for very
short period of time. You will not hear washer operation for a short period of
time, When the soak time is over, it will start automatically.
Problems with water:
• Not enough water coming out: Water faucet may need to be turned on fully.
Water hoses may be tangled up or wrinkled up. Straighten up hoses. Check water
level selection, it may need to be readjusted,
• Water Temperature is incorrect: Check your water heater temperature. Hot water
needs to be at a temperature at least 120°F -1407 (49°C - 60%). Check to
make sure the inlet hoses are properly connected. (e,g. hot to hot &cold to cold)
• Water leaks: This is due to not properly installing drain hose or fill hoses. Your
home drain may be clogged or having constant water pressure, You may need to
tighten hoses, check the plumbing or call a plumber.
• Water pumped out before the cycle is completed: It happens if you open the door
in the middle of cycle.
• Water will not drain: This is due to not installing your drain hose properly. You
may need to connect the drain hose properly. Check the position of the drain
hose, In order to drain properly, make sure that top of drain outlet is less than 4
ft, (1,2 m) above the floor.
15

XQG6S-SSU-M_UAI_ 10/22/01 11:34 AM r_ iv

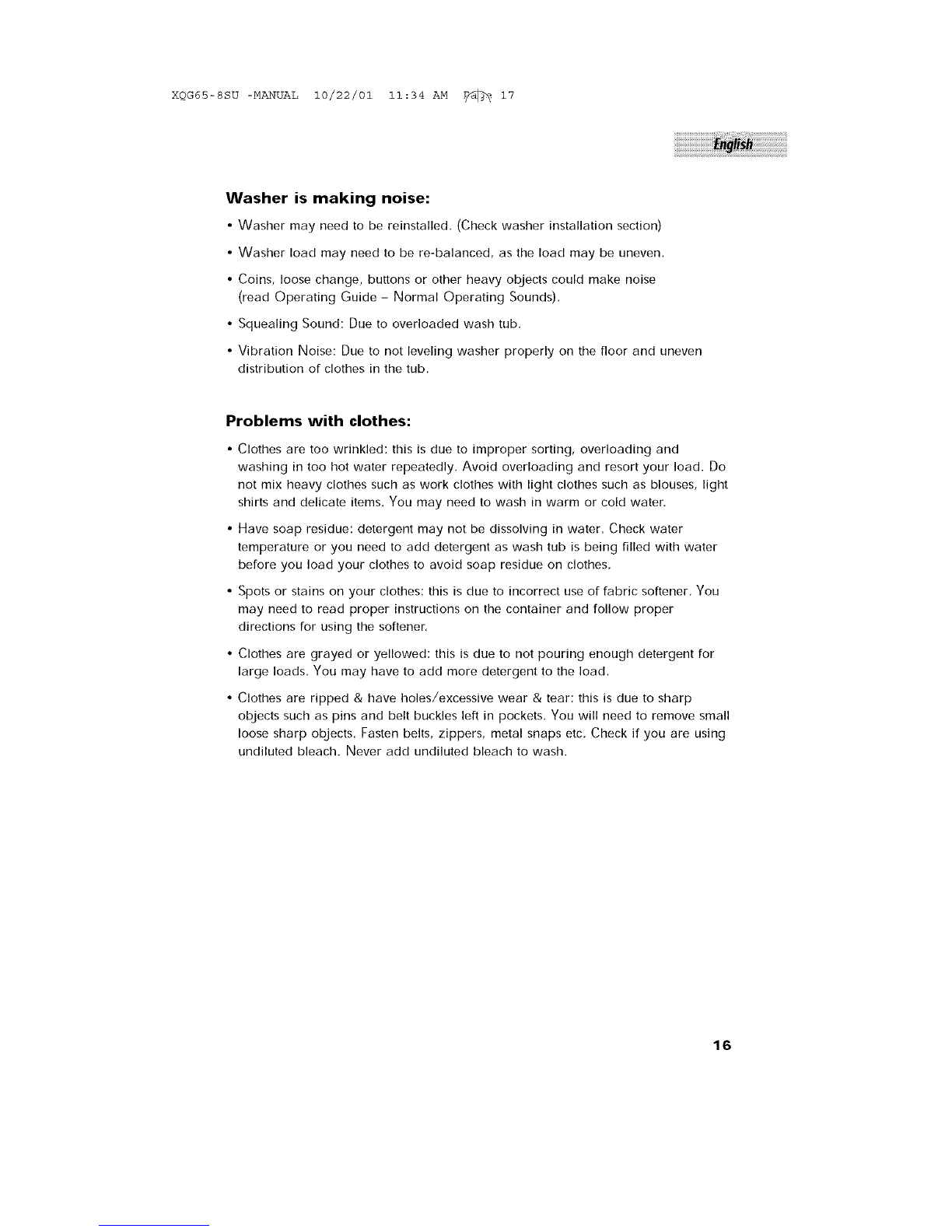

Washer is making noise:
• Washer may need to be reinstalled, (Check washer installation section)
• Washer load may need to be re-balanced, as the load may be uneven.
• Coins, loose change, buttons or other heavy objects could make noise
(read Operating Guide- Normal Operating Sounds),
• Squealing Sound: Due to overloaded wash tub,
• Vibration Noise: Due to not leveling washer properly on the floor and uneven
distribution of clothes in the tub.
Problems with clothes:
• Clothes are too wrinkled: this is due to improper sorting, overloading and
washing in too hot water repeatedly, Avoid overloading and resort your load. Do
not mix heavy clothes such as work clothes with light clothes such as blouses, light
shirts and delicate items. You may need to wash in warm or cold water,
• Have soap residue: detergent may not be dissolving in water. Check water
temperature or you need to add detergent as wash tub is being filled with water
before you load your clothes to avoid soap residue on clothes,
• Spots or stains on your clothes: this is due to incorrect use of fabric softener, You
may need to read proper instructions on the container and follow proper
directions for using the softener,
• Clothes are grayed or yellowed: this is due to not pouring enough detergent for
large loads, You may have to add more detergent to the load,
• Clothes are ripped & have holes/excessive wear & tear: this is due to sharp
objects such as pins and belt buckles left in pockets, You will need to remove small
loose sharp objects. Fasten belts, zippers, metal snaps etc, Check if you are using
undiluted bleach. Never add undiluted bleach to wash.
16

XQG65-8SU -MANUAL 10/22/01 11:34 AM _ 18

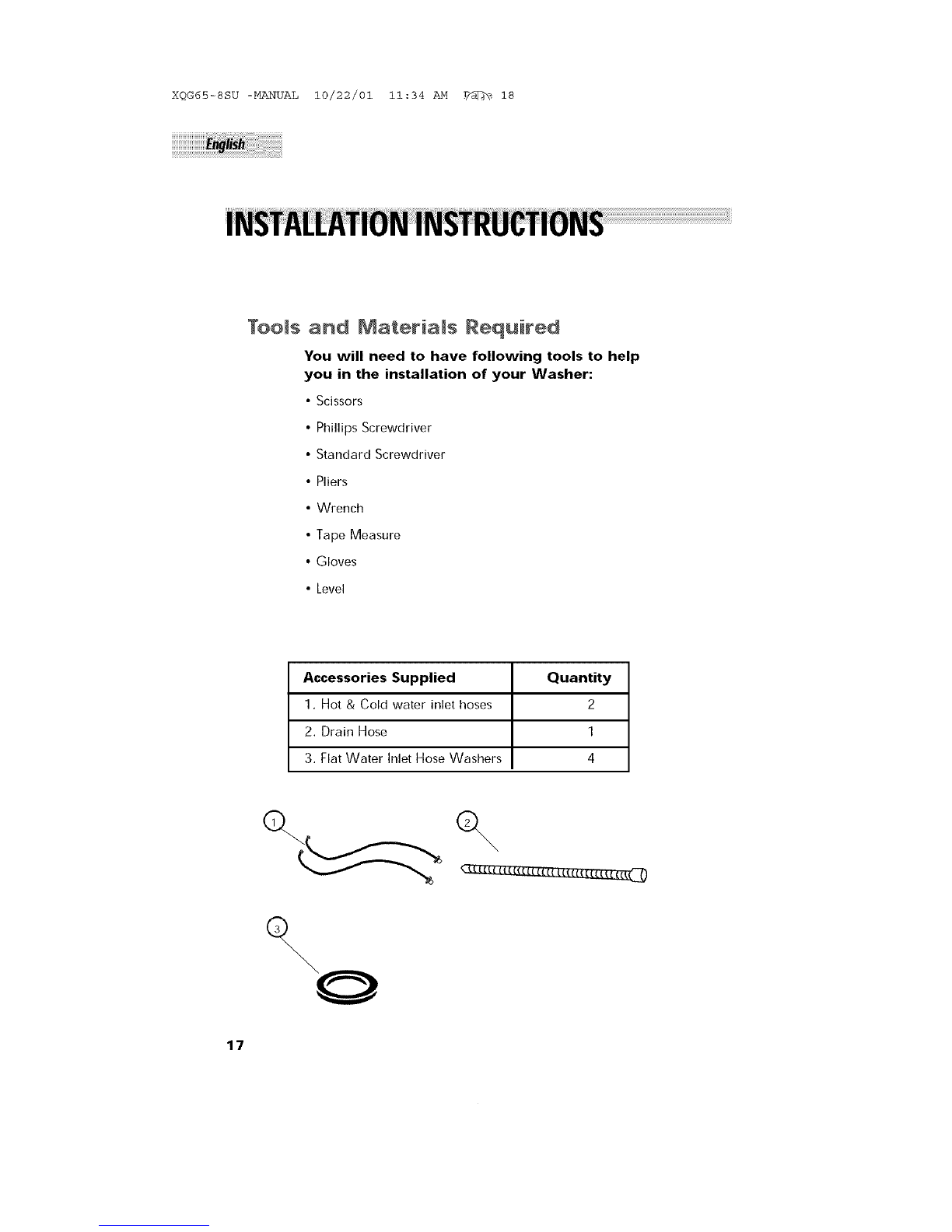

Too_s and Materials Required
You will need to have following tools to help
you in the installation of your Washer:
Scissors
Phillips Screwdriver
Standard Screwdriver
Pliers
Wrench
Tape Measure
Gloves
Level
Accessories Supplied Quantity
1, Hot &C01d water inlet hoses 2
2. Drain Hose 1
3. Flat Water Inlet Hose Washers 4
17

XQG65-8SU -MANUAL 10/22/01 ii:34 AM r/_ 19
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i;_i
Unpacking Your Appliance
• Remove all packing materials including transportation bolts and brackets. Also
remove adhesive tape holding the accessories inside and outside.
• Inspect and remove any remains of packing, tape or printed materials before
using the washer.
• Remove 2 bolts, 4 screws and 1 center bolt holding metal bracket from the back
of the unit that are installed to protect drum and internal components from dam-
age during shipping. (Wrench is included in the instruction manual bag)
• Screws and Bolts must be removed before using the machine. Once removed,
save them so when moving you can reinstall to protect the machine from damage
during shipping.
• Once you remove the bracket, reinstall bracket screws, center bolt and plastic
plug to prevent damage to the machine.
Bracket
Center bolt
plastic plug (not shown)
Screws
Bolt
(2)
- Bolt
18

XQG6S-SS_-M_UAL I0/22/0111:34AM _ 2O
leveling Your Washer
•Your washer has 4 leveling legs; which are located on the four bottom corners,
After properly placing your washer in its final position, you can level your washer.
• Leveling legs can be adjusted by turning them counterclockwise to raise your
washer or turning them clockwise to lower your_
Steps for Installation h,_hJ" -- -4 o_
Select a suitable location for this appliance on a hard even surface away from
direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances
etc. Any floor unevenness should be corrected with the leveling legs located under-
neath, on the bottom corners. This appliance must be placed at room temperature.
You must not place this appliance where the temperature is at below freezing.
Installing Your Washer:
Read install instructions carefully before installation,
Caution: If, after completing these steps, you are unsure that unit is properly
installed, contact a qualified installer. To ensure that your appliance is
properly installed it is recommended that it be installed by a certified
installer.
1, Insert a new flat washer into each end of the inlet hoses. Firmly put the washers
in the coupling.
Note: You may have to use pliers to tighten the coupling. Do not over tighten
because you may cause damage to the valve.
2. Connect the hot and cold water inlet hoses to the hot and cold water faucet.
3. Connect the other end to their respective washer inlet located at the rear.
19
