SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
SERVICE MANUAL
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by
electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or
products dealt with in this service information by anyone else could result in serious injury or death
MODEL: HW60-1201/S/B
Front Load Washing Machine
Order No. FL1004S003V1.1
WARNING
©2010(Haier Front load washing machine)
All rights reserved. Unauthorized copying and distribution is a violation of law.
HW60-14 01/S/B

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
Contents
Chapter 1 General Information ________________________________________________
1-1. General Guidelines_____________________________________________________
1-2. Caution and Warning symbols ____________________________________________
1-3. Function indication symbols ______________________________________________
Chapter 3 Matters needing attention ___________________________________________
3-1. Safety _______________________________________________________________
3-2. During Use ___________________________________________________________
Chapter 4 Operational Guidance ____________________________________________
Chapter 5 Program Introduction_____________________________________________
Chapter 6 Washing Mathods ________________________________________________
6-1. Loading ____________________________________________________________
6-2. Adding detergent ____________________________________________________
6-3. Selecting washing program ____________________________________________
Chapter 7 Appearance brief introduction _____________________________________
7-1. Name of parts _______________________________________________________
7-2. Net dimension_______________________________________________________
Chapter 8 Disassembly and Installation ______________________________________
8-1. Remove packing materials _____________________________________________
8-2. Dismantle packing bolts _______________________________________________
Chapter 2 Product Feature ___________________________________________________

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
3
8-3. Adjusting the washing machine _________________________________________ 16
8-4. Joining the Inlet Hose to the Washing Machine _____________________________ 17
8-5. Drainage Hose ______________________________________________________ 17
8-6. Connecting to the Power Supply ________________________________________ 17
Chapter 9 Wiring circuit and Self check ______________________________________ 18
9-1. Wiring circuit ________________________________________________________ 18
9-2. Self check __________________________________________________________ 19
Chapter 10 Error Display and troubleshooting_________________________________ 20
10-1. Error Display _______________________________________________________ 20
10-2. Examination & Troubleshooting ________________________________________ 25
10-2-1. Display nothing__________________________________________________ 25
10-2-2. No water inletting ________________________________________________ 25
10-2-3. No draining _____________________________________________________ 25
10-2-4. Abnormal noise and vibration_______________________________________ 26
10-2-5. Water leaking ___________________________________________________ 27
Chapter 11 Maintenance ___________________________________________________ 28

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
4
Chapter 1 General Information
1-1. General Guidelines
When servicing,observe the original lead dress.If a short circuit is found, replace all parts which are
overheated or damaged by the short circuit.After servicing ,see to it that all the protective devices such as
insulation barriers ,insulation papers shields are properly installed .Confirm that the screws,parts and wiring
which were removed in order to service are put in the original positions, or whether there are the portions
which are deteriorated around the service places serviced or not. And be sure safety of that.
1-2. Caution and Warning symbols
(You will see them in “Matters needing attention”)
Any instructions in this service manual with this “Warning “sign must be followed strictly.
To prevent damage to the washing machine, any instructions in this manual with this “Stop “sign
must be followed strictly.
1-3. Function indication symbols
(You will see them in the specification table)
Signify the washing machine has this function.
Signify the washing machine doesn’t have this function.

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
5
Chapter 2 Product Feature
2-1. Features
(1). 320mm diameter porthole, door may be open at a 175 degrees.
Facilitate view of wash process, facilitate unloading and easy to use with large port.
(2). Class A energy-saving
Scientific design for tub can reduce the use of water heavy during washing, consequently upgrade the
energy efficiency class to A,also use scientific washing
(3). Multi-gear speed controller
According to different costuming,you can select corresponding spin speed,from 0 to 1200 rpm.
(4). Unique gasket design featuring no residual water hidden inside.
By the unique gasket,washing machine can left no residual water hidden between outer drum and front
board.
(5). Delay time adjustive.
According to different costuming,you can select delay time,from 0.5h to 24h.

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
6
2-2. Specification
washing machines
HW60-1201/S/B
Product identification
Description of appliance Washing machine
Type of appliance(FS = standing, BI = built-in) FS
Supplier own brand HAIER
Supplier bar code(Europe)EAN Supplied by HAIER
Commercial Brand / Model HAIER
1.
Commercial bar code EAN
Key-Features
Energy efficiency class A
Washing performance class A
Spin efficiency class B
Programs n° 10
Capacity Kg 6
Spinspeed (max.) rpm 1200
Noise level(sound pressure level)dB(A) 71.5
Energy consumption per wash circle kWh 1.2
Water consumption per wash cycle l 48
Annual average energy consumption * kWh 187
Annual average water consumption* l 9204
Residual dampness (spin result) % 53%
Adjustable thermostat (water temp. adjust from - to)°C 90 -※
Drum capacity dry laundry / water kg / l 6/48
Auto water level adjust (depending on volume of filled in laundry) AWL l
Washing time (max.) min 196
Washingtemperatures (program-controlled) °C 30/40/ 60 /90
Certification's (CE) CE
Approvals (VDE/GS / TÜV/GS / IMQ) CE/VDE
2.
* per average 200 wash cycles (EN50242) T= COLD
3. Basics data
Unitdimensions (HxWxD) mm 850*595*520
Net weight kg 65
Voltage/frequency V/Hz 220V-240V~/50Hz
Input power / main fuse (intensity) W / A 2000/10
Work top / removable l/l
Control M= electromechanical, E= electronic, F= fuzzy E
Drum S = stainless steel / Z = zinc coated S
Tub P = Polyprop./ S = stainless steel P
Door:
aesthetic (R= round, Y= big eye, Q= square) R
Diameter cm 32
Outer door frame S= stainless steel / M= metal / P= plastic P
Inner door G= glass / P= plastic G
Detergent compartments n° 3
Removable compartment for liquid detergent -
Delay timer (from - to) h 0.5-24
Self cleaning suds pump -
Water inlet hose cold water / hot water /-
Water drain hose / -support /
Adjustable feet n° 4
Safety systems
Auto door lock ADL
Motor overheating protection MOP
4.
No heating without water NHW

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
7
Auto water cool-down (before drain 90°C boiled water) AWC
Water overflow protection WRP
Acqua Stop kit
-
Child protection
Programs
1) Strong action /cotton cycles (90°C/60°C/40°C/30°C/※) n° -/
2) Normal action / synthetics (90°C/60°C/40°C/30°C/※) n° /
3) Delicate action / wool or cashmere cycles (60°C/40°C/30°C/※) n° /
4) Delicates silk (40°C/30°C/※) n° -
5) Speedy (40°C/30°C/※,29min) n°
6) Sport n°
7) Hand wash n° -
8) Underwear -
9) Jeans -
10) Duvet -
11) Special programs n° 2
Single Rinse n°
Single Spin n°
Single Drain -
Single Wash -
Optional function keys (additional program settings)
ON/OFF
Start / Pause
Delay
Extra Rinse
Rinse Hold (or Soak) -
Eco Time -
Spin Select
Temperature Select
Baby Care -
Cold wash -
Super Wash -
Pre-wash -
5.
Easy ironing -
Packing dimensions & loadability
Packing dimensions (H x W x D) mm 890*650*565
Gross weight kg 67
6.
40' Container load pcs 162
Logistic / recicling information RS
Packing weight kg 3
Packing materials / Recycling symbols
Carton (weight) gr Shrink package
Polistyren (weight) gr 2000
Polyetylene foil (weight) gr 500
Otherpackingmaterials (weight) gr
7.
Wood (weight) kg 500
Service RS
User instruction (languages)
8.
Max. failure rate (12 Months after sales to end customer) %
9. Delivery Time of First Batch Available

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
8
Chapter 3 Matters needing attention
3-1. Safety

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
9
3-2. During Use

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
10
Chapter 4 Operational Guidance

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
11

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
12
Chapter 5 Program Introduction

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
13

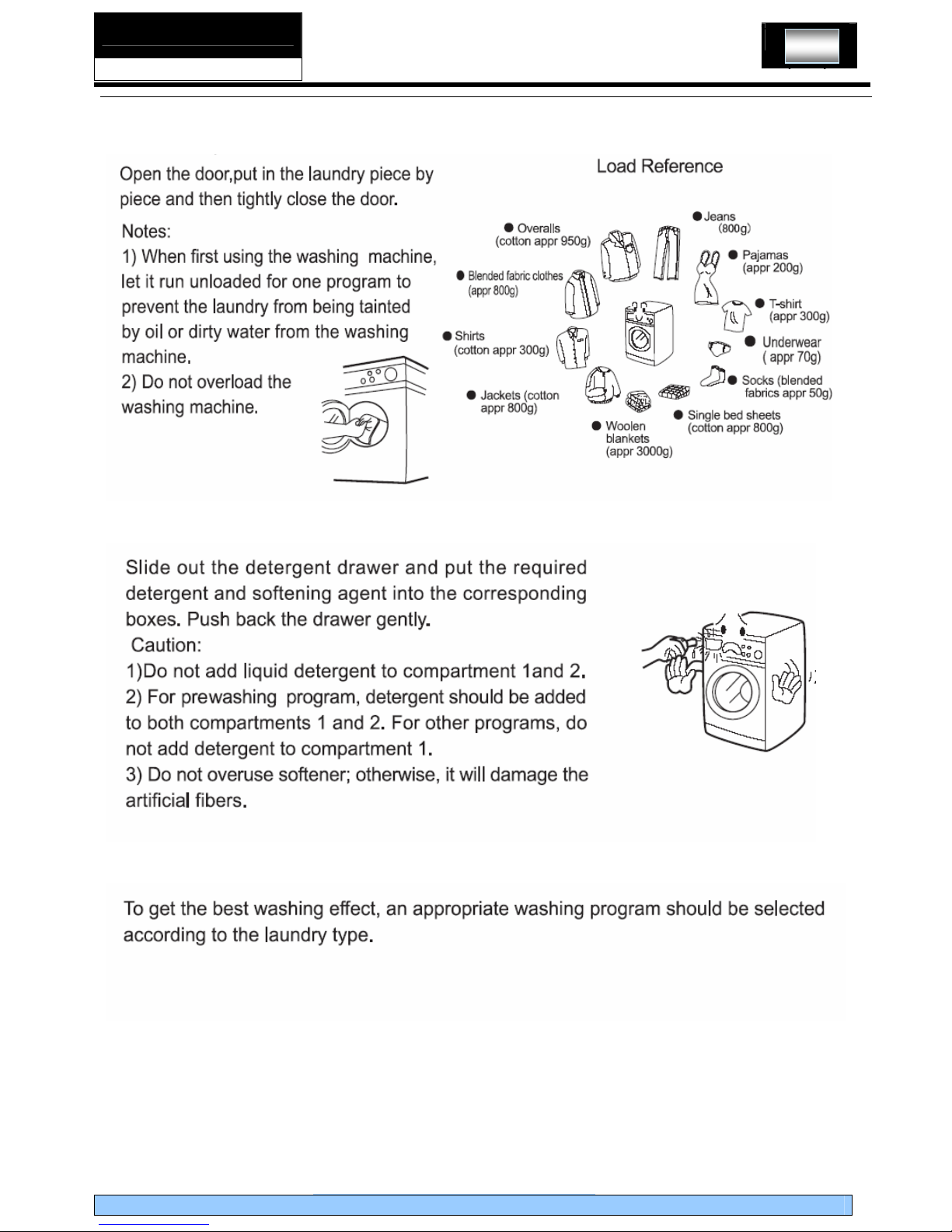

Chapter 6 Washing Mathods
6-1. Loading
6-2. Adding detergent
6-3. Selecting washing program

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
14
Chapter 7 Appearance brief introduction
7-1. Name of parts

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
7-2. Net dimension
height:850mm / width:595mm / depth:520mm
520
595
850

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
16
Chapter 8 Disassembly and Installation
8-1. Remove packing materials
8-2. Dismantle packing bolts
8-3. Adjusting the washing machine

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
17
8-4. Joining the Inlet Hose to the Washing Machine
8-5. Drainage Hose
8-6. Connecting to the Power Supply

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
Chapter 9 Wiring circuit and Self check
9-1. Wiring circuit
FUSE
FUSE
PCB
MR
MRC
MRN
L
N
MRL
1
2
1
2
2
1
1
2
2
1
T
R
FA
L
G
N
FA1
FA3
1
2
RNTC Water level sensor
Motor
EVP PS
EVF

SERVICE MANUAL
HW60-1201/S/B
9-2. Self check
Self check
1. How to start
Press the "Delay" and " intense” button at the same time, then plug on the machine, "tESt" and the model No will be
displayed by turn.
Press “start” button, the machine will start a self test program. At first, the model of the machine will be displayed, then
the following will be performed.
2. Test item
1) When the door switch is closed for three seconds, 88:88 will be displayed. Otherwise "Err1" will be displayed
2) when the main wash valve allows water to let in for 3 seconds, when the prewash valve allows water to let in for 3
seconds, When the hot water valve allows water to let in for 3seconds,
for 3 seconds, come into next water level, 77:77 will be displayed, If the water can not reach the level in 2 minutes,
"Err5" will be displayed. If the water exceeds the overflow level,"Err8" will also be displayed.
3) When the washing machine heats water for 10 seconds, 66:66 will be displayed.
4) When the washing machine drains for 2 minutes, if no water left, 55:55 will be displayed. Otherwise "Err2" will be
displayed.
5) When the inner drum runs for ten seconds with the speed of 400rpm at this time and for ten seconds with the speeds
of 800rpm 44:44 will be displayed.
When the self check program is completed, "End" will be displayed
Model selection
When the display board (on the control panel) is replaced technician need to select the correct model according with the
model name on the washing machine.
1. Press the “extra rinse” button and then plug on the machine at the same time, keep extra rinse button pressed for 4
seconds. Then “1260" will be displayed on the screen
2. Press the “speed” button to choose correct speed. 1660/1460/1260/1060will be displayed by turn. Then press “rinse
hold ”button to choose correct model 1280/1270/1260/1250. Choose 1260 then press the “temperature” button to save.
Take model HW60-1201 for example, the spin speed is 1200, the capacity is 6kg. So press "speed" button to choose
1260, and then press "rinse hold" button to choose 1260. You can find other model in the table below.
3. If you want to change the model again after storage, you can cut off the NTC and do the cycle adjustment.
4.
Spin speed
Capacity 1600 1400 1200 1000
8KG / 1480 1280 1080
7KG 1670 1470 1270 1070
6KG 1660 1460 1260 1060
5KG / / 1250 1050
Front Load Washing Machine
when the water valve allows water to letin

SERVICE MANUAL
HW60-1201/S/B
Front Load Washing Machine
20
Chapter 10 Error Display and troubleshooting
10-1. Error Display
Error message:Door is not properly shut 20s after program is started.
Troubleshooting:
Error message: Drainage error, water not emptied within 4 min.
Troubleshooting:
Pushing the door to Check Whether
Door is properly shut or not
Y
Shut the door properly
Door lock is broken and need replacing,
then make sure wire is connected
properly.
N
Check the voltage between 12-3 and
12-12 of PCB, is it between AC
220-240V?
Check if drain pump acts by touching
pump position
Y
Check if drain pump or
drain pipe is jammed,
And open the filter and
clean
N
Cut off the power and choose spin
program to start ,then check the import
voltage of drain pump, is it between
AC 220-240 V?
Replace drain pump
N
Cut off power and pull out water level
pressure switch wire connection. Set
spin program to start. Check the export
voltage to drain pump, is it between AC
220-240V?
Replace PCB
Cut off the power and then turn on again.
Check the voltage between brown wire
and blue wire of door lock, is it between
AC 220-240V?
N
Y
Replace
PCB
N
Connect the wire properly
Check if the wire connecting door lock
and PCB is loose
N
Y
Check if water is emptied Y
Cut off power and water level pressure switch wire
connection, measure the resistance of 11 and14 pin,
is it infinite? If not, it is water level pressure switch
failure and replaces it. If it is, then repair and check
PCB and wire as followed.
N
Y The wire between PCB
and drain pump is not
connected properly.
Replace the wire.
Y
N
This manual suits for next models
3
Table of contents
Other Haier Washer manuals

Haier
Haier HWM66-0613TT User manual

Haier
Haier XQG50-S1216 User manual

Haier
Haier LCA4120WPAB0 User manual

Haier
Haier HWM40-187S User manual

Haier
Haier XQSB60-JN User manual

Haier
Haier HLP24E User manual

Haier
Haier HW1210A User manual

Haier
Haier HWM70-918NZP User manual

Haier
Haier HWMP95TLU User manual

Haier
Haier XPB65-27QGS User manual

Haier
Haier HA500T Instruction Manual

Haier
Haier HWMP60TLF User manual

Haier
Haier HWM95-113S User manual

Haier
Haier JW-W70A User manual

Haier
Haier HW-D1060TVE User manual

Haier
Haier HW100-B14636N User manual

Haier
Haier HW60-1081 User manual

Haier
Haier HWM60-F14N User manual

Haier
Haier HW-D1070TVE User manual

Haier
Haier JW-G50C User manual
