Haier HWM105-826S6 User manual

Please read the manual carefully before operation and keep
it for future reference
HWM105-826S6
TOP LOAD FULLY AUTOMATIC
WASHING MACHINE
USER MANUAL
MODEL

CONTENTS
Installation and adjustment
Before washing
Operation

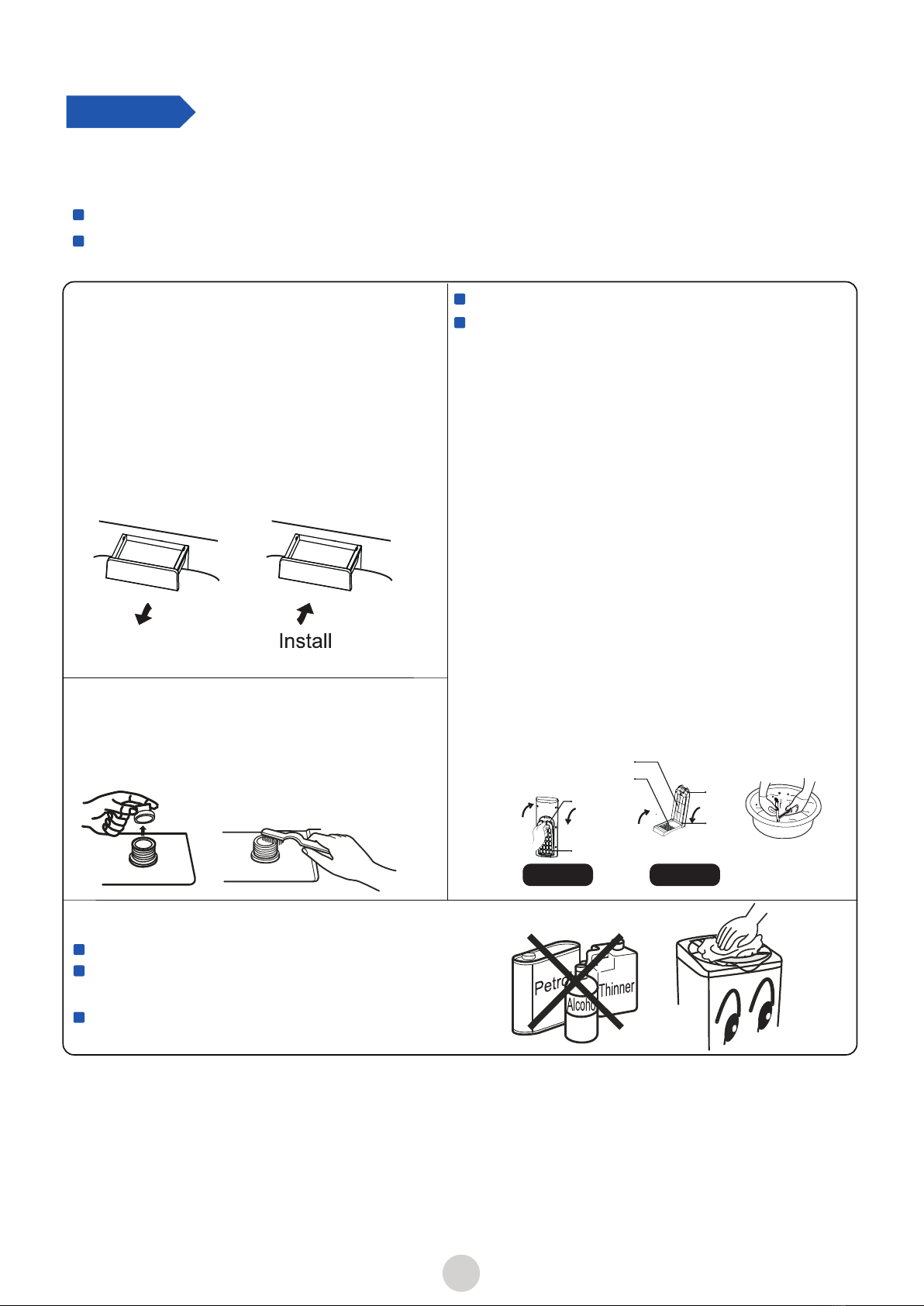

Cleaning and Maintenance
Packing list
5
5
5
5
9
10
10
11
9
10
16
19
Balance washing machine
Install the bottom plate
Change the direction of the drain hose
Check the following before washing
Usage of the detergent
Load your laundry

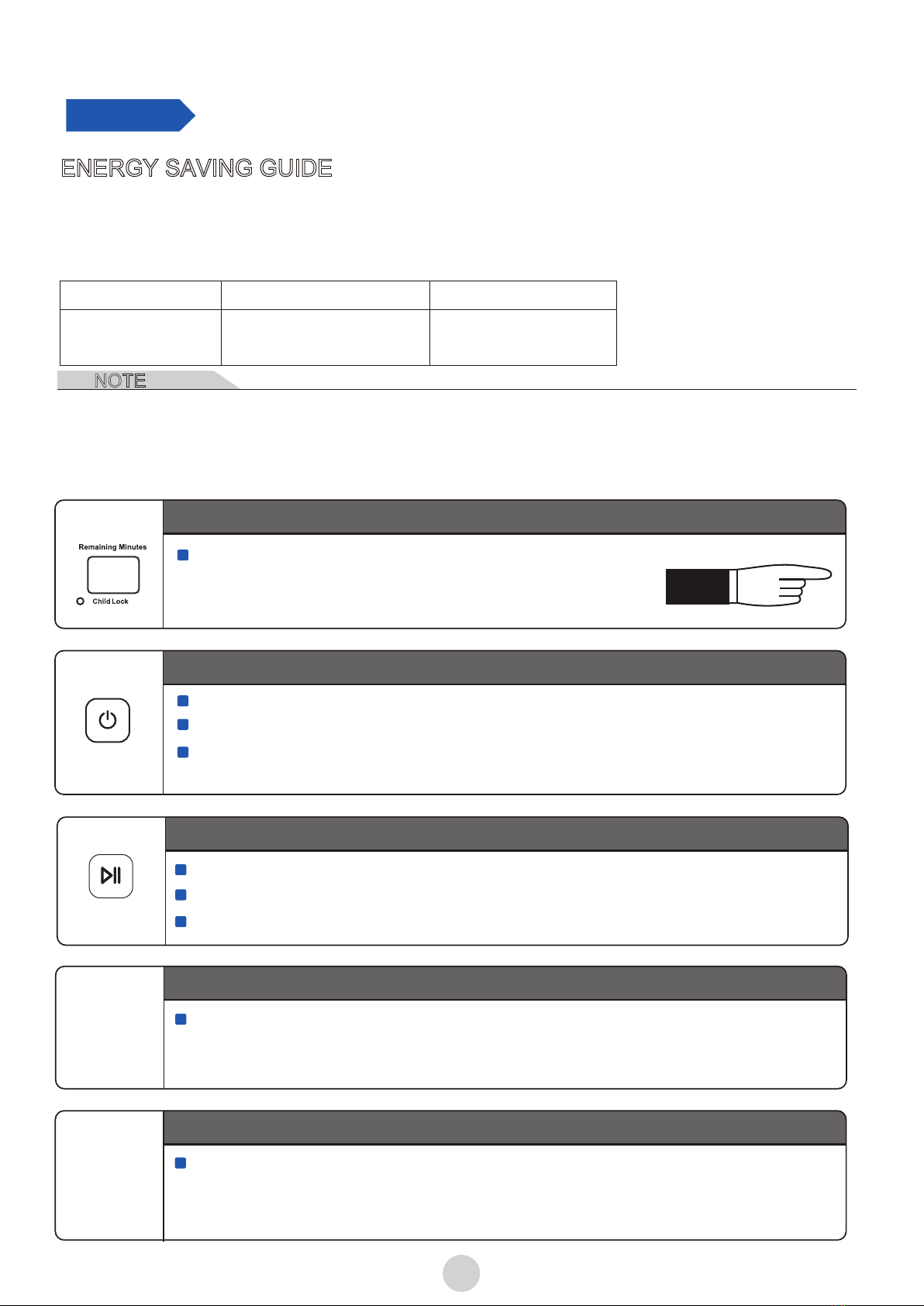

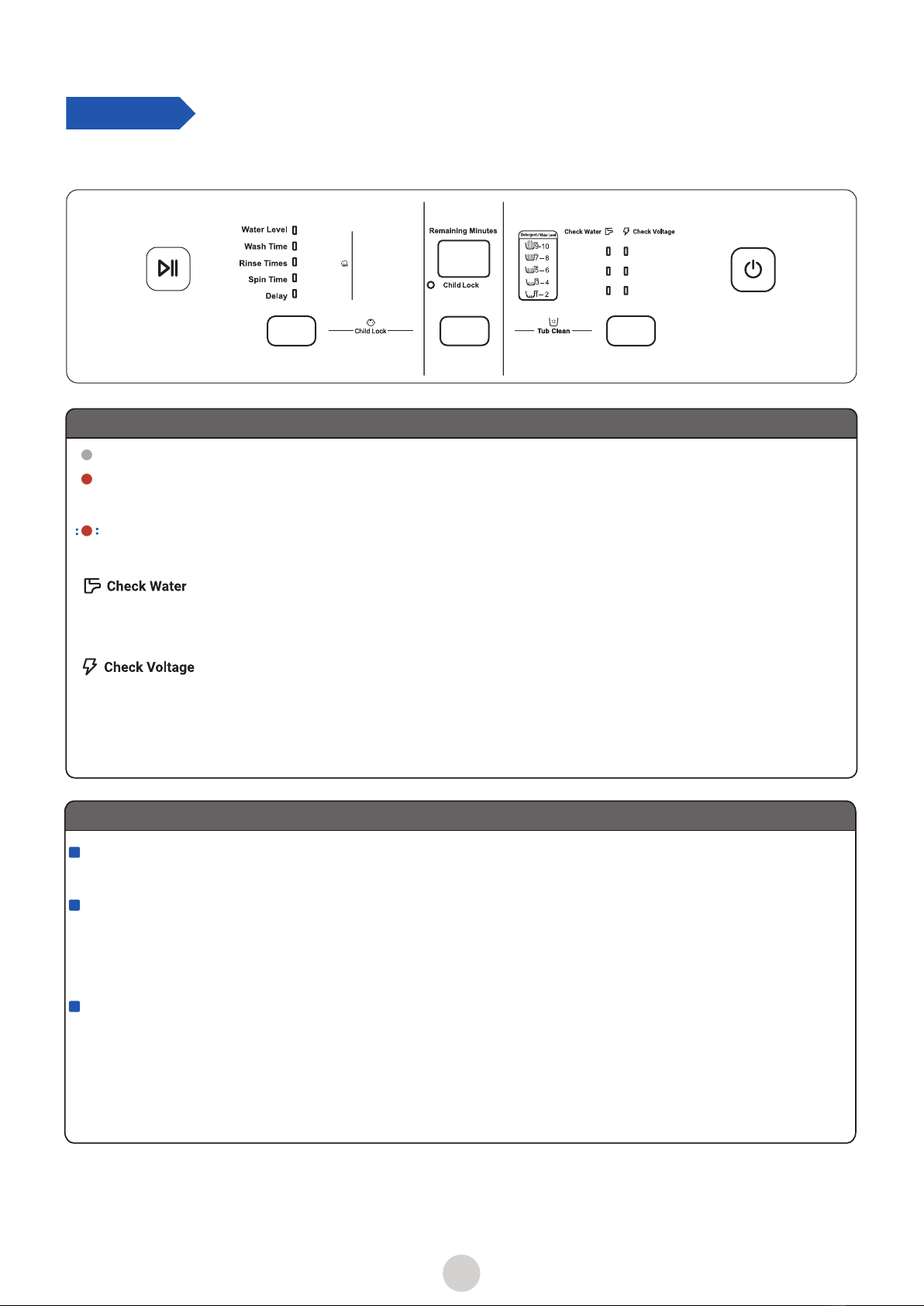

Explanation of buttons
Trouble-shooting
17
Product overview
Safety precautions
1
2
2
4
Description of symbols
Warning
Forbidden
Safety warning
2
3
Specification
E-waste Guide
20
21
6
6

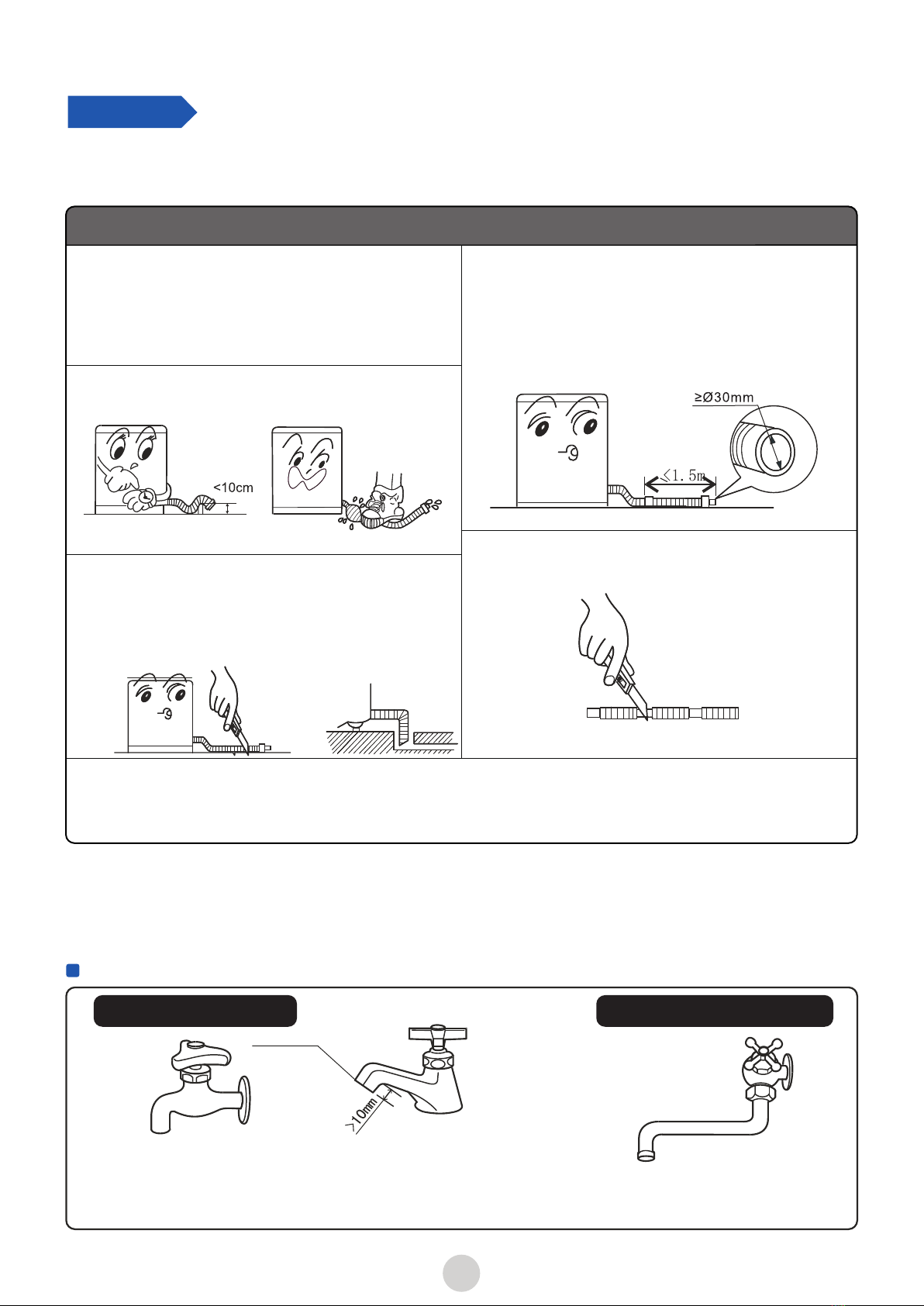

Usage of the drain hose
Inlet hose connection

BRAND INTRODUCTION
Haier Group —
Established in 1984, Haier Group is a world-leading provider of
solutions to beautiful life. Haier has topped Euromonitor's World
Home Appliance Brands and its subsidiary Haier Smart Home Co.,
Ltd. is among the Fortune Global 500 Companies.
Thank you for purchasing Haier product.

Product overview
Outer tub cover
Top lid component
Inner tub
Pulsator
Detergent box
Base frame
Lint filter
Adjustable foot (2 pieces)
Control panel seat
Cabinet
Water inlet valve
Hook
Fixed foot 2 pieces
Handle
Drain hose
Power cord
Back cover
Front control panel
Please understand the shapes of the washing machine and accessories may be
different from the sketch figures in this manual due to product improvement.

Safety precautions
2
Description of symbols
Warning sign
Forbidden sign
Safety warning
Contents marked with this symbol are related to the safe use of
the product and the personal safety of the user.
Please operate in accordance to the contents of this manual,to
avoid harm to the user or damage to the machine itself.
Contents marked with this symbol indicate operations or actions
that should not be undertaken by the user.
Performing of such actions may result in an injury to the user or
damage to machine itself.
Please check power socket condition to ensure it has been earthed correctly prior to
installation to ensure your safety
A separate, earthed power socket is
required for the power supply.
Hold the plug-not the electric cable-when
unplugging the washing machine.
Do not insert or remove the power plug with
wet hands.
The power plug should be accessible after
the machine installation.
This appliance is intended to be used in
household and similar applications such as:
— staff kitchen areas in shops,office and
other working environments;
— farm houses;
— by clients in hotels,motels and other
residential type environments;
— bed and breakfast type environments;
— areas for communal use in blocks of flats
or in launderettes.
Warning
Ensure the plug is removed and the tapis
turned off in the following cases.Power
failure, cleaning, moving,installation
and when not in use.
The new hose-sets supplied with the
appliance are to be used and that old
hose-sets should not be reused.
The rated washing capacity,spinning
capacity,The max. and min. inlet
water pressure refer to
specification page.
If the supply cord is damaged, it
must be replaced by the manufacturer,
its service agent or similarly qualified
persons in order to avoid a hazard.
CAUTION:If this appliance is supplied
from a cord extension set or electrical
portable outlet device ,the cord extension
set or electrical portable outlet device
must be positioned so that it is not
subject to splashing or ingress of
moisture.

Safety precautions
3
If you are using an extension cord or a portable electrical outlet
device (not recommended), ensure that it is positioned so that
it does not come into contact with water or moisture.
Do not wash
water-proof clothing
as this may affect
load balance during
spin cycle(s).

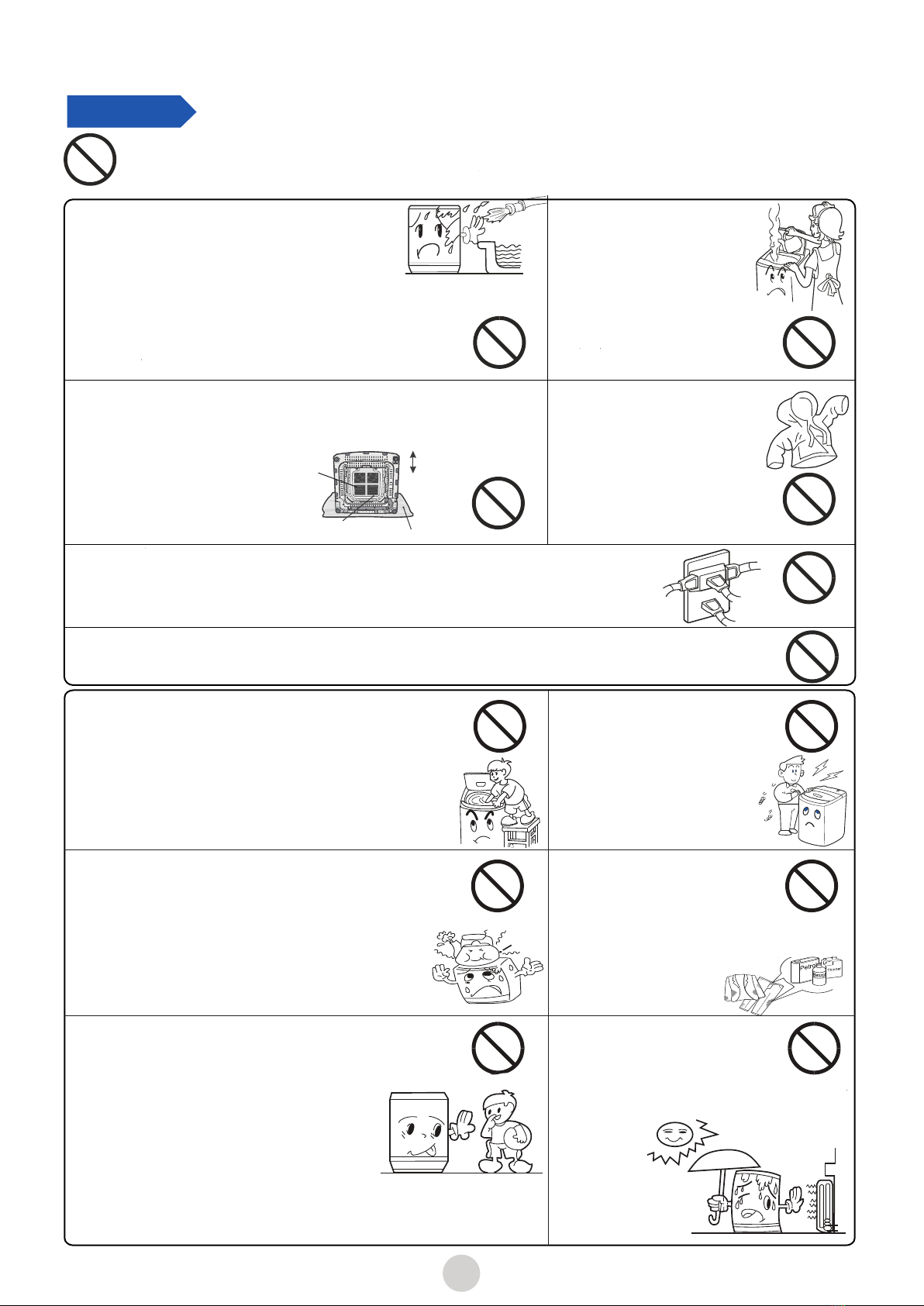

Forbidden
This appliance is not intended for use by
persons (including children) with reduced
physical,sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or
instruction by a person responsible
for their safety.Children should be supervised to
ensure that they do not play with the appliance.
Do not take apart,
repair or alter the
machine by
yourself.
Do not leave hot or heavy items on lid
or control panel as this may cause
damage to the washer or make the
washer unsafe to operate.
Do not wash laundry
with chemicals or other
volatile materials(such as
petrol,solvents or thinners)
as this cause damage
to the machine.
Keep washer away
from heat sources
such as heater,
stoves or direct sunlight.
Back
Front
Bottom plate
Soft object
Do not block the ventilation holes with carpet.
Ensure carpet does not obstruct the opening under
the base of the cabinet.
The ventilation
holes at the bottom
Do not connect to hot
water higher than
50°C.
The maximum inlet
water pressure refer to
specification page.
Do not install this appliance in a
damp or wet environment. Do not
leave wet laundry on the control
panel or spray water directly onto
this appliance, as this may cause the
washer to malfunction or cause an
electrical fault.
Do not attempt to move washing or place
hands inside washing machine while in
operation. Please ensure children are
supervised around machine to
avoid harm.
The openings must not be obstructed by a carpet.

Safety precautions
4
If power cord or other parts of this machine become damaged or faulty, please
contact a technician to have it repaired. Do not attempt to repair by yourself as this
may cause personal harm or void warranty.

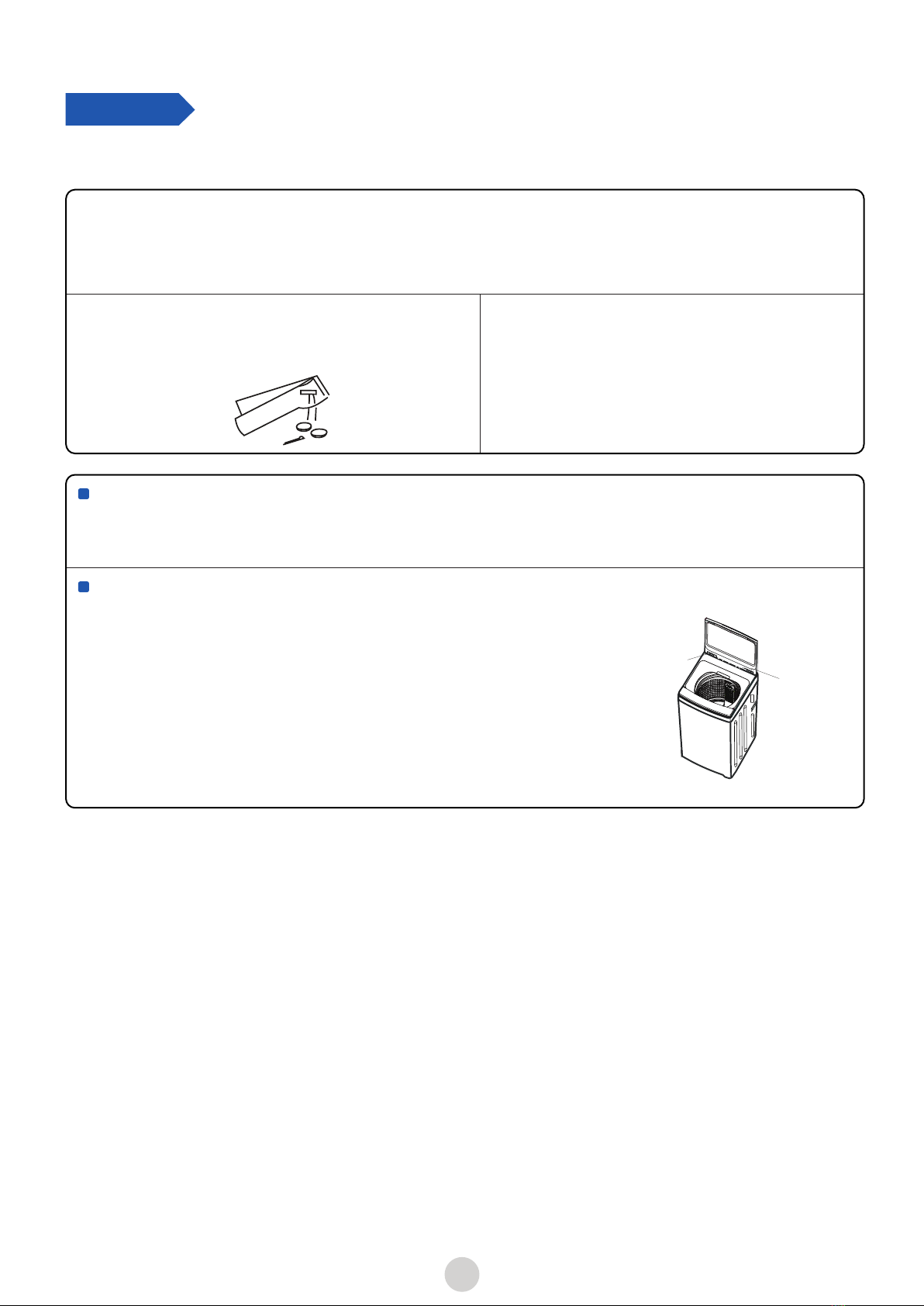

Smart hinge
Do not open the top cover when the washing machine is draining.
The new hose-sets supplied with the app liance are to be used and that old hose-sets
should not be reused
Safety warning
Please remove item such as coins,
button, sand and other solid materials
from clothing before washing.
Check that water faucets are open
after connection to machine, prior
to operation and that pipes are
connected correctly.
Please use low suds/High Efficiency
detergent.
Smart hinge
Smart hinge prevents sudden closing of the lid.Lid is heavy,be careful while
closing of the lid.
Do not let your hands or any other material be caught
below lid. It might cause injury or damage.
Lid closing time is dependent on ambient temperature.
The higher the ambient temperature,the
closing
shorter the lid
time and vice versa. Smart closing lid performs
best when lid is closed from full open condition.

Please install and adjust the machine according to the directions contained in this
manual.It is very important to follow these directions for the safe operation of the
machine,and to ensure your machine operates correctly.
Installation and adjustment
5
Back
Front
Screw
Bottom plate Carpet
Do not install this machine on an incline surface greater than 2° . Installing machine on an
angle or on unstable ground will result in unstable running or stoppage of the
machine. Please adjust it by the following method:
1.
Confirm whether the machine is level.
2.Lift up the side of the leg slightly and twist the adjustable leg.
Balance washing machine
Install the bottom plate
The purpose of the bottom plate is to suppress noise
from the washing machine during operation.
Steps:
2. Place the plate onto the bottom of the machine.
3. Use a screwdriver to tighten the screw ( in accessory
bag) securing the panel to bottom of the washer.
4. Once the screw is tight and the panel is secure, place
the machine upright.
1. Lay down the washer on its back, on a nona brasive
surface.
Note: The distance between the washing machine
and the wall should be at least 70mm.
Change the direction of the drain hose
70mm 70mm
hose of

Installation and adjustment
Usage of the drain hose
Inlet hose connection
1.The height of the drain hose shall be less
than 10cm, otherwise the drainage will not
be smooth,and the machine will take a long
time to stop in the middle.
2.Do not trample or press the drain hose.
3.If the drain hose is too long, cut it at mid
point. To make smooth drainage,cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase.The inner
diameter of the extra hose shall not
less than 30mm,and the length shall
not exceed 1.5m.
5.If the extra hose is too long, cut it either
at A or at B point.
Note: Connect the main hose with the detachable water hose according to the
instructions,use the hose that comes with the machine,do not reuse the
old hose.
AB
The new hose-sets supplied with the appliance are to be used and that old hose-sets
should not be reused.
Confirm the water faucet
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth. If not please replace ment it
to avoid leakage.
The exit end face of the faucet
water faucet,suitable water faucet, not suitable
6
The drainage shall be smooth with the drain hose.

Installation and adjustment
Connection between the water inlet hose jointer and the water faucet
1.Press the lower end of the lock lever and push down the slider. Take off the water
inlet hose jointer from the water inlet hose component. See to Figure 1.
3.Loosen the screw till the water faucet can be accessed. Put the jointer of the water
inlet hose on the faucet. See to Figure 2.(If the faucet is too large and the jointer
can not be set on the water faucet,please loosen the four screws and take out the
bushing in the jointer. The front end of the faucet must be smooth, otherwise it may
cause leakage. See to Figure 3.)
4.Fasten the four screws evenly. See to Figure 4.
5.Twist the fastening nut, See to Figure 5. After installation, the threading is
less than 2mm above the upper surface of the nut. See to Figure 6.
About 4mm before
twisting
About less than
2mm after twisting
Lock lever
Water inlet hose
Slider
Water inlet hose jointer
Screw driver
Nameplate
Screw
Bushing
Screw nut
Figure 1 Figure 2 Figure 3
Figure 4 Figure 5 Figure 6
Connection between the water inlet hose and the washer
1.Do not take off the water absorption cushion.
Please check if the cushion is dropped or
damaged before each usage.If it happens
please contact our after service department
immediately.
2.Put the nut of the water inlet hose on the
valve jointer.
3.Fasten the nut. Swing it gently to confirm if it’s suitable.
nut of the water inlet hose
jointer of the water inlet valve
water absorption cushion
7
nut See Figure 6. If the thread is 4mm below the outer surface. Please loosen the
2.Take off the nameplate Make sure the thread is 4mm above the top surface of the
screw.

Installation and adjustment

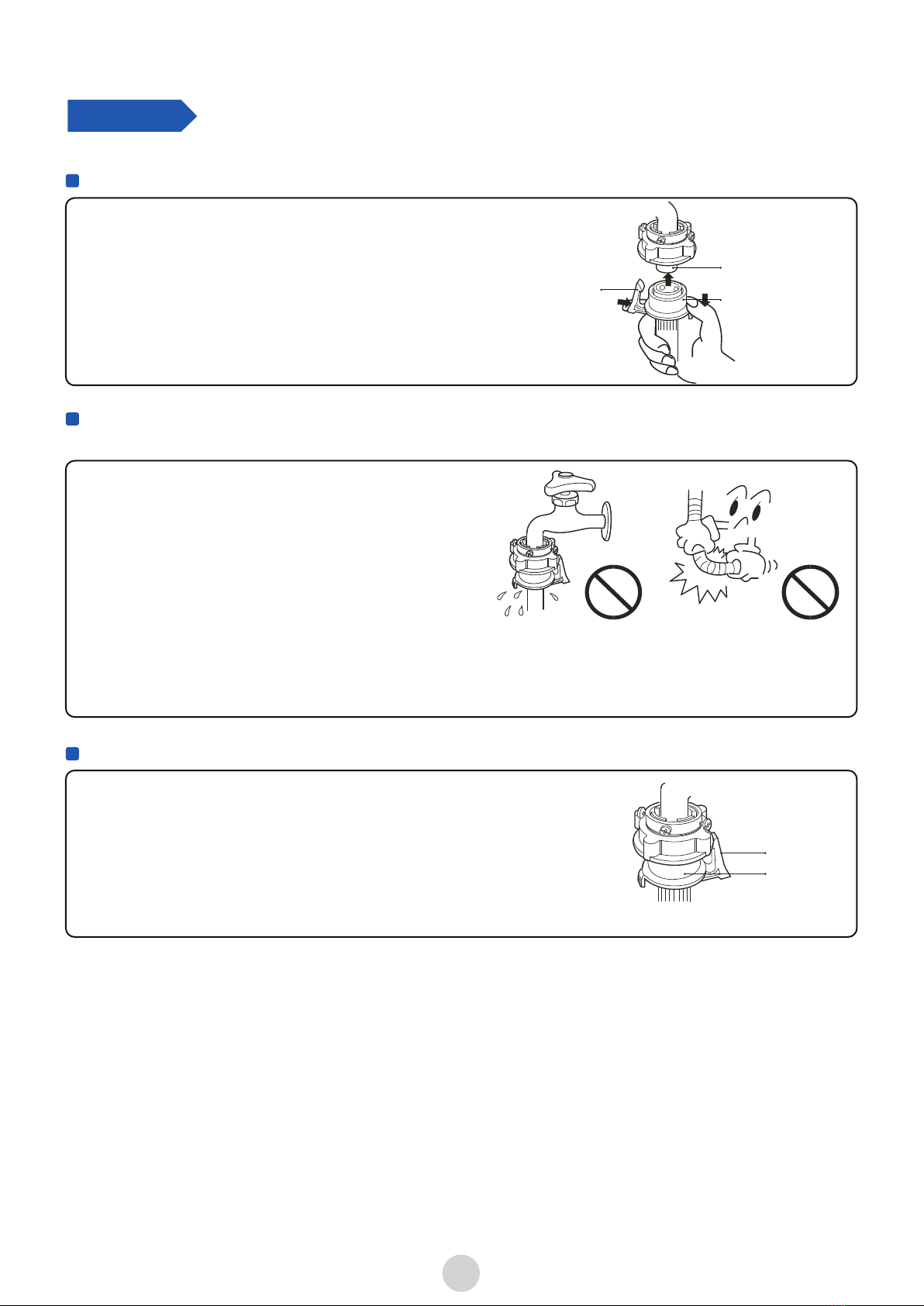

Connection between the jointer of the water inlet hose and the water inlet hose
1.Push down the slider. Insert the water inlet hose
into the jointer.
2.Hang the lock lever to the jointer. Release the
slider till a click sound is heard.
Check the connection between the jointer of the water inlet hose and the
water faucet
1.Swing the hose gently to confirm if it
is fastened stable.
2.After installation, open the faucet to
check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if
the connection between the jointer of the water inlet hose and the water
faucet, and the installation of the water inlet hose are firm, so as to prevent
leakage from improper installation position.
Dismantle the water inlet hose
1.Close the water faucet.
2.Press the locking lever. Push down the slider.Then
pull off the water inlet hose.If the machine is used
frequently, the jointer of the water inlet hosevhose.
If the machine is used frequently, the jointer of the
water inlet hose.
Locking lever
Slider
Locking lever Slider
the jointer of water
inlet hose
8

Preparation before washing
1.Connect the water inlet hose. Open the water faucet.
2.Confirm that the washing machine is earthed reliably.
Then insert the power plug into the receptacle. The earth
terminal shall not link to gas pipeline and faucet water
pipeline.
3.Put down the drain hose.
Check the following before washing
Before washing
Clear the pockets
and take out loose
items such as coins,
sand,hairpins,etc.
a. Check if the laundry has any special washing instructions.
b. Divide the laundry into colour fast and non-colour fast items.
c. Separate items that do not absorb water easily and wash by hand.
d. For heavily soiled items,please first remove loose dirt,then apply detergent directly
(as per instructions on pack) to the stain before washing.
e. For those items that may attract lint or are furry or fluffy,please turn inside out before
f. Do not put laundry soiled with chemicals
washing.
or solvents into the washing machine.
Tie any long straps
or strings,fasten
buttons and close
zippers.
The weight of the
laundry shall not
exceed the rated
capacity of your
machine,loosen the
laundry before
placing it evenly in
the tub.
When the machine is
running,buttons may
cause noise.
To reduce the noise,
turn clothes inside
out or place them in
a laundry bag.
9

Usage of the detergent
The rated washing capacity refers to the largest dry
weight of a load that can be washed.
The thickness, size and type of clothes will have impact
on the actual capacity.
Do not select the higher water level “4” for clothes weight
less than 1.0kg, to avoid splashing of water.
It is recommended that low suds/high efficiency washing
detergent should be used.
Operation
Load your laundry
10
It is suggested to dissolve powder detergent before adding to the tub,see as below: It is
suggested.
1.Prepare warm water (<35°C) in a container.
2.Add washing powder detergent,stirring to dissolve completely.
It is recommended that washing powder detergent is dissolved with water and then directly
put into the washing machine:
1.Add some water (select the“1” water level)
2.Add washing powder detergent. Run for about 30 seconds to fully dissolve the detergent.
Then press the“Start/Pause” button to pause the wash cycle.
3.Load laundry. Select suitable water level. Press the “Start/Pause” button again to
recommence washing cycle.
Old or poor quality washing powder may cause scaling in tub or detergent dispenser.
Clean the detergent box periodically to ensure washing power is evenly distributed and
avoid any detergent build up.
When water pressure is too low, it is possible that washing powder cannot be washed
away effectively,and washing powder would be agglomerated after a period of time.
Please clean the detergent box in time. It is recommended to pour the washing powder
into the basket directly.
washing powder inlet

Operation
Explanation of buttons
Press Power button,set the desired washing program,after setting, press Start/Pause
button, then press Process button and Set button at the same time and hold for
3 seconds, The digitron displays “CL”, The child lock light goes on,the child lock will
activate. All of the buttons are locked and have no function.
Child Lock function
Release the child lock function: In the process of program running, Press Process
button and Set button at the same time and hold for more than 3 seconds. After three
beep sound,the child lock function is released.The child lock light goes out.
NOTE：If you open the lid when the “child lock”activate,digital tube display “E2”and
beep,you need close the lid and press the “Start/Pause”to cancel,or washing machine
will drain after 10 seconds.
Indicator display
Off
On:Indicates the program is about to run and indicates the selected program and
options
Flashing:Indicates the program is running and indicates the selected cycle and
options.
11
The function is intended for children’s safety and prevent children from accidental
changes to washing programs.
Normal
Shirts
PowerStart/Pause
Process
Spin
Delicate
Quick
P1-PA
Program
P1 Heavy
P2 Sports
P4 Silk
P5 Soak
P6 Wool
P7 Baby Care
P8 Synthetic
P9 Rinse+Spin
PA Air Dry
P3 Eco
DIY
:If the indicator is blinking, the water inlet is abnormal. Check whether the water inlet
valve is blocked, whether the faucet is open, and whether the water pressure is normal.
When the fault is rectified, press the Start/Pause button to resume the operation.
:After starting and running, the computer board detects the voltage. When the voltage
of the external network is abnormal, the voltage alarm lamp blinks. When the voltage
returns to normal, the alarm is released.

Operation
12
After the power is switched on, press it to start the machine.
During working, press it to pause.
During pause, press this button to restart and go on working.
Process
"Start/Pause" button
The user can press process button to select “ water level”, “ wash time”,
“rinse times”, “spin time” and “delay” , after selection, they can press
“DIY” button to adjust chosen process.
" Process " button
During operation, the digital tube will display the remaining time.Press
the “DIY” button. User can adjust “ water level”, “ wash time”, “rinse
times”,“Spin time”.
" DIY " button
DIY
Start/pause
Press the " Power " button to switch on the power.
Under power-on mode, press it to switch off the power.
If the "Start/Pause" button is not pressed, the machine will switch off the
power automatically after 10 minutes.
Power
Page 17
During working , it displays the remained reserve
time (minute).In case of trouble, it displays the
abnormal symbol (see to page 17)
"Power" button
Digital tube
ENERGY SAVING GUIDE
To enter energy saving follow mode below guide：
1.Press the Power button to turn On.
2.Press the program button to select the Delicate Program.
3.Close the Lid & Press Start/Pause Button
NOTE
* Under test conditions,When tested accordance with stangards IEC 60456: 2010 & BEE schedule
12(Revision-5) Actual Performance of machine Will depend on how the appliance is being used.
* For best washing result we recommend to mix the detergent powder in warm water and pour diectly
into the drum tub before putting the clothes.(Rated Capacity Load)
Program Water Level No. of Rinse
Delicate 10 1

Operation
13
Normal
Program
Shirts
Program
"Program" select
Application
Spin
Delicate
Quick
Use this cycle to wash lightiy soiled garments and delicate
clothes that need gentle washing.
Use this cycle for normally soiled cottons and mixed fabric
loads.
Special designed for shirts clothes.
Use this program to remove water from clean clothes, you
can get rid of some excess water faster,Makes clothes dry
fasther.
Quick wash suitable for a small amount of slightly soiled
clothes.

Operation
14
Heavy
Program
Eco
Program
"Program" select
Application
Soak
Sports
Silk
Use this program to wash sports wear.
Use this program to wash durable,full load,
suitable for towels,children clothes,workerwear.
Use this program for Energy/Water saving.
Washing the relatively big thick or very dirty
laundries.
Special designed for silk clothes.
PRG.NO.
P1
P2
P3
P4
P5
P6
P7
P8
P9
PA
Wool
Baby Care
Synthetic
Rinse+Spin
Air Dry
Use this program for woollen clothes only.
Use this program to wash baby’s clothes.
Use this program to wash synthetic fiber
materials.
Use this program to relax wrinkles,remove
excess detergent and refresh clean garments.
Air-dry laundry to prevent mildew;Air-dry laundry
program runs for 60 minutes.The purpose is to
air-dry the clothes,and at the same time air-dry
the outer barrel and the inner barrel to avoid mold
on the outer barrel and the inner barrel.
The maximum airdrying chemical fiber clothing
of this machine is 1.5kg.

Operation
15
Power Power
Program Program
Start/Pause
Start/Pause
DIY DIY
Process Process
2
1
You can use this function to clean the inner tub and outer tub of
washing machine.
Spin alternately, and the total soak time is 10hours to make sure better
clean effect.
Do not put clothes during tub clean process.
“Tub clean” function
Tub
clean
Cycle completed
When the machine has completed the selected/current wash cycle an audible alarm
will sound and the machine will automatically switch off .
Button Operation and Descriptions
Press
Press
3.Press the button to select corresponding process.
4.Press the button adjust water level,wash time,rinse
5.Press the button,close the top lid.
i
i
times and other parameters.
After the power is turned on, the "commonly used" program is automatically set,
select other automatic programs, and press the "Program" button until the
See "Program" button on page 13. If you want to
"Program" button, the indicator
corresponding indicator lights up.
choose the program P1-PA (see page 14), Press the
light stays at P1-PA, and the display screen switches from P1 to PA .

16
Remove
The lint filter must be used during washing.
It must be cleaned in time after each using.
Clean the detergent box and set it on the
control panel seat.
1.The method of dismantle: Push it out
gently.
2.The method of clean: Use a brush and
duster cloth to clean it, then flush it with
water.
3.The method of install : Install it gently
and push it in.
1.Press the spring piece of the top lint
filter to make the claws out of the filter
cover, and then pull out the lint filter to get
it down.(figure 1).
2.Pull the back of the lint filter, and then you
can get down it off the front cover of the
lint filter.(figure 2).
3.Sweep the lint in the lint filter.
4.Put the back of the lint filter into the front
cover.
5.Put the lint filter into filter cover, and make
it tight.
6.Make sure the lint filter well installed, or it
can influence your use.
The mehods of dismantle and install lint filter
as follows:
Remove the power plug before carrying out any cleaning or maintenance.
Clean the lint filter(s) and detergent box after each wash,otherwise it may affect
you use.
Cleaning and Maintenance
Maintenance
The filter at the water inlet valve may
become blocked by impurities in the
water supply.Clean it with a plastic
bristled brush every two months.
If the cabinet is dirty,wipe it with a damp cloth
Do not wash directly with water.
1.After washing cycle has finished,turn off the water faucet.(If needed,you can remove
the water inlet hose).
2.Do not store water in the washing machine for a long period without completing a
wash cycle.Drain the water completely after each wash.
3.Hang up the power cord and drain hose.
4.Wipe off any drops of water on the surface of the machine and inside the tub.Leave
the lid open for about 1 hour after each wash to evaporate any residual water.
Wipe with a neutral detergent(please check
directions on detergent bottle first).
Do not wipe machine with thinners,petrol,
alcohol or other harsh solvents.
Down
Install
Dismantle
Down
Up
Up
The front cover of the lint filter
The back cover of the lint filter
Dismantle
Install
Figure 1 Figure 2
