Haier HWM150-287S User manual

T
w
i
n-tu
bW
as
hi
ng
M
ac
hi
ne
User's manual
This manual is for
Please read this manual
carefully before using.
Retain it for future reference.
+:06
0030806861
+:06
+:06

Contents
Safety precautions
Installation and adjustment
Preparation before washing
The musts in washing
Usage of the detergent
Washing sequence
Disposal after washing
Packing list Specification
Names of the parts
Trouble-Shooting Answers to question

1 1
Water-filling entrance
Wash timer
Wash selector
Drain selector
Control panel
Bypass channel
Overflow filter
Water level adjusting lever
water-filling translation
Drain hose
Pulsator
Cabinet handle
Wash tub
Base frame
Lint filter
Outer cover of the spin tub
Inner cover of the spin tub
Spin timer
Spin tub frame
Spin tub
Cabinet
Power cord
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of he user.
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.
Names of the parts
Notes: All illustrations in this Manual are given for reference only. Your products and
accessories may show differences from these illustrations due to our
continuous improvement.
Valve cover
Buzzer

2

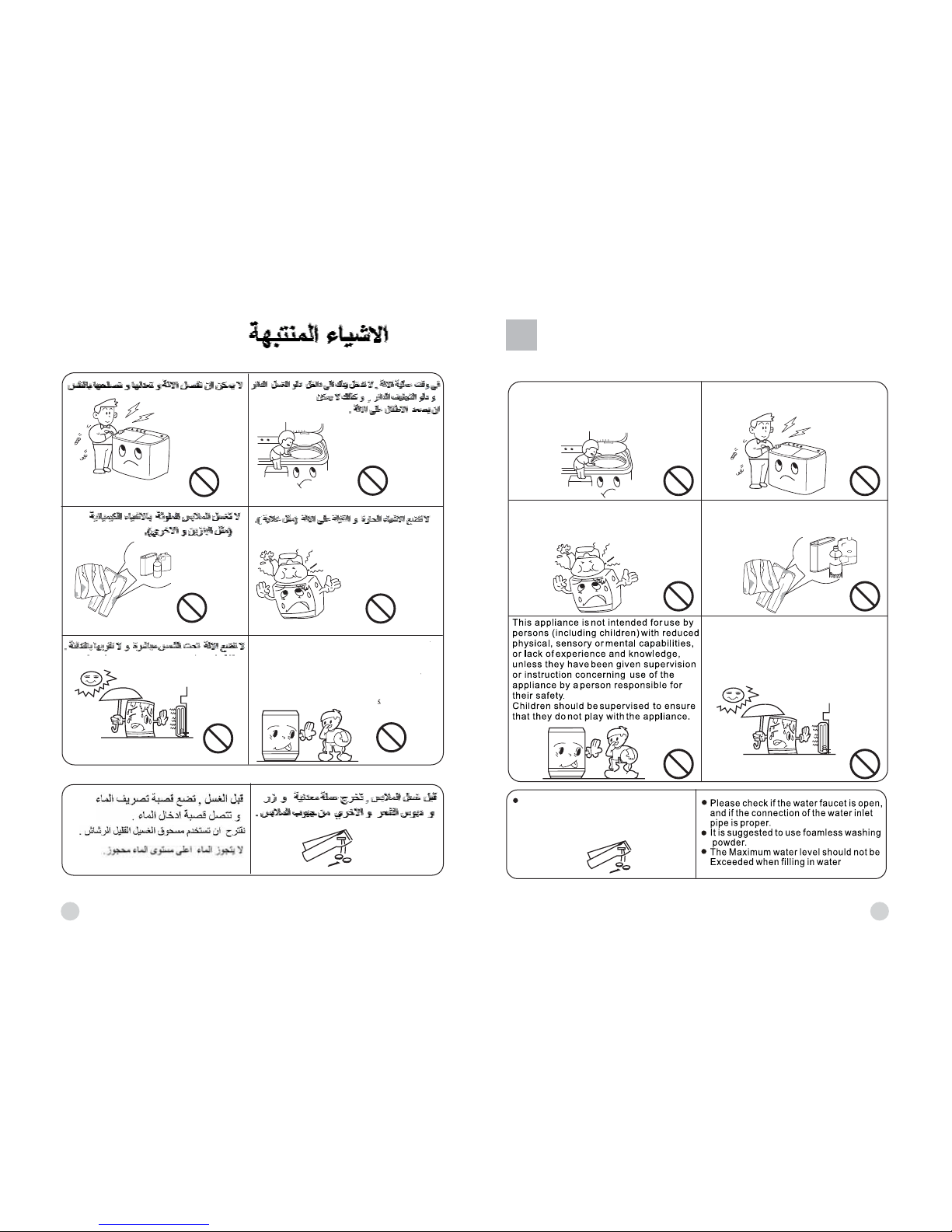

Safety precautions
Please insert the power cord into
special receptacle with rated vol-
tage.Be sure to use single-phase
three pins receptacle.The earthing
terminal of the receptacle must be
earthed reliably.If possible,please
adopt electric leakage protector.
When the machine is normally
using, please put the power plug
at the location easily to be insert-
ed and extracted by hand. Be sure
to pull the plug off when there's
power failure, or the machine is
being moved, cleaned or when it
is idle.
If the power cord is bad, to avoid risk it is required to replace it by the
technicians of our special shop or the after-sale service department.
Keep the pin of the power plug clean.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not use water hotter than 50 C .
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Ventilation hole at
the bottom of the
washing machine
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
Earth
2

3
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Safety precautions
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
Thinner
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
3
ϞΒϗ Ϧϣ ίΎϬΠϟ΍ ΍άϩ ϡΪΨΘδϳ
ϔΨϨϣ κΨη
ϞΒϗ Ϧϣ βϴϟ ϪΘϣϼγ Ϧϋ ϝϭΆδϣ κΨη
ΔϳΪϨΒϟ΍ ν)ϝΎϔσϷ΍ Ϫϴϓ ΎϤΑ(ϭ ϲϠϘϋ κΨη ϭ΃ϲΒμόϟ΍,
ϭ ΓήΒΨϟ΍ ϪμϘϨϳ κΨγ ϭ ΃
ΔϓήόϤϟ΍,΍Ϋ· ϻ·ϳϴτόϪΕΎϤϴϠόΘϟ΍ϑ΍ήηϹ΍ ϭ΃.
ϥ΃ ϡίϼϟ΍ ϦϣίΎϬΠϟ΍ ϊϣ ΐόϠϳ ϻ Ϟϔσ Ϊ ΄Η.

Put the underside of the lint filter into overflow filter
then push the upside into overflow filter
After installation,please refer that the lint filter
installed to the right station,otherwise the lint
filter may be falled off when washing,influencing
your use.
overflow filter
lint filter

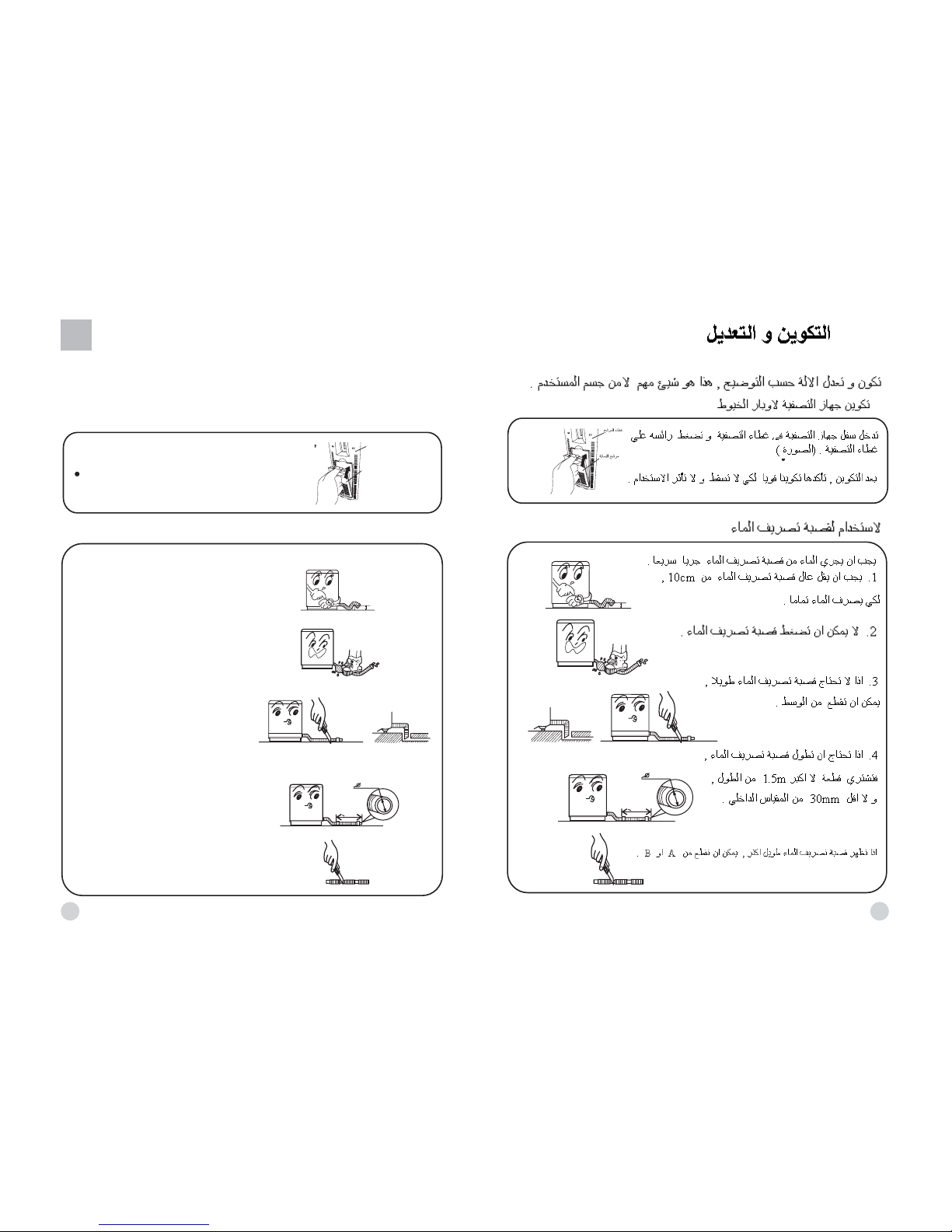

Installation and adjustment
Please install and adjust the machine according to the requirement of
the manual. It is very important to your security and correct operating
the machine.
Install the lint filter
If the extra hose is too long, cut it either
at point A or B.
<10cm
BA
> 30mm
<1.5m
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not tramp or press the drain hose.
3.If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.
4.If extra drain hose is needed , please make
separate purchase. The inner diameter of the
extra hose shall not less than 30mm, and the
length shall not exceed 1.5m.
4
<10cm
BA
> 30mm
<1.5m
4

5
Insert the water inlet hose into the water-filling
entrance on the control panel
To dismantle the water inlet pipe,
just push the control handle as indicated in the
figure and pull it out

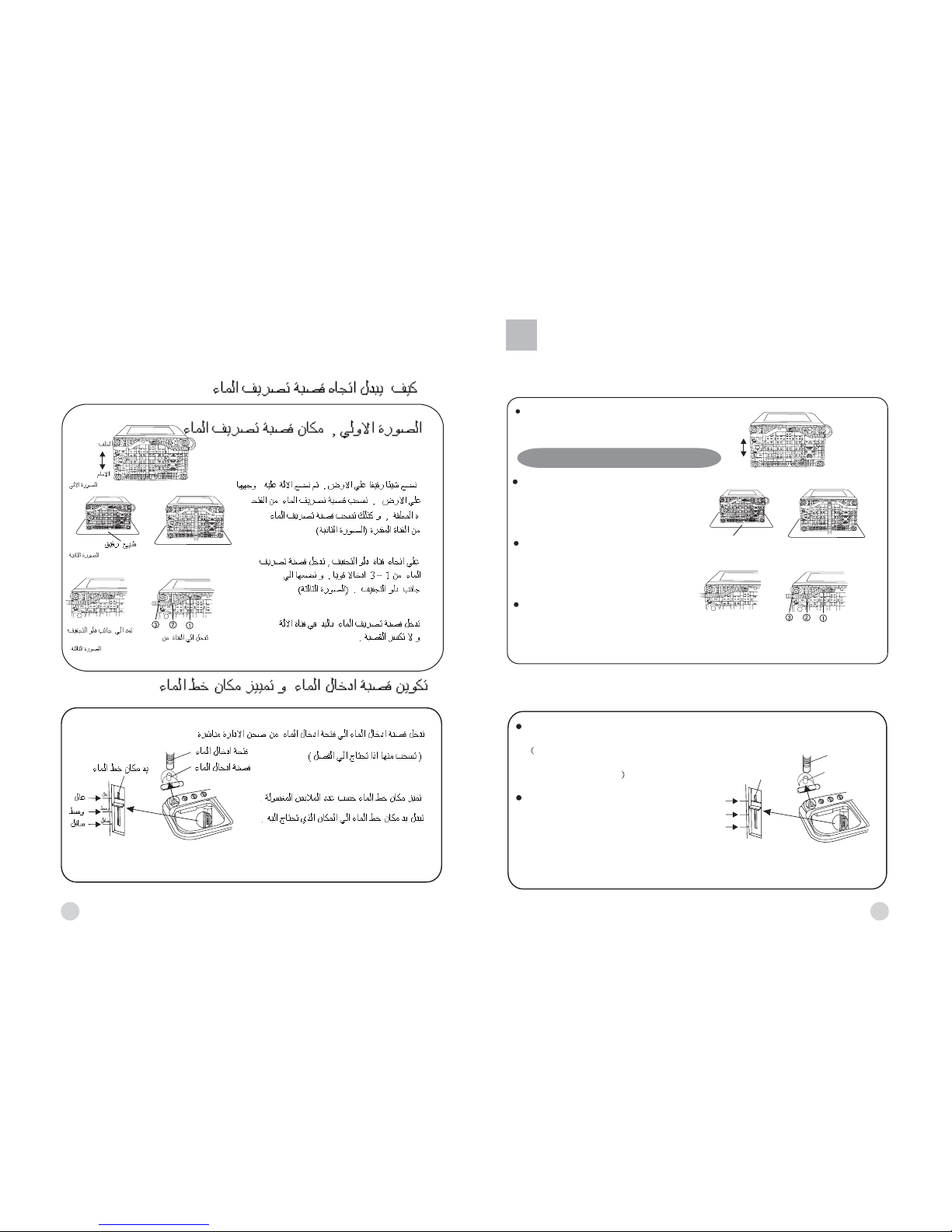

+RZ WR FKDQJH WKH GLUHFWLRQ RI WKH GUDLQ KRVHV
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Take the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove
along the side of the spin tub in the order
of (1)~(3), heading for the side of the
spin tub. (See to Figure 3).
Embed the drain hose into the
groove with hands. Take care not
to damage the drain hose in
fastening the fixing clamp.
Figure 1
Figure 2
Figure 3
Embed into the
groove in turn
([WHQG WKH GUDLQ KRVH IURP WKH VLGH RI VSLQ WXE
Soft item
Extend to the
spin tub side
Back
Front
,QVWDOO WKH ZDWHU LQOHW KRVH 6HOHFW WKH ZDWHU OHYHO
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Water inlet hose
Water-filling entrance
Maximum Max
Minimum Min
Medium Med
Water level
indicator
note:the appliance is to be connected to the water
mains using a new host-set and old hose-sets
should not be reused.
5

Voltage change
This washer is assembled for 220V, but can be changed from 220V to 127V.
Check your electrical source and follow the diagram below to convert voltage.
(1).
the safeguard bag to expose the connectors.
(3). Detach the white connector from the green one(220V), then inlay it into the blue
one(127V).
(4). Pack all the connectors with the safeguard bag as usual and f Then install
the back cover.
Above all the steps must be done by the special serviceman.
Loosen the fastening screw and take off the back cover.
(2). Unknit
ix it.
Blue
Green
White
66

7

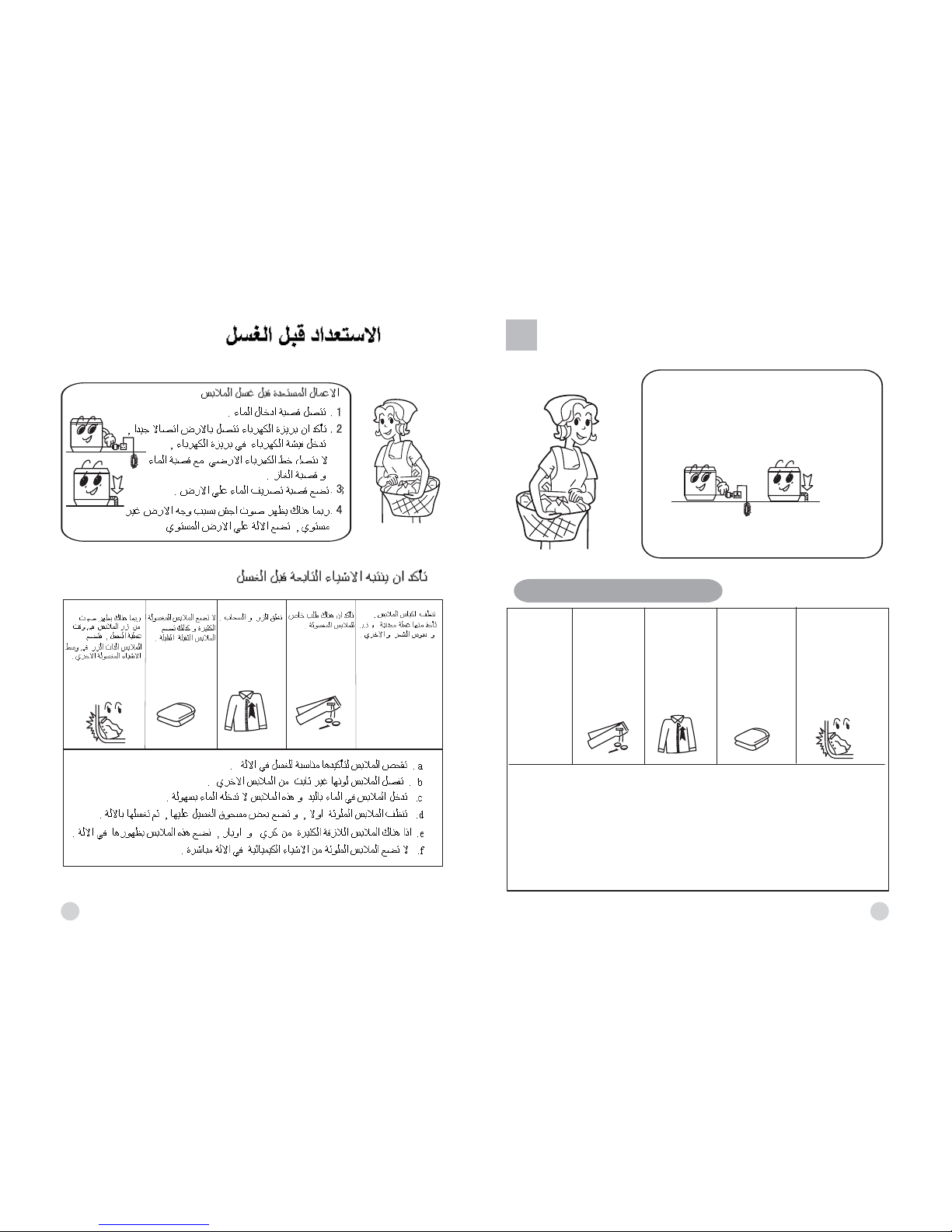

Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Preparation before washing
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.
7

The capacity of washing and spinning of the
machine refer to the largest weight of the
standard laundries under dry condition that can
be washed or spinned in one time. Laundries
quantity in one washing cycle shall be lower
than the rated capacity.
The thickness ,size , type of the cloth will influ-
ence the actual washing capacity. It is suit-
able to put in reasonable amount of laundries
and the laundries can be turned round in wash-
ing for one time washing.
Do not select " Maximum " water level for
few laundries , so as to avoid splashing of water.
The musts in washing
+RZ WR XVH WKH ZKLWHQHU
Fill water to decided level. Dilute
the whitener with container.
Pour it slowly into thewashing tub.
Avoid using whitener on laun-
dries with color or pattern as they
are prone to lose color.
The whitener shall not touch
the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30
seconds to dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 C and a
container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before using.
It is suggested not to use high sudsingdetergent.
+RZ WR XVH WKH ZDVKLQJ SRZGHU
Usage of the detergent
8 8

9

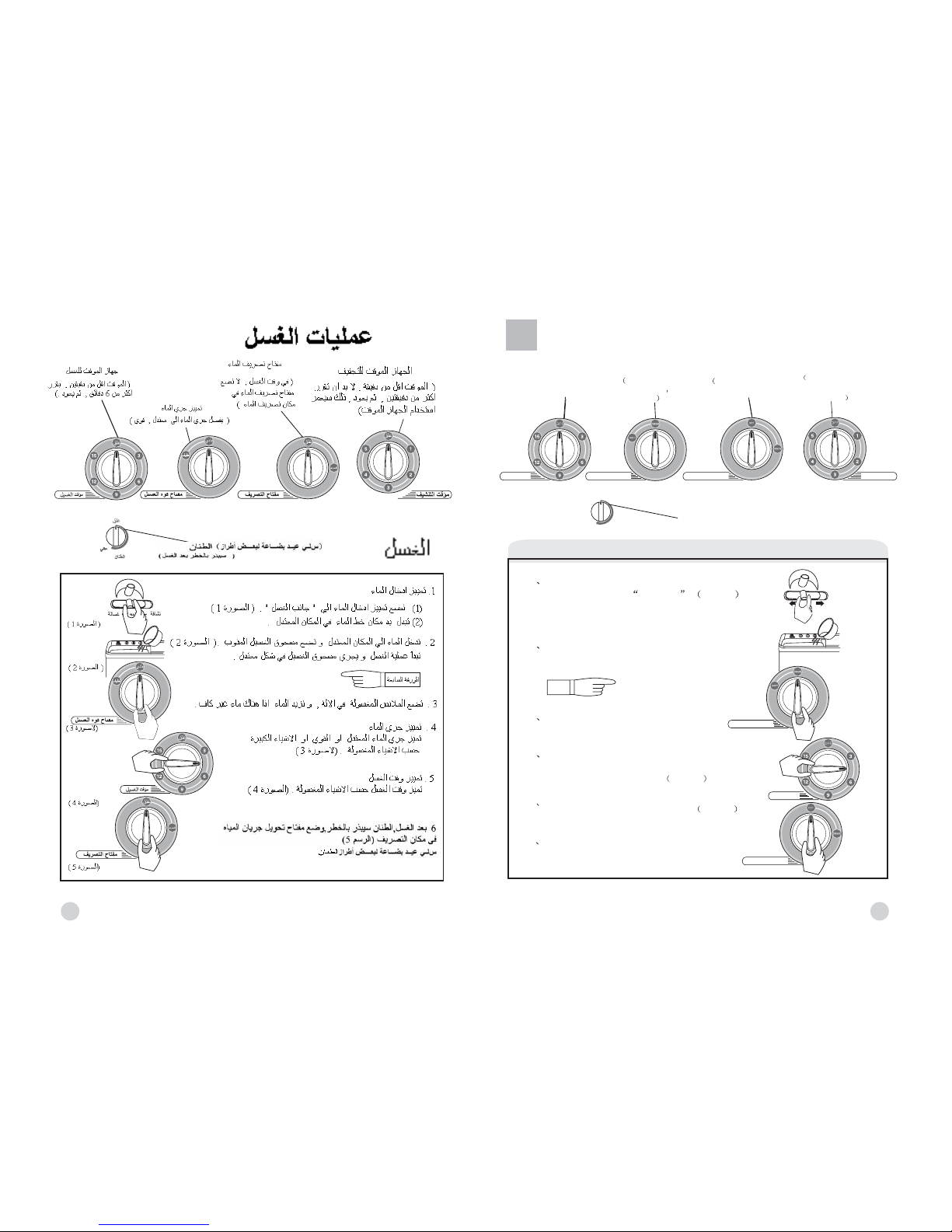

1 Fill selection
(1)
(2 )
2
3
4
Set fill selection to Wash side . Figure 1
Adjust water level rod to a position as needed.
Fill water and add solved powder detergent until
water reaches a suitable level.
It begin to wash to dispense detergent uniformly.
Put in the wash load, and supplement water
as necessary.
Select intensity
Select soft or standard water flow
intensity according to wash load.
5Select wash time
Select wash time according to wash load.
6After washing, the buzzer (some models without)
will ring. Set the "DRAINSELECTOR" at "DRAIN".
INLET SELECTOR
WASH SPIN
can be
soft current standard
currrent.
Wash selector
Spin timer
Wash timer
Wash selector
(If to set less than 2 min,
you should first surpass 6 min
and then turn back.)
If to set less than 1 min, in
order to ensure long service life,
please first surpass 2 min and
then turn back
Drain selector
Do not set drain selctor
on Drain position during
washing)
Washing sequence
:$6+ 7,0(5 :$6+ 6(/(&725 63,1 7,0(5 '5$,1 6(/(&725
Wash
Page 8
Figure 3
Figure 1
Figure 5
Figure 3
Figure 4
Figure 2
Figure 4
(Figure5)
9
2))
0$;
%8==(5
%X]]HU6RPHPRGHOVZLWKRXW
7KHEX]]HUZLOOULQJZKHQ
 WKH ZDVKLQJ ILQLVKHV
:$6+ 6(/(&725
:$6+ 7,0(5
'5$,1 6(/(&725

1
2
Set the inlet selector handle on spin side and
fill water for about 1 min.
Close the spin tub outer cover and spin
for about 1 - 2 min.
In case water flows out from wash tub side
due to too much inflow, please turn down
the water tap a bit.
Inlet selector
0LGZD\ VSLQQLQJ
Push
Push
Proper Proper
Outer cover of
The spin tub
Inner cover of
The spin tub
The laundries
are slanting
Gland
No gland
1.Put the laundries into the spin tub evenly and smoothly.
2.Spin
(2) Close the inner and outer cover of the spin tub.
(3) Spin for 1-2 minutes.
3.Run the foam-removing spinning.
(1) Put the gland in properly.
Please put in the gland properly even if the
laundries quantity is small.
Wash
Spin
Water inlet
Inlet selector handle
10 10

11
Rinse with stored water
Rinse with water-filing
1. Put the laundries into the wash tub. Select suitable current according to
the laundries.
2. Fill water to preset water level.
3. Rinse
Adjust the wash timer to 2-3 minutes to do rinsing.
When the laundries quantity is few, please use "Soft" current.
If you use "Standard" current, it may splash.
Rinsing
(Repeat the midway spinning and
rinsing with stored water for 2-3 times)
1.Put the laundries into the wash tub. Select
suitable current according to the laundries.
2.Adjust the water level
Set the water level with water level adjusting
lever according to the laundries quantity.
Then fill suitable water continuously.
3.Rinse
Adjust the wash timer to 5-7 minutes to do
rinsing.
OVERFILL
If you find water flo-
wing out here,please
twist the water tap to
limit the water filling.
11

1. Put the laundries into the spin tub
evenly and smoothly.
2. Press the gland in the tub properly.
Close the inner and outer cover of
the spin tub.
3. Spin
Select suitable spin time according
to the laundries, and do spinning.
During spinning, if there's abnormal
sound, it is generally owing to slanting
placement of the laundries. Please
stop the machine and re-order the
laundries.
In spinning, it will pause the work if you open the outer cover of the spin
tub. Close it to resume the spinning.
Spinning
To do spinning and draining
or rinsing with water-filling
together, please first do
spinning for around 1 minute,
then do draining or rinsing
with water-filling. Otherwise
the spinning will stop owing
to too much water stored in
the spin tub.
12 12

13
Page 4
After using, please clean the lint and foreign materials of the lint filter and
overflow filter in time. Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
Cleaning the overflow filter
The lint filter must be used during washing.
It must be cleaned in time after each using.
Cleaning the lint filter
Disposal after washing
1.
2. Remove lint
3. Install lint filter
Press the elastic piece at upper end of lint filter to
release the tab from the filter cover
Pull the lower end of lint filter rear cover outward
to disassemble it from the lint filter front cover.
Remove lint completely with clear water. (See
Figure 2).
, and pull the lint
filter outward to remove it. (See Figure 1).
Figure 1
Figure 2
Lint filter rear cover
Lint filter front cover
Assemble
Disassemble
Too much lint on the overflow filter will influence
the normal usage of the machine. Please
clean it every two months.
1 Take off the overflow filter.
As indicated in the figure, nip the elastic fixing
claw and pull it to the direction of the arrow to
take it off.
Elastic fixing
claw
13

Wipe the complete unit with soft
cloth twisted dry.
Wipe with neutral detergent if too dirty
Do not wash it directly by water

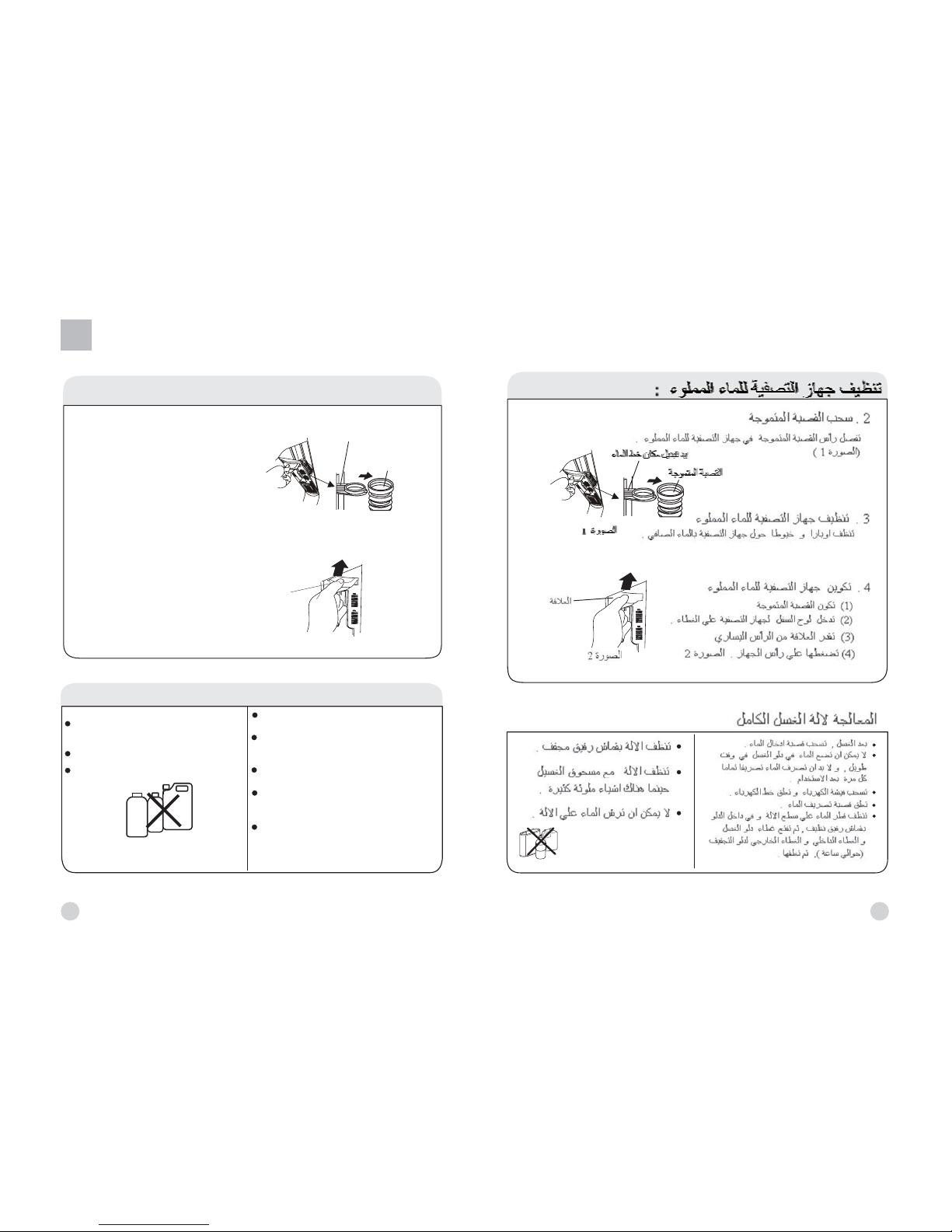

&OHDQLQJ WKH RYHUIORZ ILOWHU
2. Take off the corrugation pipe.
Dismantle the upper part of the
corrugation pipe inside the
overflow filter (
).
3. Cleaning the overflow filter
Clean the lint around the filter
and flush with tap water.
4. Install the filter.
(1).Install the corrugation pipe.
Insert the mounting plate at
the bottom of the into
the valve cover.
Hang up the hook at the left
upper side.
Push the upper part in as
indicated in Figure 2.
as indicated in
Figure 1
overflow
(2).
filter
(3).
(4).
Corrugation
Pipe
Hook
Figure 1
Figure 2
Water level
adjusting lever
After washing, dismount the water inlet
hose.
Do not store water in the tub for long
period. Discharge the water immediately
after each using.
Pull off the power plug and hang up the
power cord.
Hang up the drain hose.
Wipe off the water drops on the surface
and inside the tub with clean soft cloth.
Open the cover of the wash tub and the
inner/outer cover of the spin tub for
some time (about one hour), then close
them.
'LVSRVDO RI WKH FRPSOHWH XQLW
Thinner
Alcohol
Petrol
14 14

15

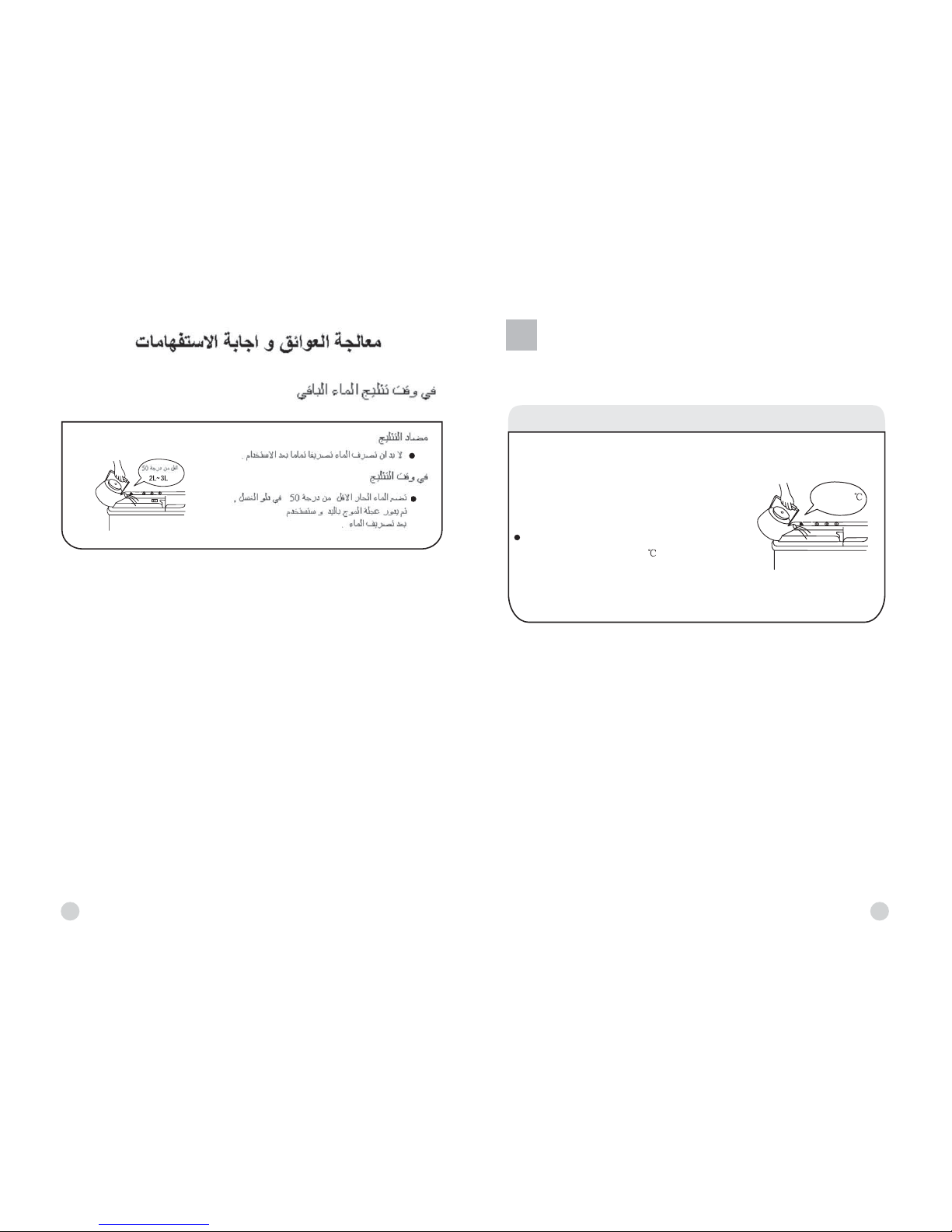

Trouble-shooting Answers to questio
n
When the remained water is frozen
2~3L
Below 50
Prevent the freezing (be sure to discharge the water
completely after using)
After complete draining, set the "DRAIN SELECTOR"
at "OFF". If it is set at "DRAIN", it will be rather
difficult for the frozen water to melt.
When the water is frozen
Pour hot water below 50 into the wash tub
to soak it completely. Then turn the pulsator
with hands gently. Please confirm the drainage
can work normally before next using.
15

Trouble-shooting Answer to question
(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending
it to repair. If there are real breakdowns, please come to the special maintenance
department or after-sale service department of our company. Do not repair it by yourself.
Phenomena The reason
The machine does
not act.
Is there power failure?
Is the power plug loose?
Is the pulsator twisted by foreign materials?
Is the drain hose put down?
Is the drain hose frozen?
Is the drain hose blocked by foreign material?
Are there laundries falling to the outer side of
the spin tub?
There's abnormal
sound during washing
Are there hair pin, coins or metal items brought
inside the tub?
Is the machine slanting?
Is the gland pressed evenly?
Are the laundries in spin tub too much?
Are there laundries falling to the outer side of
the spin tub?
It is the water remained in the factory inspection
of performance.
There may be some
waterflowing out of
the drain hose in the
first use of the
machine.
There's abnormal
sound and violent
vibration during
spinning
There's abnormal
soundduring washing
16 16

0.02 0.2~
(MPa)
60Hz 220V/127V
400/470
180/250
7/12
100
72
(W)
(W)
(L)
17
Water inlet hose
Gland
Packing list
Twin-tub washing machine
Name Quantity
User's manual One piece
One piece
One piece
One set
Specification
Water level Water quantity about (L)
Maximum/100 Medium/86 Minimum/72
Injection pressure (MPa) 0.02~0.2
Rated voltage frequency
Rated washing / spinning capacity ( kg )
220V/127V 60Hz
Rated washing power ( W )
Rated spinning power (
W )
400/470
180/250
12/7
17
86
