Haier HWM50-10 User manual

Full Automatic Washing Machine
ser's m nualUa
This manual is for
Please read this manual
carefully before using.
Retain it for future reference.
HWM50-10
se 's nalUr ma u
0030805169E

Names of the parts...............................................................................................1
Safety precautions .............................................................................................2
Installation and adjustment ...................................................................................4
Install the water inlet hose....................................................................................6
Preparation before washing .................................................................................8
Put in the laundries ..............................................................................................9
Usage of the detergent ........................................................................................9

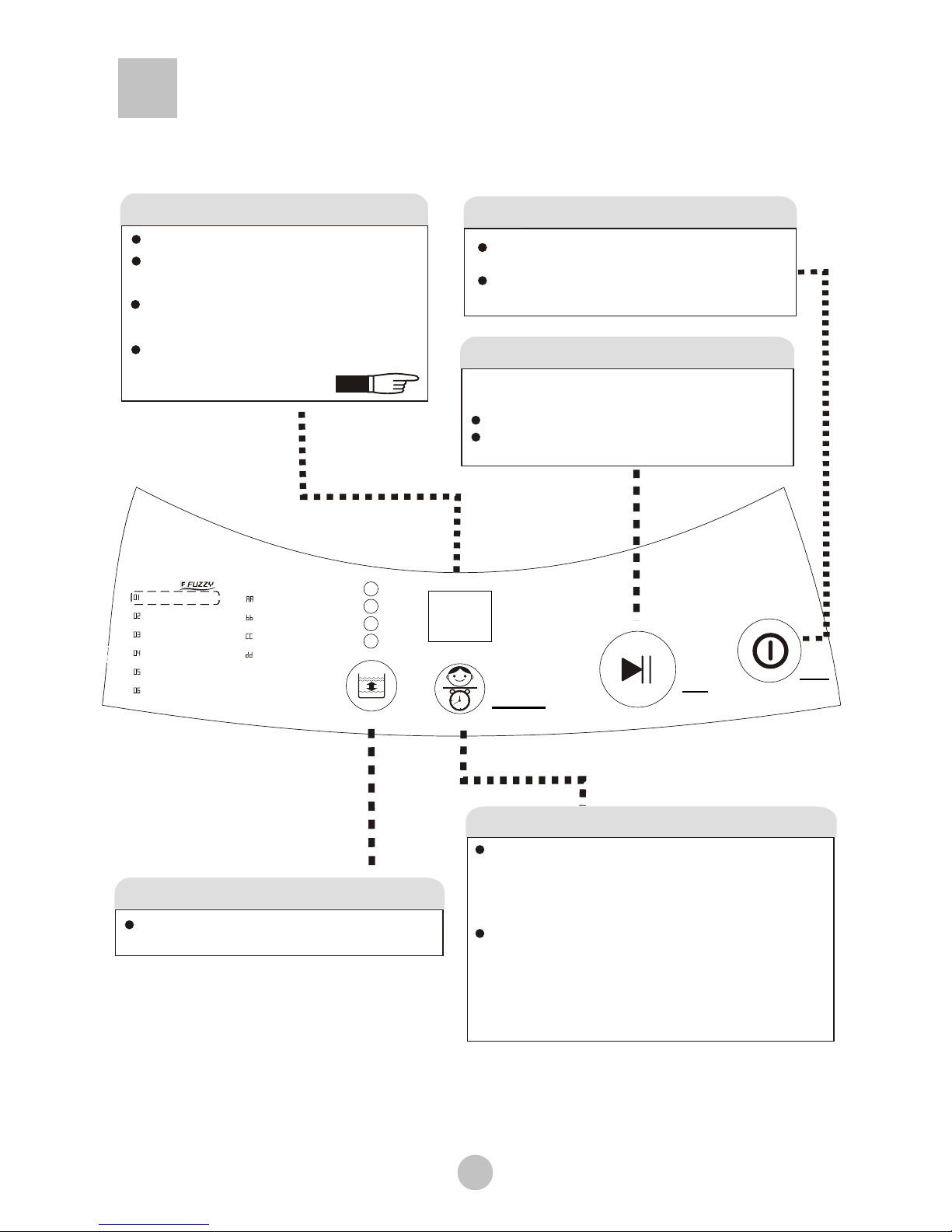

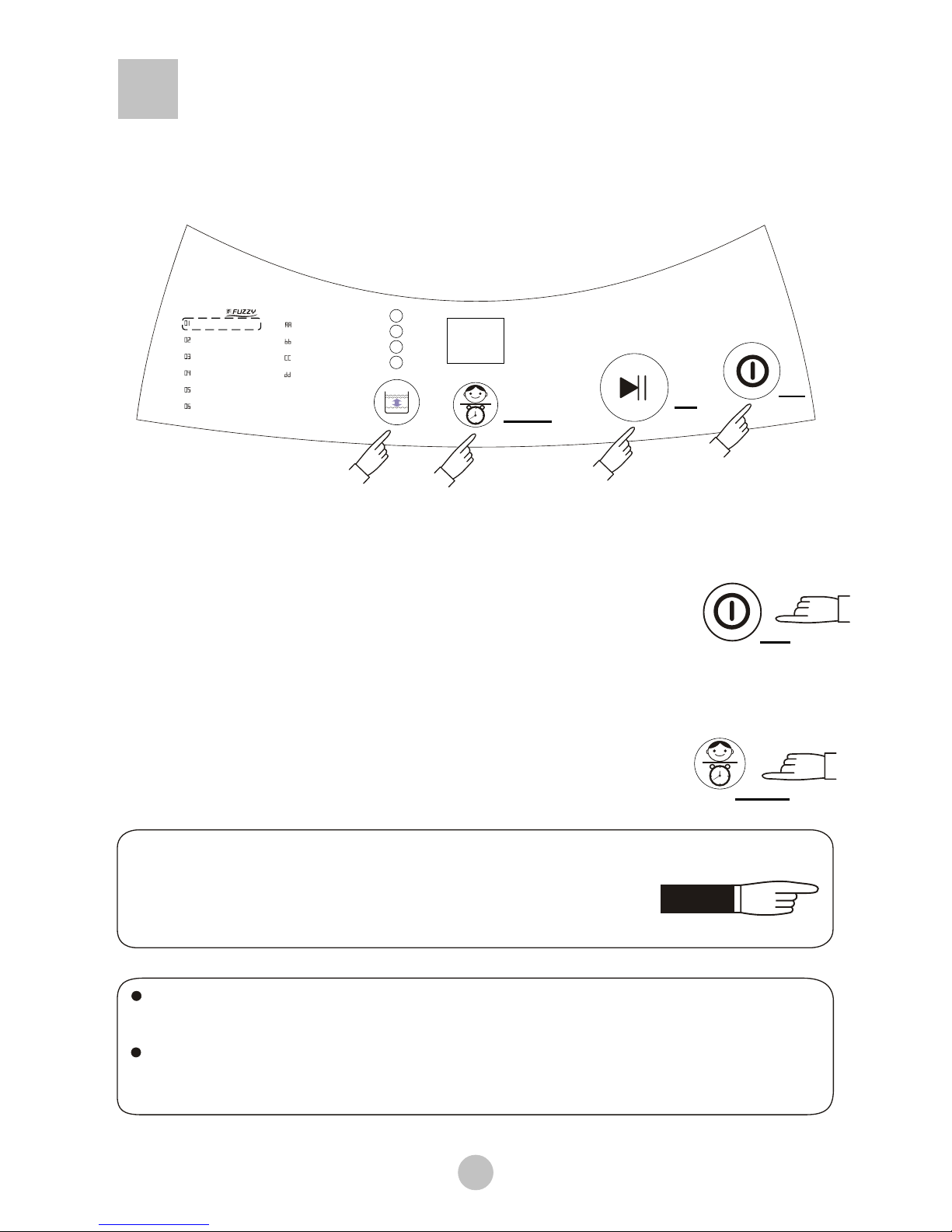

Use the operation buttons ..................................................................................10
Close the top lid .................................................................................................13
Finish washing ....................................................................................................13
Disposal after washing .......................................................................................14
Trouble shooting·Answer to question.............................................................15

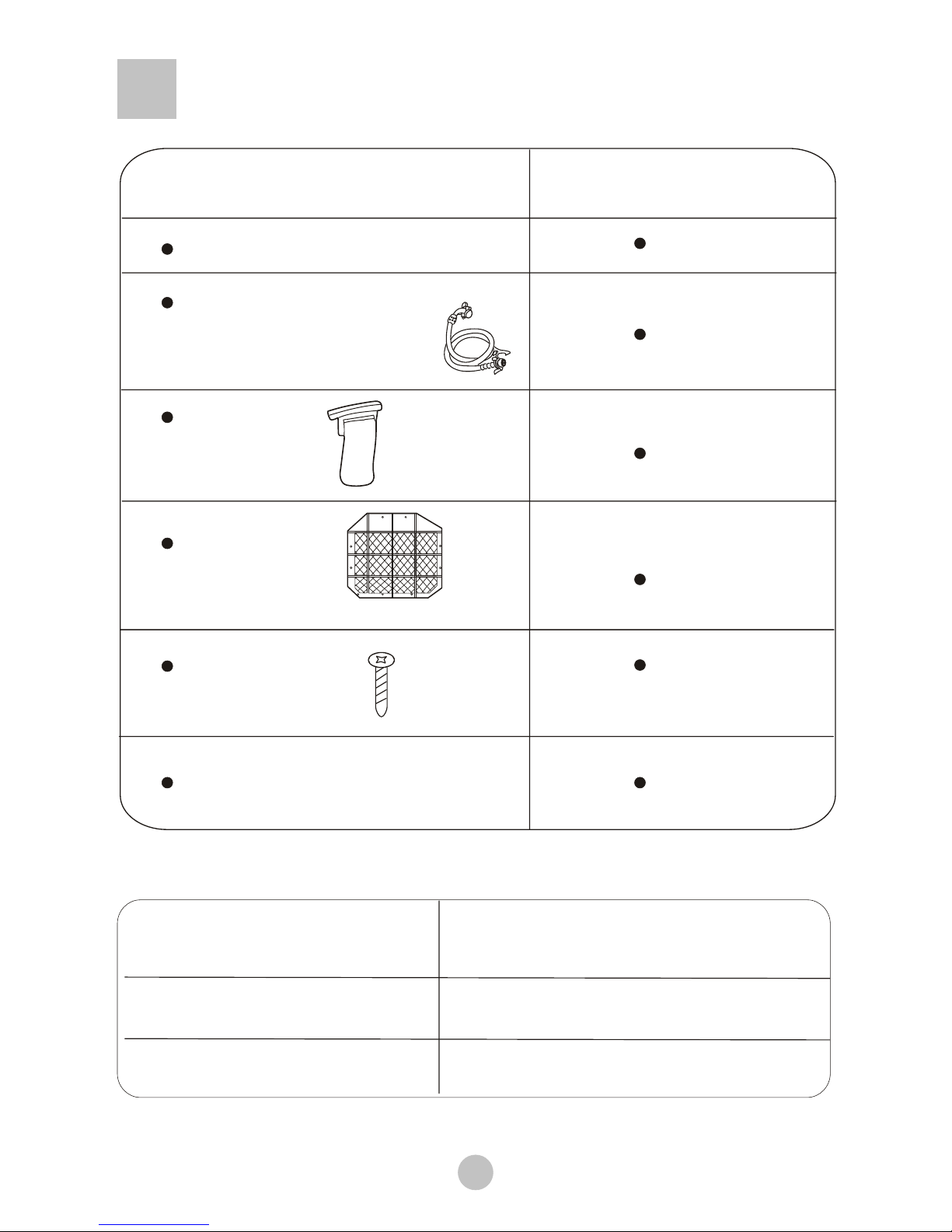

Packing list· Specification...................................................................................16
Contents

Meaning and description of the symbols
Names of the parts
Warning sign
Forbidden sign
Contents marked with that symbol are related to the safety
of the product and the personal safety of the users. Please
operate in strict conformity to the contents, otherwise it may
cause damage of the machine or injure the personal safety
of the user.
Contents marked with that symbol are actions forbidden to
perform. Performing of those actions may result in damage
of the machine or injure the personal safety of the user.
1
Adjustable foot
fixed foot (3)
Back cover
Cabinet
Base frame
Drain hose
Control panel
film
Control panel
Filter cover Power line
Pulsator
Inner tub
Detergent box
Lint filter
Top lid B Cabinet handle
Water valve
Top lid A
Sop mat
(Installed by user)

Safety precautions
Do not damage the power cord, bend ,extend, twist, bind or alter it by force. Do not press or
nip it with weight. If the power cord or the power plug is bad, or the power plug becomes
flexible, to avoid risk it is required to have it replaced by
the technicians of our special shop or the after-sale
service department. Keep the pin of the power plug
clean, if the power plug is polluted with dust, please
wipe with dry cloth carefully.
The power cord plug should be convenient
to be pluged in or pluged out with hand
while the washing machine runs normally.
Be sure to pull the plug out and close the
water tap when the machine is idle, when
moving the machine, or when cleaning
the machine. Do not use wet hand to insert
or pull out the power plug.
In case the washing machine is installed
on ground with carpet, do not block the
ventilation hole with carpet.
Do not let the machine share one receptacle with other
electric appliances. If the power plug is damaged, or
the plugging into the receptacle is loose,
do not use the plug any more.
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not use water hotter above 50 C .
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Not put wet laundries on the control panel.
50 C
Please plug the plug on special receptacle
with rated voltage. Be sure to use single-
phase three pins receptacle. Ensure the
earthing prong of the power receptacle is
earthed reliably. Use leakage protector if
possible.
2
soft items
The ventilation holes
at the bottom

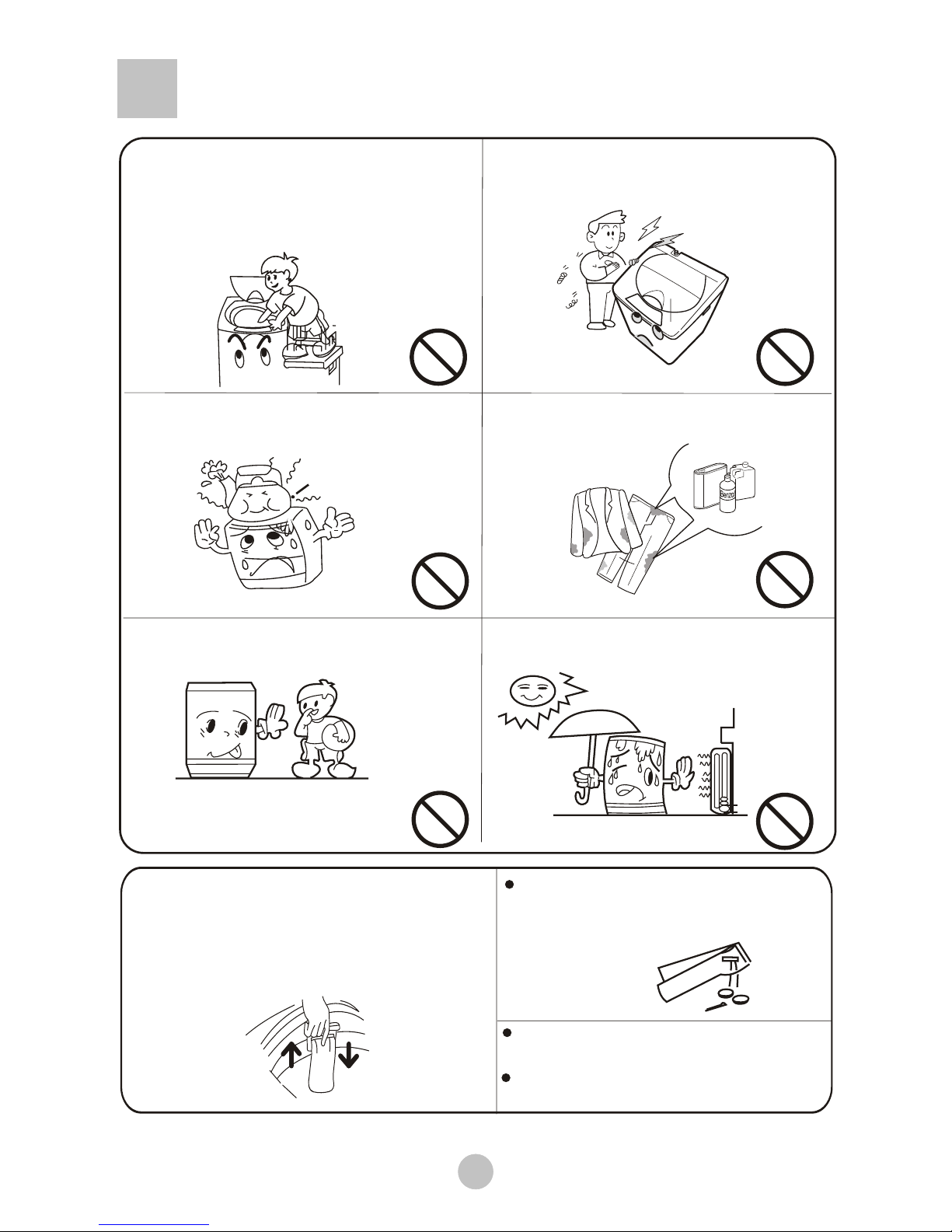

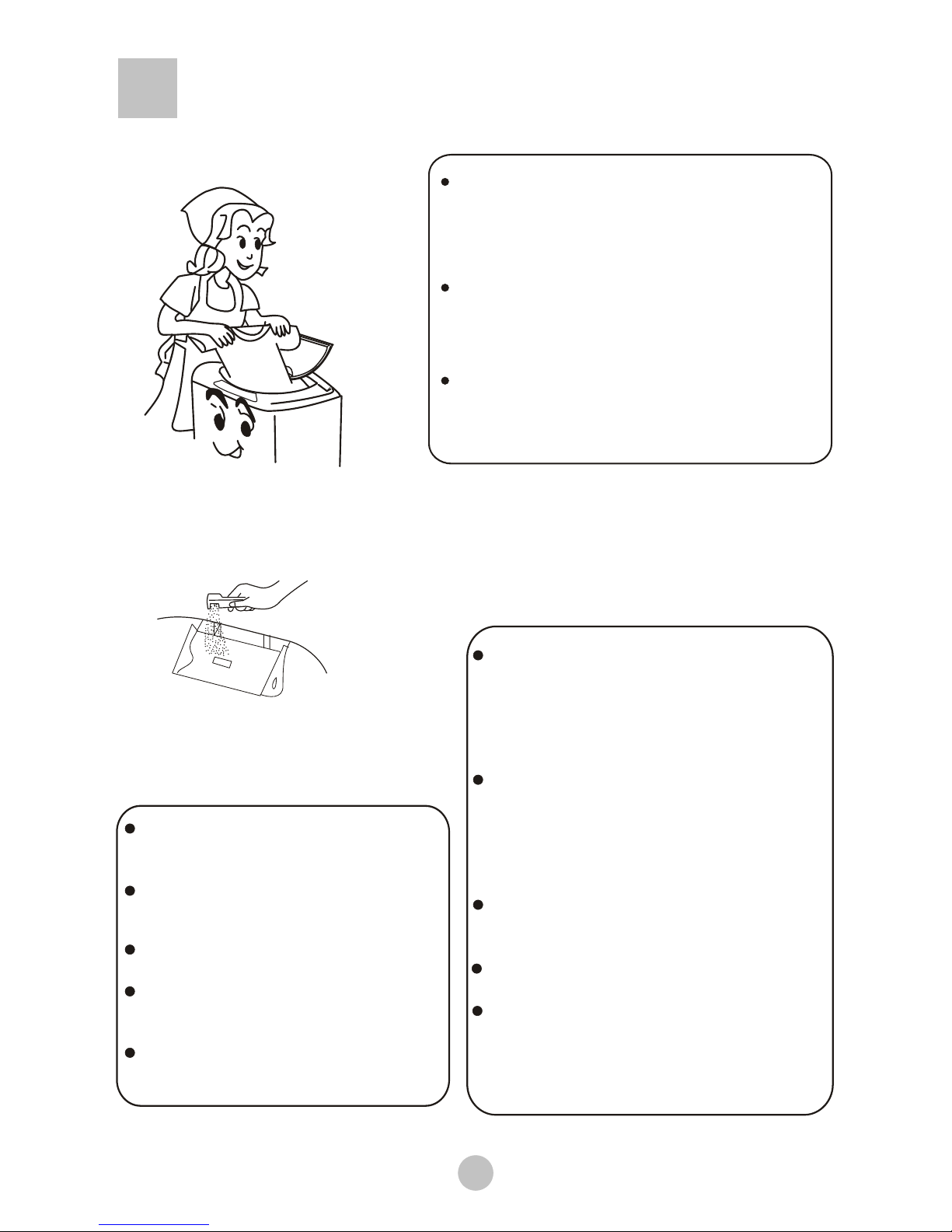

Safety precautions
Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children. Do not let the children
climb the washing machine.
Petrol
Thi n r
ne
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
Please check if the water faucet is open,
and if the connection of the water inlet
pipe is proper.
It is suggested to use foamless washing
powder.
3
Put down Put up
Please keep the lint filter in good condition,
and install it to proper position. If the lint
filter is lost or damaged, please contact
the local after-sales service department
of our company.

Installation and adjustment
The largest allowed slope of the
shank base of the machine is 2°.
The slanting or rough ground will
result in unstable running or
stoppage of the machine. Please
adjust it with following methods:
Adjust the adjustable foot:
Install the bottom plate
Adjust the installation position
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
1.To twist the adjustable foot, please
first lift up the side of the foot slightly,
loosen the adjustable nut, and twist
the foot.
2.Fasten the nut after adjustment.
Loosen Fasten
High Low
adjustable nut
adjustable foot
<2

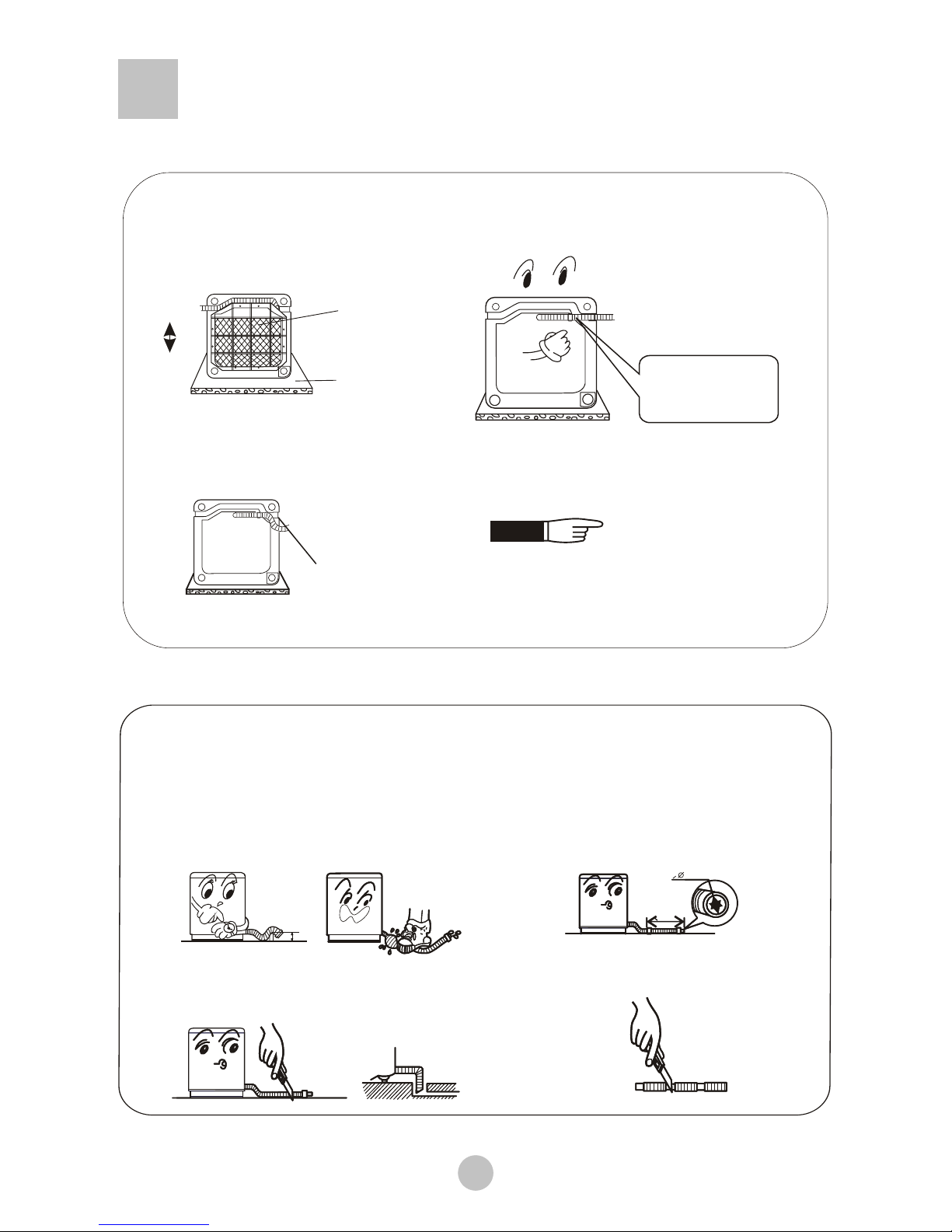

Install the lint filter
4
After you open the package, please lean the
washing machine gently down on soft items
( like the towel cloth, blanket, etc. ). Install the
bottom plate to the bottom of the machine with
the eight screws by a cross screwdriver, then l
ift the machine up gently. See to the figure:
1.Press downward to
assmble.
2.Pull upward to detach.
Back
Front
Bottom plate
Screw
Soft items
Pull down Put up

How to change the direction of the drain hose
1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not trample or press the drain hose.
3.If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
5.If the extra hose is too long, cut it
either at A or at B point.
<10cm
BA
Usage of the drain hose
The drain hose shall drain smoothly
> 30mm
<1.5m
5
1.Lean the machine down gently
with the front surface facing the
ground. Loosen the eight screws
by a cross screwdriver.
3.Extend the drain hose from the left side.
Push the drain hose into the groove with
hands.
4.Install the bottom plate (as per indicated
before), then lift the machine up gently.
2.Pull out the drain hose from the
groove at the right side.
Back
Front
Bottom plate
Soft item
Use groove at
this side after
direction changing
Page 4
Push the drain hose
into the groove with
hands at this point

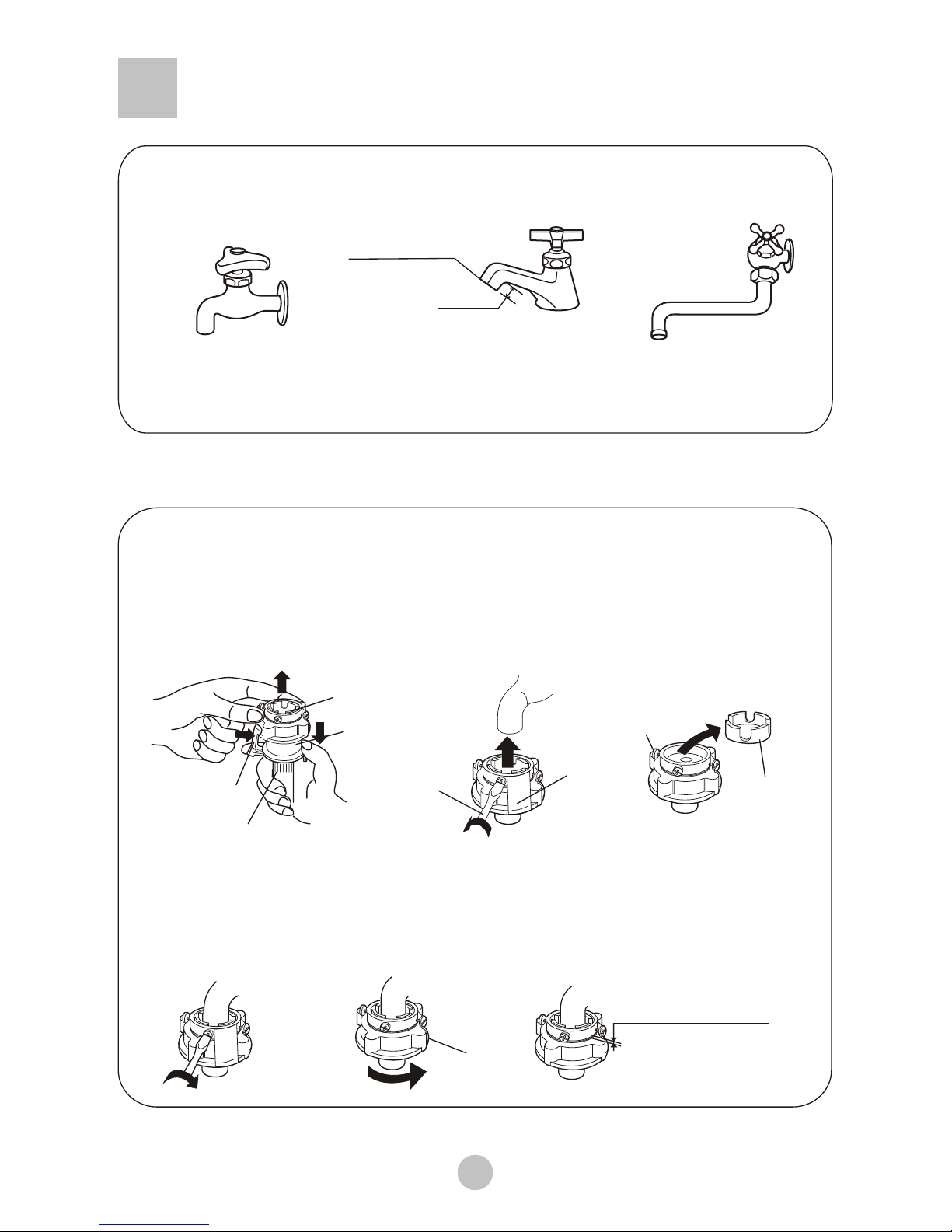

Water tap,suitable Water tap,not suitable
It is required that the front end shall be longer than 10mm.
The outlet end surface of the tap shall be flat and smooth. If not please file it to
avoid leakage.
2.Loosen the screw till the water tap can be accessed. Put the jointer of the water
inlet hose on the tap. See to Figure 2. (If the tap diameter is too large and the jointer
can not be set on the water tap, please loosen the four screws and take out the
bushing in the jointer. See to the figure3.)
1.Press the lower end of the lock lever and push down the slider. Take off the water
inlet hose jointer from the water inlet hose component. See to Figure 1.
Remarks: Before twisting the fastening nut, the thread is 4mm above the
upper surface of the nut. After twisting the fastening nut, the thread is 2mm
above the upper surface of the nut. See to Figure 6.
4.Take off the nameplate. Twist the fastening nut as per the indication of the figure.
See to Figure 5.
3.Fasten the four screws evenly. See to Figure 4.
>10mm
Outlet end surface
Nut
About 4mm before twisting
About below 2mm after twisting
Screw
Screwdriver Mark label bushing
Figure 2
Figure 5
Figure 1
Figure 4
Figure 3
Figure 6
Slider
Water inlet pipe jointer
Water inlet pipe
Locking lever
Install the water inlet hose
Confirm the water tap
Connection between the water inlet hose jointer and
the water tap
6

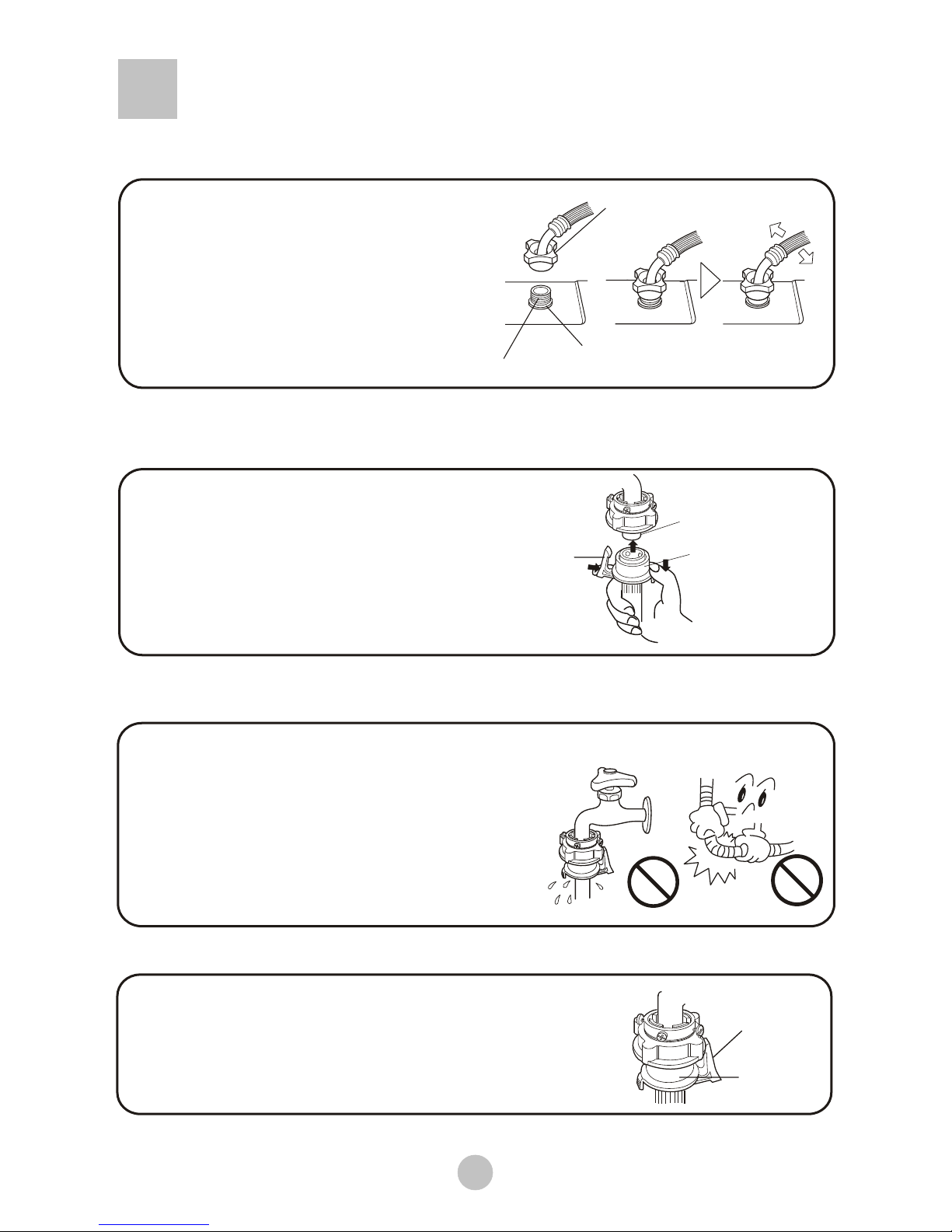

1.Do not take off the water absorption
cushion. Please check if the cushion
is dropped or damaged before each
usage. If it happens please contact
our after-sale department immediately.
2.Put the nut of the water inlet hose on
the valve jointer.
3.Fasten the nut. Swaying it gently to
confirm if it's suitable.
1.Close the water tap.
2.Press the locking lever. Push down the slider. Then
pull off the water inlet hose. If the machine is used
more than once every week, the jointer of the water
inlet hose can be kept on the tap to prevent
damaging the fixing screw.
1.Push down the slider. Insert the
water inlet hose into the jointer.
2.Hang the lock lever to the jointer.
Release the slider till a click
sound is heard.
Locking lever
Slider
Water absorption cushion
Nut of the wa ter inlet hose
Jointer of the water inlet valve
Slider
Jointer of the water
inlet hose
Locking lever
Connection between the water inlet hose and the
washing machine
Connection between the jointer of the water inlet
hose and the water inlet hose
Check the connection between the jointer of the
water inlet hose and the water tap
Take down the water inlet hose
1.Swaying the hose gently to confirm if it is fastened stable.
2.After installation, open the tap to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if
the connection between the jointer
of the water inlet hose and the water
tap, and the installation of the
water inlet hose are firm, so as to
prevent dropping from improper
Installation position.
7

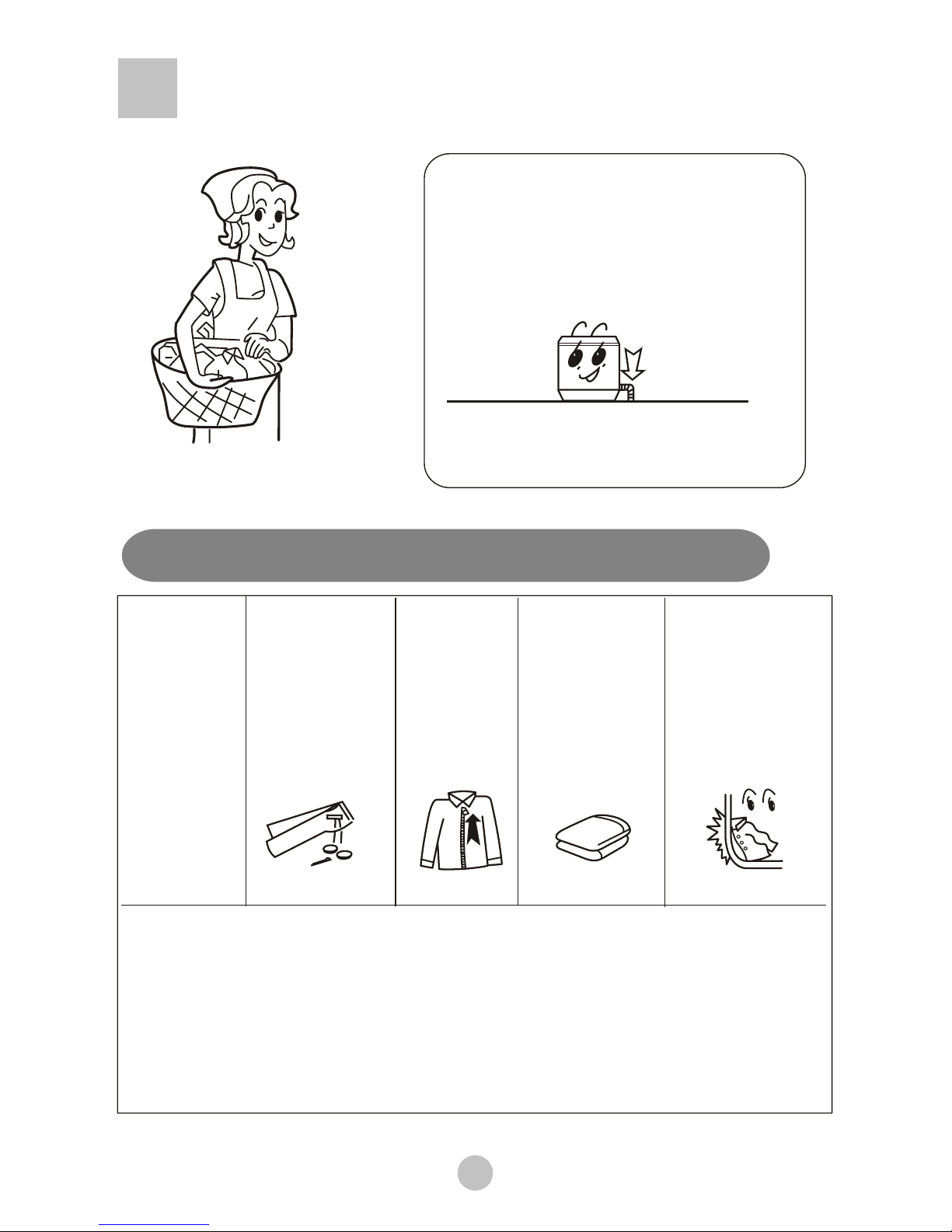

Preparation before washing
Confirm if
there's special
requirement for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
Preparation before washing
1.Connect the water inlet hose and open the
water tap .
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth ter-
minal to the gas pipe and tap water pipe.
3.Put down the drain hose.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Pay attention to followings before washing the laundries
a. Please check if the laundries are applicable for washing.
b. Separate those not colorfast from other laundries.
c. For laundries not water absorbing, please put them into water with hands.
d. For laundries with much soil, please remove the soil first. You can add detergent on the
part with serious soil directly. It is much easier to remove the soil by that mean.
e. For laundries likely to get lint ball or with long fiber, please first turn the inside out before
putting them into the water.
f. Do not put the laundries polluted with chemicals directly into the washing machine.
For those small laundries ,laundries likely to be twisted or worn, and woolen laundries,
please put them into mesh bag before washing.
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
8

The capacity of washing and spinning of the
machine refer to the largest weight of the
standard laundries under dry condition that
can be washed or spinned in one time. One
time washing quantity shall be lower than the
rated capacity.
The thickness, size, type of the cloth will inf-
luence the actual washing capacity. It is sui-
table for one time washing to put in reasona-
ble amount of laundries and the laundries can
be turned round in washing.
To wash thin laundries like the stocking, silk
etc , please first put them into washing mesh
bag (which can be purchased separately)
before wash.
Put in the laundries
How to use the whitener
Fill water to decided level. Dilute
the whitener with container. Pour
it slowly into the washing tub.
Avoid using whitener on
laundries with color or pattern as
they are prone to lose color.
The whitener shall not touch the
laundries directly.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before use.
Inlet box of the detergent
How to use the washing
powder
Direct dissolved in the machine
1.Fill water to "Low" water level.
2.Add the power. Run for 30 seconds
to dissolve it completely.
3.Put in the laundries. Select
suitable water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30℃and a
container.
2.Add the powder while stirring to
fully dissolve it.
Put in the proper quantities detergent
according to the water level and the
laundries quantities .
It is suggested not to use high
sudsing detergent.
Washing powder with poor quality or
long time storage maybe caked.
Please pay attention to cleaning the
detergent box in time
Usage of the detergent
9

Use the operation buttons
The user selects a suitable water level
depending on the load.
" WATER LEVEL"button
a. Description of the function of the buttons
POWER
ON/OFF
START
PAUSE
PROGRAM
RESERVATION
WATER LEVEL
SURPLUS(MIN)
RESERVE(HOURS LATER)
HIGH
MEDIUM
LOW
VERY LOW
SOAK
WASH
RINSE
SPIN
PROCEDURE STATUSPROGRAM STATUS
JEANS
GENTLE
QUICK WASH
WASH
SPIN
STANDARD
ROG M PRA/ "
button"SRVT
ONRE E A I
R
To indicate“--”during sensing.
To indicate remaining min. During
program running.
To indicate remaining reserved
time (hrs) during reservation period.
To indicate fault symbols for abnormal
conditions (see page 15)
SURPLUS(MIN)
Page 15
you can select one or several of
, ,
and Spin
Press
programs
.
"PROGRAM/RESERVATION " button
Standard Jeans Gentle, Quick Wash, Wash
you can select
of reservation. T
Press
over 2 seconds, the program
he n tube displays the
reserved hours to the wash cycle end. The
indicator flashes to indicate in-reservation.
"PROGRAM/RESERVATION " button
ixie
Remarks: 1. After pressing "POWER ON/OFF" to connect power supply, if the washing
machine lasts idle more than 5 min, it would automatically shut off the supply.
After the power is switched on, press it to
start the machine
During working, push it to pause working.
During pause, push this button to restart
and continue operation.
"START/PAUSE"button
Press "Power On/Off" button to connect
power supply.
After power is connected, pressing this
button will cut off the supply.
"POWER ON/OFF"button
10

b. Operating procedure and explanations for the
buttons
POWER
ON/OFF
START
PAUSE
PROGRAM
RESERVATION
WATER LEVEL
SURPLUS(MIN)
RESERVE(HOURS LATER)
HIGH
MEDIUM
LOW
VERY LOW
SOAK
WASH
RINSE
SPIN
PROCEDURE STATUSPROGRAM STATUS
JEANS
GENTLE
QUICK WASH
WASH
SPIN
STANDARD
After switching on, the "Standard" program will be the default. If other full-automatic program is
desired, you can press the button "" to get the corresponding
indicator on. Refer to the "Button of ""
paragraph on page 10.
Example: Use the "Quick" program for slightly soiled articles.
PROGRAM/RESERVATION
PROGRAM/RESERVATION
When "standard" program is selected, the washing machine will perform full-automatically
controlled fuzzy program to set water level, water flow and wash duration according to the
cloth nature and weight
Page 10
1 Press the "POWER ON/OFF" button to switch on
the power supply
2 Press the button of" " to
select a suitable full-automatic program
PROGRAM/RESERVATION
4
2
3
1
POWER
ON/OFF
PROGRAM
RESERVATION
If there is water inside the tub, the machine cannot detect the laundries and will display
middle level. If wet laundries are put in, it may display high level. You must set suitable
water level by yourself.
11

Even there's no water in the tub, the
spinning will start after a certain period.
Do not use soak process for woolen
laundries.
Wash the laundries that are prone to lose
colors separately from other laundries.
The pulsator will not rotate unless the
water is filled to selected water level.
Selection method of the procedure programs
Attention
If you push the " PROGRAM/ " button for 6 times, it will
resume the original mode, and it will circulate like that.
If you select the"QUICK WASH" program, you have to set the full procedure
of wash, rinse and spin. The procedure can not be selected.
RESERVATION
Times of pushing
the"select"button
0
1
2
3
4
5
Applicable procedure Contents(t indicates
the programs about to run)
the nixie tube
Wash (bb) Rinse(cc) Spin(dd)
Soak (AA) Wash (bb)
Rinse (CC) Spin (dd)
Repeat using the washing
liquid
For load below 1 kg
When the laundries need only
spinning after manual
washing (first drain then spin)
The laundry needn't spin to
avoid wrinkles
Selected program
JEANS
GENTLE
QUICK WASH
WASH
SPIN
STANDARD
Normal wash
Large, thick or heavily soiled
laundry
Wash (bb) Rinse(cc) Spin(dd)
Wash (bb)
Wash (bb) Rinse(cc) Spin(dd)
Spin(dd)
12

After switching on, the washing machine reserved wash program will be automatically set
inactive. If you desire a wash cycle to end at a reserved time, you can press the
""button over 2 seconds to set a reserved wash program.
Refer to The button of "" on page 10.
PROGRAM/RESERVATION
PROGRAM/RESERVATION
When "Reservation" becomes active, the nixie tube
displays the time to the end of the reserved wash cycle, and
the indicator turns on.During reserve procedure,push the
"Reservation" button to display the reserve mode.
To change the running program or cancel the reservation,
you should cut off the supply and reselect.
the washing will finish
about 18 hours later
Confirm the reserve program
START
PAUSE
5 Press the "start/pause" button
4 Push the " " button
to select suitable reserve program
PROGRAM/ RESER VAT ION
Close the top lid
Finish washing
Except water filling ,washing, rinsing and draining, if the top cover is opened, the
washing machine will stop running and alarm.
The washing machine cuts off the power supply automatically when wash cycle ends.
After sw itchi ng on the pow er, pr ess the but ton "WATER LEVEL" to sel ect a water level accor di ng
to the load. Please refer to the but ton " Water level " on page 10.
Page 10
3 Press the "WATER LEVEL" button to select suitable
water level
WATER LEVEL
START
PAUSE
PROGRAM
RESERVATION
Page 10
13

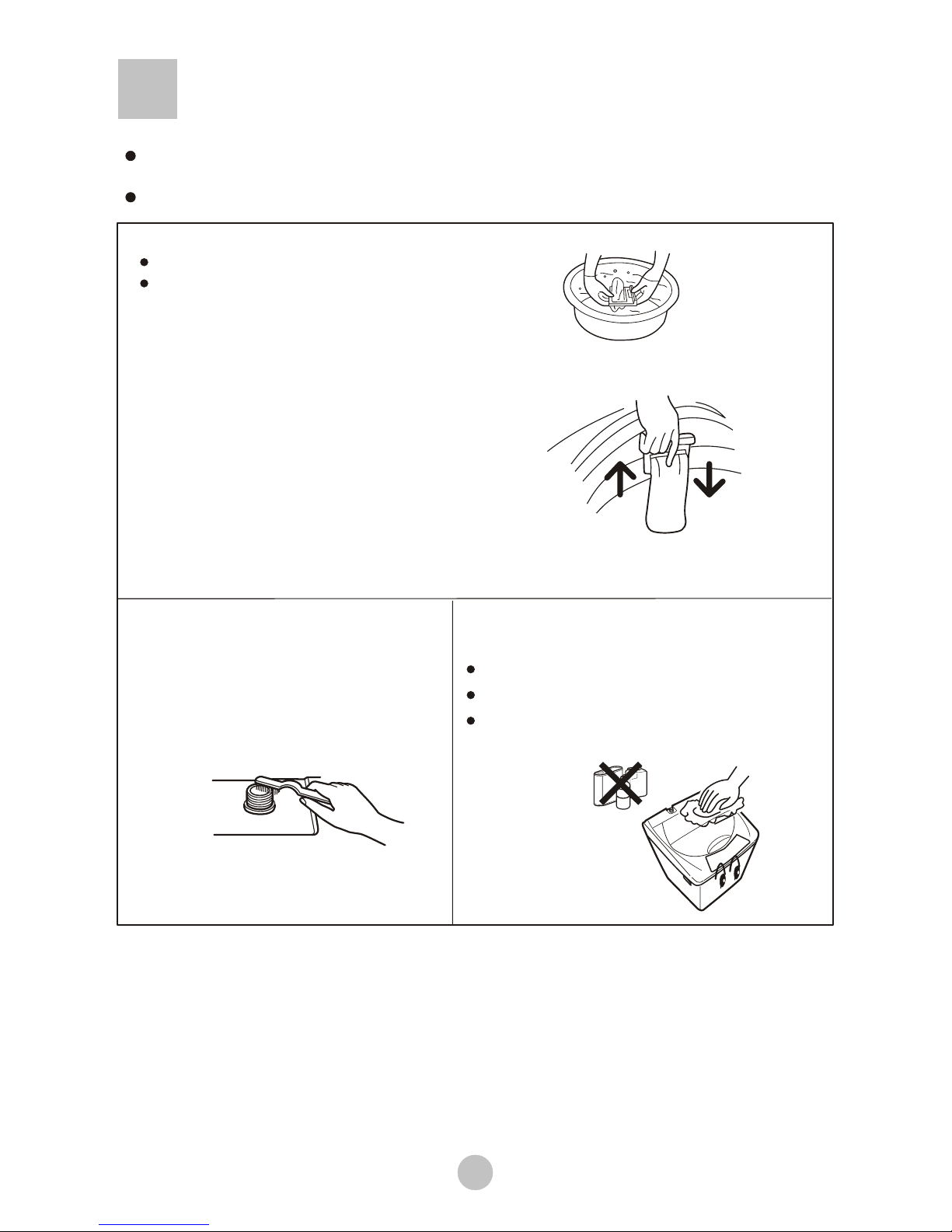

Clean
After using, please clean the lint and foreign materials of the lint filter etc. in time.
Otherwise it may influence your using the machine.
When washing, lint filter must be used
After using, please clean it in time.
Lint filter:
1.Pull upward to detach
2.Clean the lint
Put it in water and clean while it is still wet.
(See to Figure 1).
3.Press downward to assemble.
1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).
Please first pull off the power plug from the receptacle before cleaning.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid for some time
(about 1 hour), then close the top lid.
4.Hang up the power cord and drain hose.
3.Be sure to pull off the power plug before maintenance.
2.Do not store water in the washing machine for a long period. Drain the water completely after each using.
Figure 1
If the cabinet is dirty, wipe it with wet cloth
Do not flush it directly with water.
Wipe it with neutral detergent.
Do not wipe it with thinner, petrol,
alcohol etc.
Thinner
Al oho
cl
Petrol
The filter screen of the water inlet
valve is likely to be blocked by
foreign materials and influence
the water inlet. Please clean it
Disposal after washing
14
Figure 2
Pull down Put up

(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending it to
repair. If there are real breakdowns, please come to the special maintenance department or
after-sale service department of our company. Do not repair it by yourself.
Phenomena The reason How to settle
The top lid is not closed
Is the drain hose put down?
Is the drain hose blocked
by foreign material?
Are the laundries put
slantingly?
Are the laundries slanting in
spinning?
Is the machine slanting?
Is the machine slanting?
The water tap is not open
The water inlet valve is blocked
Is there power failure?
Is the power plug loose?
Is the jointer screw of the water
inlet hose is loose or twisted
awry?
The water faucet leaks
There's abnormal sound
inside the machine
The machine
does not act
Close the top lid
Put down the drain hose.
Open and close the top lid once.
Clean the fore ign material.
Open and close the top lid once.
Re-or der the laun dri es. Close the
top lid. Leve l the machi ne in right
posi tion.
Open and cl ose the top lid once .
Open the water tap. Push the
"Start/Pause" bu tton.
Clean the water inlet valve.
push the "Start/Pause" bu tton.
Wait for the no rma l water pr e-
ssure be fore us e.
Use it when the power is on.
Insert the power plug tightly.
Level the machine properly.
Re-order the laundries.
Fasten the jointer screw
properly.
Trouble shooting·Answer to question
Does the water level arrive at the
set water level? Affusion to the set water level.
Is the power plug loose? Insert the power plug tightly.
Is the top lid closed? Close the top lid
Are the laundries put orderly?
Put the laundries orderly.
Not spin
Not wash
Buzzing upon reservation starts,
Nixie tube indicates "E0"
Safety sw itch actuat es, no t spi n,
(after sel f-corr ecti on twice),
nixi e tube di spl ays "E3", bu zzi ng
No or slow water filling（not
reaching the level in 15min ）,
nixie tube indicates "E4",
buzzing
No or slow drain, nixie tube
indicates "E1" , buzzing.
If the nozzle is choked with
foreign bodies
Remove the foreign bodies
Poor or no waterfall flow
The top cover leaves open
Close the top lid
Running pauses during spin,
nixie tube indicates "E2",
buzzing
It is the water remained in the factory inspection of
performance.
Common phenomena
Phenomena Explanation
Balance the laundries to avoid slanting.
The program is setting the drain time. Some time is
needed before it starts spinning.
To prevent splash during water filling.
The spinning is intermittent when it starts.
While water filling in wash and rinse, the
pulsator pauses rotation
There may be some water flowing out of
the drain hose in the first use of the machine.
Push the "Procedure selection" button to
select "Spin", but it doesn't work.
Supplementary water filling 48 s after
sensor tests cloth material.
Wash pauses
The water pressure is too
low and the current is
too small
15

User's manua l
Name
Components of the water
inlet hose
Bot tom plate
Tappi ng sc rews
One piece
Eight pieces
One set
Quantity
Full automatic washing machine
Packing list
Lint filter
One piece
Specification
Water level/Water
quantity (about)
Water inlet pressure 0.03MPa-0.78MPa
High/About 48 L、Medium/About 37L、
Low/About 30L、Very low/About 20L
16
One piece
One piece
Rated washing/spinning capacity(kg)
5.0/5.0
