Haier HWM55-7288P User manual

Fully Automatic Washing Machine User's manual
Please read this manual carefully
before using.
Retain it for future reference.
This manual is for

CONTENTS
Names of the parts 1
Safety precautions 2
Installation and adjustment 4
Install the water inlet hose 5
Preparation before washing 6
Put in the laundries 7
Usage of the detergent
Use the operation buttons 8
Finish washing 10

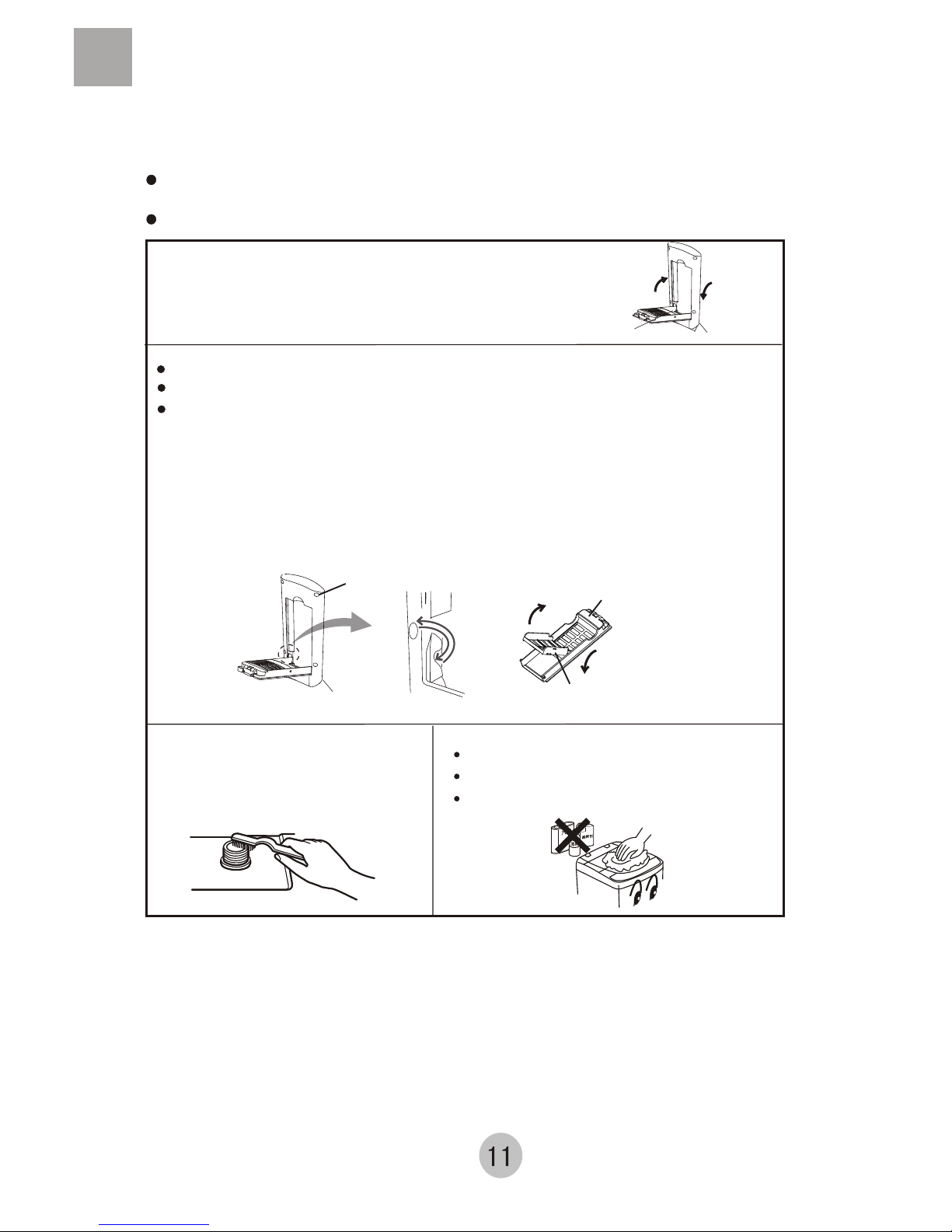

Disposal after washing 11
Trouble-shooting Answer to question 12
Packing list 13
7
Close the top lid 8

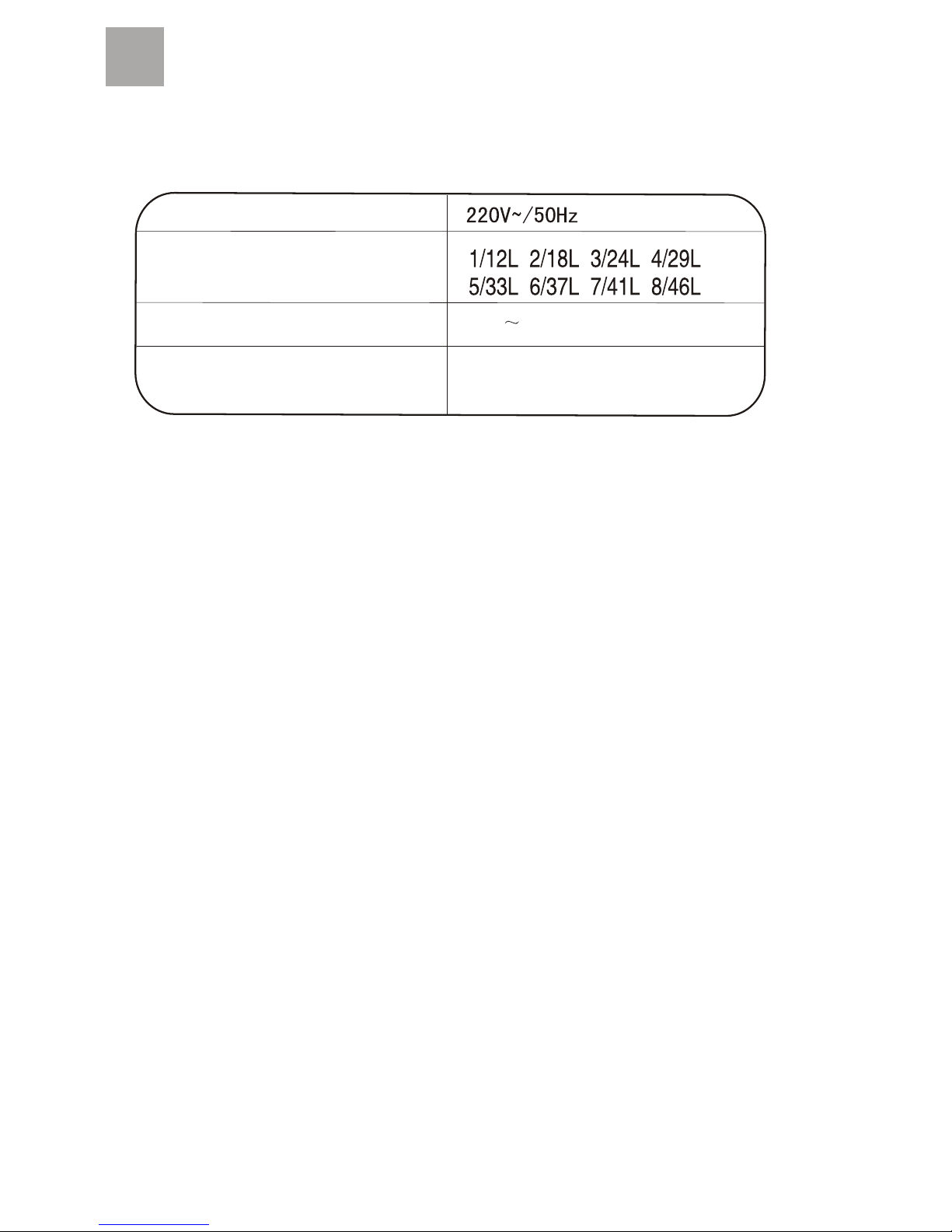

Specification the back cover

Please check if power receptacle has good earthing condition before
using to guarantee your safety.
Names of the parts
Contents marked with that symbol are related to the
safety of the product and the personal safety of the
users. Please operate in strict conformity to the
contents, otherwise it may cause damage of the
machine or injure the personal safety of the user.
Contents marked with that symbol are actions forbidden
to perform. Performing of those actions may result in
damage of the machine or injure the personal safety of
the user.
Meaning and description of the symbols
Warning sign
Forbidden sign
Notes: All illustrations in this Manual are given for reference only. Your products and
accessories may show differences from these illustrations due to our
continuous improvement.
Drain entrance
cover
Hanging
hole
Top lid
Control panel seat
Filter cover
Inner tub
Pulsator
Control panel film
Cabinet
Adjustable
leg
Adjustable
leg film
Lint filter
Back cover
Power line
Drain hose
Cabinet handle
Water inlet valve
Jacket of
drain hose
Water absorption
cushion

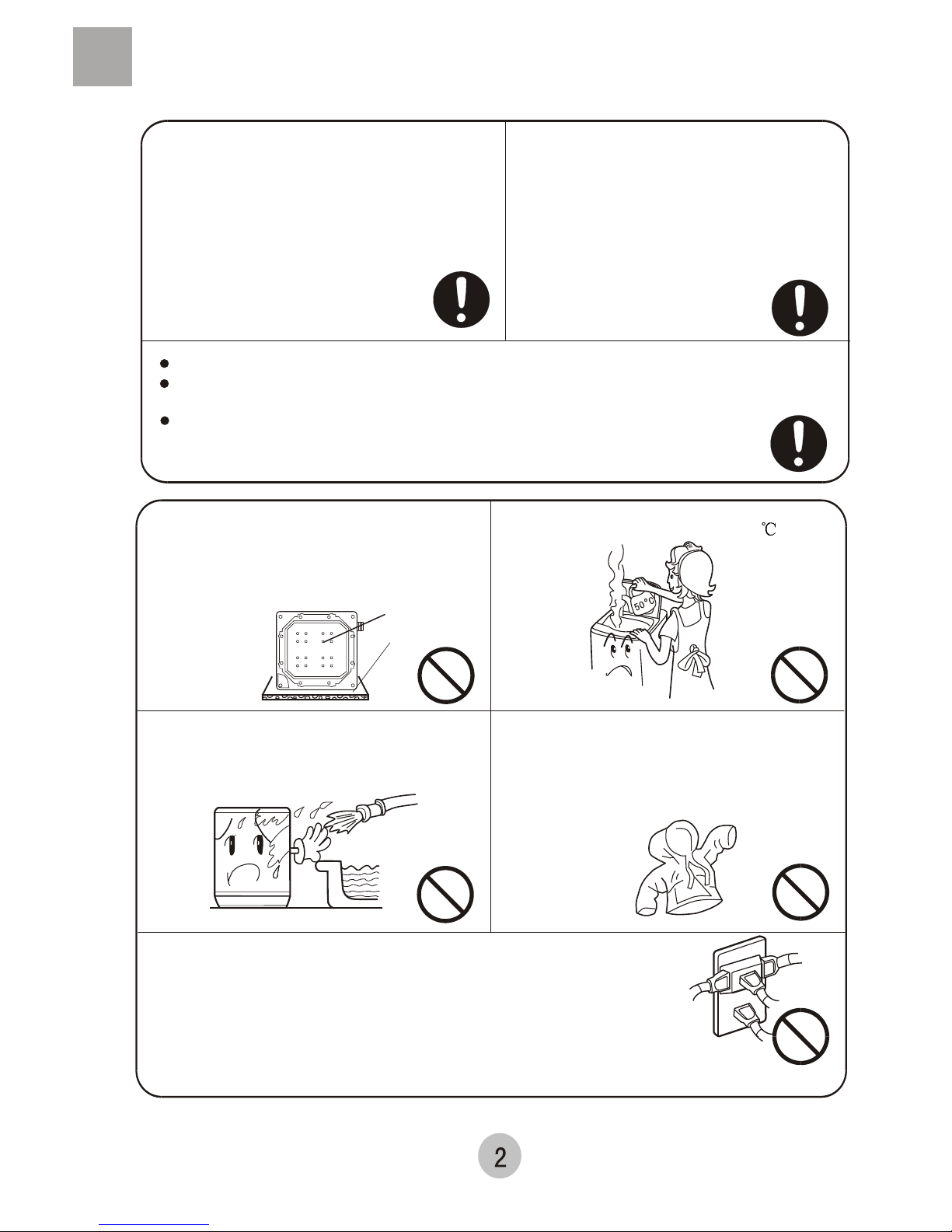

Safety precautions
Do not let the machine share one receptacle with other
electric appliances. If the plugging into the receptacles
loose, do not use the plug any more.
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.Wash
the clothes that can float on the water
surface easily,please be careful
especially,for
fear damage.
Do not put the machine at damp place
like the bathroom. Never wash it with
water. Do not put wet laundries on the
control panel.
Do not use water hotter than 50 .
In case the washing machine is installed
on ground with carpet, do not block the
ventilation hole with carpet.
Ensure carpet does not
obstruct the
opening in
the bases.
Please plug the power plug on special
receptacle. Be sure to use three-pins
power receptacle. Ensure that the earthing
prong of the power receptacle is earthed
reliably. Use leakage protector if possible.
Do not bend ,extend, twist, bind by force. Do not press or nip it with weight.
Keep the pin of the power plug clean, if the power plug is polluted with dust,
please wipe with dry cloth carefully.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
The washing machine must be positioned
so that the plug is accessible. Be sure to pull
the plug off and close the water faucet in
following cases: power failure, delivering
the machine, setting the machine idle or
cleaning the machine.
Do not plug or pull the
power plug with wet
hand.
The ventilation holes
at the bottom
Carpet

Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The children shall not approach
the working washing machine. Keep the machine away from direct
sunlight and heat source like the heater.
Safety precautions
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Petrol
Thinner
Please check if the water faucet is open, and if the connection of the
water inlet pipe is proper.
It is suggested to use foamless washing powder.
Please don t use the washer in the environment below 0 C; if the washer
has been stored below 0 C, please be sure to ensure the washer is placed
under the room temperature more than 2 hours and then use otherwise
the washing effects may be lowered or the washer may be damaged.

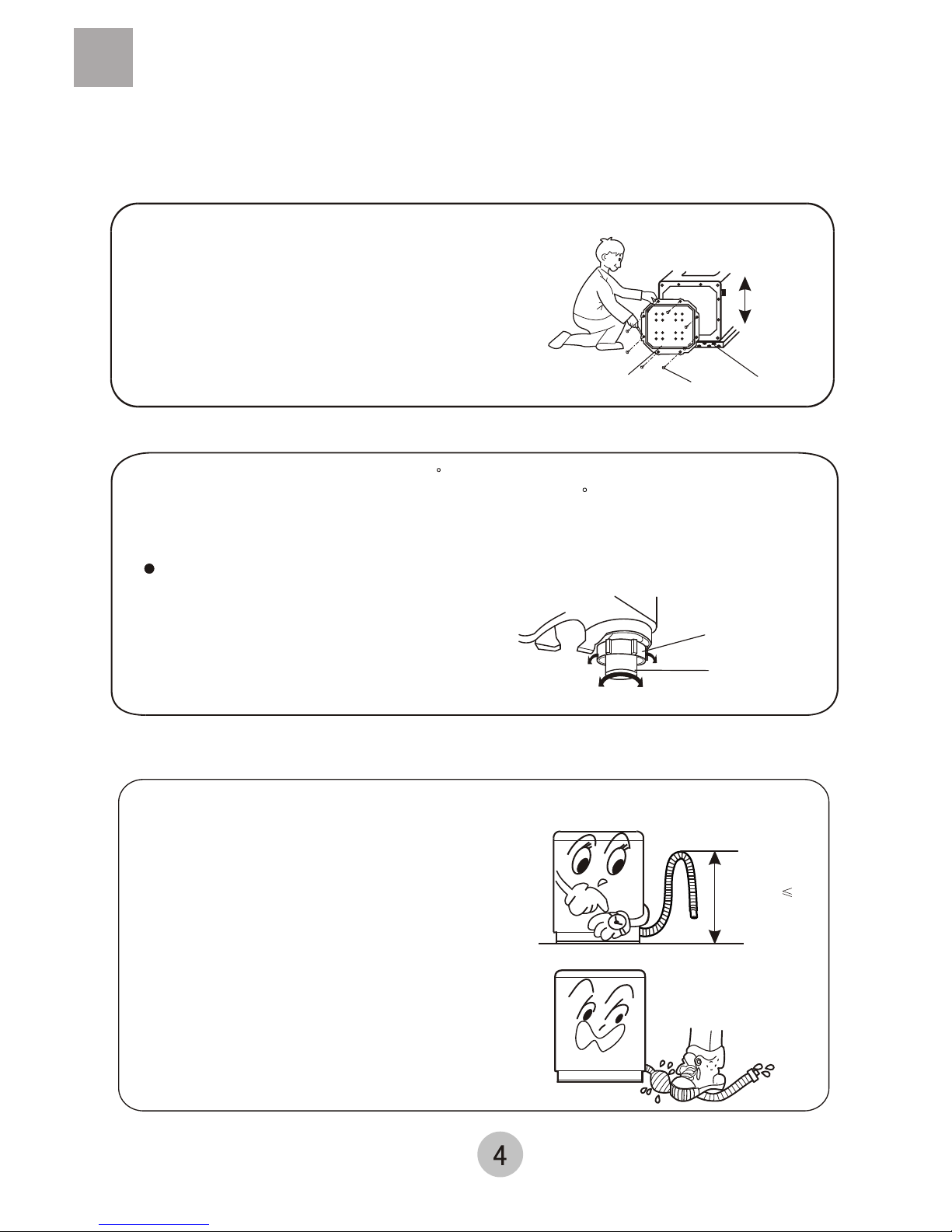

Adjust the Installation position
The washing machine away from wall should be overrun 20mm. The largest
allowable slope of the shank base of the machine is 2 .The slanting or rough
ground will result inunstable running or stoppage of the machine. Please adjust I
t with following methods:
After opening the package, please lean the washing
machine gently down on soft items (like towel cloth,
blanket, etc.). Install the bottom plate to the bottom of
the machine with eight screwsby a cross screwdriver,
then lift the machine up gently. See to the figure:
Install the bottom plate
Soft object
Bottom plate
Back
Screw
Front
Installation and adjustment
Please install and adjust the machine according to the requirement of the mannual.
It is very important to your security and correct operating the machine.
Adjust the adjustable leg:
1 .To twist the adjustable leg, please first lift up the
side of the leg slightly, loosen the adjustable nut,
and twist the leg,Please make sure to keep the
washing machine in balance.
2 . After adjustment, fasten thenut.
Loosen
High
Fasten
Low
the adjustable nut
the adjustable feet
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 1.2m , or the drainage will not
be smooth enough and cause incomplete
drainage.
2.Do not step on or press
the drain hose.
0.7m<H 1.2m
H

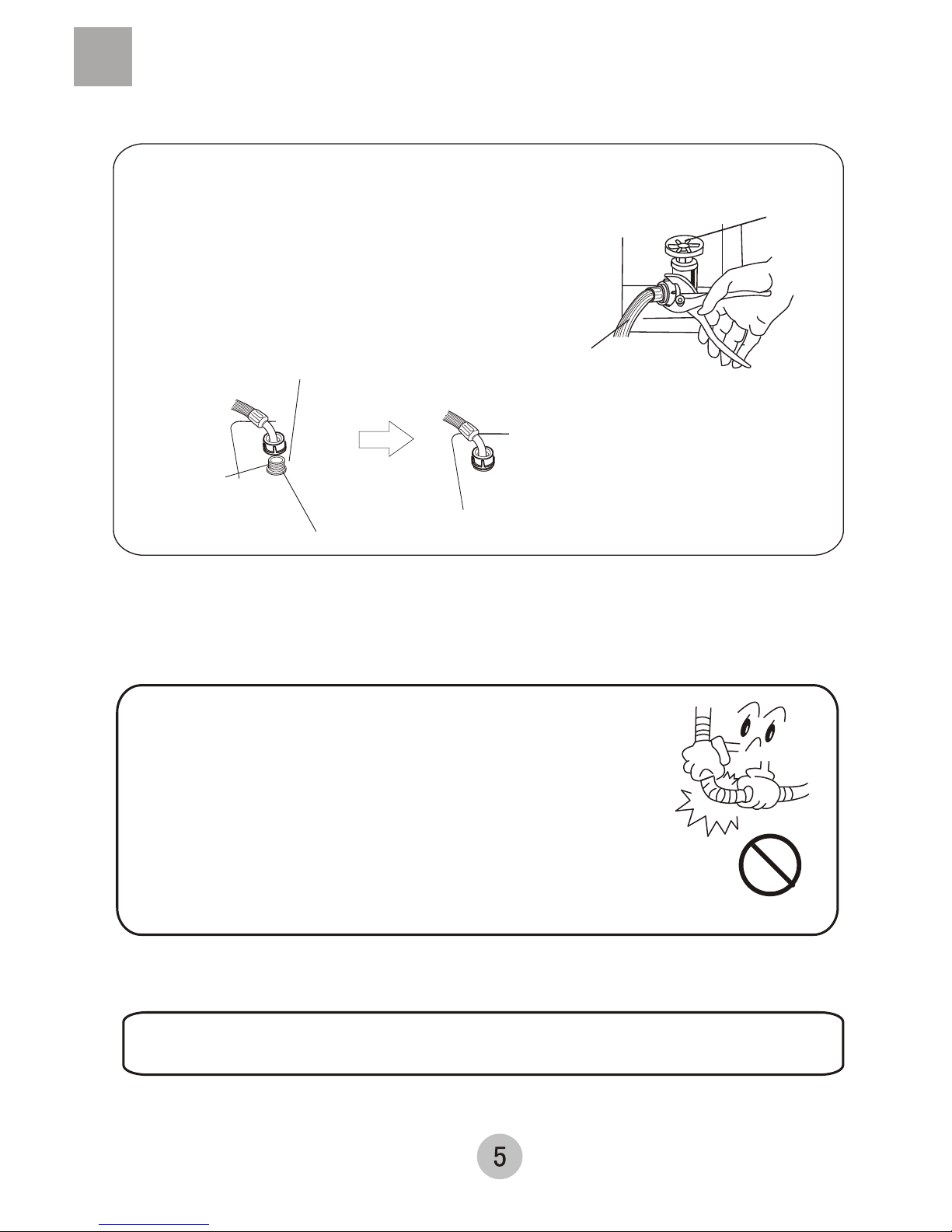

Install the water inlet hose
2. Connect the other ends to the water inlet valve .
1. Attach the water inlet hoses to the water faucet. Using pliers, tighten
the coupling. ( As figure 1)
NOTE: please check if the connection of the
water inlet pipe is proper
( As figure 2)
Check the connection between the water inlet
hose and the water tap
1.Swaying the hose gently to confirm if it is fastened
stable.
2.After installation, open the tap to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if the connection
between the water inlet hose and the water tap, is firm,
so as to prevent dropping from improve Installation
position.
5.After finish washing cycle please pay attention to
turn off the tap.
1.Close the water tap.
2. Pull off the water inlet hose from the water tap and washer
Take down the water inlet hose
Water absorption cushion
Jointer of the water inlet hose
Jointer of the
water inlet valve Figure 2
Figure 1
the water faucet
the water inlet hose

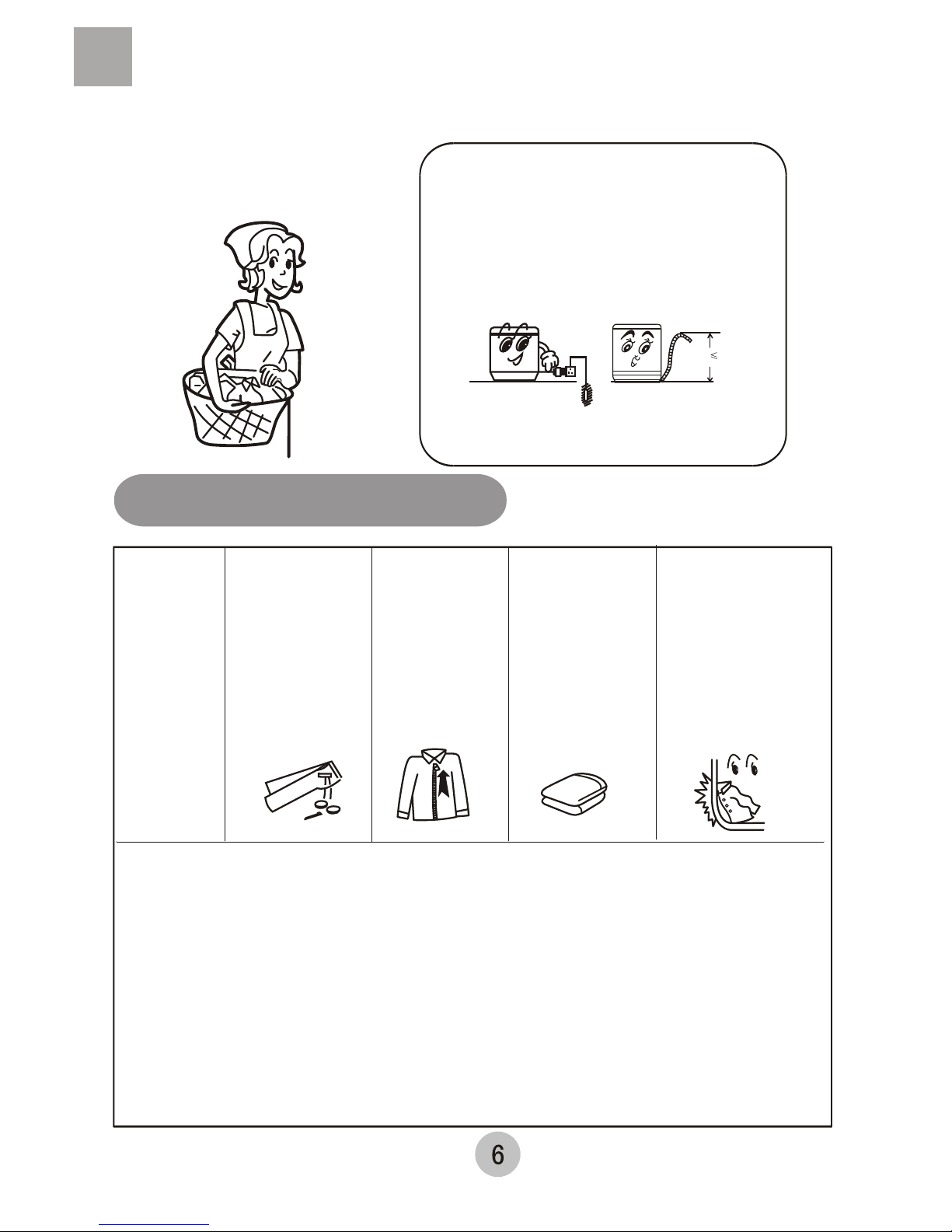

1 Preparation before washing
Preparation before washing
1.Connect the water inlet hose. Open
the water faucet.
2.Confirm that the washing machine is
earthed reliably. Then insert the
power plug into the receptacle. The
earth terminal shall not link to gas
pipeline and faucet water pipeline.
3.Put up the drain hose.
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.To avoid
the problem
that the washing
machine can
not be operated
normally.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b.Please repire the damaged cloth before washing in order to avoid
the situation worse
c. Divide the laundries that are not colorfast from other laundries.
d. Put those laundries difficult to absorb water into water with hand.
e. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
f. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
g. Do not put those laundries polluted by chemicals into the washing
machine directly.
h.the foreign materials will result in damage of the machine
0.7m<H 1.2m

2 Put in the laundries
The capacity of washing and spinning of he machine
refer to the largest weight ofthe standard laundries under
dry conditionthat can be washed or spinned in one time.
One time washing quantity shall be lower than the rated
capacity.
The thickness, size, type of the cloth will influence the
actual washing capacity. It is suitable for one time
washing to put in reasonable amount of laundries and
the laundries can be turned round in washing.
3 Usage of the detergent
How to use the washing powder
Directly dissolved in the machine (not applicable for fuzzy
program )
1.Fill small quantity of water.
2.Add the powder. Run for 30 seconds to dissolve it completely.
3.Put in the laundry. Select suitable water level.
The instant dissolving of the washing powder:
1.Prepare warm water of 30 and a container.
2.Add the powder while stirring to fully dissolve it. In selecting
The super quick program, it is suggested to adopt liquid
detergent instead of washing powder to guarantee the
washing effect.
Put in the proper quantities detergent according to the water
level and the laundries quantities.
It is suggested not to use high sudsing detergent.
Washing powder with poor quality or long time storage
maybe caked. Please pay attention to cleaning the
detergent box in time.
Do not select the high water level for laundries
less than 1.0kg ,so as to avoid splashing of water.
How to use the whitener
Fill water to decided level .Dilute the
whitener with container. Pour it slowly
into the washing tub.
Avoid using whitener on laundries with
colour or pattern as they are prone to
lose colour.
The whitener shall not touch the laundries
directly.
Refer to the user's manual for the usage
and quantity of the whitener.
For powder whitener, please dissolve it
before use.
Access for detergent
Detergent box
(lint filter)

Off

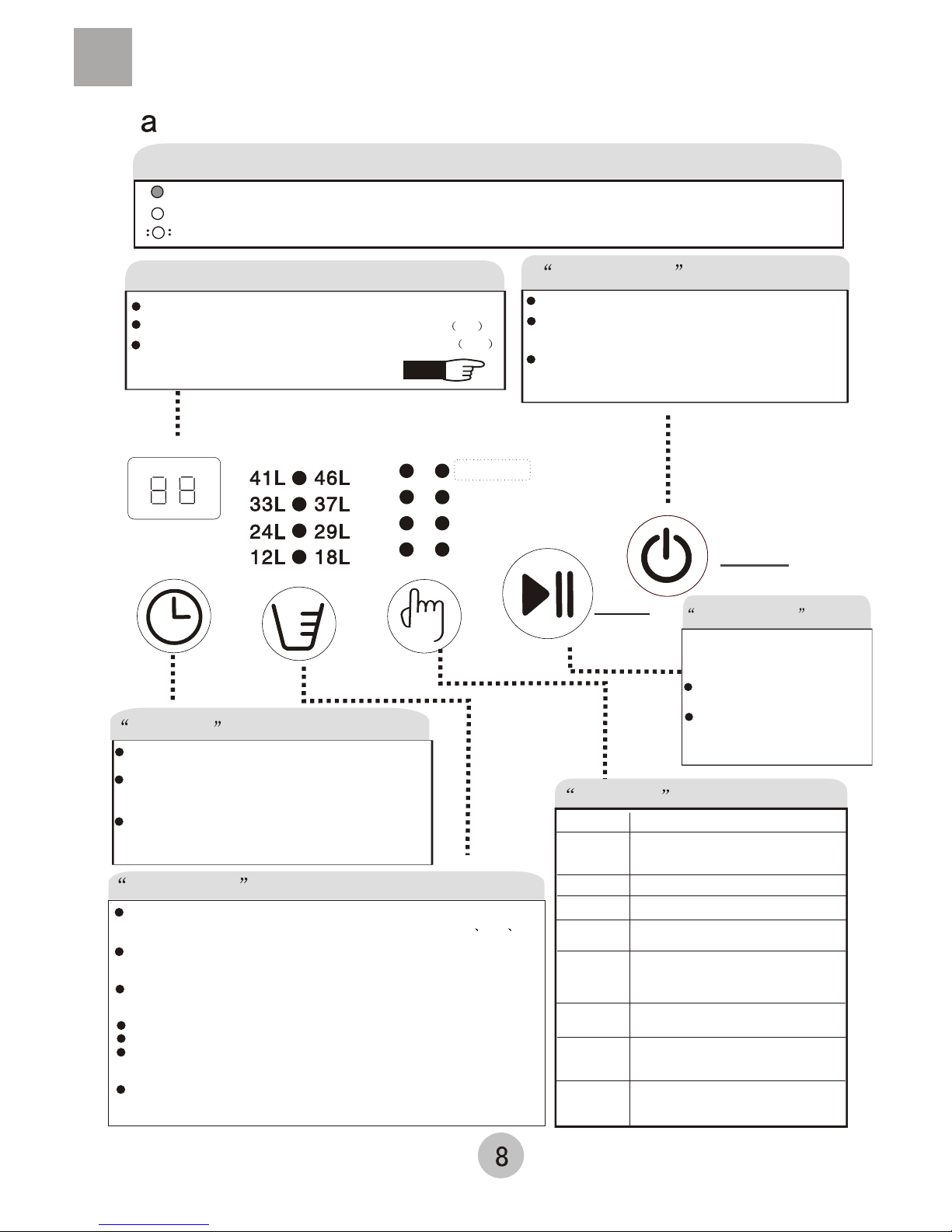

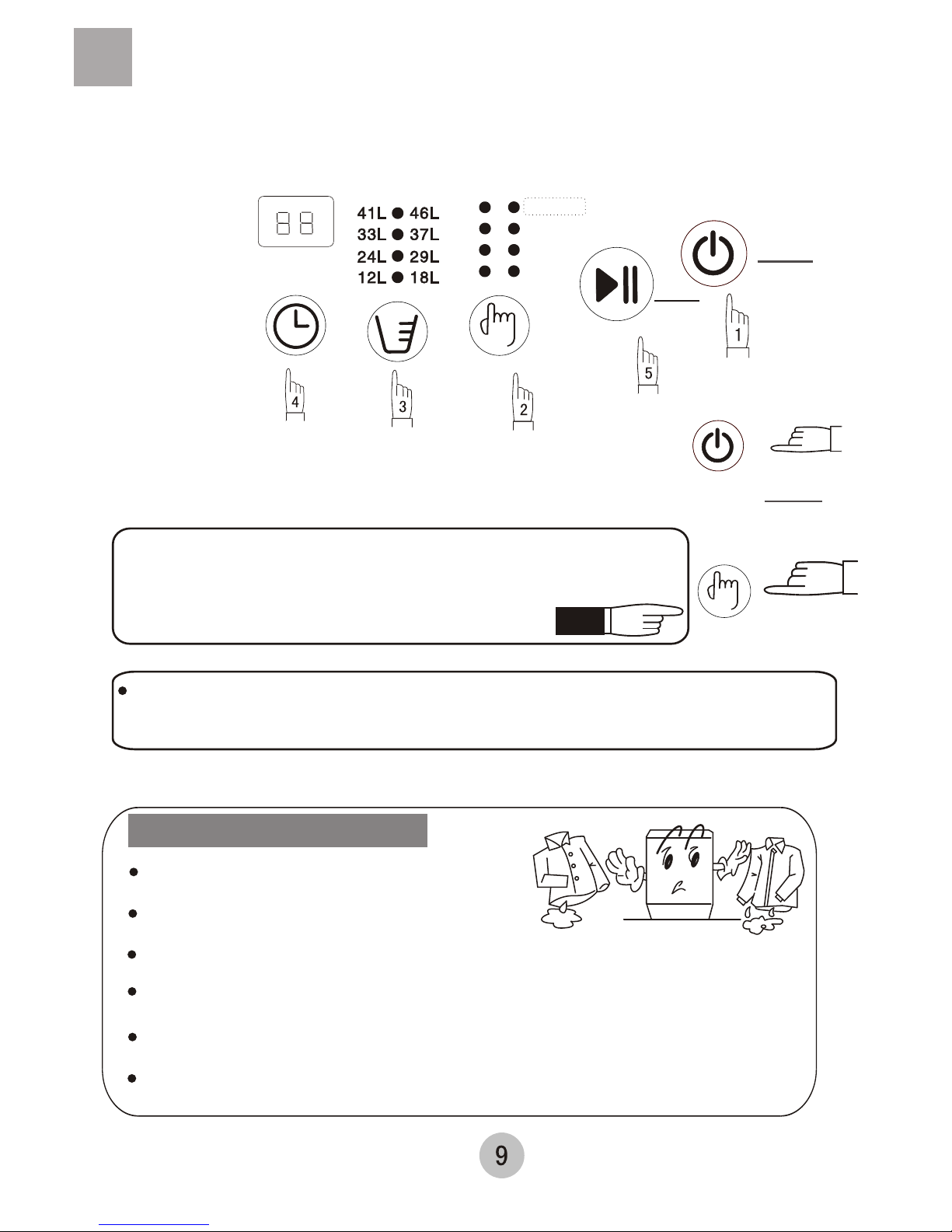

Description of the function of buttons
Mode and meaning of the indicators
On: indicate the program about to run, or indicate the selected mode or indicate the water level
POWER ON/OFF button
Push the On/Off button to switch on the power.
When the power is on, push it again to switch off the power.
Push the On/Off button to switch on the power.
If the start/pause button is not pushed, the washing machine
will automatically switch off the power after 5 minutes.
4 Use the operation buttons
START/PAUSE button
After the power is switched
on,press it to start the
machine.
During working, push it
to pause.
During pause, push this
button to restart and go
on working
Page 12
Process,remain time digitron
It displays "--" during detecting.
It displays total remained time min .
It displays abnormal symbol in
abnormal situation.(See to Page12)
during the running program
It displays l remained reserved time during reserve program hour .
Flashing: indicate the running program
STANDARD Fuzzy
QUICK
SOAK
WASH
RINSE
SPIN
REMAIN(MINUTES)
POWER
ON/OFF
RESERVE(HOURS)
TUB DRY
SOFT
RESERVE
LIGHTLIGHT
FLASHFLASH
START
PAUSE
PROGRAM
WATER LEVEL
Program
SOAK
PROGRAMselection button
Common washing
Washing the woollen textiles
Applicable situation
Posthaste wash of the laundry
under 1.5 kg with light soil
WASH
Washing the relatively big thick or very
dirty laundries
The purpose is dryingthe inner tub
and the outer tub,which can avoid
growing
STANDARD
SOFT
QUICK
WATER LEVEL button
The washing machine can detect the laundries automatically during After
detection, it will set the water level to suitable value among 29L 37L 46L.
automatically.during the STANDARD program.
You can also set water level by yourself. After the machine is started, it will
not set water level automatically. You shall push the start/pause button to
make new setting.
If there's water inside the tub, the machine cannot detect the laundries and
will display water level 37L .If wet laundries are put in, it may display water
level 46L. You must set suitable water level by yourself.
If quick program is selected, it will display water level 24L.
If tub dry program is selected, the water level will not respond
During operation of wash and rinse program, you can push down the water
level button to add water. When you release the button, or it reaches the
overflow water level, the machine will stop adding water.
The water level decided may be different from actual value because of the
different moisture level of the laundries.
RESERVE button
The digitron displays the time remained (in minute)
before the washing is finished.
Push down the reserve button. The reserve indicator
light is on the digitron displays the reserve time of
finishing washing (in hour).
When the machine is started, the reserve indicator
light is on, indicating that the reserve function is
running.
Remove the left detergentfrom the
clothes and then rinsethe clothes
RINSE
SPIN
TUB DRY
Just run the washingcycle without
drainage cycle. Thedetergent was
When the clothes arewashed or the
clothes are quite wet,extra spin is
needed.
left inside the drumand can be
recycled.
