Haier HWM70-112S User manual

Twin-tub Washing Machine naUser's ma u l
This manual is for
XPB70-111S
XPB70-112S
HWM70-111S
HWM70-112S
Special number:0030806263
Please read this manual
carefully before using.
Retain it for future reference.

1
2
4
7
8
8
9
13
17
Contents
Safety precautions
Installation and adjustment
Preparation before washing
The musts in washing
Usage of the detergent
Washing sequence
Disposal after washing

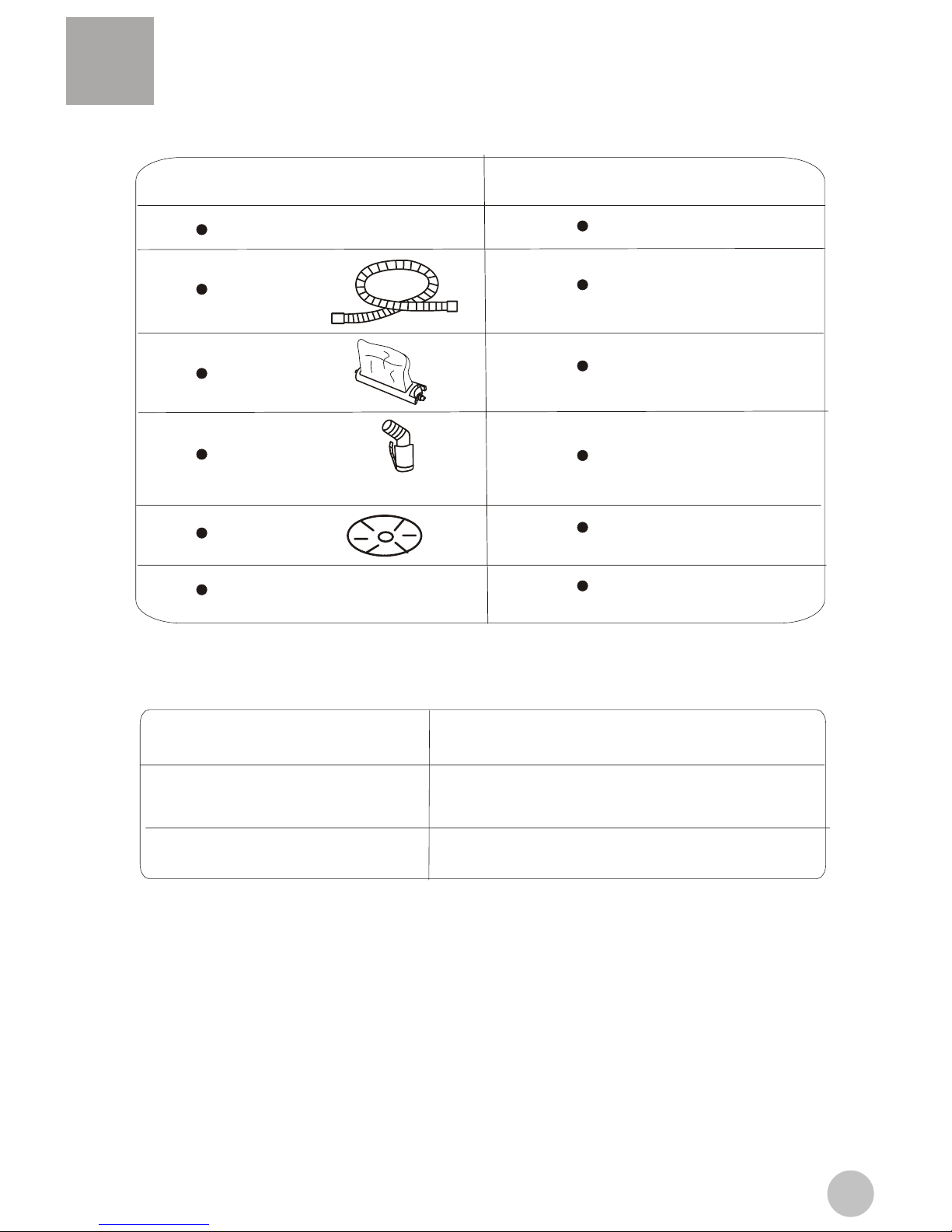

Packing list *Specification
Names of the parts
Trouble-Shooting *Answers to question 15

1
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.

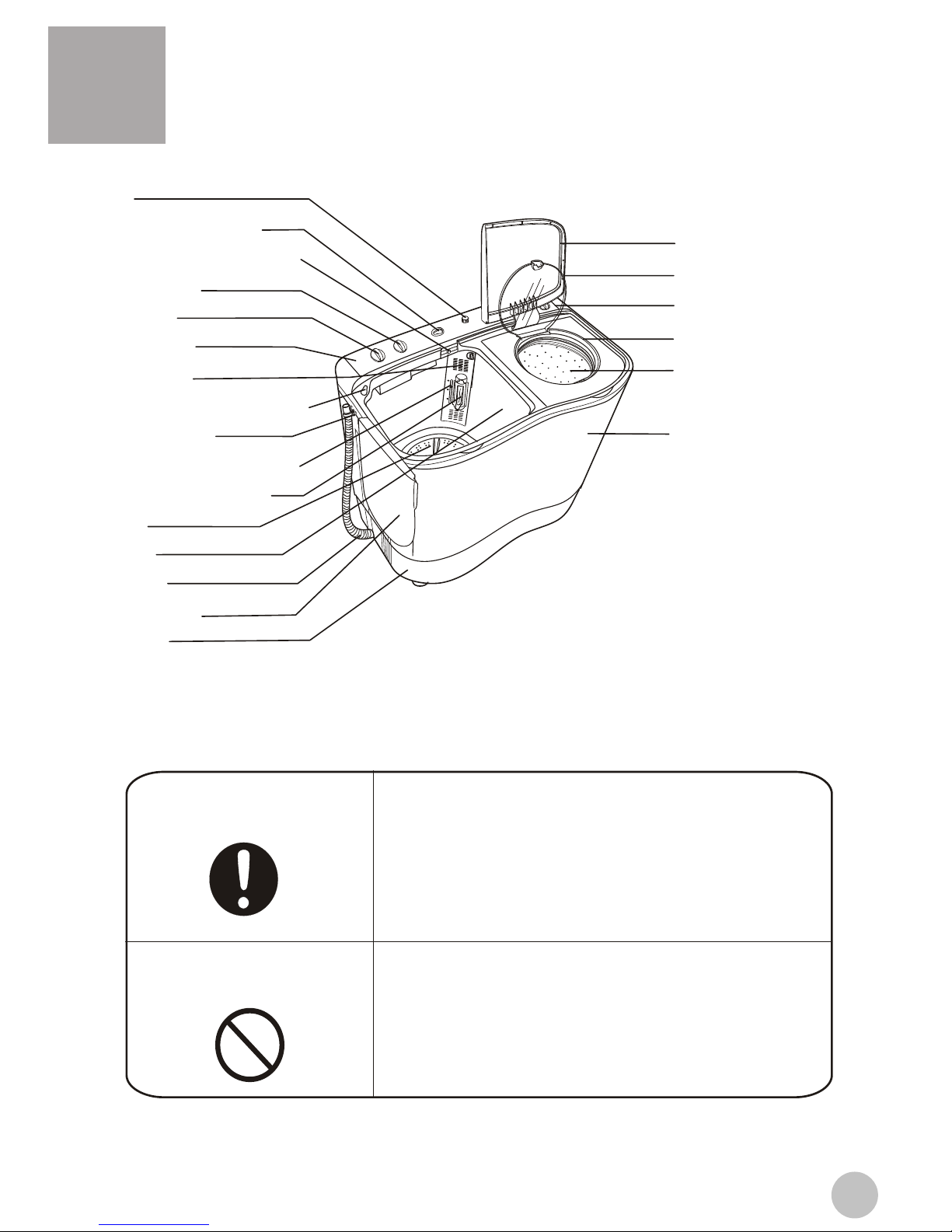

Names of the parts
Buzzer
Water-filling entrance
Water inlet selector handle
Wash selector
Wash timer
Control panel
Overflow filter
Quick water-filling entrance
Drain hose hook
Water level adjusting lever
Lint filter(Installed by user)
Pulsator
Wash tub
Drain hose
Wash tub cover
Outer cover of the spin tub
Inner cover of the spin tub
Spin timer
Spin tub frame
Spin tub
Cabinet
Base frame
Note：Different machine,the form of cortrol panel is
different.

2
Safety precautions
Please insert the power cord into
special receptacle with rated vol-
tage.Be sure to use single-phase
three pins receptacle.The earthing
terminal of the receptacle must be
earthed reliably.If possible,please
adopt electric leakage protector.
When the machine is normally
using, please put the power plug
at the location easily to be insert-
ed and extracted by hand. Be sure
to pull the plug off when there's
power failure, or the machine is
being moved, cleaned orwhen it
is idle.
If the power cord is bad, to avoid risk it is required to replace it by the
technicians ofour special shop or the after-sale service department.
Keep the pin of the power plug clean.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not use water hotter than 50 C .
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
Ventilation hole at
the bottom of the
washing machine
50 C

3
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Safety precautions
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Handicapped or children without care
shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
Th nn
ier
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
Please check if the wat er faucet is open,
and if the connection of the wat er inlet
pipe is proper.
It is suggested to use foamless was hi ng
powde r.

Overflow filter
Lint filter
If the extra hose is too long, cut it either
at point A or B.
<10cm
BA
> 30mm
<1.5m
4
Installation and adjustment
Please install and adjust the machine according to the requirement of
the manual. It is very important to your security and correct operating
the machine.
Install the lint filter
After opening the package,please take out the lint
filter from the document bag,install it to the overflow
filter of the wash tub.See to the figure.
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not tramp or press the drain hose.
3.If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.
4.If extra drain hose is needed , please make
separate purchase. The inner diameter of the
extra hose shall not less than 30mm, and the
length shall not exceed 1.5m.

5

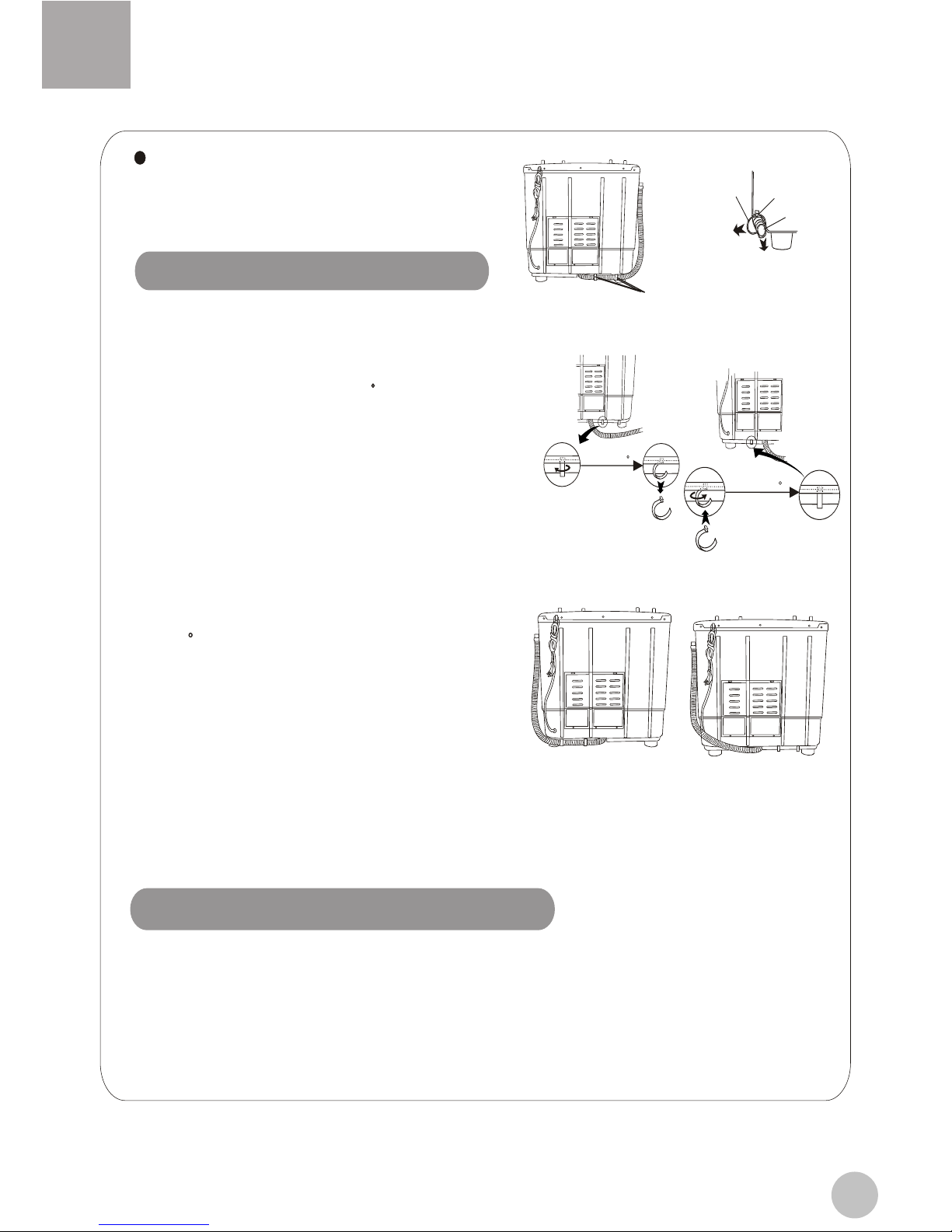

How to change the direction of the drain hoses
Figure 1 in dic ates th e ex fa ctory in sta ll atio n
position of th e drain hose.
Extend the drain hose from the side of spin tub.
Tak e off th e drain hose fr om th e hanging hole
of th e cabinet. Pull the drain hose fix in g hook
outwards gently to take out the drain hose
from the two fix ing hooks. (As per Figure 2)
Rotate th e drain hose fix in g hook fo r 90 to take it
out fro m the insta ll atio n hole (As per Figure 3).
Pull the fix ing hook outwards slig htly. Inlay th e
drain hose in to the fix ing hooks relia bly along
the groove at spin tub side, and make it extend
towards spin tu b side.
Insta ll th e tw o drain hose fix ing hooks ta ken
out into the in stall atio n hole at th e other side
of the base frame (to aim at th e in stallatio n
hole accurately you can lean the washing
machine forward slightly ).Then rotate
for 90 (As per Figure 4).
Extend the drain hose from the rear side
Tak e out th e drain hose from th e fix ing hook. Extend it from the rear side
(When the drain hose is extended from th e rear side, it can be hung on the
point fo r drain hose at th e two sides of th e cabinet.) (See to Figure 6).
Figure 1 Drain hose
fix ing hook
Figure 2
Drain hose
fixing hook
Pull outwards
slightly
Side sectional view
Fixing hook
installation hole
Drain hose
Tak e off
the drain hose
Figure 3
Tak e off th e fix ing
hook downwards
Rotate the fixing
hook for 90
Figure 4
Insert the fixing hook into the
installa tio n hole upwards
Rotate th e fix ing
hook fo r 90
to fix it
Figure 5 Figure 6
Then hang the drain hose into the hanging hole at
the spin tub side. (As per Figure 5).

Install the water inlet hose; Select the water level
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Quick water-filling entrance
You can fill water into the wash tub directly
through this entrance. It can reduce the
humidity inside the control panel significantly
and prolong the operating life of the components.
Quick water-filling entrance
Insert the water inlet hose into the water-filling
entrance, then push the water-filling jointer into
the quick water- filling entrance. (To dismantle
the water inlet pipe, just push the control handle
as indicated in the figure and pull it out)
Water inlet hose
Water inlet jointer
Control handle
Push
Quick water-filling entrance
6
Use the new water inlet hose provided
with the machine to connect to the
water faucet.Old hose sets should
not be reused.
Water inlet hose
Water inlet jointer
Control handle
Push
Water inlet
Maximum Max
（about 55L）
（about 46L）
（about 36L）
Minimum Min
Medium Med
Water level
indicator
Insert the water inlet hose into the water-filling
entrance on the control panel, then push the
water-filling jointer into the entrance on the
control panel. (To dismantle the water inlet pipe,
just push the control handle as indicated in the
figure and pull it out)

7
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Preparation before washing
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.

洗涤物的参考重量
8
The capacity of washing and spinning of the
machine refer to the largest weight of the
standard laundries under dry condition that can
be washed or spinned in one time. Laundries
quantity in one washing cycle shall be lower
than the rated capacity.
The thickness ,size , type of the cloth will influ-
ence the actual washing capacity. It is suit-
able to put in reasonable amount of laundries
and the laundries can be turned round in wash-
ing for one time washing.
Do not select " Maximum " water level for
laundries less than 2.4kg, so as to avoid
splashing of water.
The musts in washing
How to use the whitener
Fill water to decided level. Dilute
the whitener with container.
Pour it slowly into thewashing tub.
Avoid using whitener on laun-
dries with color or pattern as they
are prone to lose color.
The whitener shall not touch
the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30
seconds to dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 C and a
container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before using.
It is suggested not to use high sudsingdetergent.

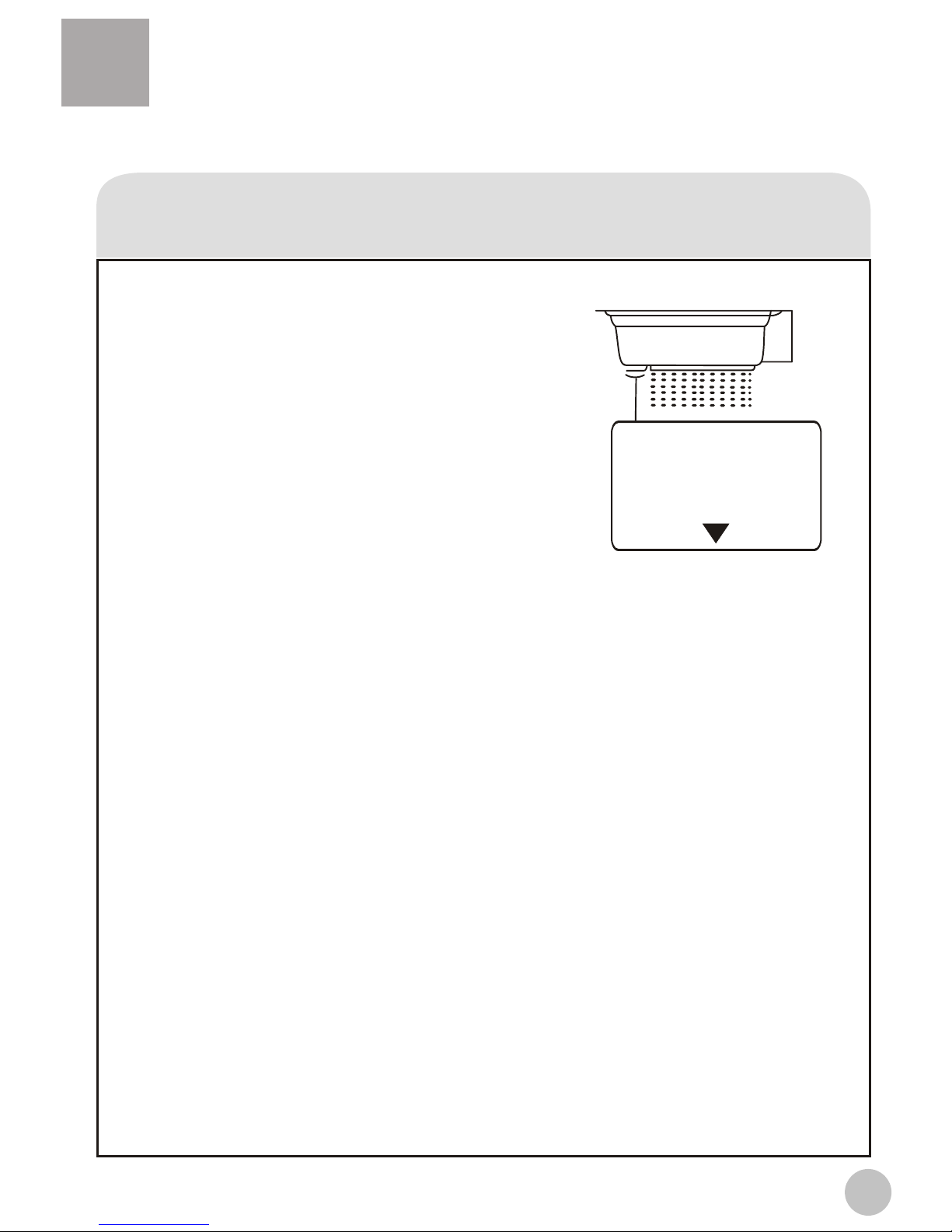

How to use the washing powder
Usage of the detergent
