Haier HWM80-0626S User manual

HWM80-0626S
Twin-tub Washing Machine
User's manual
This manual is for
Please read this manual
carefully before using.
Retain it for future reference.
HWM80-0626SH
0030807884

Contents
Safety precautions
Installation and adjustment
Preparation before washing
The musts in washing
Usage of the detergent
Washing sequence
Disposal after washing
Packing list *Specification

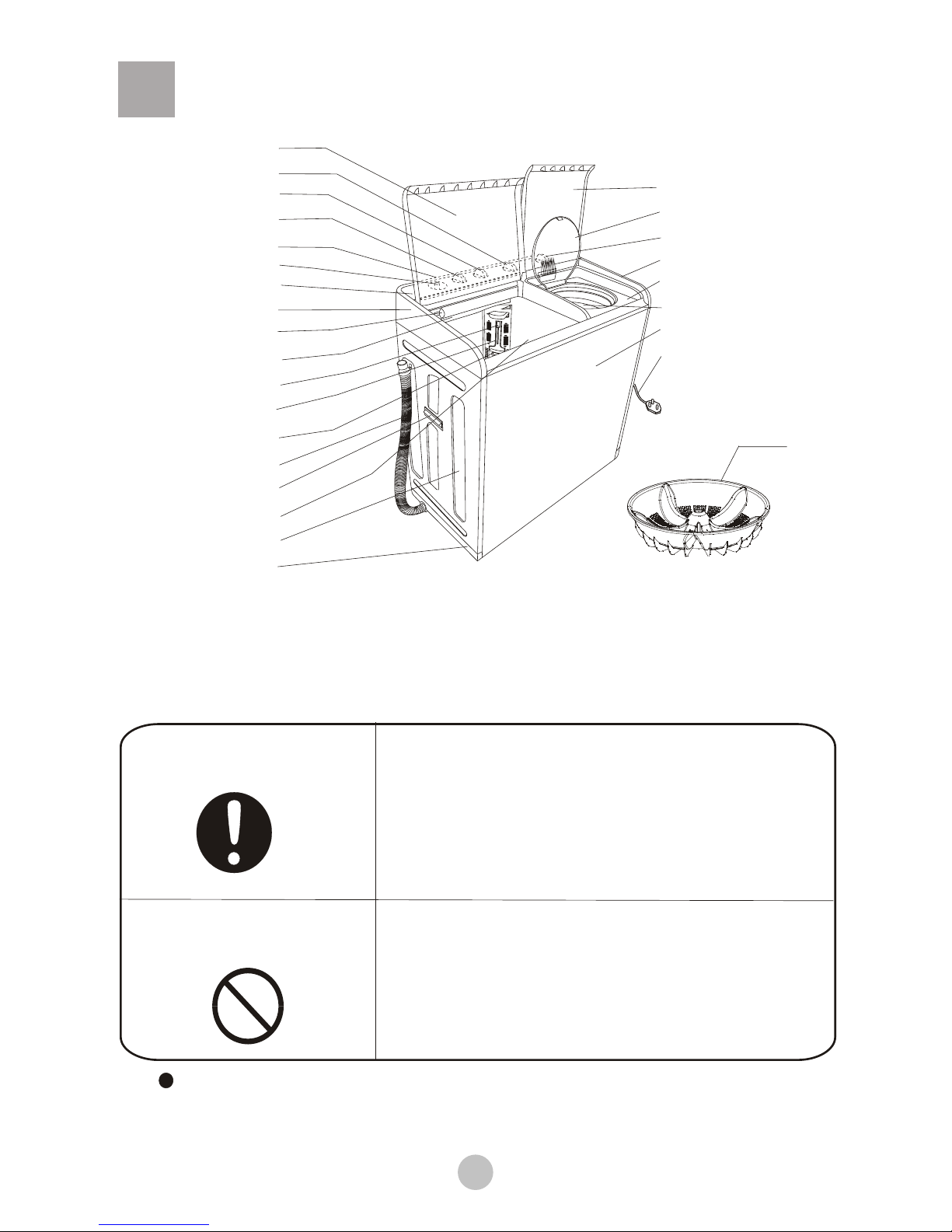

Names of the parts
Trouble-Shooting *Answer to question

1
Control panel seat
Outer cover of the spin tub
Inner cover of the spin tub
Spin timer
Spin tub frame
Spin tub
Front door
Power cord
Control panel
Bypass channel
Overflow filter
Water level adjust lever
Water filling control handle
Drain hose
Cabinet handle
Wash tub
Base frame
Lint filter
Cabinet
Plate support(right)
Wash timer
Water-filling entrance
Plate support (left)
Drain selector
Wash tub cover
Pulsator
Names of the parts
Program selector
Notes: All illustrations in this Manual are given for reference only. Your products and
accessories may show differences from these illustrations due to our
continuous improvement.
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of he user.
Please check if the power receptacle has good earthing condition
before using to guarantee your safety.

2
Safety precautions
Please insert the power cord into special
receptacle with rated voltage. Be sure to
use single-phase three pins receptacle.
The earthing terminal of the receptacle
must be earthed reliably. If possible,
please adopt electric leakage protector.
When the machine is normally using,
please put the power plug at the
location easily to be inserted and
extracted by hand. Be sure to pull the
plug off when there's power failure, or
the machine is being moved, cleaned
or when it is idle.
Do not bend ,extend, twist, bind by force. Do not press or nip it with weight.
Keep the pin of the power plug clean, if the power plug is polluted with dust,
please wipe with dry cloth carefully.
If the power cord or the power plug is bad, to avoid risk it is required to have
it replaced by the technicians of our special shop or the after-sale service
department.
Do not put the machine at damp
place like the bathroom . Never wash
it with water. Do not place wet laundries
on the control panel.
Do not use water hotter than 50 C .
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Ventilation hole at
the bottom of the
washing machine
Do not wash water-proof laundries like
the raincoat, bike covers etc, to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.

3
Petrol
Thinner
Safety precautions
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Handicapped or children without care
shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the
heater.
Please keep the lint filter in good condition, and
install it to proper position during washing. If the
lint filter is lost or damaged, please contact the local
after-sale service department of our company.
Dismantle
Install

4
BA
> 30mm
<1.5m
<10cm
Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
Usage of the drain hose
The drain hose shall drain smoothly
1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not ramp or press the drain hose.
3.If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 40mm, and the length shall
not exceed 1.5m.
If the extra hose is too long, cut it
either at A or at B point.

5
How to change the direction of the drain hoses
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Dismantle the drain hose fixing clamp and take
the hose out of the fixing groove.
(See to Figure 2).
Extend the drain hose from the side of spin tub
Figure 1
Back
Front
Soft item
Figure 2
Extend to the
spin tub side
Fig ure 3
Embed the drain hose into the groove along the side
of the spin tub in the order of 1 ~ 3 , heading for the
side of the spin tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Install the water inlet hose; Select the water level
Insert the water inlet hose into the water-filling
entrance on the control panel To
dismantle the water inlet pipe, just push the
control handle as indicated in the figure and
pull it out
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Water inlet
hose
Water-filling
entrance
Water level
indicator
Maximum
Medium
Minimum
Max
Med
Min

6
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Preparation before washing
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.

7
The musts in washing
The capacity of washing and spinning of the
machine refer to the largest weight of the
standard laundries under dry condition that can
be washed or spinned in one time.
The thickness ,size , type of the cloth will influ-
ence the actual washing capacity. It is suit-
able to put in reasonable amount of laundries
and the laundries can be turned round in wash-
ing for one time washing.
Do not select " Max " water level for
laundries less 1.5kg , so as to avoid splashing
of water.
It is suggested to use foamless washing
powder.
Usage of the detergent
How to use the whitener
How to use the washing powder
Fill water to decided level. Dilute
the whitener with container. Pour
it slowly into the washing tub.
Avoid using whitener on laun-
dries with color or pattern as they
are prone to lose color.
The whitener shall not touch
the laundries directly.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before using.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30
seconds to dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 C and a
container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.

WATER INLET SELECTOR
8
Page7
WASH SPIN
Not set the switch to
DRAIN during washing
3
2
4
51
WASH TIMER
OFF OFF
DRAIN SWITCH
OFF
DRAIN

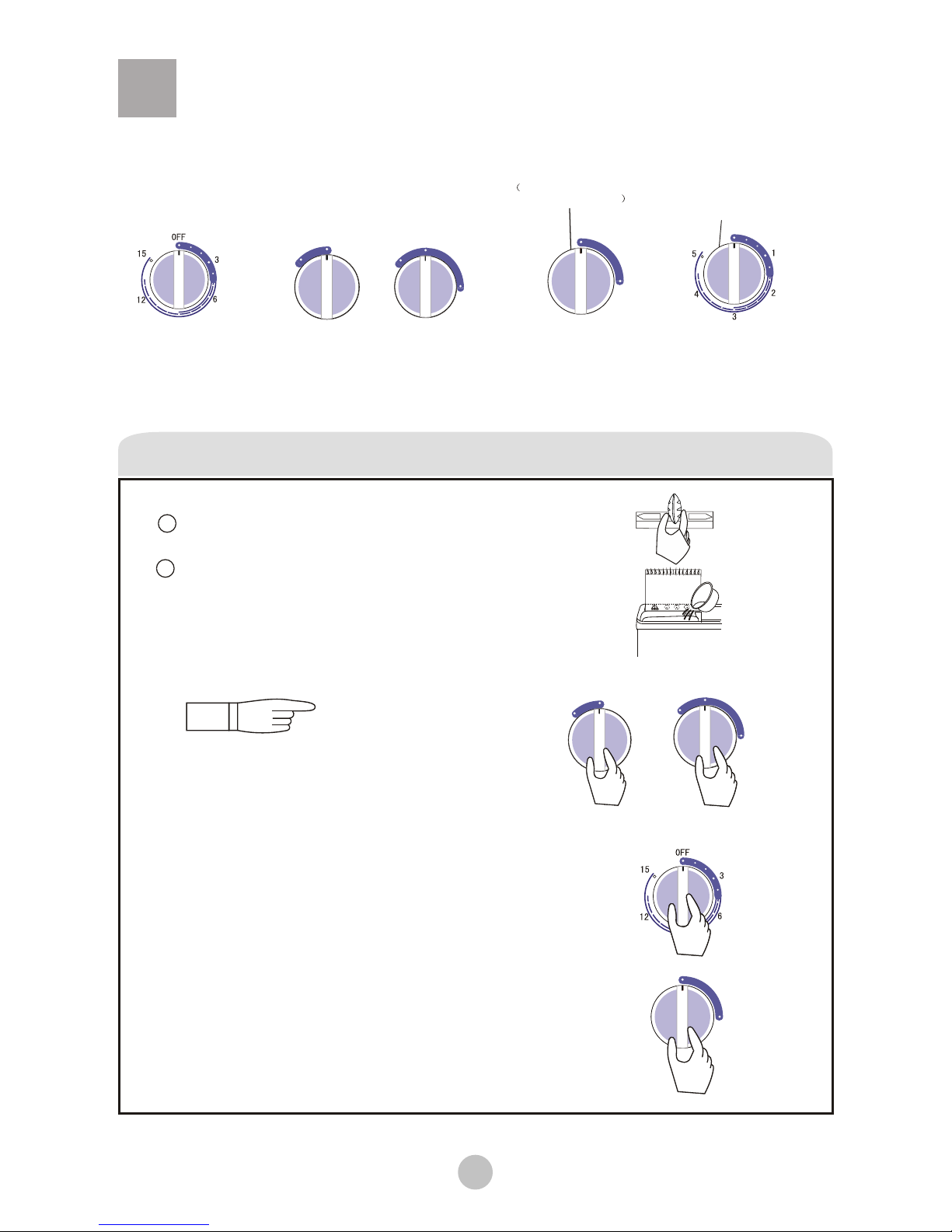

1.Water-filling selector
1 Set the water inlet selector at the "WASH" side.
(Figure 1)
2 Set the water level adjusting lever to needed line.
2. Fill the water and add the dissolved washing
powder to make the water level reach the preset
position. (Figure 2)
Run washing program for some time to stir and
dissolve the powder completely.
3.Put in the laundries. If the water quantity is
insufficient, please add water.
4.Select the current.
Select the strength of the current according to
the laundries. (Figure 3)
5.Select the washing time
Select the washing time according to the laundries.
(Figure 4)
6.After washing, set the "WASH SELECTOR"
at "DRAIN". (Figure 5).
STANDARD
SOFT
Washing sequence
Wash timer
(To set to below 2 minutes,
first set to 6 minutes then
turn it back.).
Function selector
(Soft current,
Standard current)
DRAIN
Drain switch
DRAIN SWITCH
Spin timer
(To set to below 1 minute,
first set to 2 minutes then
turn it back. it can increase
the service life of the timer).
SPIN TIMER
Wash
Figure 1
Figure 2
Figure 3
Figure 5
FUNCTION SELECTOR
CALEFACTION
STANDARD
SOFT
FUNCTION SELECTOR
WASH TIMER
Figure 4
STANDARD
CALEFACTION
STANDARD
SOFT
(HWM80-0626S) (HWM80-0626SH)
(HWM80-0626S) (HWM80-0626SH)
SOFT

Wash
When filling water to MAX or MED and MIN water levels,
turn the SELECTOR to the CALEFACTION after put in the
laundries. It begins to heat after close the wash tub, when
the temperature reaches , the Buzzer will give an
musical alarm. Then turn the selector to "STANDARD"
or "SOFT" , the heater will stop heating and the Buzzer
will stop alarming. It begins to wash after turning th
Remarks Don not open the wash tub when heating
otherwise it will stop heating and influence the heating
time.
45 5
eWASH
TIMER.
Calefaction
STANDARD
SOFT
Function selector
(Soft current,
Standard current)

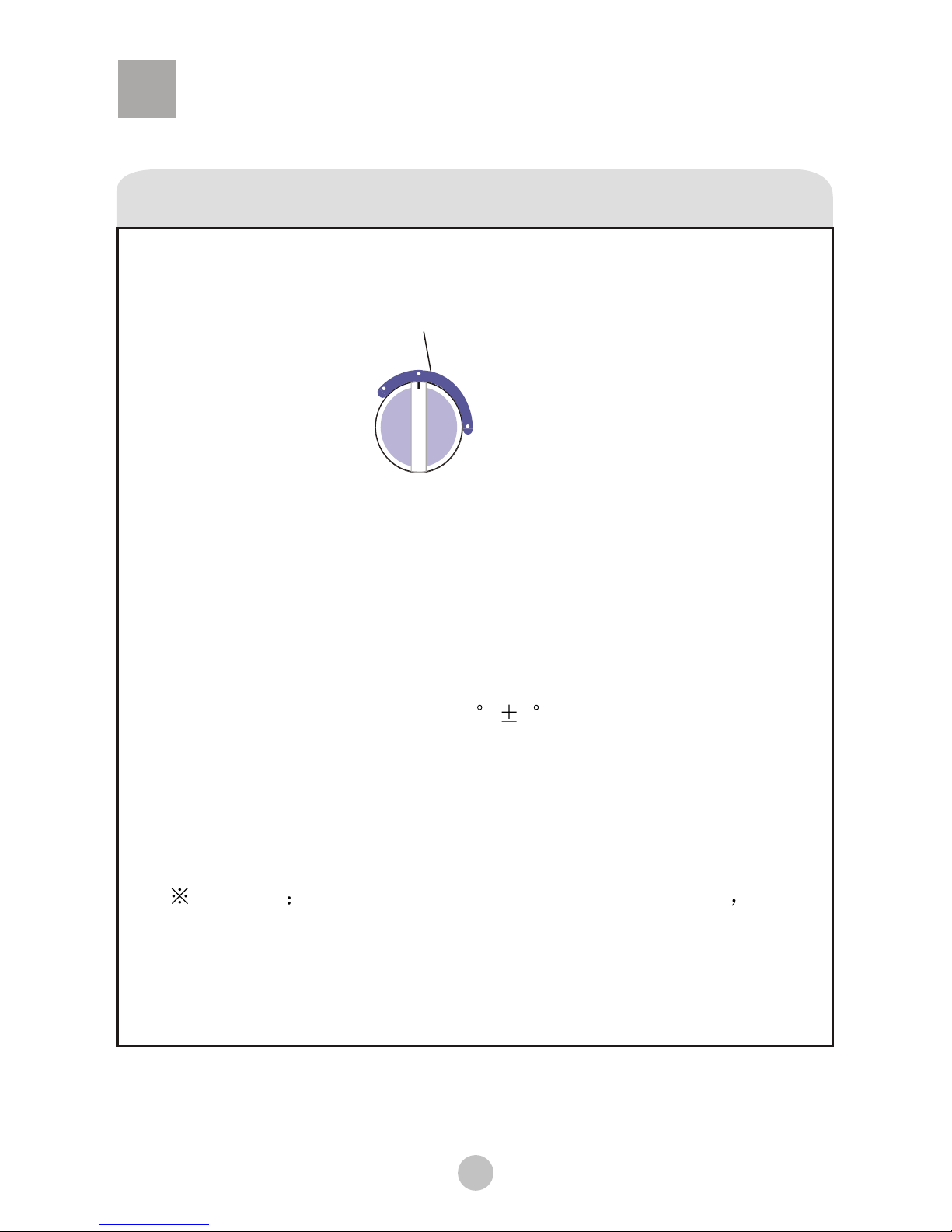

CALEFACTION
FUNCTION SELECTOR
Figure 6
9
(HWM80-0626SH)

10

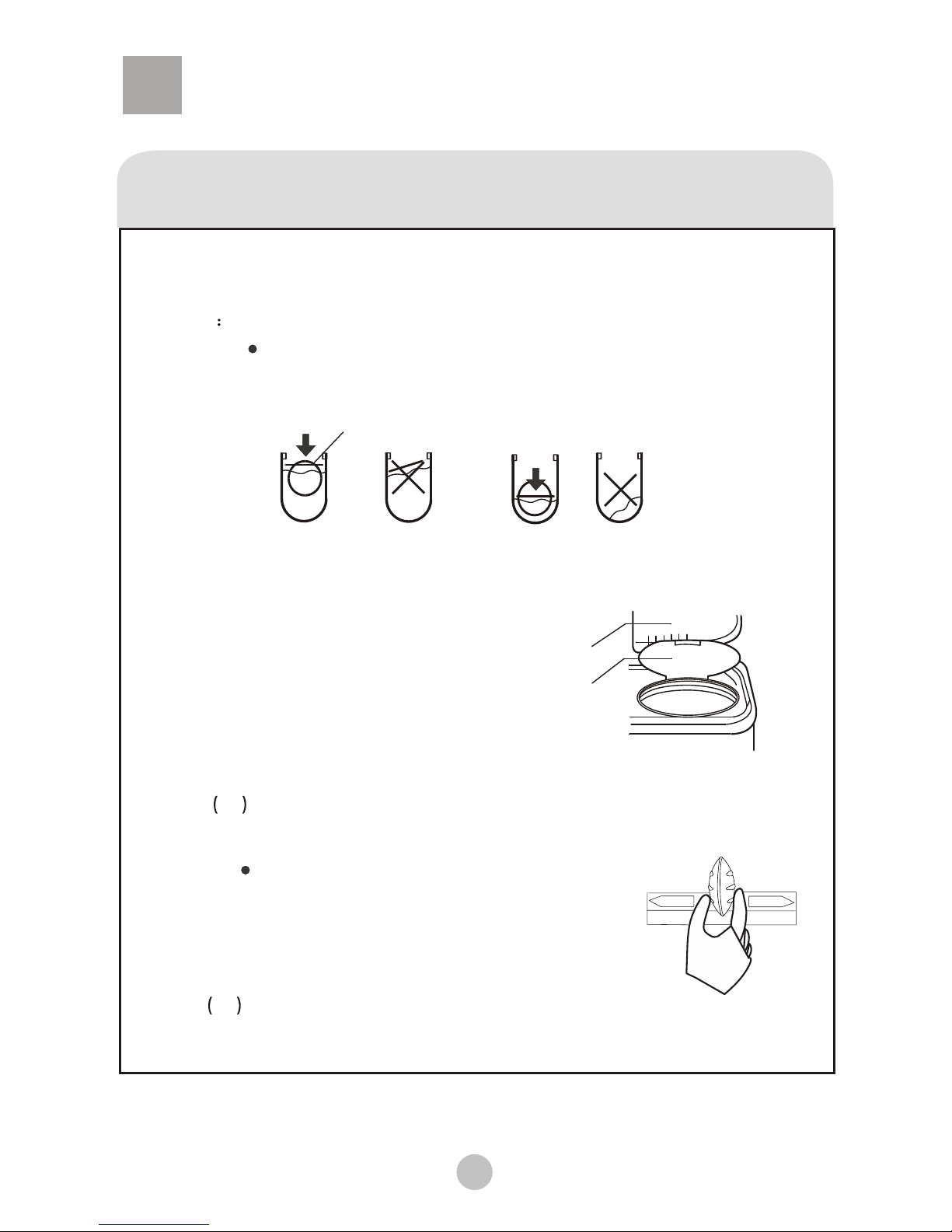

Midway spinning
1.Put the laundries into the spin tub evenly and smoothly.
2.Spin (1) Put the gland in properly.
Please put in the gland properly even if the
laundries quantity is small.
No gland
Proper
The laundries
are slanting
Proper
Push Gland
Push
Outer cover of
The spin tub
Inner cover of
The spin tub
(2) Close the inner and outer cover of the spin tub.
(3) Spin for 1-2 minutes.
3.Run the foam-removing spinning.
1
2
Set the inlet selector handle on spin side and
fill water for about 1 min.
Close the spin tub outer cover and spin
for about 1 - 2 min.
In case water flows out from wash tub side
due to too much inflow, please turn down
the water tap a bit.
WATER INLET SELECTOR
WASH SPIN

11
Rinse with stored water
Rinse with water-filling
Rinsing
1.Put the laundries into the wash tub. Select
suitable current according to the laundries.
2.Adjust the water level
Set the water level with water level adjusting
lever according to the laundries quantity.
Then fill suitable water continuously.
3.Rinse
Adjust the wash timer to 5-7 minutes to do
rinsing.
(Repeat the midway spinning and rinsing with stored
water for 2-3 times.)
1. Put the laundries into the wash tub. Select suitable current
according to the laundries.
2. Fill water to preset water level.
3. Rinse
Adjust the wash timer to 2-3 minutes to do rinsing.
When the laundries quantity is below 4.0 kg, please use
SOFT current.If you use STANDARD current,
it may splash.

Spinning
12
1.Put the laundries into the spin tub evenly and smoothly.
2.Press the gland in the tub properly. Close the inner and
outer cover of the spin tub.
3.Spin
Select suitable spin time according to the laundries, and do spinning.
During spinning, if there is abnormal sound, it is generally owing to
slanting placement of the laundries. Please stop the machine and
reorder the laundries.
In spinning, it will pause the work if you open the outer cover of the
spin tub. Close it to resume the spinning.
To do spinning and draining and rinse
with water-filling together, please first
do spinning for around 1 minute, then
do draining or rinse with water-filling .
Otherwise the spinning will stop owing
to too much water stored in the spin tub.

13
Page 8

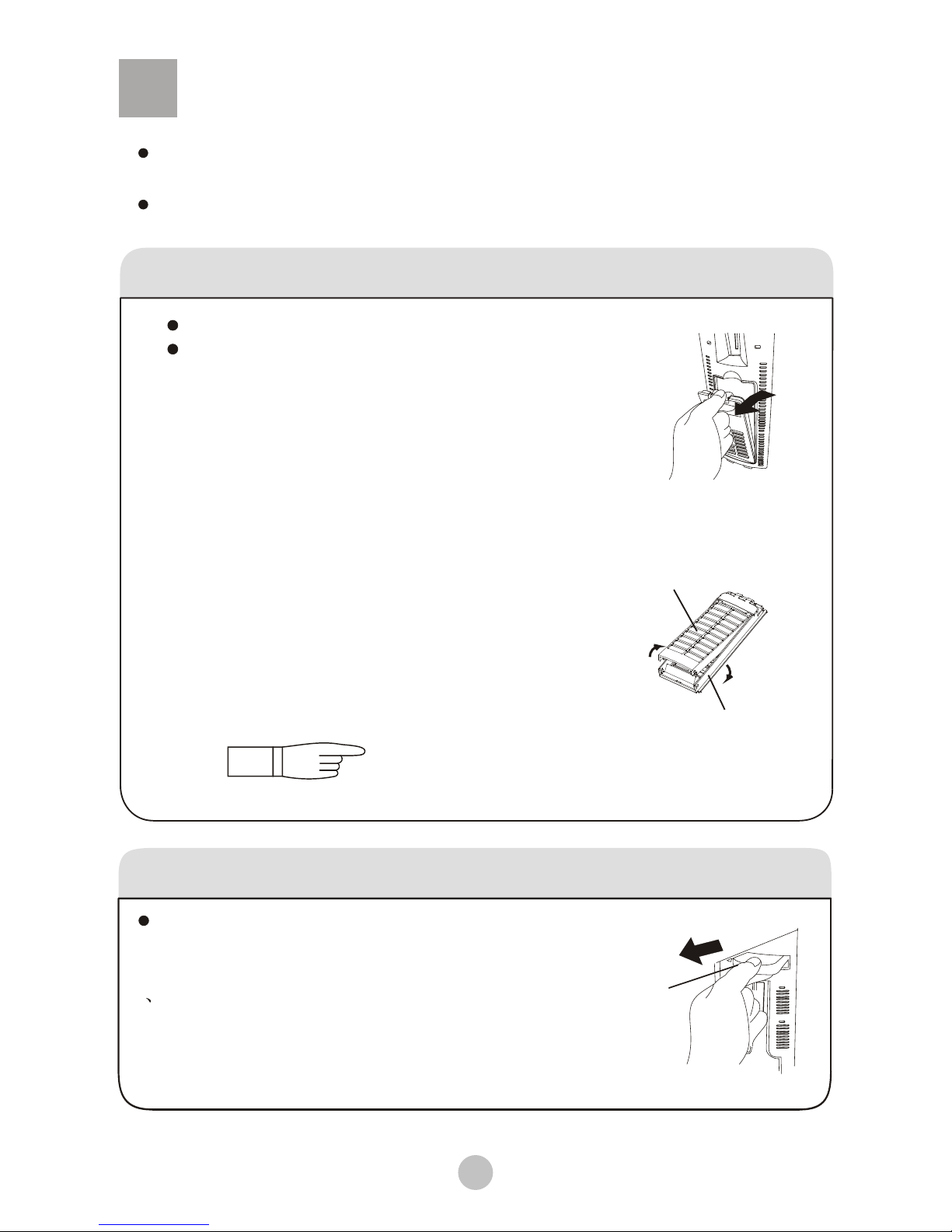

After using, please clean the lint and foreign materials of the lint filter and
overflow filter in time. Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
The lint filter must be used during washing.
It must be cleaned in time after each using.
Cleaning the lint filter
Disposal after washing
1. Press the elastic piece at upper end of lint filter to
release the tab from the filter cover, and pull the lint
filter outward to remove it. (See Figure 7).
Figure 7
Lint filter rear cover
Lint filter frontcover
Disassemble
Install
Figure 8
2. Remove lint
Pull the lower end of lint filter rear cover outward
to disassemble it from the lint filter front cover.
Remove lint completely with clear water. (See
Figure 8).
3. Install lint filter
Elastic fixing
claw
Too much lint on the overflow filter will influence
the normal usage of the machine. Please
clean it every two months.
1 Take off the overflow filter.
As indicated in the figure, nip the elastic fixing
claw and pull it to the direction of the arrow to
take it off.
Cleaning the overflow filter

14
After washing, dismount the water inlet
hose.
Do not store water in the tub for long
period. Discharge the water immediately
after each using.
Pull off the power plug and hang up the
power cord.
Hang up the drain hose.
Wipe off the water drops on the surface
and inside the tub with clean soft cloth.
Open the cover of the wash tub and the
inner/outer cover of the spin tub for
some time (about one hour), then close
them.
Wipe the complete unit with soft
cloth twisted dry.
Wipe with neutral detergent if too
dirty.
Do not wash it directly by water.
Thinner
Alcohol
Petrol

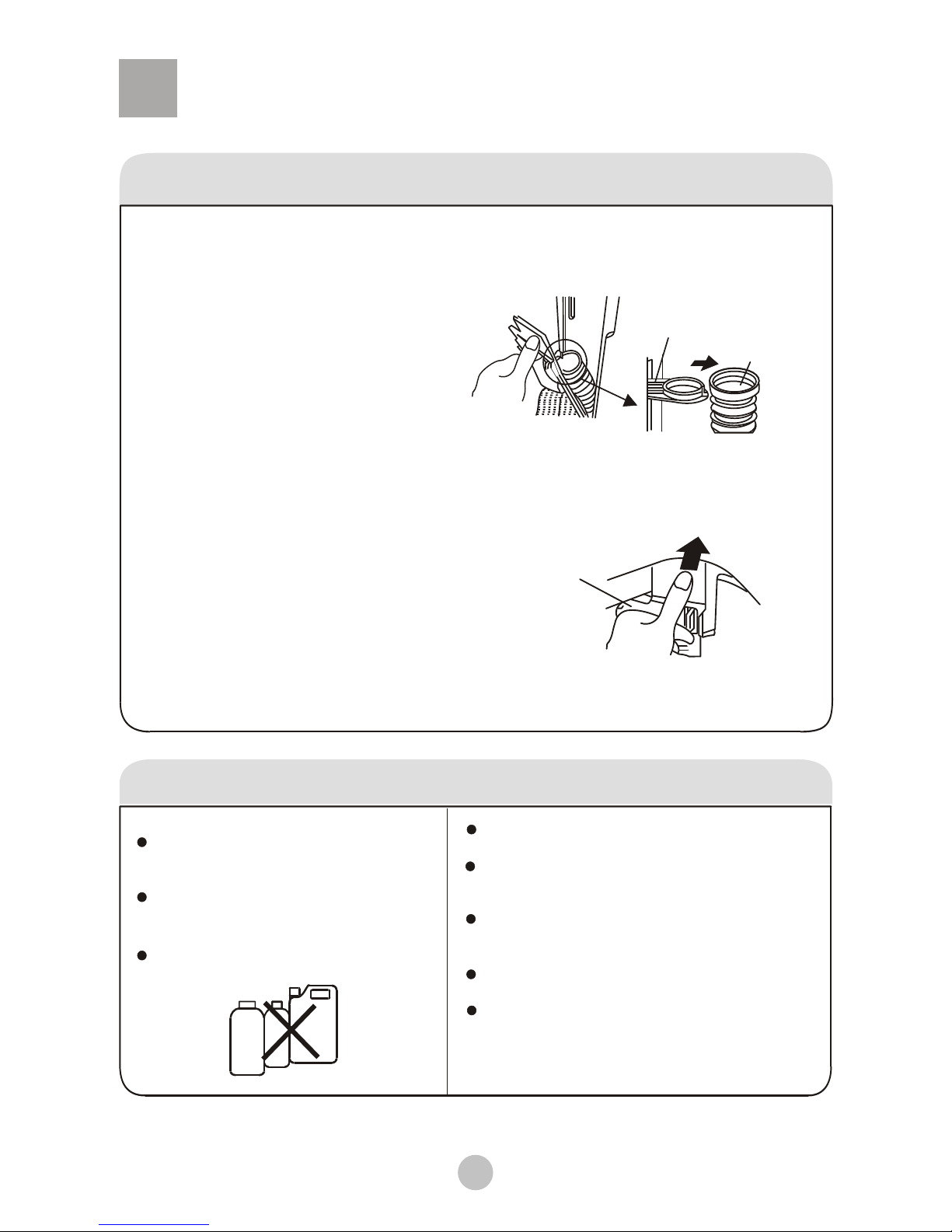

Cleaning the overflow filter
Water level
adjusting leverCorrugation
Pipe
Figure 9
Hook
Figure 10
2. Take off the corrugation pipe.
Dismantle the upper part of the
corrugation pipe inside the
overflow filter ( as indicated in
Figure 9).
3. Cleaning the overflow filter
Clean the lint around the filter
and flush with tap water.
4. Install the overflow filter.
(1).Install the corrugation pipe.
(2).Insert the mounting plate at
the bottom of the filter into
the valve cover.
(3).Hang up the hook at the left
upper side.
(4).Push the upper part in (as
indicated in Figure 10).
Disposal of the complete unit

15
Please check carefully. The laundries may fall to the
lower part of the outer side of the spin tub ( Figure 2).
If the laundries fall to the outer side of the spin tub,
during spinning the draining will get blocked and the
rotation speed of the spin tub is reduced.
Trouble-shooting Answers to question
If the laundries fall to the outer side of the spin tub
If the laundries fall to the outer side of the spin tub, Please
take it out quickly.
Prevent the freezing
Drain completely after using.
When the water is frozen
Pour hot water below 50 into the wash tub
to soak it completely. Then turn the pulsator
with hands gently. Please confirm the drainage
can work normally before next using.
Below 50
When the remained water is frozen
Spin tub frame
Figure 1
Figure 2
Laundries
Spin tub
Figure 3
1.Dismantle
First take two plugs out, then dismantle the two
screws which fixed the Spin tub frame. As
indicated in the figure, push the point marked
with " " to pull the spin tub frame to oblique
upwards to dismantle it.
2.Install
After install the back edge of the spin tub frame to
proper position, push the four points marked with
" " by force to reset it, fix it with screws, then
fixed the two plugs at the position.

16
Trouble-shooting Answers to question
(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending
it to repair. If there are real breakdowns, please come to the special maintenance
department or after-sale service department of our company. Do not repair it by yourself.
Phenomena The reason
The machine does
not act.
The draining does
not work.
There's abnormal
sound during
washing
There's abnormal
sound and violent
vibration during
spinning
There may be some
waterflowing out of
the drain hose in the
first use of the
machine.
Is there power failure?
Is the power plug loose?
Is the pulsator twisted by foreign materials?
Does the drain hose put down?
Is the drain hose frozen?
Is the drain hose blocked by foreign material?
Are there laundries falling to the outer side of
the spin tub?
Are there hair pin, coins or metal items brought
inside the tub?
Is the machine slanting?
Is the gland pressed evenly?
Are there laundries falling to the outer side of
the spin tub?
Are the laundries in spin tub too much?
It is the water remained in the factory inspection
of performance.

17
0.02 0.2
8.0/6.0
Packing list
One piece
Name Quantity
User's manual One piece
One piece
One set
Water inlet hose
Gland
Twin-tub washing machine
Specification
Maximum/71 Medium/60 Minimum/49
Water level / Water
quantity (about)(L)
Injection pressure(MPa)
Rated washing / spinning
capacity kg
One piece
Warranty card
