Haier HWM85-7288 User manual

User’s Manual
Fully Automatic Washing Machine
This manual is for
HWM85-7288
Please read this manual carefully before using.
Retain it for future reference.
Index
Safety precautions ............... 2
Packing list ........................... 4
Names of the parts............... 4
Installation and
adjustment............................ 5
Preparation before
washing .................................
9

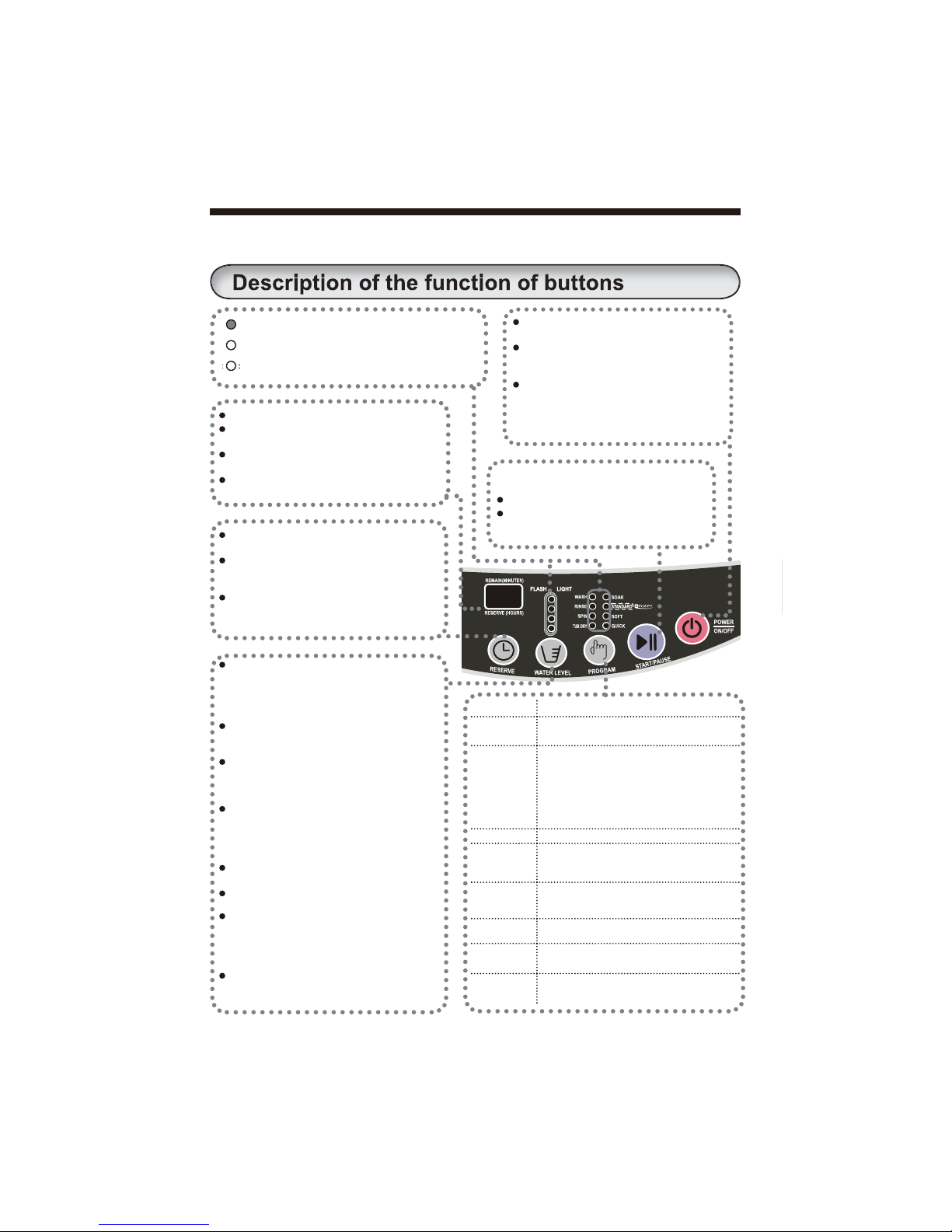

Use the operation buttons....11

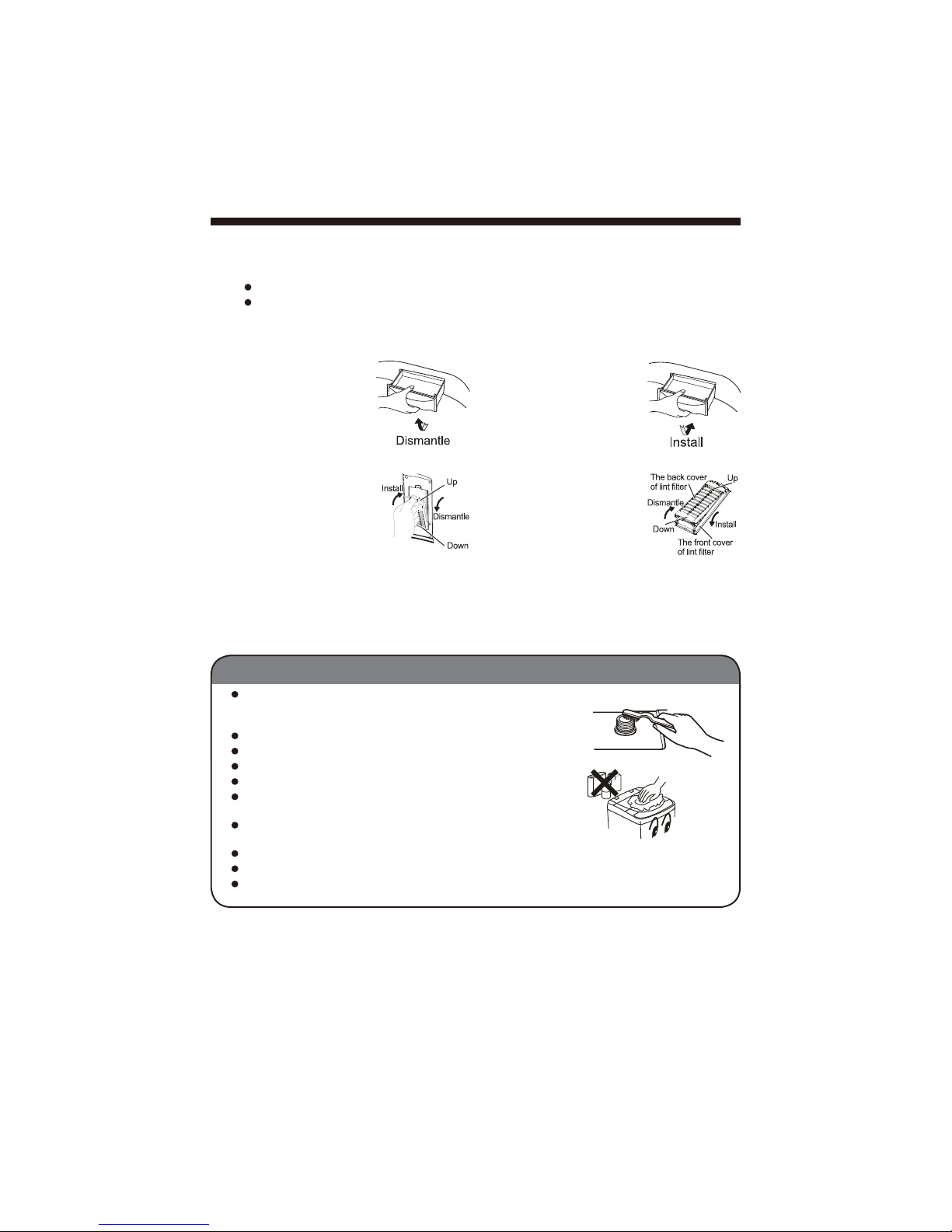

Disposal after washing .........
13
Trouble-shooting Answer
to question............................14
Speci¿cation.........................15

2
Safety precautions
Contents marked with that symbol are actions forbidden to
perform. Performing of those actions may result in damage
of the machine or injure the personal safety of the user.
FORBIDDING
Contents marked with that symbol are related to the safety
of the product and the personal safety of the users. Please
operate in strict conformity to the contents, otherwise it may
cause damage of the machine or injure the personal safety
of the user.
WARNING
Meaning and description of the symbols
Pleasecheckifpowerreceptaclehasgoodearthingconditionbeforeusingtoguarantee
your safety.
Pleasecheckifthewaterfaucetisopen,andiftheconnectionofthewaterinletpipeis
proper.
It is suggested to use foamless washing powder.
Please don’t use the washer in the environment below 0 °C; if the washer has been stored
below 0°C, please be sure to ensure the washer is placed under the room temperature
more than 2 hours and then use otherwise the washing effects may be lowered or the
washer may be damaged.
Please insert the power cord into special receptacle with rated voltage.
Be sure to use single-phase three pins receptacle.The earthing terminal of
thereceptaclemustbeearthedreliably.Ifpossible,pleaseadoptelectric
leakage protector.
The washing machine must be positioned so that the plug is accessible. Be
sure to pull the plug off and close the water faucet in following cases: power
failure, delivering the machine, setting the machine idle or cleaning the
machine.
Do not plug or pull the power plug with wet hand.
Do not bend ,extend, twist, bind by force. Do not press or nip it with weight.
Keep the pin of the power plug clean, if the power plug is polluted with dust,
please wipe with dry cloth carefully.
Ifthesupplycordisdamaged,itmustbereplacedbythemanufacturerorits
service agent or a similarly qualL¿ed person in order to avoid a hazard.
Do not let the machine share one receptacle with other
electricappliances.Ifthepluggingintothereceptacles
loose, do not use the plug any more.

3

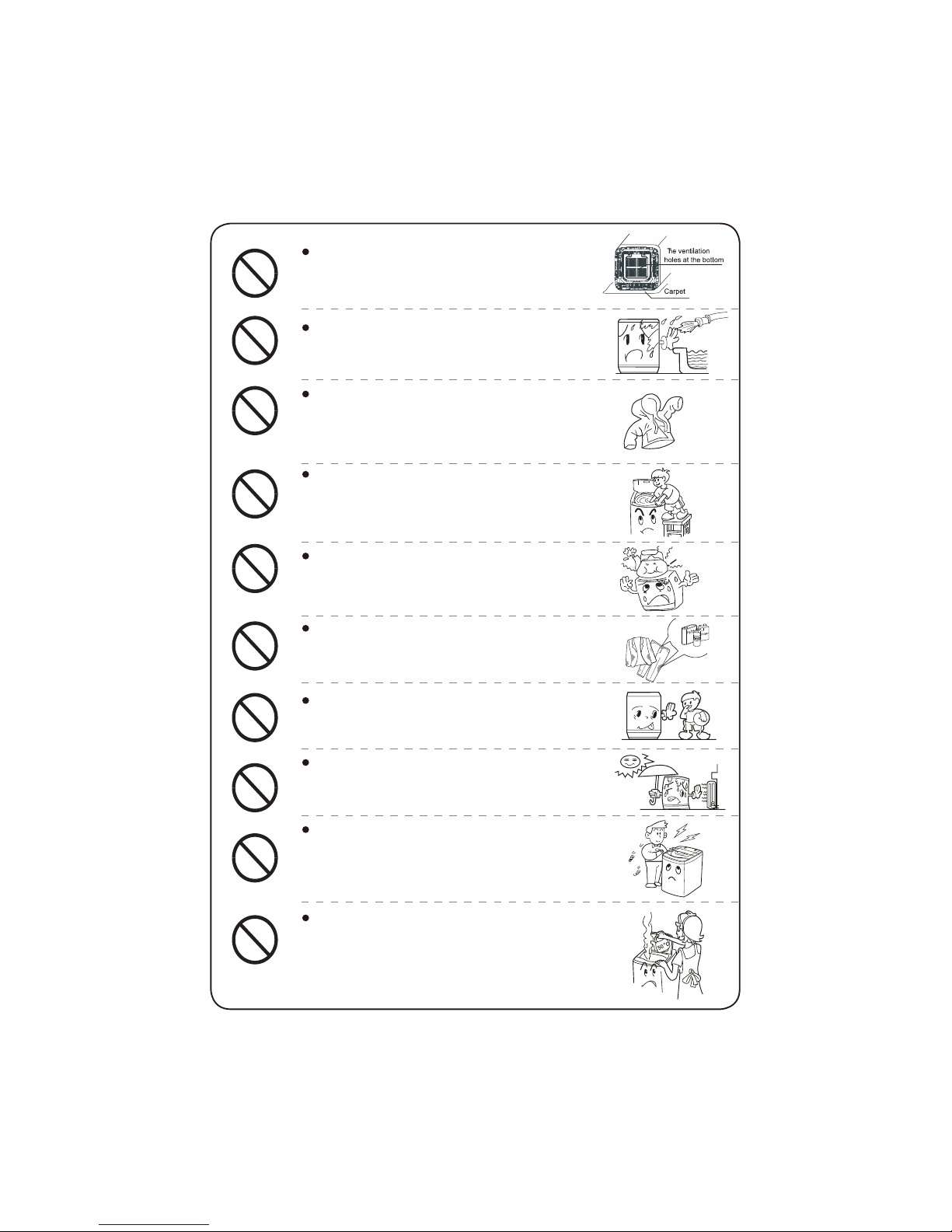

In case the washing machine is installed on ground
with carpet, do not block the ventilation hole
with carpet. Ensure carpet does not obstruct the
opening in the bases.
Donotputthemachineatdampplacelikethe
bathroom. Never wash it with water. Do not put wet
laundries on the control panel.
Do not wash water-proof laundries like the raincoat,
bike covers etc. to avoid abnormal vibrations
in spinning. Wash the clothes that can Àoat
on the water surface easily, please be careful
especially,for fear damage.
Do not stretch hands into the working machine. It is
dangerouseveniftherotationisslow.Takespecial
care of the children.
Donotputanyhotorheavyitems(suchasthe
kettle with hot water ) on the washing machine.
Do not wash laundries with volatile materials (such
as thinner, petrol etc.)
The children shall not approach the working
washing machine.
Keep the machine away from direct sunlight and
heat source like the heater.
Donotdecompose,repairoralterthemachineby
yourself.
Do not use water hotter than 50 °C.

4
Names of the parts
Packing list
Fully automatic
washing machine
Water inlet hose Bottom plate Tapping screw User’s manual
Warranty card
Screw cover(left)
Water inlet valve
Water absorption cushion
Back control board
Power line
Back cover
Drain hose
Bleach inlet
Hanging hole
Cabinet handle
Screw cover(right)
Adjustable foot ¿lm(2 pieces)
Top lid
Detergent box
Control panel seat
Outer tub cover
Lint ¿lter(2 pieces)
Balance ring
Inner tub
Filter cover(2 pieces)
Pulsator
Control panel ¿lm
Cabinet
Fixed foot (2 pieces)
Adjustable foot(2 pieces)
All illustrations in this Manual are
given for reference only. Your
products and accessories may
show differences from these
illustrations due to our continuous
improvement.

5
Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is very important
to your security and correct operating the machine.
Adjust the adjustable foot:
To twist the adjustable foot, please ¿rst lift up the side of the foot slightly, and then you
can twist the two adjustable feet. Please make sure to keep the washing machine
in balance.
The adjustable foot
The washing machine away from wall should be overrun 20mm. The largest allowable slope
oftheshankbaseofthemachineis2°.Theslantingorroughgroundwillresultinunstable
running or stoppage of the machine. Please adjust it with following methods:
Confirm it's horizontal:
Hang the lead line to check if it is horizontal.
Soft items
Back
Front
Bottom plate
Section I enlarging
After you open the package, please lean
the washing machine gently down on soft
items (like the towel cloth, blanket, ect. ).
Install the bottom plate to the bottom of
the machine, then lift the machine up
gently. See to the figure:
Two claws at the bottom cover shall
be inserted in two bar-shaped holes
in the stand. Make sure the claws
are firmly in place.
Fasten the bottom plate to
base frame with one screw
High Low

6
Screw knife
Figure 4
Figure 5
About 4mm before twisting
About less than 2mm after twisting
Screw
Bushing
Sign plate
Screw nut
Figure 2 Figure 3
Figure 6
2.Loosen the screw till the water faucet can be
accessed. Put the jointer of the water inlet
hose on the faucet. See to Figure 2. (If the
faucet is too large and the jointer can not be
set on the water faucet,please loosen the four
screws and take out the bushing in the jointer.
The front end of the faucet must be smooth,
otherwise it may leak water. See to Figure 3.)
3.Fasten the four screws evenly. See to Figure 4.
4.Take off the nameplate. Twist the fastening nut
as per the indication of the figure to seal up the
exit end face of the faucet. See to Figure 5.
Remark: Before installation, the threading is
4mm above the upper surface of the nut.After
installation, the threading is 2mm above the
upper surface of the nut.See to Figure 6.
Connection between the water inlet hose jointer and the
water faucet
1.Press the lower end of the lock lever and push
down the slider. Take off the water inlet hose
jointer from the water inlet hose component.
See to Figure 1.
water inlet hose jointer
water inlet hose
Figure 1
Slider
Lock lever
The exit end face of the faucet
water faucet, suitable
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth.If not please file it to avoid leakage.
Confirm the water faucet
water faucet, not suitable
NOTE: The appliance is to be connected to the water mains using new hose-sets and
that old hose-sets should not be reused.

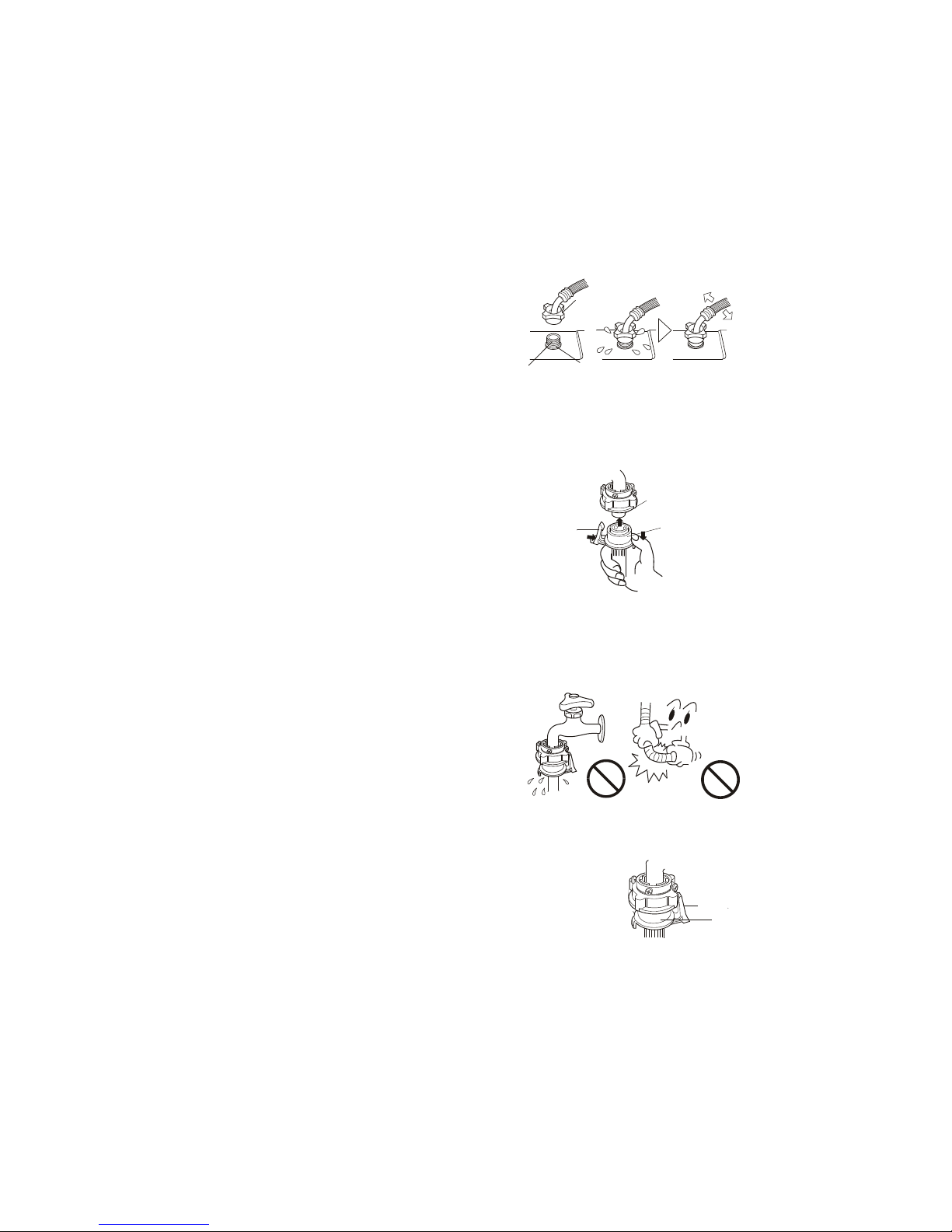

1.Do not take off the water absorption cushion. Please
check if the cushion is dropped or damaged before
each usage. If it happens please contact our
after-sale department immediately.
2.Put the nut of the water inlet hose on the valve
jointer.
3.Fasten the nut. Swing it gently to confirm if it's
suitable.
1.Push down the slider. Insert the water inlet hose
into the jointer.
2.Hang the lock lever to the jointer. Release the
slider till a click sound is heard.
1.Swing the hose gently to confirm if it is fastened stable.
2.After installation, open the faucet to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if the connection between
the jointer of the water inlet hose and the water faucet, and
the installation of the water inlet hose are firm, so as to
prevent dropping from improper installation position.
1.Close the water faucet.
2.Press the locking lever. Push down the slider.Then pull off the water inlet hose.
If the machine is used frequently, the jointer of the water inlet hose can be kept
on the faucet to prevent damaging the fixing screw.
Dismantle the water inlet hose
Connection between the jointer of the water inlet hose and the
water inlet hose
Check the connection between the jointer of the water inlet hose
and the water faucet
Locking lever
Slider
water absorption
cushion
nut of the water
inlet hose
The jointer of the
water inlet hose
Slider
Locking lever
jointer of the
water inlet valve
Connection between the water inlet hose and the washer
7

8
The drain hose shall drain smoothly.
Do not trample or press the drain hose.2.Theheightofthedrainhoseshallbeless
than 10c m,orthedrainagewillnotbesmooth,
and cost such long time that the machine may
stop at mid way.
1.
3.
5.
4.
If the drain hose is too long, cut it at mid
point. To make smooth drainage,cut the front
end of the hose slantingly.
If the extra hose is too long,cut it either at A or at B point.
If extra drain hose is needed,please
make separate purchase.The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
How to change the direction of the drain hose
1.Please lean the washing maching gently down on soft items(like the towel cloth,blanket,etc.)
2.Remove the Drain hose from the fixing clamp of the base frame.
3.Fixthe drain hose in the fixing clamp on the other side.
4.Lift the maching up gently.
Remark: In order to make sure of the correct of installation, it is suggested to change the
direction of the drain hose with our company serviceman.

9

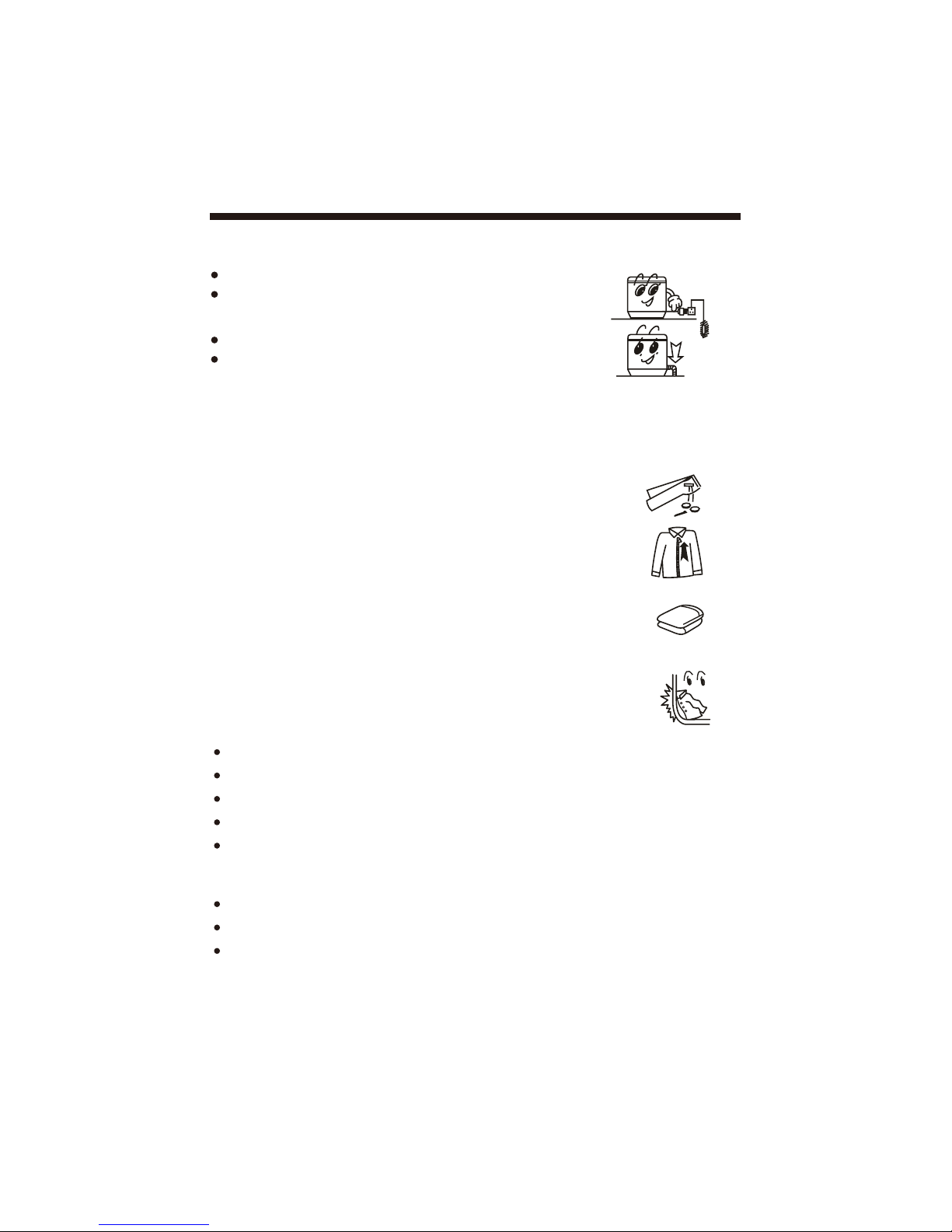

Preparation before washing
Connect the water inlet hose. Open the water faucet.
Con¿rm that the washing machine is earthed reliably. Then insert
the power plug into the receptacle. The earth terminal shall not
link to gas pipeline and faucet water pipeline.
Put down the drain hose.
Slanting or uneven ground may result in unstable working or
abnormal noise. Please make the machine stand horizontally.
Clearthepocket.Takeoutthecoins,sand,hairpinsetc.
Confirm if there is special requirement for the laundries.
Check if the laundries are applicable for washing with machine.
Please repair the damaged cloth before washing in order to avoid the situation worse.
Dividethelaundriesthatarenotcolorfastfromotherlaundries.
Put those laundries dif¿cult to absorb water into water with hand.
For those laundries with heavy soil, please ¿rstremovethedirtlikemudordust.Fortheparts
with heavy soil, please apply detergent on them in advance, which can make it easier to remove
the soil.
Forthoselaundriesthatmaygetlintballandthosewithlongfur,turnitoverbeforeputtingin.
Donotputthoselaundriespollutedbychemicalsintothewashingmachinedirectly.
The foreign materials will result in damage of the machine.
Thequantityofthelaundriesshallnotbetoolarge.Stretchandloosenthe
laundriesbeforeputtingtheminthetub.
Whenthepulsatorisrunning,thebuttonsofthelaundriesmaycausenoise.
For the sake of discretion, please put the laundries with buttons into other
laundries.
Tie the long strips; fasten the buttons;close zippers.
Pay attention to followings before washing the laundries

10
How to use the whitener
How to use the washing powder and Softner
Fillwatertodecidedlevel.Dilutethewhitenerwithcontainer.Pouritslowlyintothewashingtub.
Avoid using whitener on laundries with color or pattern as they are prone to lose color.
The whitener shall not touch the laundries directly.
Refer to the user’s manual for the usage and quantity of the whitener.
For powder whitener, please dissolve it before using.
Directly dissolved in the machine: (not applicable for fuzzy program )
.retawfoytitnauqllamslliF.1
completely
tievlossidotsdnoces03rofnuR.redwopehtddA.2
.levelretawelbatiustceleS.seirdnualehtnitituP.3
The instant dissolving of the washing powder:
.reniatnocadnaC°03foretawmraweraperP.1
.tievlossidyllufotgnirritselihwredwopehtddA.2
Thesuperquickprogram,itissuggestedtoadoptliquiddetergentinsteadof
washingpowdertoguaranteethewashingeffect.
Put in the proper quantities detergent according to the water level and the
laundries quantities.
It is suggested not to use high sudsing
detergent. Washing powder with poor
qualityorlongtimestoragemaybecaked.
Pleasepayattentiontocleaningthe
detergent box in time.
The capacity of washing and spinning of he machine refer to the largest weight
ofthestandardlaundriesunderdryconditionthatcanbewashedorspinnedinone
time. One time washing quantity shall be lower than the rated capacity.
The thickness, size, type of the cloth will inÀuence the actual washing capacity. It
is suitable for one time washing to put in reasonable amount of laundries and the
laundries can be turned round in washing.
Do not select the high water level for laundries less than 1.0kg ,so as to avoid
splashing of water.
Figure 1
Figure 2
Open Close
Access for softener
Control panel seat
Bleach Inlet
How to use the softener
Theusageanddoseofthesoftener
as per the speci¿cations of softener.
Turn the inner tub,you will find a
softener inlet as the figure 1,open
the cover,put the softener into the
inlet as the figure 2.Before washing,
close the cover and the softener will
drop into the inner tub during the
last time rinsing.
After the softener is put in, please don’t place
for a long time otherwise softener may solidify
and cause flowing not smooth.
Don’t put in the soften if the quick program is
selected.
