Haier HWM80-68B User manual

Full automatic washing machine
User's manual
This manual is for
HWM80-68B
Please read this manual
carefully before using.
Retain it for future reference.

Names of the parts
Safety precautions
Contents
Answers to question
Trouble shooting

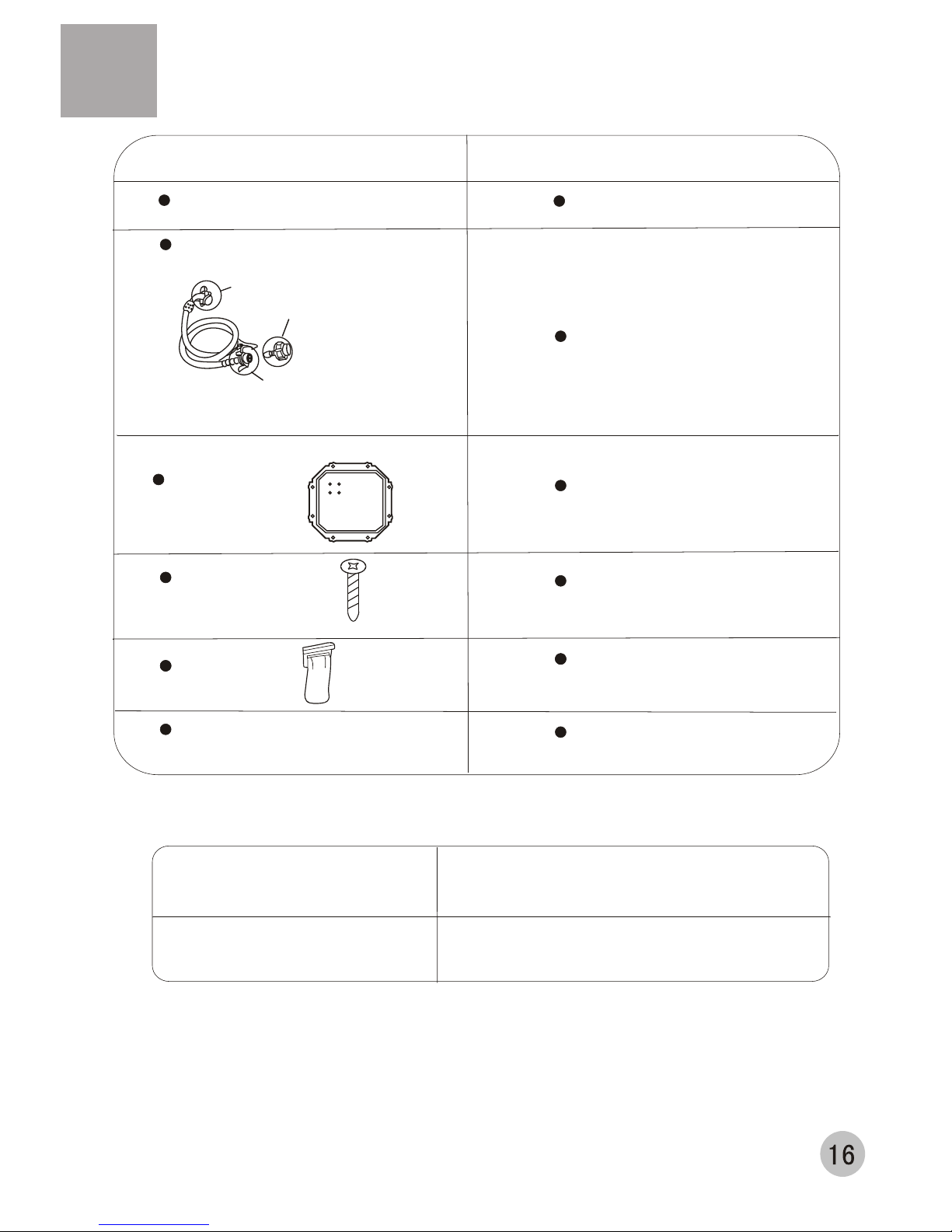

Packing list Specification
Installation and adjustment
Usage of the drain hose
Preparation before washing
Put in the laundries
Add the detergent and softener

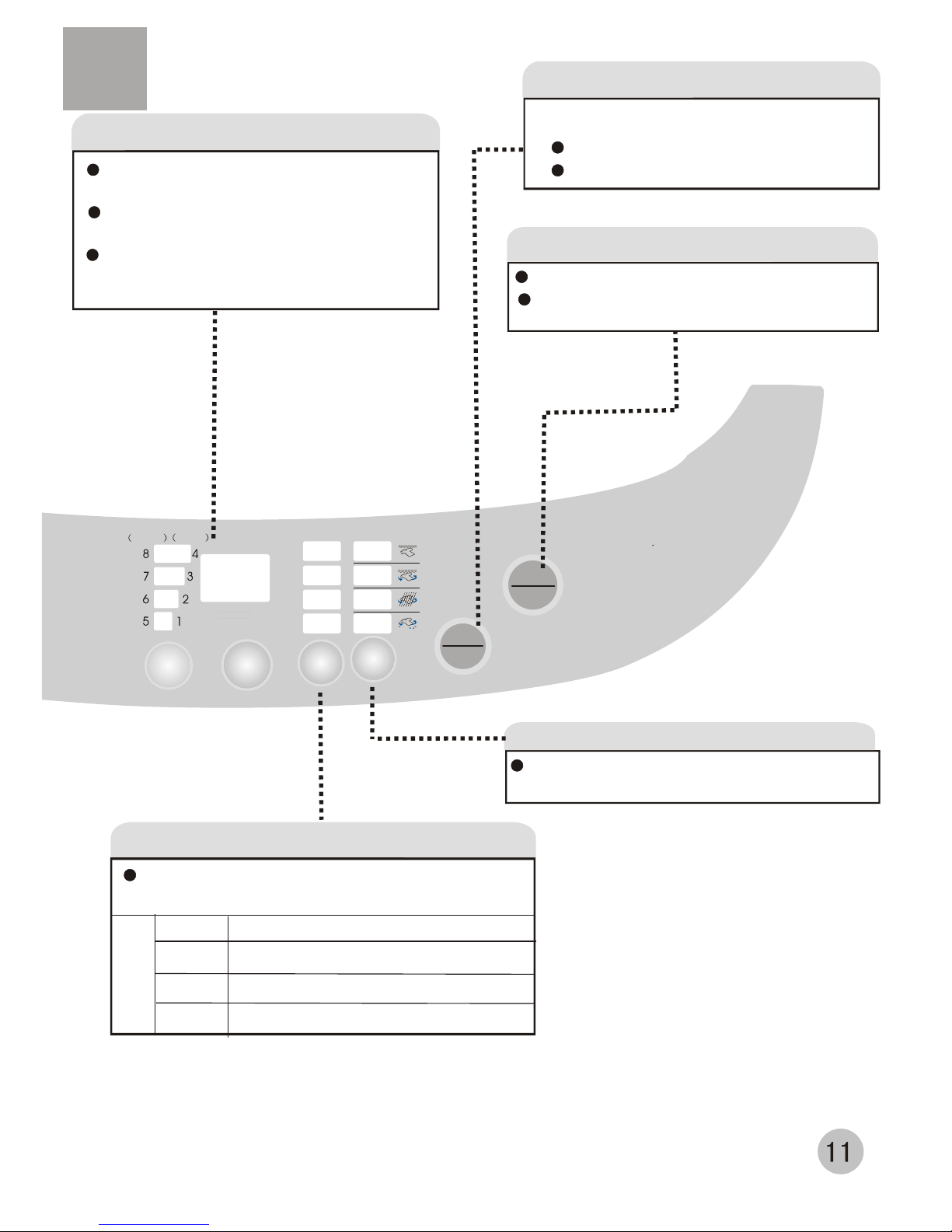

Use the operation knobs and buttons
Installation the water inlet hose
Disposal after washing
*
Finish washing
Close the top lid

Please check if the power receptacle has good earthing
condition before using to guarantee your safety.
Warning sign

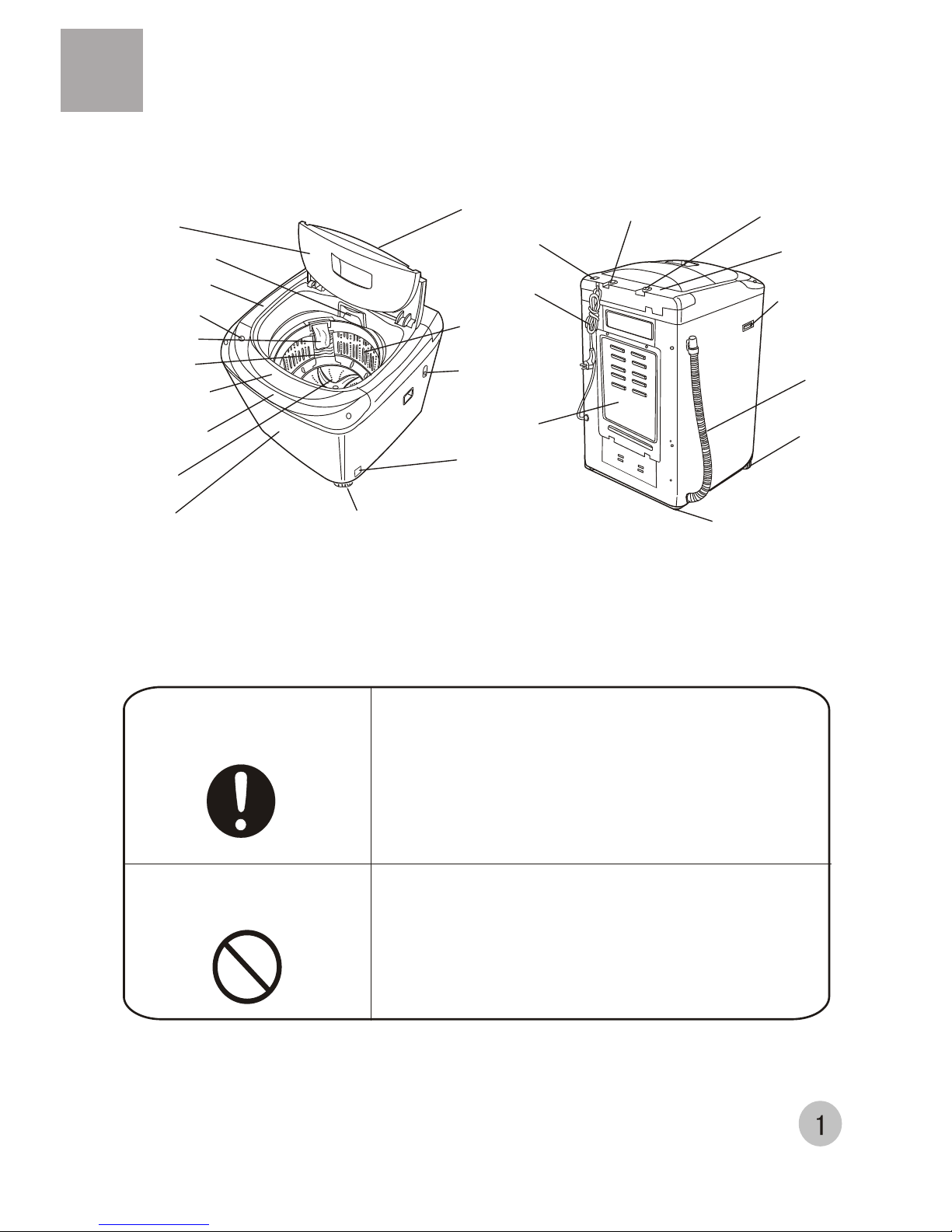

Names of the parts
Meaning and description of the symbols
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damageof the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.
Adjustable foot
Front control
board
Front fixed
foot
Rear fixed foot
back cover
Cabinet
Drain hose
Back faceplate
Control panel
film
Control panel
Lint filter(Installed by user)
Filter cover
Level meter
Power line
Pulsator
Inner tub
Detergent box Drier outlet
cover
Top lid B
Cabinet handle
Globe cover
Cool water valve
Top lidA
Adjustable foot
seam
hanging hole
for the drain
hose

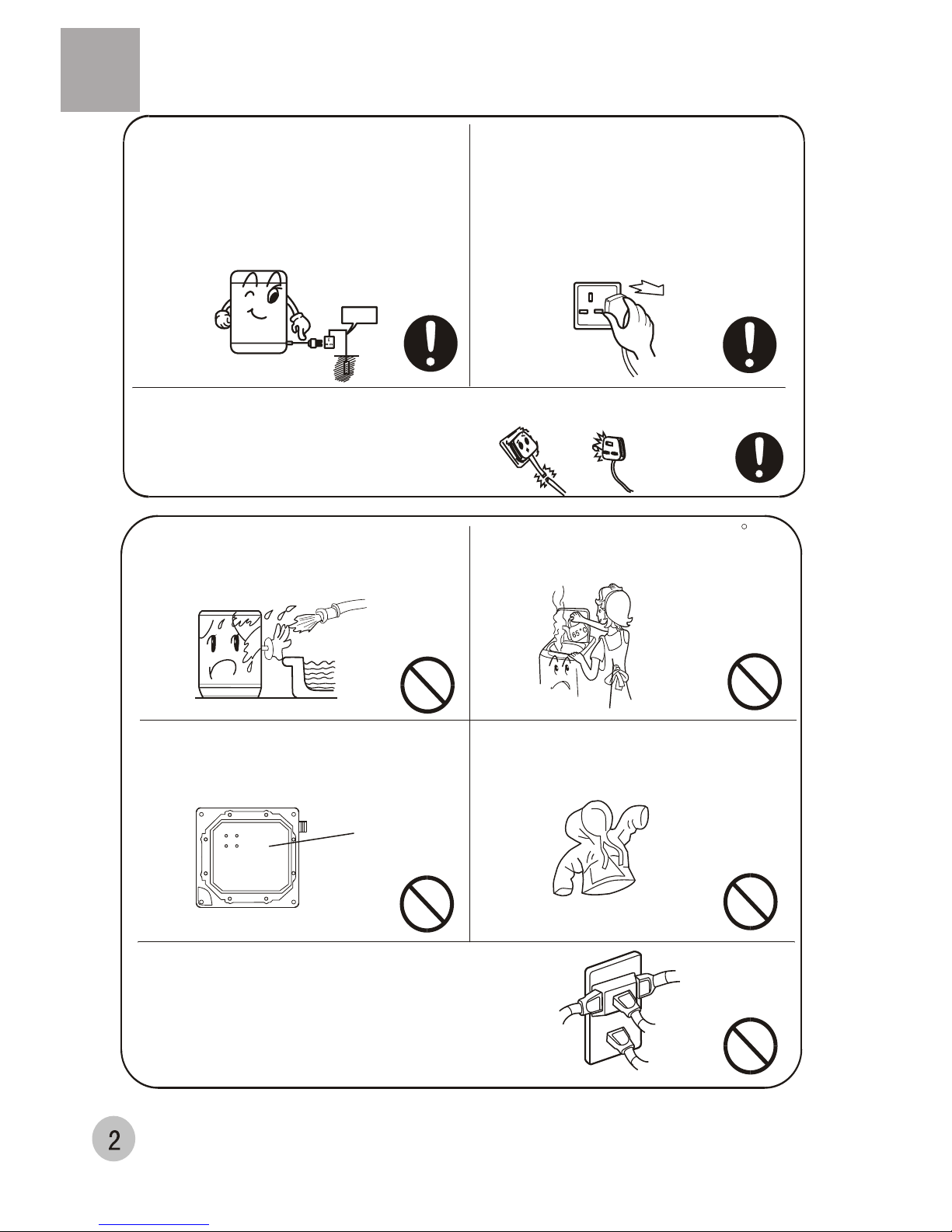

Safety precautions
Please insert the power cord into
special receptacle with rated vol-
tage.Be sure to use single-phase
three pins receptacle.The earthing
terminal of the receptacle must be
earthed reliably.If possible,please
adopt electric leakage protector.
When the machine is normally
using, please put the power plug
at the location easily to be insert-
ed and extracted by hand. Be sure
to pull the plug off when there's
power failure, or the machine is
being moved, cleaned or when it
is idle.
If the power cord is bad, to avoid risk it is required to replace it by the
technicians of our special shop or the after-sale service department.
Keep the pin of the power plug clean.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not use water hotter than 65 C .
In case the washing machine is in-
stalled on ground with carpet, do not
block the ventilation hole with carpet.
The ventilation holes
at the bottom
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
Earth

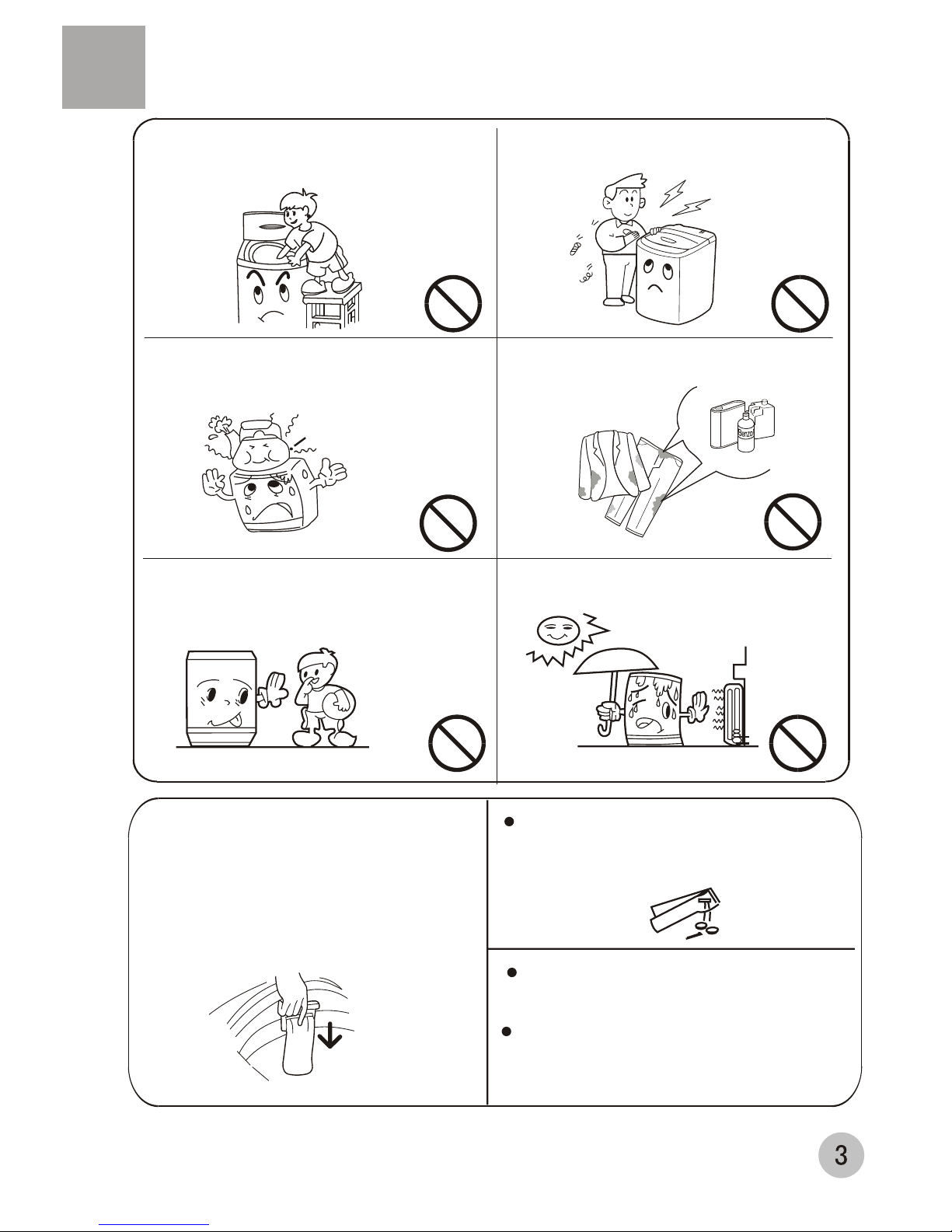

Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Safety precautions
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Petrol
Thinner
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
Please check if the water faucet is open,
and if the connection of the water inlet
pipe is proper.
It is suggested to use foamless washing
powder.
Toprevent the lintin the tubfrom blocking
the cascade outlet and influencing the
cascade effect, please keep the lint filter
in good condition, and install it to proper
position during washing.If the lint filter is
lost or damaged,please contact thelocal
after-sale service department of our
company.

Install the bottom plate
Adjust the installation position
Soft items
Bottom plate Screw
Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
Back
Front
After openingthe package, pleaselean the
washing machine gently down on soft items
(like towel cloth, blanket, etc.). Install the
bottom plate to the bottom of the machine
with eight screws by a cross screwdriver,
then lift the machine up gently. See to the
figure:
Loosen Fasten
High Low
Adjustable nut
Adjustable leg
The largest allowable slope of the shank base of the machine is 2 .
The slanting or rough ground will result in unstable running or
stoppage of the machine. Please adjust it with following methods:
Confirm it's horizontal:
Adjust the adjustable leg:
If the bulb of the level meter at the balance display
position is inside the standard circle, it indicates that
the machine is horizontal. Otherwise you need to
adjust the adjustable leg of the machine.
1.To twist the adjustable leg, please first lift up the
leg side slightly, loosen the adjustable nut, and
then twist the leg.
2.After adjustment, fasten the nut.
Air bubble
Standard circle
Suitable Not suitable

Inner tub Lint filter
After openingthe package, pleasetake out thelint
filter from the document bag,install it tothe filter cover
of inner tub.See to thefigure.

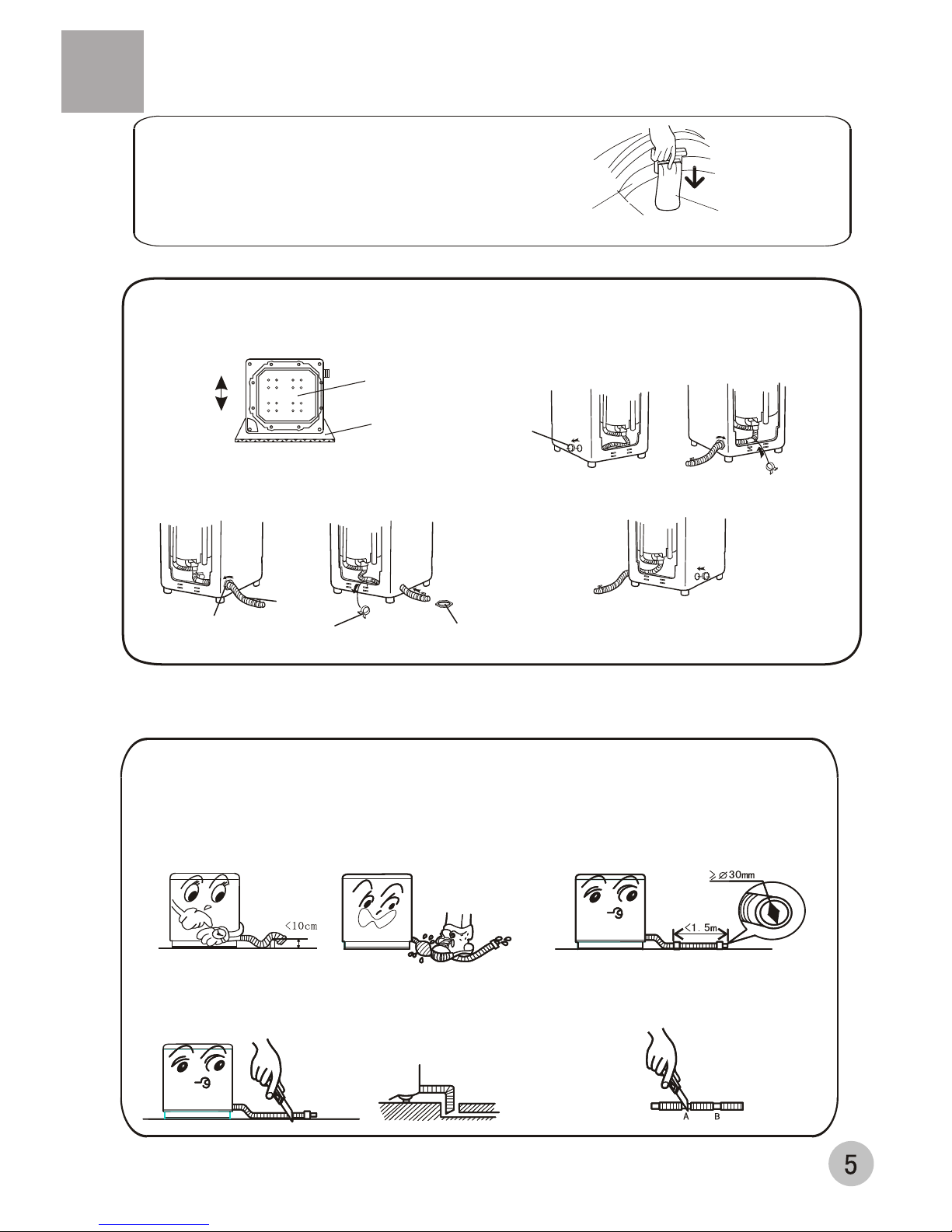

How to change the direction of the drain hose
1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not ramp or press the drain hose.
3.If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
Usage of the drain hose
The drain hose shall drain smoothly
1.Dismount the back cover of the washing machine.
2.Lay down the washing machine gently with the front
side facing the ground. Use cross screwdriver to
loosen the eight screws. Take off the bottomplate.
4.Dismount the protecting cover of the drain outlet at the
other side as indicated in Figure 3.
5.Extend the drain hose out of the other side. Fix the drain
hose onto the cabinet with the drain hose rack. Set the
drain hose nut on, and fasten the nut to the direction
indicated in the figure, as per Figure 4.
6.Install the protecting cover of the drain outlet to the other
side, as indicated in Figure 5.
7.Install the bottom plate (method the same as stated
above). Lift up the washing
machine gently.
3.Put down the outer drain hose. Twist the drain hose nut
counterclockwise to take it off as indicated in Figure 1.
Take off the drain hose rack. Put the drain hose into
the cabinet as indicated in Figure 2.
back
front
bottom plate
drain outlet
protecting
cover fasten
drain hose nut
Drain hose nut Drain hose rack
Outer
drain hose
Loosen
soft item
Figure 1
Figure 3 Figure 4
Figure 5
Figure 2
If the extra hose is too long, cut it either
at point A or B.
Install the lint filter

Install the water inlet pipe
Connection between the water inlet hose jointer and the water faucet
Water faucet, suitable water faucet, not suitable
It is required that the front end shall be longer than 10mm.
The outlet end surface of the faucet shall be flat and smooth. If not, please file it smooth to avoid leakage.
2. Loosen the four screws of the water inlet hose jointer till the water faucet can be accessed. Then set the water inlet hose
jointer on the faucet. See to Figure 2. If the faucet is too large and the jointer cannot be set on, please loosen the four
screws and take out the bush inside the jointer. See to Figure 3.
1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the
water inlet hose component. See to Figure 1.
3. Fasten thefour screws ofthe water inlethose jointer evenly. See toFigure 4.
About 4mm after twisting
Remark: .Before installation, the threading is 4mm above the upper surface of the nut.
After installation, the threading is 2mm above the upper surface of the nut..
About above 2mm after twisting
Water inlet hose jointer
Screw knife
Screw
Bushing
Nameplate
Screw nut
Water inlet hose Figure 1
Figure 4
Figure 2
Figure 5
Figure 3
Figure 6
Slider
Lock level
Install the water inlet hose
4. Take off the nameplate.Twist the fastening nut as per the indication of the figure
to seal up the exit end face of the faucet. See to Figure 5.
Connection between the water inlet hose and the washing machine
1 Do not takeoff the waterabsorption cushion. Pleasecheck
if the cushion isdropped or damaged eachtime before using.
If it happens so,please duly contact ourafter-sale service
department.
2 Set the nutof the water inlethose on the waterinlet valve jointer.
3 Fasten the nut.Swing it gently toconfirm if it's fastenedwell.
Water absorption cushion.
Water inlet
hose nut
Water inlet valvejointer

7
Dismount the water inlet hose
Connection between the water inlet hose jointer and the water inlet hose
Check the connection between the water inlet hose jointer and the
water faucet
1.Swing the hosegently to checkif it is fastened stably.
2.After installation, open thefaucet to check ifit leaks water.
3.Do not bend thehose by force.
4.Each time before using,please check if theconnection
between the water inlethose jointer and thewater faucet,
and the installation ofthe water inlet hoseisfirm, so as
to avoid dropping owingto improper installation.
1. Push downthe slider.Plug the waterinlet hose intothe jointer.
2. Hang thelock lever ontothe jointer.Release
the slider tilla click soundis heard.
Lock level
Slider
The water inlet
hose jointer
Slider
Locking level
1. Close thewater faucet.
2 .Press thelock lever andpush down theslider. Thenpull off the
water inlet hose.If the machineis used more than once every
week, the waterinlet hose jointercan remain onthe faucet to
avoid damaging thefastening screws.

1 Preparation before washing
Preparation before washing
1.Connect the water inlet hose. Open
the water faucet.
2.Confirm that the washing machine is
earthed reliably. Then insert the
power plug into the receptacle. The
earth terminal shall not link to gas
pipeline and faucet water pipeline.
3.Put down the drain hose.
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.

2 Put in the laundries
The capacity of washing and spinning of he machine
refer to the largest weight ofthe standard laundries under
dry conditionthat can be washed or spinned in one time.
One time washing quantity shall be lower than the rated
capacity.
The thickness, size, type of the cloth will influence the
actual washing capacity. It is suitable for one time
washing to put in reasonable amount of laundries and
the laundries can be turned round in washing.

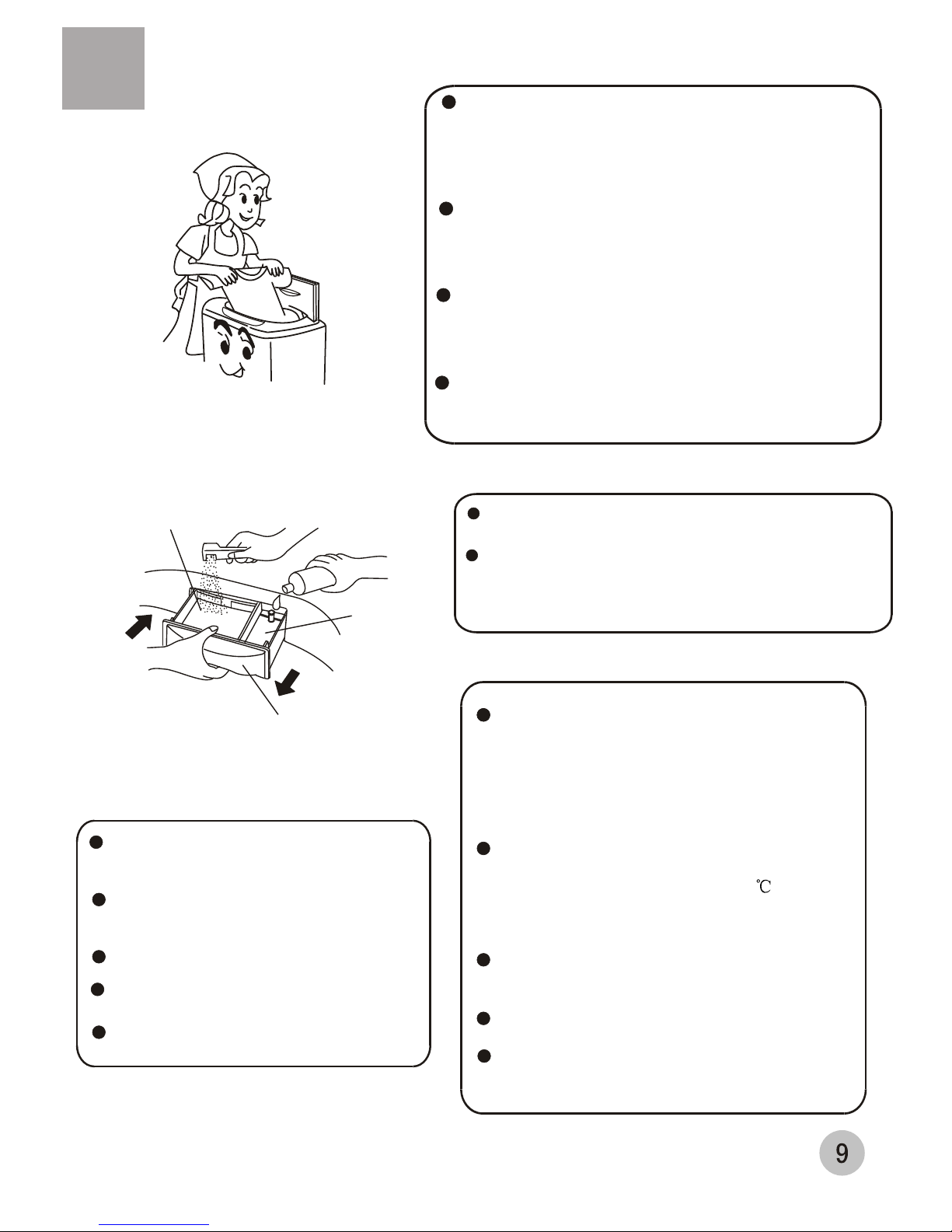

How to use the whitener
Fill water to decided level. Dilute
the whitener with container. Pour
it slowly into the washing tub.
Avoid using whitener on laundries
with color or pattern as they are
prone to lose color.
The whitener shall not touch the
laundries directly.
Refer to the user's manual for the
usage and quantity of the whitener.
For powder whitener, please dissolve
it before use.
How to use the washing powder
Direct dissolved in the machine
1.Fill in small quantity of water.
(Select water level 1)
2.Add the powder. Run for 30 seconds to
dissolve it completely.
3.Put in the laundries. Select suitable
water level.
The instant dissolving of the washing
powder:
1. Prepare warm water of 30 and a
container.
2. Add the powder into the container
while stirring to fully dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
It is suggested not to use high sudsing
detergent.
Washing powder with poor quality or long
time storage may be caked. Please pay
attention to cleaning the detergent box in time.
3 Add the detergent and softener
Detergent box
Inlet for concentratedwashing
powder and detergent
Softener inlet
Put the washing powder and softener into the detergent
box directly as indicated in the left figure.
After that, please close the detergent box. Refer to the
following table for the usage of the detergent: The
standard dosage of the detergent and the water
quantity
Please do notselect high waterlevel for laundriesless
than 2.5kg toavoid splashing.In washingthe fluffy laun-
dries like thewoolen blanket, thequantity shall notexce-
ed 3kg foreach cycle.
In using waterwith high temperature,please pay atten-
tion to thewashing temperature limitstated on thelabel
of the laundries.

4 Use the operation knobs and buttons

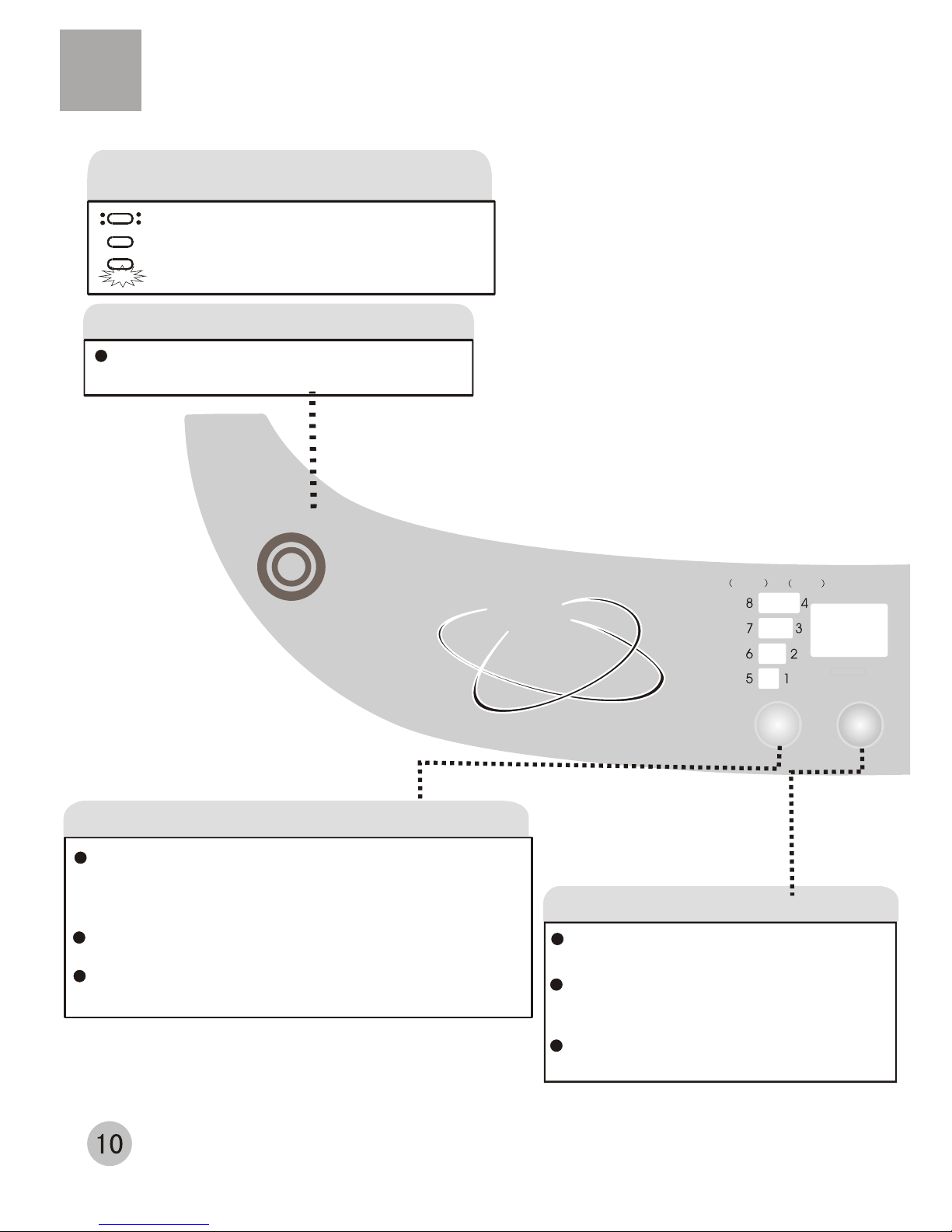

a Description of the function of the operation buttons
Balance display
If the bulb of the level meter is inside the standard circle, I
t indicates that the machine is horizontal.
The machine is setted to be water level 4,when the light is
on you press the button continuously, you will select the
water level 4,5,6,7,8,1,2,3 in turn(except quick wash
program).
In the process of SOAK WASH RINSE the water level is no
changed, then it only supply water.
When you selected the quick wash ,the water level is setted
to be 2, then it can not be changed the water level.
WATER LEVEL button
Mode and meaning of the indicator
Flash: indicating the running mode
On: indicating the mode about to run
Flash rapidly: indicating abnormal situation
RESERVE button
Push the buttonto select washingfinishing
time between 2-24hours.
When the RESERVEfunction is activated,
the RESERVE andTIME REMAIN indicators
are on. Theother indicators areoff.
Push the RESERVEbutton to displaythe
reserve mode.
WATER
LEVEL
SURPLUS(MIN)
RESERVE
HOURS LATE
R
RESERVE
BALANCE DISPLAY
WM850A
FLASH LIGHT

Standard Common washing
Heavy Washing the heavy clothes
Gentle Washing the woolen textiles or underwear
Fast 10-minute quick washing of laundries with light soil
PROGRAM button
The following fourprograms are availablefor your
option
Program
After the poweris switched on,push it tostart
the machine
During working, pushit to pauseworking.
During pause, pushit to resumeworking.
During operation of programs, it displays the
remained time (minute)
During reserve procedure, it displays the
remained reserve time (in hour)
In case of abnormal phenomenon, it displays
the abnormal symbol (see to Page 15)
Push it to select one or more programs from SOAK
WASH RINSE and SPIN
SELECT button
START/PAUSE button
Digitron
Push the On/Offbutton to switchon the power.
When the poweris on, pushit again toswitch
off the power.
POWER ON/OFF button
Remarks: Push the On/Off button to switch on the power. If the washing machine is idle for 5 minutes, it will automatically
switch off the power.
WATER
LEVEL
SURPLUS(MIN)
RESERVE
HOURS LATER
RESERVE
PROGRAM
SELECT
START
PAUSE
POWER
ON/OFF
FLASH LIGHT
STANDARD
HEAVY
GENTLE
FAST
SOAK
WASH
RINSE
SPIN

2 Push the program button to select suitable automatic program.
After switching on the power, the machine will set standard program automatically. To select other
automatic program,
push the PROGRAM button till the relative indicator is on.
For instance: select FAST program for laundries with small quantity and light soil.

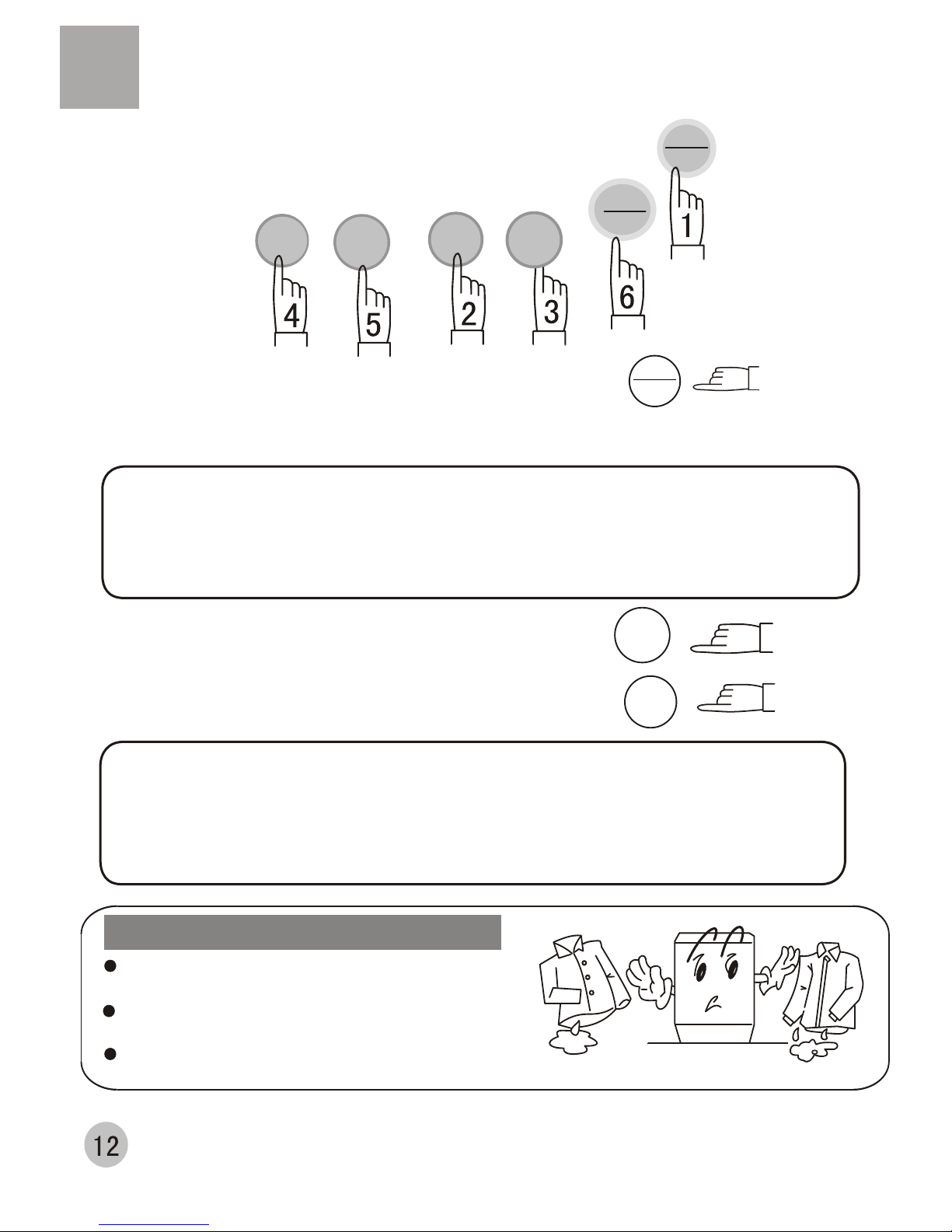

b Steps of using the operation buttons and description of each step.
POWER
ON/OFF
1 Push the POWER ON/OFF button to switch on the power.
PROGRAM
3 Push the select button to select suitable procedure.
SELECT
After switchingon the power, the washingmachine will setto WASH-SPINprocedure
automatically. Itis the commonprocedure. To select otherprocedures, push theSELECT button to
select one ormore procedures fromSOAK, WASH,RINSE and SPIN.Refer to PROCEDURE
SELECTION METHOD tomake selection.
POWER
ON/OFF
RESERVE
PAUSE
START
WATER
LEVEL
SELECT
PROGRAM
Even there's no water in the tub, a certain period
is required before spin starting.
Do not use the SOAK program for the woolen
textiles.
Separate the laundries that are not colorfast from
other laundries in washing.
Attention

Procedure selection method
Times of pushing the
SELECT button
Push the SELECT button for 6 times, and it will resume the initial mode. It will circulate in that sequence.
The SOAK procedure can work in cooperation with automatic programs like standard and heavy. There is intermittent
pulsator stirring during soak.
Selected procedure Applicable circumstance Contents (the lightedindicators
indicate the programsabout to run)
SPIN
(spin after drain)
WASH
(the washing liquid
remains in the tub)
When the common laundriesneed
washing, rinsing and spinning. SOAK WASH RINSE SPIN
Repeat using thewashing liquid
When the laundriesneed only
spinning after manualwashing (first
drain then spin)
The laundries arevery dirty,or the
sleeves and collarsof the shirtare
very dirty.First soak thenwash.
4 Push the WATER LEVEL button to select suitable water level
To select other water level, push the WATER LEVEL button to set the water level.
WATER
LEVEL
WASH - SPIN
RINSE - SPIN
WASH - RINSE
(the rinsing liquid
remains in the tub)
SOAK - SPIN
When prevent thelaundries from
corrugating, and thelaundries do not
need spinning
SOAK WASH RINSE SPIN
SOAK WASH RINSE SPIN
SOAK WASH RINSE SPIN
SOAK WASH RINSE SPIN
SOAK WASH RINSE SPIN
When the laundriesneed
0
5
4
3
2
1
5 Push the RESERVE button to select suitable reserve wash program
RESERVE
After the poweris switched on,the reserve programis set tooff mode automatically. Ifyou need toset the
washing procedure tobe finished atreserved time, pleasepush the RESERVE button toset the reserve
wash program. Referto RESERVE BUTTON in Page 10 forselection.
When the RESERVE function is activated, the indicator of the program you have set will be
off. The RESERVE (HOUR) and TIME REMAIN indicators will be on. During reserve
procedure, you can push the RESERVE button to display the reserve mode.
To change the running program or cancel the reserve setting, you need to switch off the
power and make new selection.
The washing will be finished after 18 hours.
Confirm the operationof reserve program
Reserve time from 2 to 24 hours
6 Push the START/PAUSEbutton START
PAUSE
5 Close the top lid
6 Finish washing

Disposal after washing
After using, please clean the lint and foreign materials of the lint filter etc. in time.
Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).
2.Do not store water in the washing machine for a long period. Drain the water completely
after each using.
3.Be sure to pull off the power plug before maintenance.
4.Hang up the power cord and drain hose.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid
for some time (about 1 hour), then close the top lid.
Clean
The filter screen of the water inlet valve is
likely to be blocked by foreign materials
and influence the water inlet. Please clean
it with brush every two months.
The lint filter must be used during
washing.
It must be cleaned in time after each
using
Lint filter:
1.Pull it up to dismantle.
2.Push it down to install.
3.Clean the filter screen after washing.
Dismantle
Install
If the cabinet is dirty, wipe it with wet cloth
Do not flush it directly with water.
Wipe it with neutral detergent.
Do not wipe it with thinner, petrol,
alcohol etc.
Thinner
Petrol
Alcohol
Dismount Install
Please take off the detergent box and wash it
with water
1.How to take it off: Pull it upwards slantingly
and gently.
2.How to install: Put it in from the top slantingly,
then push it in to the right position.
There may be some water flowing out of the drain
hose in the first use of the machine.
It is thewater remained inthe machine duringthe
ex-factory performance inspection.
Common phenomena
Phenomena Explanation
The spinning isintermittent when itstarts.
The pulsator pauses during water filling in washing and rinsing.
In adding water, the pulsator performs stirring slightly
It is tobalance the laundriesto avoid slanting.
The program issetting the draintime. Acertain
period is neededbefore it startsspinning.
It is toavoid splashing duringwater filling.
It is tosoak the laundriesmore completely.
Push the SPIN button,but it doesn't act.
Answers to question

Are the laundries slanting
in spinning?
Is there power failure?
The machine does
not act.
Use it when the power is on.
Level the machine properly.
Insert the power plug tightly.
Re-order the laundries.
No wash
No spin
Is the power plug loose?
If water level reach the appoint level?
Affusion to appoint level.
Close the top lid
Is the top lid is not closed.?
Are the laundries put
slantingly?
Phenomenan The reason How to settle
Trouble-shooting
There's abnormal sound
inside the machine.
The water faucet leaks.
Is the drain hose blocked
by foreign material?
Insert the power plug tightly.
Is the power plug loose?
Re-order the laundries.
Close the top lid.
Is the machine slanting?
Is the jointer screw of the
water inlet hose is loose
or twisted awry?
Fasten the jointer screw
properly.
The safety switch acts, and the
spinning cannot work (after twice
automatic imbalance revising). The
digitron displays E3 and it rings.
The drainage cannot work, or is too slow.
The digitron displays E1 and it rings.
After washing and rinsing, it stops
running during spinning. The
digitron displays E2 and it rings.
The top lidis not closed.
Are the laundries put slantingly?
Close the toplid.
Clean the foreign material. Push
the start button again.
Reorder the laundries. Close the top lid.
Set the washing machine horizontally and
then open and close the top lid once.
Is the machineslanting?
The water inlet does not work, or is
too slow (cannot reach the water
level after about 30 minutes). The
digitron displays E4 and it rings.
Is the water faucet opened,
or is there water supply failure?
Is the waterinlet valve blocked?
Open the water faucet. Push the
Start/Pause button again.
Clean the water inlet valve then push the
Start/Pause button again.
When you selected the function of re-s
verve,you opened the cover ,that time
the digital tube displays E0.
The cascade currentis poor or
there's no cascadecurrent.
Is there foreignmaterial blocking
the spray outlet? Clear the foreignmaterial.
No water inlet.
Is the power plug plugged tightly?
Is the water faucet opened?
Are the POWER ON/OFF and
START/PAUSE buttons pushed down?
Plug the power plug tightly.
Open the water faucet.
Push the power ON/OFF button and
START/PAUSE button.
.
In the processof function
of reserve ,openedthe cover. Closing the cover.
The water level sensor is abnormal
that time the digital tube displays E6..
.
The terminal ofwater level
sensor loosing..
Fix the water level sonor
again..
(If there's breakdown, please pull off the power plug before checking) The following phenomena are
not breakdowns sometimes. Please confirm again before sending it to repair. If there are real
breakdowns, please come to the special maintenance department or after-sale service department of
our company. Do not repair it by yourself.

User's manual One piece
Full automatic
washing machine
Lint filter
Packing list
Name
One piece
Eight pieces
One piece
One set
Tapping screws
Quantity
Bottom plate
One piece
Water level/Water quantity (about)
Injection pressure
Specification
1/21L, 2/28L, 3/35L, 4/41L, 5/47L,
6/53L, 7/58L, 8/65L
0.03MPa-0.78MPa
The end connectingto
the washing machine
Jointer connecting
the water inlet hose
to the water faucet
The end connecting to
the water inlet hose jointer
