Haier RWT350AW User manual

Model
RWT350AW
RWT150AW
● Shift washing, shift spinning，blanket washing easyly
● Pulsator type for wash efficiency, twist free and low wear
● Super capacity that can wash more clothing
● Shift washing, shift spinning，blanket washing easyly
● Pulsator type for wash efficiency, twist free and low wear
● Super capacity that can wash more clothing
FeaturesFeatures
Special No.: SM RWT350AW/RWT150AW Edition: 2008.8.18
Automatic Washing Machine
Version:00.00
SERVICE MANUAL

CONTENTS
1
1.Contents
2.Features
3.Specifications
4.Safety precautions
5.Warning and cautions
6.Net dimension
7.Installation and accessory
8.Parts and functions
10.Maintenance service and trouble shooting

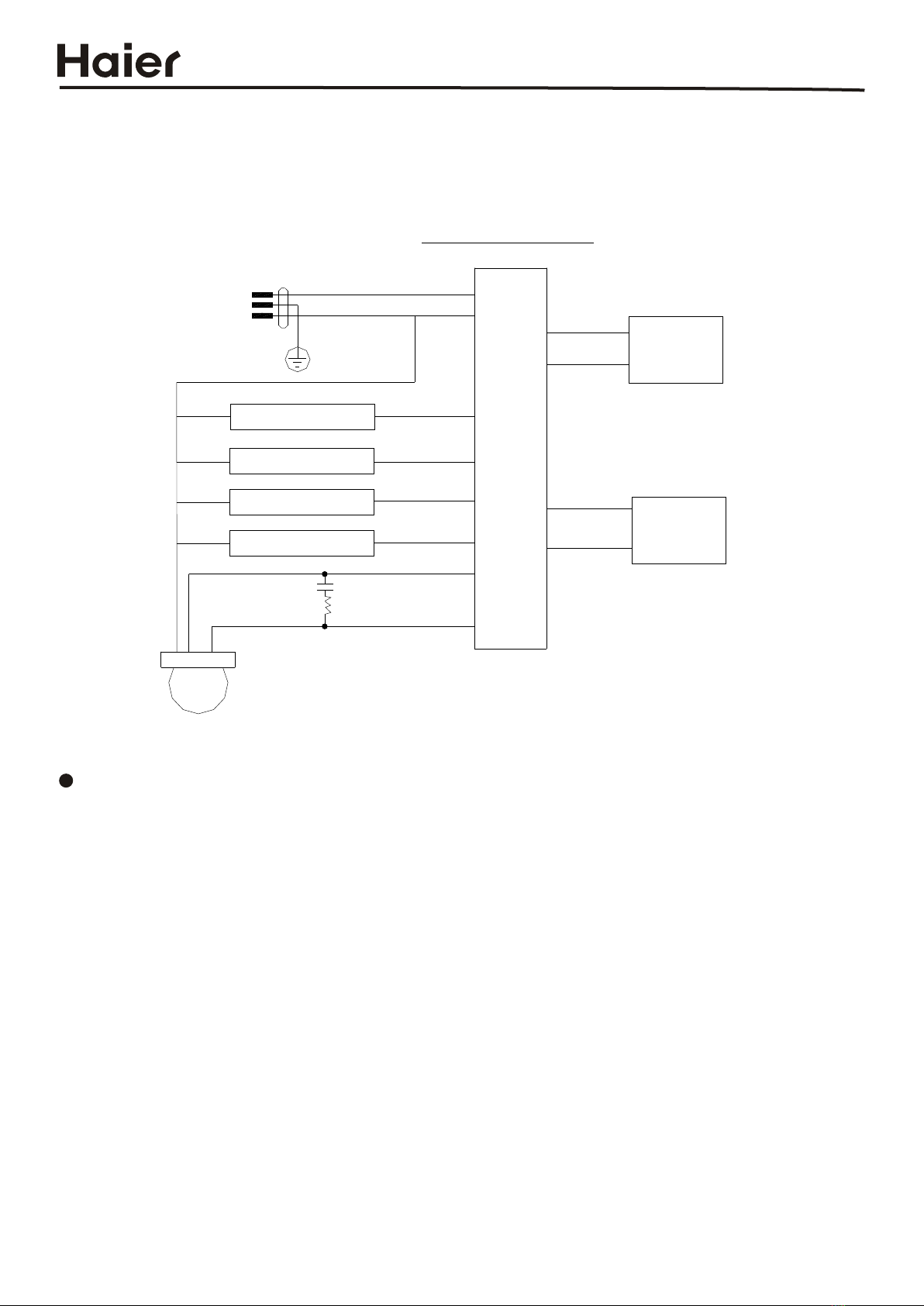

11.Wiring diagram
9.Operating instructions
1
2
3
4
5
6
7
8
9
11
15

2
FEATURES
● Shift washing, shift spinning
●
●
●
●
●
Cold & warm water inlet selection
Drain up function
Cabinet with the door open in the front:
Super capacity for more clothes
Pulsator type for wash efficiency, twist free and low wear

SPECIFICATIONS
3
Model RWT350AW RWT150AW
Free standing √ √
Built under × ×
EAN code --- ---
Energy efficiency class ˉ ˉ
Technical data
Wash capacity Cu.Ft. 3.05 2.9
Spin capacity Cu.Ft. 3.05 2.9
Level/Volume L
Residual dampness %115% 115%
Voltage/frequency V/Hz 120V/60Hz 120V/60Hz
Energy consumtpion kWh
Water consumtpion L
Wash power W415 415
Spin power W272 272
Voice power of washing dB 62 62
Voice power of spinning dB 72 72
Net weight kg about59 about59
Gross weight kg about71 about71
Contral model
Timer × ×
contraller × ×
Normal computerized × ×
Fuzzy computerized √ √
Frequency conversion √ √
Service features
Programs 7 4
Short cycle √ √
Inlet heating select × ×
washing and rinse water temperure selection √ √
Spinning cycle (selector) √ √
Spinning cycle (variable) √ √
Start/Pause √ √
Preset H2~24 2~24
Automatic balancing √ √
Aesthetics(V.L.H.S.H.T) ˉ ˉ
Cabinet material（P=Plastic/Z=Zincking/C=Cold ) Z Z
Inner drum (stainl. steel=s / plastic=p) S S
Drain type（U=drain up D=drain down ）Drain up Drain up
Door (glass=g / plastic=p) × ×
Adjustable feet √ √
Special function
inner cycle × ×
Feet wheel × ×
Double driver √ √
Two-in-one with rinse and spin √ √
Disinfect × ×
Dimensions (measurements)
Height / built under mm 1105 1105
Width mm 686 686
Depth / with open door mm 686 686
Dimensions packed ( measurements packed)
Height mm 1175 1175
Width mm 762 762
Depth mm 762 762
20'Container load Sets 21 21
40’Container load Sets 45 45
40H’Container load Sets 90 90
NOTE: "√" FOR AVALIABLE, "×" FOR NOT AVALIABLE “-”FOR NOT AVAILABLE,"-"FOR BE APPLICABLE,"V"FOR SQURE HIGH HEAD,"H"FOR HAIF
HIGH HEAD,"L"FORSQURE FLAT HEAD,"S"FORARC HIGH HEAD,"F"FOR ARC FLAT HEAD,"T"FOR TRANSPARENT VIEW WINDOW.

4
SAFETY PRECAUTIONS
If the power cord is bad, to avoid risk it is required to replace it by the technicians
of our special shop or the after-sale service department. Keep the pin of the power
plug clean.
Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.
Earth
Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.
If the power cord is bad, to avoid risk it is required to replace it by the technicians
of our special shop or the after-sale service department. Keep the pin of the power
plug clean.
Be sure to earth the earthing wire reliably.
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
Do not install or store the washer where
it will be exposed to the weather.
The power cord plug should be convenient
to be pluged in or pluged out with hand
while the washing machine runs normally.
Be sure to pull the plug out and close the
water tap when the machine is idle,when
moving the machine,or when cleaning
the machine.Do not use wet hand to ins-
ert or pull out the power plug.

5

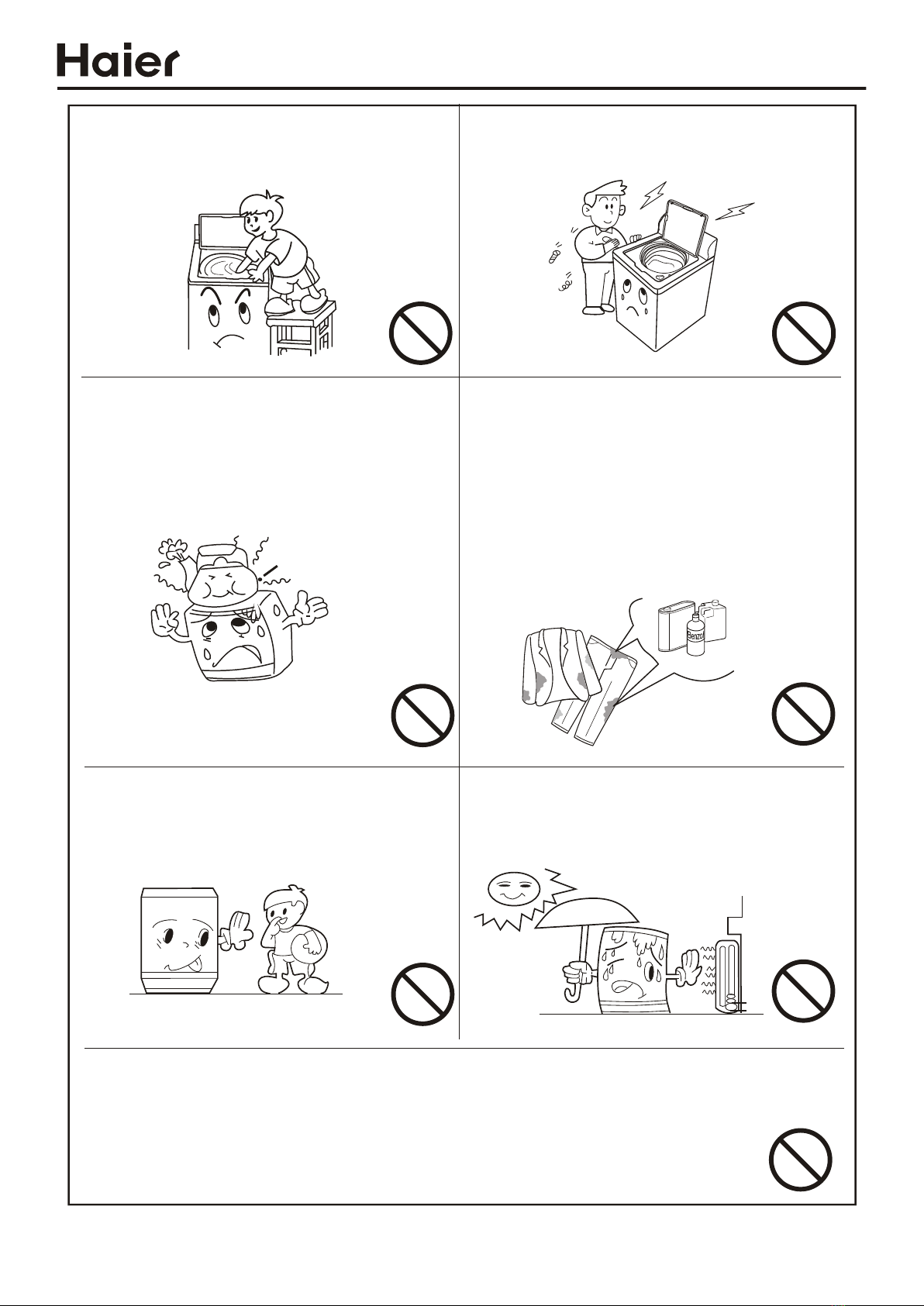

WARNING AND CAUTIONS
Do not decompose, repair or alter the
machine by yourself.
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
The handicapped or children without
care shall not use the machine.
Under certain conditions, hydrogen gas may be produced in a hot water system that has
not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
has not been used for such a period, before using the washing machine, turn on all hot
faucets and let the water flow from each for several minutes.
This will release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame during this time.
Keep the machine away from direct
sunlight and heat source like the heater.
Do not wash articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, other flammable, or explosive
substances as they give off vapors that
could ignite or explode. Do not add
gasoline, dry-cleaning solvents, or other
flammable, or explosive substances to
the wash water. These substances give
off vapors that could ignite or explode.
t
Pe rol
Thinner

1105
6 68
86 6
Unit（mm）
NET DIMENSION
INSTALLATION AND ACCESSORY PARTS
6
The largest allowed slope of the shank base of the machine is 2°. The slanting or rough ground will
result in unstable running or stoppage of the machine. Please adjust it with following methods:
Confirm it's horizontal
Hang the plumb to confirm it's horizontal.
Adjust the adjustable feet
1) To twist the adjustable foot, please first lift up
the side of the foot slightly, and twist the foot.
2) Fasten the nut after adjustment.
Adjust the Installation position
High Low
Adjustable foot
<2
Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.

INSTALLATION AND ACCESSORY PARTS
7
Usage of the drain hose
Hang the outer drain hose on the proper place
before washing( do not use it toppled down
on the ground).
Attend that the outlet of drain hose shall be higher
than the water level in washtub to avoid siphon
phenomenon.
1.0m<h<1.5m
Connect the water inlet hoses
Figure 2
Figure 1
C
H
1. Attach the water inlet hoses to the hot water faucet and the cold water
faucet. Using pliers, tighten the coupling. ( As figure 1)
4. Check for leaks
(1). Swing the water inlet hose gently to confirm if it is suitable.
(2). Turn on the water faucets and check for leaks. A small amount of water might
enter the washers. You will drain this later.
3. Attach the hose connected with hot water faucet to the HOT water inlet valve(sign
with "H'). Attach the hose connected with cold water faucet to the COLD water
valve(sign with C ).
( As figure 2)
NOTE: Do not over-tighten.
2. Run water through both faucets and inlet hoses, into a bucket or laundry tub, to get
rid of particles in the water lines that might clog the inlet valves screens.
Install the drain hose
First install the drain hose hook on the parts of
outer drain hose component.
Put the drain hose clamp on the outer drain hose,
insert the outer drain hose into the joint for it, and
then clutch tightly with drain hose hoop.
Drain hose neck
Drain hose joint
Drain hose hoop

8

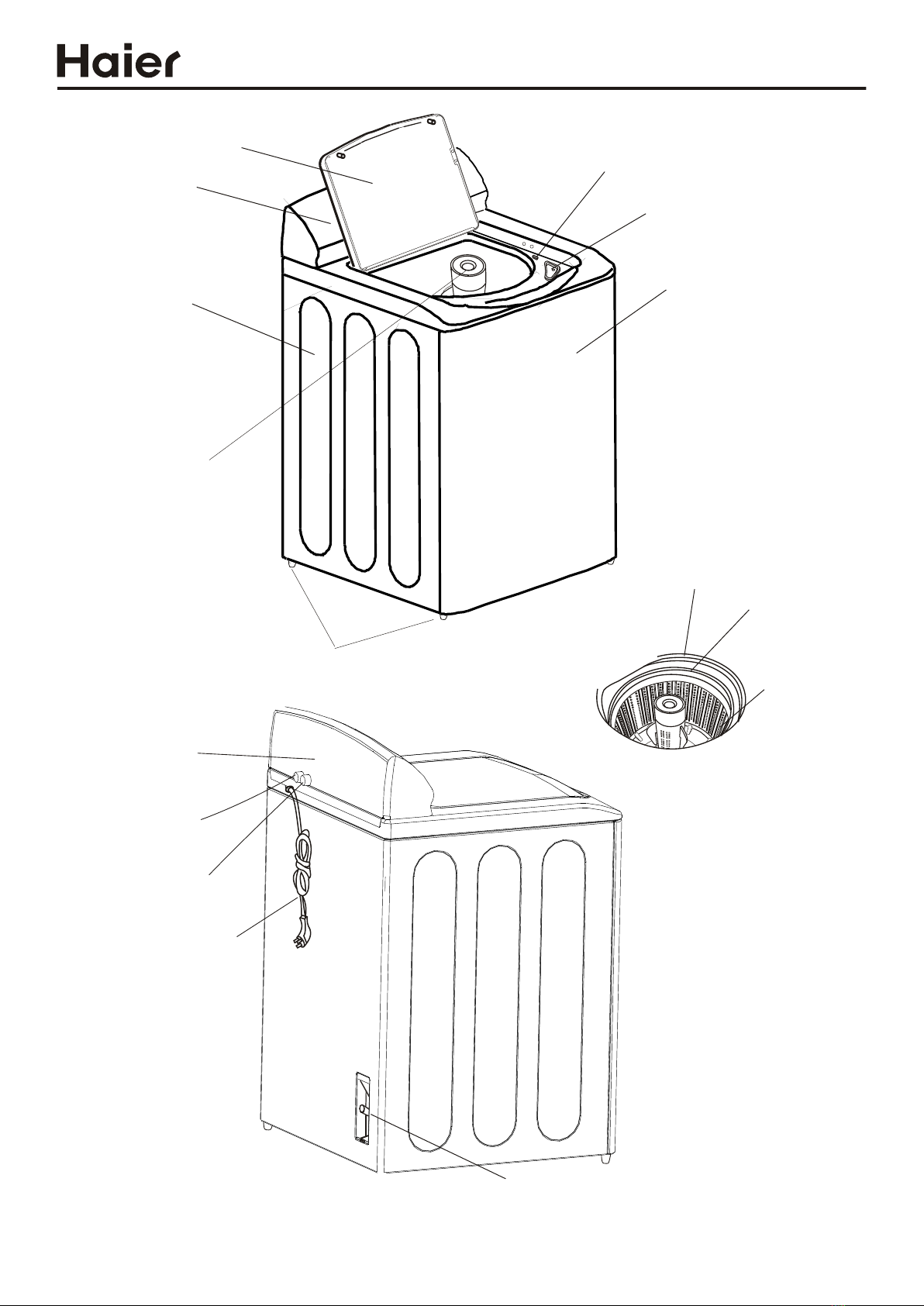

PARTS AND FUNTIONS
Top lid
Control panel
Cabinet
Back cover
Hot Water inlet valve
Power line
Cold Water inlet valve
Drain hose joint
Outer Tub Cover
Balance Ring
Pulsator
Inner Tub
Front door
Bleach Injection Inlet
Door Safety Switch
Leveling Legs(4)

OPERATING INSTRUCTION
9
RWT350AW
Temperature Wash / Rinse (1)
•Toselectinletwatertemperatureforwashandrinse.Selectionheremayvary
perthecyclechosen.Allselectionsarenotavailableinallcycles.
Load Size (Water Level) (2)
•LoadSize(Waterlevels)maybesetbeforethewashorinpause
mode.
•DuringSoak,WashorRinse,pressthisbuttontomanuallyreplenishwater.
Releaseforthewatertostop.Functionautomaticallyisinactivewhenwater
reachestheoverflowprotectionlevel.Theseare5selectionstochoosefrom:
Super,Large,Medium,SmallandExtraSmall.
Cycle Select (3)
Thereare7cyclestoselectfrom:
•Normal-Usethiscyclefornormallysoiledcottonsandmixedfabricloads.
•Whites-Usethiscycleforwhiteandlightcoloredclothing.
•Colors-Usethiscycleforlightlysoiled,darkorhighlydyednaturalfabrics
suchascottonthatmaybesusceptibletotodyeloss.
•Heavy-Usethiscycleforheavilysoileddurablegarmets.Alsothiscycle
couldbeusedfortowels,sportsgear,childrensclothes,etc.
•Delicate-Usethiscycletowashlightlysoiledgarmentsanddelicateclothes
thatneedgentlewashing.
•Quick-Usethiscycletowashsmall,lightlysoiledloadsthatareneededina
hurry.
• Spinonly-Usethiscycletoremoveexcesswaterfromclothes.Forcertain
delicateandcottonclothesthatyoudonotwishtoputinthedryer,thisisan
idealcycle.
Start/Pause Button (4)
• Oncethecycleisselected,temperatureandloadsizechoosen,pressthisbutton
oncetostartthewash.
•Whileunitisworkingpressitoncetopausethecycle.
•Iftheunitisinpausemodepressitoncetoresumewash.
•Ifstart/pausebuttonisnotpressedin5minutesaftercycle,temperatureand
loadsizeisselectedthewasherwillreturntooffstatus.
Process Status (5)
• Thisshowsthecurrentcyclestatusofthewashload.
Extra Rinse (6)
• Pressbuttononcetoactivate.
•Pressagaintodeactivate.
•Inthisoptionthewashloadwillgothroughoneextrarinseattheendofthe
cycle.
•AnExtraRinsewillautomaticallybeaddedtotheWhitesCycle.

OPERATING INSTRUCTION
10
RWT150AW
Cycle Select (1)
Thereare4cyclestoselectfrom:
•Normal-Usethiscyclefornormallysoiledcottonsandmixedfabricloads.
•Heavy-Usethiscycleforheavilysoileddurablegarmets.Alsothiscycle
couldbeusedfortowels,sportsgear,childrensclothes,etc.
•Delicate-Usethiscycletowashlightlysoiledgarmentsanddelicateclothes
thatneedgentlewashing.
•Quick-Usethiscycletowashsmall,lightlysoiledloadsthatareneededina
hurry.
Start/Pause Button (2)
• Oncethecycleisselectedpressthisbuttononcetostartthewash.
•Whileunitisworkingpressitoncetopausethecycle.
•Iftheunitisinpausemodepressitoncetoresumewash.
•Ifstart/pausebuttonisnotpressedin5minutesaftercycle,temperatureand
loadsizeisselectedthewasherwillreturntooffstatus.
On/Off (3)
• Toturnpoweronpressbuttononce,toshutpoweroffpressbuttonagain.
Cycles
Normal
Heavy
Delicate
Quick
Process
Wash,Rinse,Spin
Soak,Wash,Rinse,Spin
Wash,Rinse,Spin
Wash,Rinse,Spin
LoadSize
Large
Super
Medium
Small
Temp
W/C
H/C
C/C
W/C

11

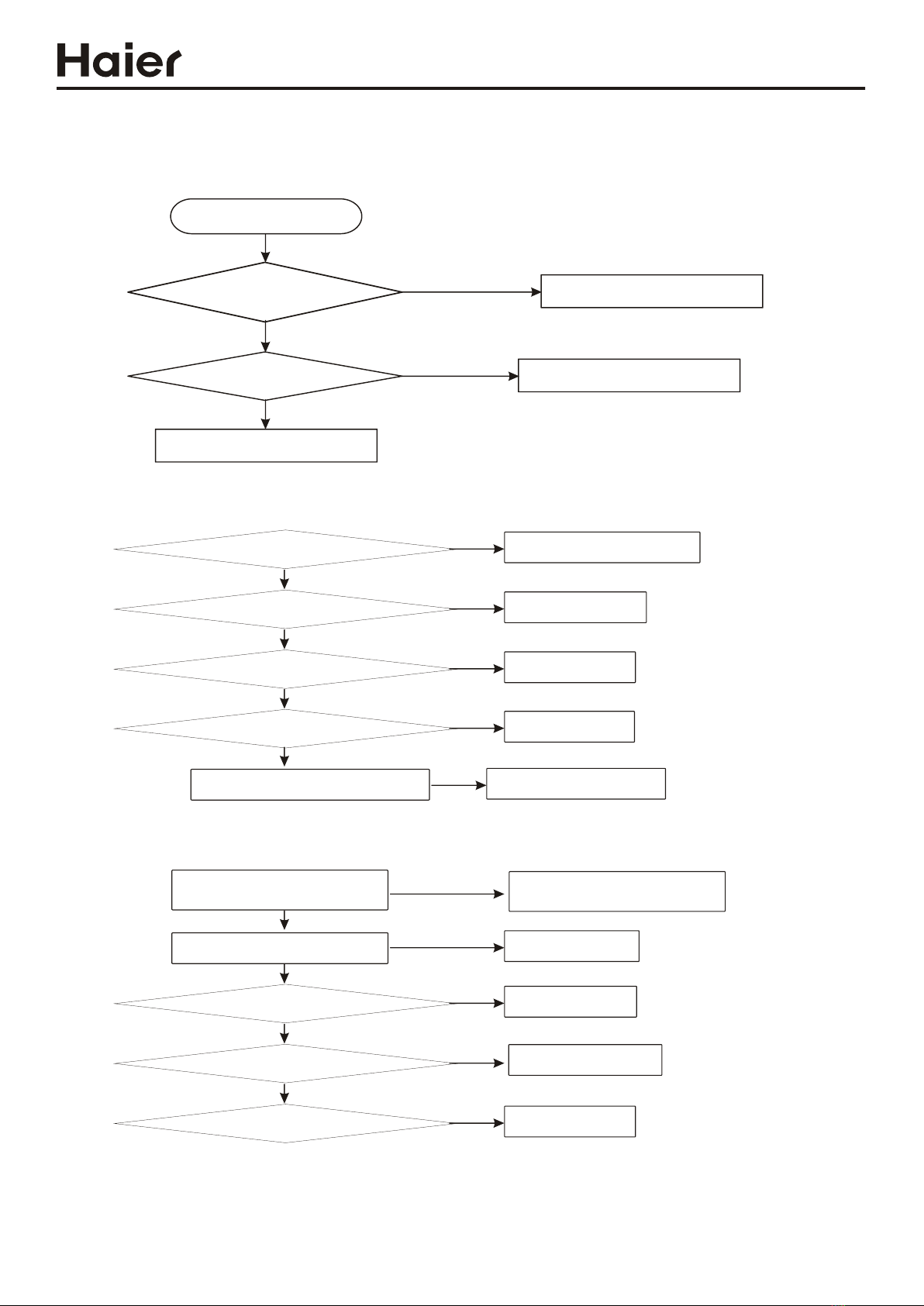

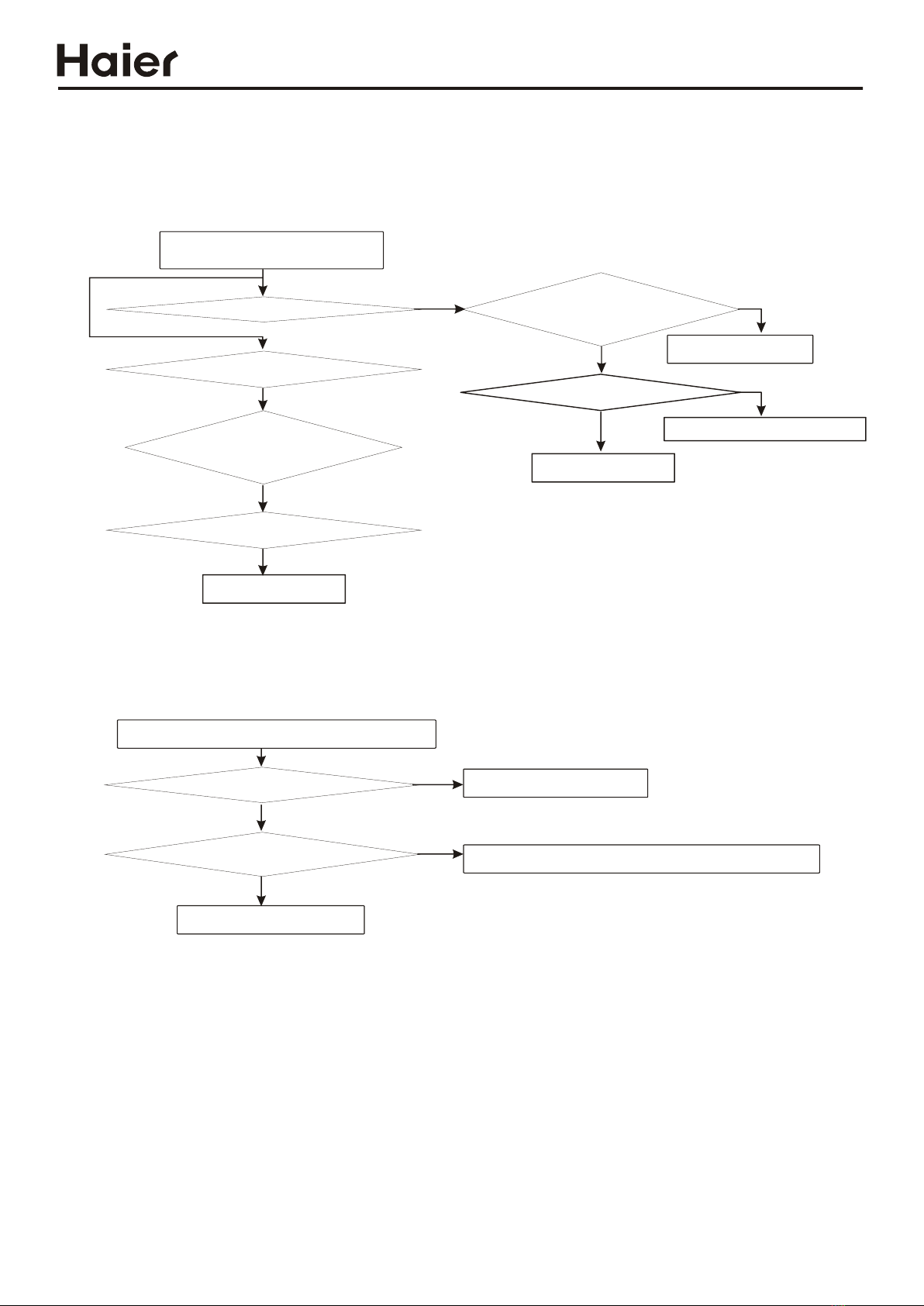

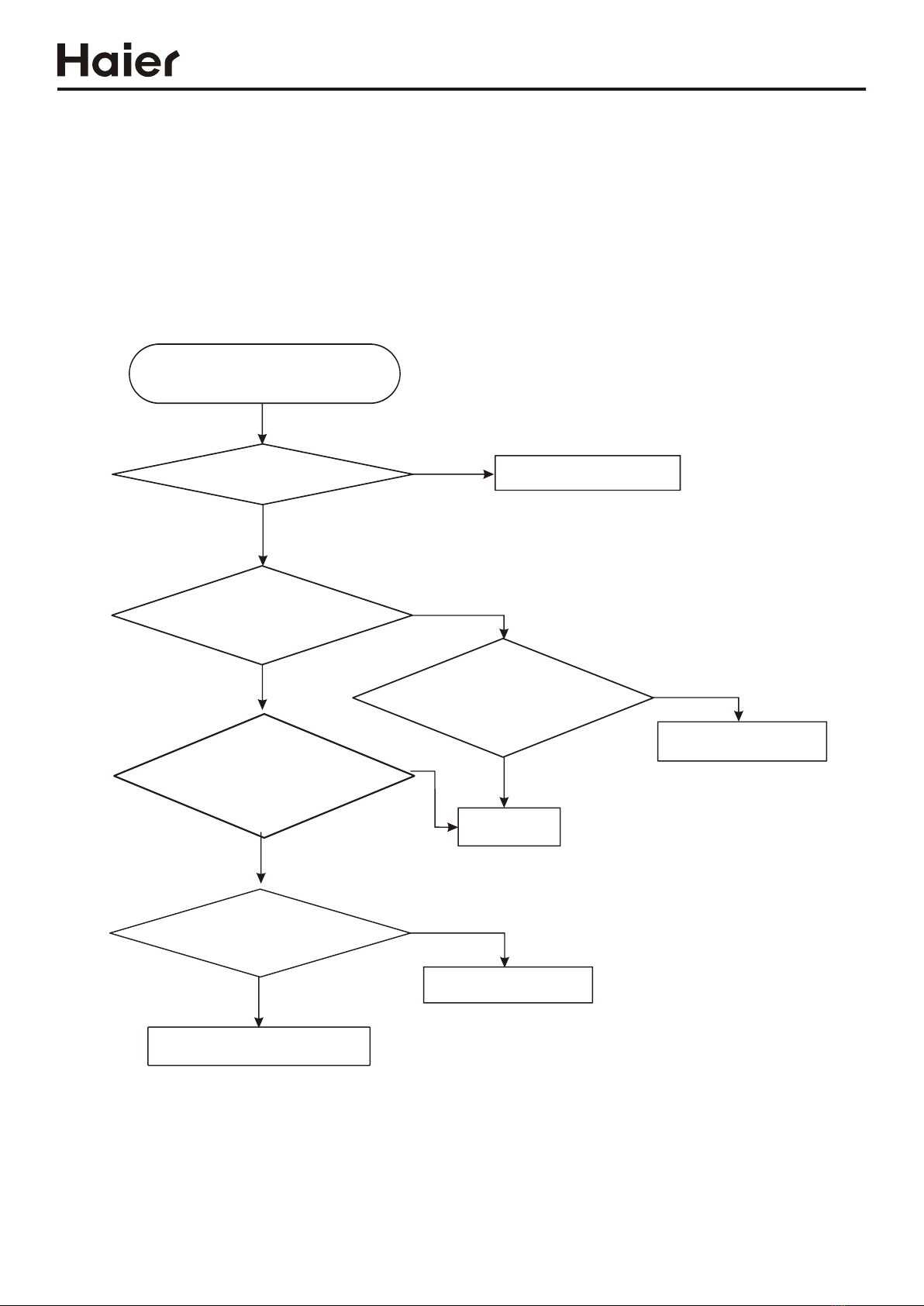

MAINTENANCE SERVICE AND TROUBLE SHOOTING
If you replace the computer sequencer without checking the other components carefully,
the computer sequencer may be damaged again. Therefore, please first check
if the other components working normally before replacing the sequencer in maintenance.
C
Trouble-shooting charts
No action(The indicator is off)
Confirm that there's no power failure,
and the power plug is inserted reliably.
The power switch is at "On" mode.
Measure the voltage
of the two ends of the power input
of the sequencer.
Measure the resistance
between the white wire terminal
in the white plug on top of the wire unit
and the N pin on the power
receptacle.
Replace the sequencer.
Replace the
power cord.
Replace the wire unit.
Replace the computer
sequencer.
Connect the fuse and the
wires of the two ends.
The resistance
is 0.
The resistance
is 0.
The resistance
is 0.
Infinite
Infinite
Yes
Infinite
No
Pull off
the power
plug Not exist
Exist
Check if the connection
between the fuse and the wires
of the two ends are well?
Measure the resistance
between the brown wire terminal
in the white plug on top of the wire
unit and the brown wire of
the lower part.
Measure the resistance
between the light blue wire terminal
in the red plug on top of the wire unit
and the light blue wire of
the lower part.

12
MAINTENANCE SERVICE AND TROUBLE SHOOTING
No draining
No
No
After insert the plug, turn the
sequencer knob to the drain location
Check the inset is normal
and measure the voltage of two ends of
the drain pump
Check the inset is normal
and measure the voltage of two ends of
the drain motor
Replace the drain pump
Check if the drain pump acts.
Check if the drain motor is normal
Check if the wire unit is normal
No
Yes
No
No
Check if the wire unit is normal?
Replace the sequencer
Replace the sequencer
Repair or replace the wire unit
Yes
Yes
Yes
Keep filling water
Open the water faucet without switching on the power.
If the water can fill into the water inlet valve.
check if the gas guide system such
as gas cell leaks gas
Replace the water inlet valve.
Replace the water level sensor.
It leaks gas. Please check and repair the gas guide system.
Please smear 801 glue in installation of the connecting pipe.
Please smear 801 glue in installation of the gas cell cover.
No
No
Exist
Exist
Exist

The washing and
draining are normal.
Check the On/Off point of the
microswitch and stop switch.
Check if the clutch pawl
is pulled enough.
Replace the microswitch
or stop switch.
Replace the drain motor.
Replace the retarder clutch. At this time please check
if the drain motor is well.
No On/Off point
No
Yes
Normally
13
8. Analysis Of The Common Breakdown
MAINTENANCE SERVICE AND TROUBLE SHOOTING
Too much noise in spinning
No
No
Yes
Yes
Yes
Yes
No
No
No
If the washing machine is set horizontally.
If the noise of the gear case is large.
If the hanger is wrongly used.
If the noise of the motor is too much.
If the motor is fastened tightly.
Set the machine horizontally.
Replace the retarder
Replace the hanger.
Replace the motor.
Fasten the motor.
No
No
Yes
Yes
Yes
Too much noise in washing
If the noise of the motor is too much.
If the pulsator is rubbing the
bottom of the inner tub.
If the motor fastened tightly.
If the noise of the retarder is too large.
If the belt is too tight or loose.
Fasten the motor.
Replace the retarder.
Adjust the belt.
Replace the motor.
Adjust the gap between the
pulsator and inner tub
No spinning

14
MAINTENANCE SERVICE AND TROUBLE SHOOTING
It is the water remained in the factory
inspection of performance.
Common phenomena
Phenomena Explanation
The program is setting the drain time. Some
time is needed before it starts spinning.
There may be some water flowing out of
the drain hose in the first use of the machine.
Press the knob to select "Spin", but it doesn't work.
The spinning can not work (after
amending twice automatically)
The machine stops running In
washing ,rinsing or spinning.
Is the power off?
Does the power cord loose?
The top lid is not closed.
The top lid is not closed.
Close the top lid.
Open and close the top lid once.
Are the laundries put slantingly?
Insert the power plug tightly.
Use it when the power is on.
The machine does not act.
(Indicators are off.)
Is the machine slanting?
Level the machine in right position.
Open and close the top lid once.
Phenomenan The reason How to settle
Open and close the top lid once.
No water filling or filling slowly
（
)
the suitable water level doesn't
research about 40 minutes .
The draining does not work, or the
speed of draining is too slow(the
suitable water level doesn't research
about 8 minutes ).
The top lid is not closed.

15
WIRING DIAGRAM
There is overload protector installed in the motor. In case that the motor is overload or meets
breakdown in working, the protector will act and stop the motor. When the breakdown is
removed, the motor will resume normal working.
RWT350AW/RWT150AW
Motor
Cold Water Inlet Valve
Green
Hot Water Inlet Valve
White
Program Control Unit
Orange
Water Level
Sensor
Orange
Cover Switch
Yellow
Wiring Diagram
Yellow
Black
White
Pink
Grey
Yellow
Red/White
Red
Brown
White
Retractor
Pump
C
L
White
White
White

Sincere Forever
Group
Industrial Park, No.1, Haier Road
266101, Qingdao, China
http://www.haier.com
