Haier HWM65TLF User manual

Washing Machine
HWM65TLF
HEAVY
NORMAL
GENTLE
QUICK
SOAK
WASH
RINSE
SPIN
LARGE
MEDIUM
SMALL
WARM
COLD
DELAY START
PROCESS
WATER
LEVEL
TEMP
SELECT
WASH CYCLE
POWER
ON
OFF
TIME
REMAINING
TIME ON
HWM65TLF
HOT

IMPORTANT SAFETY INSTRUCTIONS
Warning - To reduce the risk of fire, electric shock, or
injury when using your appliance, follow basic
precautions, including the following:
1. Read all instructions before using the appliance.
2. Use this appliance only for its intended purpose as described in
this user and care guide.
3. Use only detergents or softeners recommended for use in this
appliance and keep them out of the reach of children.
4. This appliance must be properly installed in accordance with the
installation instructions before it is used.

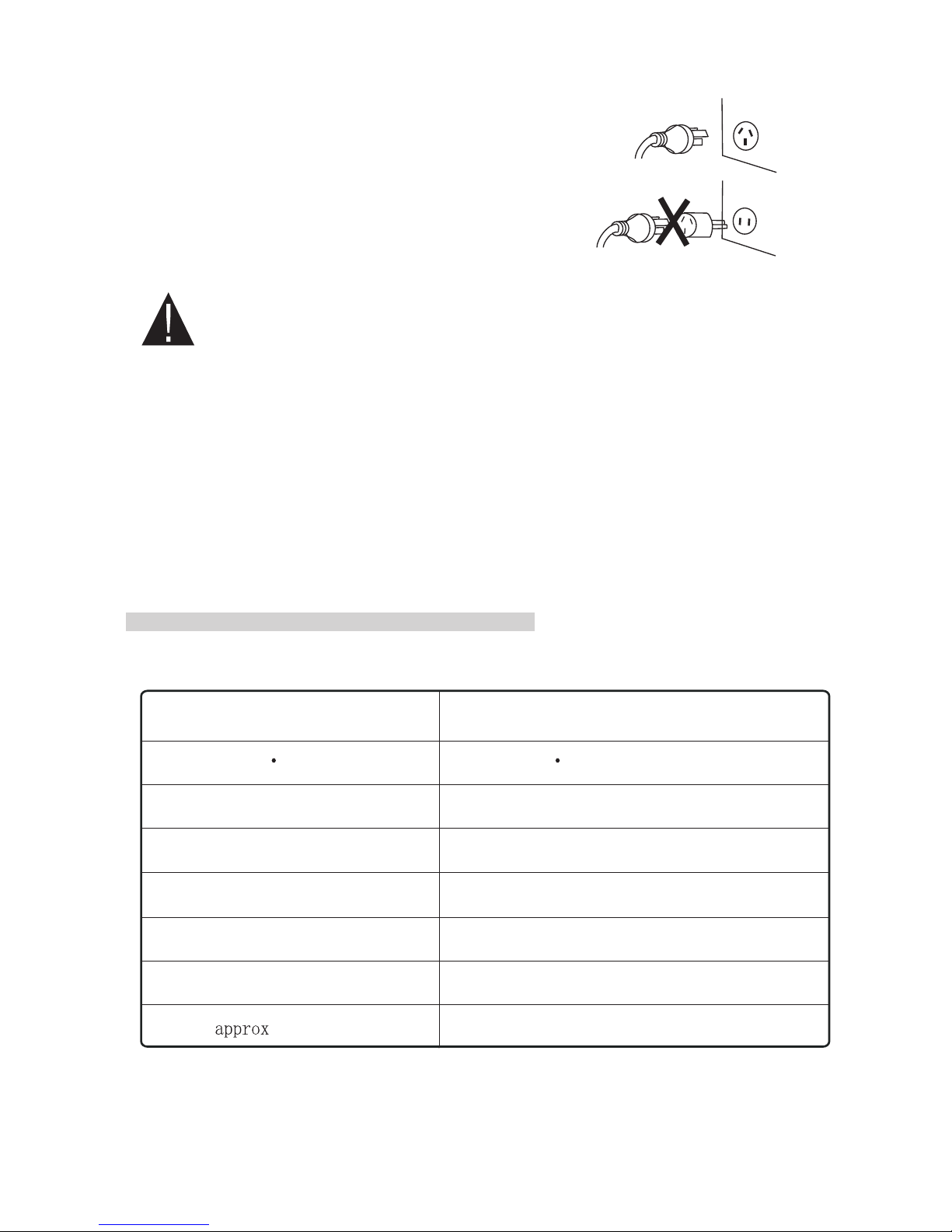

5. Never unplug your appliance by pulling on the power cord.
Always grasp the plug firmly and pull straight out from the outlet.
6. Replace worn power cords, loose plugs and power outlets
immediately.
7. Unplug your appliance before cleaning or before making any
repairs.
8. Do not operate your appliance in the presence of explosive
fumes.
9. Do not use hot water that exceeds 60 C in temperature.
10. Do not use this appliance to wash clothes soaked, spotted or
washed in gasoline, dry cleaning solvents or any other
explosive or flammable substances that could ignite and
explode.
11. Clothes or rags used to clean flammable or explosive materials
should not be washed in this appliance till all traces of this
material has been removed, to avoid an accident.
12. Do not add or mix any flammable or explosive substances to
the wash.
1

2
13. Do not try to remove clothes while the tub is moving. Let it
come to a complete stop.
14. The lid must be closed when bowl is spinning.
15. Do not operate your appliance when parts are missing or
broken.
16. Do not use this appliance for commercial clothes washing.
17. Do not operate this appliance unless all enclosure panels are
properly in place.
18. Do not tamper with controls.
19. The appliance is not instruct for use of young children of infirm
persons without supervision. Young children should be supervised
to ensure that they do not play with the appliance.
20. This appliance must be connected to a proper electrical outlet with
the correct electrical supply.
21. Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in the user-repair
instructions. Make sure that you understand and have the skills to
carry out.
22. To reduce the risk of electric shock or fire, do not use extension
cords or adapters to connect the unit to electrical power source.
23. If the washing machine is connected to a cord extension set or
electrical portable outlet device, make sure it is not in a position
where it is subject to splashing or ingress of moisture.
24. Ensure carpet does not obstruct the opening in the bases.
25. Use the new hose provided. The old hose should not be reused.

Table Of Contents
3
PAGE
IMPORTANT SAFETY INSTRUCTIONS..................1
OPERATING INSTRUCTIONS.................................4
Parts and Features...................................................4
Operations................................................................6
Normal Operating Sounds.......................................10
Lint Filter..................................................................11
Safety Lid Switch.....................................................12
CARE AND CLEANING GUIDE..............................12
Cleaning and Maintenance......................................12
Moving & Vacationing...............................................13
Storage of Your Washer............................................13
TROUBLESHOOTING.............................................14
INSTALLATION INSTRUCTIONS............................16
Tools and Materials Required...................................16
Unpacking Your Washer...........................................16
Levelling Your Washer.............................................17
Steps for Installation................................................17
ELECTRICAL REQUIREMENTS............................18
Power Interruptions.....................................Back cover
SPECIFICATIONS....................................Back cover

OPERATING INSTRUCTIONS
Parts and Features
4
11
11
11
11
Lint Filter
Top lid
Detergent box
Inner tub
Hight Pulsator
Control panel seat
Adjustable foot two
Back faceplate
Control panel film
Power switch
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Cabinet
HEAVY
NORMAL
GENTLE
QUICK
SOAK
WASH
RINSE
SPIN
LARGE
MEDIUM
SMALL
WARM
COLD
START
PAUSE
DELAY START
PROCESS
WATER
LEVEL
TEMP
SELECT
WASH CYCLE
POWER
ON
OFF
TIME
REMAINING
TIME ON
HWM65TLF
HOT

Cold Water inlet valve
Power cord
Handle
Back cover
Hot Water inlet valve
4
1
2
3
5
6
5
12
3
5
6
4
Drain hose bushing

Power Button:(1)
Press the button in to turn the power ON and press the button
out to turn the power OFF.
Button in=Power On
Button out=power Off
Start/Pause Button:(2)

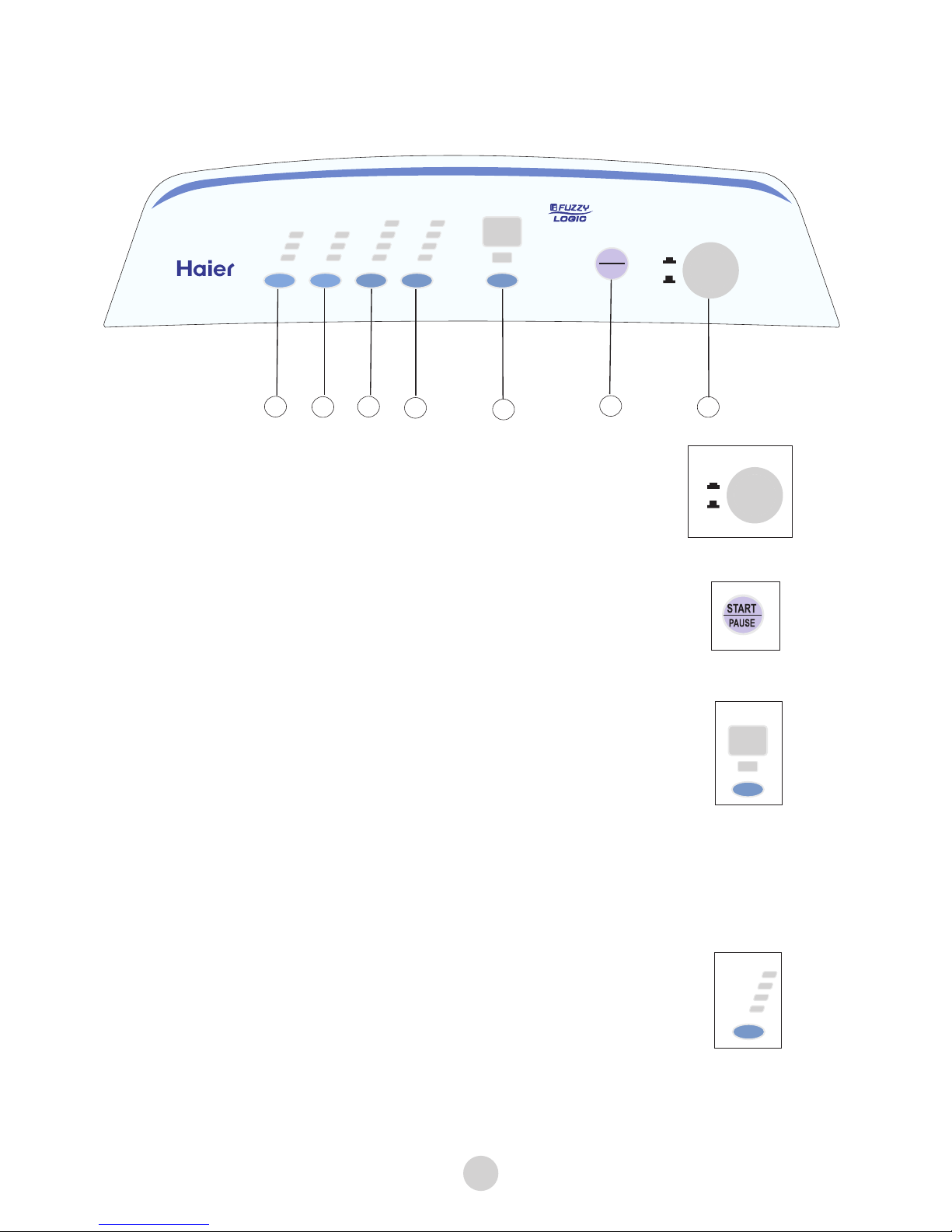

Understanding the Control Panel
Operations
Delay Start Button:(3)
This convenient feature lets you delay the start of the wash cycle
between 2 to 24 hours.
Confirming a reserved program
When reserve starts, program selected indicator turns off, while
the reserve Indicator and remaining time turn on. During
reservation period, pressing Delay/Start button could get re-
servation conditions displayed.
Altering the running program or cancelling reserve needs to
cut off power and choose again.
Press this button when you want the machine to start running.
During machine running, press this button to pause and press
once again to resume operation.
Wash cycle button:(4)
After switching on, the Normal cycle will be the default. If other
cycle is desired, you can press this button to get the corresponding
indicator on.
Heavy Cycle
Washing the bigger, thicker or heavier dirty laundries.
Normal Cycle
Common washing, about 75 minutes.
6
HEAVY
NORMAL
GENTLE
QUICK
SOAK
WASH
RINSE
SPIN
LARGE
MEDIUM
SMALL
WARM
COLD
START
PAUSE
DELAY START
PROCESS
WATER
LEVEL
TEMP
SELECT
WASH CYCLE
POWER
ON
OFF
TIME
REMAINING
TIME ON
HWM65TLF
HOT
1
2
3
4
5
6
7
POWER
ON
OFF
DELAY START
TIME
REMAINING
TIME ON
HEAVY
NORMAL
GENTLE
QUICK
WASH CYCLE

Quick Cycle
Quick washing of the light dirt laundries only 29 minutes
Gentle Cycle
Washing the woollen textile or underwear
TEMP SELECT Button:(7)
Operating Procedure
7
SOAK
WASH
RINSE
SPIN
PROCESS
LARGE
MEDIUM
SMALL
WATER
LEVEL
WARM
COLD
TEMP
SELECT
HOT
PROCESS Button:(5)
This is to select washingprocess.
Soak will notwork in Quick Cycles.
Water level indicator will shutoff if only Spin isselected.
WATER LEVEL Button:(6)
Water levels may be set at the beginning of the wash or at
pause.
During Soak, Wash or Rinse press this button to manually
replenish water. Release to stop.
Function automatically is inactive when water
reaches the overflow protection level.
To select inlet water temperature for wash and rinse.
Initial setting is warm/cold when washer is powered on.
Press button to change selection based on clothes put
in the washer.
1.Press power on button
The washer will now be in the working status in the Normal cycle.
If the Start/pause button is not pressed with in 5 minutes after power
on the unit it will automatically switch off and return to the stand by mode.
The washer will also return to the stand by mode immediately after
completion of the wash process.
Regardless of the settings by pressing the power on/off button all
programs will stop and return to the stand by mode.
2.Selection Cycle
When the washer is powered on the Normal cycle is the default cycle.
If other cycle is required press the cycle button for desired program.
3.Process Select
Once the power is switched on the washing machine will automatically
set the Normal cycle which will Wash ,Rinse and Spin. If other selection
combinations are desired, press the process select button to choose.

4. Water Level Selection
After Cycle selection press the Water Lever button to select the proper Water
Lever for wash.
Note: See chart below for Load Size selection.
The Capacity of Water Level Water Quantity
Washing (kg.)
3.5~6.5 Large About 76L
2.0~3.5 Medium About 56L
Below2.0 Small About 35L
5.Temp of Wash and Rinse Water Selection
6. Delay Start
To start the washer at a later lime press the Delay Start button and set the time.
When activated the indicator displays 2. Push button once for every 1 hour
delay for up to 24 hours.
Press start button to activate Delay Start.
When the delay timer starts the program select indicator turns off. The
indicator will display the remaining time to turn on the unit. In the lower right
corner of the display, a blinking light will indicate that Delay Start has been
activated.
By pressing the Delay/Start button the selected Process programs will be
displayed.
By altering the running program, the washer will have to be reset.
7. Start/Pause
Press this button when you want the machine to start.
During operation press this button to pause and press it again to resume operation.
Note: By opening the top lid will stop the machine except for water filling or draining.
8
Initial setting Warm/Cold when washer is powered on. Press button to change
selection based on clothes put in washer.
Note: Spin shall begin after sometime even if there is no water in
the tub. Do not use soak process for woolen clothes. Clothes prone
to fading should be washed separately.

Fabric Softener Dispenser:
The fabric softener dispenser is located on the top of the agitator.
Dispenser will automatically release liquid fabric softener at proper time during
rinse cycle.
Steps to use the dispenser:
1.Pour in liquid fabric softener into dispenser as
recommended by the manufacturer.
2.Add water up to its fill lever, but do not exceed the level.
W a rning: Never pour fabric softener directly onto clothes because it will stain your
clothes or you may get spots on your clothes.
Do not stop washer during its first spin or dispenser will automatically
release the softener in to the wash load.
Do not use power form of softener into dispenser other wise it will clog up
the dispenser.This dispenser is only designed for liquid form.
detergent dispenser
9
Liquid fabric softener dispenser
Loading the Washer:
Load each itemloosely.
Separate the whiteand colored clothes.Separate heavy clothes
from light clothes.
Carefully check allpockets and cuffs for smallitems.
They can easilyslide in tothe tub andmay damage thetub.
Pre-treat all stainsand heavily soiledareas for bestresults.
Do not overloadyour washer.
When loading wetitems, keep waterlevel high enoughso items
can float easilyin the water.
Close the doorproperly after loadingthe clothes. ifyou keep the
lid up, thewasher will notstart.
Proper Use of Detergent:
It is good washing practice to add the
detergent to the water before you add
the clothes so that the detergent can work
effectively on your clothes.
Notes: You can less or more detergent depending
on the size of the load, water type in your
living area, whether it is soft or hard and whether the
clothes are heavily soiled or lightly soiled.

Bleach Dispenser
10
Bleach Dispenser:
Bleach dispenser is located on front corner under the loading
door.
Pour in recommended amount of bleach
into dispenser during the first wash fill.
Note: Use only liquid bleach in dispenser.
Warning: Be careful not to spill undiluted
bleach on the washer cabinet or your
clothes. As it is a strong chemical, it
may damage some of your clothes
or the finish of the washer if not
properly diluted.
Use the manufacturer s chart,on product container
for recommended use of liquid or powder bleach.
The following sounds are normally heard during the operation
of the washer:
Tumbling sounds: This is normal as the heavy wet clothes in the
washer are continuously being lossed around.
Air rushing noise: This happens when the washer tub spins at
very high spinning speed.
Wash and Rinse cycles going on and off will also make clicking
sounds.
Normal Operating Sounds

Lint Filter
The lint filter must be used during washing.
It must be cleaned in time after each using.

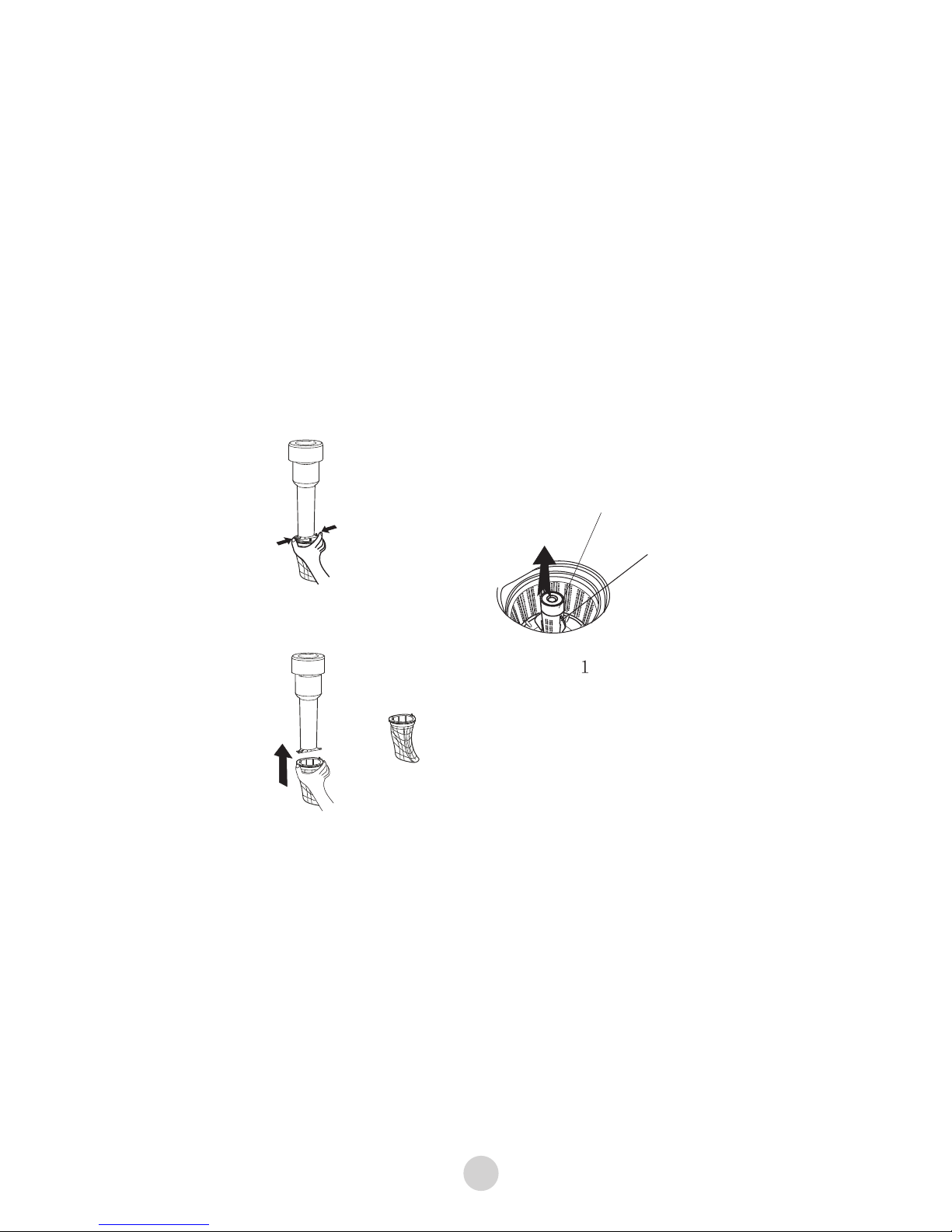

1.Take off the lint filter.
Pull up the lint filter from the agitator.
2.Remove lint
Press the lint screen clip with your thumb and index finger, and get the screen
down ward as shown in figure below. While wet, remove the lint from the screen.
3.Install the lint filter
After cleaning, install the screen back onto the lint filter. Then put the lint filter
back in the agitator barrel.
Safety Lid Switch
If for any reason you open the lid in the middle of the wash cycle, the washer will
not spin and will shut off automatically. Once the lid is close, the washer will start
back on.
Figure 3
Agitator
Press
Lint filter
Lint Screen
Figure
Figure 2
Pull up out
Press
11

CARE AND CLEANING GUIDE
12
Cleaning and Maintenance
Use only damp or sudsy cloth for cleaning control panel.
To avoid any kind of damage to cabinet finish, wipe washer
cabinet as needed. If you spill liquid/powdered softener bleach
or detergent on the cabinet, wipe cabinet immediately because
it can damage the finish.
Do not use any abrasive, harsh chemicals, ammonia, chlorine
bleach, concentrated detergent, solvents or metal scouring
pads. Some of these chemicals may dissolve, damage and/or
discolor your washer.
Remove pins or other sharp objects from clothes to prevent
scratching of interior parts.
Leave lid open after you are done washing to allow inside of was
her to dry and prevent bad odors.
Warning: Always unplug your washer to avoid electric shock
before cleaning. Ignoring this warning may result in
injury. Before using cleaning products, always read and
follow manufacturer warnings to avoid personal Injury
or product damage.

13
Moving & Vacationing
Turn off water supply faucet's and disconnect hoses. Drain
water from all hoses.This will prevent from damaging due to
water leakage if the hoses accidentally get ruptured or they
become loose.
Disconnect electrical plug.
Dry inner wash tub. If moving washer disconnect drain hose.
Turn the leveling legs clockwise all the way in.
Move and store your washer in upright position only
To prevent mold or mildew, leave lid open so moisture inside
machine can evaporate.
Storage of Your Washer
The washer must be stored at room temperature.
If you just got delivery of a washer when outside temperature is below
freezing,do not operate until washer has warmed to room temperature.
Do not install or operate your washer where room temperature is
below freezing.

TROUBLESHOOTING
14
Washer does not operate:
Check if unit is plugged in. The plug may have come loose.
Check if the electrical wall receptacle is of proper voltage.
Check if the circuit breaker needs to be reset or if the fuse need
to be replaced.
Check if the washer is overloaded :load may need to be
re-balanced and clothes may need to be redistributed.
Check if the lid is open. You may have to close the lid properly.
The washer pauses in some cycles. This is normal in delicate or
hand-wash cycle which has short period of time. You will not hear
washer operation for a short period of time . When the soak time
is over, it will start automatically.
Problems with water:
Not enough water coming out: Water faucet may need to be
turnedon fully water . Hoses may be tangled or wrinkled up.
Straighten out hoses. Check water level selection, it may need to
be readjusted.
Water temperature is incorrect: Check your water heater
temperature.Hot water needs to be at a temperature of at least
120 F-140 F(49 C-60 C).Check to make sure the inlet hoses are
properly connected. (E.g. Hot to hot & cold to cold)
Water leaks: This is due to not properly installing drain hose or
fill hoses. Your home drain may be clogged . You may need to
tighten hoses, check the plumbing or call a plumber.
Water will not drain: This is due to not installing your drain hose
properly. Check theposition of the drain hose. In order to drain
properly, make sure that top of drain outlet is less than 5 ft.
(1.5 m) above the floor.
–

15
Washer is making noise:
Washer may needto be reinstalled. (Checkwasher installation
section)
Washer load mayneed to bere-balanced, as the load maybe uneven.
Coins, loose change, buttons orother heavy objects could make
noise(read Operating Guide-Normal Operating Sounds).
Squealing sound: Due to overloaded washtub.
Vibration Noise: Due tonot leveling washer properly onthe floor and
uneven distribution of clothes inthe tub.
Problems with clothes:
Clothes are too wrinkled: thisis due toimproper sorting, overloading
and washing in toohot water repeatedly.Avoid overloading andresort
your load. Do notmix heavy clothes suchas work clothes withlight
clothes such as blouses, lightshirts and delicate items.You may need
to wash inwarm or cold water
Have soap residue: detergent maynot be dissolving inwater.
Check water temperature or youneed to adddetergent as wash
tub is beingfilled with water.
Spots or stains onyour clothes: this isdue to incorrect useof fabric
softener. You may needto read proper instructions onthe container
and follow proper directions whenusing the softener.
Clothes are grayed oryellowed: this is dueto not pouring enough
detergent for large loads.You may have toadd more detergent tothe
load.
Clothes are ripped &have holes/excessive wear & tear: thisis due to
sharp objects such aspins and belt bucklesleft in pockets.You will
need to remove smallloose sharp objects. Fasten belts,zippers,
metal snaps etc. Checkif you areusing undiluted bleach. Never add
undiluted bleach to wash.
Note:
Reason
Trouble Codes
E0 Top lid not closed during delay start sequence.
E1 Blockage of drain hose.
E2 Top lid not closed during wash operation.
E3 The washer is out of balance.
E4 The water inlet time exceeds the preset time(30minutes).

Unpacking Your Washer
•
•
Remove all packing materials. This Includes the foam base and all
adhesive tape holding the washer accessories inside and outside
Open the top lid to remove the styrofoam drum brace. Pull to remove.
Before using this washing machine,
please remove this shipping bar by
pulling handle and dispose it
properly, otherwise the washing
machine will be damaged.
Tools and Materials Required
Youwill need tohave the followingtools to help
you in theinstallation of yourWasher:
.Scissors
.Phillips Screwdriver
.Standard Screwdriver
.pliers
.Wrench
.Tape Measure
.Gloves
.Level
Accessories Supplied
Quantity
3. Water inlet hose 2
4. Drain hose
1
1. Drain hose clamp 1
2. Drain book(goose neck)
1
1234
16
INSTALLATION INSTRUCTIONS

17
Leveling Your Washer
Your washer has 2 leveling legs; which are located on the
bottom corners. After properly placing your washer in its final
position, you canlevel your washer.
Leveling legs can be adjusted by turning them counter clockwise
to raise your washer or turning them clockwise to lower your
washer.
•
High Low
Adjustable foot
Steps for Installation
Select a away suitable location for the washer on a hard even surface
from direct sunlight or heat source e.g. radiators, base board heaters,
cooking appliances etc.Any floor unevenness should be corrected with
the leveling legs located on the bottom corners of the washer.The
washer must be placed at room temperature.You must not place washer
where the temperature is at below freezing.
Installing Your W asher:

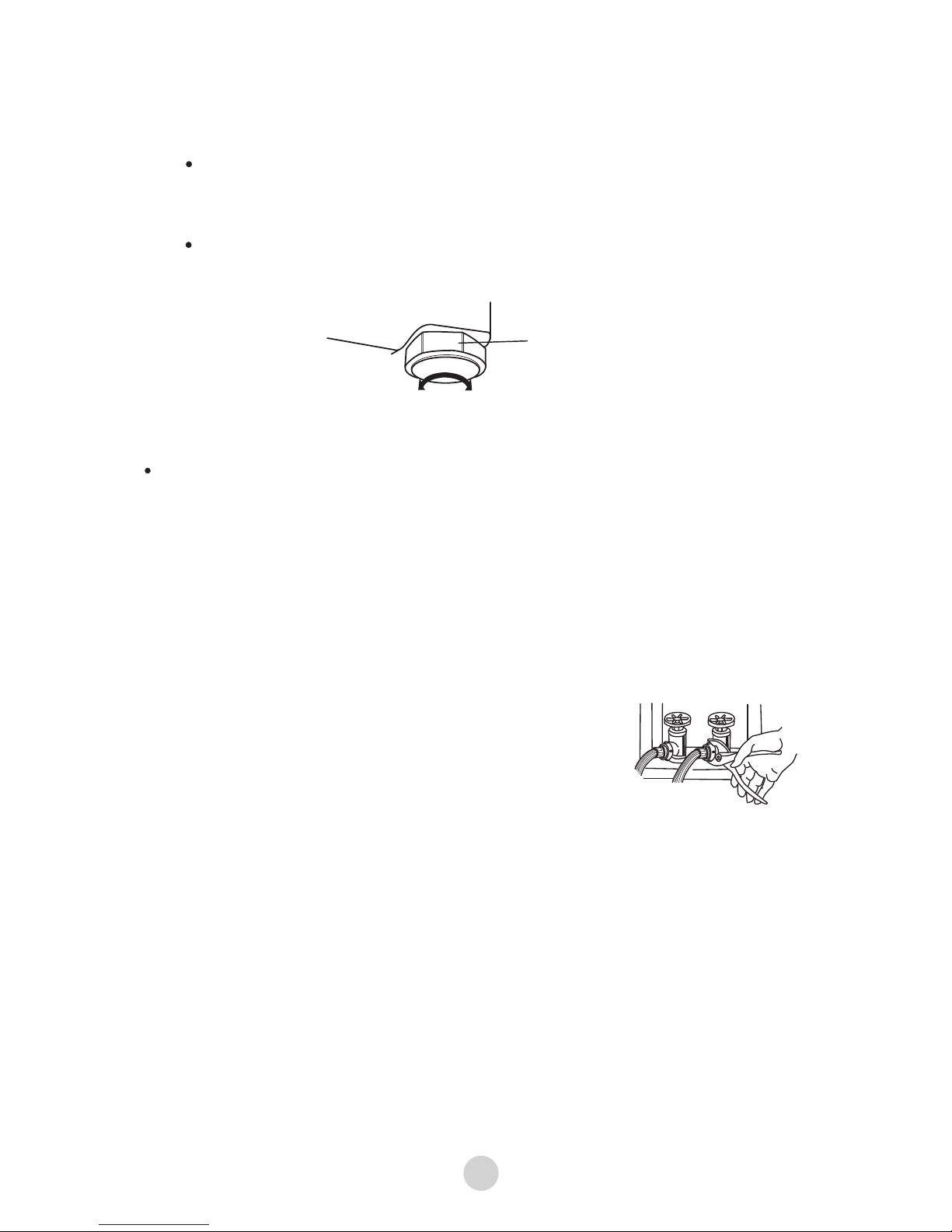

2. Connect the hot and cold water inlet hoses to the hot and
cold water faucet.
3. Connect the other end to the corresponding washer inlet located at the back of machine.
4.install the drain hose to the side of the washer using the drain hose damp provided.
The drain hose must be placed into a drainpipe or sink at least 1 1/2inches in diameter.
Use the gooseneck to the hose in place. To avoid possible water back up, the drain
hose must reach a minimum height of 900mm and a maximum height of 1200mm.
You may have to use pliers to tighten the coupling. Do not over tighten
because you may cause damage to the valve.
You should use the new hose-sets supplied with the washer. Old hose-sets
should not be reused.
1.Insert a new flat washer into each end of the water
inlet hoses. Firmly put the washers in the coupling.
Read through these instructions carefully before installation.
Note:

5.Plug in the washer to a regular 230-240Volt/50Hz,10Amps outlet.
Note :Carefully inspect all around the machine and at the back for
any leaks, and tighten any loose connections.
18
Caution: If after completing these steps, you are unsure that unit is
properly installed, contact a qualified installer.To ensure that
your washer is properly installed, it is recommended that it
be installed by a certified installer.

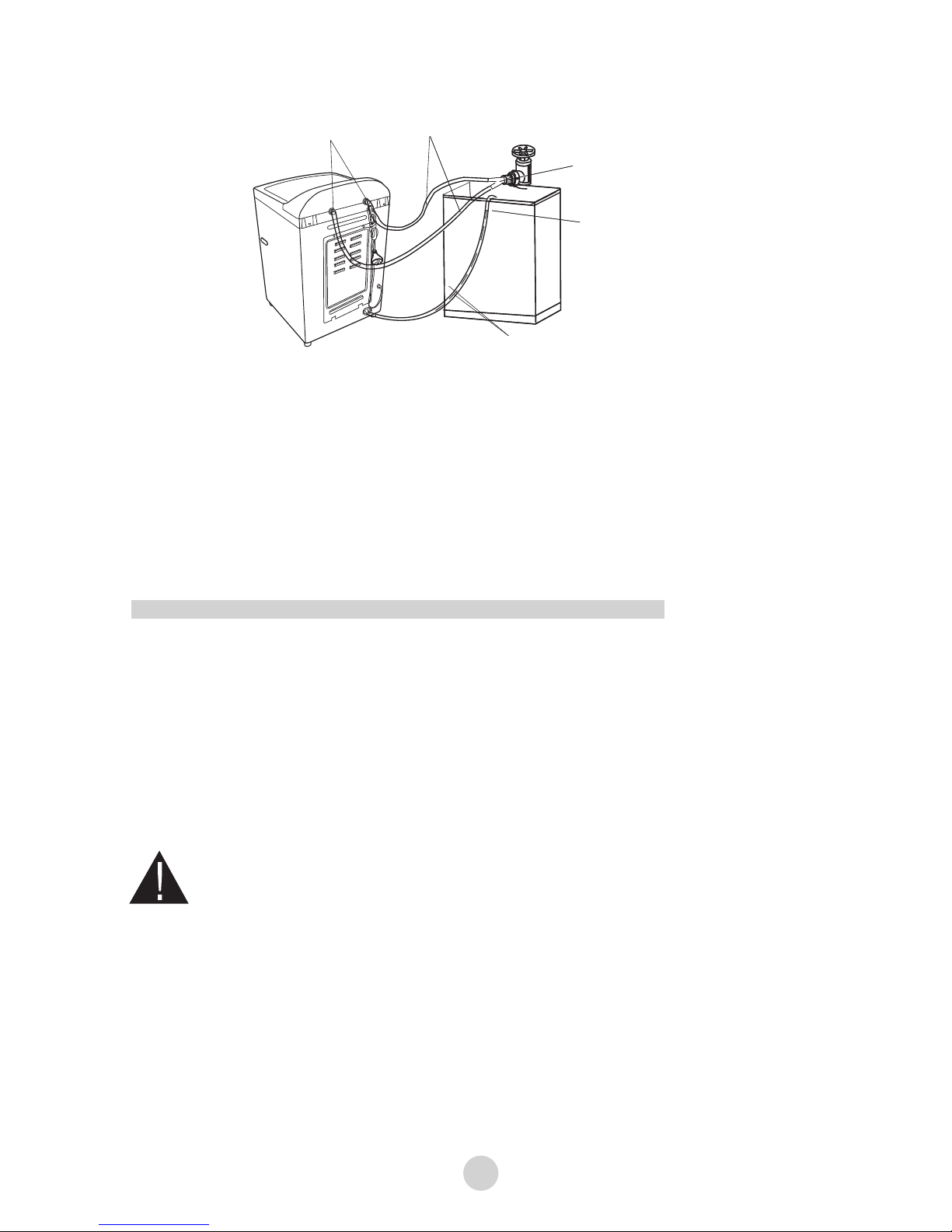

Water Inlet
Water Supply Hose
Goose Neck
Hose Bend
Drain Hose
ELECTRICAL REQUIREMENTS
Grounding Instructions
This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electric current. This appliance is equipped with a
cord having a grounding wire with a grounded plug. The plug must be
inserted into an outlet that is properly installed and grounded.
• Improper use of the plug can result in a risk of electric shock.
Consult a qualified electrician or service person if the grounding
instructions are not completely understood or if doubt exists as
to whether the appliance is properly grounded.
•
Wiring Requirements:
•The washer must be plugged into at least 10AMP 230-240 VOLT,
50 HZ GROUNDED OUTLET.

Note: Where a standard two-prong
outlet is encountered,
it is the personal responsibility
and obligation of the
consumer to have it replaced
with a properly grounded
three-prong outlet.
Extension Cords:
We do not recommend that you use an extension cord.
Power Interruptions
Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from AC outlet when a power
outage occurs. When power has been restored re-plug power cord to AC
outlet. If outage is for a prolonged period, clean washer before using it
again.
SPECIFICATIONS
Model HWM65TLF
Rated voltage frequency 230-240V~ 50Hz
Rated washing / spinning capacity 6.5kg (weight of standard dry cloth)
Water level/Water quantity (about) Large/76L Medium/56L Low/35L
Injection pressure 0.03MPa-1.0MPa
Rated washing power 400W
Rated spinning power 300W
Weight( ) 40.5kg
