Haier WM7003A User manual

WM7003A
User's manual
Computerized Full-auto
Washing Machine
Please read this manual carefully before using.
Retain it for future reference.
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.
The manufacturer will not take responsibility for those
risks occurred from not obeying this manual.
Names of the parts.............the 2nd cover
Safety precautions .............................................1
Installation and adjustment .........................3
Install the water inlet hose............5
Preparation before washing ...............7
Put in the laundries .............................8
Put in the detergent ............................9
Use the operation buttons ...................10
Close the top lid .................................14
Finish washing ...................................14
Disposal after washing .........................15
Trouble shooting..............................16
Packing list.....................................17
Specification................the back cover
CONTENTS
Before using
Using process

Contents marked with that symbol are related to the safety of the product and the personal
safety of the users. Please operate in strict conformity to the contents.
Contents marked with that symbol are actions forbidden to perform. Performing of those
action may result in damage of the machine or influence the personal safety of the users.
Accessories
Meaning and description of the symbols
Cabinet
Drain hose
Hanging hole for
the drain hose Back cover
Fixing leg
(three pieces)
Adjustable leg
Adjustable leg film
Power cord
Handle
Control pannel sheet
Control pannel
Washbox
Pulsator
Lint filter fixing
Water channel
Filter cap
Top lid
Before Using
Before Using

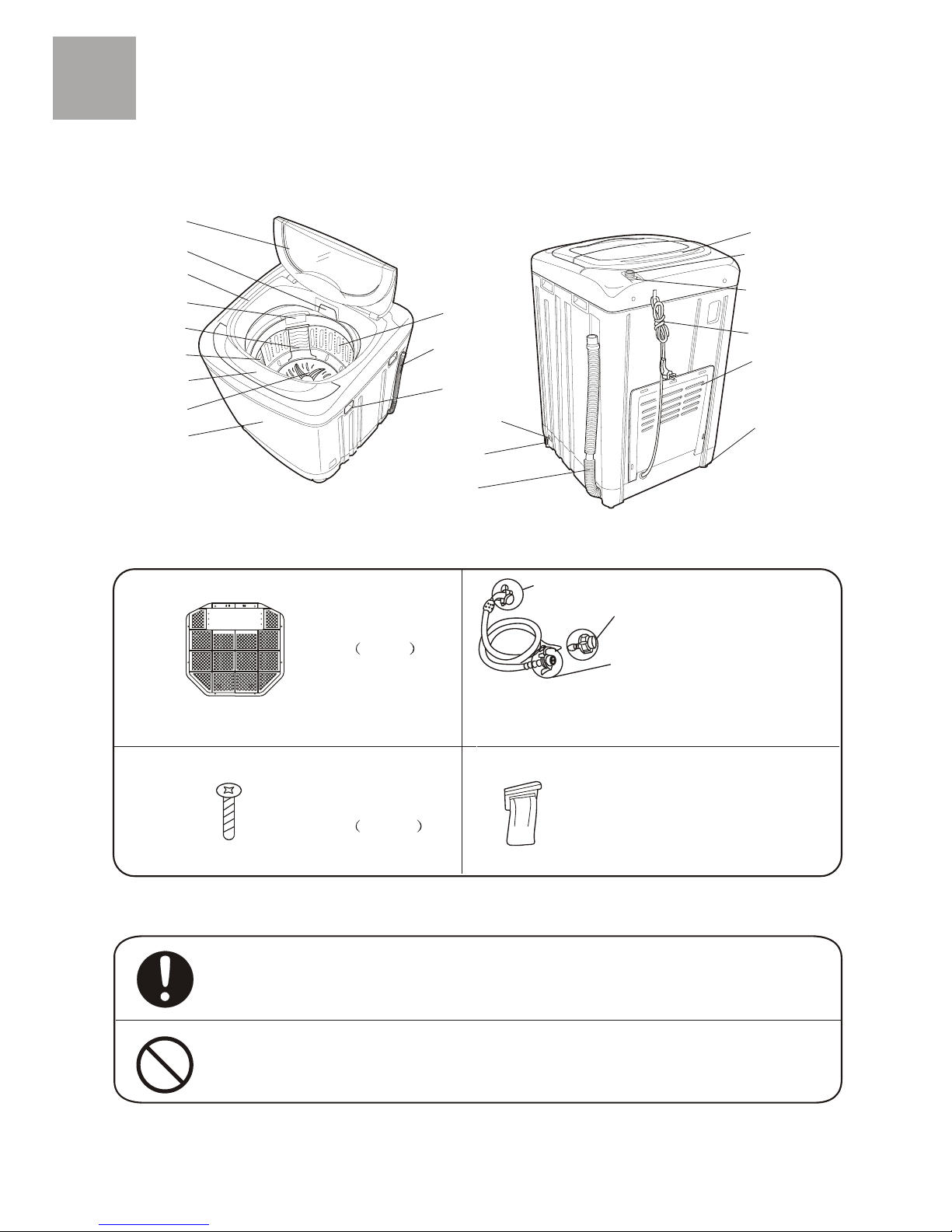

Names of the parts
Water inlet valve
Inner tub
Notice film
1 piece
8 pieces
bottom plate
Fastening screws
ST4X16-B
Water absorption
cushion
Water inlet hose (1 piece)
Water inlet hose joint (1 piece)
the end connecting to the washing machine
jointer connecting the water
inlet hose and the water faucet
the end connecting to the water
inlet hose jointer
Lint filter (1 piece)

The ventilation
holes at the bottom
Before Using
Before Using
Safety precautions
In case the washing machine is installed on ground with
carpet, do not block the ventilation hole with carpet.
Do not use water hotter than 50 C .
Do not bend, stretch, twist, bind the power cord by force, or reformit.
Do not press or clamp it with heavy items. If the power cord and power
plug are bad, or the receptacle is loose, be sure to have it replaced by
the technicians of our special shop or our agent,or the after-sales service
department to avoid any risk.Keep the prong of the power plug clean.If
dust is found on the power plug, please wipe it off with dry cloth.
In normal usage of the washing machine, the power
plug shall be ready to be pulled or plugged with hand.
Be sure to pull the plug off and close the water faucet
when occurring power failure,delivering the machine,
setting the machine idle or cleaning the machine,Do
not plug or pull the power plug with wet hand.
earth
Please plug the plug on special 220-240V AC receptacle.
Be sure to use three phase power receptacle.Ensure
the earthing prong of the power receptacle is earth-
ed reliably.Use leakage protector if possible.
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Do not wash water-proof laundry like the raincoat,
bikecovers, down textiles etc. To avoid abnormal
vibrations in spinning and damages to the laundries.
Do not let the machine share one receptacle with other
electric appliances. If the power plug is damaged, or
the plugging into the receptacle is loose, do not use
the plug any more.

Before Using
Before Using
Safety precautions

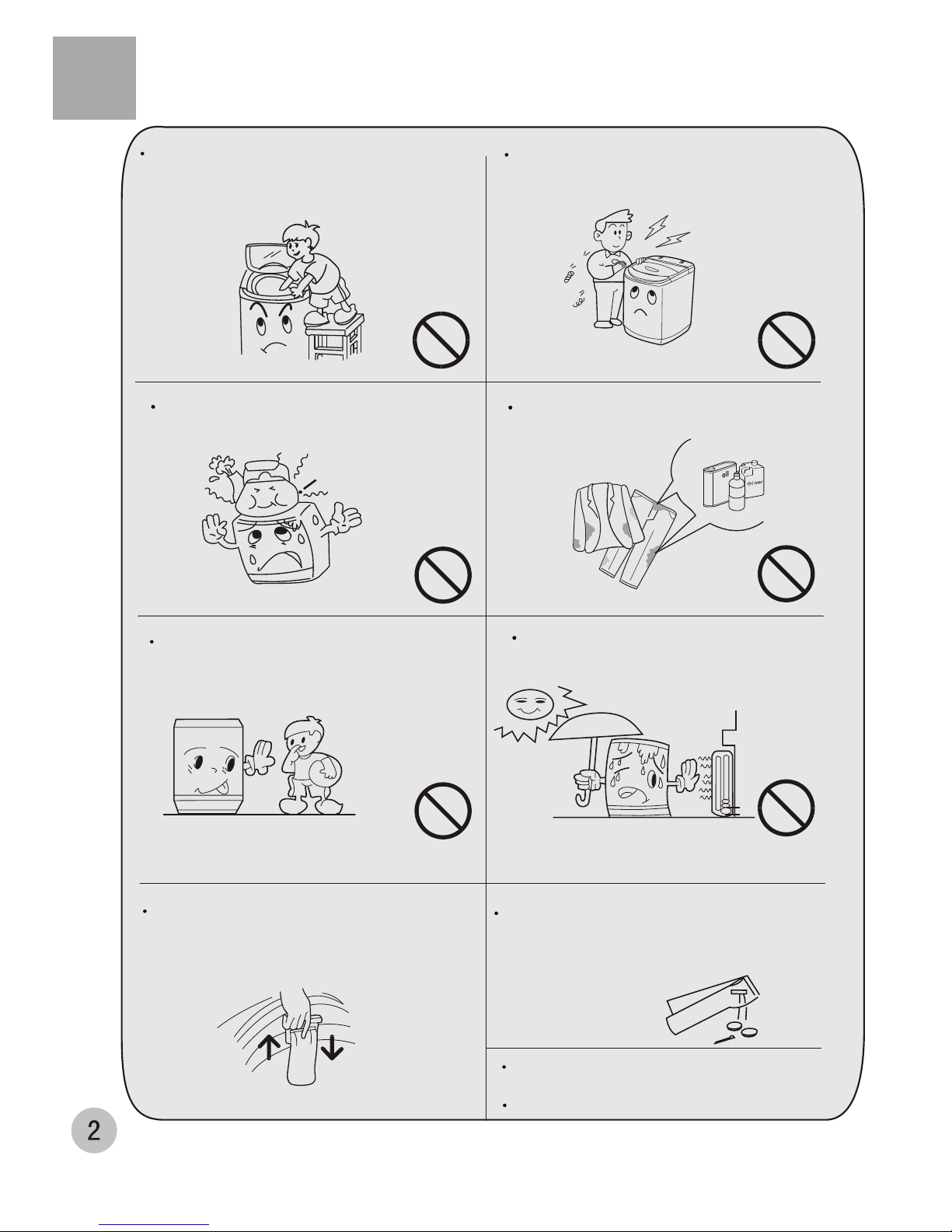

Do not put hand into the rotating tub.It is dangerous
even if the rotation speed is slow. Take special care of
the children. Keep children away from the washing
machine to avoid them climbing on.
Do not decompose, repair or alter the machine by
yourself.
Do not put any hot or heavy items (such as the
kettle with hot water) on the washing machine.
Do not wash laundry with volatile materials
(such as thinner, petrol etc.).
Keep the machine away from direct sunlight and
heat source like the heater.
The handicapped or children without care shall not
use the machine.
Please keep the lint filter in good condition, and
install it to proper position during washing. If the
lint filter is lost or damaged,please contact the local
after-sales service department of our company.
Benzene
Before Using
Before Using
Safety precautions
To protect your laundries and washing machine,
please take out all of the coins, buttons, sand, hairpin
and other foreign materials before washing.
Please check if the water faucet is open, and if the
connection of the water inlet pipe is proper.
It is suggested to use foamless washing powder.
Dismantle Install

Install the bottom plate
Install the lint filter
Adjust the Installation position
Screw
Back
Front
bottom plate
Soft object
Please install and adjust the machine according to the requirement of the mannual.
It is very important to your security and correct operating the machine.
Before Using
Before Using
Installation and adjustment

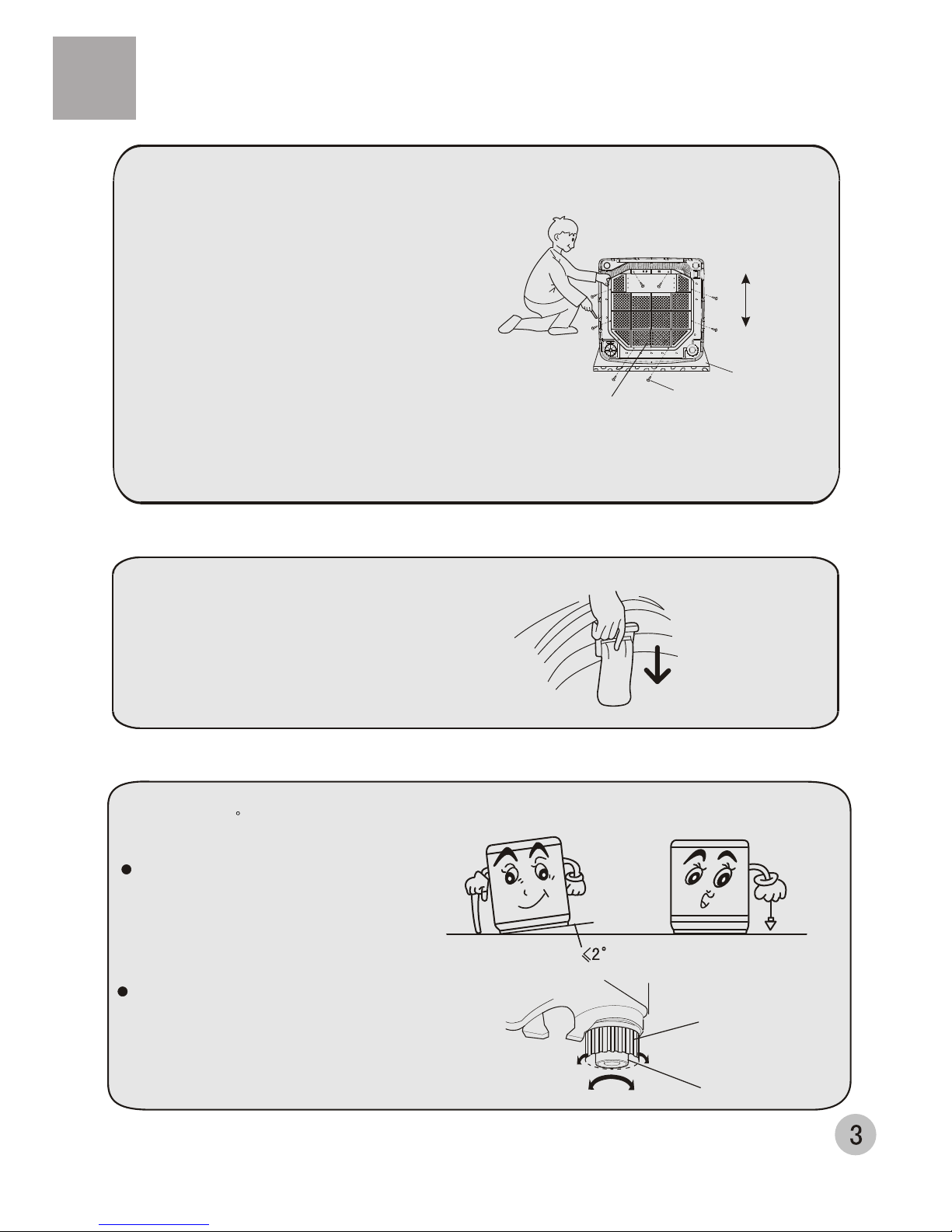

After open the package, please lean the
washing machine gently down to soft
items (towel cloth, blanket, etc.). Install the
bottom plate to the bottom of the machine
with the eight screws by a cross
screwdriver, then lift the machine up gently.
See to the figure.
The washing machine away from wall should be overrun 20mm.The largest allowable slope of the shank base of
the machine is 2 .The slanting or rough ground will result in unstable running or stoppage of the machine.
Please adjust it with following methods:
Confirm it's horizontal:
Hang the lead line to check if it is
horizontal.
Adjust the adjustable foot:
FastenLoosen
High Low
the adjustable nut
the adjustable foot
1 .To twist the adjustable leg, please first lift up the
side of the foot slightly, loosen the adjustable nut,
and twist the foot.
2 .After adjustment, fastenthe nut.
Install the lint filter in the balance ring.
(See to the right figure)
Install

The drainage shall be smooth with the drain hose.
The height of the drain hose shall be less than 10cm,
or the drainage will not be smooth, and cost such long
time that the machine may stop at mid way.
Do not step on or press the drain hose.
If extra drain hose is needed, please make separate
purchase. The inner diameter of the extra hose shall
not less than 30mm, and the length shall not exceed 1.5m.
If the extra hose is too long,
cut it either at A or at B point.
AB
<10cm
A
> 30mm
<1.5m

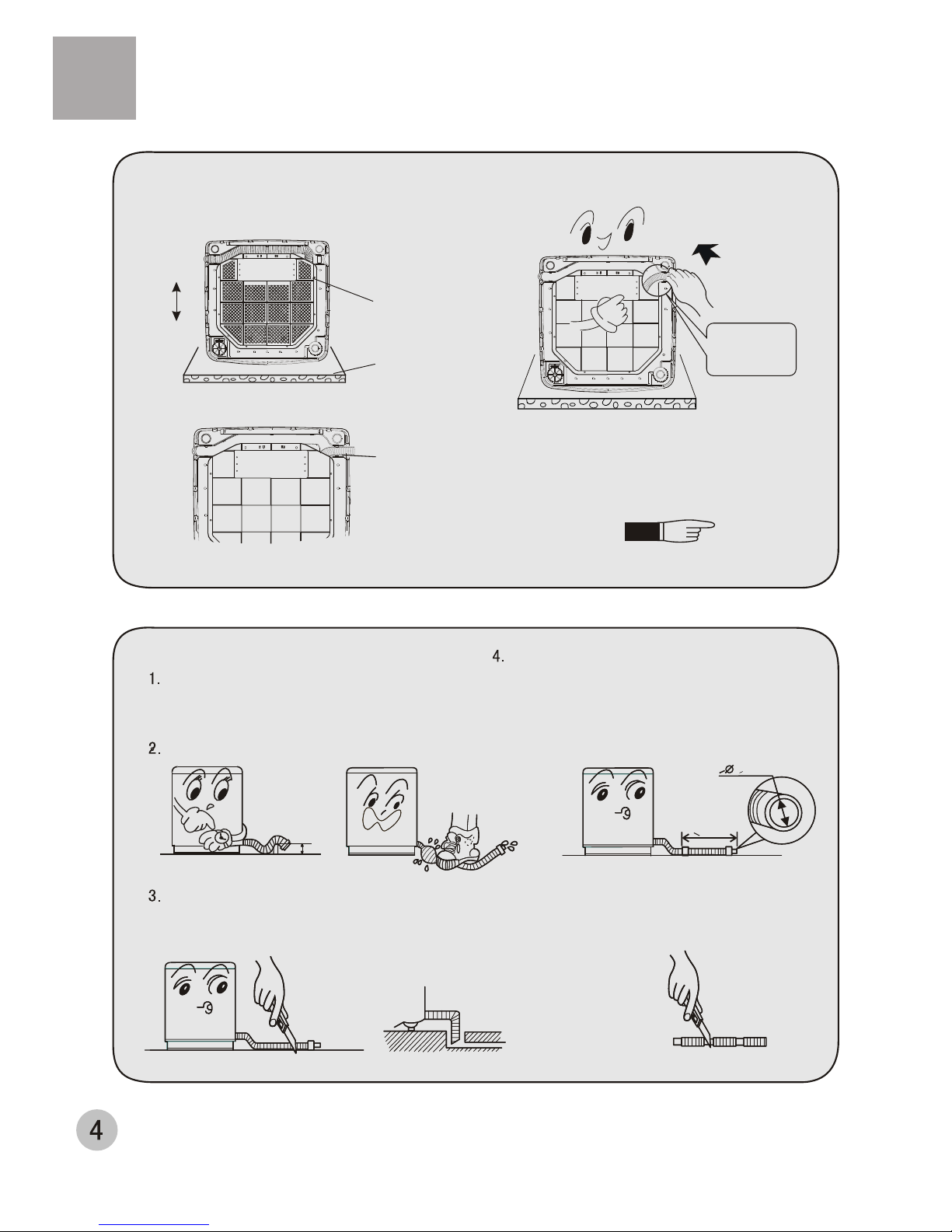

How to change the direction of the drain hose
Back
Front
The bottom plate
Soft object
Figure 1
Page 3
If the drain hose is too long, cut it at mid point. To make
smooth drainage, cut the front end of the hose slantingly.
Use this side groove after
change the direction.
Fix the drain hose
onto the groove.
Useage the drain hose
Before Using
Before Using
2.Pull out the drain hose from the right side groove.
3.Extend the drain hose out from the left side
4.Install the bottom plate (method as stated in P3).
Lift up the machine gently.
1.Disassemble the bottom plate.
Lean the machine down gently with the front
surface facing the ground. Loosen the eight
screws by a cross screwdriver.

The exit end face of the faucet
Confirm the water faucet
Connection between the water inlet hose jointer and the water faucet
water faucet, suitable water faucet, not suitable
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.
2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.
See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen
the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,
otherwise it may leak water. See to Figure 3.)
1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the
water inlet hose component. See to Figure 1.
3.Fasten the four screws evenly. See to Figure 4.
About 4mm before twisting
remark: Before installation, the threading is 4mm above the upper surface of the nut.
After installation, the threading is 2mm above the upper surface of the nut..(see to figure 6)
About less than 2mm after twisting
water inlet hose jointer
Screw knife
Screw
Bushing
Sign plate
Screw nut
water inlet hose
Figure 1
Figure 4
Figure 2
Figure 5
Figure 3
Figure 6
Slider
Lock lever
Before Using
Before Using

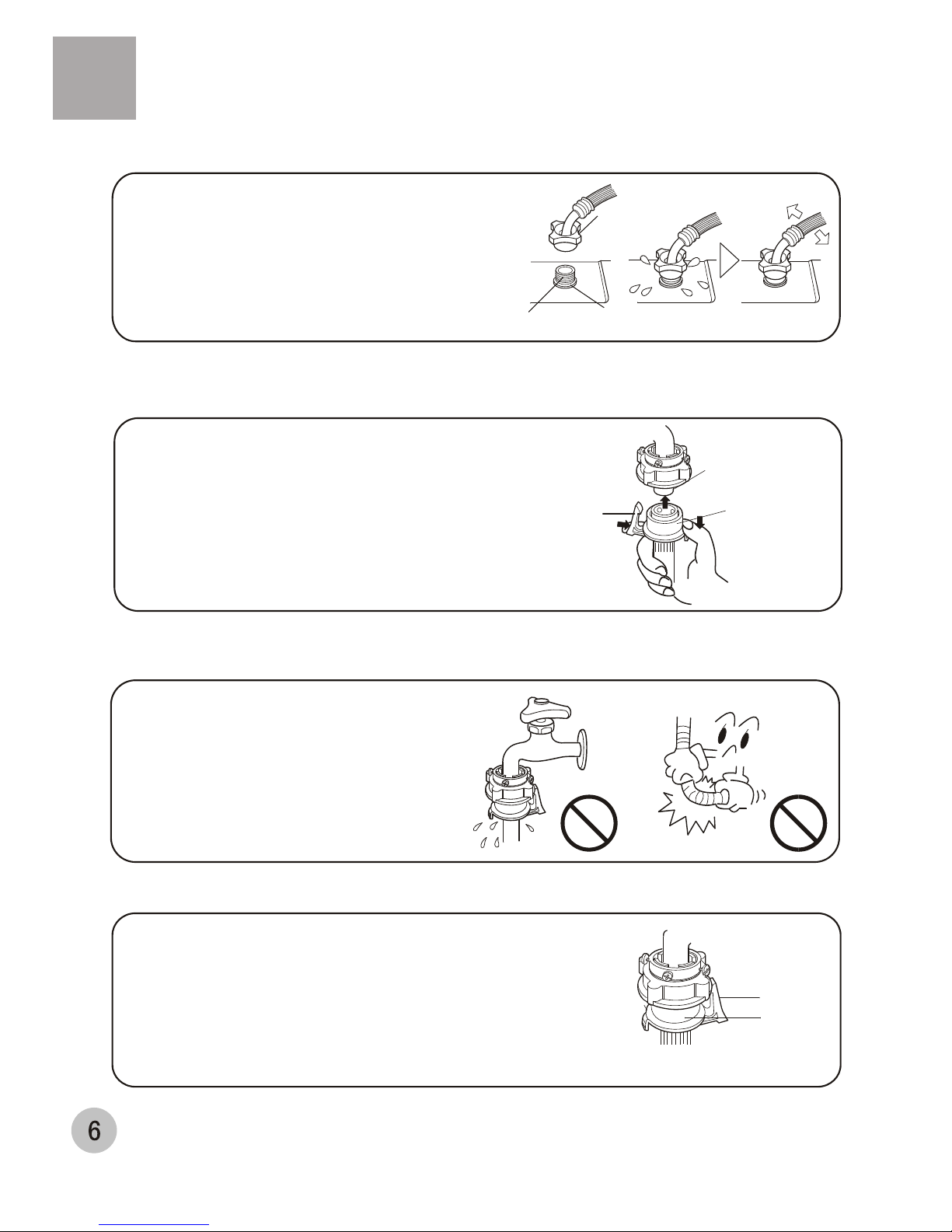

Install the water inlet hose
4 Take off the sign plate. Twist the fastening nut as per the indication of the figure
to seal up the exit end face of the faucet. See to Figure 5.
Use the newwater inlet hoseprovided with themachine to connectto the waterfaucet.Old hose sets
should not bereused.

Connection between the water inlet hose and the washer
Dismantle the water inlet hose
Connection between the jointer of the water inlet hose
and the water inlet hose
Check the connection between the jointer of the water inlet hose
and the water faucet
1.Do not take off the water absorption cushion. Please check if the
cushion is dropped or damaged before each usage. If it happens
please contact our after-sale department immediately.
1.Swing the hose gently to confirm if it is fastened stable.
2.After installation, open the faucet to check if it leaks.
3.Do not bend the hose with overstrain.
1.Push down the slider. Insert the water inlet hose into the jointer.
2 Hang the lock lever to the jointer. Release the slider till a click
sound is heard.
Locking lever
Slider
water absorption
cushion.
nut of thewater
inlet hose
the jointer of the
water inlet hose
Slider
Locking lever
jointer of the
water inlet valve
1. Close the water faucet.
2. Press the locking lever. Push down the slider. Then pull of the water inlet
hose.
If the machine is used frequently, the jointer of the water inlet hose can be
kept
on the faucet to prevent damaging the fixing screw.
Before Using
Before Using
2 Put the nut of the water inlet hose on the valve jointer.
3 Fasten the nut. Swing it gently to confirm if it's suitable.
4.Before each usage please check if the connection
between the jointer of the water inlet hose and the
water faucet, and the installation of the water inlet
hose are firm, so as to prevent dropping from
improper installation position.

Using process
Using process
1 Preparation before washing
Confirm if there's
special requirement
for the laundries.
Clear the pocket.
Take out the coins ,
sand,hairpins etc.
Fasten the buttons
and zippers.
When the pulsator is
running ,the buttons of
the laundries may cause
noise. For the sake of
discretion ,please put
the laundries with
buttons into other
laundries.
Preparation before washing
The quantity of the
laundries shall not
exceed the rated
value. The big
laundries like the
jeans shall be put
in loosely.
Pay attention to followings before washing the laundries
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries with unfast color from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust. For the parts with heavy soil,
please apply detergent in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn it over before putting in.
f. Do not put those laundries polluted by chemicals directly into the washing machine.
g. For those small laundries and those may get twisting or worn, and woolen/fur laundries, please put them into
mesh bag for washing.

Reference weight of the laundries:
working suit up,down
jeans about 800g
The capacity of washing of the machine refer to the
largest weight of the standard laundries under dry
condition that can be washed in one time. Laundries
quantity in one washing cycle shall be lower
than the rated capacity. The largest
capacity of this machine is 7.0kg.
The thickness ,size , type of the cloth will influence the
actual washing capacity. It is suitable to put in
reasonable amount of laundries and the laundries can
be turned round in washing for one time washing.
Do not select above" 8 " water level for laundries
less than 2.0kg ,so as to avoid splashing of water.
blending coat
about 800g
shirt jacket
single bed sheet
socking
underpants
undershirt
pajamas
blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
about 200g
Using process
Using process
2 Put in the laundries
cotton,about 1120g

How to use the whitener
Standard dosage of the detergent and water quantity
Water
level
Water
quantity
Common powder,
Turn the detergent box down before adding the detergent.
How to use the washing powder
Fill water to decided level .Dilute the whitener with
container. Pour it slowly into the washing tub.
Direct dissolved in the machine
1.Fill water to "2" water level
2.Add the powder. Run for 30 seconds to dissolve
it completely.
3.Put in the laundries. Select suitable water level.
Concentrated powder,
Add 40g in each 30L water Add 25g in each 30L water
3 Put in the detergent Using process
Using process
Add the concentrated composite washing powder into the box
directly as indicated in the left figure.
See to following table for the dosage of the washing powder.
Avoid using whitener on laundries with colour or
pattern as they are prone to lose colour.
The whitener shall not touch the laundries directly.
Refer to the user's manual for the usage and
quantity of the whitener.
For powder whitener, please dissolve it before use.
Different washing powders have different dosage.
Please refer to the usage manual of the washing
powder for the details.
It is suggested not to use high sudsing detergent.
The powder is more prone to pollute the laundries than
the detergent. Therefore please use it with proper quantity.
The instant dissolving of the washing powder:
1. Prepare warm water of 30 and a container.
2. Add the powder while stirring to fully dissolve it.
About 57L
About 49L About 65g About 41g
About 42L About 56g About 35g
About 34L About 45g About 28g
About 27L About 36g About 22.5g
About 53L
About 45L About 60g About 37.5g
About 38L About 50.5g About 31.5g
About 30L About 40g About 25g
About 22L About 29g About 18g
About 76g About 47.5g
About 70.5g About 44g

Select suitable water level according to the
weight of the laundries.
9
7
5
3
1
10
8
6
4
NORMAL
JEANS
GENTLE
SPEEDY
HOURS LATER
RESERVE
WATER
LEVEL PROGRAM RESERVE
NORMAL
Four program available for your option.
Program

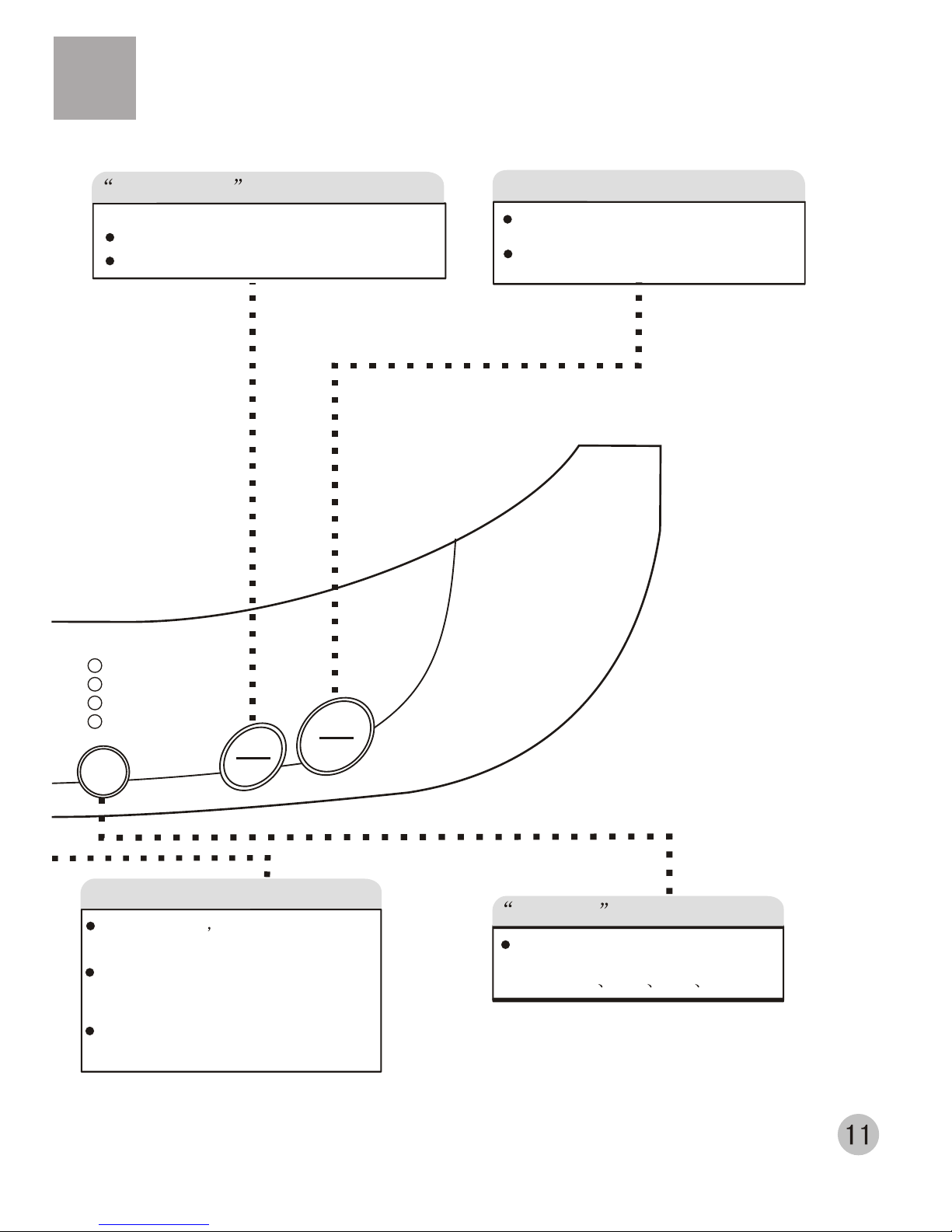

Description of the function of the knobs and buttons
Mode and meaning of the indicators Numeral tube
Flashing rapidly: indicate abnormal condition
On: indicate the program about to run,
or indicate the selected mode
Flashing: indicate the running program
"PROGRAM"button
4 Use the operation knobsand buttons
Using process
Using process
min
SURPLUS
"WATER LEVEL" button
JEANS
GENTLE
SPEEDY
For large and heavy stained laundries
wash gently stained laundries
in ten minutes.
for normal
for woolen and underwear
When select ,water level will get 2
automatically ,after reach level 2, wash and
inlet water ,when the water level get about 4 ,
stop supply water and wash normally.
"SPEEDY"
When it s normal, show abnormal symbol
When running , show reserve time(minute)
During reserve , show surplus reserve time
(hour)
see page 16

SOAK
WASH
RINSE
SPIN
PROCESS
START
PAUSE
POWER
ON/OFF
one or more out of the four procedure
programs are available for your option,
Such as soak wash rinse spin .
After the power is switched on, push it to start the machine
PROCESS button
START/PAUSE button
Push this button washing-over time's
available from 2 to 24 hours.
WM7003A
"RESERVE" button
"POWER ON/OFF" button
Push the "POWER ON/OFF" button to switch on
the power.
During pause, push it to resume working.
During working, push it to pause working.
When the power is on, push it again to switch off
the power.
Description:
Push the power button to switch on the power. If the machine is idle
for 5 minutes, the power will be switched off automatically.
After select reserve , the light of reserve and
surplus will light ,the decimal point will glitter,
the rest is dark.
After select reserve , push the reserve button,
and the reserve state can be shown.
Using process
Using process

Push the "PROGRAM " button to select the suitable process.
Push the "PROCESS" button to select the suitable
procedure program.
After switching on the power, the machine will set to standard program automatically including "wash-rinse-spin".
To select other program, push the "PROCESS" button to select one or more programs among "soak"" wash"
"rinse""spin". After the washing machine starts to work ,changing process is unavailable excludily during washing
program . Please Refer to the "selection method of the procedure programs" for the selection.
After switching on the power, the machine will set to standard program automatically . To select other program,
push the "PROGRAM " button to select expected programs and the
corresponding light will shown . Refer to the "PROGRAM" (see to page 10).
Such as: wash the light stained laundries ,select speedy wash.
PROCESS
PROGRAM
Page 10
Page 13
Push the "POWER ON/OFF" button to switch on the power.
POWER
ON/OFF
Steps of using the operation buttons and description
of the steps
Using process
Using process
9
7
5
3
1
10
8
6
4
WATER
LEVEL PROGRAM RESERVE
START
PAUSE
POWER
ON/OFF
WM7003A
NORMAL
JEANS
GENTLE
SPEEDY
HOURSLATER
RESERVE
Min
SURPLUS
SOAK
WASH
RINSE
SPIN
PROCESS

Push"WATER LEVEL"button,select suitable
water level
According to the weight of the laundries select suitable water level. Refer to the "standard dosage of the
detergent and water quantity" for the selection.(see to page 9)
WATER
LEVEL
Page 9
Using process
Do not use the "JEANS" program
for the woollen laundries.
Wash the laundries that are prone to lose color
separately from other laundries.
The pulsator will not rotate unless the water is filled to selected water level.
Even there's no water in the tub, the
spinning will start after a certain period.
Attention
Selection method of the procedure programs
Times of pushing
the "process
selector" button
Selected procedure
program
Applicable procedure Contents (the lighted indicators
indicate the programs about to run)
Wash, rinse, spin
(standard program)
When the common laundries
need washing , rinsing and
spinning
SOAK WASH RINSE SPIN
Wash (the washing
liquid remains in
the tub)
Wash (the rinsing
liquid remains in
the tub)
Repeat using the washing liquid
Repeat using the rinsing liquid
Rinse, spin
Spin
(spin after drain)
When the laundries need rinsing
and spinning aftermanual washing
When the laundries only need
spinning after manual washing
(spin after drain)
If the laundries are very dirty, or the
sleeve and collar are dirty, first soak
then wash
soak, wash, rinse, spin
If you push the "PROCESS" button for 5 times, it will resume the original mode, and it will circulate like that.
If you select the "SPEEDY " program, you have to set the full procedure of water level, wash, rinse
and spin. The procedure cannot be selected.
SOAK WASH RINSE SPIN
SOAK WASH RINSE SPIN
SOAK WASH RINSE SPIN
SOAK WASH RINSE SPIN
SOAK WASH RINSE SPIN
Using process

Push the "RESERVE" button, select the suitable pre-wash program
Push the "START/PAUSE" button
5 Close the lid 6 Finish washing
After reserving , indicator light of is off lights of reserve and surplus time are
on work .during reserve program , press the
if change program or cancel pre-wash program ,you must turn off the power and select it again.
selected program
reserve button ,reserve state can be shown.
18 hours later, finish wash
After Finishing wash
alarm automatically
Insure running the "reserve" program
RESERVE
After finishing wash it'll alarm automatically
As the top lid opened ,the Washer will automatically give an alarm
and stop running , exclusively during supplying water and rinsing.
START
PAUSE
Using process
After turning on the power , pre-wash program will be selected automatically as initial state .if you wish the
washer would have finished work in preset time, push reserve button and select pre-wash program .
Refer to the reserve for the selection.(See to page11)
""
""
Time list of each program (minute)
Program water level Soak (min) Wash (min) Rinse (min/time) Spin (min) Total time (min)
Normal
Jeans
Gentle
Speedy
Rinse twice with stored
water, about 5
Rinse twice with stored
water ,about 5
Rinse once with stored
water, about 2
Rinse once with stored
water, about 1.5
1~10
1~10
1~10
2~4
About 30
About 30
About 15
About 12
About 15
About 3
About 2.5
About 7
About 7
About 2
About 2.5
About 47
About 50
About 17
About 10
* Total time: including the normal water filling time, drain time, excluding the soak time.
* Spin time: the time from intermittent running to finishing
* When running "Jeans program and selecting soak , first soak for about 25 minutes, pre-wash for about 10 minutes, then
soak for about 5 minutes, then do washing, rinsing and spinning. (Remark : there is intermittent agitating wash during soak )
*The finishing time may be influenced by the water inlet pressure and water level.
Using process

Clean
The filter screen of the water inlet valve is likely to be
blocked by foreign materials and influence the water
inlet. Please clean it with brush every two months.
Using process
Disposal after washing
After using, please clean the lint and foreign materials of the lint filter etc. in time. Otherwise it may influence
your using the machine.
The lint filter must be used during washing.
It must be cleaned in time after each using
Lint filter:
1.Pull it up to dismantle.
2.Push it down to install.
3.Clean the filter screen after washing.
Clean the detergent box and set it on
the control panel seat.
1.The method of dismantle : Push it up aslant and gently.
2.The method of install : install it upwards and aslant
and push it in .
Dismantle
Dismantle
Install
Install
If the cabinet is dirty, wipe it with wet cloth
Do not flush it directly with water.
Wipe it with neutral detergent.
Do not wipe it with thinner, petrol, alcohol etc.
1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).
Thinner
Petrol
Alcohol
Please first pull off the power plug from the receptacle before cleaning.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid for some time (about
1 hour), then close the top lid.
4.Hang up the power cord and drain hose.
3.Be sure to pull off the power plug before maintenance.
2.Do not store water in the washing machine for a long period. Drain the water completely after each using.
Using process

In pre-wash , the washer stops running,
the numeral tube shows E0
The safety switch acts. The
spinning can not work (after
amending twice automatically)
The numeral tube shows E3
Not supplying water
The numeral tube shows E4
or the speed
is too slow the suitable water
level doesn't research about 15
minutes.
The draining does not work, or the speed
of draining is too slow ,The numeral tube
shows E1 (exclude in speedy).
The machine stops running In
washing ,rinsing or spinning.
The numeral tube shows E2
Is the power off?
Does the power cord loose?
Does soft wash program selected?
Does the water level sensor contact badly?
Please contact with after-service center
The numeral tube shows E6
The top lid is not closed.
The top lid is not closed.
Close the top lid.
Close the top lid.
Is the drain hose put down?
Clean the foreign material. Open and close
the top lid once.
Put down the drain hose.
Are the laundries put slantingly?
Re-order the laundries. Close the top lid.
The water faucet is not open or supplying
water is stoped.
The water inlet valve is blocked.
Clean the water inlet valve .
Push the "Start/Pause" button.
Open the water faucet.
Push the "Start/Pause" button.
Is the drain hose blocked by foreign
material?
Is the spout blocked by foreign material?
Clean the foreign material.
Select the soft wash ,it s normal.
Is the machine slanting?
Is some metal inside the washer?
Are the laundries slanting in spinning?
Is the jointer screw of the water inlet
hose loose or twisted awry?
Insert the power plug tightly.
Use it when the power is on.
Level the machine properly.
Re-order the laundries.
Fasten the fastener or zip up the zip.
Fasten the jointer screw properly.
The water faucet leaks.
The machine does not act.
(Indicators are off.)
The waterfall current is poor or out.
It is the water remained in the factory inspection of
performance.
Common phenomena
Phenomena Explanation
Balance the laundries to avoid slanting.
The program is setting the drain time. Some time is
needed before it starts spinning.
It is because that the laundries are slanting to one side,
and the safety switch acts. After water inlet and stirring,
the slanting will be removed and the spinning will work.
The spinning is intermittent when it starts.
In the final spinning, it stops and displays
"Rinse", and starts water inlet.
There may be some water flowing out of
the drain hose in the first use of the machine.
Push the "PROGRAM” button to
select "SPIN”, but it doesn't work.
There's abnormal sound inside
the machine.
Is the machine slanting? Level the machine in right position.
Open and close the top lid once.
Phenomenan The reason How to settle
Trouble-shooting Answer to question
(If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns
sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special
maintenance department or after-sale service department of our company. Do not repair it by yourself.

Packing list
Name
User's manual
Lint filter
Quantity
One Piece
One Piece
One Piece
Storage position
Inside the document bag
Inside the document bag
Inside the accessory bag
Between the upper cushion of the
washing machine package and the
upper seal of the package carton
Computerized Full-auto
washing machine
Components of the
water inlet hose
Inside the accessory bag
Eight Pieces
Tapping screws ST4x16-B
Bottom plate One Piece
One Set

Specification
Model WM7003A
Rated voltage frequency 220-240V ~ 50Hz
Rated washing / spinning capacity 7.0kg (weight of standard dry cloth)
Water level/Water quantity (about)
Max water consumption
Injection pressure 0.03MPa~0.78MPa
Rated washing power 325W
Rated spinning power 225W
Weight About 31kg
Dimension L 548 mm W 548 mm H 890 mm
About 171L(High water level; Standard program)
1/22L 2/27L 3/30L 4/34L 5/38L
6/42L 7/45L 8/49L 9/53L 10/57L
