Haier XPB50-LS User manual

XPB50-LS
Air Bubble Twin-tub Washing Machine with pump
Names of the parts.............the 2nd cover
Safety precautions ...............................1
Installation and adjustment ..................3
Introduction of the major functions .......5
Preparation before washing ................6
The musts in washing .........................7
Usage of the detergent .......................8

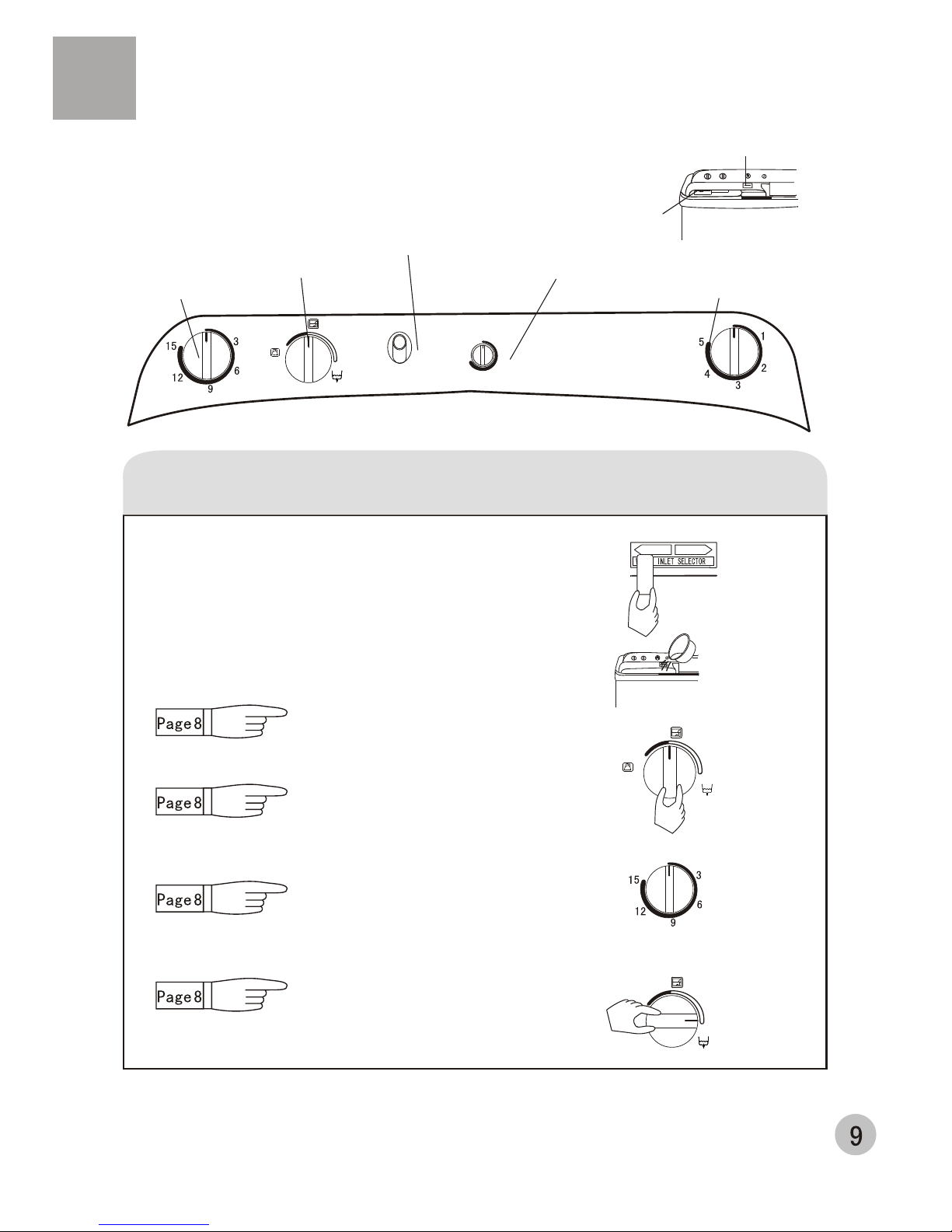

Washing sequence ..............................9
Disposal after washing .......................13
Contents
Before using
Using process
User's manual
Trouble-shooting*

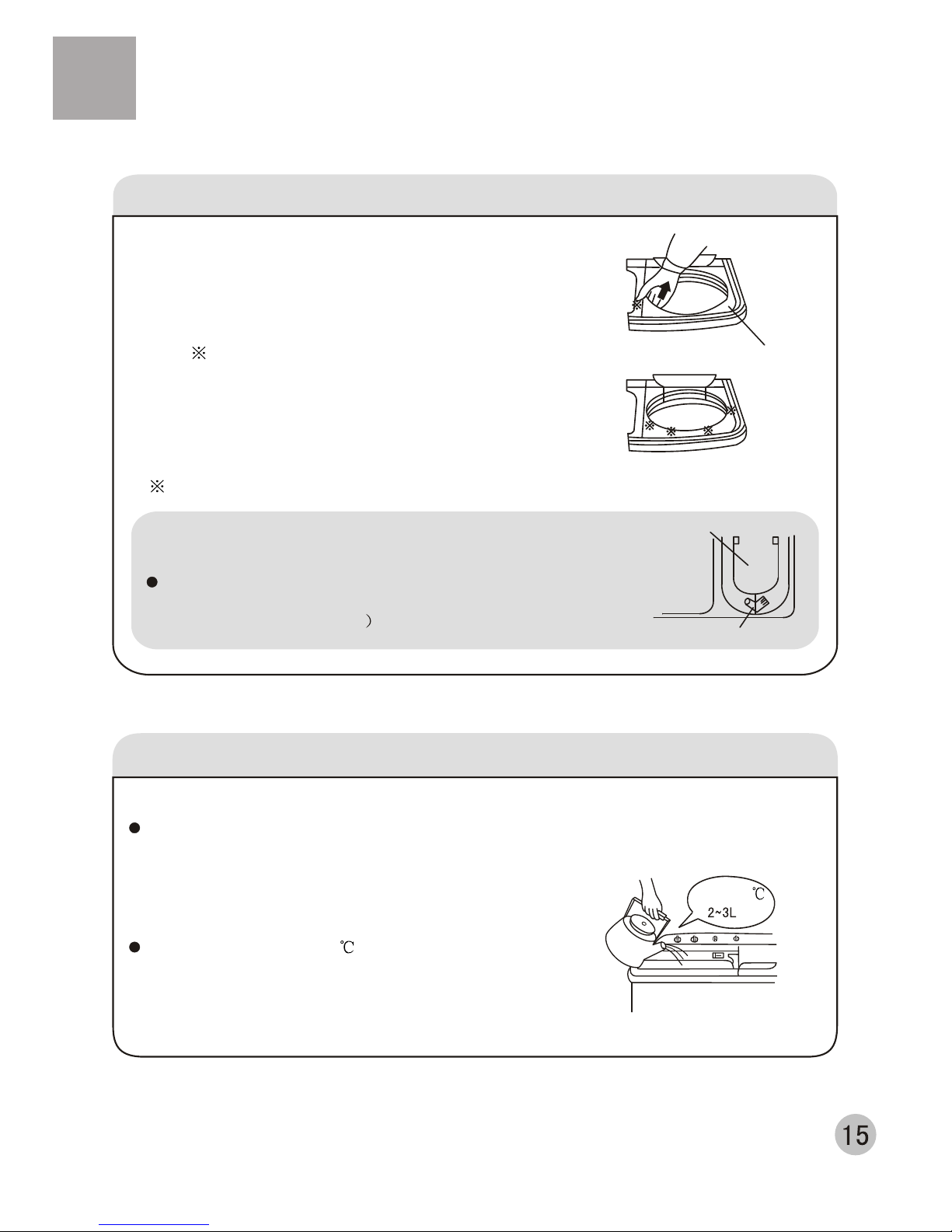

Answers to question.....................15
Specification*
Circuit diagram...........the back cover
Packing list ......................................17
Please read this manual carefully before using.
Retain it for future reference
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.
The manufacturer will not bear the responsibility for
those risks occurred from not obeying this manual.

Before Using
Before Using

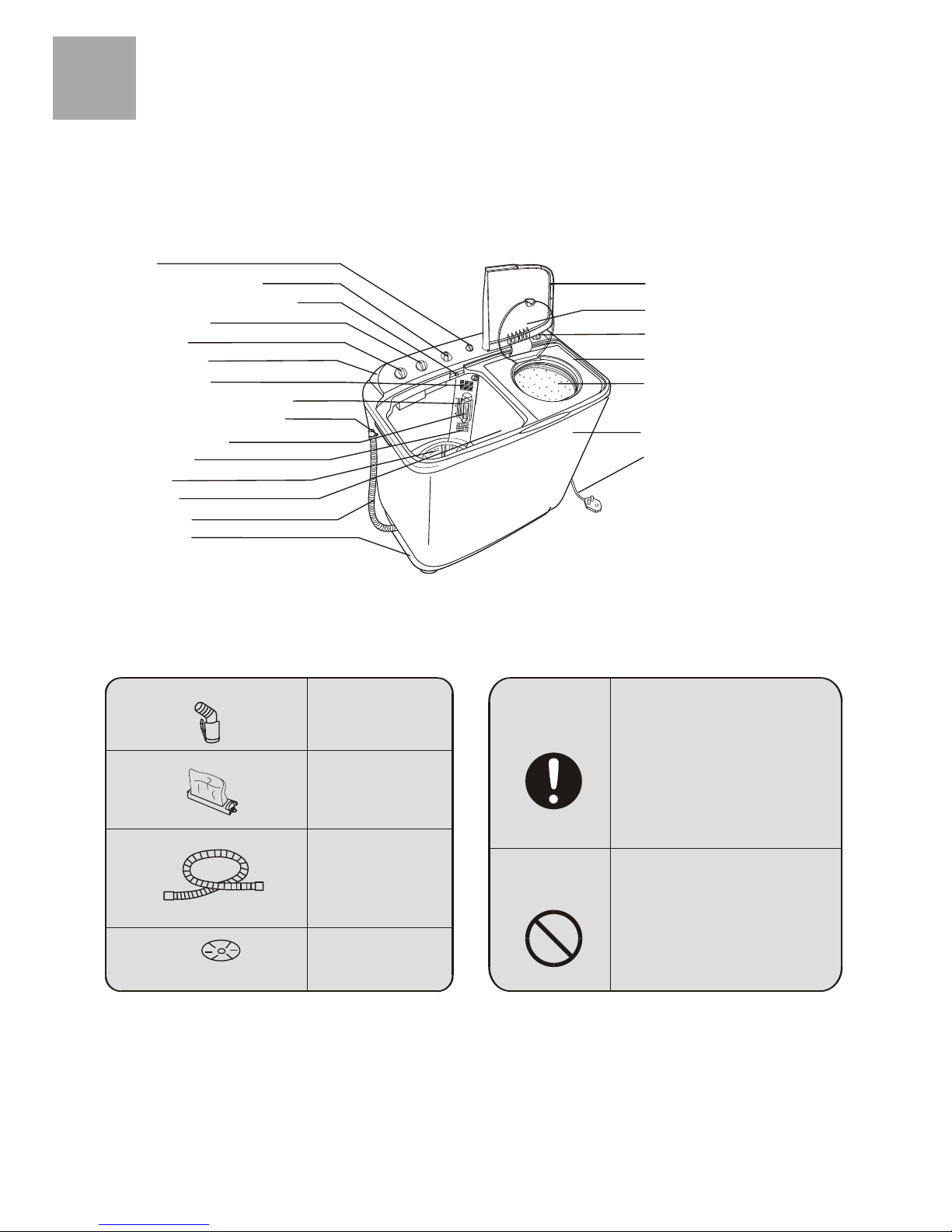

Names of the parts
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.
Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.
Accessories
Water-filling jointer
(one piece)
Lint Filter
(one piece)
Water inlet hose
(one piece)
Gland
(one piece)
Buzzer
Water-filling entrance
Water inlet selector handle
Water selector
Wash timer
Control panel
Overflow filter
Water level adjusting lever
Drain hose hanging hole
Lint filter(Installed by user)
Valve cover
Pulsator
Wash tub
Drain hose
Base frame
Outer cover of the spin tub
Inner cover of the spin tub
Spin timer
Spin tub frame
Spin tub
Cabinet
Power cord

Before Using
Before Using
Safety precautions
If the power cord is bad, to avoid risk it is required to replace it by the technicians
of our special shop or the after-sale service department. Keep the pin of the power
plug clean.
Be sure to use three-phase receptacle.
Earth the earthing terminal of the
receptacle reliably.
Do not put the machine at damp place
like the bathroom . Never wash it with
water.
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Ventilation hole at
the bottom of the
washing machine
Be sure to pull the plug off when there's
power failure, or the machine is being
moved, cleaned or when it is idle.
Do not use water hotter than 50 C .
Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.
Earth
Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.

Before Using

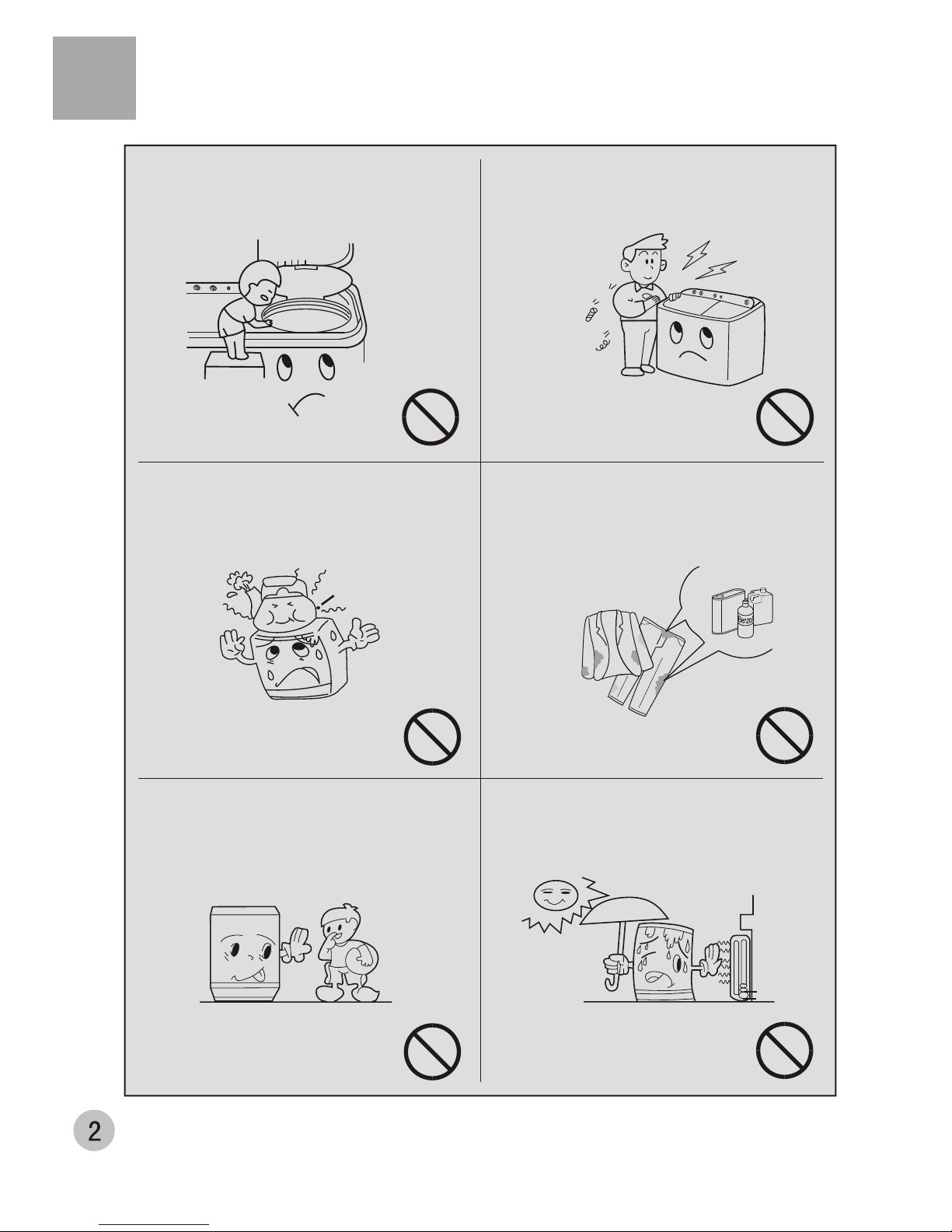

Before Using
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Handicapped or children without care
shall not use the machine.
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
Thinner
Safety precautions

Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not tramp or press the drain hose.
4.If extra drain hose is needed , please make
separate purchase. The inner diameter of the
extra hose shall not less than 30mm, and the
length shall not exceed 1.5m.
If the extra hose is too long, cut it either
at point A or B.
3 If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.
<10cm
BA
> 30mm
<1.5m
Before Using
Before Using

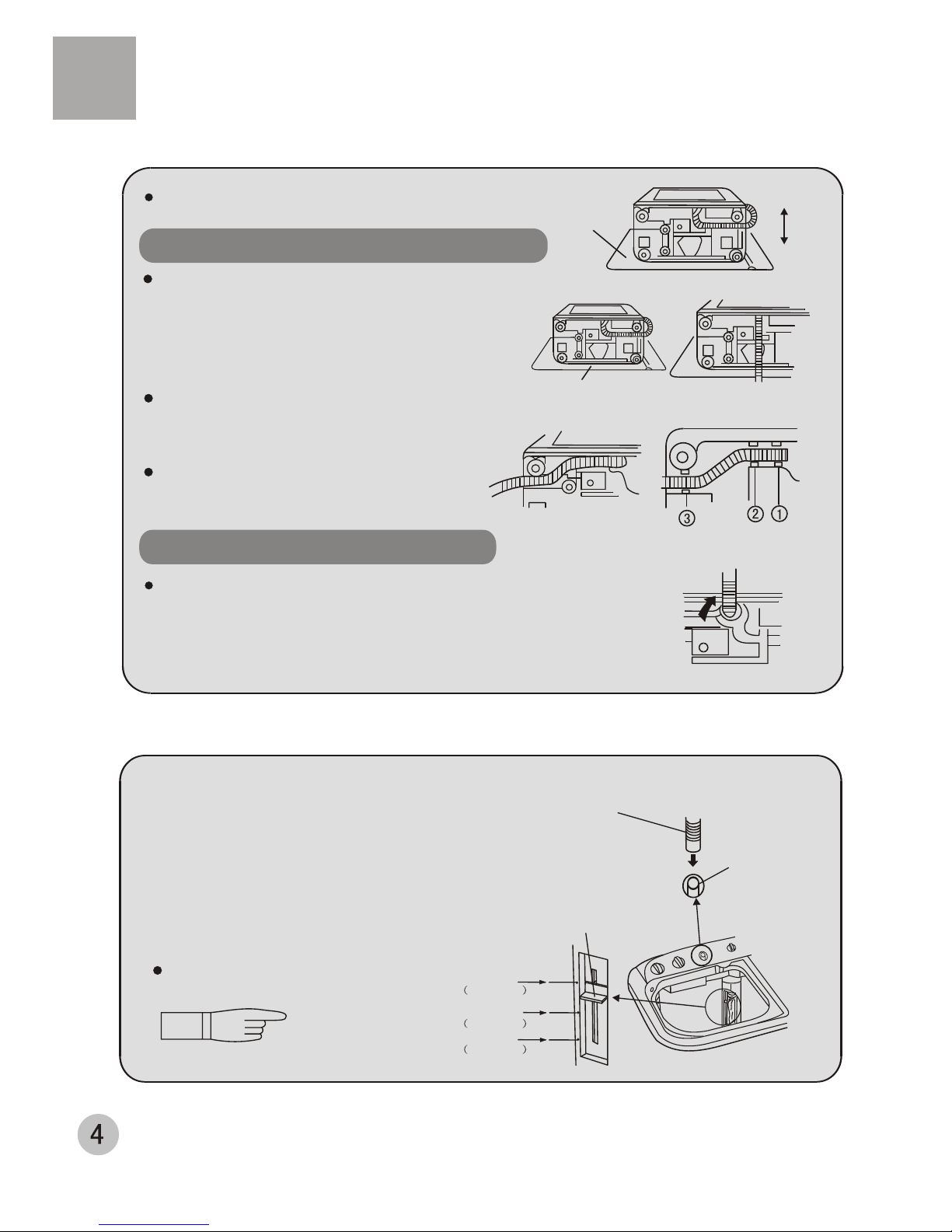

Installation and adjustment
Install the lint filter
After opening the package,pllease take out the lint filter from
the document bag,install it to the overflow filter of the wash
tub.See to the figure.
After opening the package,pllease take out the lint filter from
the document bag,install it to the overflow filter of the wash
tub.See to the figure.
Overflow filter
Lint filter

Extend the drain hose from the rear side
How to change the direction of the drain hoses
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Take the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove along the side
of the spin tub in the order of (1)~(3), heading for the
side of the spin tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Install the water inlet hose; Select the water level
Figure 1
Figure 2
Figure 3
Figure 4
Embed into the
groove in turn
Page8
Back
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Before Using
Before Using
Water inlet hose
Water inlet
Maximum Max
about 43L
about 36L
about 30L
Minimum Min
Medium Med
Water level
indicator
Extend the drain hose from the side of spin tub
Soft item
Soft item
Extend to the
spin tub side
Take out the drain hose from the fixing groove. Extend it from
the rear side as per the direction of the arrow. (When the drain
hose is extended from the rear side, it can be hung on the
point for drain hose at the two sides of the cabinet.)
(See to Figure 4).
Front
Insert the water inlet hose into the water-filling
entrance on the control panel.

Quick water-filling entrance
If you do not need spraying spin, you can
fill water into the wash tub directly through
this entrance. It can reduce the humidity
inside the control panel significantly and
prolong the operating life of the components.
Quick water-filling entrance
Using process
Using process
Introduction of the major function
The machine has good comprehensive performance, and nice appearance.
In the respect of increasing the clean rate, it creates the air suction washing method.
The spinning of the pulsator automatically produces large quantity of bubbles, which can
strengthen the activity of the detergent remarkablly. And the rising and exploding of the
bubbles produce the effects of absorption and bombardment on the dirt particles in the
fibre of clothes that is difficult to remove by common washing methods.
It adopts complete enclosed base frame and low-noise motor, and thus reduces the
working noise significantly. We can guarantee that the purchase of this machine will bring
you a clean world without disturbing your quiet life.
Foam-removing spinning during high-efficiency rinsing
Use the foam-removing spinning to
remove the extra detergent liquid. It can
both shorten the washing time and save
the water consumption.
Foam-removing
spinning
Remove most of the foam
extra detergent liquid. it can
both shorten the washing
time and save the water
consumption.
Remove the detergent
liquid remained
The effect is best when the
laundries quantity is below
80% of the rated value.
Spin
Spin for about
1~2 minutes Fill water for about 1 minutes Spin for about 1~2 minutes

Confirm if
there's special
requirement for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Using process
Using process

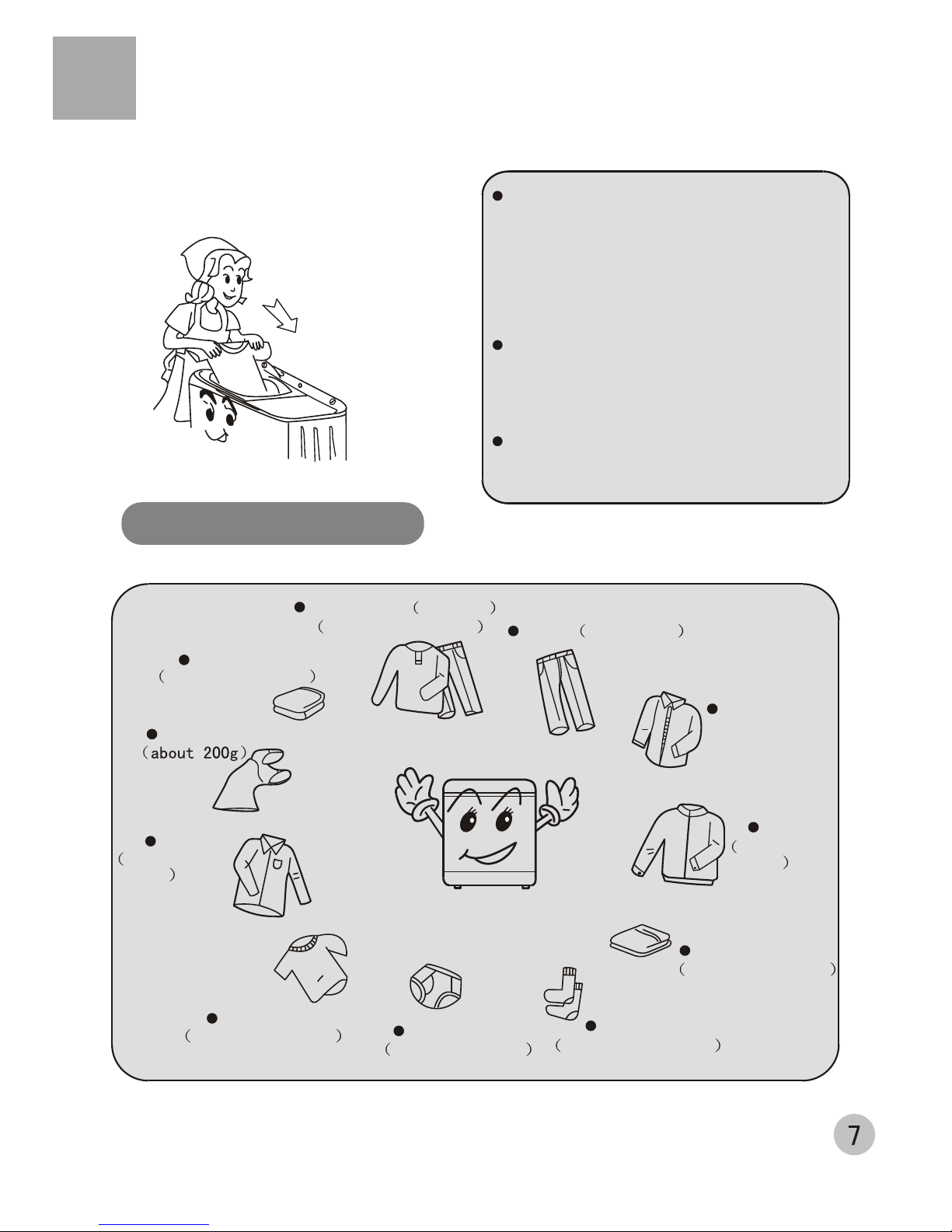

Preparation before washing
Pay attention to followings before washing the laundries

Reference weight of the laundries
Working suit up,down
Jeans about 800g
The capacity of washing and spinning of
the machine refer to the largest weight of
the standard laundries under dry condition
that can be washed or spinned in one time.
Laundries quantity in one washing cycle
shall be lower than the rated capacity.
The largest capacity of this machine is
6.0 kg.
The thickness ,size , type of the cloth will
influence the actual washing capacity. It
is suitable to put in reasonable amount of
laundries and the laundries can be turned
round in washing for one time washing.
Do not select " Maximum " water level
for laundries less than 2.4kg, so as to
avoid splashing of water.
Blending coat
about 800g
Shirt Jacket
Single bed sheet
Socking
Underpants
Undershirt
Pajamas
Blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
Using process
Using process
The musts in washing
cotton,about 1120g

Selection of the quantity of the washing powder list 1
Selection of the current , water level and washing time list 2
How to use the washing powder
How to use the whitener
Fill water to decided level. Dilute the whitener with container. Pour it slowly into the
washing tub.
Avoid using whitener on laundries with color or pattern as they are prone to lose color.
The whitener shall not touch the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30 seconds to
dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing powder:
1.Prepare warm water of 30 C and a container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
It is suggested not to use high sudsing
detergent.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for the usage and quantity of the whitener.
For powder whitener, please dissolve it before using.
Laundries
quantity
Laundries
quantity
Water level
Water level
Current
Standard dosage
Concentrated washing
powder
Laundries
Common washing
powder
Washing time
(minutes)
Water quantity
Water quantity
About About
About3~6
About8~10
About10~13
About7~13
About2~4
About3~6
About8~10
About About
About About
3.6kg~6.0kg
2.4kg~6.0kg
2.0kg~3.6kg
Below2.0kg
Below2.4kg
Maximum (about43L)
Maximum (about43L)
Strong
Minmum (about30L)
Minimum (about30L)
~
Standard
Medium (about36L)
Medium (about36L)
~
Medium (about36L)
36g
30g
25g
43g
36g
30g
Usage of the detergent Using process
Using process
Knitwear
Cotton,blending,linen
Very dirty and thick
Bed sheet
Silk(thin laundries)
Chemical fiber
Cotton,blending,linen

Washing sequence
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Spin timer
SPIN
WASH
Wash timer
WASH TIMER
Wash selector Buzzer
Water-filling entrance
(To set to below 2 minute,
first set to 5 minute then
turn it back. it can increase
the service life of the timer).
Using process
Using process
(standard current,
strong current) (The buzzer will ring when
the washing finishes) (to set to below 1 minute,
first set to 2 minute then
turn it back. it can increase
the service life of the timer).
Overfilling sign
Water-filling selector handle
Wash
DRAIN
DRAIN
STRONG
STRONG
STANDARD
STANDARD
WASH SELECTOR
WASH SELECTOR
1.Water-filling selector
(1) Set the water-filling selector at the "WASH" side.
(Figure 1)
(2) Set the water level adjusting lever to needed line.
2. Fill the water and add the dissolved washing
powder to make the water level reach the preset
position. (Figure 2)
Run washing program for some time to stir and
dissolve the powder completely.
3.Put in the laundries. If the water quantity is
insufficient, please add water.
4.Select the current.
Select the strength of the current according to
the laundries. (Figure 3)
5.Select the washing time
Select the washing time according to the laundries.
(Figure 4)
6.After washing, the buzzer will ring. Set the "WASH
SELECTOR" at "DRAIN". (Figure 5).
OFF
OFF
OFF
DRAIN
STRONG
STANDARD
MAX
SPIN TIMER
WASH TIMER WASH SELECTOR
BUZZER
OFF

Midway spinning
1.
2.
3.
Put the laundries into the spin tub evenly and smoothly.
Spin
Run the foam-removing spinning.
Push
Push
Proper Proper
Outer cover of
The spin tub
Inner cover of
The spin tub
The laundries
are slanting
Gland
No gland
Using process
Using process
(1) Put the gland in properly.
Please put in the gland properly even if the laundries quantity is small.
(2) Close the inner and outer cover of the spin tub.
(3) Spin for 1-2 minutes.
(1) Open the outer cover of the spin tub.
(2) Set the water-filling selector control
rod at the "SPIN" side. Fill water for
about 1 minute.
If the water quantity filled is too large,
the water may flow out from the wash
tub side. Please twist the water tap to
limit the water filling.
(3) Close the outer cover of the spin tub.
Spin for 1-2 minutes.
SPIN
WASH

Rinse with stored water
Rinse with water-filing
1. Put the laundries into the wash tub. Select suitable current according to
the laundries.
2. Fill water to preset water level.
3. Rinse
Adjust the wash timer to 2-3 minutes to do rinsing.
When the laundries quantity is below 2.4kg, please use "Standard" current.
If you use "Strong" current, it may splash.
Rinsing
Using process
Using process
(Repeat the midway spinning and
rinsing with stored water for 2-3 times)
1.Put the laundries into the wash tub. Select
suitable current according to the laundries.
2.Adjust the water level
Set the water level with water level adjusting
lever according to the laundries quantity.
Then fill suitable water continuously.
3.Rinse
Adjust the wash timer to 5-7 minutes to do
rinsing.
OVERFILL
If the water flows out
of the overfill holes,
that is overfilling

Selection of the spin time list 3
Laundries Spin time
(minutes)
About 4~5
Bed sheet or
blanket
About 2~4
Underwear
(knitwear)
Swear
(chemical fiber) About 1~2
Within 1 minute
Blending thin
laundries
Using process
Using process
1. Put the laundries into the spin tub
evenly and smoothly.
2. Press the gland in the tub properly.
Close the inner and outer cover of
the spin tub.
3. Spin
Select suitable spin time according
to the laundries, and do spinning.
During spinning, if there's abnormal
sound, it is generally owing to slanting
placement of the laundries. Please
stop the machine and re-order the
laundries.
In spinning, it will pause the work if you open the outer cover of the spin
tub. Close it to resume the spinning.
Spinning
To do spinning and draining or rinsing
with water-filling together, please first
do spinning for around 1 minute, then
do draining or rinsing with water-filling.
Otherwise the spinning will stop owing
to too much water stored in the spin tub.

After using, please clean the lint and foreign materials of the lint filter and overflow filter
in time. Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
1 Take off the overflow filter.
As indicated in the figure, nip the elastic fixing
claw and pull it to the direction of the arrow to
take it off.
Cleaning the overflow filter
Too much lint on the overflow filter will influence
the normal usage of the machine. Please
clean it every two months.
Elastic fixing
claw
Figure 2
Figure 3
Figure 1
1. Take off the lint filter
Put hand at the indicated position.
Push down to take it off. ( See to
Figure 1)
2. Clean the lint
Put it in water and clean while it is
still wet.(See to Figure 2)
3. Install the lint filter
After cleaning, insert the bottom
of the lint filter ( marked with
"down side") into the overflow filter ,
then push the upper part of the
filter in ( marked with " up side ").
(See to Figure 3)
The lint filter must be used during washing.
It must be cleaned in time after each using.
Cleaning the lint filter
Using process
Using process
Disposal after washing

Wipe the complete unit with soft cloth
twisted dry.
Wipe with neutral detergent if too dirty
Do not wash it directly by water
Using process
Using process
Cleaning the overflow filter
2. Take off the corrugation pipe.
Dismantle the upper part of the
corrugation pipe inside the
overflow filter ( as indicated in
Figure 1).
3. Cleaning the overflow filter
Clean the lint around the filter
and flush with tap water.
4. Install the overflow filter.
(1).Install the corrugation pipe.
(2).Insert the mounting plate at
the bottom of the filter into
the valve cover.
(3).Hang up the hook at the left
upper side.
(4).Push the upper part in as
indicated in Figure 2.
Hook
Figure 1
Figure 2
After washing, dismount the water inlet
hose.
Do not store water in the tub for long
period. Discharge the water immediately
after each using.
Pull off the power plug and hang up the
power cord.
Hang up the drain hose.
Wipe off the water drops on the surface
and inside the tub with clean soft cloth.
Open the cover of the wash tub and the
inner/outer cover of the spin tub for
some time (about one hour), then close
them.
Disposal of the complete unit
Thinner
Alcohol
Petrol
Corrugation
Pipe
Water level
adjusting lever
Please don't pull the bubble pipe!

Trouble-shooting Answers to question
When the remained water is frozen
Prevent the freezing (be sure to discharge the water completely after using)
After complete draining, set the "WASH SELECTOR" at "STRONG" or "STANDARD".
If it is set at "DRAIN", it will be rather difficult for the frozen water to melt.
When the water is frozen
Pour hot water below 50 into the wash tub
to soak it completely. Then turn the pulsator
with hands gently. Please confirm the drainage
can work normally before next using.
If the laundries fall to the outer side of the spin tub,
please take them out immediately.
1.Dismantle
As indicated in the figure, push the point marked
with " " to pull the spin tub frame to oblique
upwards to dismantle it.
2.Install
After install the back edge of the spin tub frame to
proper position, push the four points marked with
" " by force to reset it.
Please check carefully. The laundries may fall to the lower part
of the outer side of the spin tub (as indicated in the figure).
If the laundries fall to the outer side of the spin tub, during
spinning the draining will get blocked and the rotation speed
of the spin tub is reduced.
Spin tub
Laundries
Spin tub frame
If the laundries fall to the outer side of the spin tub
Below 50

Trouble-shooting Answers to question
(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending
it to repair. If there are real breakdowns, please come to the special maintenance
department or after-sale service department of our company. Do not repair it by yourself.
Phenomena The reason
The machine does not act.
Is there power failure?
Is the power plug loose?
Is the pulsator twisted by foreign materials?
The draining does not work
Is the drain hose put down?
Is the drain hose frozen?
Is the drain hose blocked by foreign material?
Are there laundries falling to the outer side of
the spin tub?
There's abnormal sound
during washing Are there hair pin, coins or metal items brought
inside the tub?
Is the machine slanting?
Is the gland pressed evenly?
Are there laundries falling to the outer side of
the spin tub?
Are the laundries in spin tub too much?
It is the water remained in the factory inspection
of performance.
There may be some water
flowing out of the drain
hose in the first use of
the machine.
There's abnormal sound
and violent vibration
during spinning

User's manual One
One
One
One
One
Water inlet hose
Water-filling jointer
Gland
Lint filter
Packing list
Twin-tub washing machine One

Type
Model
Power source
Water level Water quantity about
Rated washing capacity kg
Rated input power W
Dimension(mm)
Wash pattern
Weight kg
Injection pressure
Rated spinning capacity kg
Air bubble twin-tub washing machine
XPB60-AS
V~, 50Hz
Maximum/43L Medium/36L Minimum/30L
6.0
6
Wash 320 Spin 150
L740 W428 H 90
New current +Bubble
26
0.02MPa~0.2MPa
Rated voltage 220 Rated frequency
.0
8
Specification
