Haier XPB60-CS User manual

Twin-tub Washing Machine User's manual
This manual is for
XPB60-CS
Please read this manual
carefully before using.
Retain it for future reference.
The machine is for cold water
connection only.
0030507957

Contents
17
The 2nd cover
Safety precautions
Installation and adjustment
Preparation before washing
The musts in washing
Usage of the detergent
Washing sequence
Midway spinning
Names of the parts
Rinsing
Trouble-Shooting Answer to questions
Spinning
Disposal after washing
Packing list
Specification
The back cover
Contents

1
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.

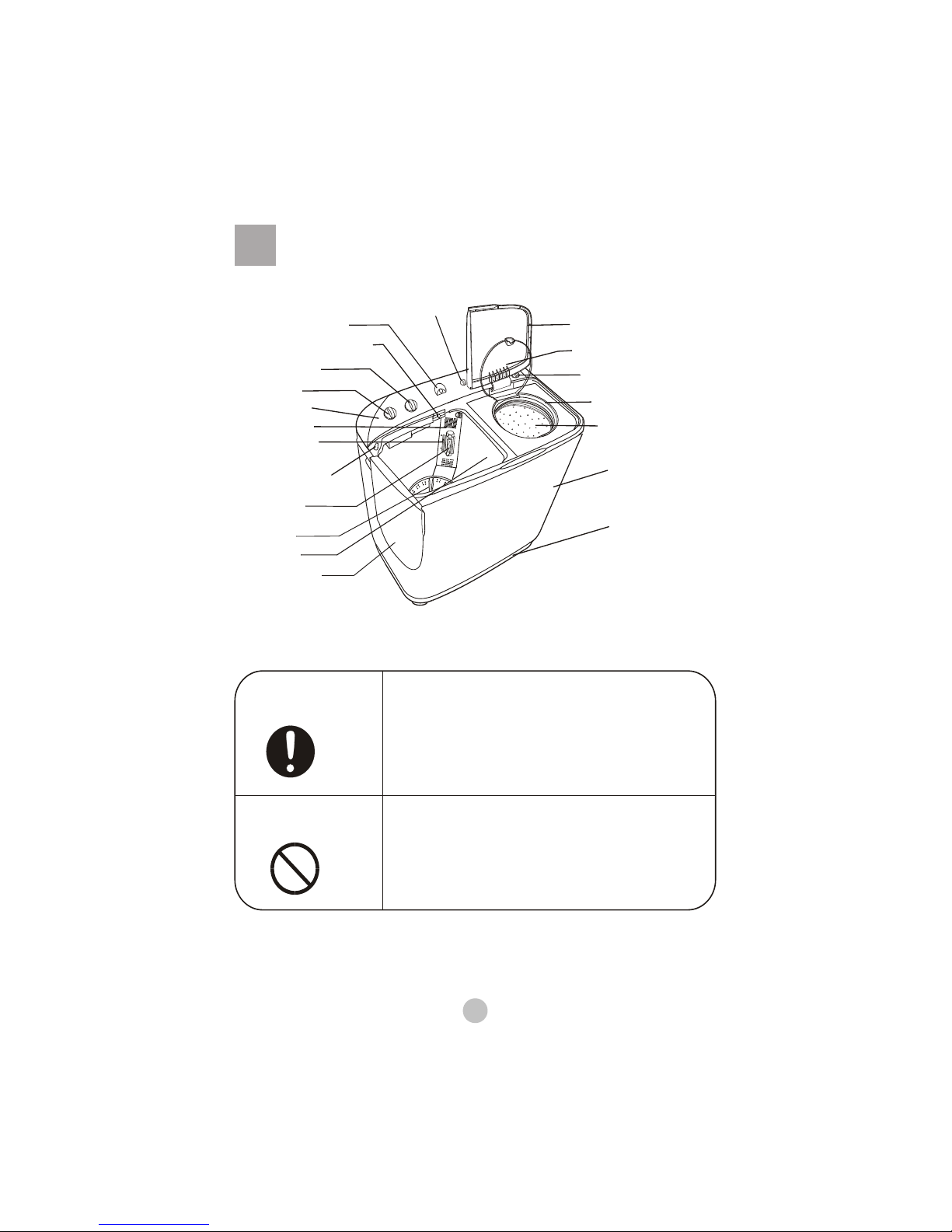

Names of the parts
Base frame
Outer cover of the spin tub
Inner cover of the spin tub
Spin timer
Spin tub frame
Spin tub
Cabinet
Water-filling entrance
Wash selector
Water inlet selector handle
Wash timer
Control panel
Water level
adjusting lever
Lint filter
(Installed by user)
Pulsator
Wash tub
Wash tub cover
Overflow filter
Quick water-filling
entrance
Buzzer

2

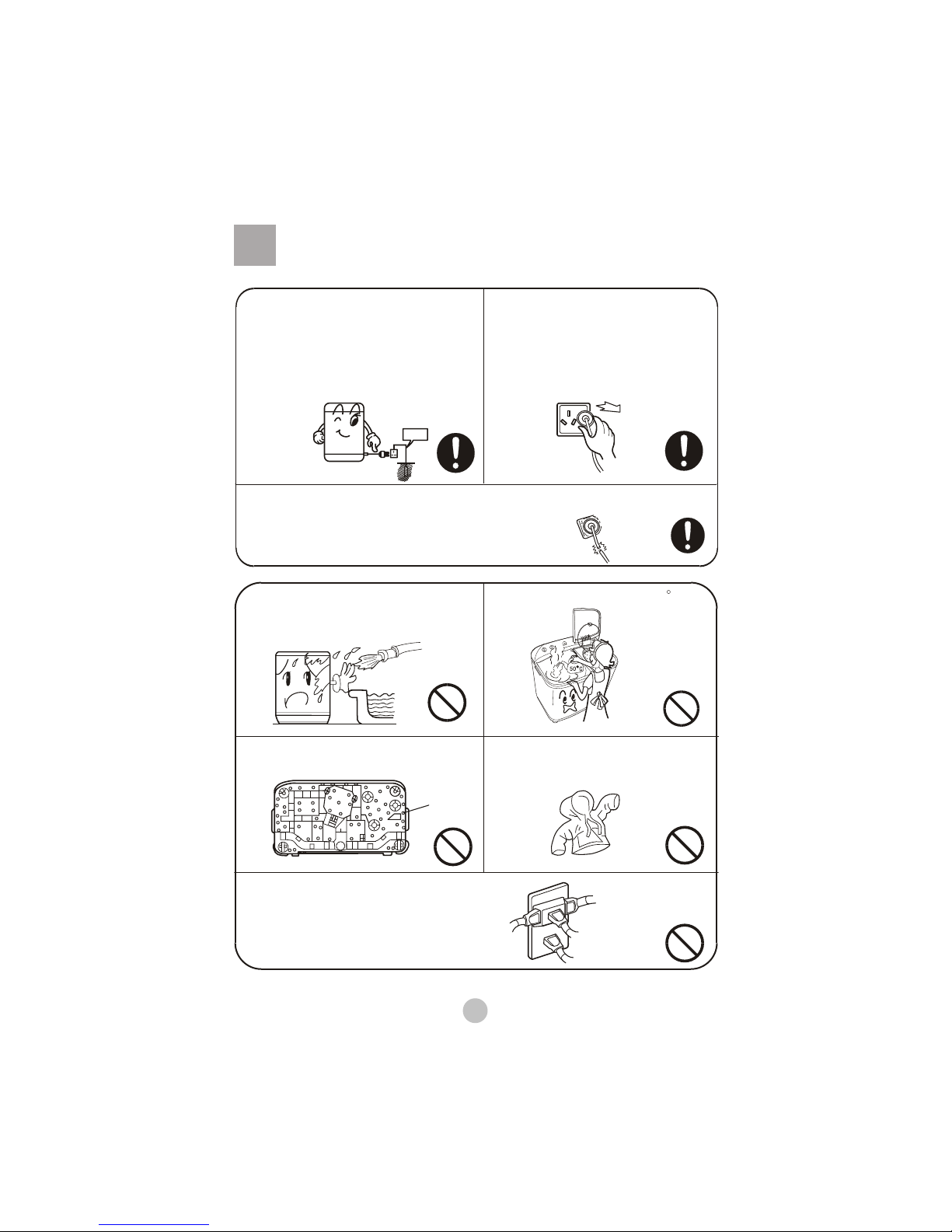

Safety precautions
Please insert the power cord into
special receptacle with rated vol-
tage.Be sure to use single-phase
three pins receptacle.The earthing
terminal of the receptacle must be
earthed reliably.If possible,please
adopt electric leakage protector.
Please use a power point flat has
easy access. Be sure to pull the
plug out when there's power
failure, or the machine is being
moved, cleaned or when it is idle.
If the power cord is bad, to avoid risk it is required to replace it by the
technicians of an after-sale service department.
Keep the pin of the power plug clean.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not use water hotter than 50 C .
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Ventilation hole at
the bottom of the
washing machine
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plug in the
receptacle is loose, do not use the plug any
more.
Earth

3
Do not put your hands into the
working machine. It is dangerous
even if the rotation is slow. Take
special care of the children.
Safety precautions
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not dismantle, repair or
alter the machine by yourself.
Children without care should not use
the machine.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner,
petrol etc.).
Petrol
Thinner
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
Please check if the water faucet
is open, and if the connection of
the water inlet pipe is proper.
It is suggested to use foamless
washing powder.

Overflow filter
Lint filter
4
Installation and adjustment
Please install and adjust the machine according to the requirement of
the manual. It is very important to your security and correct operating
of the machine.
Install the lint filter
After opening the package,please take out the lint
filter from the document bag,install it to the overflow
filter of the wash tub.See the figure.
Install the water inlet hose; Select the water level
Select water level according to the
quantity of the laundries.
Set the water level adjusting
lever to the required line.
Water inlet hose
Water inlet
Maximum Max
Minimum Min
Medium Med
Water level
indicator
Insert the water inlet hose into the
water-filling entrance on the control
panel.
Quick water-filling entrance
You can fill water into the wash tub
directly through this entrance. It can
reduce the humidity inside the control panel
significantly and prolong the operating life of
the components.
Insert the water inlet hose into the
water-filling entrance, then push the
water-filling jointer into the quick
water- filling entrance. (To dismantle
the water inlet pipe, just push the
control handle as indicated in the figure
and pull it out)
Quick water-filling entrance
Water inlet hose
Water inlet jointer
Control handle
Push
Quick water-filling
entrance

Installation and adjustment
5
Usage of the drain hose
Before using , hang up the drain hose
in a suitable location. Do not put the
drain hose on the ground.
0.8 H 1.2m
Confirm the end of drain hose is higher than
the level of tub .
How to change the direction of the drain hoses
Figure 1 indicates the ex factory
installation position of the drain hose.
Put soft items on the ground. Lean
the machine down gently with the
front surface facing the ground.
Take off the drain hose from the
cabinet.Take the hose out of the
fixing groove.(See to Figure 2).
Embed the drain hose into the groove
along the side of the wash tub in the
order of (1)~(3), heading for the side
of the wash tub. (See to Figure 3).
Embed the drain hose into the
groove with hands. Take care
not to damage the drainhose in
fastening the fixing clamp.
Figure 2
Figure 3
Figure 4
Embed into the
groove in turn
Extend to the
spin tub side
Take out the drain hose from the fixing groove.Extend it from the
rear side as per the direction of the arrow.
(See to Figure 4).
Figure 1
Extend the drain hose from the side of wash tub
Extend the drain hose from the rear side
Soft item Back
Front

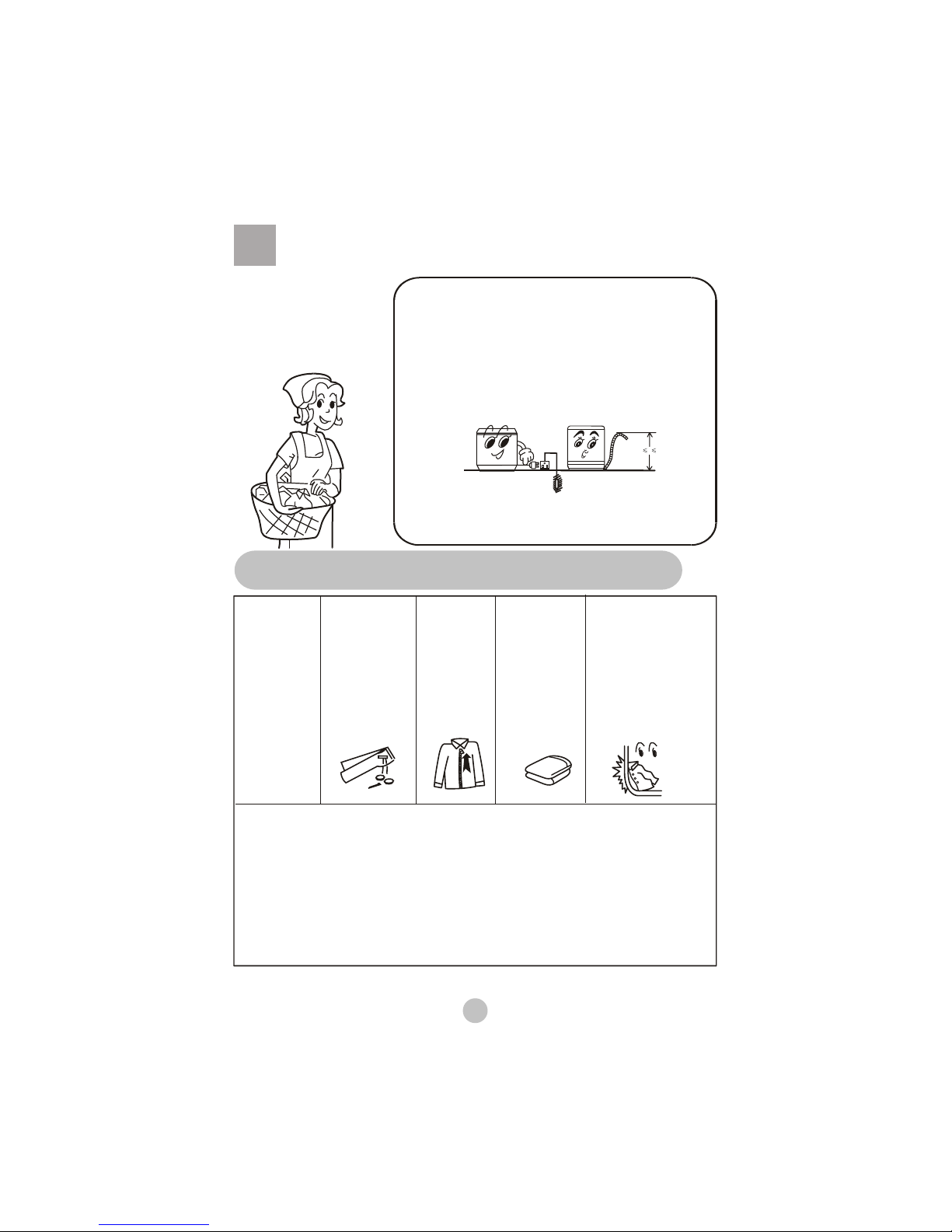

Preparation before washing
Check if
the laundries
has special
washing
instructions.
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the
long strips;
fasten
the
buttons;
close
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity
of the
laundries
shall not be
too large.
Stretch and
loosen the
laundries
before
putting them
in the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent
on them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur,
turn it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Before using , hang up the drain hose on
suitable location.
Do not put down the drain hose on the ground.
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
0.8m H 1.2m
Pay attention to the following before washing the laundries
6

Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30
seconds to dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 C and a
container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute
the laundries than the detergent. The
refore please use it with proper
quantity.
Dosage of different washing powder
is different. Please refer to the
instruction of the washing powder for
the detail dosage.
Avoid using whitener on
laundries with color or
pattern as they are prone
to lose color.
Fill water to decided level.
Dilute the whitener with
container. Pour it slowly
into the washing tub.
The whitener shall not
touch the laundries
directly.
Refer to the user's manual
for the usage and quantity
of the whitener.
For powder whitener,
please dissolve it before
using.
The capacity of washing and spinning of
the machine refer to the largest weight
of the standard laundries under dry
condition that can be washed or spinned
at one time. The laundry quantity in one
washing cycle should be lower than the
rated capacity.
The thickness ,size , type of the cloth will
influence the actual washing capacity. Be
careful to put in a reasonable amount of
laundry.
Do not select" Maximum" water level for
laundries less than 2.4kg, so as to avoid
splashing of water.
The musts in washing
It is suggested not to use high sudsing
detergent.
How to use the whitener
How to use the washing powder
Usage of the detergent
7

Figure 5
DRAIN
STRONG
STANDARD
WASH SELECTOR
OFF

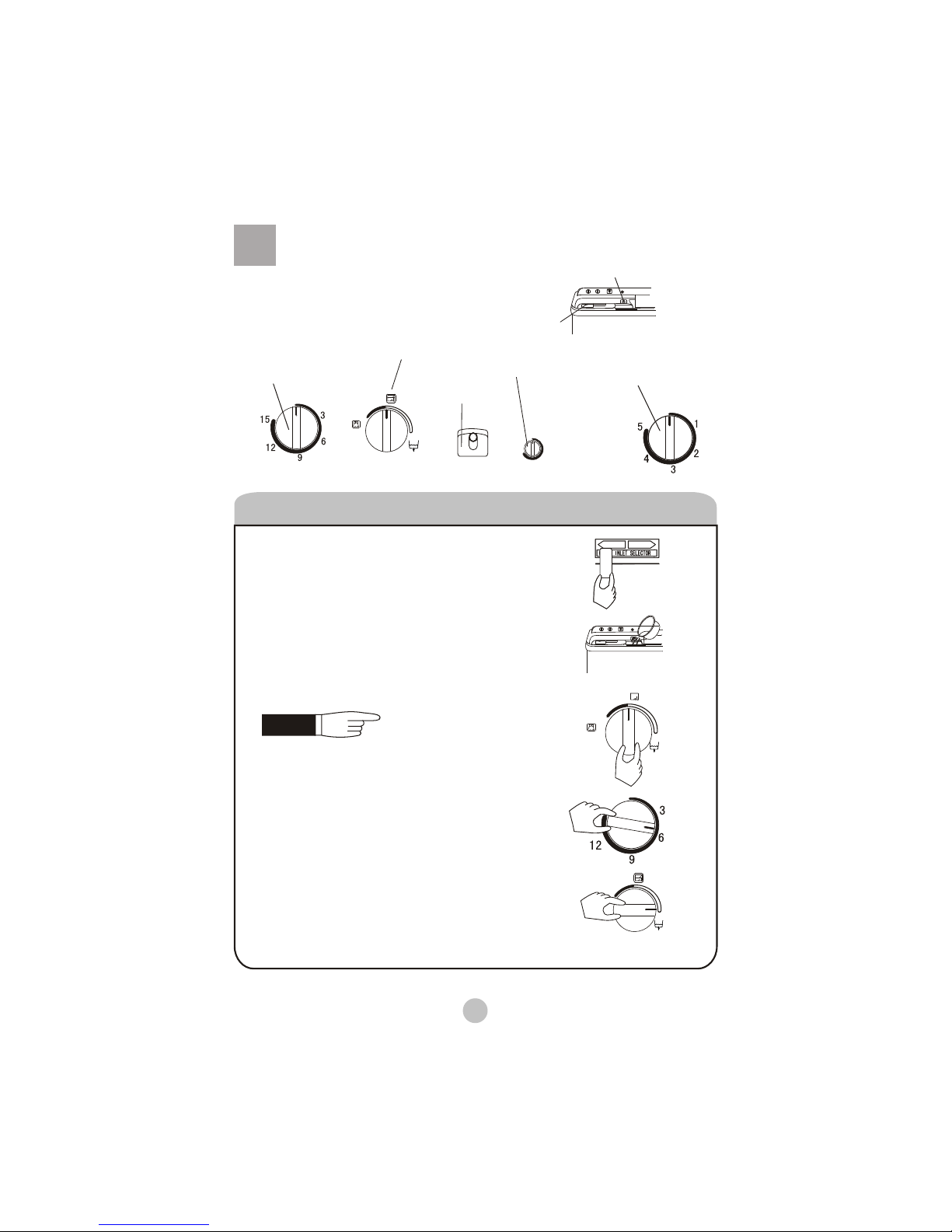

Washing sequence
Spin timer
SPIN TIMER
Wash timer
OFF
WASH TIMER
(To set to below 2 minute,
first set to 6 minute then
turn it back. it can increase
the service life of the timer).
(to set to below 1 minute,
first set to 2 minute then
turn it back. it can increase
the service life of the timer).
Wash
Figure 4
OFF
WASH TIMER
DRAIN
STRONG
STANDARD
WASH SELECTOR
Wash selector
(standard current,
strong current)
Figure 3
DRAIN
STRONG
STANDARD
WASH SELECTOR
2. Fill the water and add the dissolved washing
powder to make the water level reach the preset
position. (Figure 2)
Run washing program for some time to stir and
dissolve the powder completely.
3.Put in the laundries. If the water quantity is
insufficient, please add water.
4.Select the current.
Select the strength of the current according to
the laundries. (Figure 3)
5.Select the washing time
Select the washing time according to the
laundries. (Figure 4)
6.After washing, set the "WASH SELECTOR"
at "DRAIN". (Figure 5).
Water inlet
WATER INLET
OFF
MAX
BUZZER
Buzzer
(The buzzer will ring when
the washing finishes)
1.Water-filling selector
(1) Set the water-filling selector at the "WASH"
side.(Figure 1)
(2) Set the water level adjusting lever to
needed line.
Figure 2
SPIN
WASH
Figure 1
SPIN
WASH
8
Page10
Overfilling sign
Water-filling selector handle
