Haier ES10V-Q1 User manual

1
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A
SERVICE MANUAL
Electrical Water Heater
Model No.
ES10V-Q1(EU)
ES10V-Q2(EU)
△
!WARNING
©2014 Haier electric Company Limited
All right reserved .Unauthorized copying and distribution is a violation of
Haier Group
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death

2
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A
Contents
GENERAL SAFETY ............................................................................ 3
1.Product Information .......................................................................... 4
1.1 Features ..................................................................................................................... 4
1.2 Model Identification ..................................................................................................... 4
1.3 Dimension ..................................................................................................................................... 5
1.4 Specifications ............................................................................................................................... 6
2.Installation ...................................................................................... 7
2.1 General requirements .................................................................................................. 7
2.2 Installation Method ...................................................................................................................... 9
2.3 Typical Installation ..................................................................................................................... 10
3.Servicing Procedures .............................................................................. 12
3.1 Remove the shell. ...................................................................................................................... 12
3.2 Change Temperature Controller (thermostat) ..................................................................... 12
3.3 Change the Heating Assembly ............................................................................................... 13
4. Wiring diagram ....................................................................................... 14
5.Trouble shooting ..................................................................................... 14

3
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A

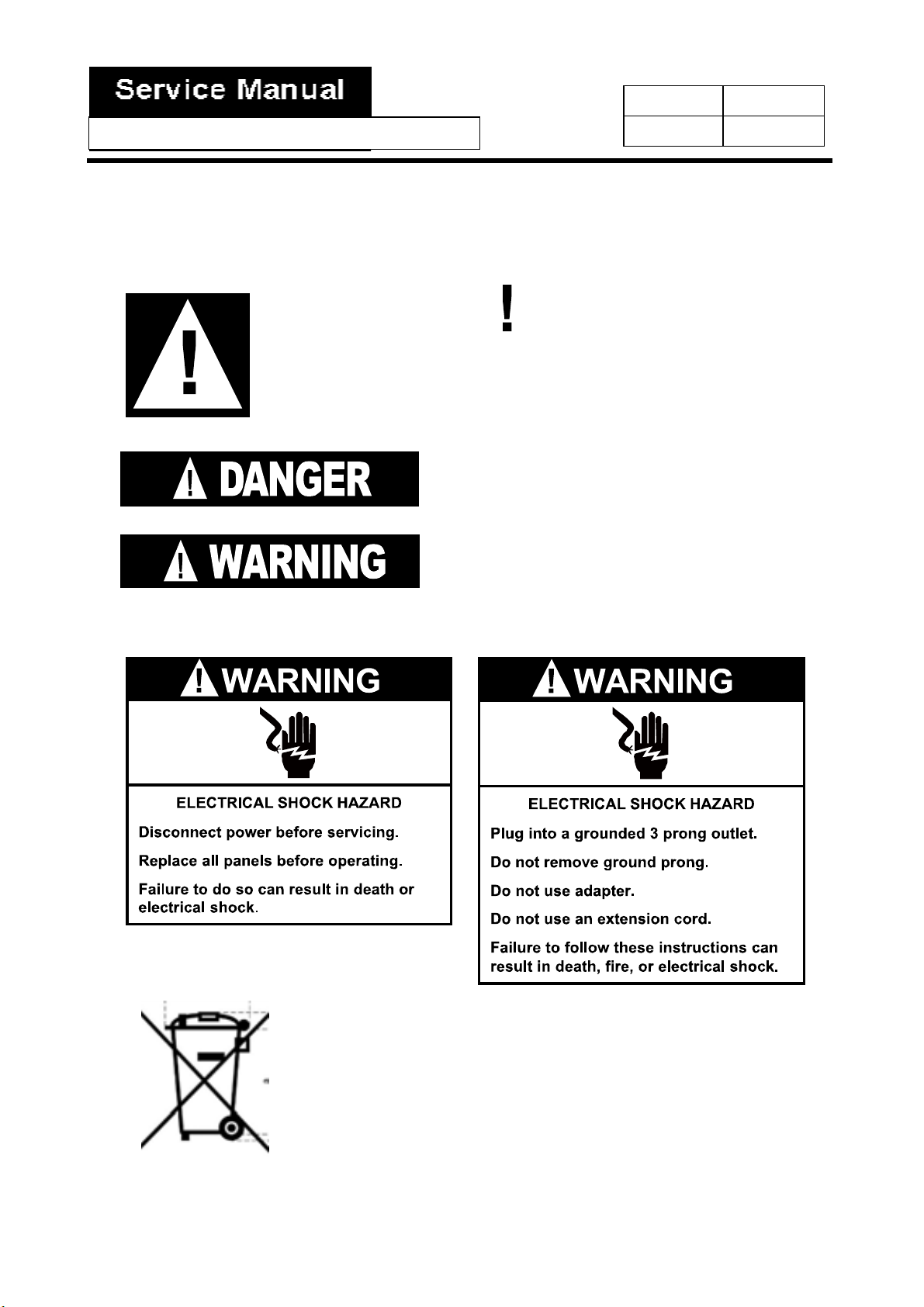

GENERAL SAFETY
Your safety and the safety of others is extremely important.
We have provided many important safety messages in this manual and on the appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
It is used to alert you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or death.
You can be killed or seriously injured if you
don’t immediately follow instructions.
You can be killed or seriously injured if you
don’t follow instructions.
Correct Disposal of this product：
This marking indicates that this product should not be
disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return
and collection systems or contact the retailer where the
product was purchased.

4
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A
1.Product Information
1.1 Features
 Safety：
High-quality heat proof stainless steel electric heating element, over-temperature protection;
overpressure protection of tank; safe and reliable.
“Safe Care” patented design together with the function of monitoring and displaying of live ground wire
has become a real safeguard for family safety.
 Durability：All plastic shell, beautiful. Enamel tank, more reliable quality, long service life
 Multi points water supply
 Over-temperature protector automatically cuts off power in excess temperature
situations
 Over-pressure protection
1.2 Model Identification
E S 10 V- Q1 (EU)
1 2 3 4 5 6
1: E-Electrical water heater 2: S-Storage water heater. 3: 10-Rated capacity
4: V-Vertical installation 5: Q- Product series 6:EU-The code for Europe

5
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A
1.3 Dimension
Model
Product
dimens
ions
W﹡H﹡D(mm)
Packing
dimensions
W﹡H﹡D(mm)
Net weight (Kg) Gross weight
(Kg)
ES10V-Q1(EU)
ES10V-Q1(EU) 350*350*270 416*462*336 8 10
Note: the dimension allowance is±10%.

6
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A

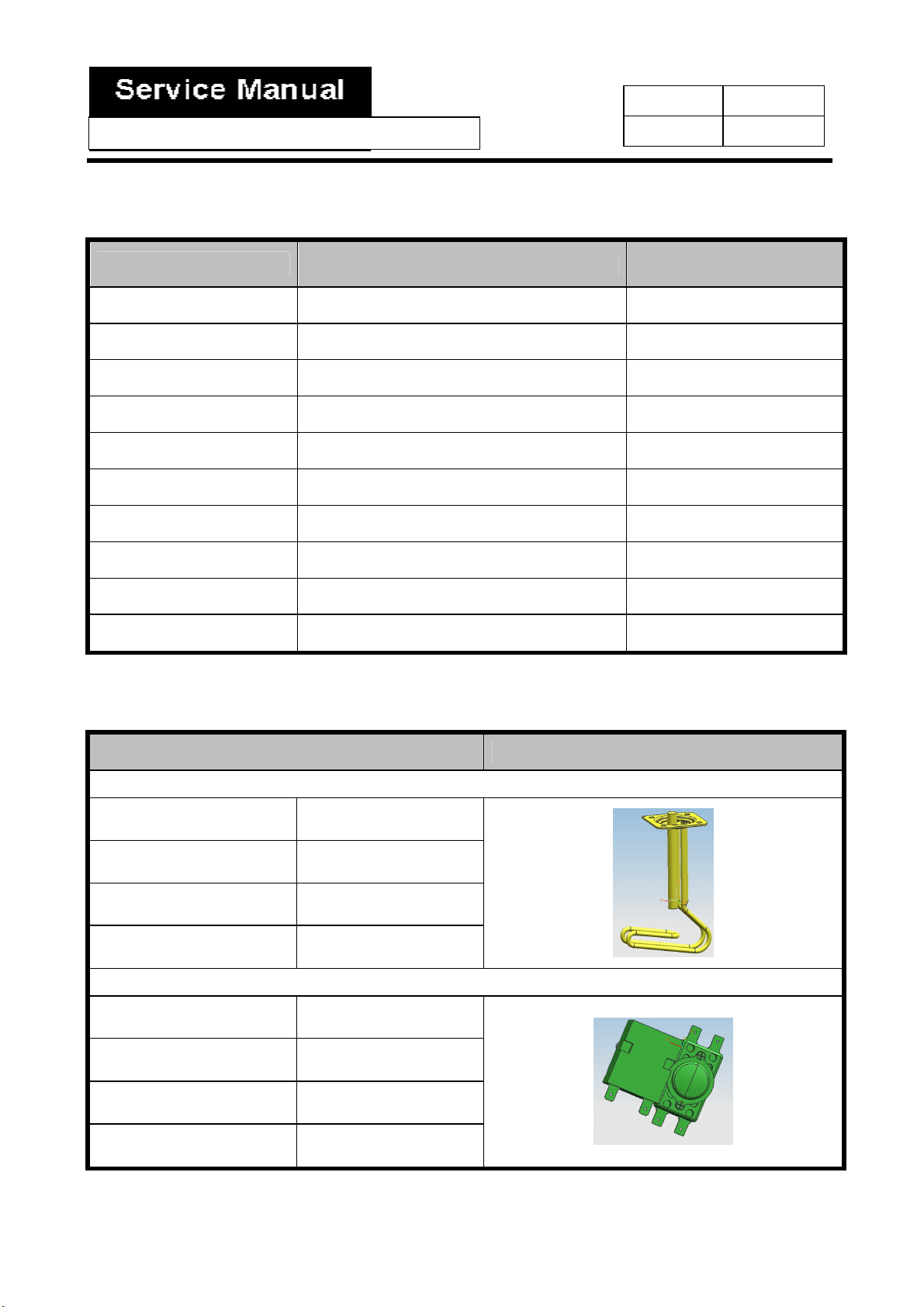

1.4 Specifications
Model No. ES10V-Q1(EU) ES10V-Q2(EU)
Rated voltage (V) AC 220-240V AC 220-240V
Rated frequency (Hz) 50 50
Rated temperature ( )℃ 75 75
Rated Power (W) 1650 2000
Capacity (L) 10 10
Rated pressure (MPa) 0.75 0.75
Installation method Vertical Vertical
Control method Mechanical Mechanical
Tap water pressure 0.05MPa～0.75MPa 0.05MPa～0.75MPa
Waterproof grade IPX4 IPX4
Component Illustration
HEATING ELEMENT
Rated voltage (V) 220
Rated frequency (Hz) 50
Resistance (Ω) 24.2
Rated Power (W) 2000
HIGH TEMPERATURE LIMITER
Rated voltage (V) 250
Rated current (A) 20
Rated frequency (Hz) 50/60
Thermal protection (℃)
97-110

7
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A

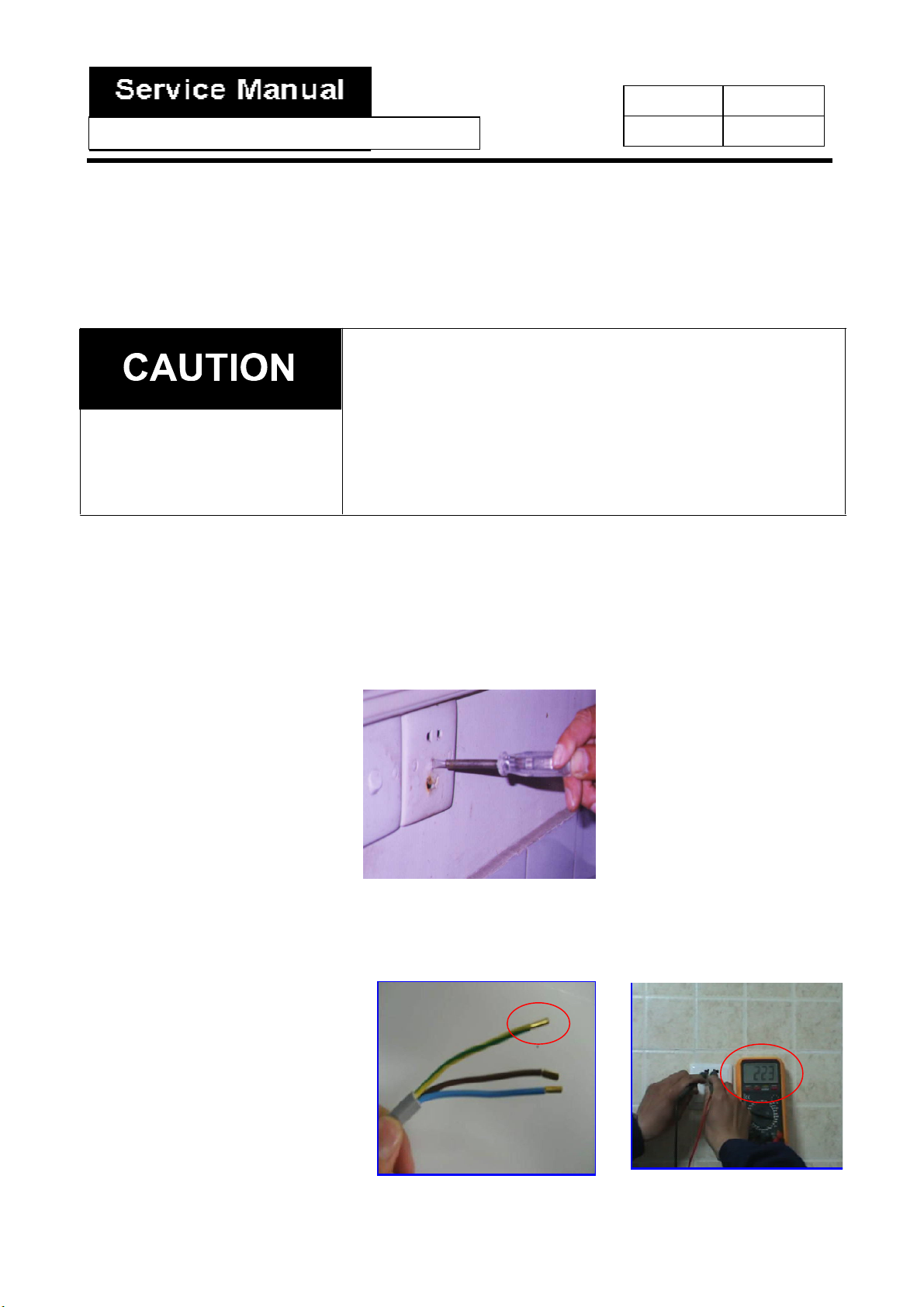

2.Installation
2.1 General requirements
if not avoided, could result
in property damage
The wall for installation shall be solid and reliable which can bear more 4 times
of weight of the heater with full of water.
The installation position shall be with a floor drain and can facilitate for use and
maintenance. And the facilities will not be damaged nearby or downstairs even
leakage of tank or conduit has been taken place.
The electric water heater should be installed indoors with ambient temperature
above 0°C.
Power supply
To ensure safety, please use a separate socket which is
reliably grounded and complies with the national standard.
Never use the water heater when it is not reliably grounded.
Check with an electro-probe to ensure that the live wire and
the neutral wire are not connected reversely.
Check that the electric wire diameter is no less than 1.5mm,
the power socket is earthed well, and the voltage of power
is between 220V to 240V.

8
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A
Cold water supply
It is important to ensure that the cold water main is capable
of supplying the increased demand. A minimum pressure of
approximately 0.05MPa (0.5 bar ) is required for
satisfactory operation.
NOTE: THE MAINS WATER SUPPLY MUST NOT EXCEED 0.75MPa
(7.5 BAR).
Installing Dimension
A certain space shall be reserved during installation of the
water heater with no less than 250 mm at the top and
bottom, no less than 700 mm at the forward and both sides,
so as to be convenient to the future maintenance. If water
heater is embedded in gusset plate during installation, the
right gusset plate shall be movable so that the plastic cover
can be removed for convenient maintenance.
Water Piping
The pipe layout shall be centralized. The distance between
the outlet and use spot of hot water shall not be too far
away. If it is more than 8 m, insulation measures shall be
taken for hot water pipe to reduce heat losses.
Never connect the inlet and outlet wrong. The safety valve shall be installed in the
specified location which can’t change it without authority; the discharge hole shall be
kept connecting with the atmosphere and never blocked.
The water heater which is used for the first time must be filled up with water before you
switch on the current!

9
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A
2.2 Installation Method
 The water heater must be installed by the installation professionals from our after-sale
service department or its designated personnel.
 The wall-hung type installation shall be adopted for the water heater.
 As shown in Fig.1, drill four holes of 12 mm in diameter and 65 mm in depth in the wall
by a percussion drill, insert and fix expansion hooks and expansion bolts into the
corresponding holes, and then raise the water heater, put the wall-mount rack on the
hooks and bolts; finally mount the accessories, such as relief valve, mixing valve,
nozzle and hose with reference of section 2.3. It is noted that PTFE tape shall be used
for sealing, so as to prevent from leakage.
 For convenient installation and disassembly of the water heater, it is recommended that
G1/2 loose joint shall be respectively mounted at the proper position of inlet and outlet
of water heater. Confirm the location where need to be supplied hot water, and connect
the outlet, inlet and tap-water pipe of the water heater to such reserved locations. Hot
water pipe shall not be kept too long so as to avoid heat loss.
 The hands could be left only after the wall-hung rack is surely hang on the hooks, so as
to prevent from falling the water heater, which may cause personal injury or property
damage.

10
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A

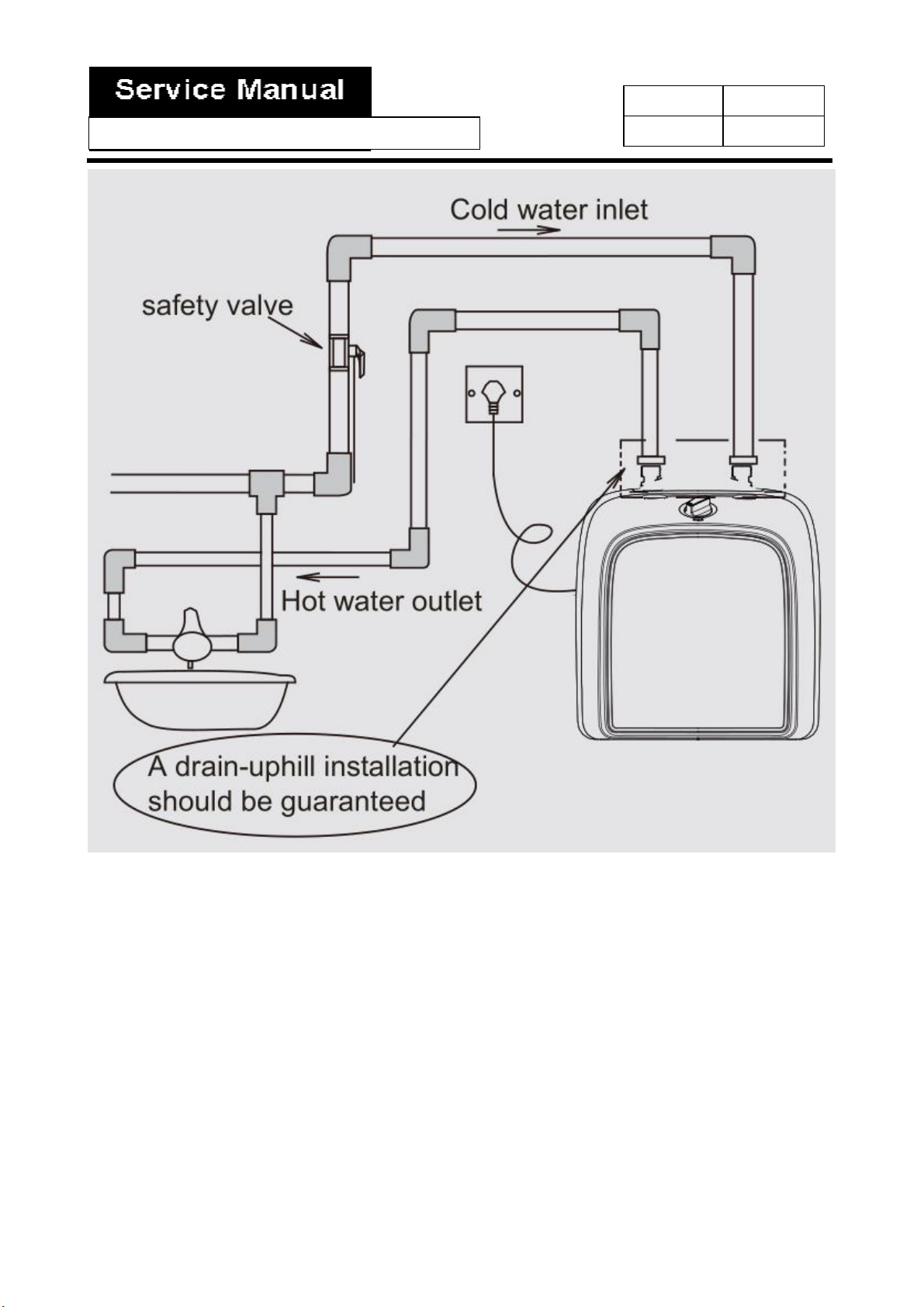

2.3 Typical Installation

11
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A

12
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A
3.Servicing Procedures
3.1 Remove the shell.
Before maintenance, the shell should be removed.
Firstly, take off the red and blue rings; then remove four screws, after that the shell can be
removed,
Attention to the snap joint, Don’t break them.
Unfold the shell Remove the foam cushion
3.2 Change Temperature Controller (thermostat)
1. Remove the knob 2. Remove two screws and remove
temperature controller
Join screw
Temperature control Knob Remove the screws

13
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A
3.3 Change the Heating Assembly
Based on Oval water tank, please attention to the install direction of heating assembly.
3. Label the wires and connections so that
you can properly reconnect them later
Check and replace temperature controller
4. Connect the wires
5. Put the foam cushion back and fold
the shell
6. Put the foam cushion back and fold
the shell

14
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A

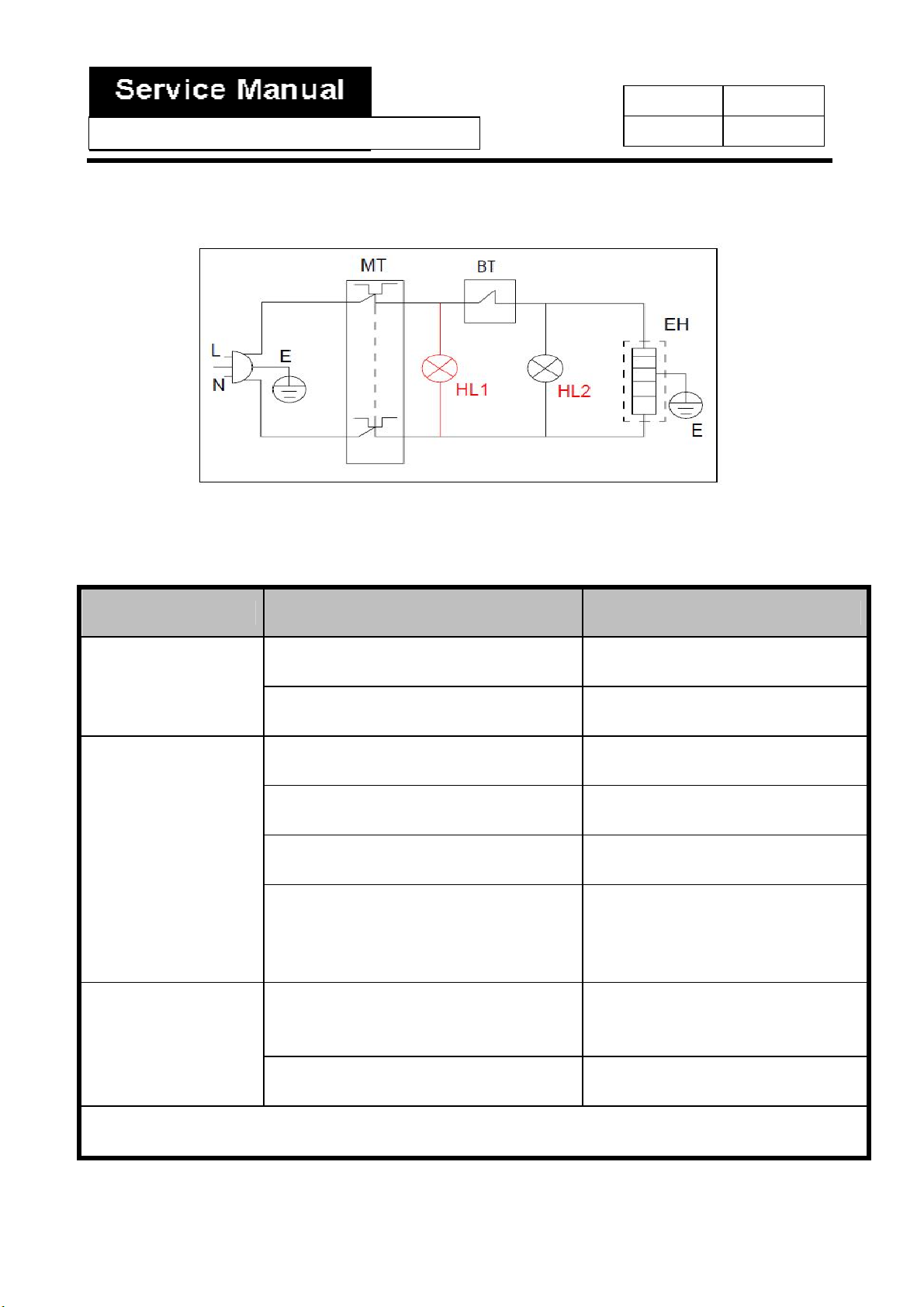

4 .Wiring diagram
5.Trouble shooting
Problems Matters to be confirmed Solutions
No flow
Whether there is no water or too low
pressure in the water system? Check it
Whether water-use spot is blocked, or
hot water valve is open or not? Check and clean it
Outflow is
cold water
① Whether hot water valve is open or
not? Check and open it
②Whether water temperature is
properly adjusted?
Adjust according to the instructions
in the Manual.
③Whether the heating time is too short
for setting temperature needed?
Adjust according to the instructions
in the Manual.
④Whether components are damaged
or not?
If it is confirmed that the problem is
beyond above ①,②or③, please
contact our maintenance
department.
Temperature is
lower than the
setting value or
outflow is hot water
①Whether the present function is
correctly set,and temperature is set too
low or not
Adjust according to the instructions
in the Manual.
② Whether tap water pressure is too
large
Adjust flow rate of the mixing valve
lower
Pagedown continue

15
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A
Problems Matters to be confirmed Solutions
Outflow is not
stable in amount
and temperature
Whether tap water pressure is stable
or not
Use it after flow rate of the
mixing valve is adjusted
lower or water pressure is stable
The heater can’t be
started or display
doesn’t work
Whether power supply contacts well
or not
Check power socket
Whether components are damaged
or not?
If it is confirmed that the problem
is beyond above, please contact
our maintenance department.

16
Model No:
ES
10
V
-
Q
1
(
EU
)
ES10V
-
Q2
（
EU
）
Issue
Rev.
Nov
.
2014
A
Sincere Forever
Haier Group
Haier Industrial Park, No.1, Haier Road
266101, Qingdao, China
http://www.haier.com
Printed in China
