Haier GV270REMB User manual

Please read through the manual before use.
Please keep the manual for future reference.
Table of Contents
1
2
2
2-6
6
7
7
User Manual
Haier Solar Water Heater
Models
GV150REMB
GV200REMB
GV270REMB
GV110RNMB(*)
*:Model without electric
auxiliary heating function.
Safety cautions
Product features
Technical parameters
Installation instructions
Operation instructions
Troubleshooting
Packing list

Description
of symbols
Behaviors that
are prohibited
Directions that
must be followed.
Directions that
must be noted.
The water heater is non-pressurized, gravity-fed water heater relying on the height difference
of the water tank and point of use to supply hot water with the outgoing water pressure in
direct proportion to the height. An additional pressurizer may be required.
Please clean the glass vacuum tubes before the winter comes. Keep their surface clean to
maintain heat collection efficiency.
where it's very cold in the winter, we recommend you select our optional solar
energy heater controller with anti-freeze function.
In the area
Warning! Improper operation of the following may lead to personal injury or even death!
Do not touch glass vacuum tube,
pipes and valves for supplying
hot water during use to avoid
being burned.
Please feel the water temperature
by hand before use to make sure
of proper water temperature while
in use
Personnel other than professional
maintenance staff are prohibited
from repairing, maintenance,
dismantling or altering the water
heater without authorization.
Caution! Improper operation of the following may lead to personal injury or even death or property loss!
- -Suggestions
The glass vacuum tube shall not be
exposed for a long period without water
inside after installation to avoid the
shortening of the service life. If it cannot
be used immediately, it shall be covered.
The water heater is equipped with a
special venting pipe and overflow pipe.
To ensure normal operation, \never refit
or plug their outlets. Otherwise the water
tank will shrink.
Water shall be fed in early morning or at
night when the sunlight is insufficient. The
water feeding after sunlight exposure of
the glass vacuum tube will cause an
explosion of the pipe.
The
temperature of the hot water delivered
may not satisfy your requi rement. If there
is no electric heating as an auxiliary
energy source, it may be unable to be
used normally.
Water shall be fed in early morning or at
night when the sunlight is insufficient.
Safety cautions (please read the cautions before use)
Caution
Warning
Warning
Warning
Warning
Warning
Warning
Warning
Warning
Prohibit
Prohibit
Prohibit
Prohibit
Prohibit
Please do not use the hot water in the
heater for drinking or similar purposes.
To guarantee effectiveness, do not feed
water to the heater several times within
one day in case of insufficient sunlight
exposure.
The glass vacuum tubes can withstand
a low temperature of -70 when they
are not filled with water. When the
auxiliary heating device is not to be used,
on continuous cloudy days in winter or
when the tubes are covered by snow, be
sure to keep the water tank full of water
and replace the cold water in the tank
frequently (every 2 days). Otherwise the
water retained in the tank will cause the
vacuum tubes to break.
When the heater with auxiliary electric
heating function is used, ensure the
auxiliary electric heater and electric
heating accompanying strap are in OFF
state.

Technical parameters
1.Inner cylinder made of SUS304 stainless steel
The inner cylinder of the water tank adopts sanitary SUS304 stainless steel, featuring
strong corrosive resistance and durability.
2.High efficiency & energy-saving thermal insulation
With integrated polyurethane foam insulation for solar water heaters, realize good heat
preservation and minimize heat loss.
3.Aluminium-Zinc-coated outer shell of water tank
Aluminium-Zinc-coated sheet boasting outstanding corrosion resistance, oxidation
resistance and weatherability is the first choice for outdoor protective materials.
4.Tower type frame
The tower type frame, made of carbon steel by means of spray processing, has the
advantages of a stable structure, attractive appearance and corrosion resistance.
Product features Technical parameters Installation instructions
1.The water heater shall be installed within the
lightening protected area of a building in locations
prone to lightning strikes.
2.The orientation of the water heater to be installed:
3.There must be no shielding object in front of the
installation location of the water heater. If an object
exists, the space between the heater and the
objective shall be more than L,
10 south by east and 15 south by west in the
Northern Hemisphere;
10 north by west and 15 by east in the
Southern Hemisphere.
°°
° ° north
Installation instructions

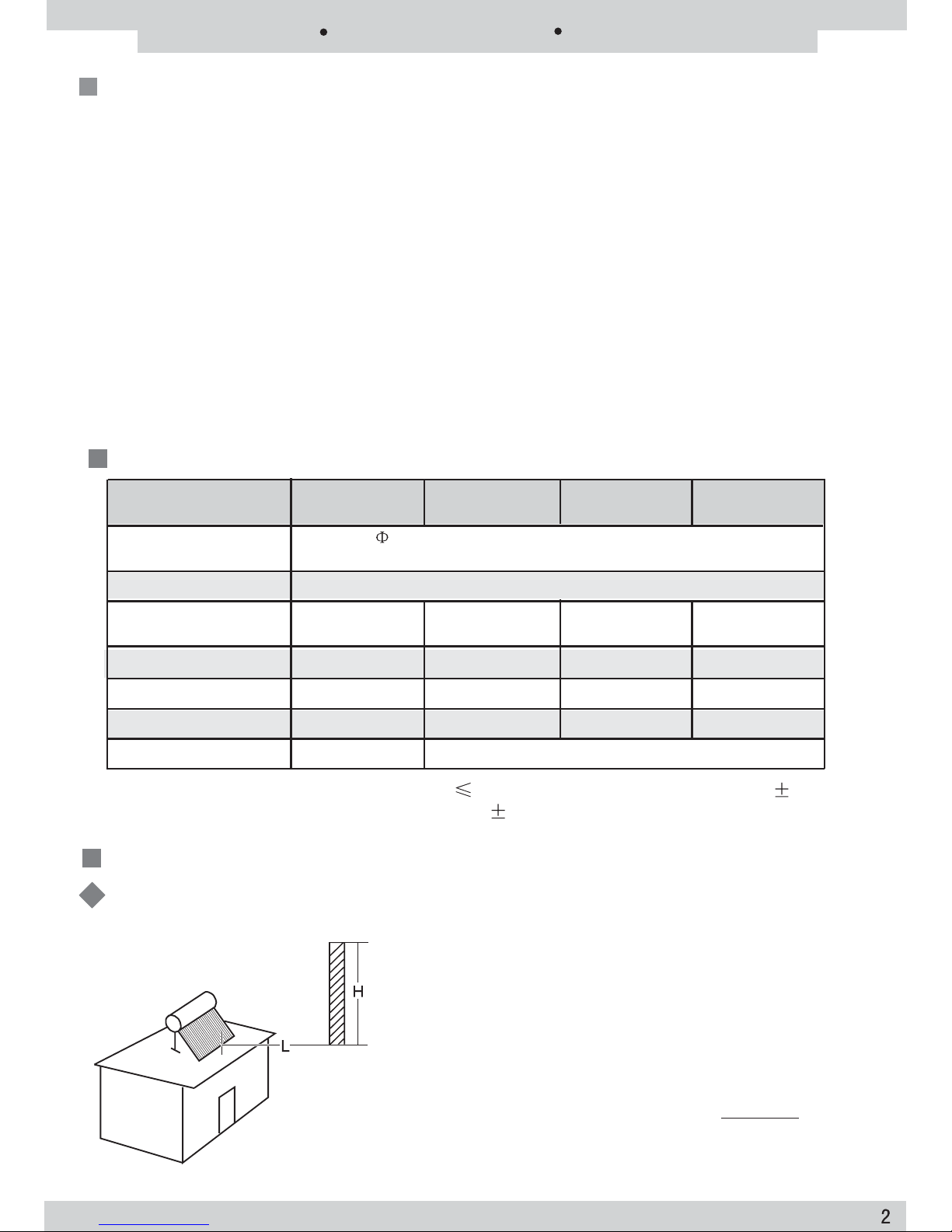

Selection of installation location
Product features
Note:The deviation of the aperture area is 3%; the deviation of the capacity is 5%;
the permitted error limit of other parameters is 10%.
a
()
a-
=5.66tg
H
L
(wherein: H-height of the shielding objective; -local
latitude)
Model
Number of the
glass vacuum tubes
Aperture area
Usable water
Total water volume
Electric auxiliary heating
Specifications of the
glass vacuum tubes
58mm X 1800mm,
all-glass vacuum tube solar heat collector
1500W/220V 1650W/230V
16 22 30
12
150L 200L 270L
110L
2.07m22.90m24.03m2
1.58m2
195L 253L 342L
141L
GV150REMB GV200REMB GV270REMB
GV110RNMB
;
Horizontal 45°
None
Frame form

Exterior and installation dimensions of horizontal water heater
Note: The permitted error limit of the parameters above is 10%.
Models
Exterior dimensions
(unit: mm)
Installation dimensions
(unit: mm)
1600
2597
1160
1957
1320
2435
1000
1775
1725
1725
1725
1725
1490
1490
1490
1490
Installation instructions
GV150REMB
GV270REMB
GV110RNMB
GV200REMB

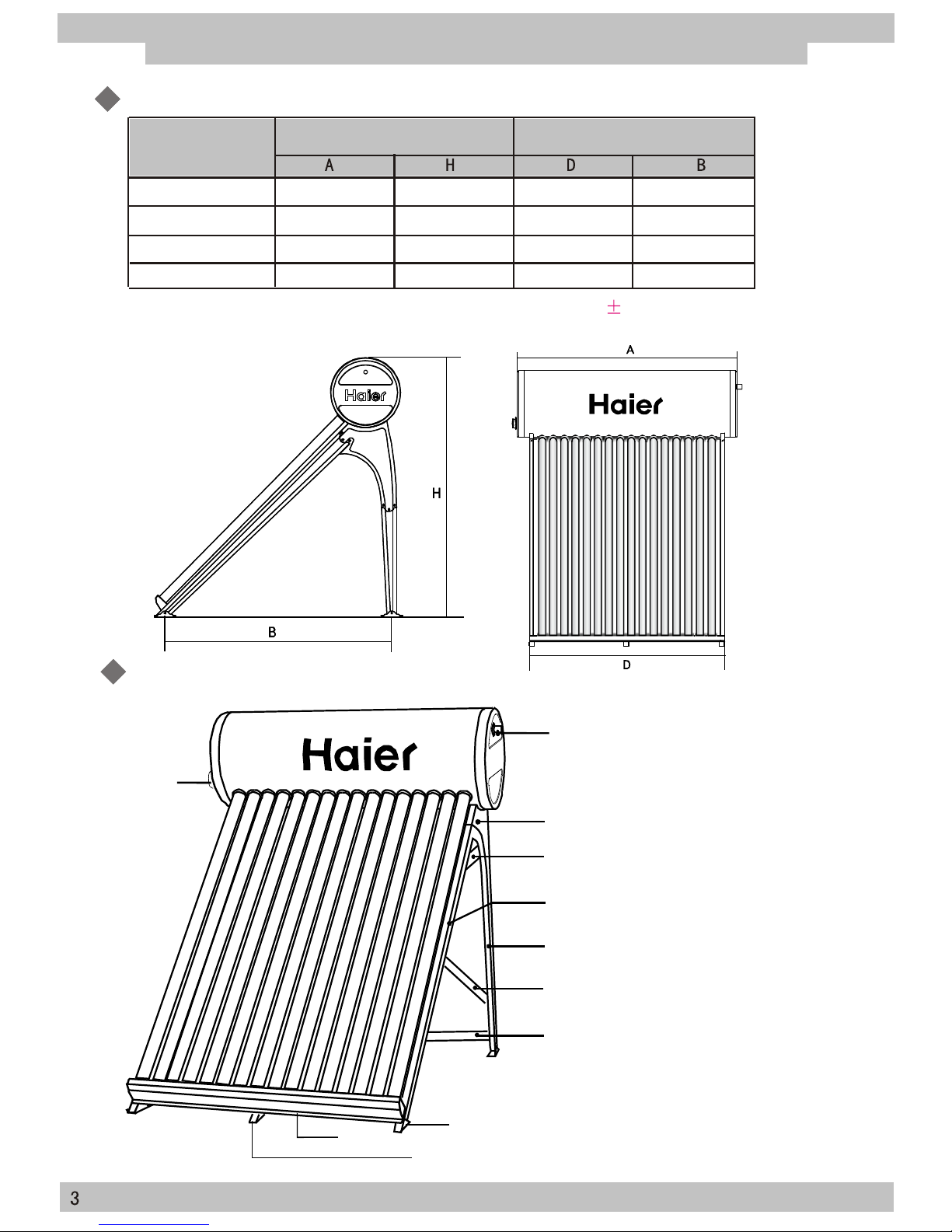

Diagram of appearance structure
Water outlet
Electric
heating
tube
Tanksupport
Scissors-truss support
Front post
Back post
Scissors-truss support
Cross member
Foot
Support foot
Tailjoist
The diagram subjectto GV150REMB
is for reference only.

1. For horizontal water heaters, it is recommended to fix the feet of the heater onto the foot
foundation with embedded iron parts or make a concrete brick with expansion bolts and
then fix the feet of the heater to the expansion bolts.
2.Adjust the height of the frame by the hard waterproof cushion to keep the horizontal tank
and each foot evenly weighted.
Please see the related paper in the frame package for the diagram of the frame and
packing list.
1.Unpacking the tank, rip off the protection film.Uninstall the nut and cushion.
2.Place tank onto tank bracket cradle,inserting protruding bolts into holes,fasten with nuts.
1.Pipe fitting is connected to water pipe with
asolderless connection.
2.Overflow pipe and water inlet pipe both use
solderless structure. To install, use a wrench to
secure the water tank pipe head. In ordertoavoid
damaging the seals, do not rotate water tank pipe
head and do not apply force along the axial direction
of the pipe.
3.When installing the water inlet and outlet pipe,first
use a wrench to secure the water tankpipe head,
then unscrew the plastic cap and use inner ratchet
teeth to directly connect tothe PEX pipe. Before
installation, check that the gasket ring of the water
inlet and outlet pipe is intact.
Notice:
1.Rip off the protection film after installationto avoid the destroy of the tank,and please
do not use the sharp tool.
2.Leave nuts loose since some adjustment may be necessary after fitting tubes.
3.When assembling the water tank, keep the center line of the vacuum tube connecting
holes parallel with the diagonal pillar of bracket.
4.The inlet and outlet of the water tank can be also used as the drain.
Notice:
1.Make sure that the feet all closely contact the supporting floor without foot suspension to
avoid damage of the product due to frame deformation.
2.Please use the steel wire to firmly fasten the tank and frame if in a location where
typhoons frequently occur.
3.The water heater shall be stably and firmly installed to avoid severe damage or accident
due to harsh weather conditions.
Installation instructions

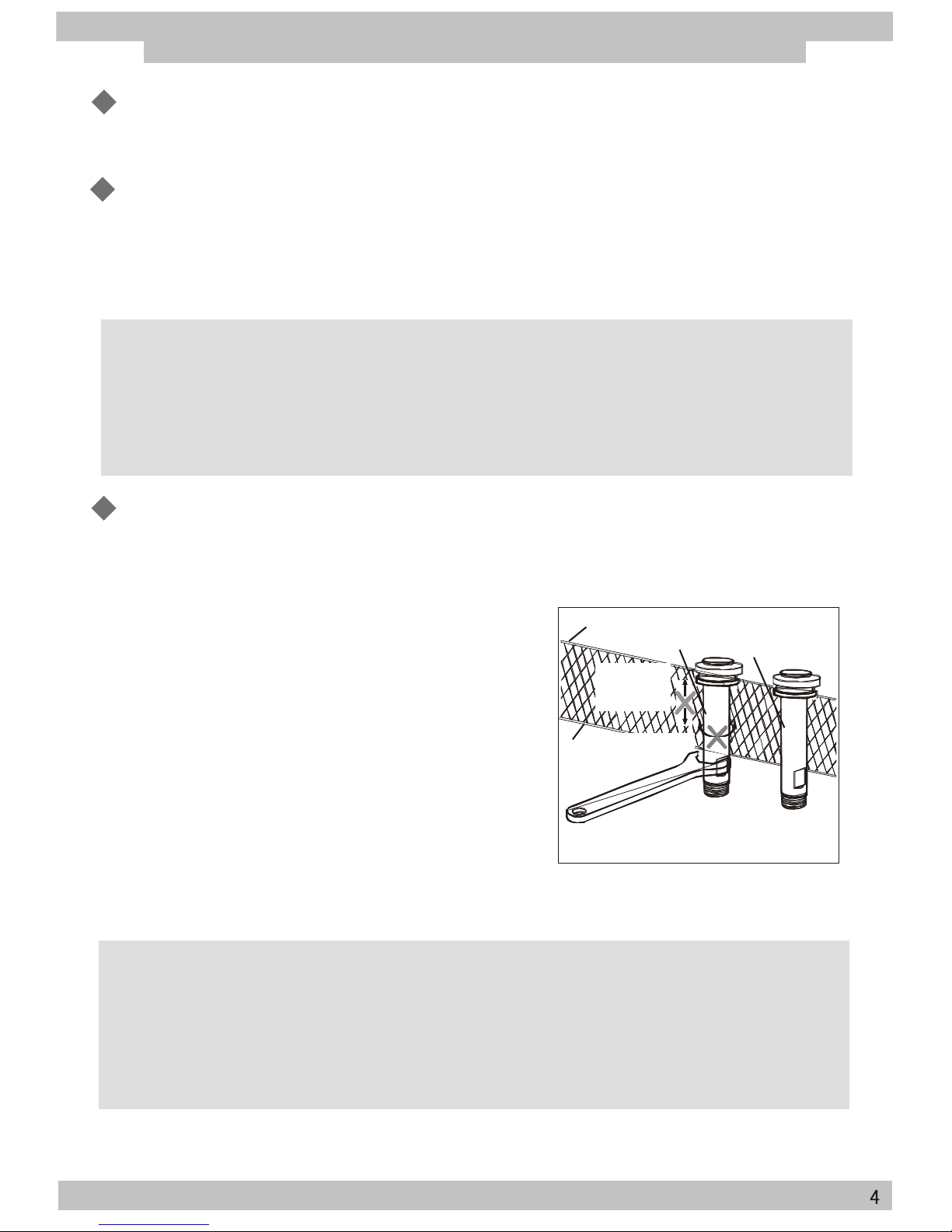

Tank installation

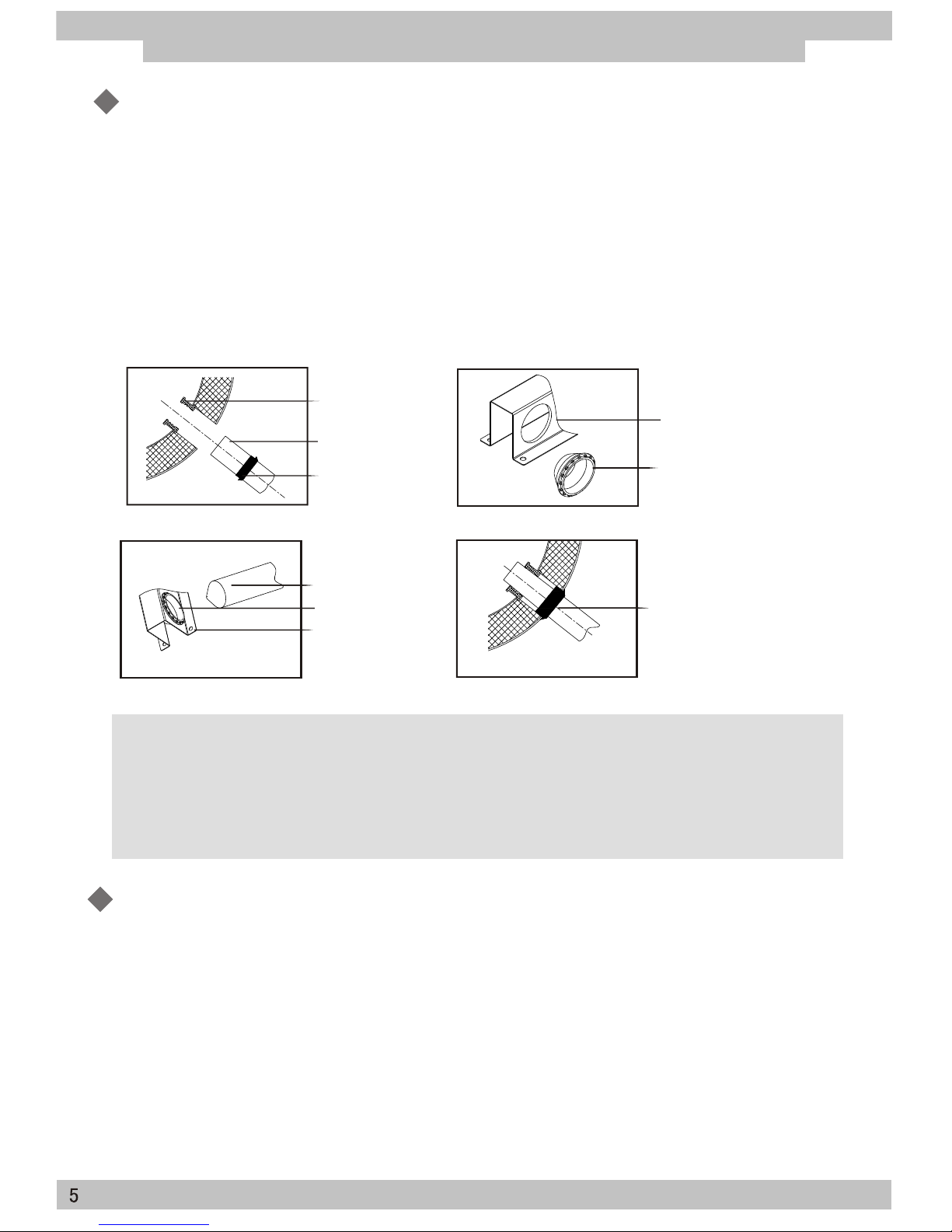

Installation of Solderless Pipe Head
Frame assembly
Frame fastness
Water inlet
and outlet pipe
Inner wall
Outer
casing
Sensor pipe
During installation, use a wrench
to fasten the tank pipe end
Do not rotate the
tank pipe ends
Do not apply
force along the
axial direction
of the fittings

Installation of vacuum tubes
1.Keep the tubes out of the sunlight before assembling the tubes to avoid being burned.
2.Place the air seal ring around the vacuum tubes (Figure A);
3.Insert the tubes into the seal ring with even pressure and a twisting motion. The resultant
force direction shall be consistent with the axial direction of the vacuum tubes;
4.Place the tubes into the tail support of the frame (Figure B) and then fix the tube onto the
tail base (Figure C);
5.Insert the tube into the seal ring at the depth of around 1cm, push the air seal ring to the
water tank hole for sealing (Figure D);
6.While assembling, install one tube on each end of the heater tank respectively first, so
that the heater tank and frame are positioned as a whole.
Seal ring
Air seal ring
Vacuum tube
A
Tail base
Tail support
B
Tail base
Vacuum tube
Tail support
C
Air seal ring
Sealing location
D
Notice:
1.Check whether the seal rings in tank holes are sufficiently installed and whether the
sealing location is clean and free from foreign matters and damage.
2.Place the bevel of the air seal ring downwards, and then put it onto the open end of
the tube with a clearance of around 10cm from pipe end. Make the pipe end wet
before insertion for easy assembly.
Installation of electric heater and Operation instructions
Please refer to the Operation Manual of Solar water heater controller Model
HR-QBJ1-KSD in the controller package.
Installation instructions

Diagram of pipeline installation
The diagram subjectto GV150REMB isfor
reference only.
1. Any alteration to the structure of the solar
water heater may cause problems in use.
2. There are five ways to connect the water
pipe to the room: flue, vent hole, through-
hole in the wall, pipe well for solar pipes
and embedded sleeves, wherein the
former three types are commonly used.
Before installation, the installation staff will
consult the entry form and installation
location of the pipe in a comprehensive
way and in consideration of your
convenience. A slope in the through-wall
must be ensured during pipeline layout,
and sealing shall be guaranteed to prevent
the entry of rain or odors.
3. Keep the smoothness of the air pipe to
prevent the blockage of impurities, which
may lead to collapse and deformation of
the water tank under suction when using
water.
4. Do not install a valve in the overflow
pipeline to ensure that the flood signal can be sent out rapidly and accurately.
5. To avoid the return of water in the tank, a non-return valve shall be installed at the joint of the
water upward/downward pipes and the tap water.
6. The installation project should be confirmed by our professional service personnel when
installing several sets of the series of the products.
Connection of water supply pipes when the solar
water heater coexists with other water heaters
Please install another non-return valve
on the cold and hot water pipes
respectively if the solar heater coexists
with other water heaters so as to avoid
accidents caused by water returned to
the solar water tank through hot water
pipe due to high pressure in the tanks.
Tap water
Cold water
pipe
Other water
heater
To solar water tank
Non-return valve
Manual valve
Non-return
valve
Non-return valve Solar energy hot
Mixing valve Mixing valve
Hot water pipe
Installation instructions
Operation instructions
Warning
Notice:
Improper operation of the water heater may lead to serious burns. When using the heater,
do not make the water outlet of the nozzle aim at the body, mix the cold and hot water
before use.
Precautions on pipeline installation
Mixing valve (cold water)
Electric heating wire
Sensor wire
Inlet/outlet
pipe
Mixing valve
(hot water)
Solenoid valve
Solenoid valve wire
Non-return
valve
Manual valve
plug
Outdoor
Tap water
Air supply hole
controller
Indoor
Electric
heating
tube
Accompanying
heating
strap
Over flow port
Sensor

Operations
Operation instructions Troubleshooting Packing list
Troubleshooting
Packing list
1)Before using water, the manual valve, mixing
valve (hot water) and mixing valve (cold
water) should be closed.
2)To fill water,
3) ,when water flows
from the overflow pipe, it indicates the water
tank is full. Close the manual valve to finish
filling water.
4)To use water, open the mixing valve (hot
water) and the water comes from the
shower nozzle. If the water is too hot, open
the mixing value (cold water) to adjust the
water temperature.
5)After use of water, make sure the manual
valve and mixing valves are closed.
use automatic function on the
controller,or open the manual valve.
When using manual valve
Phenomena
No water supply
No water from
the overflow
pipe
The temperature
is not high
enough
Possible causes
The tank is empty
The pipeline or the connector falls off or is blocked
In the winter, water in the feeding/outgoing pipe
may become frozen
The vacuum tube is damaged
Tap water supply stopped or low water pressure
Pipeline or connector may become broken
In the winter, water in the feeding/outgoing pipe
May become frozen
In bad weather or winter when the sun is relatively
low, the sunlight time is short, atmosphere quality is
poor, and sunshine radiation energy is insufficient
The valve for water supply is loose or damaged
The vacuum tube cannot effectively collect heat
due to a blockage in front of it
Dust on the tube
Solutions
Add water according to the tank
Start the accompanying heating strap
or wait for natural ice-out.
Replace the tube
Wait for normal water supply
Repair or replace the pipeline or connector
Start the accompanying heating strap
or wait for natural ice-out.
Use auxiliary electric heating as an
option
Tighten or replace the valve
Remove the blockage or change the
location for installatio
Clean the tubesurface
Maintain the pipeline or remove the blockage
0040503720
Mixing valve (cold water)
Electric heating wire
Sensor wire
Inlet/outlet
pipe
Mixing valve
(hot water)
Solenoid valve
Solenoid valve wire
Non-return
valve
Manual valve
plug
Outdoor
Tap water
Air supply hole
controller
Indoor
Electric
heating
tube
Accompanying
heating
strap
Over flow port
Sensor
12 16 30
22
1 1 1
1
1 1 1
1
1 1 1
1
2 2 3
2
1 1 1
1
1 1 1
1
Main parts Quantity
Water tank
package
Water tank (PC)
Sensor (PC)
Manual (Copy)
Tank support (PC)
Glass vacuum tube (PC)
Frame (set)
Controller (set)
GV110RNMB GV150REMB GV200REMB GV270REMB
The diagram subjectto GV150REMB isfor
reference only.
