Thank you for purchasing the HAKKO 152B motor drive.
Please read this manual before operating the HAKKO 152B.
Keep this manual readily accessible for reference.
MOTOR DRIVE
Instruction Manual

Specifications Operating Instructions

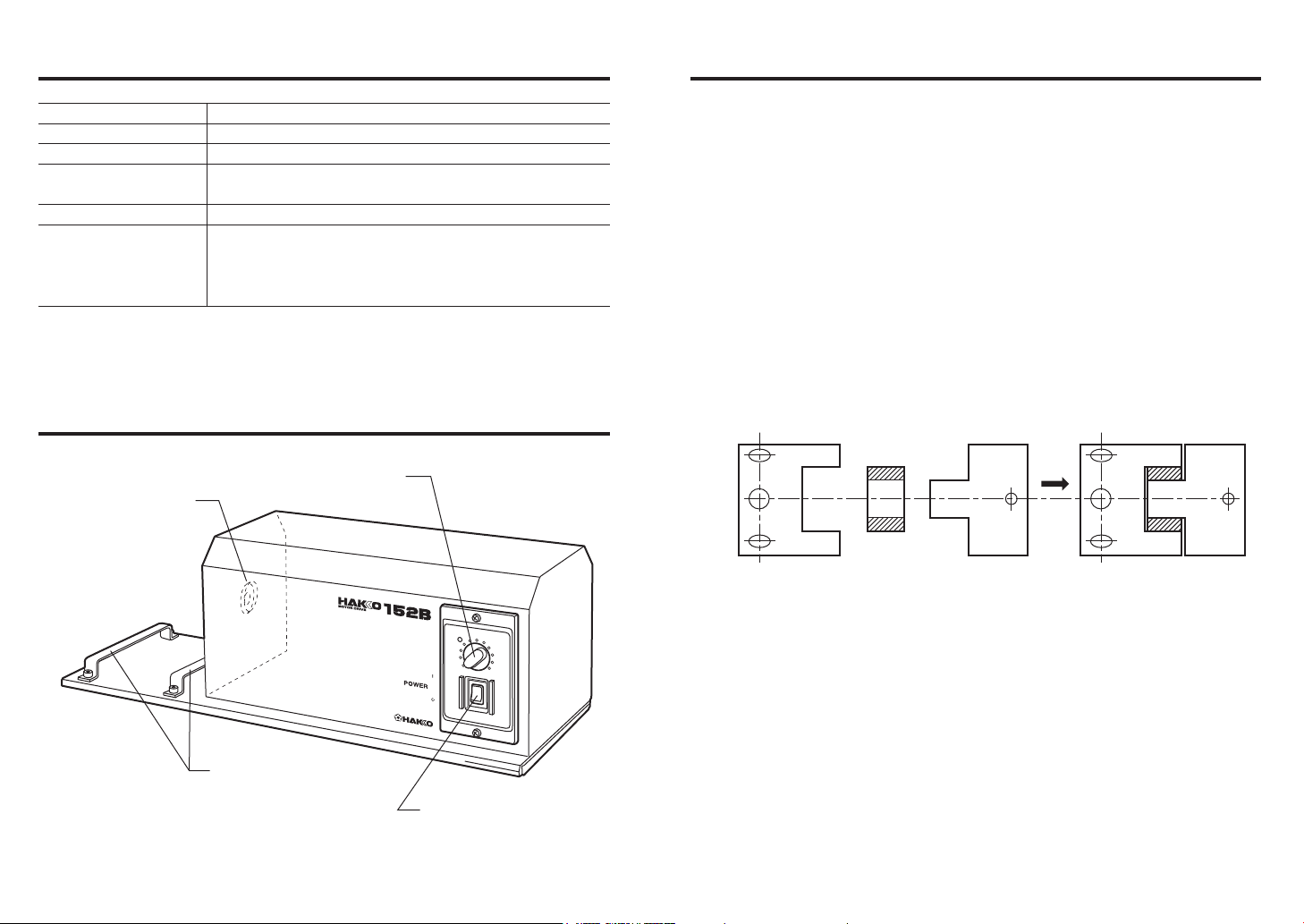

Names of Parts
• Specifications written here may be subject to change without notice.
Power Consumption
Name HAKKO 152B
30 W
50 Hz : 28 rpm ; 60 Hz : 34 rpmRotation Speed, max
430 (W) × 140 (H) × 150 (D) mmOuter Dimensions
[16.9 × 5.5 × 5.9 in]
5.6 kg (12.34 lbs)Weight
with Lead Former ; 30,000 pcs/h (50 Hz)Processing Capacity,
max. with Lead Former ; 36,000 pcs/h (60 Hz)
with Lead Cutter ; 15,000 pcs/h (50 Hz)
with Lead Cutter ; 18,000 pcs/h (60 Hz)
Loosen the hex socket set screw securing the handle of
the lead former/lead cutter and remove the handle.
Insert the shaft of the lead former/lead cutter into the
coupling and secure it with the hex socket set screw.
Remove the 4 hex drive bolts securing the two securing
bands and remove the bands.
Attach the lead former/lead cutter coupling to the motor
coupling, ensuring that the gears mesh.
1.
2.
3.
4.
Secure the lead former/lead cutter to the motor drive
with the two securing bands.
Adjust the gearing of the lead former/lead cutter and
leads by inserting a screwdriver or other appropriate tool
into the coupling hole and rotating the tool until proper
alignment is achieved.
Turn the power switch ON and adjust the speed control
knob.
5.
6.
7.
Coupling
Securing Bands
Power Switch
Speed Control Knob
Lead Former/Lead Cutter Side Motor Side Setting
