Software User’s Guide
SC-3H
MULTI-FORMAT
PRESENTATION SWITCHER & RS-232 CONTROLLER

2
User’s Manual
2
Contents
1. SC-3H WINDOWS™ SOFTWARE INSTALLATION ......................... 3
1.1. General...........................................................................................................3
1.2. Software Installation Prerequisites..............................................................3
1.3. Software Installation.....................................................................................3
2. USING THE SOFTWARE........................................................... 3
2.1. General...........................................................................................................3
2.2. USB Device Detection....................................................................................4
2.3. Tool Bar Menu...............................................................................................4
2.4. Device Name...................................................................................................6
2.5. Status Bar.......................................................................................................6
2.6. Status Group..................................................................................................6
2.7. Audio Tab.......................................................................................................7
2.8. Buttons Tab..................................................................................................10
2.9. VGA Tab......................................................................................................11
2.10. Commands Tab........................................................................................12
EDID Tab.................................................................................................................14

3
3
MODEL SC-3H
1. SC-3H Windows™ Software Installation
1.1. General
The SC-3H is controllable via free Windows® based software available from the Hall
Research website. All of the device features, and more, are accessible and controllable
from the GUI.
1.2. Software Installation Prerequisites
A PC with Windows XP® OS or later
USB port
Microsoft® .NET Framework 3.5 or later (most recent OS including Windows 8
and later include this software and no action is required). If the .NET
Framework 3.5 or later has not installed on your PC, the Microsoft™ website
has free downloads available.
1.3. Software Installation
If an earlier version of this software was installed, UNINSTALL it first from either the
Add/Remove Programs section of the control panel or by running the previous
installation’s SETUP.EXE and selecting “remove application”.
Install the software by executing the SETUP.EXE program from the installation
source directory
Accept the default settings, but if you want to specify a particular installation
directory other than the default, you may do so.
Once the SC-3H software installation has completed, either click the desktop
icon or navigate the Start Menu to
Start -> Programs -> Hall Research -> SC-3H Switcher
2. Using the Software
2.1. General
For most installations the use of the software GUI is not required as most functions
can be performed using the front panel buttons on the product.
The software GUI allows the user to customize many of the SC-3H features to help
with installation issues and usage.
You can use the software to import/export EDID files from the device. Custom EDID
data can also be written to devices connected to the output if they support that
function.

4
User’s Manual
4
It is possible to connect more than one SC-3H to the PC (using several USB ports of
the PC). The same software GUI detects all connected devices and allows control
from the same application.
2.2. USB Device Detection
The SC-3H software uses standard Windows® drivers, which automatically
configure the USB port after connection and do not require the installation of any
special USB drivers.
The first time you connect the SC-3H to the PC, you may experience a short delay
and a windows notification pop-up message may be shown. Typically, this happens
only once.

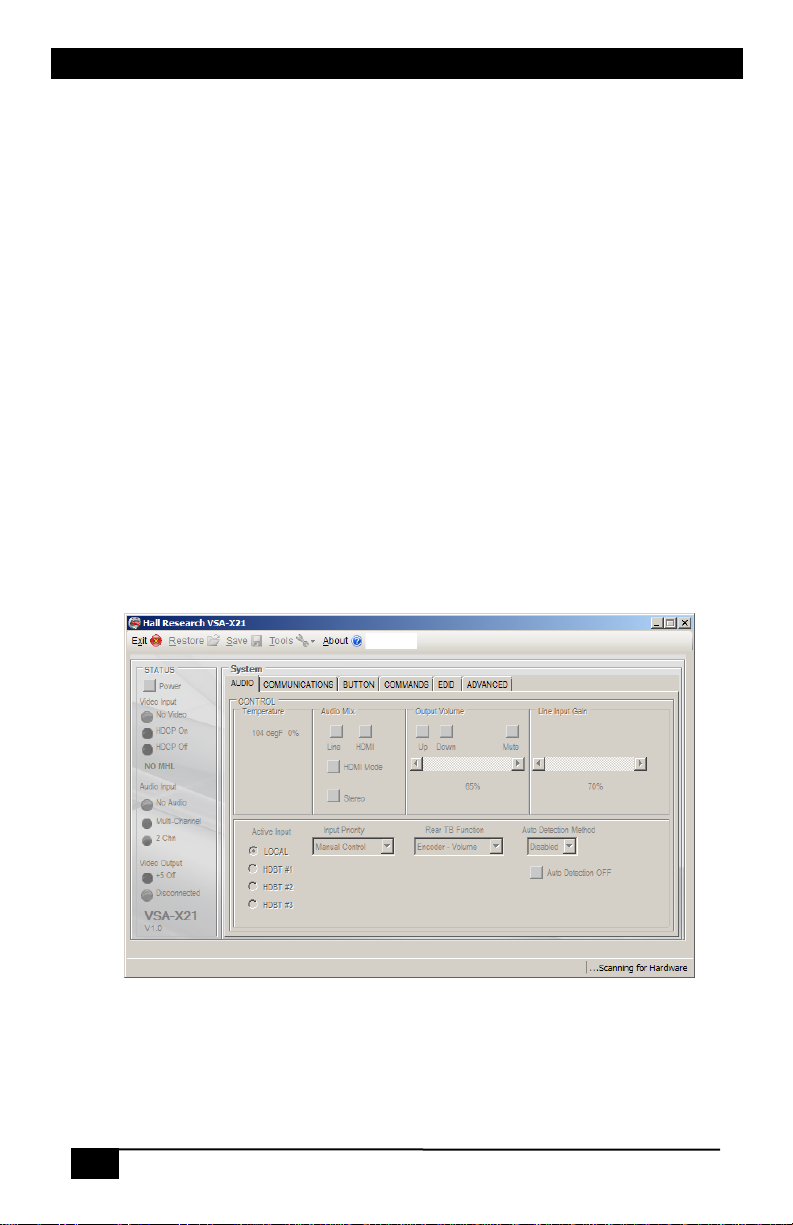

2.2.1. The software GUI scans the SC-3H settings continuously in real time, all
device changes are reflected on the software GUI.
2.2.2. If no SC-3H device is attached to the system, the on-screen fields are
disabled (grayed out).
2.2.3. Only one instance of the software GUI can run at a time. Attempting to
execute the application more than once will result in a warning message.
2.3. Tool Bar Menu

5
5
MODEL SC-3H
2.3.1. EXIT
Exits the application
2.3.2. RESTORE
Restore previously saved configuration files
2.3.3. SAVE
Save the current configuration file.
2.3.4. TOOLS
Factory Defaults
Restore the device to factory default settings.
The user must confirm the action.
Import EDID
Import an EDID (256-byte binary or XML file) into the unit. (If the file has an
XML extension, the file will be interpreted as containing XML data; otherwise,
the file will be interpreted as containing BINARY data). Uploading invalid files
will result in EDID corruption.
Export EDID
Save the current EDID as a 256-byte binary file
This file can be edited using third party software and reloaded using the ‘Import
EDID’ tool selection.
Firmware Update
Allows users to field upgrade the device application firmware.
Only valid firmware files can upload into the SC-3H.
VP Update
Allows users to field upgrade the device VP firmware.
2.3.5. ABOUT
Displays screen with software versions, website
link, legal disclaimer and copyright information.
The Serial # information displayed is a
time/date stamp referenced to GMT (Greenwich
Mean Time) and has no reference to the serial
number sticker on the actual device.

6
User’s Manual
6
2.4. Device Name

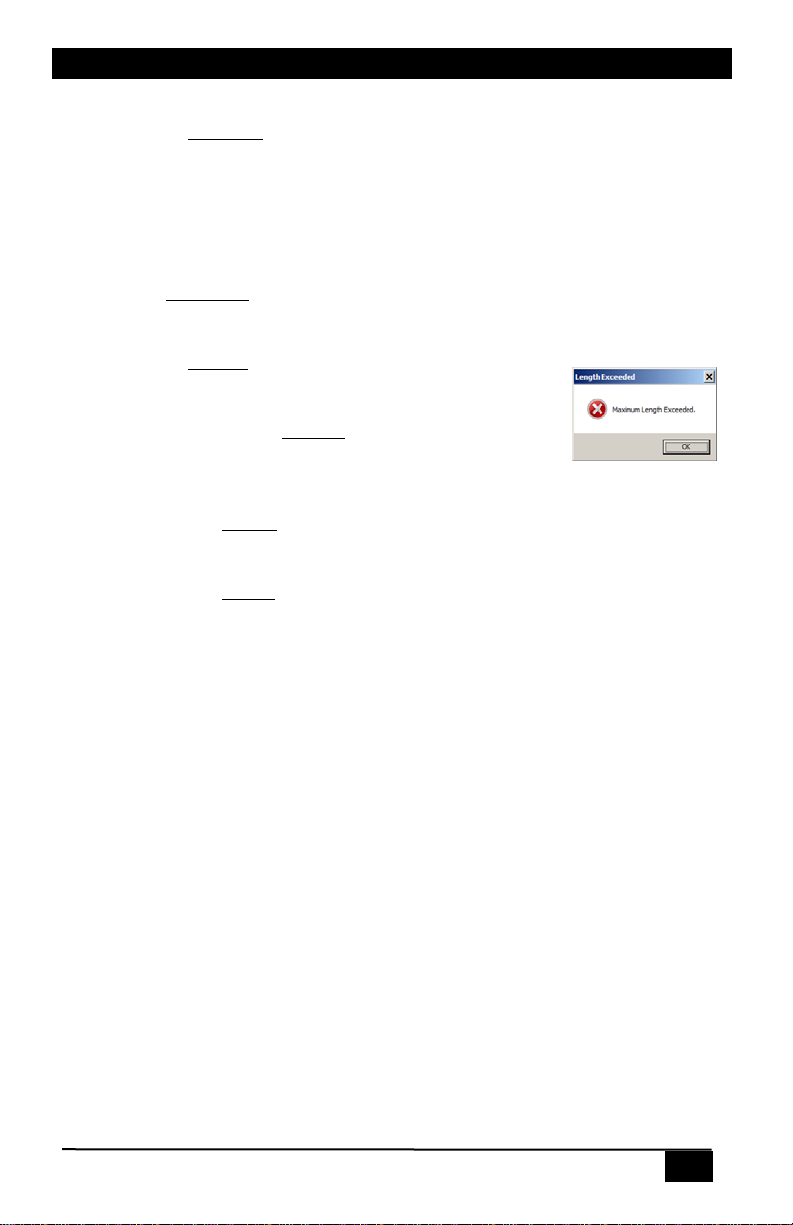

Assigns a descriptive name to be given to the SC-3H device that
is a maximum of 8 characters long.
The user is not allowed to change the device name with multiple devices connected.
The FACTORY DEFAULT name is USBDEVHR.
2.5. Status Bar
The bottom bar of the screen shows the current USB status as follows:
“Scanning for Hardware…”
The GUI software is looking for SC-3H devices.
Screen controls are disabled until a valid SC-3H device is attached
“Connected – XX”
Where XX is the number of SC-3H devices connected to the PC.
2.6. Status Group
Power
The Power control shows the device power state as well as being
able to control the ON or OFF state. Factory default is ON.
Video Input
No Video
Indicates the system is not receiving an INPUT video signal.
HDCP On
Indicates video received has HDCP Encryption enabled.
HDCP Off
Indicates video received has HDCP Encryption disabled.
NO MHL
Indicates the MHL status of the connected HDMI source.
Audio Input
No Audio
Indicates no audio received (DVI mode)
Multi-Channel
Indicates HDMI audio received is not LPCM format.
2 Chn
Indicates HDMI audio received is LPCM format.

7
7
MODEL SC-3H
Video Output
+5 ON/OFF
Indicates the state of the +5 vDC signal to the HDMI OUTPUT.
When the HDMI INPUT +5 vDC is connected, the +5 vDC
OUTPUT signal is turned on and this indicator will be green.
When no +5 vDC signal is detected on the HDMI INPUT, the indicator on the
screen changes to a dark red color.
Connected or Disconnected
Indicates the state of the device connected to the SC-3H HDMI OUTPUT.
When a HPD signal is detected, the button will be green and the word Connected
will be shown next to it.
When no display is detected (or the display is not sending an HPD signal), then the
indicator on the screen changes to a dark red color and the word Disconnected
will be shown next to it.

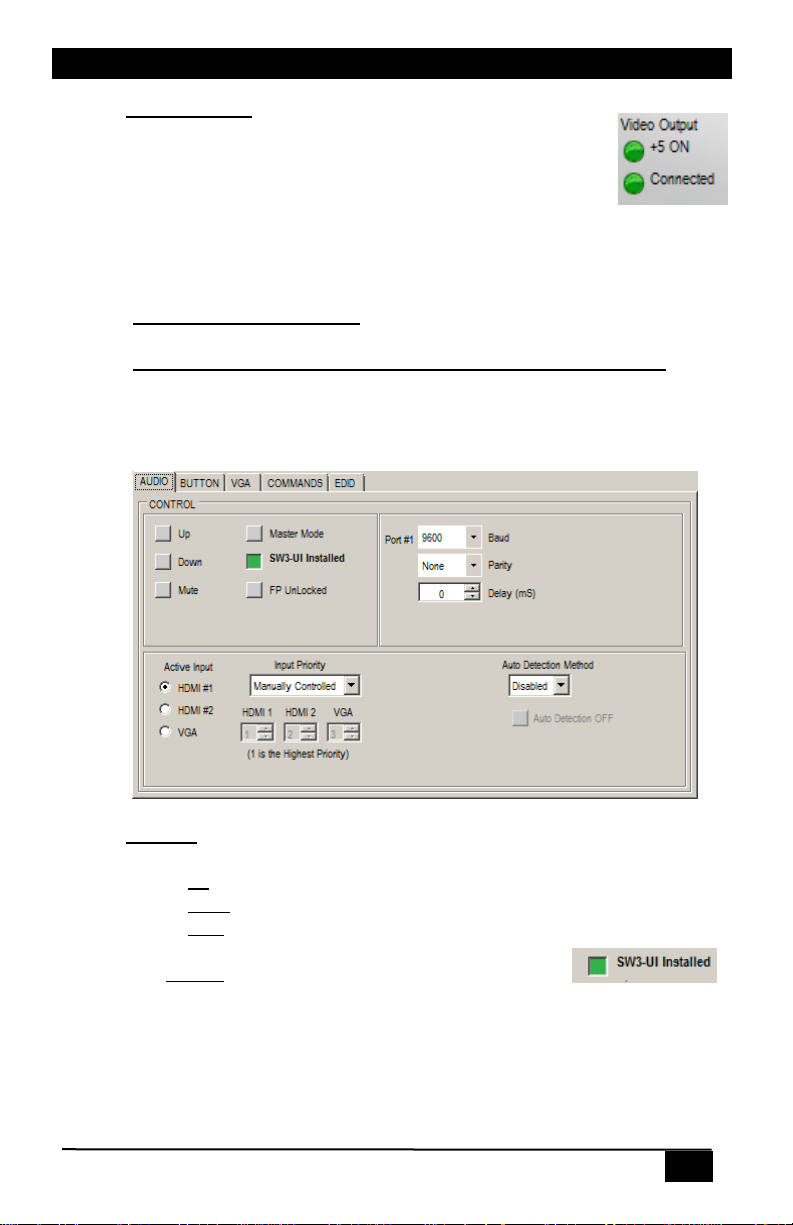

2.7. Audio Tab
Control
SW3-UI VOL/MUTE Emulation
The Up control acts same as SW3-UI Up button for each click.
The Down control emulates the SW3-UI Down button for each click.
The Mute control emulates the SW3-UI Mute button for each click.
SW3-UI Installed/Not Installed
The SW3-UI control setting shows the device current
setting as well as being able to control the ON and OFF states.
Factory default is ON
When OFF, no special processing is done.
When ON, the device will send to and receive commands from the installed
SW3-UI for control.
FP Unlocked/Locked

8
User’s Manual
8
The FP Unlocked/Locked control shows the device front
panels lock status. Factory default is Unlocked.
When UNLOCKED, the front panel buttons are active.
When LOCKED, the front panel buttons are NOT active. PC GUI and RS-
232 commands are always active even when the FP is in the LOCKED
state.
Baud
The Baud controls show the device baud rate setting for the serial port.
Factory default is 9600
Parity
The Parity controls show the device parity setting for the available serial ports.
Factory default is NONE
Delay (mS)
The Delay is available to add time between characters for slower systems to
respond (or to support multiple stop bits).
Factory default is 0 mS
Active Input
The Active Input control shows the device current video input as
well as being able to control the selected input on the rear panel.
Input Priority
The Input Priority control shows the device current setting as
well as being able to control which video input (HDMI or VGA)
has priority or whether the ‘Last Plugged’ input is selected.
Manually Controlled
oThe video inputs have no priority.
oThe user must manually select which video input is active.
Priority Controlled
oThe video inputs selected based on the user
configuration priority settings. A setting of “1” has the
highest priority, “3” is the lowest priority.
Last Plugged
oThe device switches to the video input that has an active source
attached last.

9
9
MODEL SC-3H
Auto Detection Method
The Auto Detection Method control field shows whether Auto Detection is active or
not and the detection method to be used. Factory Default is DISABLED.
Disabled
oAuto Detection is disabled
oThe Off Delay control is disabled in this mode.
+5V
oWhen +5 vDC is present on the currently selected input, RS232 ON
strings associated with the AUTO function are output.
oWhen the +5 vDC is no longer present, the RS232 OFF string
associated with AUTO function are output after the programmed Off
Delay time has elapsed.
oThe Off Delay control is enabled in this mode.
Video
oThe video source must actually send video in order to be detected.
oWhen video is received on the currently selected Input, the RS232 ON
string associated with the AUTO function will be output.
oWhen the video is no longer active, the RS232 OFF string associated
with AUTO will be output after the programmed Off Delay time has
elapsed.
oThe Off Delay control is enabled in this mode.
Auto Detection
The Auto Detection Active/Inactive button shows the device current setting as well
as being able to control whether an active source will be detected or not.
Auto Detection Off
oNo action is taken.
oFactory default is OFF.
Auto – Triggered or Waiting
oWhen the Auto Detection Method control is NOT OFF, the device will
process the RS232 ON and OFF strings associated with the AUTO
function whenever the specified event (+5vDC or Video) occurs.
oWaiting signifies that the device is still waiting
for the specified event to occur.
oTriggered signifies that the device has detected
the specified event.

10
User’s Manual
10
Off Delay (min)
The Off Delay (min) control field shows the device current off delay
value as well as being able to set that value. Factory Default is 3
minutes.
The control is disabled if the Auto Detection Method is set to Disabled or
Contact.
When set to 0 minutes and ‘Auto Detection Method’ is set for ‘+5’ or ‘Video’
the RS232 string associated with the AUTO OFF Function will be output
immediately.
When set to any value between 1 and 240 minutes, the RS232 OFF string
associated with the AUTO function will be output after the specified
programmed delay has elapsed.
2.8. Buttons Tab
These controls configure eight programmable virtual buttons
Function
The SC-3H system function associated with the button. When pressed,
buttons will execute the assigned function. The functions available are
POWER, MUTE, VOLUP, VOLDN, IS0 thru IS3 and AUTO.
Type
The button type can be set for Momentary or Toggle action.
Toggle buttons have two RS232 strings associated with them, an ON and OFF.
Momentary buttons have one RS232 string associated with them, only ON.
Group
The button group assigned to this button.
Multiple buttons can be assigned to the same group #.
Only one button in the group can be active at one time.
Enable?
Whether the button is enabled or not. Buttons that are not enabled do not respond
and the button is removed from the WEBGUI.

11
11
MODEL SC-3H
2.9. VGA Tab
This tab controls the setting for the VGA Input.
Horizontal Flip
The VGA source can have its image displayed normally or flipped
(left and right).
Vertical Flip
The VGA source can have its image displayed normally or flipped
(up and down).
Output Scaling
The VGA source can have its image displayed as 720P, 1080P,
1280x800 or 1920x1200.
Input Mode
The VGA source can use either VGA or Component input.
Aspect Ratio
The VGA input source aspect ratio.

12
User’s Manual
12
Auto Adjust
Used to perform an Auto Adjust of the VGA Input (will try to best fit the video on the
output screen).
Zoom
The VGA source can adjust the output zoom level. This is useful if
the VGA image’s edges are cut off by the bezel of the TV.
Brightness
Adjusts the VGA source brightness level between 0 and 100%.
Color
Adjusts the VGA source color level between 0 and 100%.
Contrast
Adjusts the VGA source contrast level between 0 and 100%.
2.10. Commands Tab
Command Configuration
Button Action
The Button Action control field shows the individual ON or OFF strings for the 8
programmable virtual buttons.
Function
The Function control field shows one of the following values.
Serial
oSend RS232 to Serial Port
Serial (UI)
oSend RS232 to the SW3-UI serial port (when installed)
Delay
oTime delay from 1 to 6 seconds
Command
oSend any valid command to the device

13
13
MODEL SC-3H
Command (when Function is set for Serial or Serial (UI))
The Command control field is where the user enters the desired RS232 string.
The RS232 values can be entered as ASCII text and/or hex byte values
formatted in a &hXX format.
Any extra spaces or other characters entered are transmitted.
Where “XX” is the desired HEX byte value.
Any character from 0x00 to 0xFF can be entered in this format.
Delay (sec) (when Function set for Delay)
The Delay (sec) control field is where the user enters the desired time delay in
seconds. The limit is from 1 to 6 seconds.
INSERT
The INSERT control appends a new command. If the
new command exceeds the maximum length allowed,
an error message will be displayed. (32 characters
maximum). Each Function uses a different number of
characters over and above any fixed characters that
are required.
CLEAR
Click the CLEAR button to erase the entire pre-programmed command
sequence.
UPDATE
Click the Update button to save the existing programmed command.
This control is only visible when there is an unsaved change in the configuration
settings.

14
User’s Manual
14
EDID Tab
VIDEO EDID
Clicking these controls selects to either PASS-THRU or
EMULATE the EDID.
PASS-THRU uses the SINK EDID while EMULATE uses the
internal EDID saved in the SC-3H.
PASS-THRU is the FACTORY DEFAULT setting.
Learn EDID
Clicking this control will extract the EDID from device
connected to the output connector and save it in the unit.
The user must confirm the action.
EDID Data Display
The data shown in the EDID table is continually
scanned to ensure that the checksums for each
block is valid.
If there is an invalid checksum, the invalid
checksum byte highlights in RED.
If an action is performed that affects the EDID such as initiating a "learn" process,
The checksum field might momentarily flash ‘RED’ during the this process, but
should go back to normal once the entire table is updated.

15
15
MODEL SC-3H

© Copyright 2017 Hall Research, Inc.
All rights reserved.
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax [phone]
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: [e-mail]
CUSTOMER
SUPPORT
INFORMATION
