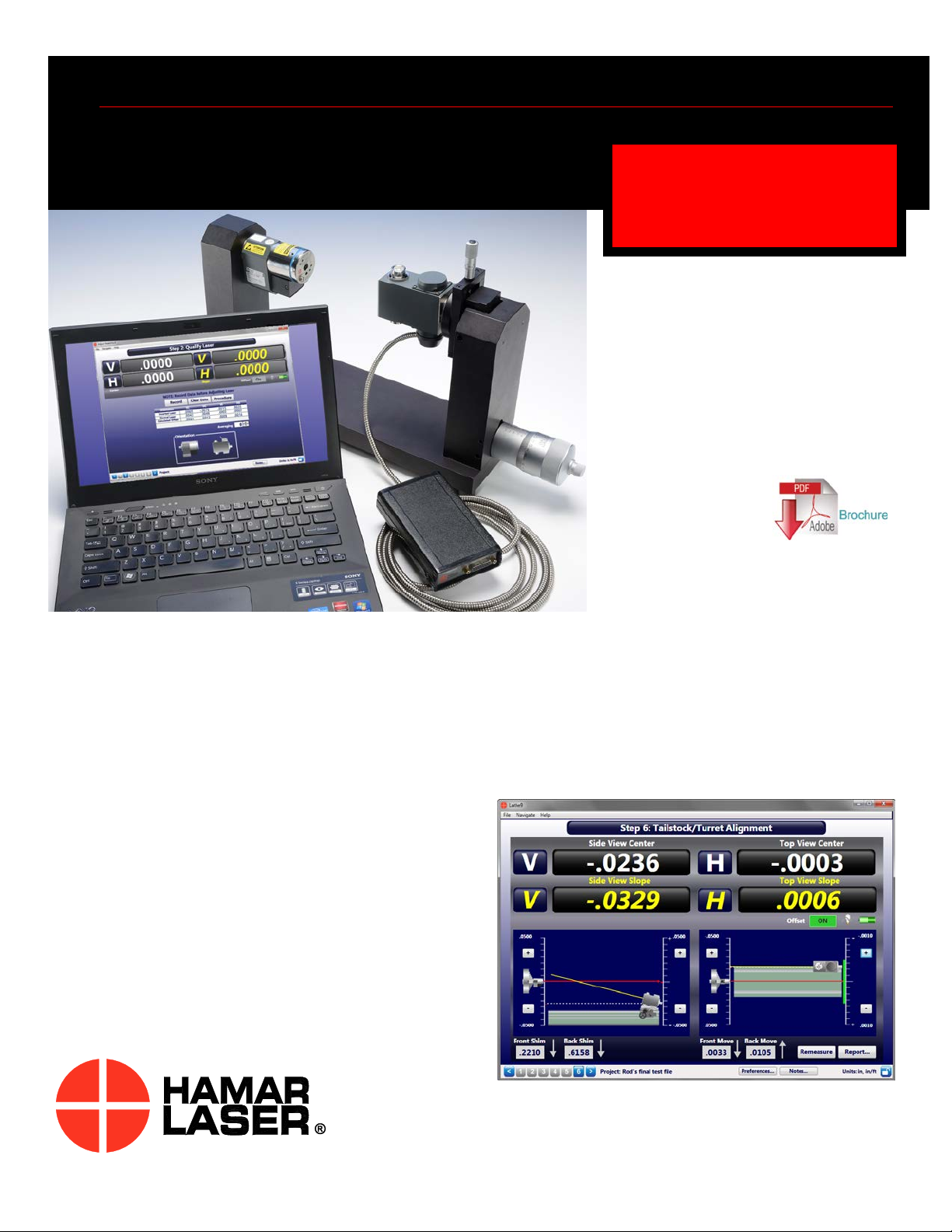

HAMAR LASER L-700 Supplement

Our patented 4-axis L-700 Spindle
Alignment System is a powerful alignment
tool that will help you to align boring mill,
cylindrical grinding, lathe and turning-
center applications up to 70% faster than
conventional or interferometer methods.
With a resolution of .00002" (.0005 mm),
live data output and large, color computer
graphics, the L-700 is the perfect tool to
align headstocks, spindles, sub-spindles
and tailstocks quickly
and accurately.
Turning Center
Alignment Simplified Even on Large
Lathes
The critical alignment of a lathe or other
turning-type machine is the parallelism of
the axis of rotation (AOR) of the spindle to the machine bed and alignment to the tailstock, sub-spindle, turret or tool
holder's AORs.
Conventional methods are very cumbersome and time consuming and are practically useless on large lathes. The L-700
vastly simplifies the task by inserting the laser right into the spindle chuck and the T-261 4-Axis Target into the sub-
spindle or tailstock. The laser is aligned to the spindle axis of rotation out to 100' (30.5 M). This becomes the reference
from which the ways, tool holder and tailstocks can be measured and aligned using the T-261. The software displays a
live reading of the horizontal and vertical center (offset) readings and the horizontal and vertical angular (slope) readings
of the tailstock to the headstock.
Live Display of Misalignment Data in 10 minutes
The L-700 Spindle Alignment System is so easy to set up that
you can have a quick measurement of misalignment data in 10
minutes. The Windows-based software speeds setup and data
taking and even corrects for mechanical mounting errors!
As with all Hamar Laser products, the L-700 provides a live
display in four axes of misalignment data, which means you
can align the tailstock, sub-spindle, etc. while the laser is still
in the machine. This is especially useful for tailstock
alignment, as it requires 4-axis calibration (horizontal center
and angle and vertical center and angle).
Application Notes
System Recommendations
L-700 Spindle Alignment System
Lathe Alignment
5 Ye Olde Road, Danbury, CT 06810 • Phone: [phone] • Fax: [phone]
E-mail: [email protected] • Internet: http://www.hamarlaser.com
ALIGN WITH THE BEST

2
High Resolution (.00002") Improves Part Quality
The L-700 has a resolution of .00001" (0.00025 mm) or better for center
measurements and .00001"/ft (0.0008 mm/M) for angular measurements. This
extremely high resolution provides the accuracy to dramatically improve your
lathe's quality performance and improve its scrap rate. Also by periodically
checking a lathes alignment can head off future quality problems before they hit
the bottom line.
Align Lathe Headstock to Its Bed up to 100 Feet
With the 100-foot (30.5 M) range of the L-700, even the largest lathes can be
quickly aligned. Since the L-700 is aligned to the axis of rotation of the spindle,
it projects that axis out to 100 feet (30.5 M), allowing the entire length of the
lathe to be aligned without changing setups. This is of particular value to large
lathes where alignment bars are not practical.
Cross-Slide Squareness
With our P-405 Remote Optical Square or our L-741 Laser System, measuring
the squareness of the cross slide is a simple task. The P-405 is placed into the
laser beam and made perpendicular to it using the T-261 Target. A penta prism
is then inserted into the P-405 fixture to bend the input beam 90º and produce an
automatically rotating laser plane that is square to axis of rotation of the spindle. A single-
axis target then measures the cross-slide squareness.
P-405 Remote Optical Square
More Information
Online
Recommended System
Configuration
L-700 Spindle Alignment Laser
T-261A 4-Axis Spindle Target
R-358 Computer Interface w/.05
Micron (.00002") Resolution
S-1403 Lathe9 Software for
Win XP/7/8
R-342 Laptop Computer
A-814 Shipping Case
Optional Accessories
P-405 Remote Optical Square
R-1342 Ruggedized Laptop Computer
A-807 Calibration Fixture

3
How the Alignment System Works
The setup and use of an L-700 is quite easy and begins by following Lathe9's on-screen instructions to enter the
dimensions, number of points, and tolerances. Next the laser is "qualified" or made co-linear (parallel and coincident), to
the axis of rotation (AOR) of the spindle. Then Lathe9 measures the lathe bed for parallelism to the spindle's AOR. If out
of tolerance, Lathe9 offers a live alignment screen to align the headstock to the lathe bed.
Once the spindle is aligned to the lathe bed, Lathe9 measures the headstock spindle alignment to the tailstock or
subspindle following an easy 3 step process. If out of tolerance, Lathe9 offers a live 4-axis alignment screen to align the
spindles horizontal and vertical centers (offsets) and horizontal and vertical angles. After aligning the tailstock, Lathe9
offers a printed report showing the lathe bed straightness, spindle parallelism to the bed and the headstock-tailstock
alignment.
Lathe Spindle Alignment Procedure Using Lathe9 Software
Step 1 - Setup
Enter the number of points
to measure on the bed, the
distance between points,
the headstock and tail-
stock dimensions, and the
alignment tolerances. Also
select which side of the
machine the laser is
mounted in.

4
Step 2 - Qualify Laser - Spindle
Inverted
A) Insert laser into headstock
spindle, the T-261A into the tailstock
or subspindle, and rotate the main
spindle so the L-700 is in the inverted
position.
B) Click Record.
Step 2 - Qualify Laser - Spindle Normal
A) Rotate the spindle/laser to the
NORMal position.
B) Click Record. Offsets are immediately
applied to displays so the laser can be
adjusted to the spindle's AOR.

5
Step 2 - Qualify Laser Showing the Laser
Bucked-in to the Spindle AOR
A) Using Allen key, turn the angular
adjustments until the V & H Angular
displays are zero.
B) Using the Allen key, turn the center
adjustments until the V & H Center displays
are zero. The laser beam is not concentric to
the Spindle AOR.

6
Step 3 - Spindle AOR Parallelism to Lathe
Bed
A) Put T-261A Target on lathe saddle and move
it to a distance from the headstock specified in
for Point #1 in Step 1.
B) Click Record to record the first data point.
C) Move saddle/T-261A to next point and click
Record. Continue until all the points are
recorded.
Step 3 - Spindle AOR Parallelism to Lathe Bed Results
Click Results to display the Lathe Bed Parallelism Results
table,
which shows: a) lathe bed straightness, b)
parallelism of the Spindle AOR to the lathe bed. If the
Headstock Parallelism results are out of tolerance, click
Close and then click Move to open the live Headstock
Alignment screen.
Note: If the saddle and tailstock are on separate machine
rails, the data can be taken a second time by moving the
T-261A to the tailstock and taking a second set of lathe
bed straightness data.

7
Step 3 – Live Spindle-to-Bed
Alignment Screen
Click Move in Step 3 to open the
Spindle-to-Bed alignment screen,
showing a live display of the
vertical and horizontal
parallelism (angular) values
relative to the lathe's machine
ways or bed. The data can be
shown relative to the tailstock
bed, saddle bed or an average of
both.
Lathe9 automatically calculates
the shim values to align the
headstock spindle to the tailstock
or saddle beds and on-screen
graphics and display values
update continuously as the shim
is added. The shims are color-
coded and when they turn green,
the alignment is complete. Click
Close to return to Step 3 to retake
the data and confirm the
alignment.
Step 4 – Lathe Bed Straightness
Results
To view the Lathe-Bed Straightness
results, click Next and Lathe9
displays a graph of the Vertical and
Horizontal straightness results for
the lathe's bed. A summary shows:
•The overall Vertical and
Horizontal Straightness TIR for
the tailstock rails and for the
saddle rails (if the saddle has
separate rails) and if the data is
in or out of tolerance.
•Parallelism of the headstock
spindle to the tailstock bed
(rails) and if in or out of
tolerance.
•Parallelism of the headstock
spindle to the saddle (if
separate from tailstock bed)
rails and if in or out of
tolerance.
The straightness data can be plotted
for the tailstock rails, saddle rails or
both. The plot can use the Best-Fit
line as the reference or the laser
beam. The graph also shows
tolerance bands, the Best-Fit line, or
pitch and yaw data for each point.

8

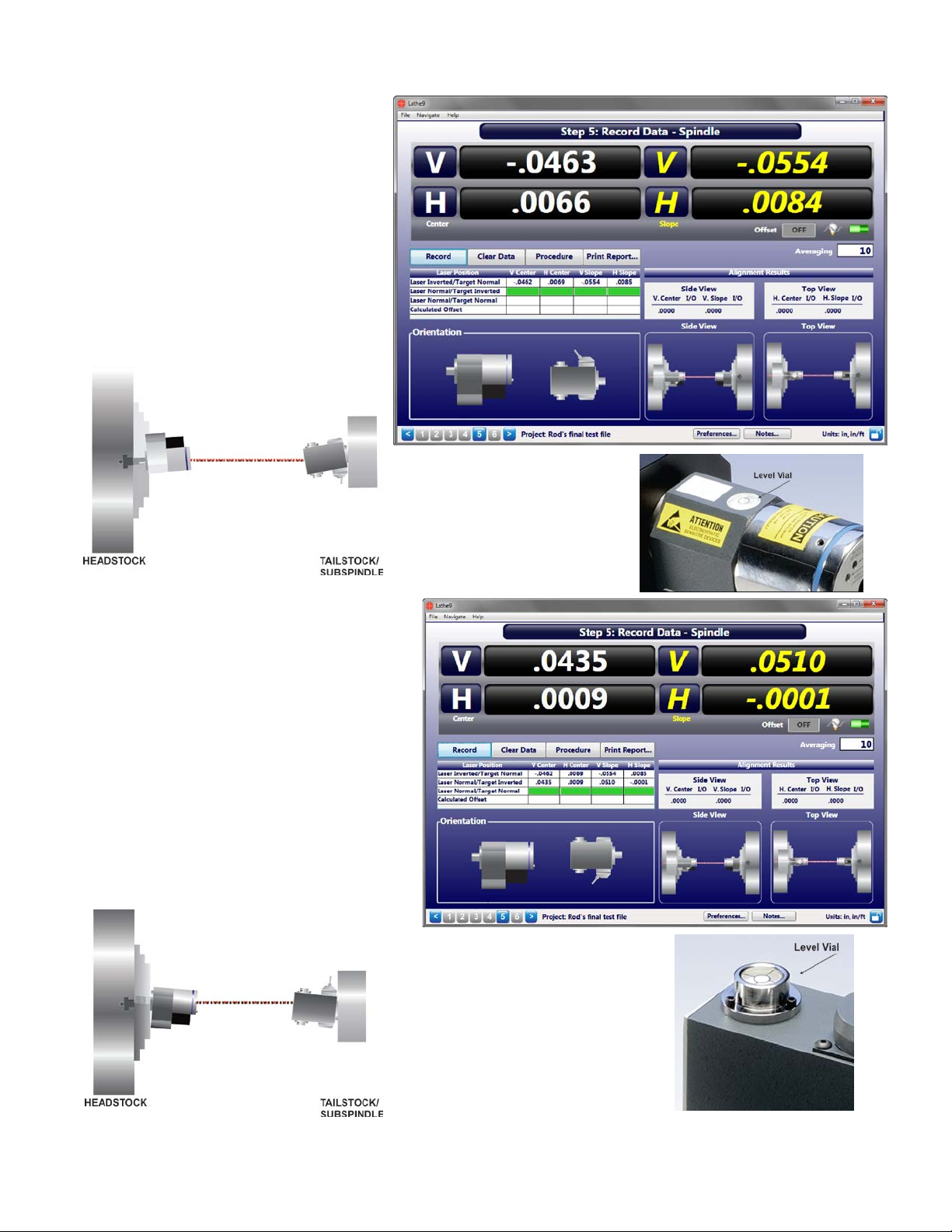

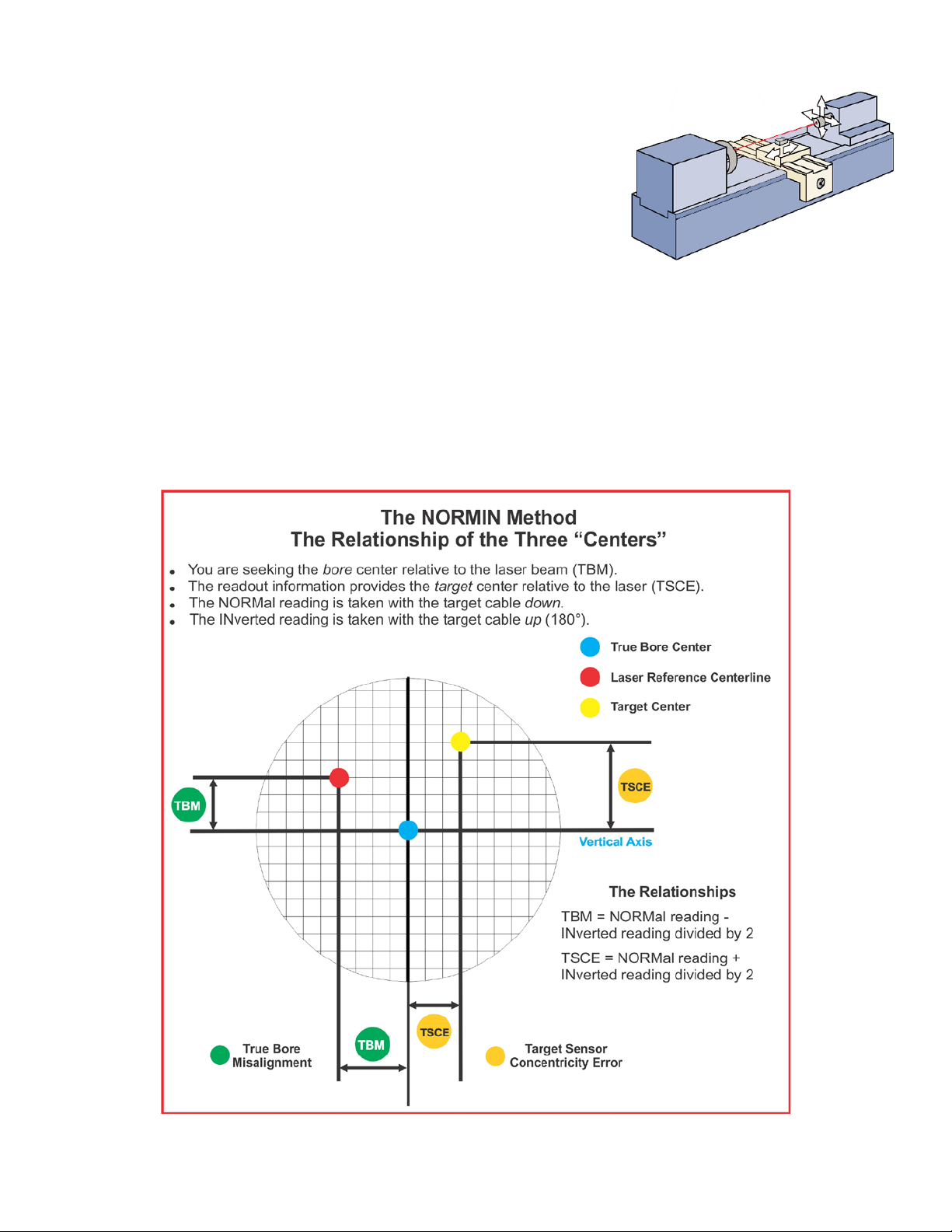

Step 5: Record Data-Spindle: Laser
Inverted/Target Normal
When the headstock is aligned to the
bed, the tailstock (subspindle or turret)
can then aligned to the headstock. First,
insert the T-261A into the tailstock or
subspindle in the NORMal position and
ensure the bubble is centered in the vial.
Rotate the headstock spindle so the L-
700 is in the Inverted position, making
sure it is level. Click Record.
Step 5 – Record Data-Spindle: Laser
Normal/Target Inverted
Rotate the headstock spindle so the L-700 is
in the NORMal position. Rotate the target
in the tailstock chuck to the INverted
position. Ensure both are level. Click
Record.

9
Step 5 – Record Data
Spindle: Laser Normal/Target Normal
Rotate the target in the tailstock chuck to the NORMal position. Click Record.

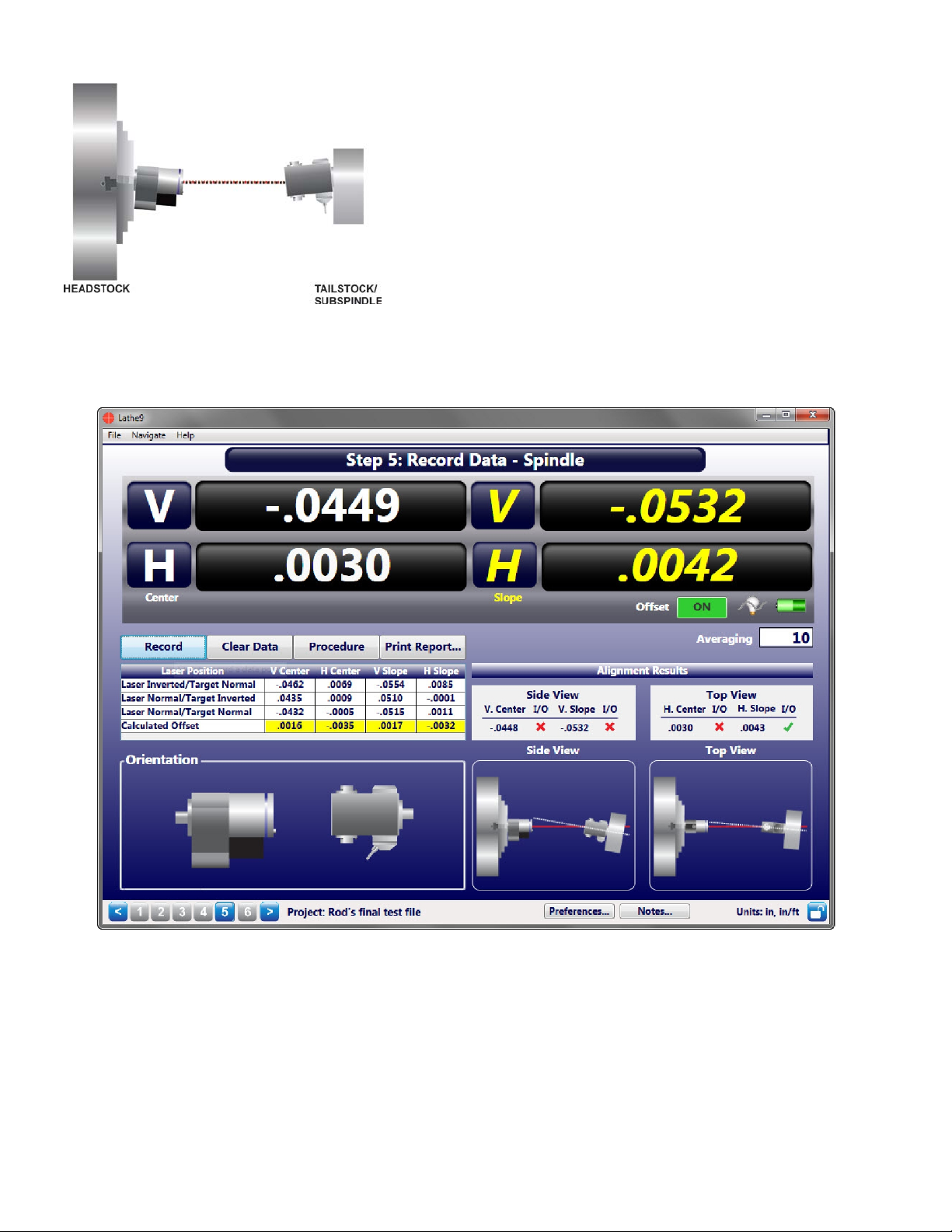

Step 5 - Record Data Spindle: Results
After taking the data, Lathe9 calculates mounting-error offsets and applies them to the display values. It also calculates the
spindle alignment results and applies the tolerance. On-screen graphics illustrate the vertical axes of the alignment (Side
View) and the horizontal axes of the alignment (Top View). If it is out of tolerance, click Next and go to Step 6 --
Tailstock/Turret Alignment Live Move Screen.

10
It is always a good idea to go back to Step 5 and retake the data to confirm the alignment. After confirming the alignment, click Print
Report for a report of the entire alignment.
Step 6 – Tailstock/Turret Alignment Live Move Screen
After taking the spindle alignment data in Step 5, click Next to go to the Tailstock/Turret Live Move Screen. In this
screen, the mounting errors collected from Step 5 are applied as an offset to the data displays, showing the actual
alignment in four axes: Side View, showing the Vertical Center and Vertical Angle and Top View, showing the
Horizontal Center and Horizontal Angle.
The data is live and on-screen graphics illustrate either the tailstock or turret spindle alignment relative to the
headstock's spindle axis (AOR). Shim and Move values are also calculated to fix the alignment. The displays turn red
when the alignment is out of the tolerance selected in Step 1 or green if in tolerance.
Add the shim and spacers or make the horizontal move, watching the display update as you make each move. When the
displays turn green, it's aligned!

11
Cross Slide Squareness
Squareness of the cross slide can be easily checked by setting up a remote
optical square (P-405). The optical square is put on a target stand and adjusted,
using a 4-axis target, until it is exactly perpendicular to the input beam from the
laser in the spindle. The optical square has an automatically rotating head that
sweeps a laser plane that is perpendicular to the input beam. A single-axis target
is placed on the cross slide and zeroed in the closest position to the spindle
centerline. It is then traversed along its axis, and any deviation from zero is a
squareness error. The straightness of the cross slide travel is also checked at the
same time.
Alignment System Features
•Simple fixturing for mounting the laser and target
•L-700 mounts in the spindle to project its axis of
rotation out to 100' (30.5 M)
•Visible-light beam aids setup
•Compact and rugged (4" L x 2.9" H x 1.75" W)
•Center resolution of 0.00002" (.0005 mm) and
angular resolution of .00002"/ft (.002 mm/M)
•Vertical and horizontal controls for both angle and center adjustment of
the laser to the spindle's precise axis of rotation
•Needs only 10" (250 mm) of space between spindle and tailstock or
subspindle.
•Laser runs for up to 8 hours on a standard, replaceable 9-volt battery
•Windows-based software with large color graphics that corrects
mounting errors and calculates shim values
