Axminster CQ6230A-2/910 User manual

Axminster Tool Centre,
Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH
www.axminster.co.uk
CQ6230A-2/910 Metal
Turning Lathe
A high specification, floor standing, heavy duty metal
turning lathe suitable for the keen model engineer, general
maintenance and small production facilities.
Featuring a high tensile cast iron, precision ground, induction hardened bed
for long term accuracy. A fully gear driven spindle runs on precision taper roller
bearings, with hardened and ground gears giving a speed range of 65 - 1,810rpm,
selectable via the headstock mounted levers and a choice of two motor drive belt
speeds.The spindle has the popular D1-4 quick lock chuck mounting, ensuring a
wide range of accessories can be fitted.
Code: 953449

OWNER’S MANUAL
Page - 1 -
CONTENTS
1.
NOTE----------------------------------------------------------------------------------
2
2.
LIMITED WARRANTY------------------------------------------------------------
2
3.
PASSPORT DATA-----------------------------------------------------------------
3
4.
TEST PROTOCOL----------------------------------------------------------------
4
5.
GENERAL DESCRITION OF THE MACHINE------------------------------
7
GENERAL DATA--------------------------------------------------------------------
7
BASIC TECHNICAL DATA--------------------------------------------------------
9
6.
DESCRIPTION FO THE MAIN UNITS----------------------------------------
10
GEAR BOX---------------------------------------------------------------------------
10
QUADRANT--------------------------------------------------------------------------
10
FEED BOX---------------------------------------------------------------------------
10
CARRIAGE GROUP---------------------------------------------------------------
10
THREAD INDICATOR-------------------------------------------------------------
11
TAIL STOCK--------------------------------------------------------------------------
11
RESTS---------------------------------------------------------------------------------
11
7.
MACHINE INSTALLATION------------------------------------------------------
12
TRANSPORTATION---------------------------------------------------------------
12
UNPACKING-------------------------------------------------------------------------
12
HANDLING---------------------------------------------------------------------------
12
PREPARATION----------------------------------------------------------------------
12
MOUNTING, FOUNDATIONS AND LEVELLING---------------------------
12
CONNECTION TO THE EL. SUPPLY SOURCE--------------------------
13
PUTTING INTO OPERATION---------------------------------------------------
13
8.
MACHINE SERVICE--------------------------------------------------------------
15
LUBRICATION----------------------------------------------------------------------
15
RECOMMENDED LUBRICANTS----------------------------------------------
16
9.
MACHINE OPERATION----------------------------------------------------------
17
PUTTING INTO OPERATION---------------------------------------------------
17
CUTTING OF THREAD AND FEEDS-----------------------------------------
17
FRETTED PARTS------------------------------------------------------------------
20
10.
MECHANISM’S ADJUSTMENT------------------------------------------------
21
11.
SAFETY-------------------------------------------------------------------------------
21
12.
MACHINE CARE AND MAINTENANCE-------------------------------------
22
13.
TRANSMISSION SYSTEM & PARTS----------------------------------------
23
14.
BEARING DISTRIBUTION-------------------------------------------------------
26

OWNER’S MANUAL
Page - 2 -
NOTE
This manual has been prepared for the owner and operators of this lathe.
Its purpose, aside from machine operation, is to promote safety through
the use of accepted correct operating and maintenance procedures.
Completely read the safety and maintenance instructions before operating
or servicing the machine. To obtain maximum life and efficiency from your
lathe, and to aid in using the machine safety, read this manual.
Since we continually strive to incorporate latest developments in the
construction of the lathe, it is quite possible at time, due to printing and
shipping requirements, some data may not correspond to the lathe in the
question.
LIMITED WARRANTY
We makes every effort to assure that our products meet high quality and
durability standards and warrants to the original retail consumer/purchaser of
our products that each product be free from defects in materials and
workmanship as follow: 1YEAR LIMITED WARRANTY ON ALLPRODUCTS
UNLESS SPECIFIED OTHERWISE. This Warranty dose not apply to defects
due directly or indirectly to misuse, abuse, negligence or accidents, normal
wear and tear or alterations outside our facilities, or to a lack of maintenance.
We shall in no event be liable for death, injuries to persons or for incidental,
contingent, special, or consequential damages arising from the use of our
products.
To take advantage of this warranty, the product or part must be returned to for
examination, postage prepaid. Proof of purchase date and an explanation of
the complaint must accompany the merchandise. If our inspection discloses a
defect, we will either or replace the product, or refund the purchases price if we
cannot readily and quickly provide a repair or replacement, if you are willing to
accept a refund. We will return repaired product or replacement at our expense,
but if it is determined there in no defect, or that the defect resulted from causes
not within the scope of our warranty, then the user must bear the cost of
storing and returning the product.

OWNER’S MANUAL
Page - 3 -
PASSPORT DATA
Model:
Serial No.:
Main el. motor:
V
Ph
Hz
GEOMETRIC ACCURACY CHECKING
The machine lathe guide way horizontality shall be checked in longitudinal and
transverse direction towards the machine axis by the help of level with an
accuracy up to ±0.02/1000 mm and ±0.04/1000 mm. before starting any
accuracy measurement.
To avoid one-sided loading of the machine body, place the carriage in the
center of the body while leveling.

OWNER’S MANUAL
Page - 4 -

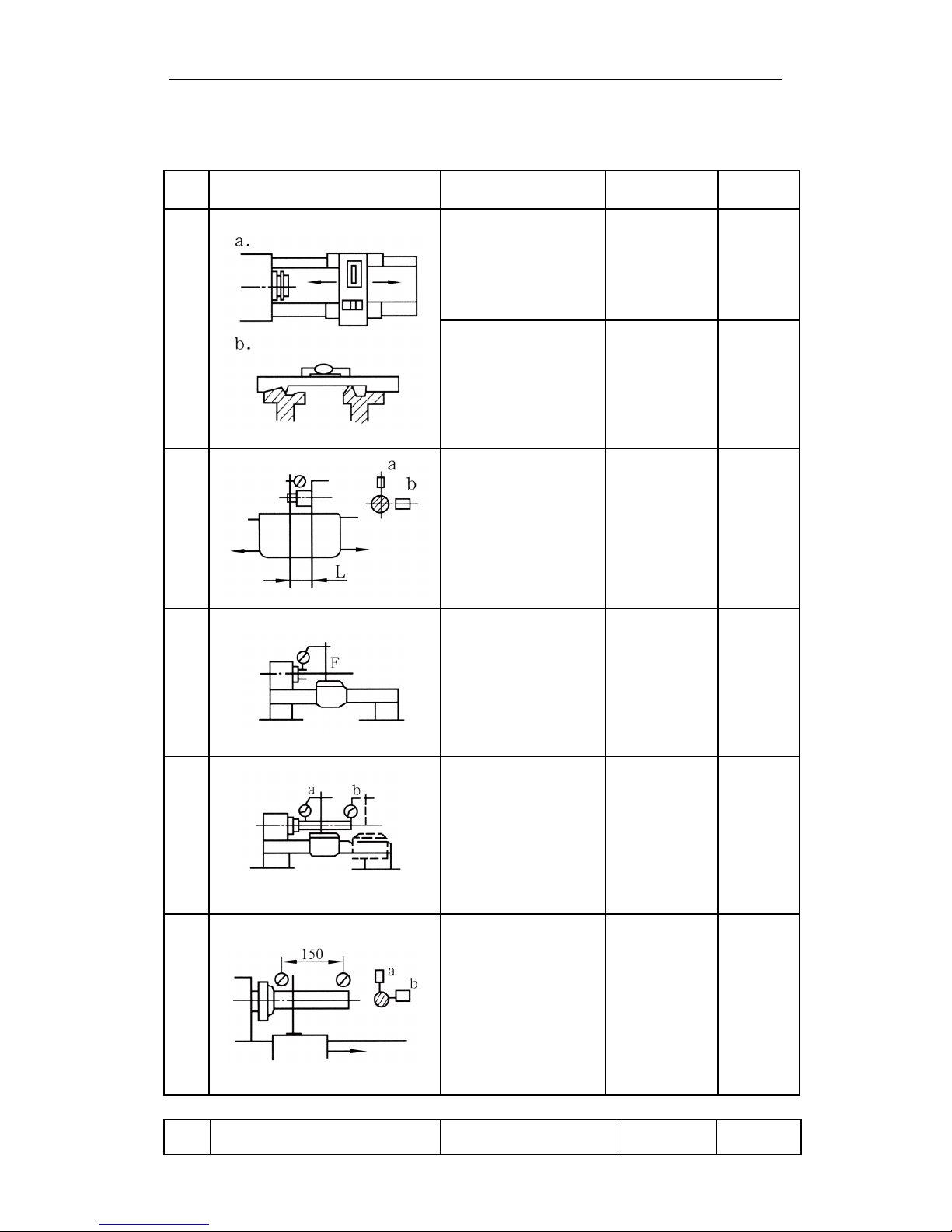

TEST PROTOCOL
No.
Diagram of measuring method
Inspection item
Tolerance
Data
a. Alignment of
longitudinal bed slide
ways in vertical place
Full travel
0.25 (+)
G1
b. Parallelism of
transverse direction
1000:0.06
G2
Parallelism of
tailstock to
longitudinal motion of
carriage.
a. In vertical plane
b. In horizontal
plane
a. 500:0.03
b. 500:0.025
G3
Spindle nose run out
0.015
G4
Spindle taper run out
a. At the end of
spindle nose
b. At the end of
300mm test bar
a. 0.01
b. 300:0.03
G5
Parallelism of spindle
center line to
longitudinal motion of
carriage
a. In vertical plane
(upward)
b. In horizontal
plane (forward)
a. 300:0.02
b. 300:0.02
No.
Diagram of measuring method
Inspection item
Tolerance
Data

OWNER’S MANUAL
Page - 5 -
G6
Spindle center run out
0.02
G7
Parallelism of center
line of tailstock spindle
to longitudinal motion of
carriage
a. In vertical plane
b. In horizontal plane
a. 200:0.03
b. 200:0.03
G8
Difference in center
height between
headstock and tailstock
(tailstock upward)
0.06
G9
Spindle
a. Axial run out
b. Run out on spindle
base plane
a. 0.015
b. 0.02
(axial run
out
included)
G10
Verticality of cross slide
to spindle center line
0.02/150
a ≥90°
No.
Diagram of measuring method
Inspection item
Tolerance
Data

OWNER’S MANUAL
Page - 6 -

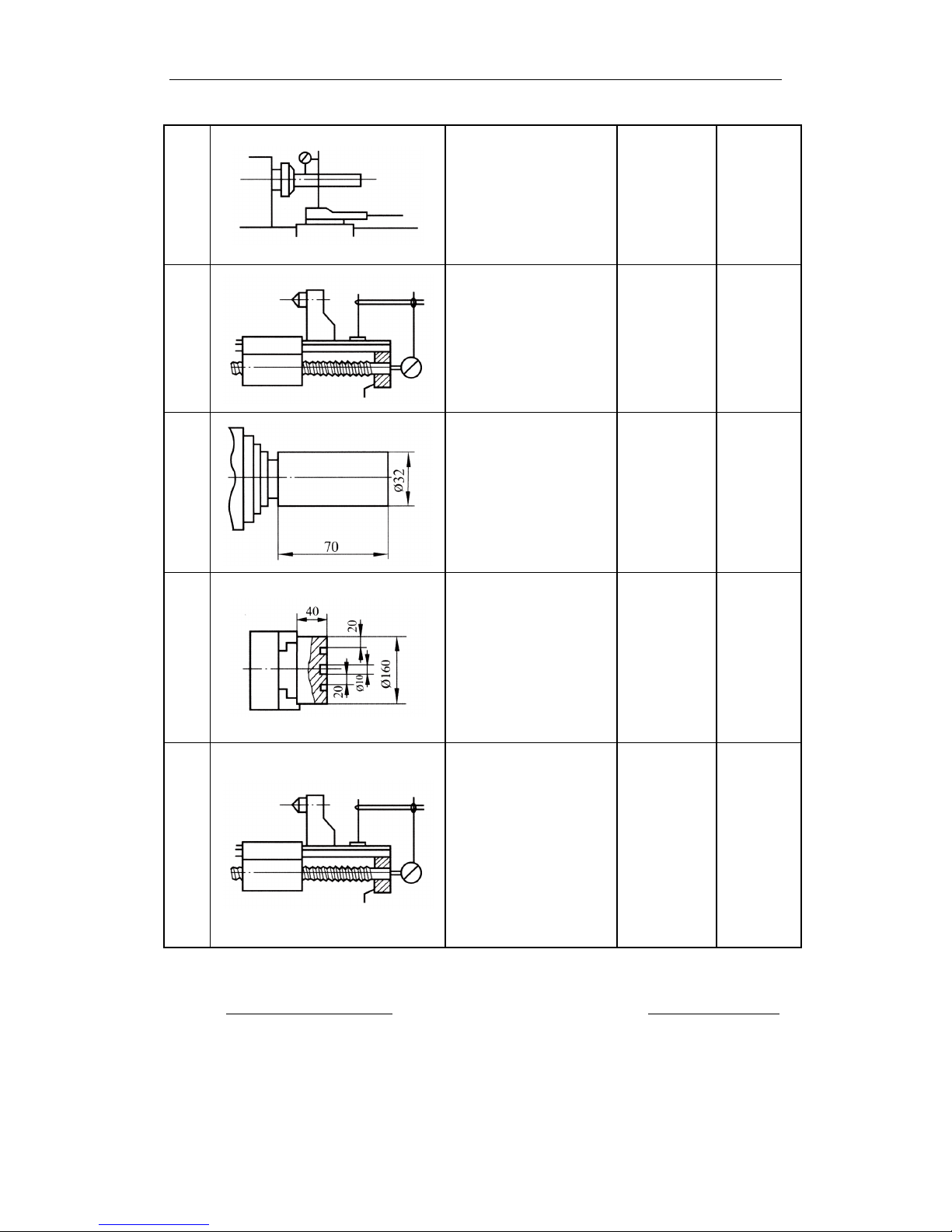

Date: Supervisor:
G11
Parallelism of top slide
to spindle center line
0.04
G12
Lead screw cam
action
0.03
G13
Accuracy of outside
round cutting
a. Roundness
b. Cylindricity
a. 0.015
b. 300:0.04
G14
Flatness of the face for
finishing cutting
(concave)
0.015
(for Ø
160mm)
G15
Precisely thread
cutting on work piece
between tow centers
(steel)
7g

OWNER’S MANUAL
Page - 7 -
1. GENERAL DESCRIPTION OF THE MACHINE
1.1. GENERAL DATA
MAIN ASSEMBLIES (See Fig. 1a)
1. Bed way
2. Headstock
3. Feed box
4. Carriage box
5. Electrical box
6. Chuck protecting cover
7. Splash guard
8. Lower carriage
9. Top carriage
10. Cooling
11. Working light
12. Tailstock
CONTROLS (See Fig. 1b)
1. Lever for starting, stopping and reversing the carriage feed movement
while threading
2. Lever for spindle speed stages
3. Wrench for the tool-holder
4. Flywheel for shifting the tool-holder slide
5. Handle for tail-spindle fixing
6. Handle for tailstock fixing
7. Flywheel for tail-spindle shifting
8. Handle for starting or stopping of the carriage longitudinal shifting while
threading
9. Lever for starting the spindle in forward or reverse stroke and its stopping.
When shift in forward direction, the spindle will turn counter-clockwise, and
when shift in backward direction, the spindle will turn clockwise. When in
the center position, the spindle stopped.
10. Lever starting and stopping the carriage transverse and longitudinal
shifting.
11. Flywheel for manual shifting of the carriage in longitudinal direction
12. Flywheel for feeding the cross slide
13. Drum (handle) for selection of “feed”or “thread”
14. Button-emergency stop
15. Switch-coolant pump
16. Button-test bottom for the main el. motor
17. Signal lamp. It glows when the main el. motor is switched on
13. Leads crew (with Guard)
14. Feed rod
15. Switch rod
16. Tool holder
17. Quadrant
18. Oil tray
19. Steady rest
20. Foot stand
21. Thread indicator
22. Foot brake
23. 3 jaw chuck

OWNER’S MANUAL
Page - 8 -

OWNER’S MANUAL
Page - 9 -

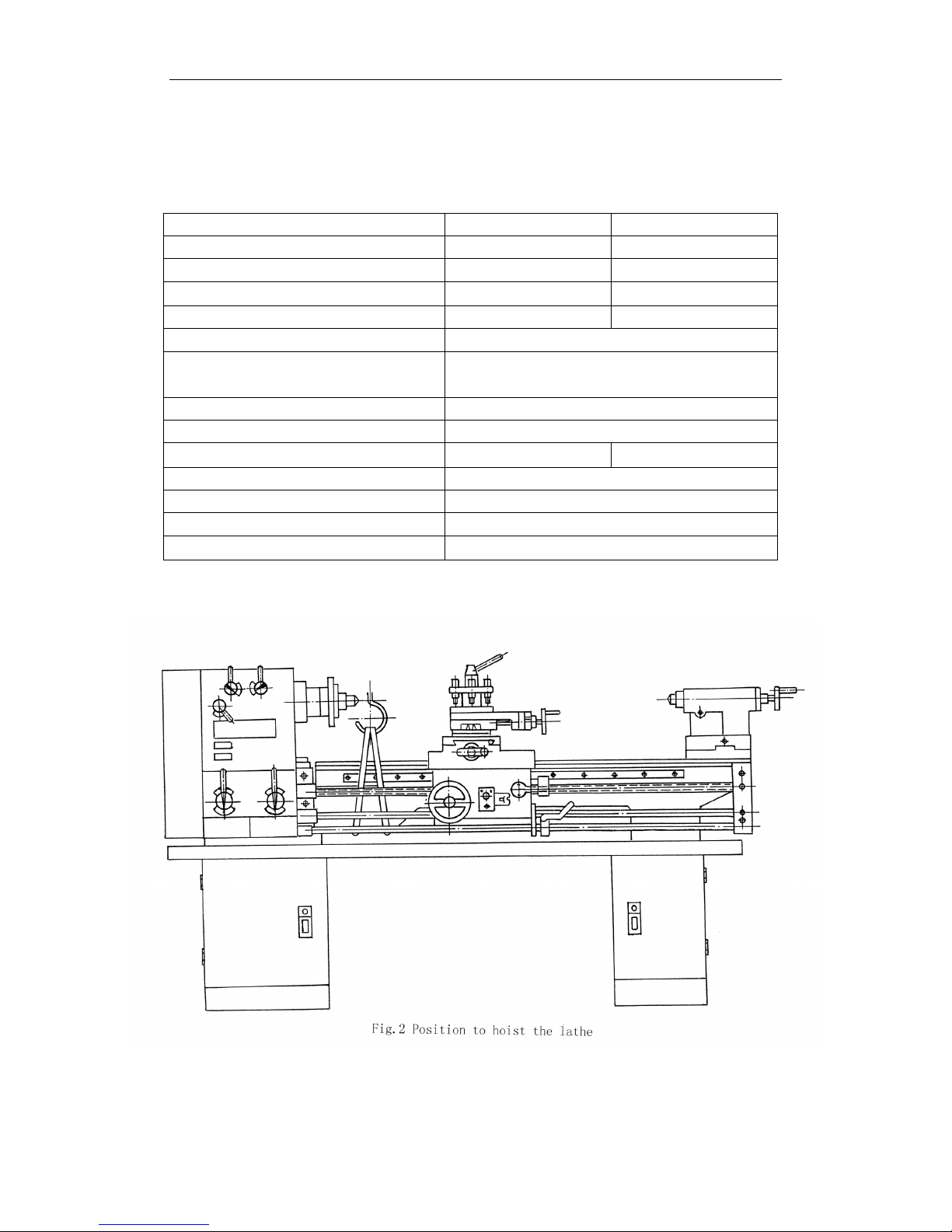

1.2. BASIC TECHNICAL DATA
Form1
CQ6230 SERIAL
C0632C
Max swing over bed
Ø300 mm
Ø320mm
Max swing over gap
Ø430 mm
Ø450mm
Max swing over cross slide
Ø180 mm
Ø180mm
Distance between centers
900 mm / 750 mm
1000 mm
Taper of spindle bore
38 mm
Range of spindle speed
9 steps 75—1400 rpm /
18 steps 65-1810 rpm
Taper of spindle bore
M.T. 5
Taper of tailstock spindle
M.T. 3
Max. travel of carriage
760mm / 560 mm
880 mm
Max. travel of cross slide
130 mm
Max. travel of top slide
75 mm
Max. travel of tailstock spindle
100 mm
Motor power
1.1 KW / 1.5 KW

OWNER’S MANUAL
Page - 10 -
2. DESCRIPTION OF THE MAIN UNITS
GEAR BOX
The gear box is mounted on the machine corp. the rotation motion to this gear
box is transferred through V-belts and belt pulley from an el. motor mounted on
the guide way.
QUADRANT
The quadrant is destinated to transfer the motion from the gear box to the feed
box through some change gears. It is mounted in the quadrant box. The latter
is closed by a cover.
FEED BOX
The feed box is fixed to the face side of the machine corp.—just below the gear
box. It includes all the mechanisms, by the help of which is effected the
adjustment for selection of the feed or thread pitches.
Required adjustments for the different values of the feed or thread pitch are
realized by the help of respective drums, located on the front part of the feed
box.
CARRIAGE GROUP AND ITS MECHANISMS
The carriage group is destinated for fixing and driving the cutting too. It
includes five basic parts: carriage box, carriage board, lower slide, cross piece
and upper (top) slide.
A. Carriage box
The carriage box is mounted on the carriage board. It contain the mechanisms
that are used for driving the carriage longitudinal and cross feed, as well as the
mechanism for engagement of the nut to the lead-screw while threading and
the mechanism for manual feed of the carriage.
B. Carriage board
The carriage board is mounted on the corp. guide ways. All the rest parts of the
carriage group are fixed to this carriage board.
C. The lower slide moved on the guide ways of the carriage board in

OWNER’S MANUAL
Page - 11 -
transverse direction. This movement may be effected automatically or
manually.
D. When short cones have to turned by hand, the cross piece may be
swiveled at 90° towards the lower slide in both directions and be fixed in the
required position by the help of suitable bolts and nuts.
E. The top slide on which the four-position tool holder is mounted, may be
shifted only by hand in the direction of the cross-piece.
Thus you may obtain longitudinal, cross and combined feed for the cutting tool.
THREAD-INDICATOR
This device is mounted to the carriage box (disengaged to the driving screw)
for getting into thread pitch
TAIL STOCK
The tailstock is clamped to the corp. guide ways. It is designed for working
piece clamping during machining between centers for drilling operations with
manual feed of the tool.
RESTS
In response to the special request of the client, the lathe may be competed
additionally with a steady and a follow rest.
The two types are with sliding quills. The steady rest is fixed to the corp. guide
ways and the follow rest to the carriage board.

OWNER’S MANUAL
Page - 12 -
3. MACHINE INSTALLATION
TRANSPORTATION
The machine is transported in a special wooden case (or with foot stands
separately packed in carton), being fixed to the base of the case or slide by
suitable bolts. Some of the accessories are mounted on the lathe well fixed
and the other packed in a separate box or directly fixed on the case base.
The places where the ropes or chains have to be passed during handling of
the packed machine are marked on the packing. Be aware of the heavy side
while you are handling the machine with forklift.
UNPACKING
After the machine had been unpacked, check carefully its general condition, as
well as the availability and condition of all the accessories, shown in the
packing list.
HANDLING
Unpacked machine shall be handled only by the help of a suitable crane.
Before passing the ropes over the specified places, shown on the Fig.2, pull
out the tailstock and carriage and fix them in the rear hand position so that
when lifting the machine you will obtain required balancing. When handling the
machine never strike or hit it sharply because this may affect the machine
accuracy—irrespective of whether there are or not may visible defects.
Since the paint on some part of the machine may be damaged during handling,
place protective pads of fabrics or other suitable material on the respective
places.
PREPARATION
Before mounting the machine on the predetermined place, clean it carefully
from the protective oil. Respective machine surface shall be washed by the
help of pure naphtha or benzine.
This protective oil shall not be removed by hard objects or solvent that may
damage the metal surface or paint of the machine. Well-cleaned surfaces are
dried by the help of dry threads and covered with pure machine oil. Remove
the end gear cover. Clean all components of the end gear assembly and coat
all gears with heavy, non-slinging grease.
MOUNTING, FOUNDATIONS AND LEVELLING
To obtain accurate, durable and trouble-free operation of the machine, mount it
only on suitable, foundation and level it carefully. The foundation is prepared

OWNER’S MANUAL
Page - 13 -
by concrete with a thickness from 200 to 300 mm according to the soil
strengthness.
The unpacked machine is lifted by crane according to the specified method
and after the anchor and leveling bolts are in place, lower the foundation so
that the anchor bolts enter into the respective holes. The leveling plates (shims)
are placed below the leveling bolts. The guide way horizontality is checked in
longitudinal and transverse direction towards the machine axis by the help of
level with an accuracy of ±0.02/1000 mm and ± 0.04/1000 mm. After this initial
machine leveling had been carried out, pour the holes for the anchor bolts and
the space blew the machine legs with cement putty with ratio between the
cement and sand 1:3
After the cement is setted well (3-4days), tighten the nuts of the anchor bolts
carefully and evenly.
Check the machine leveling once again and if necessary—correct it by the help
of the leveling bolts.
CONNECTION TO THE EL. SUPPLY SOURCE
Check whether the data on the el. panel scheme (voltage and frequency of the
supply source) correspond to the available.
The controlling level should remain in the middle and also press down the
switch to keep the machine power off.
Make sure the lathe in properly grounded.
PUTTING INTO OPERATION
Before starting the machine, clean it once again carefully and lubricate it
according to the Fig. 3a 3b 3c –Lubrication System.
Check the V-Type belt, which located from motor to the low speed wheels,
whether it’s too tight or not. Too tight belt will spoil the bearings, also, if the
V-Type belt is too lengthened, it will skid, so the belt must be adjusted
Starting is effected in the following order:
Check manually the movement of all mechanisms. It shall be smooth. Check
also the operation of all the controls.
Fill the tank of the cooling system with the specified coolant (optional
accessory to be ordered separated). Switch on the main el. motor.

OWNER’S MANUAL
Page - 14 -
After one-hour operation of the machine, check the oil level in the tanks and if
necessary add the required quantity.
After two shifts operation of the machine, check the play of the V-belts.
1.

OWNER’S MANUAL
Page - 15 -
4. MACHINE SERVICE
LUBRICATION
The trouble-free operation on the lathe depends on its careful servicing. Of
special importance is the regular lubrication of all machine-operating parts with
the recommended lubricants. These lubricants are listed in the Fig. 3a 3b 3c
–Lubricating System.
The headstock (see Fig. 3a 3b 3c) is lubricated by the splash in of the oil,
charged in it. The oil may be poured into after removal of the cap from the
combined oil vent with oil filler. (p.1), located in the headstock cover. The oil
draining by unscrewing the plug (p.1--1) to the oil draining tube. If the oil has to
be replaced, clean the headstock with pure naphtha carefully. While charging
new, its level must be to the middle of the oil sight glass. The disk couplers and
the main spindle front bearing are lubricated by an oil-collecting groove.
The feed box is charged oil through a hole (p.2), located in its l. h. side (III type
feed box) and r. h. side (I & II type feed box) (viewed frontally). The oil quantity
must be also such that its level reaches the middle of the sight glass. The oil
drainage is effected through the plug (p.2--2).
The change gear sleeve for the quadrant shall be lubricated with grease once
per day by the help of suitable oiler. The change gears shall be lubricated with
oil once per shift.
The carriage box is lubricated through a common hole (p.3), wherefrom the oil
is fed into a tank which is also common for the whole box. By suitable grooves
the oil is fed further to the respective bearing as a portion of it drops on the
bottom of the box, from where the gears are oiled. The oil is drained through a
plug (p.3--3).
The carriage as well as the slide-guiding surface are lubricated by the help of
suitable oilers (p.6), pressed into the carriage and cross slider (p.8). The el.
motor bearing shall be cleaned well and filled with new grease once per six
months. All the friction surfaces of the carriage, traveling stock and conic lineal
shall be oiled by the help of an oil-holder or oiler according to the lubricating
system. The lubricating points are marked in the Fig. 3a 3b 3c –Lubrication
System.

OWNER’S MANUAL
Page - 16 -
RECOMMENDED LUBRICANTS
Fornormalandotherclimaticconditions Form 2
Assembly
Lubricating
point
Lubricating
method
Lubricant
Lubricating interval
Headstock
Gears and
bearings.
Spindle front
bearing.
Spindle rear
bearing. Belt
pulley bearing
Oil
bath—by
splashing
Machine oil
Oil replacement: --for
the first time—after 10
days operation of the
lathe—for the second
time—after 20 days
operation of the
lathe—next time—once
per each 60 days
Feed box
Gears, bearing
and all the
mechanisms
Oil
bath—by
splashing
Machine oil
Carriage
Gears, bearing
and all the
mechanisms
Oil
bath—by
splashing
Machine oil
Quadrant
Changes
gears
Quadrant idle
axle
By hand
Machine oil
Grease “L”
Once per shift
Once per shift
Carriage
slide
Corp bed ways
Slide bed
ways
By hand
with help of
oilers
Machine oil
Once per shift
Cross
carriage
Support of the
screw in the
slide.
Cross screw
for carriage
By hand oil
tank,
located in
the
carriage
Machine oil
Once per shift
Cross-shap
ed carriage
Carriage bed
ways.
Cross-shaped
carriage bed
ways. Screw
of the
cross-shaped
carriage.
Tool-holder
By hand
Machine oil
Once per shift
Tailstock
Screw support
quill
By hand
Machine oil
Once per shift
Console
Lead screw
bearing
Feed rod
bearing
Switch rod
bearing
By hand
Machine oil
Once per shift

OWNER’S MANUAL
Page - 17 -
5.MACHINE OPERATION
PUTTING INTO OPERATION
After performing the previous instruction, the machine is ready for operation,
the connection to the el. supply source is effected by the help of the main
interrupter. Turning on of the control lamp shows that the machine is
connected to the el. supply circuit.
All the speed within the range 75—1400 rpm (65—1810 rpm) at different
position of the levers are shown on Nameplate.
When starting the machine, check carefully whether all the gears are well
engaged
This is obtained by placing the handles at their fixed positions.
THE CHANGE-OVER OF THE GEARS SHALL BE EFFECTED ONLY
UNDER IDLING CONDITIONS.
The machine operating mode selection shall be realized from the speed
indication nameplate.
When trying the machine, put the speed change lever in low speed stage and
keep the machine running for at least 20 minutes, then gradually change the
speed of the spindle up to fastest, every stage running over 5 minutes.
CUTTING OF THREADS AND FEEDS
The feed box receives its motion from shaft V of the gearbox through a set of
change gears. If the handle 3 (Fig. 4. 5. 6) is placed in its r.h. position, the lathe
is set for cutting of r.h. thread. If the same handle is placed in its l.h. position,
the lathe is set for cutting of l.h. threading.
It is not required to place on the quadrant respective change gear set in order
to prepare the lathe for necessary feed.
The different values for feeds and threads are obtained by the different setting
of the quadrant and changing the position of drums / handle 4, 5, 6, 21 and
handle 3.

OWNER’S MANUAL
Page - 18 -
All the quadrant setting and drums / handle different position are shown in
nameplate for threads and feeds.
I & III TYPE FEEDBOX:
Select handle 4 for feeding or threading. Handle / drums 5,6,21 are for
controlling the speed of feedbox.
II TYPE FEEDBOX:
Push handle 4 inside then move left or right to select feeding or threading,
drawing back then move left or right for controlling the feed rate and size of the
threads. Same operation on Handle 5 for the controlling the feed rate and size
of the threads.

OWNER’S MANUAL
Page - 19 -
Adjust the nut gap on the carriage see Fig. 7. Rotate the p.1 on the nut to
satisfied saddle moving and required travel.
Chuck and faceplate mounting see Fig. 8. The connection between spindle
and chuck or faceplate is made by D-Cam lock structure. When mounting, put
the three pull pins of chuck or faceplate into the three holes on the spindle face
end, then turn the three cams with the aid of square head wrench, when
turning the cams clockwise, the chuck or faceplate will be locked, when turning
the cams counter-clockwise to certain point, the chuck or faceplate can be
detached.
