Hamilton Beach 19804 Owner's manual

READ BEFORE USE
LIRE AVANT UTILISATION
LEA ANTES DE USAR
Visit www.hamiltonbeach.com for our
complete line of products and Use and
Care Guides – as well as delicious recipes,
tips, and to register your product online!
Rendez-vous sur www.hamiltonbeach.ca
pour notre liste complète de produits et de
nos manuels utilisateur – ainsi que nos
délicieuses recettes, nos conseils et pour
enregistrer votre produit en ligne !
¡Visite www.hamiltonbeach.com.mx
para obtener nuestra línea completa de
productos y las Guías de Uso y Cuidado,
además de deliciosas recetas, consejos y
para registrar su producto en línea!
Questions?
Please call us – our friendly
associates are ready to help.
USA: 1.800.851.8900
¿Preguntas?
Por favor llámenos – nuestros
amables representantes están
listos para ayudar.
MEX: 01 800 71 16 100
Le invitamos a leer cuidadosamente este
instructivo antes de usar su aparato.
Questions ?
N’hésitez pas à nous appeler –
nos associés s’empresseront
de vous aider.
CAN : 1.800.267.2826
Durathon™Iron
Fer à repasser
Plancha
English ...................... 2
Français................... 15
Español ................... 29
840221700 ENv02.indd 1840221700 ENv02.indd 1 11/12/12 11:52 AM11/12/12 11:52 AM

2
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
1. Only use an iron for its intended use.
2. To avoid the risk of electric shock, do not immerse the iron
in water or other liquids.
3. Always turn the iron to OFF before plugging or unplugging
the iron from the electrical outlet. Never pull on the cord to
disconnect the iron from the electrical outlet; instead, grasp
the plug and pull on the plug to disconnect the iron.
4. Do not let the cord touch hot surfaces. Let the iron cool
completely before putting the iron away. Coil the cord
loosely around the iron for storing.
5. Always disconnect the iron from the electrical outlet before
filling the iron with water, emptying the water from the iron,
and when the iron is not in use.
6. Do not operate the iron with a damaged cord or in the event
the iron has been dropped or damaged or there are visible
signs of damage or it is leaking. To avoid the risk of electric
shock, do not disassemble the iron. Take it to a qualified
serviceman for examination and repair. Incorrect assembly
might result in a risk of electric shock when the iron is used
after reassembly.
7. The iron must be used and rested on a stable surface.
8. When placing the iron on its stand, ensure that the surface
on which the stand is placed is stable.
9. Close supervision is required for any appliance used by or
near children. Do not leave the iron unattended while the iron
is connected or on an ironing board.
10. Burns can occur from touching hot metal parts, hot water, or
steam. Use caution when you turn a steam iron upside down—
there might be hot water in the reservoir.
11. To avoid a circuit overload, do not operate an iron on the same
circuit with another high-wattage appliance.
12. If an extension cord is absolutely necessary, a cord with an
ampere rating equal to or greater than the maximum rating
of the iron shall be used. A cord rated for less amperage can
result in a risk of fire or electric shock due to overheating. Care
shall be taken to arrange the cord so that it cannot be pulled or
be tripped over.
When using your flatiron, basic safety precautions should always be followed, including the following:
SAVE THESE INSTRUCTIONS!
840221700 ENv02.indd 2840221700 ENv02.indd 2 11/12/12 11:53 AM11/12/12 11:53 AM

3
Other Consumer Safety Information
This product is intended for household use only.
WARNING! Shock Hazard: This appliance has a polarized plug
(one wide blade) that reduces the risk of electric shock. The plug
fits only one way into a polarized outlet. Do not defeat the safety
purpose of the plug by modifying the plug in any way or by using
an adapter. If the plug does not fit fully into the outlet, reverse the
plug. If it still does not fit, have an electrician replace the outlet.
• Use the iron on an ironing board. Ironing on any other surface
may damage that surface.
• Do not iron or vertical-steam clothes that are being worn.
• Do not use vertical steam in the direction of people or pets.
• During first use of the iron, it may appear to smoke. This will
stop and does not indicate a defect or hazard.
• Many irons spit or sputter during the first few uses with tap
water. This happens as the steam chamber becomes
conditioned. This will stop after a few uses.
• To clean steam vents before first use, prepare iron for steam
ironing and then iron over an old cloth for a few minutes while
letting the iron steam. Press the Steam Burst button several
times to clean the vents. Then follow the self-cleaning
instructions on page 11.
840221700 ENv02.indd 3840221700 ENv02.indd 3 11/12/12 11:53 AM11/12/12 11:53 AM

4
Parts and Features
Heel Rest
Water Tank
Cover
Cord
Self-Clean
Button
Durathon™ Nonstick Soleplate
Spray
Nozzle
Spray and Steam
Burst Buttons
Adjustable
Steam Switch
Temperature Settings/
Auto Shutoff Indicator
Temperature
Settings Button
Soft Touch Grip
Optional Features
(on select models)
Retractable Cord
Cord Retraction Button
840221700 ENv02.indd 4840221700 ENv02.indd 4 11/12/12 11:53 AM11/12/12 11:53 AM

5
How to Dry Iron
21 3
4
Set the Adjustable Steam Switch
to (Dry Iron).
Optional feature on select
models. Grabbing the plug,
pull out the cord.
NOTICE: Do not unwind the
cord past the red tape.
CAUTION! Eye Hazard: Hold
the plug with one hand while
pushing the Cord Retraction
Button with your other hand to
retract the cord.
To turn iron off, press
Temperature Settings Button
until OFF is illuminated. The
light will stay on until iron is
unplugged.
5IRON POSITION
Resting on soleplate
Resting on either side
Resting on heel
POSITION SENSING/AUTO SHUTOFF
The iron will turn off automatically when left in the following positions. The Auto
Shutoff time varies based on the iron’s position.
MOTIONLESS TIME
30 seconds
30 seconds
15 minutes
NOTE: Tilting the iron more than 30 degrees will reset the Auto Shutoff sensor.
Press Temperature Settings
Button to turn iron on and
continue pressing until desired
temperature is illuminated.
Allow 2 minutes for iron to reach
maximum temperature. The light
will blink while preheating.
840221700 ENv02.indd 5840221700 ENv02.indd 5 11/12/12 11:53 AM11/12/12 11:53 AM

6
2
56
Set the Adjustable Steam Switch
to (Dry Iron).
Press Temperature Settings
Button to select desired fabric
setting in the steam range.
Allow 2 minutes for iron to reach
maximum temperature. The light
will blink while preheating.
WARNING! Burn Hazard:
Attempting to steam iron on
a lower temperature setting or
failing to allow the iron to preheat
for 2 minutes can result in hot
water dripping from the soleplate. Set Adjustable Steam Switch to
the desired steam level.
1
4
How to Steam Iron
3
Optional feature on select
models. Grabbing the plug,
pull out the cord.
NOTICE: Do not unwind the
cord past the red tape.
CAUTION! Eye Hazard: Hold
the plug with one hand while
pushing the Cord Retraction
Button with your other hand to
retract the cord.
840221700 ENv02.indd 6840221700 ENv02.indd 6 11/12/12 11:54 AM11/12/12 11:54 AM

7
7 7
For vertical steaming, hold iron
6 inches (15 cm) from garment
and do not allow hot soleplate to
touch delicate garments. Press
and release the Steam Burst
Button to steam out wrinkles.
Wait at least 5 seconds before
pressing Steam Burst Button
again.
OR
How to Steam Iron (cont.)
To turn iron off, set Adjustable
Steam Switch to (Dry Iron).
8 9
Press Temperature Settings
Button until OFF is illuminated.
The light will stay on until iron is
unplugged.
10
Empty water from iron following
directions in “Care and Cleaning.”
IRON POSITION
Resting on soleplate
Resting on either side
Resting on heel
POSITION SENSING/AUTO SHUTOFF
The iron will turn off automatically when left in the following positions. The Auto
Shutoff time varies based on the iron’s position.
MOTIONLESS TIME
30 seconds
30 seconds
15 minutes
NOTE: Tilting the iron more than 30 degrees will reset the Auto Shutoff sensor.
840221700 ENv02.indd 7840221700 ENv02.indd 7 11/12/12 11:54 AM11/12/12 11:54 AM

8
NOTICE: To avoid garment damage, check garment label for
fabric composition and ironing instructions.
Fabric care labels on garments have symbols that show ironing
instructions and recommended temperature settings. These symbols
are shown below along with an explanation of their meaning.
Temperature
Setting
OFF
Synthetics
Silk, Wool
Cotton, Linen
Steam
Setting
Dry
Iron
Steam
Range
Ironing
Instructions
OFF
Dry iron using spray
if necessary.
Iron silk on wrong
side.
For cotton, iron
while still damp or
use spray.
For linen, iron fabric
on wrong side.
•
Low
••
Medium
•••
High
Iron High
Temp
Setting
Medium
Temp
Setting
Low Temp
Setting
Do not iron Do not use
steam
Fabric Setting Chart Garment Label
Symbols
840221700 ENv02.indd 8840221700 ENv02.indd 8 11/12/12 11:55 AM11/12/12 11:55 AM

9
Tips for Best Ironing Results
PREPARE TO IRON:
1. Cover your ironing board with a padded, heat-resistant cover. Brush or wipe off any dust, dirt, or debris so it doesn’t end up on your clothes.
2. To set the height of the ironing board, stand with your elbows bent at right angles; then drop your hands slightly so that your arms are in a
comfortable position. Set the height of your ironing board to this height.
3. Check the soleplate (the surface of the iron that meets the fabric) for mineral deposits or scorched material before you begin ironing. If these
deposits or minerals are left on the soleplate, they may end up on your clothes. Unsure? Test-glide the iron on a rag or old towel first.
TEST KITCHEN TIP: To clean an iron’s soleplate, preheat the iron to the highest temperature setting and iron over a damp, 100% cotton cloth.
This creates heavy steam that transfers grime from the soleplate to the cloth. Many irons have a Self-Clean Button. This will clean the steam
holes, but it will not remove grime from the flat surface of the soleplate. NOTE: Care should be used while cleaning; steam can burn.
FAST FACTS:
• Don’t iron in a circular motion as this can stretch fabric. Instead, iron lengthwise.
• Natural fibers such as cotton and linen should be ironed slightly damp for faster, easier ironing. If they are completely dry, use maximum
steam while ironing or mist them with water prior to ironing.
• Any portion of a garment that has 2 layers of fabric such as pockets, seams, collars, and cuffs should be ironed inside out first.
• To press a collar, iron from the points in using small strokes of the iron. After wrinkles are pressed out, crease the collar into place by hand—
not with the iron. Treat French cuffs similarly, gently creasing by hand after ironing.
IRONING VERSUS PRESSING:
• You may have heard the terms “ironing” and “pressing” used interchangeably, but they are actually quite different. When ironing, you slide the
iron back and forth over fabric. When pressing, the iron is placed and held on the fabric in one spot, lifted up, and this process is repeated until
the areas that need attention are smooth. A “pressing” technique is helpful to avoid stretching fabrics.
• A pressing cloth can help reduce unwanted “shine” on fabrics. You can purchase a pressing cloth in the laundry care section, or a clean white
dishtowel or 100% cotton pillowcase works equally well. You do not need to increase the recommended iron temperature when using a
pressing cloth.
FABRIC FACTS AND LABELS:
Every fabric is different and should be treated accordingly. The label inside clothing or linens should recommend fabric care instructions that
include ironing treatment. As a general rule, these instructions should be followed. If the fabric is a blend, use a low temperature setting. If you
do not know what the content of the fabric is, use the lowest temperature first and test on an inside seam.
840221700 ENv02.indd 9840221700 ENv02.indd 9 11/12/12 11:55 AM11/12/12 11:55 AM

10

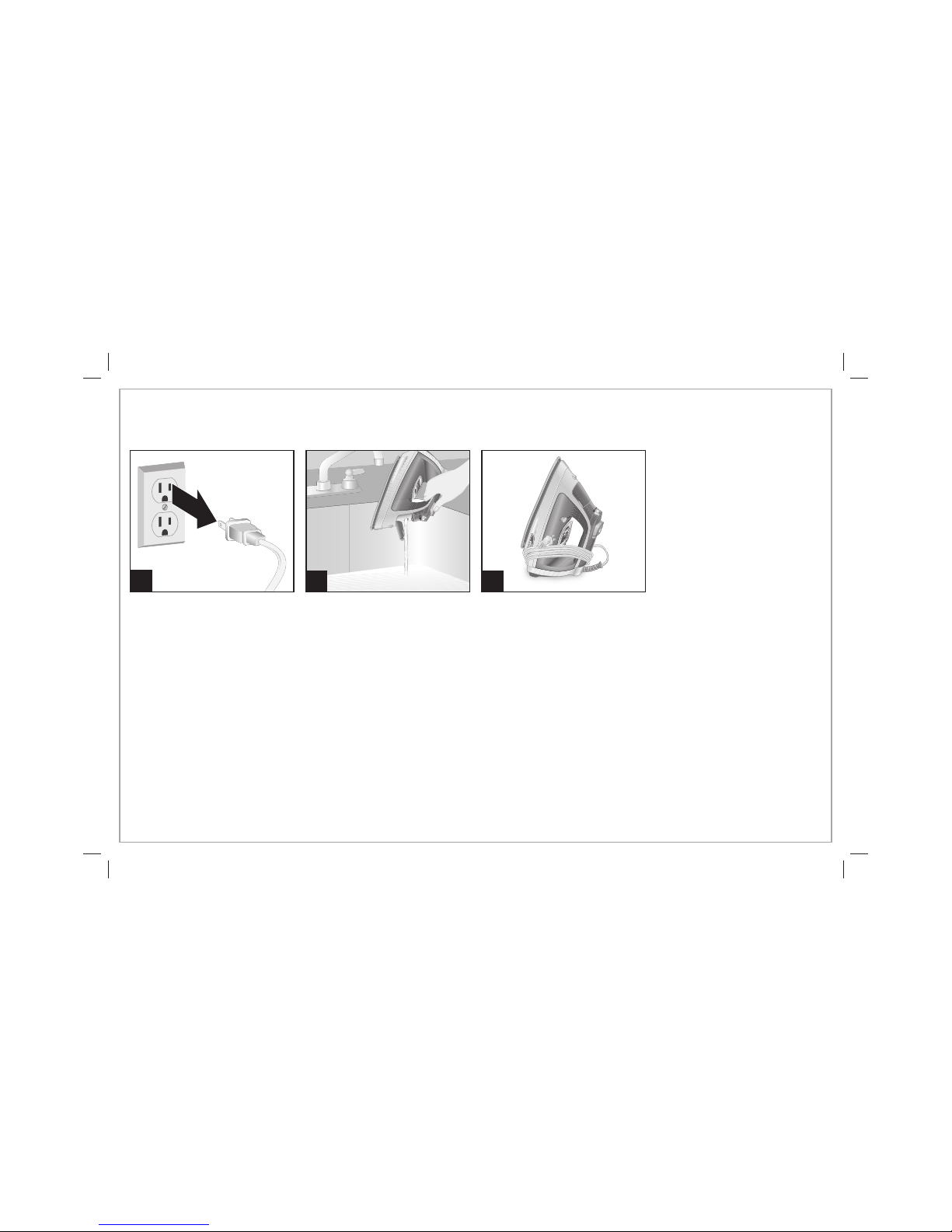

Care and Cleaning
1
Allow iron to cool.
2
To clean an iron’s soleplate, preheat the iron to the highest
temperature setting and iron over a damp, 100% cotton cloth.
This creates heavy steam that transfers grime from the soleplate
to the cloth. Many irons have a Self-Clean Button. This will clean
the steam holes, but it will not remove grime from the flat surface
of the soleplate.
NOTE: Care should be used while cleaning; steam can burn.
NOTICE: To avoid damage to the iron soleplate:
• Never iron over zippers, buttons, pins, metal rivets, or
snaps, since they may scratch the soleplate surface.
• Allow the iron to cool and wipe with a soapy, soft damp
cloth to clean occasional buildup on the soleplate. Never
use abrasive cleaners or metal scouring pads, since they
may scratch the surface.
Do not store iron laying flat on
soleplate.
3
To empty water from iron, open
the water tank cover and slowly
tilt pointed end of iron over sink
until water runs out.
Soleplate Care
3
840221700 ENv02.indd 10840221700 ENv02.indd 10 11/12/12 11:55 AM11/12/12 11:55 AM
