Hammerhead HCSD040 User manual

CHARGE THE INTEGRATED LITHIUM-ION
BATTERY BEFORE FIRST USE.
4V LITHIUM
RECHARGEABLE
SCREWDRIVER
MODEL HCSD040
MADE IN CHINA 2015

2 4V LITHIUM RECHARGEABLE SCREWDRIVER
PRODUCT SPECIFICATIONS
Battery voltage 4V DC Lithium
No-load speed 230 /min
Collet size 6.35mm Hex
Battery capacity 1300mAh
Level of acoustic pressure LpA (KpA=3 dB(A)) 51.23 dB(A)
Level of acoustic power LwA (KwA=2.5 dB(A)) 62.23 dB(A)
Level of vibration ah(K=1.5 m/s2)0.370 m/s2
Wire stripping capacity 0.6~2.5 mm
Wire bending capacity 3 mm
Limits of ambient condition 0°C to 40°C
Charging Adaptor
Model S005ANS0500100
Rated Input 100-240V~50/60Hz 200mA
Rated Output 5,0V 1000mA
Charging Time 2 hours

4V LITHIUM RECHARGEABLE SCREWDRIVER 3
GENERAL POWER TOOL SAFETY WARNINGS
!
WARNING Read all safety warnings and instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence
of ammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs
and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of electric
shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the inuence
of drugs, alcohol or medication. A moment of inattention while operating power tools

4 4V LITHIUM RECHARGEABLE SCREWDRIVER
may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and /or battery pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or energizing power tools that have
the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these devices can
reduce dust related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be

4V LITHIUM RECHARGEABLE SCREWDRIVER 5
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specied by the manufacturer. A charging
adaptor that is suitable for one type of battery pack may create a risk of re when used
with another battery pack.
b) Use power tools only with specically designated battery packs. Use of any
other battery packs may create a risk of injury and re.
c) When battery pack is not in use, keep it away from other metal objects like
paper clips, coins, keys, nails, screws, or other small metal objects that can make
a connection from one terminal to another. Shorting the battery terminals together
may cause burns or a re.
d) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, ush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the battery may cause irritation or
burns.
6) Service
Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
SPECIAL SAFETY WARNINGS
Hold power tool by insulated gripping surfaces, when performing an operation where
the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make
exposed metal parts of the power tool "live" and could give the operator an electric shock.

6 4V LITHIUM RECHARGEABLE SCREWDRIVER
EXTRA SAFETY REGULATIONS CONCERNING BATTERY
• WARNING! This product is equipped with a built-in battery! Do not attempt to open the
enclosure to access the battery!
• Do not attempt to charge the product with any other charging adaptor than the one
supplied. The charging adaptor and battery supplied with it are specically designed to
work together.
• Charge and store the product in an ambient temperature of 18 - 24°C to ensure
the longest battery life and best performance. Do not charge or store the product in
temperatures below 0°C and above 40°C.
• Small leakage of liquid from the battery may occur under extreme usage or temperature
conditions. However, if the outer seal is broken and this leakage comes into contact with
your skin wash the affected area quickly with water. If the leakage gets in your eyes ush
your eyes with clean water for a minimum of 10 minutes and seek immediate medical
attention.
• Never attempt to open the product housing for any reason. If the plastic housing of the
product enclosure breaks open or cracks, immediately discontinue its use and do not
recharge it.
• Do not pierce the product housing with nails, strike the product housing with a hammer,
step on the product housing or otherwise subject it to strong impacts or shocks.
• Protect the product against heat. Do not place the product in direct sunlight or use or
store the product inside cars in hot weather. Doing so may cause the battery to generate
heat, explode or ignite.
• Never try to charge a product that its housing is cracked or damaged in any other way.
There is a danger of electric shock or electrocution.
• Only charge the product with the charging adaptor supplied.
EXTRA SAFETY REGULATIONS CONCERNING BATTERY CHARGING
ADAPTOR
• This charging adaptor can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the charging adaptor in
a safe way and understand the hazards involved. Children shall not play with the charging
adaptor. Cleaning and user maintenance shall not be made by children without supervision.
• Before using the charging adaptor, read all the instructions and cautionary markings on
the charging adaptor and product.
• Do not attempt to charge the product other than supplied. The charging adaptor and
product supplied with it are specically designed to work together.

4V LITHIUM RECHARGEABLE SCREWDRIVER 7
• Charge the product indoors only as the charging adaptor is designed for indoor use only.
• Do not charge non-rechargeable batteries.
• Protect the charging adaptor against moisture and wet conditions. There is a danger of
electric shock.
• Do not place any object on top of the charging adaptor as it could cause overheating. Do
not place the charging adaptor near any heat source.
• Do not use an extension cord unless it is absolutely necessary. The use of an improper
extension cord could cause the risk of re, electric shock or electrocution.
• Do not use the charging adaptor if it has been subjected to a heavy knock, dropped or
otherwise damaged in any way. Have the charging adaptor checked and repaired by an
authorised service centre.
• Do not disassemble the charging adaptor. Incorrect re-assembly may result in the risk of
re, electric shock or electrocution.
• Disconnect the charging adaptor from the power supply before attempting to clean it to
reduce the risk of an electric shock.
NOISE/VIBRATION INFORMATION
Wear hearing protection!
The following information:
- That the declared vibration total value has been measured in accordance with a standard
test method and may be used for comparing one tool with another;
- That the declared vibration total value may also be used in a preliminary assessment of
exposure.
A warning:
- That the vibration emission during actual use of the power tool can differ from the
declared total value depending on the ways in which the tool is used; and
- Of the need to identify safety measures to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all parts of the
operating cycle such as the times when the tool is switched off and when it is running idle
in addition to the trigger time).

8 4V LITHIUM RECHARGEABLE SCREWDRIVER

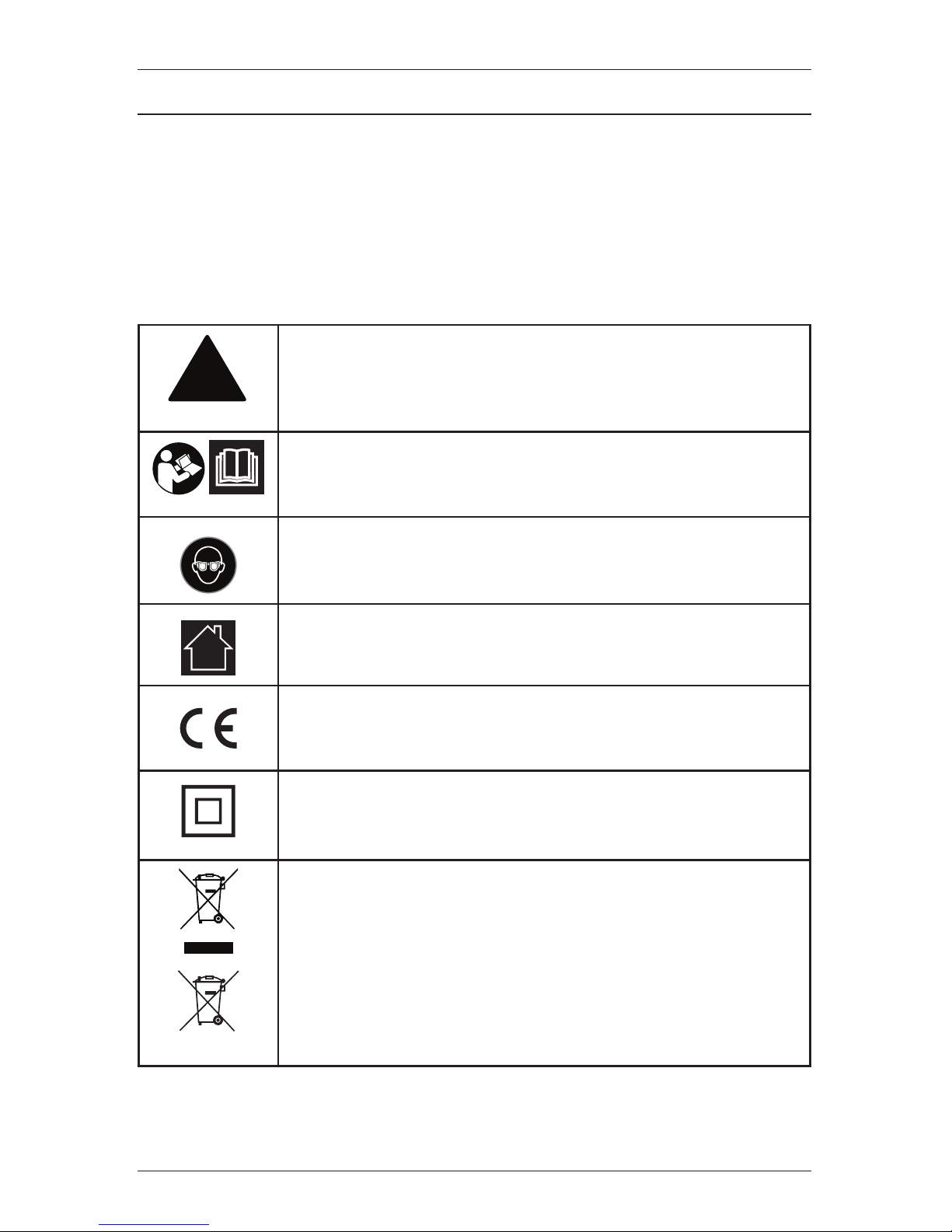

DESCRIPTION OF THE SYMBOLS
The use of symbols in this manual is intended to draw your attention to possible risks. The
safety symbols and the explanations that accompany them must be perfectly understood.
The warnings in themselves do not remove the risks and cannot replace correct actions for
preventing accidents.
Some of the following symbols may be used on this tool. Please study them and their
meaning. Proper interpretation of these symbols will allow you to operate the tool better
and more safely.
!
WARNING
This symbol, marking a point of safety, indicates a caution, warning or
danger. Ignoring this warning can result in an accident to yourself or
others. To limit the risks of injury, re or electrocution, always follow
the recommendations indicated.
WARNING – To reduce the risk of injury, user must read instruction
manual.
Always wear safety goggles or safety glasses with side shields and a
full face shield when operating this product.
Indoor use only
Conform to relevant European regulations.
Class II symbol: this machine is designed with double insulation. It is
not necessary to connect it to an earthed power socket.
Li
The crossed-out wheeled bin symbol indicates that the item should
be disposed of separately from household waste. The item should
be handed in for recycling in accordance with local environmental
regulations for waste disposal.
By separating a marked item from household waste, you will help
reduce the volume of waste sent to incinerators or land-ll and
minimize any potential negative impact on human health and the
environment.

4V LITHIUM RECHARGEABLE SCREWDRIVER 9
Live-wire detection button
Non-contact Live-Wire Detector
Wire-Stripping Lever
Forward/Reverse Arrow Indicators
S
Short-circuit-proof safety isolating transformer
S
SMPS (Switch mode power supply unit)
IMPORTANT: This tool should only be serviced only by a qualied service technician.
PREPARATION
Before attempting to use the tool, familiarize yourself with all of its operating features and
safety requirements.

10 4V LITHIUM RECHARGEABLE SCREWDRIVER
PACKAGE CONTENTS
PH0 PH1 PH2 PZ1 PZ2 T10 T15 SL3-4 SL6-8
G
B
F
D
E
I
C
K
L
H
A
J
M
N
0
P

4V LITHIUM RECHARGEABLE SCREWDRIVER 11
PARTS DESCRIPTION
A6.35mm Hex Collet
BForward/Reverse Selector
CAC Live-Wire Detection Button
DAC Non-contact Live-Wire Detector
EDetection Indicator
FLED Worklight
GWire Bending Hole
HWire Stripper
ICharging Indicator light
JPower Supply
KUSB Charging Cable
LBits
MMagnetic Insert Bit Holder
NPlastic Bit holder
OCharging Port
PHandle

12 4V LITHIUM RECHARGEABLE SCREWDRIVER
OPERATING INSTRUCTIONS
!
WARNING DANGER: NEVER INSERT ANY PART OF THE TOOL, INCLUDING BIT, INTO AN
ELECTRICAL OUTLET FOR ANY REASON. NEVER TOUCH ANY PORTION OF THE TOOL TO
ANY POTENTIALLY LIVE CIRCUIT. Failure to obey this warning could cause electric shock
and other serious personal injury.

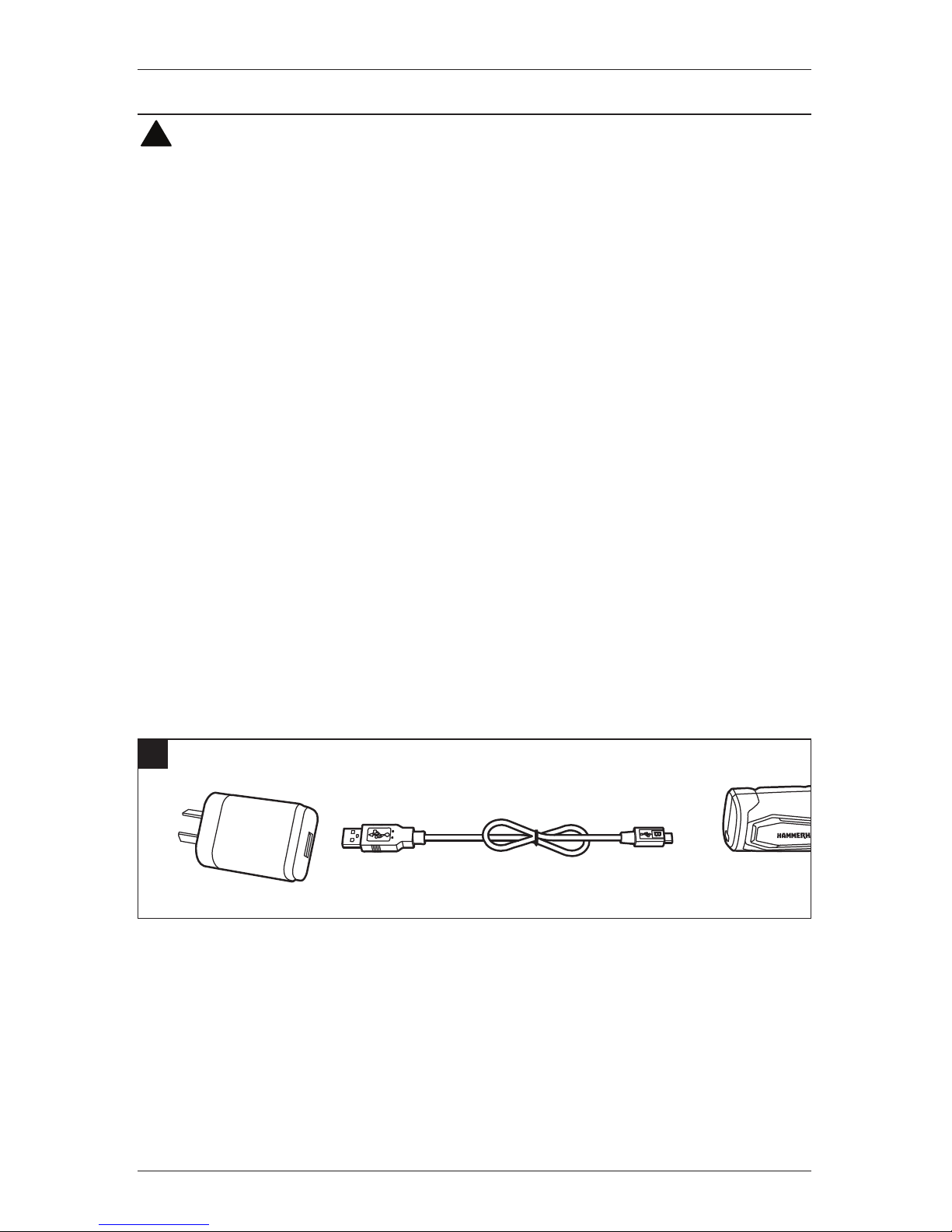

1. How To Charge
NOTICE: The screwdriver is shipped partially charged; fully charge the battery before
first use.
Optimum performance can be reached by recharging the tool for approximately 2 hours
after use. It is not recommended to recharge the tool for more than 24 hours after each
use. The power supply can be used with normal household voltage of 230 volt AC.
a. Insert the USB interface of the USB charging cable into the power supply.
b. Insert the charging plug into the charging port, making sure that they are properly
connected.
c. Connect the power supply (together with USB charging cable) to the power outlet.
The charging indicator light will shine orange to indicate that the tool is charging.
NOTICE: The tool will not run when you rotate the forward/reverse selector during
charging.
d. When charging is complete, the charging indicator light will shine green. Remove
the USB charging cable from the tool.
NOTICE: Do not operate the power supply in an area of extreme heat or cold. It works
best at normal room temperature. The bottom of the tool or power supply may become
warm during charging.
1

4V LITHIUM RECHARGEABLE SCREWDRIVER 13
2. Forward/Reverse Selector
The forward/reverse selector
determines the rotating direction of
the tool and also serves as a tool on/
off switch. With the tool held in the
normal operating position, as shown
in Figure 2.
a. To tighten a screw, rotate
the forward/reverse selector
clockwise.
b. To loosen a screw, rotate
the forward/reverse selector
counterclockwise.
c. To turn off the tool, release the
forward/reverse selector.
3. LED Worklights
Two LED worklights, located on the head of the tool, illuminate when the forward/reverse
selector is rotated. This provides additional light on the surface of the work piece for
operation in lower-light areas. The LED worklights will automatically turn off 20 seconds
after the forward/reverse selector is released.
4. Installing and Removing Bit
a. To install a screwdriver bit, push
it into the collet until it is rmly
in place.
b. To remove a screwdriver bit, pull
it straight from the collet.
!
WARNING CAUTION: To avoid possibly
serious injury, take care not to activate
the forward/reverse selector when
installing or removing bits.
2
FORWARD/
REVERSE
SELECTOR
REVERSE
FORWARD
4
6.35MM HEX
COLLET

14 4V LITHIUM RECHARGEABLE SCREWDRIVER

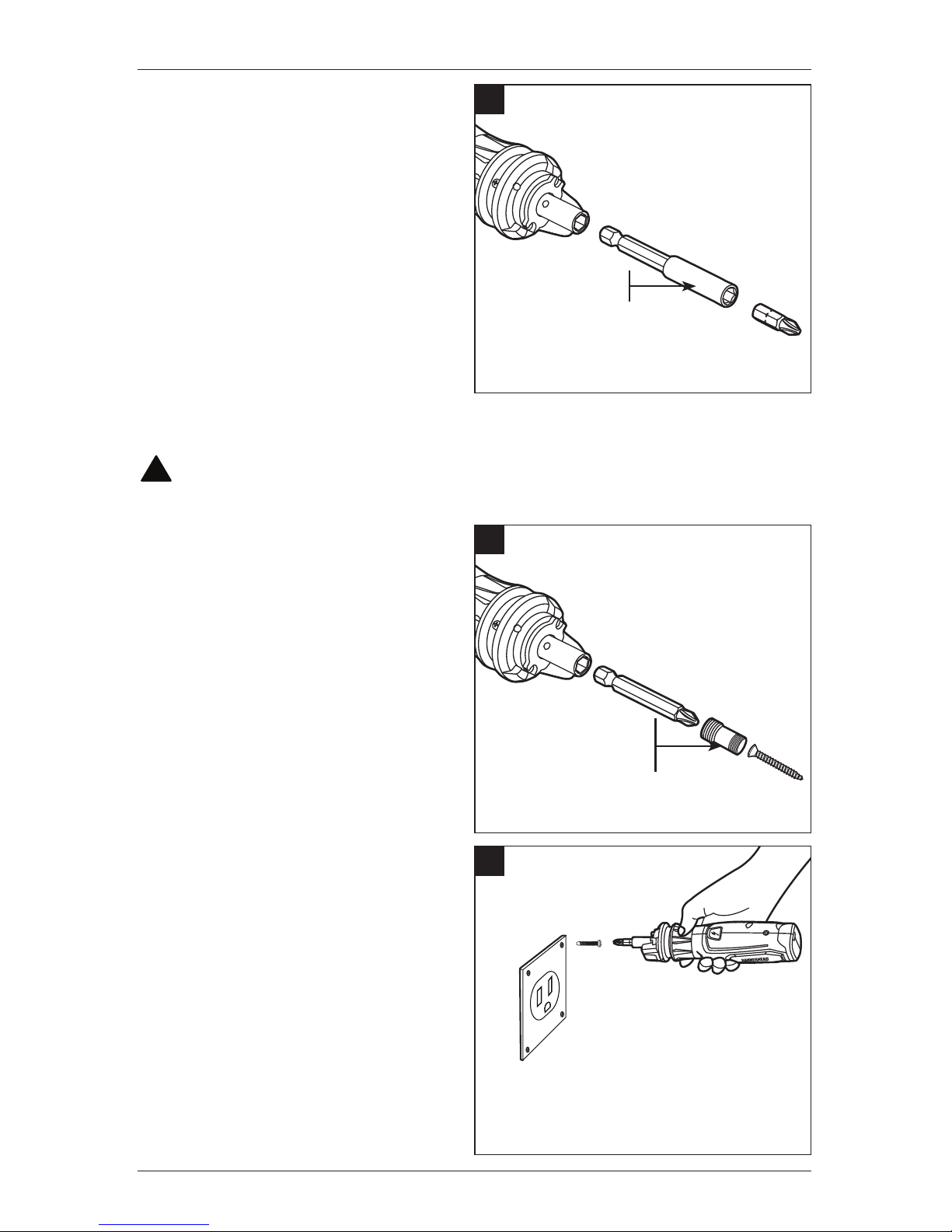

5. Magnetic Insert Bit Holder
The magnetic insert bit holder
functions to extend the bit in tight
places. It is compatible with 6.35mm
shanks.
a. To install the magnetic insert bit
holder, push it into the collet until
it is rmly in place.
b. Insert a 6.35mm bit into the bit
holder. The magnetic bit holder
holds the head of the bit against
the shaft.
c. To remove the magnetic bit holder,
pull it straight from the collet.
!
WARNING CAUTION: To avoid possibly serious injury, take care not to activate the forward/
reverse selector when installing or removing bits.
6. To Use The Universal Magnetic
Collar
Insert a 88,9mm impact bit into the
wider(non-magnetic) end of the collar
and push it firmly until the tip of the
bit is exposed
7. Screw Driving
a. Install a suitable bit.
NOTICE: Always use the correct
type and size of screwdriver bit for
your fastener.
b. Grasp only the handle of the
tool only and align the bit
perpendicular to the screw.
c. Apply just enough pressure to
keep the bit engaged on the
screw.
d. To tighten a screw, rotate
the forward/reverse selector
clockwise.
e. To loosen a screw, rotate the
5
MAGNETIC INSERT
BIT HOLDER
6
UNIVERSAL
MAGNETIC
COLLAR
7

4V LITHIUM RECHARGEABLE SCREWDRIVER 15
forward/reverse selector counterclockwise.

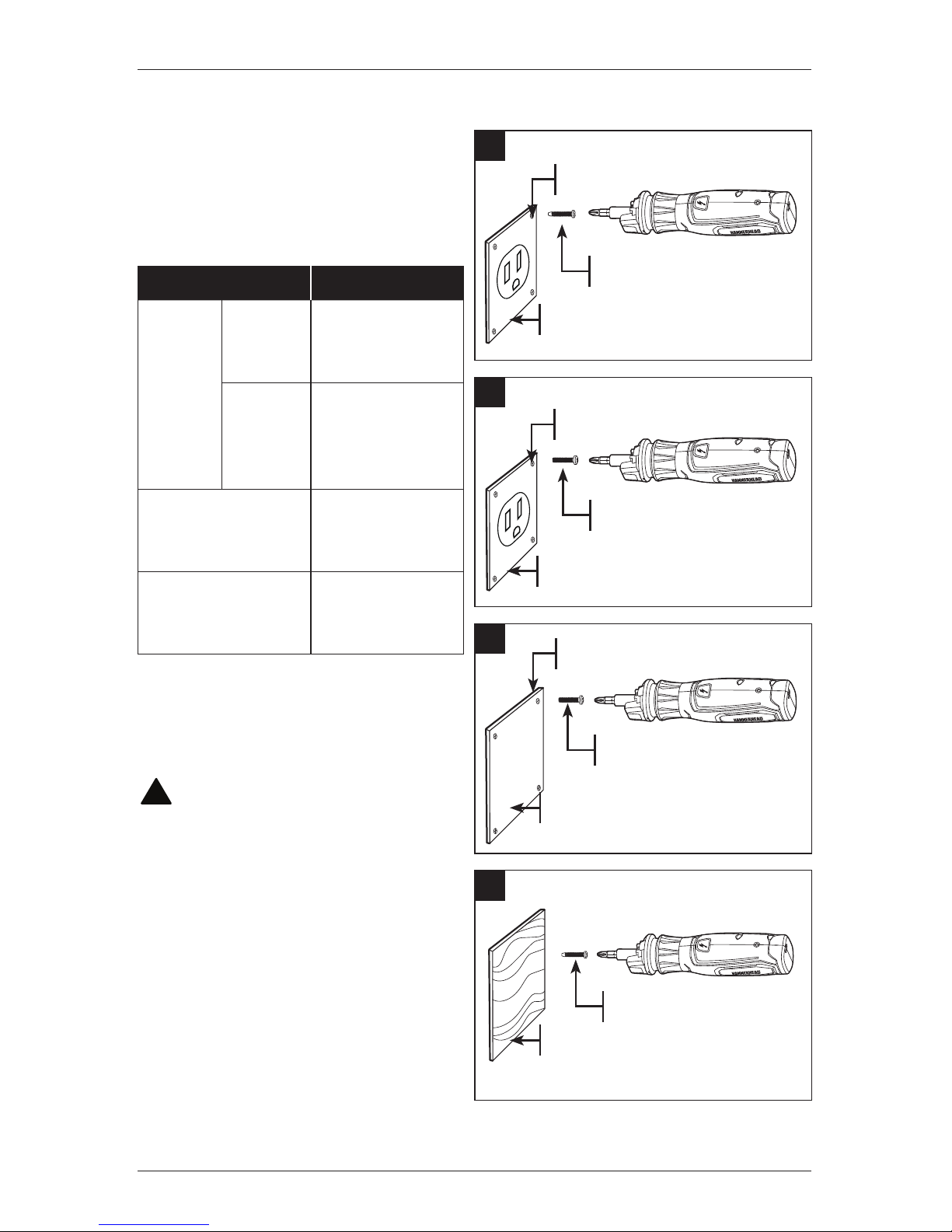

8. Recommended Screws for Various
Applications
The tool is versatile for use with a
variety of screws.
Driving Materials Screws
Electrical
Outlet
With pre-
mounting
holes
Self-Tapping
Screws (≤ST3.5)
(see Fig. 7a)
With
threaded
mounting
holes
Machine
Screws (≤M5.5)
(see Fig. 7b)
Steel Plate (With
threaded mounting
holes)
Machine
Screws (≤M5.5)
(see Fig. 7c)
Soft-Wood
Self-Tapping
Screws (≤ST3.5
or6#) (see Fig. 7d)
For screws other than those listed
above, the screwdriver may be
used manually as a non-powered
screwdriver.
!
WARNING DANGER: Never insert any part of the
tool, including the bit, into an electric outlet
for any reason. Failure to obey this warning
could cause electric shock and other
serious personal injury.
Refer to “8. Detecting AC Live Wires in
Cords, Switches and Outlets”.
8a
ELECTRICAL
OUTLET
PRE-MOUNTING
HOLE
SELF-TAPPING
SCREW
8b
ELECTRICAL
OUTLET
THREADED
MOUNTING HOLE
MACHINE SCREW
8c
STEEL PLATE
THREADED
MOUNTING HOLE
MACHINE SCREW
8d
SOFT-WOOD
SELF-TAPPING
SCREW

16 4V LITHIUM RECHARGEABLE SCREWDRIVER
9. Detecting AC Live Wires in Cords,
Switches and Outlets
You can use the non-contact live-
wire detector function of the tool to
determine if a cord, power outlet or
switch is live.
!
WARNING NEVER INSERT ANY PART OF
THE TOOL, INCLUDING BIT, INTO AN
ELECTRICAL OUTLET FOR ANY REASON.
NEVER TOUCH ANY PORTION OF THE
TOOL TO ANY POTENTIALLY LIVE
CIRCUIT.
The Non-contact Live-Wire Detector
senses a complete circuit when it is within 2.5cm of the AC source.
!
WARNING Test the unit on a known AC current before use.
!
WARNING The non-contact live-wire detector is designed to help locate live wires in switches,
outlets and cords operating at household voltage (100-240V AC). Recommended optimal
operating distance is 1 inch. Never use it for detecting other types of currents. Failure to
obey this warning could cause serious personal injury and damage the tool.
a. Press the live-wire detection button. The red detection indicator will blink once
and the buzzer will beep once to indicate that the live-wire detection function is
activated.
b. Aim the side of the non-contact live-wire detector towards a possible live source. Do
not touch the tool to the outlet, switch or cord.
c. Keep the live-wire detection button depressed. Move the tool adjacent to the
anticipated AC source (cord, switch or outlet). When an AC source is located, the red
LED indicator will illuminate and the buzzer will sound.
d. After detecting the AC source, turn off the power at the breaker panel, and use the
non-contact live-wire detector to conrm that there is no power at the outlet, cord or
xture before initiating any repairs.
NOTICE: Static charge may interfere with detection on both sides of the wire, resulting
in limited accuracy.
9
WIRE
DETECTION
BUTTON
NON-CONTACT
LIVE-WIRE
DETECTOR

4V LITHIUM RECHARGEABLE SCREWDRIVER 17
10. Wire Stripping
The tool is fitted with a wire stripper
for stripping 0.5~2.5mm2wire sizes.
a. Select the opening in the stripping
lever that matches the wire size.
b. Insert the wire and depress the
wire stripper lever to clamp the
wire stripper around the wire.
c. While holding the wire rmly,
slowly swing the tool around the
wire to cut the insulation
d. Pull the tool back to strip the wire
insulation.
11. Wire Bending
The wire bending hole is located on
the bit holder.
To bend a wire, insert it into the wire
bending hole, hold the wire with one
hand and move the tool to bend the
wire as needed.
10
WIRE STRIPPER
LEVER
OPENING
11
WIRE

18 4V LITHIUM RECHARGEABLE SCREWDRIVER
MAINTENANCE
CLEANING
Avoid using solvents when cleaning plastic parts. Most plastic parts are susceptible to
damage from various types of commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, carbon dust, etc.
STORING
Store the machine, operating instructions and where necessary the accessories in the origi-
nal packaging. In this way you will always have all the information and parts ready to hand.
Pack the device well or use the original packaging in order to avoid transit damage. Always
keep the machine in dry place.
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
The tool does not work Integrated Lithium-Ion
battery is depleted
Charge the integrated
Lithium-Ion battery
The tool stops rotation
during operation
Integrated Lithium-Ion
battery is depleted
Charge the integrated
Lithium-Ion battery
Bit cannot be installed Bit does not t the 6.35mm
hex bit holder
Use suitable adaptor
Chervon Australia Pty Ltd
Unit 13, 1488 Ferntree Gully Rd
Knoxeld, VIC 3180

4V LITHIUM RECHARGEABLE SCREWDRIVER 19

20 4V LITHIUM RECHARGEABLE SCREWDRIVER
