HAMPTON BAY H15 User manual

cast iron
replaces

Almost 30 years ago, I founded this com-
pany with a mission to produce the nest
replace products available anywhere.
The Hampton line is the result of millions
of dollars in product development, years
of research and listening to what consum-
ers are looking for in a replace: timeless
styling, exceptional quality and a way to
cut home heating costs.
Hampton Quality
The rich, porcelain, enamel nish of each
Hampton cast iron product is a work of
art. Select the tasteful glass grill, one of
four fashionable colors, side shelves, dou-
ble screen doors and create your own
Hampton.
Exceptional Fire
Without question, the Hampton re is
the best in the industry. Gas res feature
dancing ames and glowing embers,
wood res reveal the age old joy of the
snap of wood as it catches re and the
curl of yellow ames from glowing em-
bers.
Cut Fuel Bills in Half
Turn your furnace down and enjoy
comforting Hampton heat in the living
areas you spend time in. Have peace of
mind, even during power outages. All
Hampton products continue to operate
without electricity.
One Hampton = One Tree
At Hampton Fireplaces, we are commit-
ted to protecting our environment. For
every Hampton sold, we will plant a tree.
Working with American Forests, the trees
planted across North America will o-
set carbon emissions and take one more
step to restore nature's balance.
Lifetime Warranty
I am so condent in the quality work-
manship, the nest materials and durable
heavy-duty construction investedineach
and every product, that I oer a Limited
Lifetime Warranty. I know that you will
be as proud of your Hampton as I am – I
guarantee it.
Robert Little
Founder & CEO
why choose Hampton?
2

index
Hampton Wood Inserts 4
HI300 & HI200
Hampton Wood Stoves 6
H300 & H200
Hampton Gas Stoves 8
H35, H25, H15
Hampton Gas Fireplaces 10
P36, P36D
Hampton Gas Inserts 11
U31,U32
Technicalspecs 12
3

4
Hampton HI300 Wood Insert in enamel timberline brown finish.
Hampton® HI200 & HI300
Wood Inserts
High Efficiency Heat
The Hampton cast wood inserts install easily into your existing re-
place adding the timeless beauty of cast iron while eliminating drafts
from an open replace. These replace inserts can deliver up to
75,000 BTU of high eciency heat, circulating comforting warmth to
the living areas you spend time in. Decrease your heating bills and in-
crease the value of your home with one of two inserts sized to t your
replace and your lifestyle.

5
Specifications HI300 HI200
Medium Small
Maximum BTU 75,000 55,000
Optimum efficiency 77% 73.8%
Emissions (grams/h) 3.8 3.0
Firebox size 2.3 cu. ft. 1.4 cu. ft
Maximum log size 18" 16"
Min. Fireplace Opening HI300 HI200
Width (front) 25" 23"
Height 21-1/2" 19"
Depth 17-1/2" 13-3/4"
Depth (with offset flue) -- 16-1/2"
Hampton HI200 Wood Insert in metallic black finish.
HI200 in enamel timberline brown finish.HI300 in metallic black finish.HI300 shown with oversize faceplate, in metallic black finish.
Standard Features Optional Features
EPA Certied•
Non-catalytic technology•
Single rod draft control•
Airwash system•
Brick-lined rebox•
Ceramic safety glass•
Burn time: up to 8 hrs.•
6" ue•
Metallic black or timberline brown nish•
2-speed blower•
Surrounds in two sizes (HI300)•
Standard or 4-1/2”oset ue adaptor•
(HI200)
Stainless steel liner kit•

6
Comfort and Convenience
Convenient and ecient, these wood stoves will keep your home
comfortable all year – even during power outages. Add a two speed
blower to circulate even more heat to every part of your room. All
Hampton wood products are certied by the Environmental
Protection Agency (EPA) and meet strict clean air standards. Available
in two sizes including a hearth mount version, Hampton wood stoves
work hard and look great!
Hampton® H200 & H300
Wood Stoves
Hampton H300 large wood stove shown with optional side shelves in a enamel timberline brown finish.

7
Hampton H200 medium wood stove in charcoal gray finish.
Specifications H300 H200
Medium Small
Maximum BTU 45,500 38,800
Optimum efficiency 74% 74%
Emissions (grams/h) 4.1 3.9
Firebox size 1.71 cu. ft. 1.34 cu. ft
Maximum log size 18" 16"
Burn time (typical) up to 8 hrs. up to 6 hrs.
* Length of burn time and BTU range depend on type of wood, climate conditions
and installation.
H300 shown in enamel slate blue finish. H300 shown in enamel ivory finish. H200 shown with short cast legs, timberline brown finish.
Standard Features Optional Features
EPA Certied•
Non-catalytic technology•
Airwash system•
Single rod draft control•
Front and side door loading (H300)•
Cast iron cooktop surface (H300)•
Brick-lined rebox•
Ceramic safety glass•
Top or rear vent•
6" ue•
Metallic black, enamel timberline brown,•
enamel ivory (H300), enamel slate blue
(H300) nish
Matching side shelves•
Short cast legs•
Two speed blower•
Outside air adaptor•
Ash drawer (use with standard legs only)•

8
Outstanding Fire
Hampton’s beautiful styling is matched by its unsurpassed re and
log package. Convenient gas ames have been carefully engineered
to twist and icker in yellows and reds around the most realistic logs
available anywhere today. In addition – this re is designed to deliv-
er controllable high eciency heat with the added option of a wall
thermostat or FireGenie Remote Control. Available in 3 sizes, these
gas stoves will heat anywhere while saving money on your heating
bill.

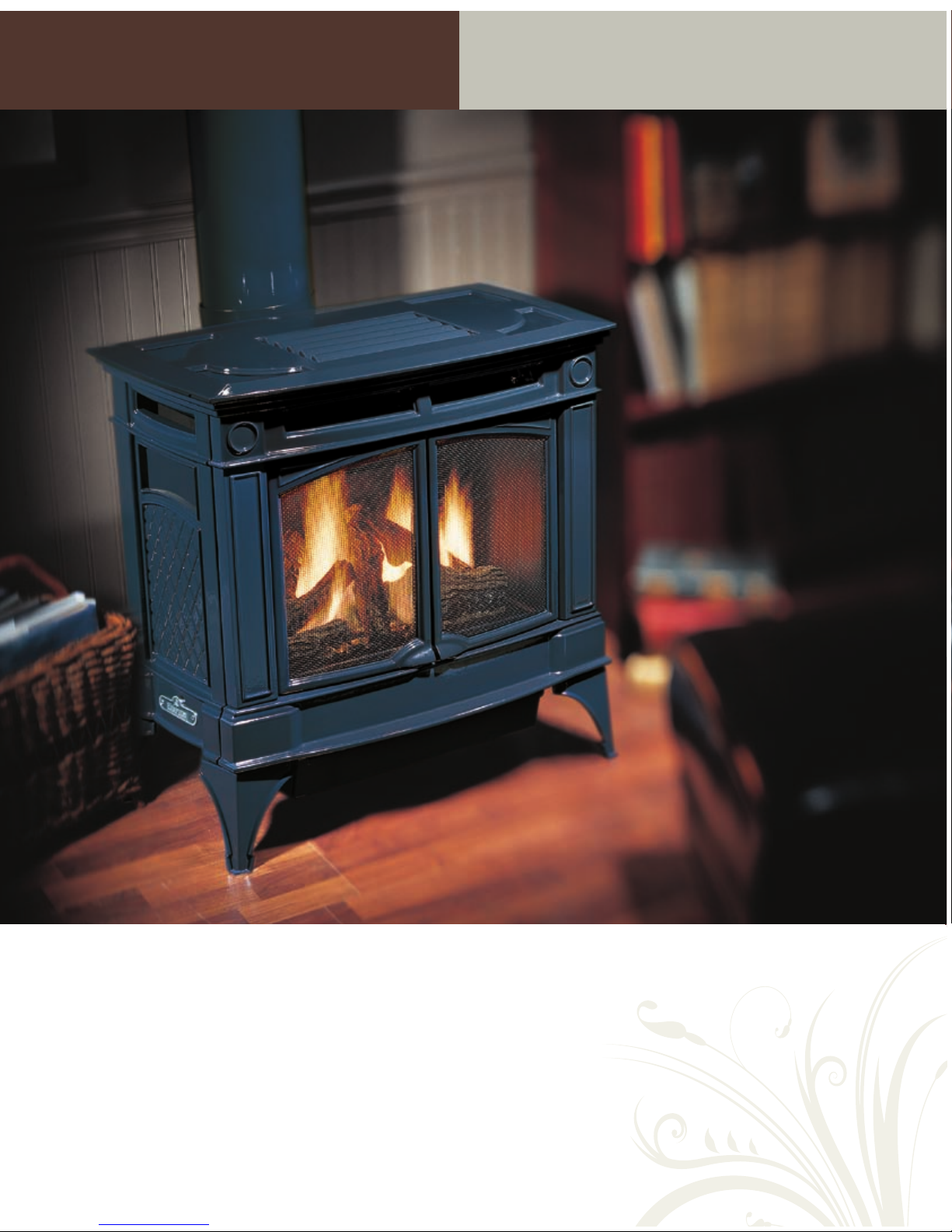

Hampton H35 large gas stove in enamel slate blue finish.
Hampton® H15, H25, H35
Gas Stoves

9
Hampton H25 medium gas stove in enamel timberline brown finish with decorative glass grill.
H15 in enamel slate blue finishH25 in charcoal gray finish with decorative glass grillH35 in enamel ivory finish with decorative glass grill
Specifications H35 H25 H15
Natural Gas Large Medium Small
Maximum BTU 36,000 25,000 18,000
Turn down to (BTU) 18,000 12,500 10,500
EnerGuide rating (Canada only) 68.34% 61.15% 62.31%
Efficiency 83% 83% 80%
Propane
Maximum BTU 34,000 23,000 18,000
Turn down to (BTU) 17,500 11,500 10,600
EnerGuide rating (Canada only) 69.72% 61.63% 62.31%
Efficiency 85% 85% 82%
Standard Features Optional Features
Flame height adjustment with up to 50%•
turndown
Heavy-duty ceramic safety glass•
Top mounted easy access controls•
Reversible ue for top or rear venting•
Charcoal gray, enamel slate blue, ivory or•
timberline brown nish
Decorative glass grill (included with H15)•
Double screen doors (H35 only)•
Standard brick panels (H35 only)•
Variable speed blower•
FireGenie® remote control•
Wall thermostat•
AstroCap™ vent system•
Color match vent paint•
LP conversion kit•
BTU reduction kit (H35 only)•

Hampton P36 gas fireplace in enamel timberline brown finish.
10
Hampton® P36 & P36D
Medium Gas Fireplaces
A Direct Vent Fireplace … anywhere.
Direct vent technology allows you to install your unique Hampton
replace almost anywhere in your home without a costly chimney
system. The replace simply vents directly to the outside of your
home, either through a wall or up through your roof.
Standard Features Optional Features
Flame height adjustment with up to 50%•
turndown
Heavy-duty ceramic safety glass•
Easy access faceplate mounted controls•
Grills and surrounds in metallic black or•
enamel timberline brown
Enamel door frame (timberline brown)•
Double screen doors (metallic black only)•
Brick panels in standard or herringbone•
design
FireGenie® remote control•
Wall thermostat•
AstroCap™ vent system•
LP conversion kit•
Specifications P36 P36 Deep
NG LP NG LP
Maximum BTU 30,000 30,000 30,000 30,000
Turn down to (BTU) 15,500 15,500 15,500 15,500
EnerGuide rating (Canada only) 62.7% 62.7% 64.62% 64.62%
Efficiency 82% 82% 82% 82%

Hampton U32 gas fireplace insert in enamel metallic brown finish.
11
Specifications U31 U32
NG LP NG LP
Maximum BTU 30,000 27,500 30,000 30,000
Turn down to (BTU) 14,500 13,700 15,300 15,000
EnerGuide rating (Canada only) 52.9% 48.07% 57.17% 57.17%
Efficiency 76% 77% 76% 77%
Standard Features Optional Features
Flame height adjustment with up to 50%•
turndown
Heavy-duty ceramic safety glass•
Blower•
Easy access faceplate mounted controls•
Grills and surrounds in metallic black or•
enamel timberline brown
Enamel door frame (timberline brown)•
Double screen doors (metallic black only)•
Brick panels in standard or herringbone•
design
FireGenie® remote control•
Wall thermostat•
Flexible chimney liner (U31/U32)•
LP conversion kit•
Upgrade your drafty fireplace
The Hampton Fireplace Insert slides easily into your existing masonry
replace to eliminate drafts and provide 30,000 BTU of heat instantly
to any room; even during power outages.
Hampton® U31 & U32
Gas Fireplace Inserts

Hampton® Wood Products
Non-catalytic Technology
Hampton stoves use non-catalytic technology. This means that the airow in the rebox is directed to
reburn smoke, creating greater eciency, a spectacular re and cleaner emissions.
Cooktop Surface
No power, no problem with this
convenient cooktop.
Cast Iron Construction
Heavy duty cast iron with rich,
porcelain, enamel nish.
Heat Output
Warm air that is directed into
your room by the blower.
Airwash System
Air that keeps the glass clean. To
clean carbon deposits o glass,
just allow to burn at maximum for
30 minutes.
Ceramic Glass
Withstands very high tempera-
tures and allows the heat to radiate
through the glass.
Removable Sealed Ash Pan
For easy clean up.
Primary Air
Controllable airow for optimum heat
output and re size.
Secondary Air
Air that is preheated to ignite
unburned gases in the re-
box.
Blower
Directs warm air back
into your room.
Firebox
Designed to burn wood
completely, delivering clean
burning, high eciency
heat.
Heat Reective Bae
Stainless steel withstands
very high temperatures
and increases eciency.
Exhaust
Rope Gasket
The Hampton Wood Stove uses up to 70 feet of rope
gasket on all components to ensure a long term guar-
antee of a tight rebox seal and optimum burn times,
superior to cement that cracks over time.
Renewable Resource
Wood is a renewable natural resource - well-managed
forests are a renewable, sustainable source of energy
that helps us reduce greenhouse gas emissions and be
less dependent on oil & gas.
Wood is Carbon Neutral
As trees grow they absorb carbon dioxide from the at-
mosphere. When trees die and are left to decompose in
the forest or burn in forest res the carbon stored in the
trees is released in the atmosphere as carbon dioxide.
Burning rewood produces the same amount of car-
bon dioxide as the tree has absorbed during its life cycle
- making wood burning carbon neutral.
All Hampton Wood Stoves and Fireplace Inserts have
been tested and certied to the strictest clean air stan-
dards as set by the Environmental Protection Agency.
One Hampton = One Tree
At Hampton Fireplaces, we are committed to protecting
our environment. For every Hampton sold, we will plant
a tree. Working with American Forests, the trees planted
across North America will oset carbon emissions and
take one more step to restore nature's balance.
burning wood - a green choice
Positive Seal Door Latch
Provides easier opening and clos-
ing and complete seal.
12

BE
*
D
A
CF
C
F
Note: In Canada floor protection must extend 18" to the front and 8" to the sides and back. With side load door floor
protection must extend 18" to the side. In US same as above except floor protection extends 6" to sides and back.
*Minimum clearance with side load door is 18" to side wall. Refer to dimension (B) for clearance without side load door.
A
C
B
E
F
D
I
G
H
J
Masonry & Factory Built Fireplace Clearances
The minimum required clearances to combustible materials when installed into a masonry fireplace are:
Adjacent Side Wall
(to side)
Mantel
(to top)
Top Facing
(to top)***
Side Facing (to
side)***
Min. Hearth
Extension*
Min. Hearth
Elevation*
Min Hearth Side
Extension**
A B C D E F G
HI200 15" 20" 14" 7-3/8" 18"CA/16"US 1-1/2" 8"/6" US
HI300 11" 20" 12" 8" 18"CA/16"US 0.5" 8"
* Note: If the hearth extension is flush with the floor (item F) it must extend 19.5 in. in front of the body face (item E).
** Note: Hearth extension width (G) is measured from edge of fuel door to side of hearth.
*** up to 1-1/2" thick
A
F
BC
D
G
E
E
F
H
G
A
B
E
F
H
G
A
B
C
D
Minimum Clearance To Combustibles A B C D E F
H300 Residential Installation "C" Vent 17" 15" 13" 30" 15" 19"
Residential Close Clearance 15" 10" 9" 28" 10" 15"
Mobile Home Close Clearance 15" 10" 9" 28" 10" 15"
H200 Residential Installation "C" Vent 17" 15" 13" 29" 17-1/8" 19-7/8"
Residential Close Clearance 15" 10" 9" 27" 12-1/8" 15-7/8"
Mobile Home Close Clearance 15" 10" 9" 27" 12-1/8" 15-7/8"
Dimensions H200 H300
A 23-7/8" 27"
B 27-5/8" 29-3/4"
B (short legs) 22-5/8" 24-3/8"
C 22-1/8" 25-1/2"
D25-1/8" 26"
E21" 24"
F16" 16-1/8"
G7" 7-1/8"
H28-3/4" 30-1/4"
H (short legs) 23-3/4" 24-3/4"
I15" 15"
J* 25-7/8" 27-1/4"
J* (short legs) 21" 22-1/8"
* to center line if rear vented.
Specifications H200 H300
EPA Certified Yes Yes
Optimum Efficiency 74% 74%
Emissions (grams/hr) 3.9 4.1
Maximum BTU* 38,800 45,500
Typical Sq. Ft. Heated 400-1,000 800-2,000
Maximum Log Size 16" 18"
Firebox Size 1.34 cu. ft. 1.71 cu. ft.
Flue size 6" 6"
Burn time (typical)* up to 6 hrs up to 8 hrs.
Shipping Weight 425 lb 500 lb
* Length of burn time and BTU range depend on type of wood, climate condi-
tions and installation.
Dimensions HI200 HI300 HI300 oversize
A 27-1/4" 30" 34-5/8"
B -- 21-1/2" 21-1/2"
C 39-13/16" 42-1/2" 51-3/4"
D38-5/16" 40" 48-1/8"
E6-3/8" 11-3/8" 11-1/4"
F15-1/16" 17-1/4" 17-1/4"
G9-5/8" 11-1/8" 11-1/8"
G (offset adaptor) 14-1/8" -- --
H21-1/4" 23-1/4" 23-1/4"
Specifications HI-200 HI-300
EPA Certified Yes Yes
Optimum Efficiency 73.8% 77%
Emissions (grams/hour) 3.0 3.8
Maximum BTU* 55,000 75,000
Typical Sq. Ft. Heated 600-1,000 1,000-2,000
Maximum Log Size 18" 18"
Firebox Size 1.4 cu.ft. 2.3 cu.ft.
Flue size 6" 6"
Burn time (typical)* up to 8 hrs. up to 8 hrs.
Shipping Weight 258 lb. 500 lb.
* Length of burn time and BTU range depend on type of wood, climate
conditions and installation.
Minimum Fireplace Opening HI200 HI300
Width (front) 23" 25"
Height 19-5/8" 21-1/2"
Depth (w/ standard flue adaptor)
(w/ offset flue adaptor)
13-3/4"
16-1/2"
17-1/2"
wood inserts
wood stoves
13

* The H15 can be vented horizontally with the AstroCap™ system. For rear vent applica-
tions, H25 requires a riser vent; H35 requires a riser vent and BTU reduction kit.
** H35 requires minimum 1ft. rise.
H15/H25/H35* H15/H25/H35** H15/H25/H35
D
D
A
A
B
A A
C
Left Side Wall Right Side Wall
Left Side Wall Right Side Wall
Clearances To Combustibles H15 H25 H35
A Side Wall To Unit 6" 6" 6-1/2"
B Back Wall To Unit 0" 3" 6"
C Vertical Vent to Back Wall 2" 2" 2"
D Side Wall To Unit (Corner) 2" 2" 2"
Minimum clearance of vent terminal to outside corner and inside corner: AstroCap™ 6", Dura-Vent Cap 12"
Dimensions H15 H25 H35
A 20-11/16" 22-5/8" 27"
B 22-1/2" 27" 28"
C 14-1/4" 14-1/4" 19-3/4"
D16-3/16" 16-7/16" 21"
Shipping Weight 182 lbs. 196 lbs. 308 lbs.
A
B
C
D
A
B
C
D
Hampton® Gas Products
Specifications H15 H25 H35
NG LP NG LP NG LP
Maximum BTU 18,000 18,000 25,000 23,000 36,000 34,000
Turn down to (BTU) 10,500 10,600 12,500 11,500 18,000 17,500
EnerGuide rating (Canada only) 62.31% 62.31% 61.15% 61.63% 68.34% 69.72%
Efficiency 80% 82% 83% 85% 83% 85%
Herringbone - Rustic Brown Standard - Rustic Brown Standard - Old Town Red
FireGenie® Remote Control
Turn your Hampton on and o from the comfort of your
sofa with the easy-to-use FireGenie.
Programmable Thermostat
Set a specic temperature with a Hampton wall thermo-
stat and maintain a constant comfort level in your home.
Brick Panels
Add one of three fully textured brick panels.
Note: Herringbone is not available for the H35.
gas stoves
accessories
NOTE: PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. BEFORE INSTALLING REFER TO THE RELEVANT PRODUCT MANUAL FOR FULL AND UP
TO DATE INFORMATION.
H15: Tested to the following standards:ANSIZ21.88-2003/CSA33-2002, CGA 2-17-M91
H25: Tested to the following standards: Gas-Fired Appliances For Use At High Altitudes CGA 2-17-M91, Vented Gas Fireplace Heaters ANS Z21.88a-2000/CSA 2.33a-2000.
Cer tied for Canada and the US.
H35: Tested to the following standards: CGA 2-17-M91, ANSIZ21.88b-1999/CSA 2.33b-M99. Certied for Canada and the US.
H15, H25 and H35 are approved for bedroom, alcove and mobile home installations.
All products tested to the following standards: GRAVITY DIRECT VENT WALL FURNACE TESTED AND APPROVED FOR U.S.A. AND CANADA TO: CAN/CGA-2.17-M91, ANSI
Z21.88b-1999/CSA 2.33b-M99.
14


NOTE: All product specications are subject to change without notice.
Before installing, refer to the relevant product manual for full and up
to date information.
Color and tone variations are a natural result of the enameling process.
Ac tual colors may not appear exactly as shown.
U31: Tested to the following standards: GAS FIRED VENTED ROOM HEATER
TESTED TO: ANSI Z21.88a-1998/CSA 2.33a-M98, CAN 1-2.1-M86, CAN/CGA
2.17-M91. Certied for Canada and the US.
U31 is bedroom and alcove approved.
U32: Tested to the following standards: GAS FIRED VENTED ROOM HEATER
TESTEDTO:ANSIZ21.88-1998/CSA2.33-M98,CAN /CGA 2.17-M91. Certied
for Canada and the US.
U32 is bedroom, alcove and mobile home approved.
All products tested to the following standards: GRAVITY DIRECT VENT
WALL FURNACE TESTED AND APPROVED FOR U.S.A. AND CANADA TO:
CAN/CGA-2.17-M91, ANSI Z21.88b-1999/CSA 2.33b-M99.
E
F
Drywall
To p nailing strip
Top standoffs
Side view
J
to floor
To p
louvers
N
O
P
12" Mantel
7-1/2" Mantel
3-1/2"
Mantel
Minimum height
to combustible
material
C
A
B
D
1/2"
Drywall
Header
10" Dia. hole
through wall for
Flex or DuraVent
F
H
I
G
17"
1-1/4"
32-1/2"
37"
43-1/4"
32-1/4"
29-1/2" 31-1/4"
Corner Framing - Top View Flush Framing - Front View
Minimum Termination Center Line Mantel Clearances - Side View
Framing P36 P36 Deep
A 36-1/4" 36-1/4"
B 36-1/4" 37-1/4"
C 12-3/4" 17"
D 46" 46-1/2"
E (corner) 60" 68"
F (corner) 42-7/16" 48"
Minimum Termination Center Line
P36 P36 Deep
F 12-3/4" 17-1/8"
G 32-1/2" 32-1/2"
H 36" 37"
I 40-1/2" 40-1/2"
Mantel Clearances
P36 P36 Deep
J 30-1/2" 30-1/2"
N 14" 14"
O 10" 10"
P 7" 7"
Specifications P36 P36 Deep
Maximum BTU Natural Gas 30,000 30,000
Propane 30,000 30,000
Turn Down to (BTU) Natural Gas 15,500 15,500
Propane 15,000 15,000
EnerGuide Rating
(Canada only)
Natural Gas 62.7% 64.62%
Propane 62.7% 64.62%
Efficiency Natural Gas 82% 82%
Propane 82% 82%
40-3/4"
27-7/8"
26-1/4"
C
G
A
D
B
F
I
E
H
Clearances To Combustibles U31 / U32
ASide Wall 10"
BCeiling 47-1/2"
CMantel 17"
DMantel depth 12"
EAlcove Width 48"
FMax. Alcove Depth 36"
Non-Combustible Hearth Requirements
GHearth Thickness 0"
HHearth Depth 16"
IHearth Width 40"
Minimum Fireplace Opening
U31 U32
Width 26-1/2" 26-1/2"
Height 21" 22"
Depth 15" 14"
Specifications U31 U32
Maximum BTU Natural Gas 30,000 30,000
Propane 27,500 30,000
Turn Down to (BTU) Natural Gas 14,500 15,300
Propane 13,700 15,000
EnerGuide Rating
(Canada only)
Natural Gas 52.9% 57.17%
Propane 48.07% 57.17%
Efficiency Natural Gas 76% 76%
Propane 77% 77%
* 4" hearth trim available for taller fireplace openings.
gas replaces
gas replace inserts
15

Your Hampton® matches your home and lifestyle perfectly.
How do we know that? Because you designed it yourself!
Visit www.hampton-re.com today and surf through
our selection of products and accessories to design your
own replace. The endless options are just a click away!
Change the style until you have your perfect replace...
then ask your friends and family for their opinion!
Click onFireplace Design Centre at www.hampton-re.com
and then visit your authorized local dealer to design your
own replace.
design your own
replace
We want you to enjoy your beautiful Hampton replace for years to come. To help you gure out which product is just right for your home, ll
in the following worksheet. Once complete, visit your nearest Hampton dealer. Your professional dealer will assess your needs - including local
building codes - and install your Hampton.
© 2008 FPI Fireplace Products International Ltd. Regency, Hampton, Heat Wave, Heat Release, AstroCap and FireGenie are
registered or proprietary trademarks of FPI Fireplace Products International Ltd. All rights reserved.
Printed in Canada (07/08)
Part no. 944-227
replace selection worksheet
www.hampton-re.com
your hampton dealer
1. BASIC PRODUCT FUNCTION QUESTIONS
a. I would like my inbuilt to provide me with:  Supplemental heating  Priority heating
b. The room/rooms I would like to heat are: Square feet
c. My fuel source will be:  Natural gas  Propane
Has gas been piped to the proposed fireplace area?  Yes  No
2. FIREPLACE PRODUCT TYPE AND MEASUREMENTS
a. I am:  Installing a new fireplace
 Installing into an existing fireplace
b. Fill in the following measurements: Ceiling Height:
Location in the room:
c.What is the: Flooring material:
Wall material:
Ceiling material:
d. Fireplace opening dimensions Width (front)
Width (back)
Height
Depth
Mantel de
p
t
h
H
ea
rth t
o
m
a
nt
e
l
Op
enin
g
hei
g
ht
Dro
p
in fire
p
lac
e
thi
c
kn
ess
De
p
th in fire
p
la
c
e
B
ack hei
g
ht
XX%
Cert no. XXX-XXX-000
