HAMPTON BAY 18-751-48 User manual

USE AND CARE GUIDE
COMPACT INFRARED FIREPLACE
C US
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING!
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY,
AN ELECTRICAL SHOCK OR FIRE MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
IMPORTANT INSTRUCTIONS
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
855-HD-HAMPTON HAMPTONBAY.COM
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this electric replace. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Hampton Bay!
20-10-329 2018-04-18
Model # 18-751-48
# 18-751-48-Y
# 18-751-93-Y
# 18-751-204-Y
Item # 1003132247
# 1003054957
# 1003063474
# 1003063475

2
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible electric shock, injury to persons, re hazard and will void the warranty.
Please read the Installation & Operating Instructions before using this appliance.
PRODUCT DAMAGE MAY OCCUR.
Never attempt to disassemble or alter the product in any way not instructed by this manual.
CAUTION
This Product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California
to cause cancer and developmental harm.
For more information go to www.p65Warnings.ca.gov
WARNING
Table of Contents
Table of Contents....................................2
Safety Information...................................3
Warranty ..........................................4
Pre-Assembly ......................................5
Planning Assembly .................................5
Tools Required ....................................5
Hardware Included .................................5
Package Contents..................................6
Assembly ..........................................7
Care and Cleaning ..................................15
Shelf Weight Capacity ...............................15
Service Parts ......................................16
Troubleshooting....................................17

3 HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.
Safety Information
Please read and understand this entire manual before attempting to assemble, operate or install the product.
□Read all instructions before using this appliance.
□This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this
appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 ft. (914 mm) from
the front of this appliance and keep them away from the sides and rear.
CAUTION: Extreme caution is necessary when any heater
is used by or near children or invalids and whenever the
heater is left operating unattended.
□If possible, always unplug this appliance when not in use.
□Do not operate any heater with a damaged cord or plug or after the appliance malfunctions, has been dropped or damaged in any
manner.
□Any repairs to this appliance should be carried out by a qualied service person.
□Under no circumstances should this appliance be modied. Parts having to be removed for servicing must be replaced prior to
operating this appliance again.
□Do not use outdoors.
□This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never place this appliance where it
may fall into a bathtub or other water container.
□Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners or the like. Arrange the cord away from trafc
areas and where it will not be tripped over.
□To disconnect this appliance, turn the controls to the off position, then remove the plug from the outlet.
□Connect to properly grounded outlets only.
□This appliance, when installed, must be electrically grounded in accordance with local codes, with the current CSA C22.1 Canadian
Electrical codes or for USA installations, follow local codes and the National Electric Code, ANSI/NFPA No. 70.
□Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, re, or
damage to the appliance.
□To prevent possible re, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where
openings may become blocked.
□This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or ammable liquids are
used or stored. This appliance should not be used as a drying rack for clothing, nor should Christmas stockings or decorations be
hung on or near it.
□Use this appliance only as described in this manual. Any other use not recommended by the manufacturer may cause re, electric
shock, or injury to persons.
□Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power
strip) because of the risk of overheating the cord and the risk of re. Extension cords are for temporary use only. If an extension
cord must be used, it must be UL/CSA certied, rated at 15A (1,875W), 125V maximum with 14 AWG minimum and constructed of
two current carrying conductors with ground. A heavy duty extension cord with the shortest length possible for the connection is
recommended and must not be longer than 50 ft. (15.2 m). Do not coil or cover the extension cord.
□“SAVE THESE INSTRUCTIONS FOR FUTURE USE”

4
1-YEAR WARRANTY
WHAT IS COVERED
The manufacturer warrants that your new electric replace is free from manufacturing and material defects for a period of one year from
date of purchase, subject to the following conditions and limitations.
Variations in actual wood color and nishes which may result from natural characteristics of the wood, such as grain patterns, mineral
streaks and the like, are not considered defects. As wood continues to move and age you may notice these slight differences in color, even
on different parts of any individual unit. Sound knots and slight surface cracks are the true personality of a quality piece of wood furniture.
This electric replace must be installed and operated at all times in accordance with the instructions furnished with the product. Any
alteration, willful abuse, accident, or misuse of the product shall nullify this warranty. This warranty is non-transferrable, and is made to the
original owner, provided that the purchase was made through an authorized supplier of the manufacturer. This warranty is limited to the
repair or replacement of part(s) found to be defective in material or workmanship, provided that such part(s) have been subjected to normal
conditions of use and service, after said defect is conrmed by the manufacturer’s inspection. The manufacturer may, at its discretion, fully
discharge all obligations with respect to this warranty by refunding the wholesale price of the defective part(s).
WHAT IS NOT COVERED
Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s), repair, replacement,
or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume responsibility for same. Further, the
manufacturer will not be responsible for any incidental, indirect, or consequential damages, except as provided by law.
All other warranties - expressed or implied - with respect to the product, its components and accessories, or any obligations/liabilities on
the part of the manufacturer are hereby expressly excluded. The manufacturer neither assumes, nor authorizes any third party to assume, on
its behalf, any other liabilities with respect to the sale of this product. The warranties as outlined within this document do not apply to non-
manufacturer accessories used in conjunction with the installation of this product.
This warranty does not cover the lightbulb(s) included with the replace.
This warranty is void if: the replace has been operated in atmospheres contaminated by chlorine, uorine, or other damaging chemicals;
the replace is subjected to prolonged periods of dampness or condensation; the replace is altered, willfully abused, damaged by accident,
or misused in any way.
If warranty service is needed, contact the Customer Service Team at 855-HD-HAMPTON from 8 a.m. - 6 p.m., EST, Monday-Friday or visit
www.hamptonbay.com.
Make sure you have your warranty, your sales receipt, and the model/serial number of your product.
DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF.
Warranty

5 HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.

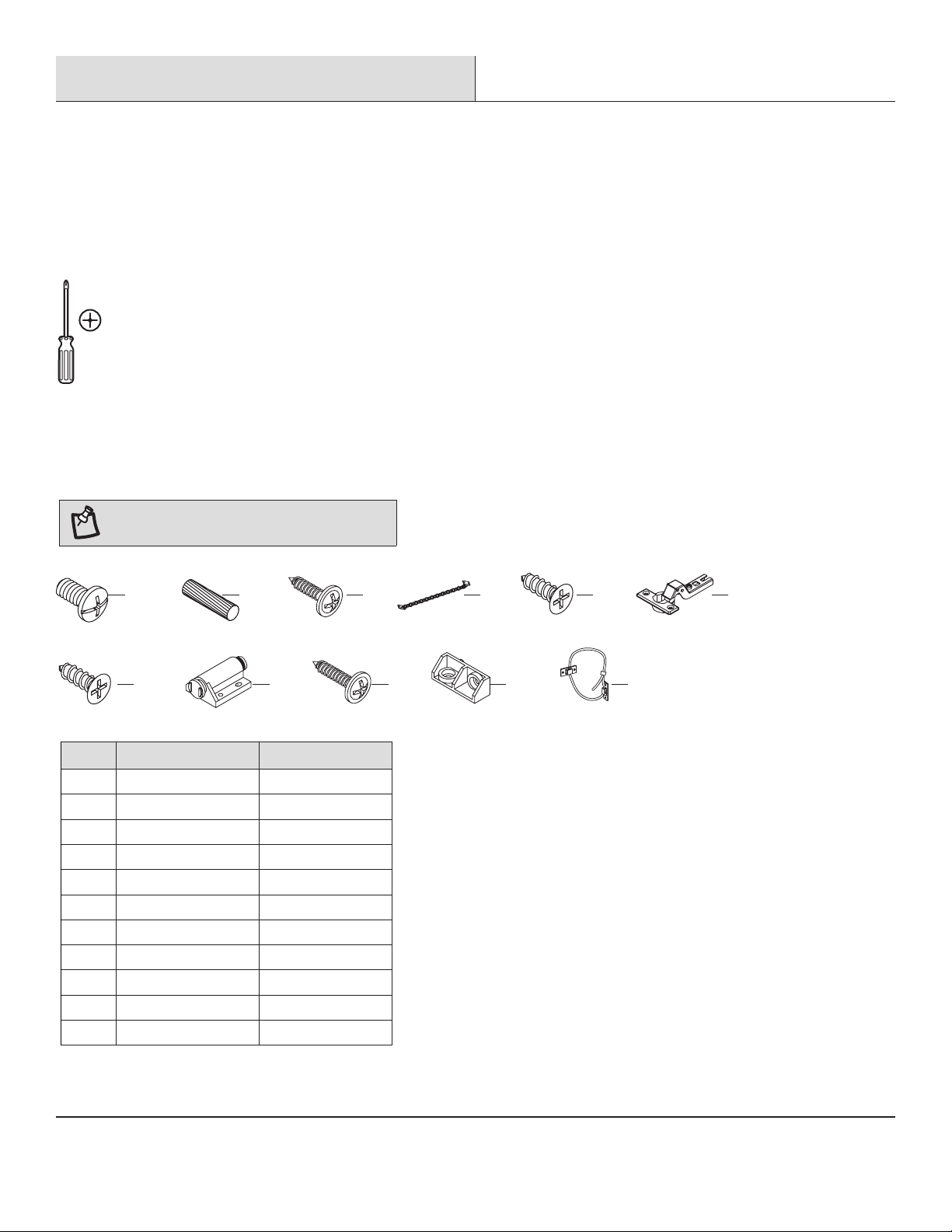

Pre-Assembly
Part Description Quantity
AA Bolt 34 + 2 extra
BB Dowel 16 + 1 extra
CC Back Panel Screw 10 + 2 extra
DD Chain 1
EE Chain Screw 4
FF Hinge 2
GG Hinge Screw 4
HH Magnetic Catch 1
JJ Catch Screw 4
KK Connector 5
LL Anti-tip Device 1
GG
FFEEDDCC
KK LL
BB
JJ
AA
HH
PLANNING ASSEMBLY
To avoid scratching the nish, assemble the product on a soft, non-abrasive surface, such as carpet or cardboard.
Assembly of this product may require more than one person.
TOOLS REQUIRED
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Phillips screwdriver

6
Pre-Assembly (continued)
Part Description Quantity
A Top Panel 1
B Base Panel 1
C Media Shelf 1
D Back Panel 1
E Upper Side Panel 2
F Upper Front Panel 2
G Door 1
Part Description Quantity
H Left Side Panel 1
J Right Side Panel 1
KLeft Trim 1
LRight Trim 1
MTop Trim 1
NBase Trim 1
P Support Panel 2
PACKAGE CONTENTS
A
D
P
P
J
K
L
M
B
E
E
F
F
G
H
N
C

7 HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.
Assembly
1
Attaching connectors
□Locate the left trim (K), right trim (L), top trim (M), and
base trim (N) and place on soft surface to protect the
nish.
□Attach ve connectors (KK) to left trim (K), right trim (L),
top trim (M), and base trim (N) by turning the ve bolts
(AA) clockwise through the connector. Do not strip the
bolts (AA) by overtightening.
M
K
K
H
J
L
L
N
AA
AA
KK
2
Attaching the trim to side panels
□Locate the left side panel (H) and right side panel (J)
and place on soft surface to protect the nish.
□Attach the left trim (K) and right trim (L) to the side
panels (H & J) (by turning the bolts (AA) clockwise
through the connector. Do not strip the bolts (AA) by
overtightening.

8
Assembly (continued)
3

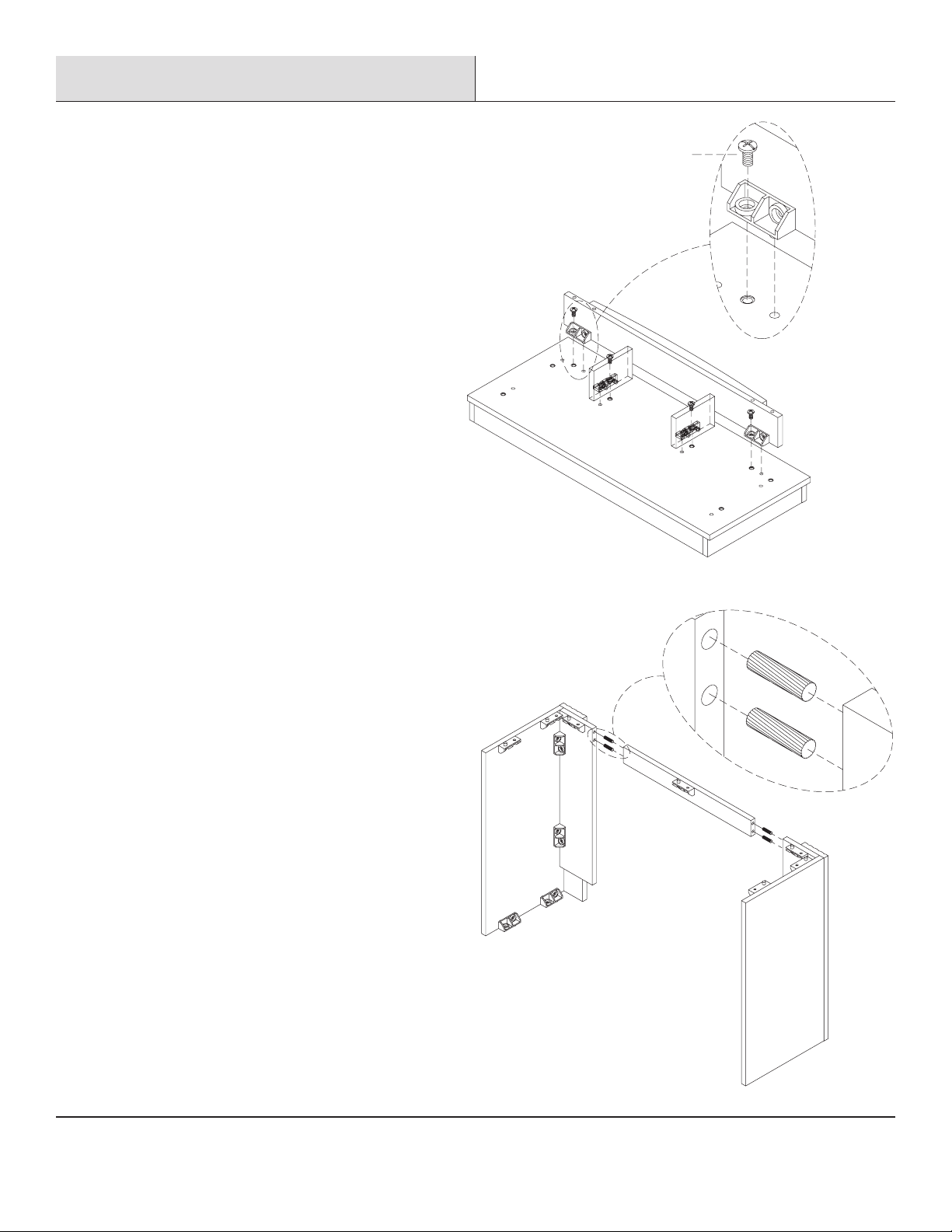

Attaching the base trim to base panel
□Locate the base panel (B) and place on a soft surface to
protect the nish.
□Attach the base trim (N) to the base panel (B) by turning four
bolts (AA) clockwise through the connectors. Do not trip the
bolt (AA) but overtightening.
□Attach the two support panels (P) to the base panel (B) turning
four bolts (AA) clockwise through the connector. Do not strip
the bolts (AA) by overtightening.
4
Attaching top trim to side panels
□Insert four wood dowels (BB) into the unthreaded holes
in the top trim (M)
□Line up the four wood dowels (BB) in the top trim (M)
with the unthreaded holes in the left and right side panel
(J & H).
□Press together rmly until ush.
□Insert eight bolts (AA) into the connector on the media
shelf (C).
□Attach the left and right inside (G & F) to the media shelf
(C) by turning the bolts (AA) clockwise. Do not strip the
bolts (AA) by overtightening.
P
P
N
M
H
J
B
AA
BB

9 HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.
H
H
J
J
B
C
AA
AA
BB
Assembly (continued)

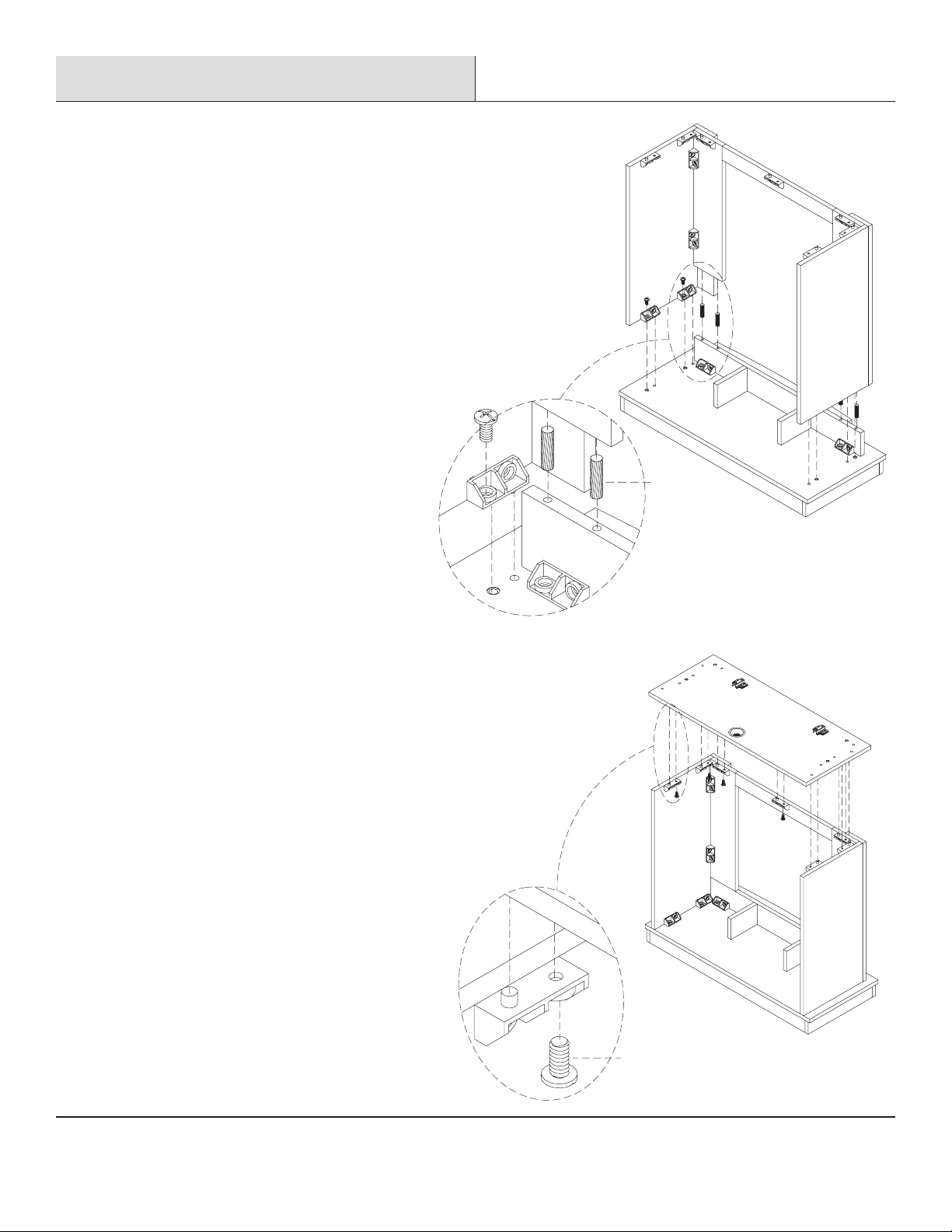

5
Attaching side panels to base
□Insert four wood dowels (BB) into the unthreaded
holes in the base (B).
□Line up the four wood dowels (BB) in the base (B)
with the unthreaded holes in the left and right side
panels.
□Press left and right side panels down until ush.
□Insert four bolts (AA) into the connectors on the side
panels and turn clockwise. Do not strip the bolts (AA)
by overtightening.
6
Attaching the media shelf
□Line up the connectors on the side panels (J & H)
with holes on the media shelf (C).
□Attach the media shelf to the base assembly by
inserting seven bolts (AA) through the connector in
the side panels and turning clockwise. Do not strip
the bolts (AA) by overtightening.

10
Assembly (continued)

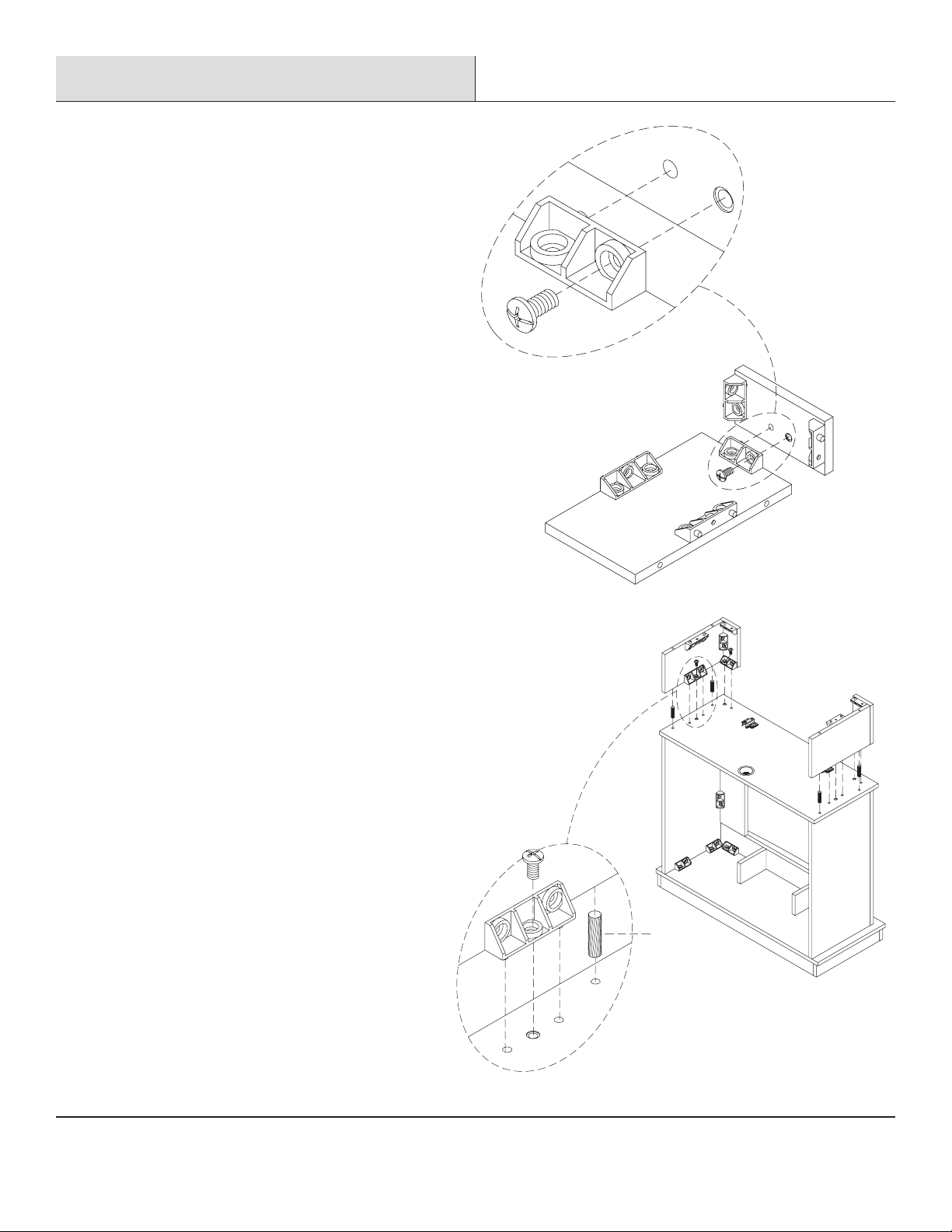

7
Attaching front and side panels
□Locate the upper side panels (E) and place on a soft
surface to protect the nish.
□Insert two bolts (AA)into the connectors on the upper side
panels (E) and turn clockwise. Do not strip the bolts (AA)
by overtightening.
AA
AA
BB
F x2
E x2
8 Attaching front and side panels to
media shelf
□Insert four wood dowels (BB) into the unthreaded holes in
the media shelf (C).
□Line up the four wood dowels (BB) in the media shelf
with the unthreaded holes in the upper side panel (E).
□Press together rmly until ush.
□Insert four bolts (AA) into the connector on the upper side
panels (E).
□Attach the upper side panels (E) to the media shelf (C) by
turning the bolts (AA) clockwise. Do not strip the bolts
(AA) by overtightening.
C
E
E

11 HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.
AA
BB
DD
EE
JJ
HH
Assembly (continued)

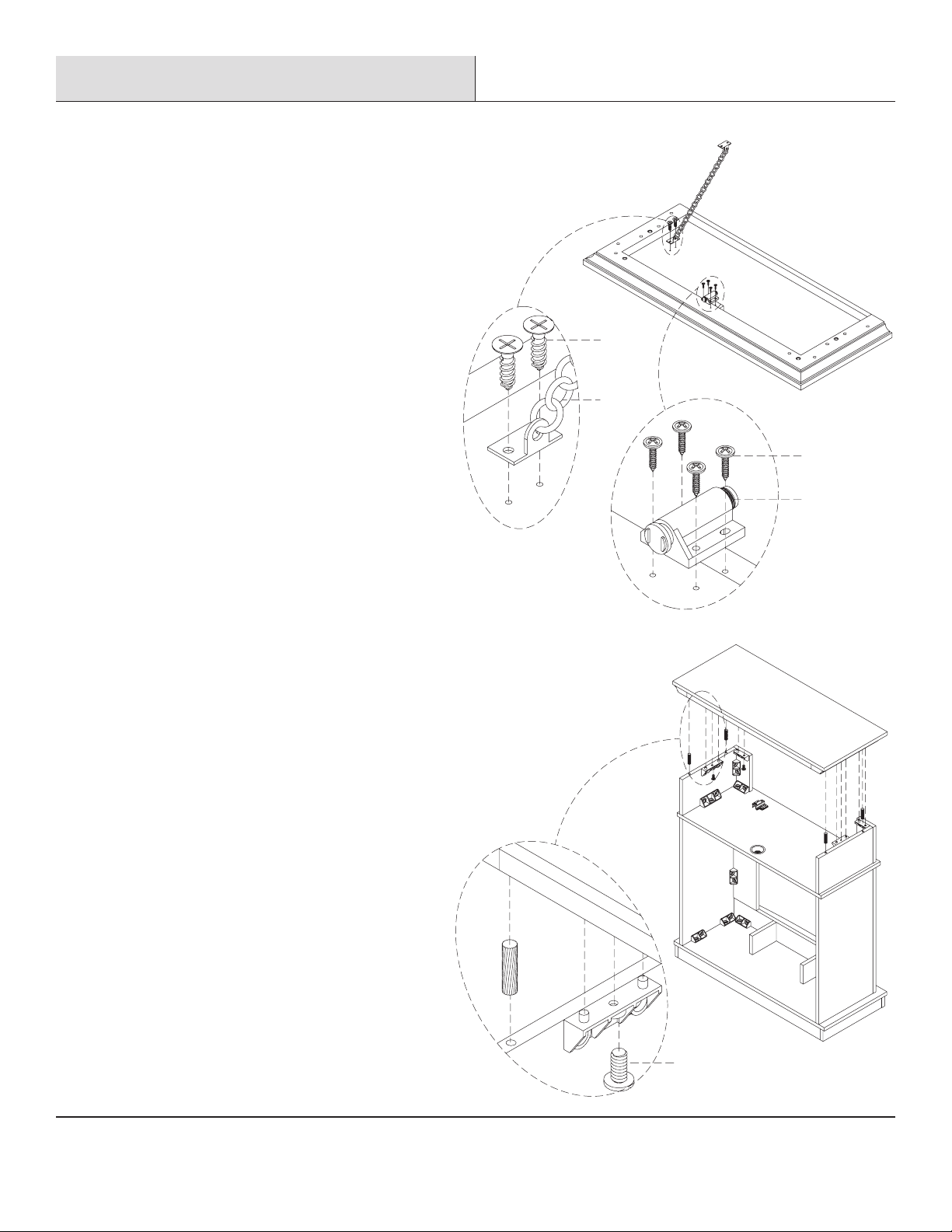

9
Preparing the top panel
□Locate the top panel (A) and place on a soft surface to
protect the nish.
□Line chain (DD) holes up with holes located on bottom of
top panel (A). Attach chain (DD) to top panel (A) by inserting
two chain screws (EE) and turning clockwise. Do not strip
the screws by overtightening.
□Attach magnetic catch (HH) to the top panel (A) by inserting
four catch screws (JJ) and turning clockwise. Do not strip
the screws (JJ) by overtightening.
10
Attaching top panel to assembly
□Locate the top panel (A) and place on a soft surface to
protect the nish.
□Insert four wood dowels (BB) into the unthreaded holes in
the side panels.
□Line up the four wood dowels (BB) in the side panels with
the unthreaded holes in the top panel (A).
□Press together rmly until ush.
□Insert four bolts (AA) into the connector on the upper side
panels.
□Attach the upper side panels to the top panel (A) by turning
the bolts (AA) clockwise. Do not strip the bolts (AA) by
overtightening.
A
A

12
Assembly (continued)
11
Attaching the back panels
□Locate the back panel (D) and line them up to the back of
the media console with the nished side facing in.
□Insert and tighten ten back panel screws (CC) to attach the
back panel (D) the media console.
□Do not strip the screws (CC) by overtightening.
CC
GG
FF
12
Attaching hardware onto the doors
□Locate the two cabinet doors (G) and place on a soft surface
to protect the nish.
□Attach hinge (FF) to the cabinet doors (G) by inserting four
hinge screws (GG) and turning clockwise. Do not strip the
hinge screws (GG) by overtightening.
D
G

13 HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.
EE
Assembly (continued)
13
Attaching the media door
□Line up the hinges in door (G) with the hinge plates on
the media shelf (C).
□Tighten the screws to attach the hinges to the hinge
plates. Do not strip the screws by overtightening.
14
Attaching the chain
□Attach the chain from the inside of the top panel
(A) to the door (G) inserting two chain screws (EE)
and turning clockwise. Do not strip the chain
screws (EE) by overtightening.
G
G

14
Assembly (continued)
15

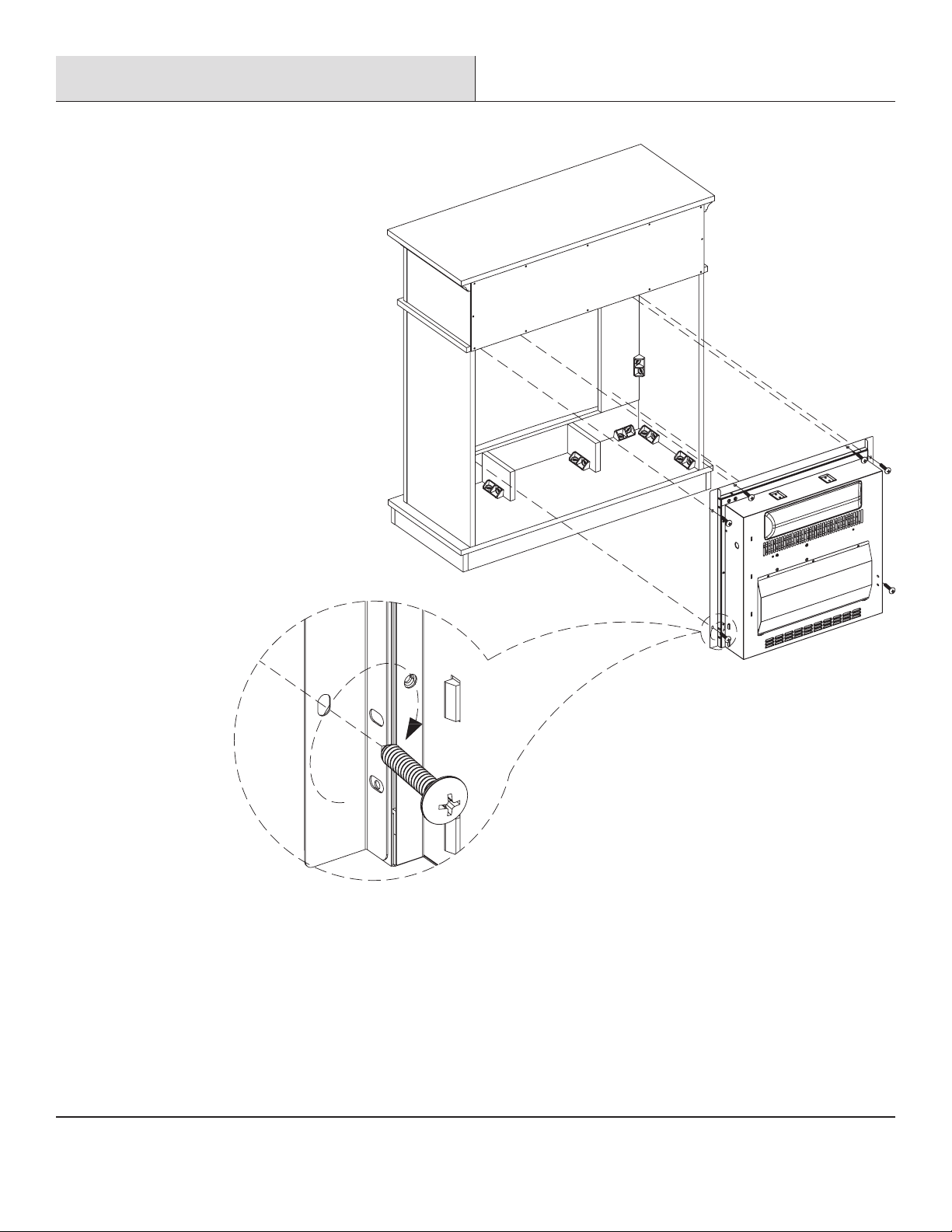

Installing the rebox
□Insert the rebox into the media console
through the back opening.
□Push the rebox forward through the back
opening until the metal trim of the rebox in
ush with the side panels (J & H).
□Once the rebox is in position attach the two
mounting brackets included with the rebox
by inserting and tightening six screws through
the mounting brackets into the media console.
Do not strip the screws by overtightening.

15
Assembly (continued)

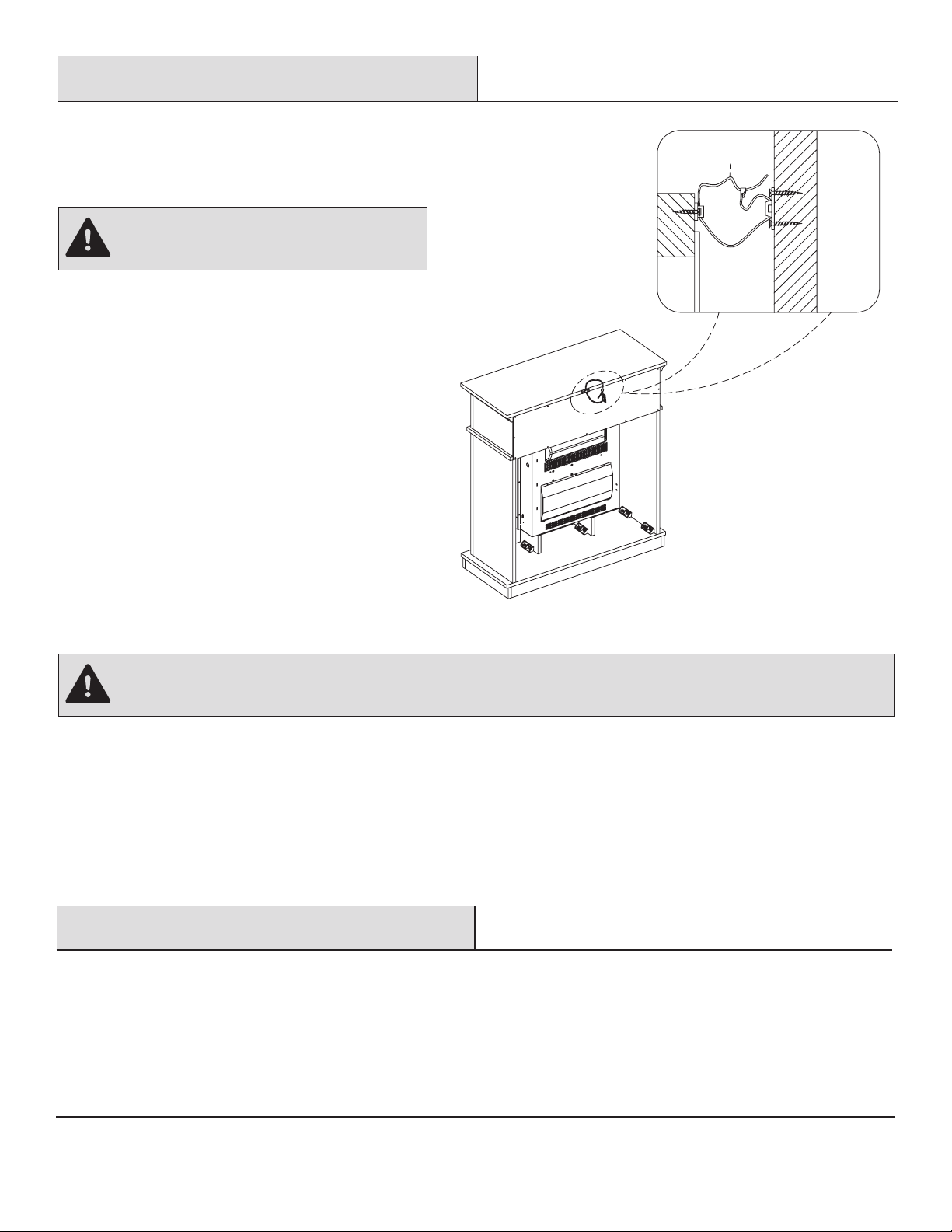

16 Anti-tip Device Installation
□Install the Anti-tip Device according to the installation
instruction.
HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.
Care & Cleaning
□Always turn the heater OFF and unplug the power cord from the outlet before cleaning.
□Cleaning of the control panel, located in the upper right-hand corner of the replace behind the sliding control panel cover, is to be
done only using a soft cloth, slightly dampened in water (if needed, a small amount of dish soap can be added to the water) and dried
using a clean, dry soft cloth. Cleaning of the screen diffuser is to be done using only water and lint free cloth. DO NOT use any abrasive
cleaners on the diffusing screen.
DANGER: This product is only a deterrent. It is
not a substitute for proper adult supervision.
WARNING: You must install the tipping restraint hardware to help revent any accidents or damage to the unit.
We strongly recommend mounting this hardware to a wall stud and your unit.
LL
Wall

16
Service Parts
A
D
P
P
J
K
L
M
B
E
E
F
F
G
H
N
C
Part Description Quantity Part Number
18-751-48 / 18-751-48-Y
Espresso Finish
Part Number
18-751-93-Y
Cherry Finish
Part Number
18-751-204-Y
White Finish
A Top Panel 1 20-01-018 20-01-032 20-01-046
B Base Panel 1 20-01-019 20-01-033 20-01-047
C Media Shelf 1 20-01-020 20-01-034 20-01-048
D Back Panel 1 20-01-021 20-01-035 20-01-049
E Upper Side Panel 2 20-01-022 20-01-036 20-01-050
F Upper Front Panel 2 20-01-023 20-01-037 20-01-051
G Door 1 20-01-024 20-01-038 20-01-052
H Left Side Panel 1 20-01-025 20-01-039 20-01-053
J Right Side Panel 1 20-01-026 20-01-040 20-01-054
KLeft Trim 1 20-01-027 20-01-041 20-01-055
LRight Trim 1 20-01-028 20-01-042 20-01-056
MTop Trim 1 20-01-029 20-01-043 20-01-057
NBase Trim 1 20-01-030 20-01-044 20-01-058
P Support Panel 2 20-01-031 20-01-045 20-01-059
Hardware Pack 1 20-09-584 20-09-585 20-09-586
Manual 1 20-10-329

17
Troubleshooting
Problem Possible Cause Solution
The replace does
not operate.
The power light is ON but
the ame effect is not
visible.
There is excessivee
noise when the heater is
operating.
The heater is not
operating.
□The replace is not plugged in.
□A circuit breaker is tripped or a fuse
blown.
□The ON/OFF switch is defective.
□There is loose wiring.
□The replace is not operating
correctly.
□There are loose light bulb(s).
□There are burnt out light bulb(s).
□The fan is defective.
□The heater assembly is defective.
□The replace is not operating
correctly.
□The heater switch is defective.
□The heater assembly is defective.
□There is loose wiring.
□The vents are dirty or clogged.
□Make sure the replace is plugged in
to a standard 120V outlet.
□Check additional appliances on the
circuit; ideally the replace should be
on a dedicated 15-amp circuit.
□Call customer service.
□Call customer service.
□Refer to the operating instructions.
□Tighten the light bulb(s).
□Replace the light bulb(s).
□Call customer service.
□Call customer service.
□Refer to the operating instructions.
□Call customer service.
□Call customer service.
□Call customer service.
□Unplug the unit. Clear the vent area of
dust and debris. Wait ten minutes, plug
the unit in again and turn on the heater.
If you have any questions regarding the product, please call Hampton Bay Customer Service, 855-HD-HAMPTON, 8 a.m. – 6 p.m. EST,
Monday – Friday.
HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.

Printed in China
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m.-6 p.m., EST, Monday-Friday
855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
Manufactured by: GHP Group, Inc. • 6440 W. Howard St. • Niles, IL 60714-3302

Modelo # 18-751-48
# 18-751-48-Y
# 18-751-93-Y
# 18-751-204-Y
Artículo # 1003132247
# 1003054957
# 1003063474
# 1003063475
CHIMENEA POR INFRARROJOS COMPACTA
C US
INSTALADOR: Conserva este manual con el electrodoméstico.
CONSUMIDOR: Conserva este manual para consultarlo en el futuro.
¡ADVERTENCIA!
SI LA INFORMACIÓN EN ESTE MANUAL NO SE SIGUE EXACTAMENTE,
PUEDE PRODUCIRSE UNA DESCARGA ELÉCTRICA O INCENDIO, LO QUE PUEDE CAUSAR
DAÑOS A LA PROPIEDAD, LESIONES PERSONALES O LA MUERTE.
INSTRUCCIONES IMPORTANTES
POR FAVOR LEE ESTE MANUAL ANTES DE INSTALAR Y USAR ESTE ELECTRODOMÉSTICO
GUÍA DE USO Y MANTENIMIENTO
¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda,
llama al Servicio al Cliente de Hampton Bay de
lunes a viernes entre 8 a.m. y 6 p.m., (hora del Este de EEUU)
855-HD-HAMPTON HAMPTONBAY.COM
20-10-329
GRACIAS
Apreciamos la conanza que ha depositado en Hampton Bay por la compra de esta estufa eléctrica. Nos esforzamos por crear continuamente
productos de calidad diseñados para mejorar su hogar. Visítenos en internet para ver nuestra línea completa de productos disponibles para sus
necesidades de mejorar su hogar. ¡Gracias por elegir a Hampton Bay!
2018-04-18

20
Índice
IMPORTANTE: Lee todas las instrucciones y advertencias antes de comenzar la Instalación. No seguir estas instrucciones puede resultar
en una posible descarga eléctrica, lesiones a las personas, riesgo de incendio y anulará la garantía.
Por favor lee las Instrucciones de Instalación y Funcionamiento antes de usar este electrodoméstico.
PUEDE OCURRIR DAÑO DEL PRODUCTO.
Nunca intentes desensamblar o modicar el producto de ninguna forma que no se indique en este manual.
PRECAUCIÓN
Este producto puede exponerlo a sustancias químicas como el di(2-etilhexil) ftalato (DEHP) que, según el estado de California,
puede provocar cáncer y daños del desarrollo.
Para obtener más información, visite www.p65Warnings.ca.gov
ADVERTENCIA
Tabla de contenido .................................20
Información de Seguridad ............................21
Garantía ..........................................22
Pre-ensamblaje ....................................23
Planicación del ensamblaje ........................23
Herramientas necesarias ...........................23
Piezas incluidas ..................................23
Contenido del paquete .............................24
Ensamblaje .......................................25
Cuidado y limpieza .................................33
Capacidad de carga de la repisa .......................33
Piezas de servicio ..................................34
Resolución de fallas ................................35
