H&S 6180 User manual

61806180
MANUREMANURE
SPREADERSPREADER
MM
AA
NN
UU
AA
LL
OO
PP
EE
RR
AA
TT
OO
RR
SS
PS6180 Starting Ser. #221PS80001PS6180 Starting Ser. #221PS80001 Part #92785 Rev. #00 HSMFG122122Part #92785 Rev. #00 HSMFG122122
READ AND UNDERSTAND THIS MANUAL BEFOREREAD AND UNDERSTAND THIS MANUAL BEFORE
OPERATING THIS EQUIPMENT. UNSAFE OPERATIONOPERATING THIS EQUIPMENT. UNSAFE OPERATION
OR MAINTENANCE OF THIS EQUIPMENT CAN RESULTOR MAINTENANCE OF THIS EQUIPMENT CAN RESULT
IN SERIOUS INJURY OR DEATH.IN SERIOUS INJURY OR DEATH.
WARNINGWARNING

CONTENTS
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Manufacturer’s Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty Registration Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dealer Pre-Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Dealer Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Information - Be Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Explanation of Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-13
Safety Information - Warning - Owner Must Read and Understand . . . . . . . . . . . . . . . . . . . . . . . . 14

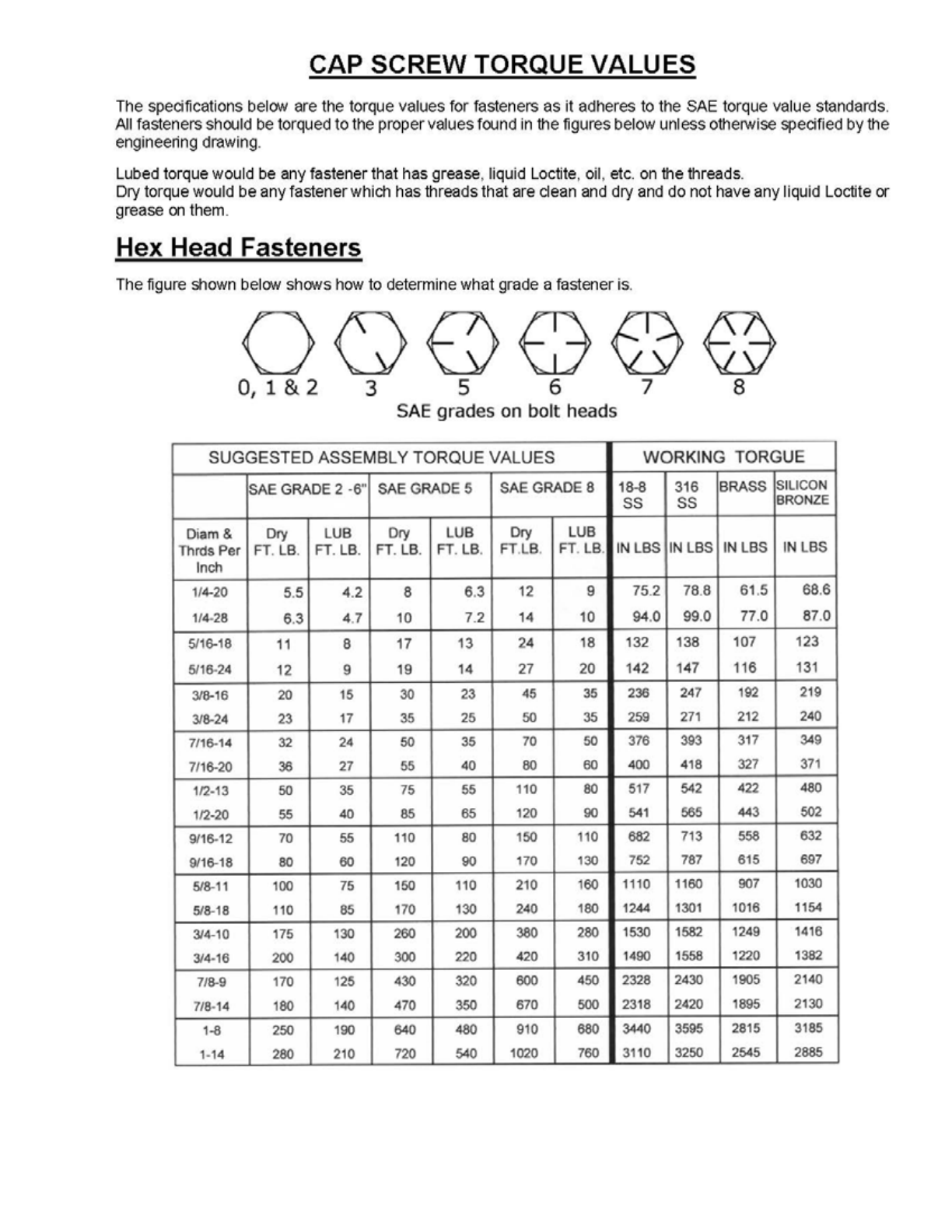

Cap Screw Torque Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Set-Up & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Preparing for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Service & Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-24
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Lubrication Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27
Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-33
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Service Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-36

-1-
WARRANTY
H&S Manufacturing Co., Inc. (“H&S”) warrants this product to be free from defect in material and workman-
ship. Except as noted below, this warranty term is twelve (12) months on parts and labor from the date of
delivery of the product to the original purchaser by an authorized H&S dealer. Under this warranty, H&S will
repair or replace, at its option, any covered part which is found to be defective in material or workmanship
during the applicable warranty term. In no case will the covered repair cost of a part or parts exceed the
replacement cost of that part. In no case, unless pre-authorized by H&S, will a component be replaced
versus repaired unless the cost of labor and parts exceeds 75% of the cost of a new component. War-
ranty repairs must be performed by H&S or a dealer authorized by H&S to sell and/or service the product
involved, and will use only new or remanufactured parts or components furnished by H&S. Any warranty
repairs needing to be performed by a third party must be pre-authorized by H&S. Standard freight costs
will be covered by H&S for any part used to make a warrantable repair, any form of express freight will
not be covered unless pre-authorized by H&S. This warranty includes approved parts and labor to repair
the product but does not include, and the purchaser is responsible for, any service call and/or transpor-
tation of the product to and from the dealer’s place of business, for any costs related to travel, for any
premium charged for overtime labor requested by the purchaser, and for any service work not directly
related to any defect covered under this warranty. This warranty includes only those components of the
product manufactured by H&S. Warranty for any component not manufactured by H&S including, but not
limited to, engines, batteries, tires, rims, hydraulic motors, pumps, etc. are covered by the warranty, if
any, provided separately by their respective manufacturers. H&S reserves the right to request the return
of any failed component.
This warranty in all its parts is extended solely to the original purchaser of the product, is terminated upon
any subsequent transfer or sale from or by the original purchaser, and extends no third party benets or
rights whatsoever.
The warranty term for any product used in any for hire, rental eet or rental application, is limited to six
(6) months from the date of delivery of the product to the original purchaser by an authorized H&S dealer.
This warranty does not include: (1) Any product that has been altered or modied in ways not approved
by H&S; (2) Depreciation or damage caused by normal wear, use for which the product was not designed,
misuse, improper or insu󰀩cient maintenance, improper operation, accident or failure to follow the product
Operator’s Manual recommendations and product decal recommendations; (3) Normal maintenance parts
and service; (4) Repairs made with parts other than those available from H&S or performed by anyone
other than H&S or a dealer authorized by H&S to sell and/or service the product involved.
To secure warranty service the purchaser must report the product defect to a dealer authorized by H&S
to sell and/or service the product involved within the applicable warranty term together with evidence of
the warranty start date and make the product available to that dealer within a reasonable period of time.
Apron chain warranty: H&S o󰀨ers a limited lifetime warranty on the apron chain extended solely to the
original purchaser. This warranty covers only the chain links and no other components welded to the link
or associated to the links i.e. Slats. If a connecting link fails only the connecting link will be replaced. If
any other chain link breaks both complete apron chains will be replaced. Freight and labor to install the
chain is the responsibility of the purchaser and not covered under this limited warranty.
Prorated Scale
Months from purchase date Parts only coverage %
60 100%
72 90%
84 80%
96 70%
108 60%
120 and after 50%

-2-
H&S reserves the right to make changes or add improvements to its products
at any time without incurring any obligation to make such changes to products
previously manufactured. Specications, statements and descriptions of Products
contained in this publication are subject to change without prior notication.
WARRANTY
For these warranty terms to be in e󰀨ect the selling authorized H&S dealer and/or the customer must
submit the warranty registration to H&S.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF
THIS WARRANTY. H&S and the companies a󰀩liated with it make no warranties, representations, or
promises, express or implied, as to the performance or freedom from defect of its products other than
those set forth above and NO IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS OR FITNESS
FOR A PARTICULAR PURPOSE IS MADE. IN NO EVENT WILL THE DEALER, H&S OR ANY COM-
PANY AFFILIATED WITH H&S BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. The
ONLY REMEDY the purchaser has in connection with the breach of performance of any warranty on H&S
products are those set forth above.
The selling dealer has no authority to make any representation or promise on behalf of H&S, or to modify
the terms or limitations of this warranty in any way.
12/21/22

-3-
(Remove Copy At Perforation)

-4-
Intentionally Left Blank

Manure spreader was not damaged in shipment. Check for dents and loose or missing parts.
Report damage immediately to H&S Manufacturing Co., Inc.
All bolts and fasteners are tight.
Manure spreader has been correctly assembled according to instructions in this manual.
All grease ttings have been lubricated. Gearbox is lled to proper level.
Hoses and ttings are properly attached and there are no visible leaks.
Guards and shields are secure.
Wheels are properly mounted to torque specications.
 Tires are inated to correct pressure.
Decals are in place and legible.
H&S DEALER PRE-DELIVERY CHECKLIST
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
After the Manure Spreader has been completely set up, check to be certain it is in correct operating
order before delivering to the customer. The following is a list of points to inspect. Check o󰀨 each item
as you have made the proper adjustments and found the item operating satisfactorily.
Connect the manure spreader onto a proper horsepower tractor and attach the PTO and connect
the lights. Connect the hydraulic hoses to the tractor remote outlets. Run the manure spreader
and make sure all components operate properly.
PTO guard turns freely.
Hydraulic end gate operates smoothly.
Hydraulic system does not leak under pressure.
Lights and wiring functioning properly.
Implement and all components are functioning properly.
(Remove Dealer File Copy At Perforation)
Serial #
Dealer’s Name
Signature of Pre-Delivery Inspector
Inspection Date
Model Number
-5-

Intentionally Left Blank
-6-

This checklist that follows is an important reminder of valuable information that should be passed
on to the customer at the time this Manure Spreader is delivered.
Check o󰀨 each item as you explain it to the customer.
This delivery checklist, when properly lled out and signed, assures the customer that the
pre-delivery service was satisfactorily performed.
Explain to the customer that the pre-delivery inspection was made.
Explain to the customer all the safety precautions they must excercise when operating
this unit.
Explain recommended loads for di󰀨erent types of materials.
Explain to customer that regular lubrication is required for proper operation and long life
of machine.
Show customer the lubrication section of Owner’s Manual.
Give the customer Owner’s Manual and make sure they read and understand all
operating and service instructions.
 Have the customer sign a completed “Warranty Registration” and mail it.
DEALER DELIVERY CHECKLIST

(Remove Dealer File Copy At Perforation)
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS





Date Delivered
Dealer’s Name
By
Signature of Original Buyer
Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.
-7-

Intentionally Left Blank
-8-

-9-
BE
ALERT!
YOUR SAFETY
IS INVOLVED.
THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS
INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST
OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS MUST
BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.
SAFETY INFORMATION
H&S MANUFACTURING CO., INC.

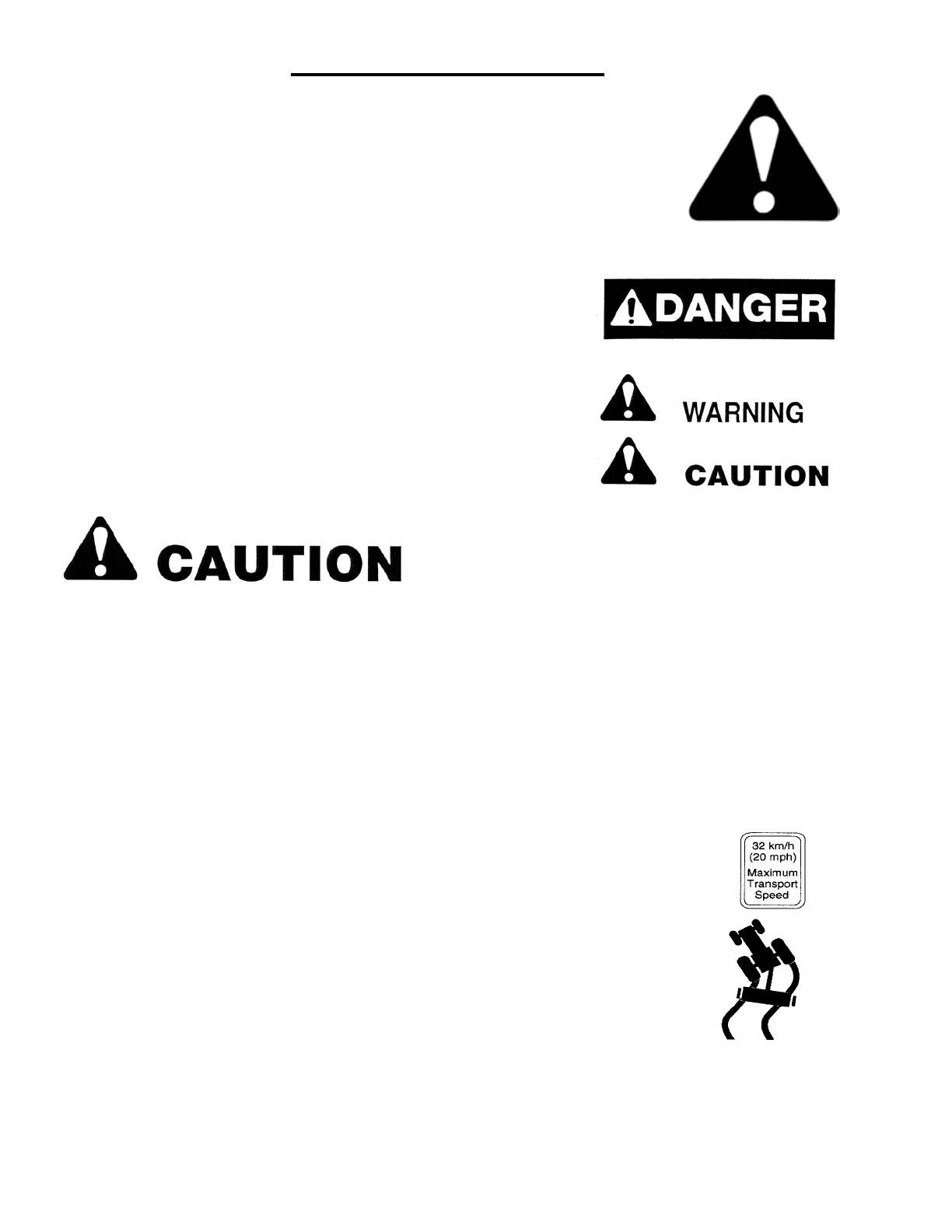

RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. When you see this symbol on your
machine or in this manual, be alert to the potential for personal injury.
Follow recommended precautions and safe operating practices.
UNDERSTAND SIGNAL WORDS
A signal word - DANGER, WARNING, or CAUTION - is used with the
safety alert symbol. DANGER identies the most serious hazards.
Safety signs with signal word DANGER or WARNING are typically
near specic hazards.
General precautions are listed on CAUTION safety signs.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.
Keep signs in good condition. Immediately replace any missing or damaged signs.
-10-
OBSERVE MAXIMUM TRANSPORT SPEED
The maximum transport speed for this implement is 32 km/h (20 mph).
Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.
Exceeding the implement’s maximum transport speed can result in:
* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components
Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.
Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.
SAFETY INFORMATION

-11-

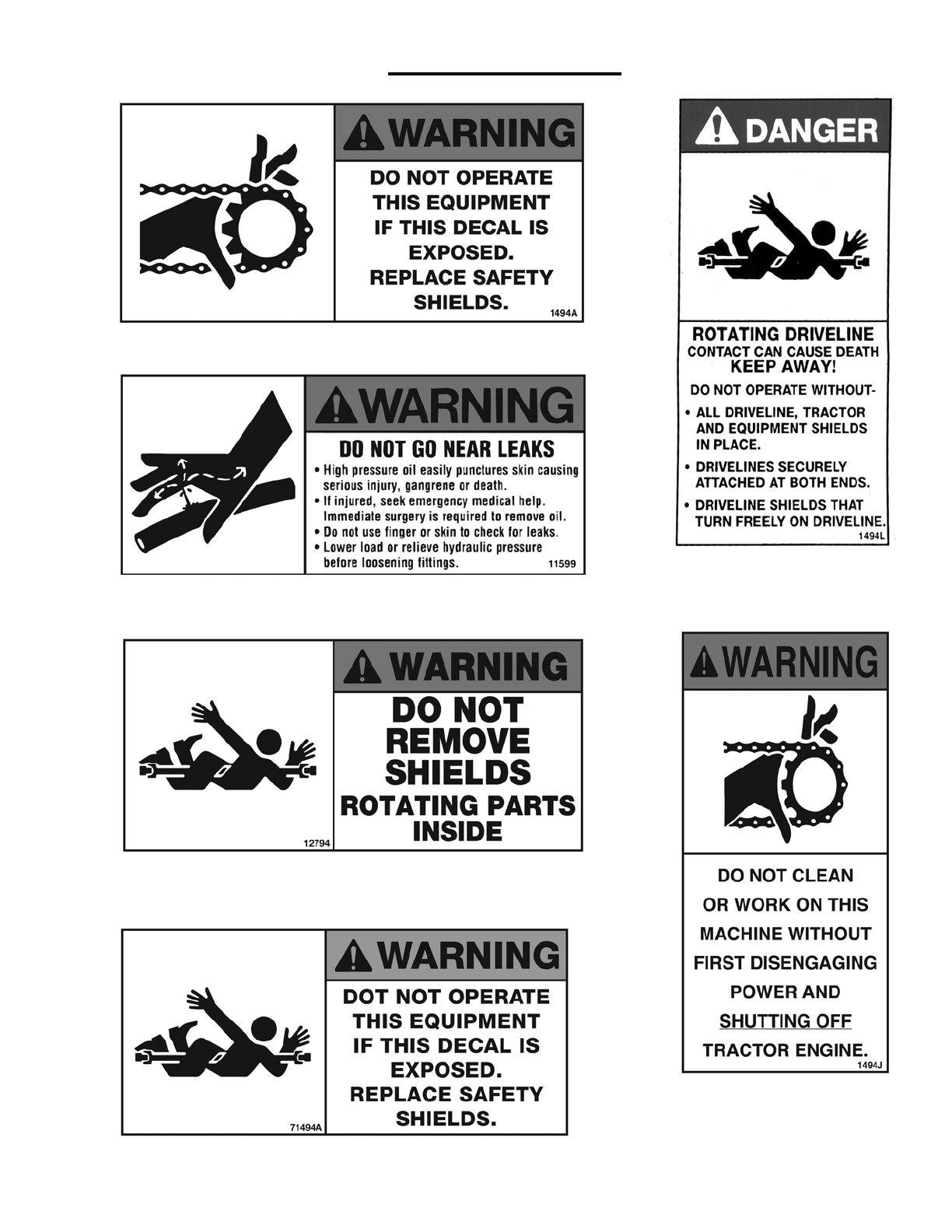

SAFETY DECALS

-12-

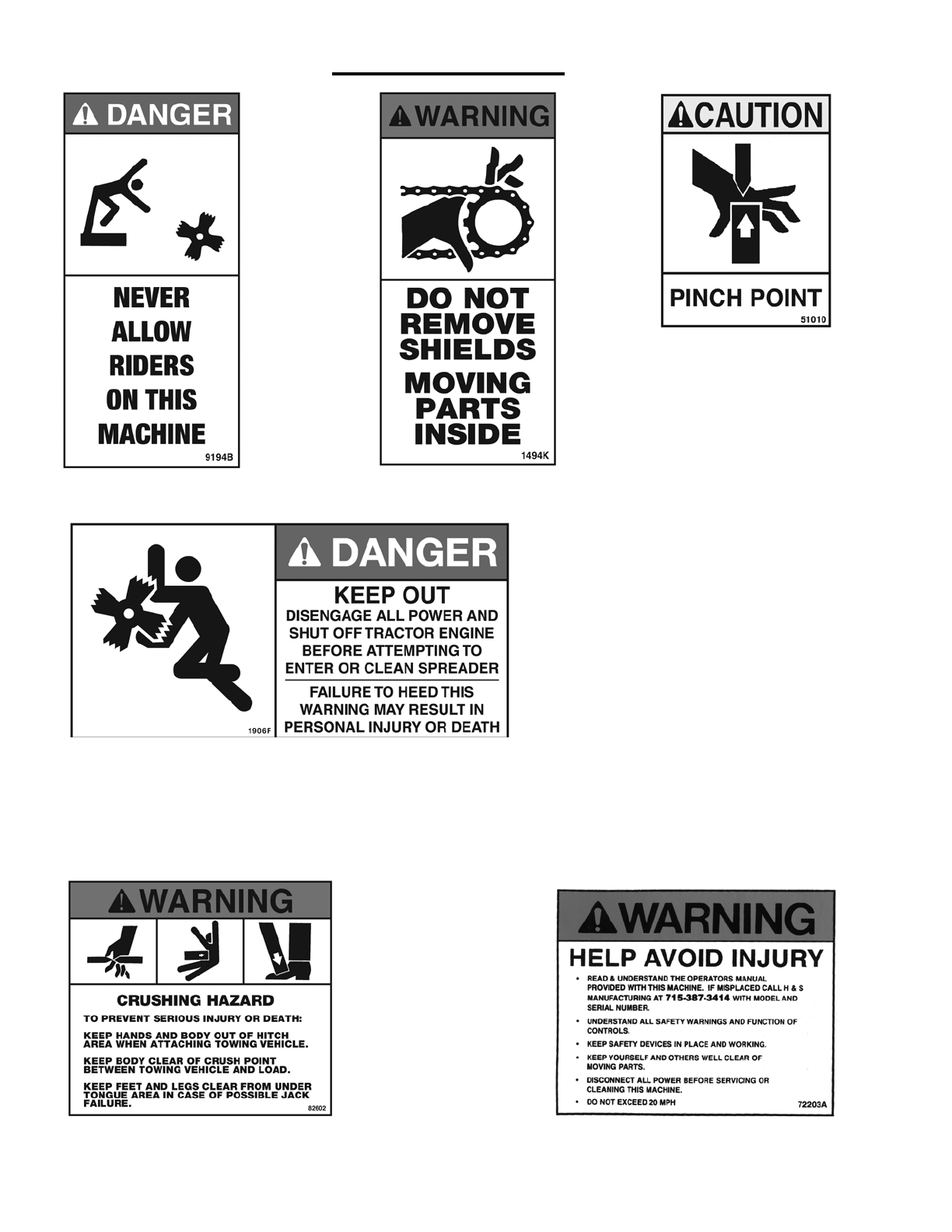

SAFETY DECALS

-13-

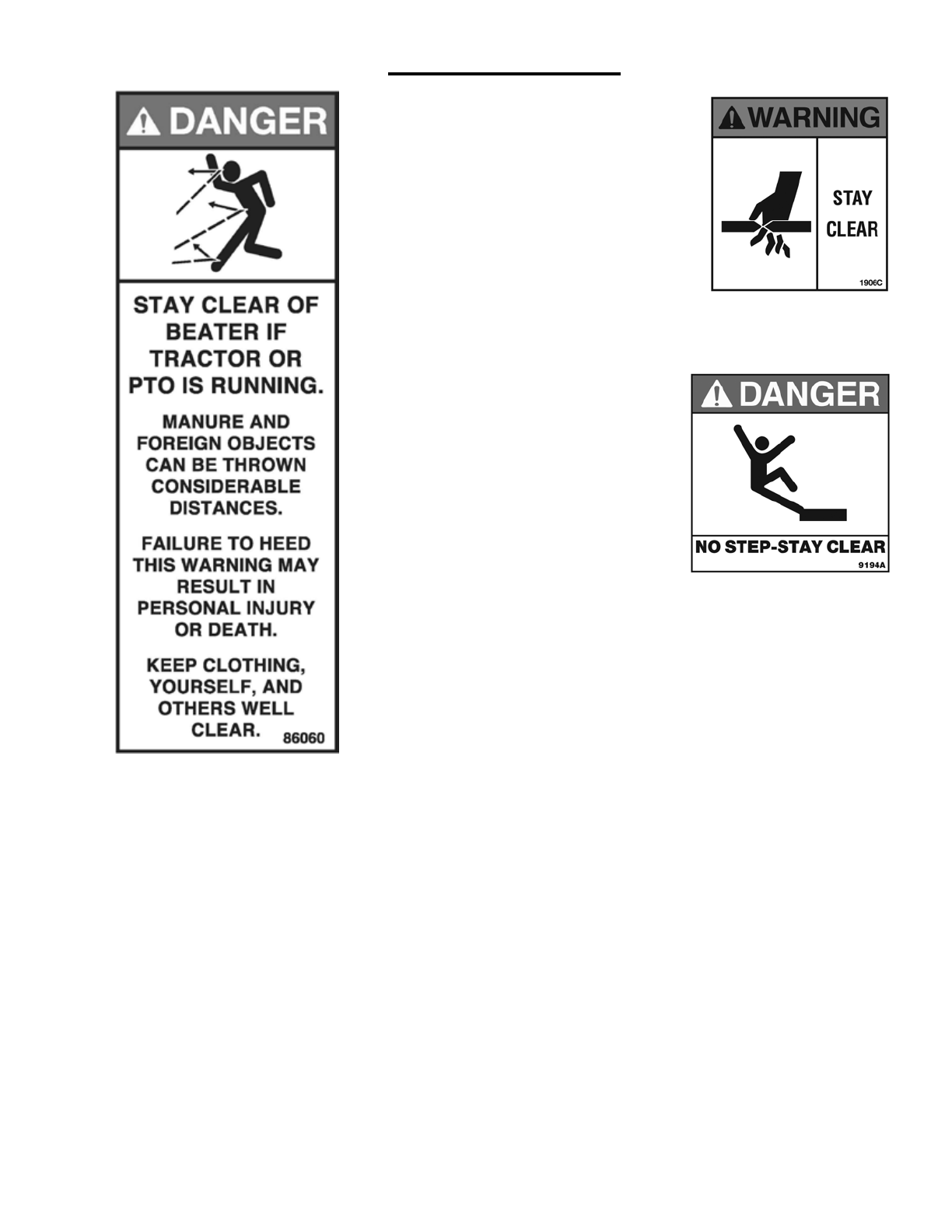

SAFETY DECALS

Study The Above Safety Rules
ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED
BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFTEY PRECAUTIONS. KNOW HOW TO STOP UNLOADING MECHANISM BEFORE STARTING IT.
If the machine becomes clogged, disengage the PTO. Stop the tractor engine, remove ignition key, and
allow all mechanisms to stop before cleaning or working on the machine.
“Never allow riders” in or on the machine.
DO NOT get o󰀨 the tractor while the spreader is in operation.
DO NOT attempt to perform maintenance or repair with tractor running and PTO or hydraulic lines hooked
up.
DO NOT step up on machine at any time.
NEVER manually feed material into the beaters.
DO NOT allow minors to operate or be near the machine.
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE.
Before starting tractor, be sure PTO shields turn freely and PTO is securely locked to tractor.
DO NOT clean, adjust, or lubricate the machine when any part is in operation.
Keep hands, feet, and clothing away from beaters when they are revolving.
Loose or oppy clothing should not be worn by the operator.
Be sure the machine is clear of people, tools, and other objects before engaging PTO.
DO NOT step over power take o󰀨 shaft. Stay clear of PTO at all times.
NEVER start manure spreader until all guards and safety shields are secured in place.
STAY CLEAR of Hydraulic Lines. They may be under extreme pressure or heat.
H&S always takes the operator and their safety into consideration and guards exposed moving parts for
their protection. However, some areas cannot be guarded or shielded in order to assure proper operation. In
addition, the operators manual and decals on the machine itself warn you of further danger and should
be read and observed closely.
-14-
TRACTOR:
This operator’s manual uses the term “Tractor” when identifying the power source.
TO PREVENT SERIOUS INJURY OR DEATH
WARNING
SAFETY INFORMATION

-15-

SET-UP & ASSEMBLY
PREPARING MANURE SPREADER
The Manure Spreader may be shipped without the wheels/tires installed.
1. Attach the wheels with tires, using the lug nuts furnished and torque the mounting hardware to
the appropriate torque. Wheel bolts should be tightened at 340 ft/lbs. of torque.
2. Check the tires and inate to the recommended pressure.
(700/50R-26.5 tires to 35 psi)
3. Check for proper assembly and adjustment and make sure that all bolts are tightened.
4. Securely retighten after a few hours of operation, as bolts can loosen up on new machinery.
5. Lubricate the machine completely, check the oil level of the gearbox, ll if necessary.
-16-
WARNING: Some photographs used in the following pages show guards or
shields removed for clarication. Never operate machine until these guards or
shields are in proper operating position.
NOTE: Determine right or left side of the Manure Spreader by viewing it from the rear. If instructions
or parts lists call for hardened bolts, refer to the Cap Screw Torques Value page to identify.

-17-
TRANSPORT LIGHTING & REFLECTORS
When transporting on the highway, connect the spreader to the tractor with a lighting power cord. The
lighting system is to be connected to the 7 pin power receptacle (per SAEJ560B) on your tractor. If your
tractor is not equipped with the proper receptacle, see your tractor dealer for details. Make sure lights
are functioning properly. Regularly clean the reective tape at the rear of the spreader. There is a holder
provided for your SMV sign.
TRANSPORTING
SAFETY CHAIN (Optional)
Follow state and local regulations regarding use of a safety chain and transport lighting when towing
farm equipment on public highways. A proper safety chain should be used to retain the safety connection
between the towing and towed machines, in the event of separation of the primary attaching system. Check
with local law enforcement agencies for your own particular regulations. Unless otherwise prohibited, use
a slow-moving vehicle emblem. Never tow the manure spreader on a public highway at a speed greater
than 20 mph (32 kph).
1. The chain is su󰀩ciently slack to allow turns and movements of either the tractor or the manure
spreader, without placing tension on the chain.
2. The chain is of su󰀩cient strength to hold the decoupled implement (and its load) and tow it to the
shoulder.

PREPARING FOR OPERATION
Tractor Hitch
Fasten the spreader hitch to the drawbar with a hitch pin with a safety locking device. Use 1-1/2”
diameter hitch pin to pull spreader. Remove the weight from the jack (jack is not to be used when spreader
is loaded). The hitch of the spreader is designed for a standardized tractor hitch. Adjust the drawbar so that
it is 13 to 17 inches above the ground. Extend or shorten it so that the horizontal distance from the end
of the tractor power takeo󰀨 shaft to the center of the hitch pin hole is 15-3/4” for 1000 PTO as shown in
drawing. An improperly located hitch point may cause damage to the universal joints of the power takeo󰀨.
Secure the drawbar so that the hitch pin hole is directly below the power drive line.
TRACTOR CONNECTIONS
-18-
Hydraulics
The spreader requires a 4-hose hook-up;
1. Connect the set of hydraulic hoses which operates the Manure Spreader hydraulic apron drive from the
spreader to a double acting valve on the tractor.
2. Connect the set of hydraulic hoses which operate the hydraulic endgate to another double acting valve
on the tractor.
3. The hydraulic endgate must be raised completely prior to activating hydraulics for the apron.
4. Operate the tractor valve to ll the hydraulic lines and operate the cylinders. Add hydraulic uid to the
tractor system, as required.
Note: Before operation, run the machine slowly to make sure that the Manure Spreader is operating
and lubricated properly.
15-3/4” for 1000 RPM
