H&S MS80 User manual

Manufactured By
H&S MANUFACTURING CO.,INC.
P.O. BOX 768 [phone] FAX [phone]
MARSHFIELD, WISCONSIN 54449
WARNING
80 PT80 PT
80 PT80 PT
80 PTOO
OO
O
MANURE SPREADERMANURE SPREADER
MANURE SPREADERMANURE SPREADER
MANURE SPREADER
OPERAOPERA
OPERAOPERA
OPERATT
TT
TOR’S MANUOR’S MANU
OR’S MANUOR’S MANU
OR’S MANUALAL
ALAL
AL
Revision#01
StartingSerial#510919 HSMFG1014 Part#64235
READ AND UNDERSTAND THIS MANUAL
BEFORE OPERATING THIS EQUIPMENT.
UNSAFE OPERATION OR MAINTENANCE OF
THIS EQUIPMENT CAN RESULT IN SERIOUS
INJURY OR DEATH.

CONTENTS
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Manufacturer’s Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Pre-Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Safety Information - BeAlert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Information - Explanation of Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
SafetyInformation -Warning -Owner MustReadand Understand. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cap Screw Torque Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Set - Up & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Preparing for Opertation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Lubrication Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-24
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Service Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

-3-
Manure spreader was not damaged in shipment. Check for dents and loose or missing
parts. Report damage immediately to H&S Manufacturing Co., Inc.
All bolts and fasteners are tight.
Manure spreader has been correctly assembled according to instructions in this manual.
All grease fittings have been lubricated. Gearbox is filled to proper level.
Guards and shields are secure.
Wheels are properly mounted to torque specifications.
Tires are inflated to correct pressure.
Drive chain tension and alignment is correct.
Decals are in place and legible.
Main apron chains are adjusted properly.
DEALER PRE-DELIVERYCHECK LIST
AFTER COMPLETION, DEALER SHOULD REMOVEAND RETAIN FOR RECORDS
After the Manure Spreader has been completely set-up, check to be certain it is in correct operating
order before delivering to the customer. The following is a list of points to inspect. Check off each
item as you have made the proper adjustments and found the item operating satisfactorily.
Connect the manure spreader to a proper horsepower tractor and attach the PTO. Run the
manure spreader and make sure all components operate properly.
PTO guard turns freely.
Main apron operates smoothly.
Implement and all components are functioning properly.
(Remove Dealer File Copy At Perforation)
Serial #
Dealer’s Name
Signature of Pre-Delivery Inspector
Inspection Date
ModelNumber

Intentionally Left Blank
-4-

-5-
This check list that follows is an important reminder of valuable information that should be passed
on to the customer at the time this Manure Spreader is delivered.
Check off each item as you explain it to the customer.
This delivery check list, when properly filled out and signed assures the customer that the
Pre-delivery service was satisfactorily performed.
Explain to the customer that the pre-delivery inspection was made.
Explain to the customer all the safety precautions they must exercise when operating
this unit.
Explain recommended loads for different types of materials.
Explain to customer that regular lubrication is required for proper operation and long life of
machine.
Show customer the lubrication section of Owner’s Manual.
Give the customer Owner’s Manual and make sure they read and understand all operating
and service instructions.
Have the customer sign a completed “Warranty Registration”, and mail it.
DEALER DELIVERYCHECK LIST
(Remove Dealer File Copy At Perforation)
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
Date Delivered
Dealer’s Name
By
Signature of Original Buyer
Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.

Intentionally Left Blank
-6-

YOURSAFETY
ISINVOLVED.
-7-
BE
ALERT!
THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY
IS INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE
BEST OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN
PRECAUTIONS MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR
DAMAGE.
SAFETYINFORMATION
H&S MANUFACTURING CO., INC.

-8-
RECOGNIZE SAFETY INFORMATION
This is the safety-alert symbol. When you see this
symbol on your machine or in this manual, be alert to
the potential for personal injury.
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
Asignal word; DANGER, WARNING, or CAUTION - is
used with the safety-alert symbol. DANGER identifies the
most serious hazards.
Safety signs with signal word DANGER or WARNING are
typically near specific hazards.
General precautions are listed on CAUTION safety signs.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.
SAFETY INFORMATION
OBSERVE MAXIMUM TRANSPORT SPEED
The maximum transport speed for this implement is 32 km/h (20 m.p.h.).
Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.
Exceeding the implements maximum transport speed can result in:
* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components
Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.
Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.
Keep signs in good condition. Immediately replace any missing or damaged signs.

SAFETY INFORMATION
-9-

SAFETY INFORMATION
-10-

-11-
TO PREVENT SERIOUS INJURY OR DEATH
Study The Above Safety Rules
ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED
BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFETYPRECAUTIONS.
KNOW HOW TO STOPUNLOADING MECHANISM BEFORE STARTING IT.
If the machine becomes clogged, disengage the PTO. Stop the tractor engine, remove ignition key, and
allow all mechanisms to stop before cleaning or working on the machine.
DO NOT get off the tractor while the spreader is in operation.
DO NOT attempt to perform maintenance or repair with tractor running and PTO engaged.
DO NOT step up on machine at any time.
NEVER manually feed material into the beaters.
DO NOT allow minors to operate or be near the machine.
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE.
Before starting tractor, be sure PTO shields turn freely and PTO is securely locked to tractor.
DO NOT clean, adjust, or lubricate the machine when any part is in operation.
Keep hands, feet, and clothing away from beaters when they are revolving.
Loose or floppy clothing should not be worn by the operator.
Be sure the machine is clear of people, tools, and other objects before engaging PTO.
DO NOT step over power take off shaft. Stay clear of PTO at all times.
NEVER start manure spreader until all guards and safety shields are secured in place.
H&S always takes the operator and their safety into consideration and guards exposed moving parts for
their protection. However, some areas cannot be guarded or shielded in order to assure proper operation. In
addition,theoperatorsmanualanddecalsonthemachineitselfwarnyouoffurtherdangerand should be
read and observed closely.
TRACTOR:
This operators manual uses the term “Tractor” when identifying the power or the towing
source.
WARNING
SAFETY INFORMATION

-12-

SET-UP & ASSEMBLY
PREPARING MANURE SPREADER

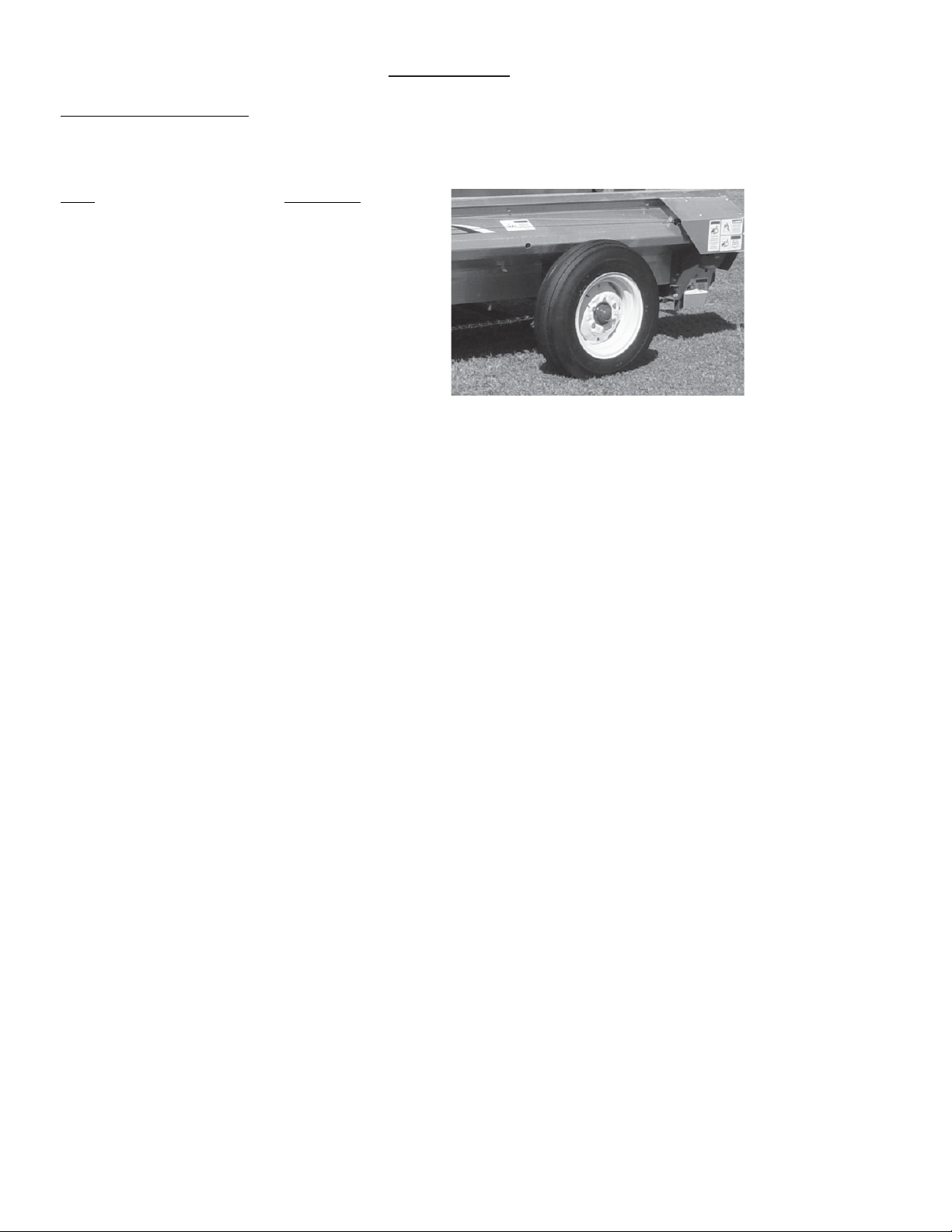

The Manure Spreader may be shipped without the wheels/tires installed.
1. Attach the wheels with tires, using the lug nuts furnished and torque the mounting hardware to
the appropriate torque. Wheel bolts should be tightened at 60-65 ft./lbs. of torque.
2. Check the tires and inflate to the recommended pressure. (6.70 - 15 tires to 32 Pounds).
3. Check for proper assembly and adjustment and make sure that all bolts are tightened.
4. Securely retighten after a few hours of operation, as bolts can loosen up on new machinery.
5. Lubricate the machine completely, check the oil level of the gearbox, fill if necessary.
TRANSPORTING
SAFETY
Follow state and local regulations when towing farm equipment on public highways. Check with local
law enforcement agencies for your own particular regulations. Unless otherwise prohibited, use a
slow-moving vehicle emblem. Never tow the manure spreader on a public highway at a speed greater
than 20 m.p.h. (32 kph).
NOTE: Determine right or left side of the Manure Spreader by viewing it from the rear. If instructions or
parts lists call for hardened bolts, refer to the Cap Screw Torque Value Chart.
-13-

-14-
PREPARING FOR OPERATION
Tractor Hitch
Fasten the spreader hitch to the drawbar with a hitch pin with a safety locking device. Remove the
weight from the jack (jack is not to be used when spreader is loaded). Remove jack from pipe mount
and place on convenient storage mount located on the left front of spreader. This allows protection of
jack from tractor tires during turns. The hitch of the spreader is designed for a standardized tractor hitch.
Adjust the drawbar so that it is 13 to 17 inches above the ground. Extend or shorten it so that the
horizontal distance from the end of the tractor power takeoff shaft to the center of the hitch pin hole is 14
inches for 540 PTO as shown in drawing. An improperly located hitch point may cause damage to the
universal joints of the power takeoff. Secure the drawbar so that the hitch pin hole is directly below the
power drive line.
TRACTOR CONNECTIONS
Ifthis implement is attached to a tractor withaclevis
hitch (hammer-strap) style drawbar, the
hammer-strap must be removed to prevent
damage to the IID guarding and the IID telescoping
members. [See Figure1]
If this implement is attached to a tractor with an
offset in the drawbar, be certain it is in the down
position to prevent damage to the IID guarding and
the IID telescoping members. [See Figure 2]
PTO
Attach the PTO of the spreader to the tractor by sliding the spring loaded locking collar on PTO yoke
rearward, then sliding it onto the tractor PTO shaft. Release spring loaded collar. Be sure the pins fall
into the groove of the tractor PTO shaft and collar snaps forward into locking position.
CAUTION: Do not use a steel hammer to aid in joining PTO parts.

-15-
LOADING
In freezing weather, make certain that the apron chain is not frozen to the spreader floor or any lumps of
manure are frozen to the floor. Begin loading the spreader at the front end and work toward the rear until
loading is completed. Loading this way permits the material to be spread uniformly. Loading front to rear
is particularly important when the spreader is loaded by a mechanical loader because this type of load
requires more power to spread than others loads. When hauling extremely heavy materials with a large
portion of dirt, it may be necessary to reduce the load size to prevent excessive shear bolt breakage.
Neverdump material onto the beater. Do not use extrasideboards.Do not overload the manurespreader.
Overloading decreases spreading effectiveness. Do not load more than 15 inches above the beater.
FAILURE TO FOLLOW THE RECOMMENDED ADJUSTMENTS WILL VOID WARRANTY
OPERATION
SPREADING
1. When you are ready to unload, make sure the beater is in the engaged position.
2. Throttle the tractor down, engage the tractor PTO slowly, then increase the throttle to 540 RPM’s and
begin moving. Failure to do so will cause damage to the gearbox and drive train.
3. When the spreader is almost empty, the bed can be cleaned by moving the beater control lever to the
disengaged position. Disengage the PTO and shut the tractor off before getting off the tractor to
disengage the beater. With the lever in this position the beater will stop and the apron will continue to
operate when the PTO is re-engaged.
4. When spreader is empty, shut off the PTO. With the PTO off, return to the lever to the “engaged”
position for the next load.
DO NOT SHIFT FROM CLEAN OUT TO ENGAGEMENT POSITION WITH THE PTO RUNNING.
5. Do not operate the spreader with the PTO speed greater than 540 RPM’s.
BEATER CONTROL
The beater engage/disengage handle is located at the front left hand
side of the spreader. NEVER engage or disengage the beater with the
PTO engaged.
Beater Disengaged

ADJUSTMENTS
DRIVE CHAIN
To adjust the main drive chain, loosen the three
bolts holding the front center panel on to the
spreader. Slide the panel toward the right side
ofthe spreader until thepropertension on chain
is reached. There should be 1/2” deflection at
the center of the drive chain when it is properly
adjusted. Retighten the bolts holding the front
panel. Over tightening or too loose of a chain
will result in excessive wear on the bearings,
chain and sprockets.
Shields Removed For Clarity
3
Bolts
MAIN APRON CHAIN
Adjust the apron by tightening the adjusting bolts located at
the front of the spreader until the apron chain rests lightly on
top of the chain guides located bellow the axle.
NOTE: Tighten the adjusting bolts on each front corner
equally on each side so that the apron slats run parallel with
the ends of the bed. The apron will be damaged if the
machine is operated with one end of the apron slats running
ahead of the opposite end. Do not tighten the apron chains
excessively.
Tightener Bolt
-16-
APRON DRIVE CHAIN
Maintainproper tension on theaprondrive chain. There shouldbea
1/4“ deflection at the side of the chain when properly adjusted. To
adjust,loosentheboltholdingthe tightener.Slidethe tighteneragainst
the drive chain and retighten the bolt. Failure to maintain proper
tension will result in excessive wear to the chain and sprocket.
Shields
Removed
for
Clarity
TightenerBolt

-17-
SHEAR BOLT
The beater and apron drive are protected
by one shear bolt. Two shear bolts are
provided.Shearingofthe bolt is normally
due to foreign objects in the manure,
or starting the spreader PTO too quickly
withhigh tractor RPM’s.Alwaysuse H&S
shear bolts.
Spare
Shear
Bolts
Shear
Bolt
Shields Removed For Clarity
WHEEL HUBS
To service or adjust the wheel hubs, tighten the
castellated nut on the spindle to the point where
there is no end-play and a slight drag on the
bearings. Replace the cotter key with a new one
of the correct size.
BEATER
The beater paddles are welded to the beater
tube. Replacement of these paddles should be
performed by authorized service personnel who
arecompetentwelders.When replacing paddles,
the sharp edge of the teeth must lead in the
direction of beater travel.
SERVICE

-18-
TIRES & WHEELS
Check the tire pressure after every 50 hours of operation. Tires should be inflated to the appropriate
pressure listed in the table.
Tire Pressure
6.70x15 32 PSI
Wheel lug torque should be checked after every 50 hours of operation and tightened to the appropriate
torque.
Wheel bolts must be tightened between 60-65 ft./lbs. of torque.
SERVICE
