Haneco STAX20W4K User manual

Thanks for choosing the STAX LED Floodlight. We strongly recommend that you read this manual carefully before installation.
Product Specication
STAX Eco
HANECO LED FLOODLIGHT INSTALLATION GUIDE
For more information
www.haneco.com.au
1300 001 LED

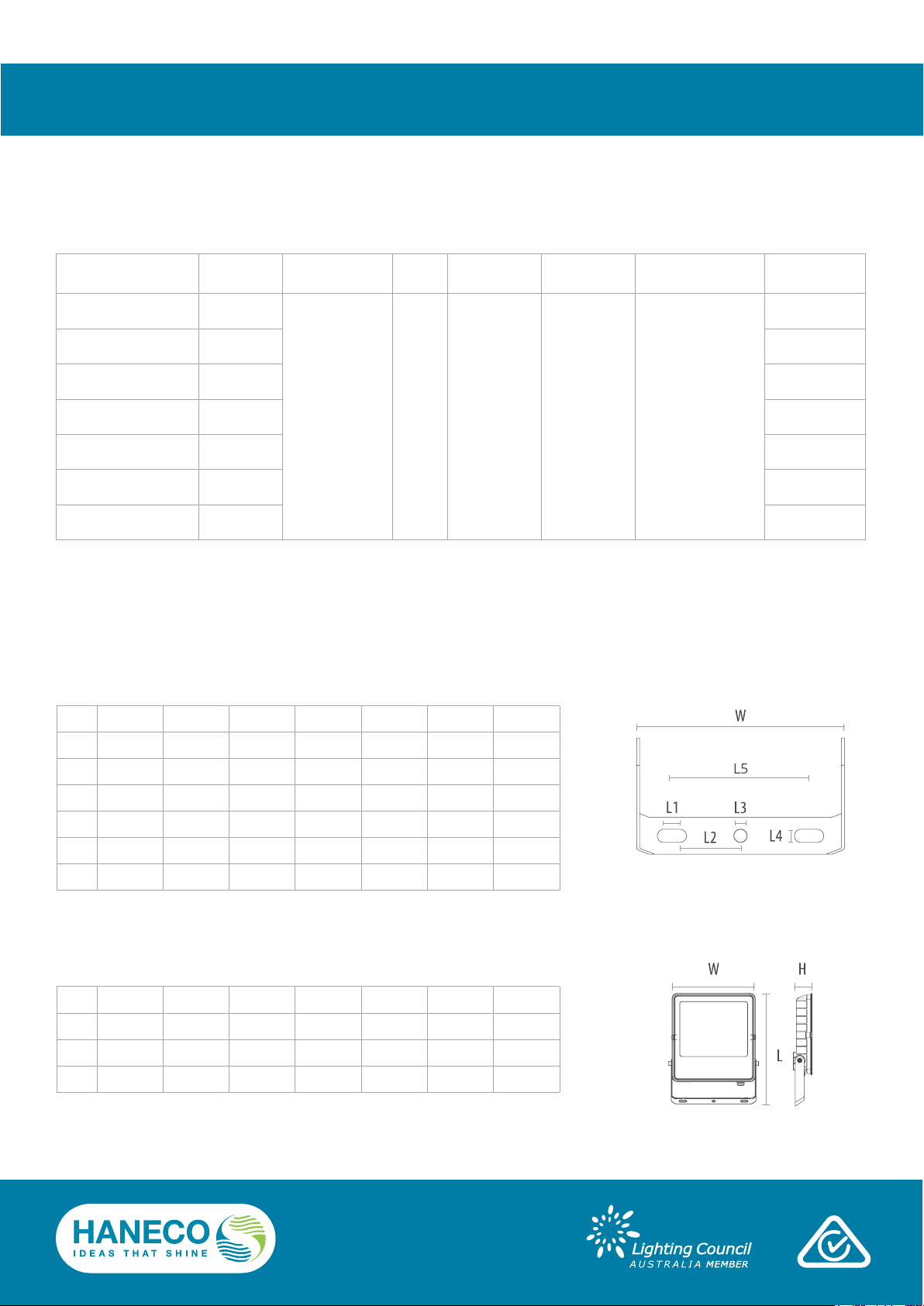

Bracket Dimensions:
Dimensions for installation
Product Dimension:
PRODUCT CODE POWER VOLTAGE/
FREQUENCY PF IK RATING IP RATING OPERATING TEMPERATURE NET WEIGHT
STAX20W4K 20W
220-240Vac
50Hz-60Hz ≥0.9 IK08 IP66 -20 - +45°C
0.6kg
STAX30W4K 30W 0.6kg
STAX15W30W-TRI 15W/30W 0.6kg
STAX50W-TRI 50W 1.2kg
STAX100W4K 100W 1.8kg
STAX150W4K 150W 2.4kg
STAX200W4K 200W 2.8kg
20W 30W 15/30W 50W 100W 150W 200W
L1 10 mm 10 mm 11.7 mm 10 mm 25 mm 25 mm 25 mm
L2 50 mm 50 mm 34 mm 50 mm 70 mm 100 mm 100 mm
L3 5.5 mm 5.5 mm 5.3 mm 5.5 mm 11 mm 11 mm 11 mm
L4 5.5 mm 5.5 mm 5.3 mm 5.5 mm 11 mm 11 mm 11 mm
L5 110 mm 110 mm 79.7 mm 110 mm 165 mm 225 mm 225 mm
W155 mm 155 mm 132 mm 216 mm 276 mm 317 mm 357 mm
20W 30W 15/30W 50W 100W 150W 200W
L186.88 mm 186.88 mm 178.5 mm 194.04 mm 233.21 mm 283.62 mm 316.83 mm
W164.9 mm 164.9 mm 140 mm 232.9 mm 289.16 mm 330.16 mm 376.16 mm
D18.47 mm 18.47 mm 26 mm 44.42 mm 39.42 mm 39.42 mm 39.42 mm

The luminaire must be installed by professional electrician.
Switch power o when wiring the luminaire.
Ensure input voltage conforms to the voltage range of product.
Ensure wires are securely connected.
Before switching on, ensure that all the wiring is correct.
The warranty is void if product is not installed according to the instructions.
WARNING Product Code: STAX20W4K
STAX30W4K
STAX15W30W-TRI
STAX50W-TRI
STAX100W4K
STAX150W4K
STAX200W4K
For more information
www.haneco.com.au
1300 001 LED
1. Ensure mains supply is switched o before commencing installation.
2. Mark wall with appropriate xing position and install the bracket with appropriately rated xing hardware.
Installation
3. Adjust luminaire to the desired angle.
4. Connect luminaire to 240V main supply as per diagram.
Brown: L
Blue: N
Yellow & Green:
