Hang ups Teeter Power II Inversion Table User manual

Patent applies.
ASSEMBLYINSTRUCTIONS
Power IITM
ITEMSFORASSEMBLY ITEM #’s
Bed Frame P11000
Chain with Manual Crank P15004
Rear Frame P11001
Front Frame P11002
Main Shaft w/ Gravity Lock P19521
Locking Knobs (2) P11003
Handles (2) P11015
DONOTDISCARD - KEEPFORFUTURE REFERENCE.
Figure A
Note: The Bed Frame arrives rotated into the fully inverted position. This is the
most convenient position from which to begin the assembly process.
STEP ONE
Secure Rear Frame (P11001) to Bed Frame (P11000)
• InserttheRearFrameintotheBedFrame(thelogoonthebedwillbefacing
therear).(SeeFigureA) Make sure the spring-loadedlockingpinson each
leg pop through the holes and that the legs are attached securely.
WARNING: Bed Frame weighs 55 lbs. If you are unsure of your
ability to comfortably lift this weight, please seek assistance in
assembling this product.
STEP TWO
Secure Front Frame (P11002) to Bed Frame Assembly (P11000)
• Insert the Front Frame into the Bed Frame. Make sure the spring-loaded
locking pins on each leg pop through the holes and that the legs are
attachedsecurely.
ASSEMBLY
Before you begin: These instructions will guide you in properly assembling the unit. Please review all the steps before beginning assembly.
Carefully adhere to the Assembly Instructions and Owner’s Manual to help ensure user safety and product integrity.
Front Frame
Rear Frame
locking pin holes
Carefully remove the individual parts from the
carton. You should have all of the items listed
below. If any items are missing or damaged,
contact your retailer or customer service directly
(See reverse side).
BedFrame
P11000
P15004
Manual
Crank
P11001
RearFrame
Front Frame
P11002
!WARNING
1. It is your responsibility to familiarize yourself with the proper use of the equipment and the inherent risks of inversion, such as falling on your
head or neck, pinching, entrapment or equipment failure.
2. This product is not designed for persons over 6ft 6in (198 cm) or 300 lbs (136 kg). Structural failure could occur or head/neck may impact floor
during inversion. Serious injury or death could result.
3. DO NOT use the equipment without a licensed physician’s approval and a review of the medical contraindications, as noted in the Owner’s Manual.
4. Failure to assemble and/or use the equipment as directed may void the manufacturer’s warranty on this product and could result in injury or death.
5. DO NOT use the inversion table until you have thoroughly and carefully read the Owner’s Manual, reviewed all other accompanying
documents, and inspected the equipment.
6. This product requires a grounded outlet. Improper connection to a 3-prong grounded outlet can result in electrical shock.
7. Choose a level surface for assembling and operating the table.
8. Follow each step in sequence. Do not skip ahead.
9. Make sure that all fasteners are secure.
10. PRIOR TO USE, test and inspect the table. Make sure that the table rotates smoothly to the inverted position and back.
11. Replace defective components immediately and/or keep the equipment out of use until repair.
12. Refer to additional warning notices and information posted on the equipment.
Ensure that the spring-loaded locking pins are attached securely and
that the front and rear frames sit evenly on the floor.
Improper assembly could result in serious injury or death.
!WARNING
P19521
Gravity Lock
P11003
arriveassembled
inthemainshaft
Locking Knobs
P11015
Handles

• ReadyourOwner’sManualthoroughlybeforeusingthe inversion table.
• Foryourreference,thetable’sserialnumbercanbefound on a sticker mounted to the motor housing.
You have completed the assembly of your Power IITM Inversion Table.
ASSEMBLY
Figure B

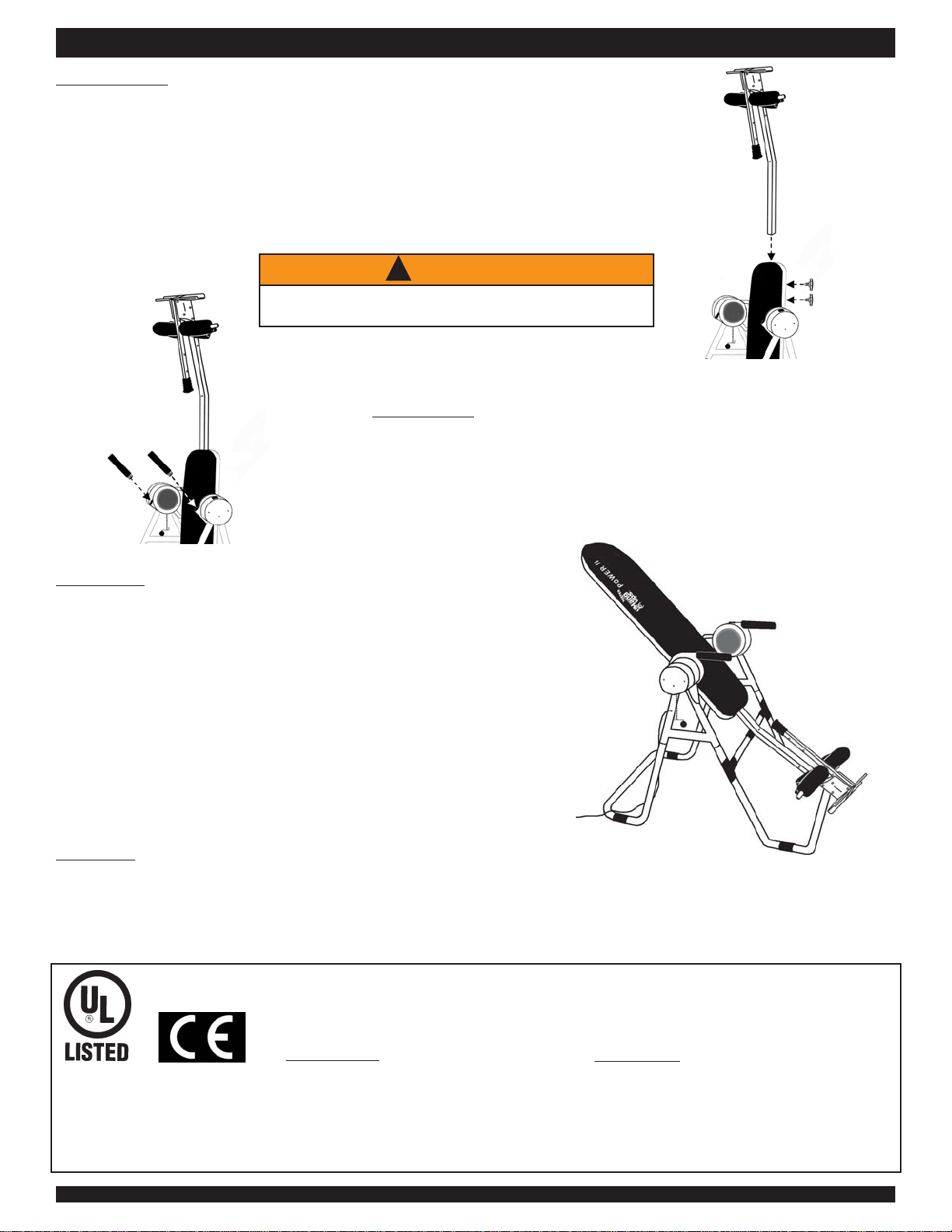

STEP THREE
Secure Main Shaft with Gravity Lock (P19521) to Bed Frame (P11000)
• RemovetheLocking Knobs (P11003) from the holesin the Main Shaftwith
GravityLock(theyarepre-assembledforshippingpurposes).
• Insert the Main Shaft with Gravity Lock into the Bed Frame. (See Figure B)
• Line up the holes on the back of the Bed with those on the Main Shaft with
Gravity Lock. Insert and hand-tighten both Locking Knobs to secure the Main
Shaft with Gravity Lock to the Bed Frame.
STEP FOUR
Secure Handles (P11015) to Bed Frame (P11000)
• Insert and tighten the Handles into the arms on both sides of the Bed
Frame. (SeeFigureC)
Figure C
Assembly Instructions #LP-9525 Pg. 2
For information regarding Teeter Hang Ups®2-year warranty, to order replacement labels or manuals, or
if you have any problems assembling the equipment or questions about its use, please contact Customer
Service at the appropriate location below:
USA & Canada:
STL International, Inc.
9902 162nd St. Ct. E., Puyallup, WA98375
Toll Free (Phone) 800-847-0143 (Fax) 800-847-0188
Local (Phone) 253-840-5252 (Fax) 253-840-5757
(email) [e-mail]
(web) www.STLIntl.com
Patentapplies.
TeeterHangUps®isaregisteredtrademarkofSTL
International,Inc.andInversionInternational,Ltd.
Specificationssubjecttochangewithoutnotice.
©COPYRIGHT2006,STLInternational,Inc.and
InversionInternational,Ltd.
InternationalLawProhibitsAnyCopying,01/06-3
International:
Inversion International, Ltd.
PO Box: AP 59245, New Providence Island, Bahamas
(Phone) [phone]
(Fax) [phone]
(email) [email protected]
(web) www.InversionInternational.com
STEP SIX Front Frame
Rear Frame
Figure D
Failure to secure Locking Knobs could cause head to
impact the floor, resulting in serious injury or death.
!WARNING
STEP FIVE
Connect cord to the power source
• Connect the cord to your power source and rotate the Bed upright using
the rotation control button.The table must operate smoothly. If the table
does not operate smoothly there is a malfunction and you should contact
customerservice.
*GROUNDINGINSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This product is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
