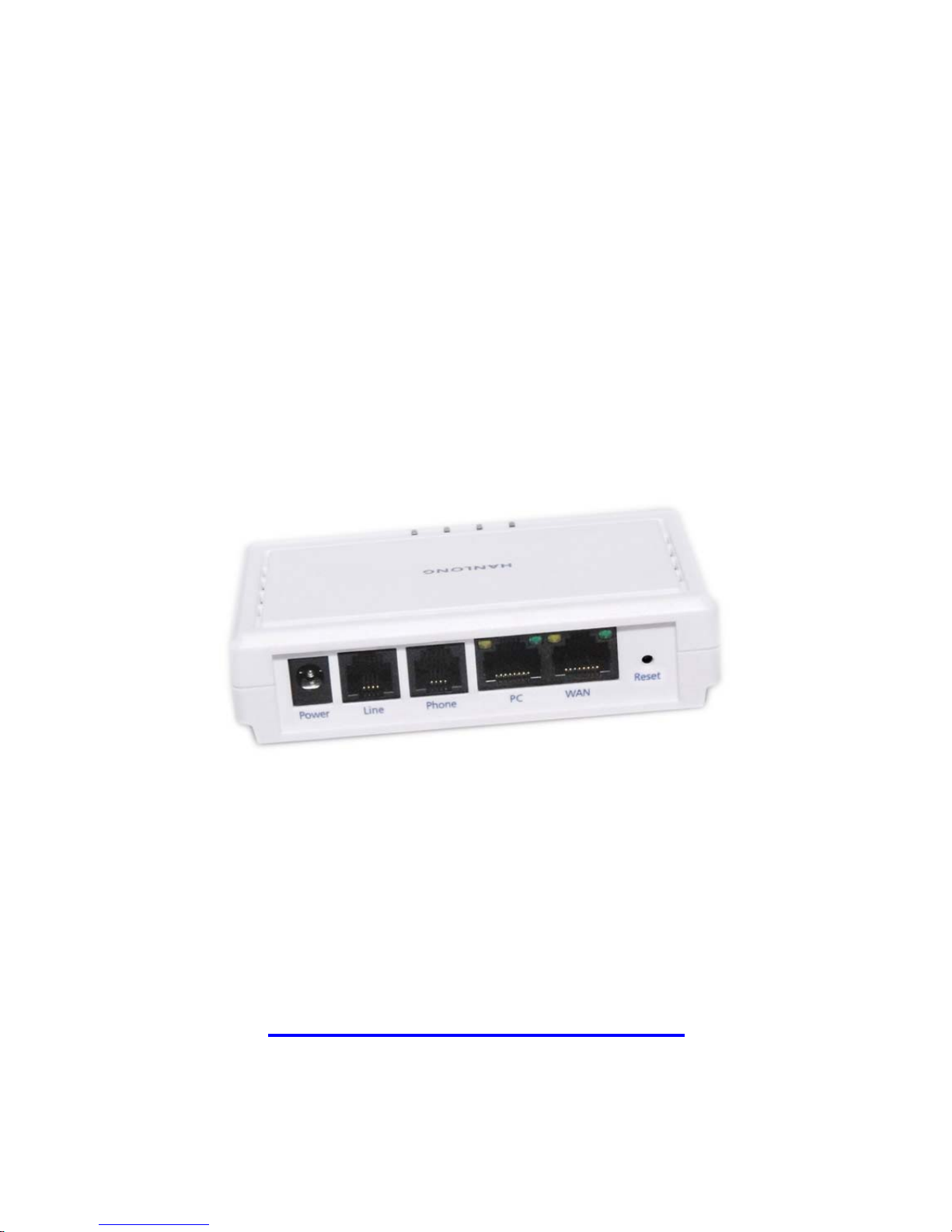

Hanlong Unicorn 3101 User manual

User Manual
Unicorn 3101
Analog Telephone Adaptor
Hanlong Technology Co., Ltd
http://www.hanlongtek.com

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 2 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
Table of Content
1WELCOME................................................................................................................ 3
2WHAT IS IN THE PACKAGE..................................................................................... 3
3PRODUCT OVERVIEW............................................................................................. 3
3.1 Key Features ............................................................................................... 3
3.2 Hardware specification ................................................................................ 4
4INSTALLATIONS....................................................................................................... 5
4.1 Safety .......................................................................................................... 6
5BASIC OPERATIONS ............................................................................................... 6
5.1 Get Familiar with Voice................................................................................ 6
5.2 Make Phone call.......................................................................................... 8
5.2.1 Calling Phone or Extension Numbers................................................... 8
5.2.2 Call Hold............................................................................................... 8
5.2.3 Call Waiting .......................................................................................... 8
5.2.4 3-way Conferencing.............................................................................. 8
Star Code Style 3-way Conference..................................................................... 8
Bellcore Style 3-way Conference........................................................................ 9
5.2.5 Direct IP-to-IP Calls.............................................................................. 9
5.2.6 Blind Transfer ..................................................................................... 10
5.2.7 Attended Transfer............................................................................... 10
5.2.8 Make and Receive PSTN Calls ...........................................................11
5.3 Call Features ..............................................................................................11
5.3.1 Call Features Tables............................................................................11
5.3.2 PSTN Pass Through........................................................................... 12
5.4 FAX............................................................................................................ 12

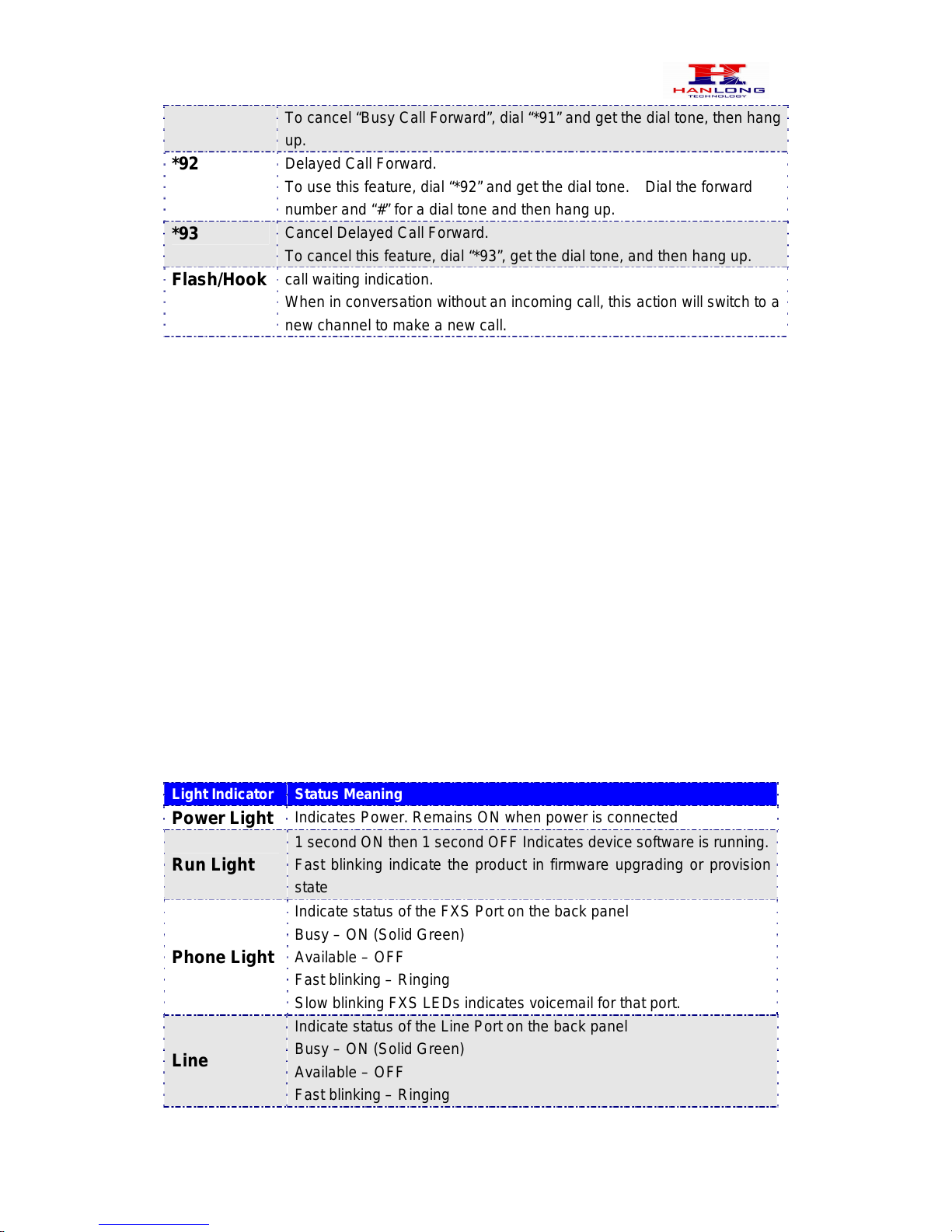

5.5 Status Light Indicator................................................................................. 12
6CONFIGURATION GUIDE....................................................................................... 13
6.1 Configuring Unicorn3101 using Web Browser........................................... 13
6.1.1 Accessing the Web Configuration....................................................... 13
6.1.2 Programming Unicorn 3101 via the LAN Port..................................... 13
6.1.3 Programming Unicorn 3101 via the WAN Port ................................... 14
6.1.4 User Programming and Configuration ................................................ 14
6.1.5 Passwords.......................................................................................... 14
6.1.6 Configuration Options and Explanations ............................................ 15
6.1.6.1 Device Status.............................................................................. 15
6.1.6.2 Basic Options Settings................................................................ 15
6.1.6.3 Super Options Setting................................................................. 17
6.1.6.4 FXS Port ..................................................................................... 18
6.1.7 Saving the Configuration Changes..................................................... 25
6.1.8 Rebooting the Unicorn 3101............................................................... 26
6.2 Configuring Unicorn 3101 via Voice Prompt.............................................. 26
6.2.1 DHCP Mode ....................................................................................... 26

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 3 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
6.2.2 Static IP Mode .................................................................................... 26
6.3 Configuration through a Central Server..................................................... 26
7SOFTWARE UPGRADE.......................................................................................... 27
8RESTORE FACTORY DEFAULT SETTINGS.......................................................... 27
9TECHNICAL SUPPORT CONTACT........................................................................ 28
1 WELCOME
Unicorn 3101 is an all-in-one VoIP integrated access device that features superb audio
quality, rich functionalities, high level of integration, compactness and ultra-affordability.
The Unicorn 3101 is fully compatible with SIP industry standard and can interoperate with
many other SIP compliant devices and software on the market.
Special compatibility features include:
Nortel MCS
Standard SIP
Broadsoft
Howdy
2 WHAT IS IN THE PACKAGE
The Unicorn 3101 package contains:
One Unicorn 3101 VoIP adapter
One universal power supply
One Ethernet cable
One phone cable
3 PRODUCT OVERVIEW
3.1 Key Features
Supports SIP 2.0(RFC 3261), TCP/UDP/IP, RTP/RTCP, HTTP, ICMP, ARP/RARP,
DNS, DHCP (both client and server), NTP, PPPoE, STUN, TFTP, etc.
Built-in router, NAT, Gateway and DMZ port forwarding
Supports call origination and termination from/to the PSTN network
Powerful digital signal processing (DSP) to ensure superb audio quality;
advanced adaptive jitter control and packet loss concealment technology
Support various vocoders including G.711 (a-law and u-law), G.723.1

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 4 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
(5.3K/6.3K,optional), G.726 (32K), as well as G.729A/B, and iLBC(Pending).
Support Caller ID/Name display or block, Hold, Call Waiting/Flash, Call Transfer, Call
Forward, in-band and out-of-band DTMF, Dial Plans, etc.
Support fax pass through and T.38.
Support Silence Suppression, VAD (Voice Activity Detection), CNG (Comfort Noise
Generation), Line Echo Cancellation (G.168), and AGC (Automatic Gain Control)
Support standard encryption and authentication (DIGEST using MD5 and MD5-sess)
Signaling and call encryption via TLS and SRTP, enabling enterprise-class security.
Support snmp v2
Support for Layer 2 (802.1Q VLAN, 802.1p) and Layer 3 QoS (ToS, DiffServ, MPLS)
Support automated NAT traversal without manual manipulation of firewall/NAT ,and
STUN, UPNP.
Support device configuration via built-in IVR, Web browser or central configuration file
through TFTP or HTTP
Support firmware upgrade via TFTP or HTTP with encrypted configuration files.
Support volume amplification
Support configurable Call Progress Tones
Ultra compact (wallet size) and lightweight design, great companion for travelers
Compact, lightweight Universal Power adapter.

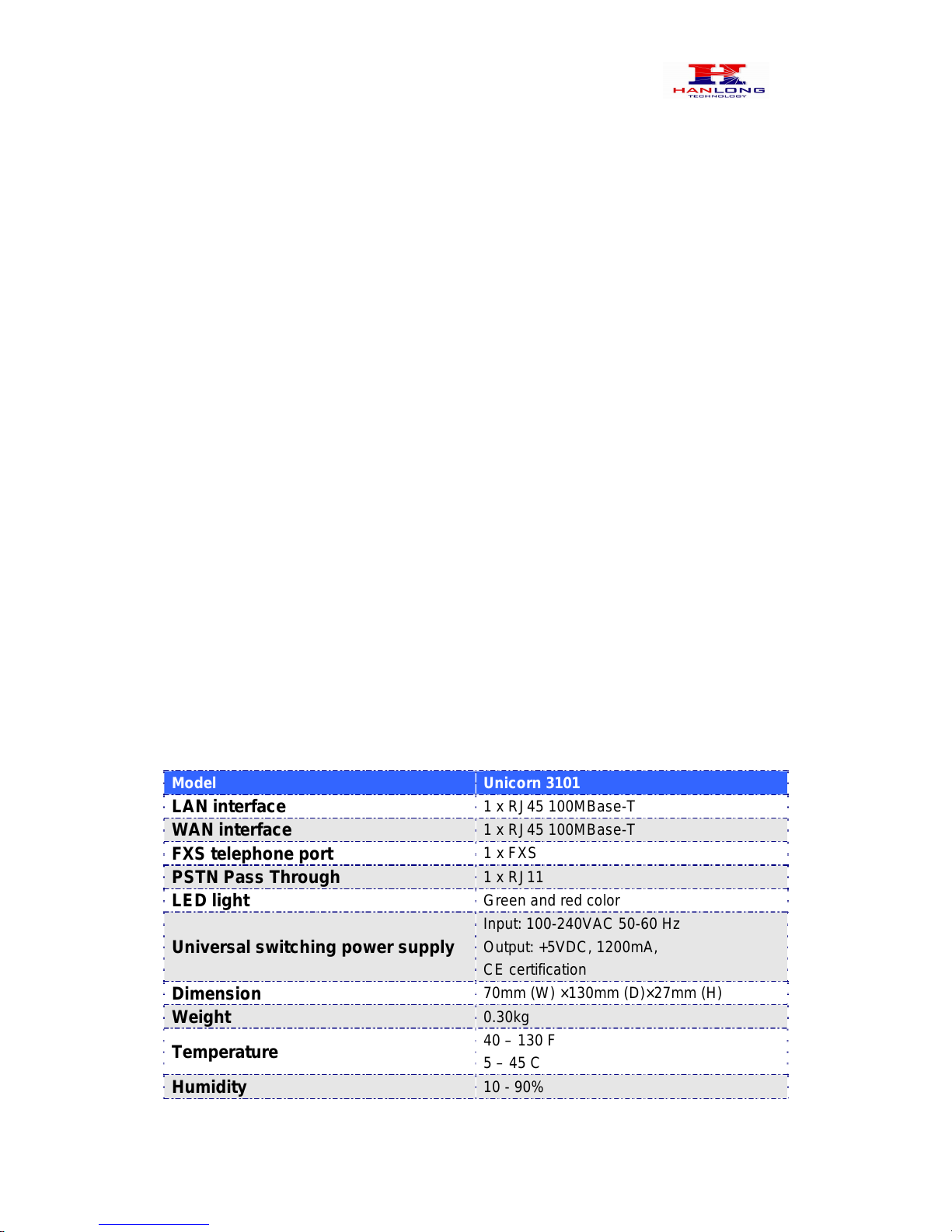

3.2 Hardware specification
Model Unicorn 3101
LAN interface 1 x RJ45 100MBase-T
WAN interface 1 x RJ45 100MBase-T
FXS telephone port 1 x FXS
PSTN Pass Through 1 x RJ11
LED light Green and red color
Universal switching power supply Input: 100-240VAC 50-60 Hz
Output: +5VDC, 1200mA,
CE certification
Dimension 70mm (W) ×130mm (D)×27mm (H)
Weight 0.30kg
Temperature 40 – 130 F
5 – 45 C
Humidity 10 - 90%

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 5 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
4 INSTALLATIONS
The Unicorn 3101 is an all-in-one VoIP integrated device designed to be a total solution for
networks providing VoIP services. The Unicorn 3101 VoIP features are available when
you connect any regular analog telephone to it.
Unicorn 3101 has one FXS port (labeled “Phone”) and one PSTN pass through port
(labeled “Line”). After setting up the Unicorn 3101, you can make PSTN calls by pressing
*00. Without pressing *00, all your calls will be VoIP. You can also receive PSTN calls and
VoIP calls.

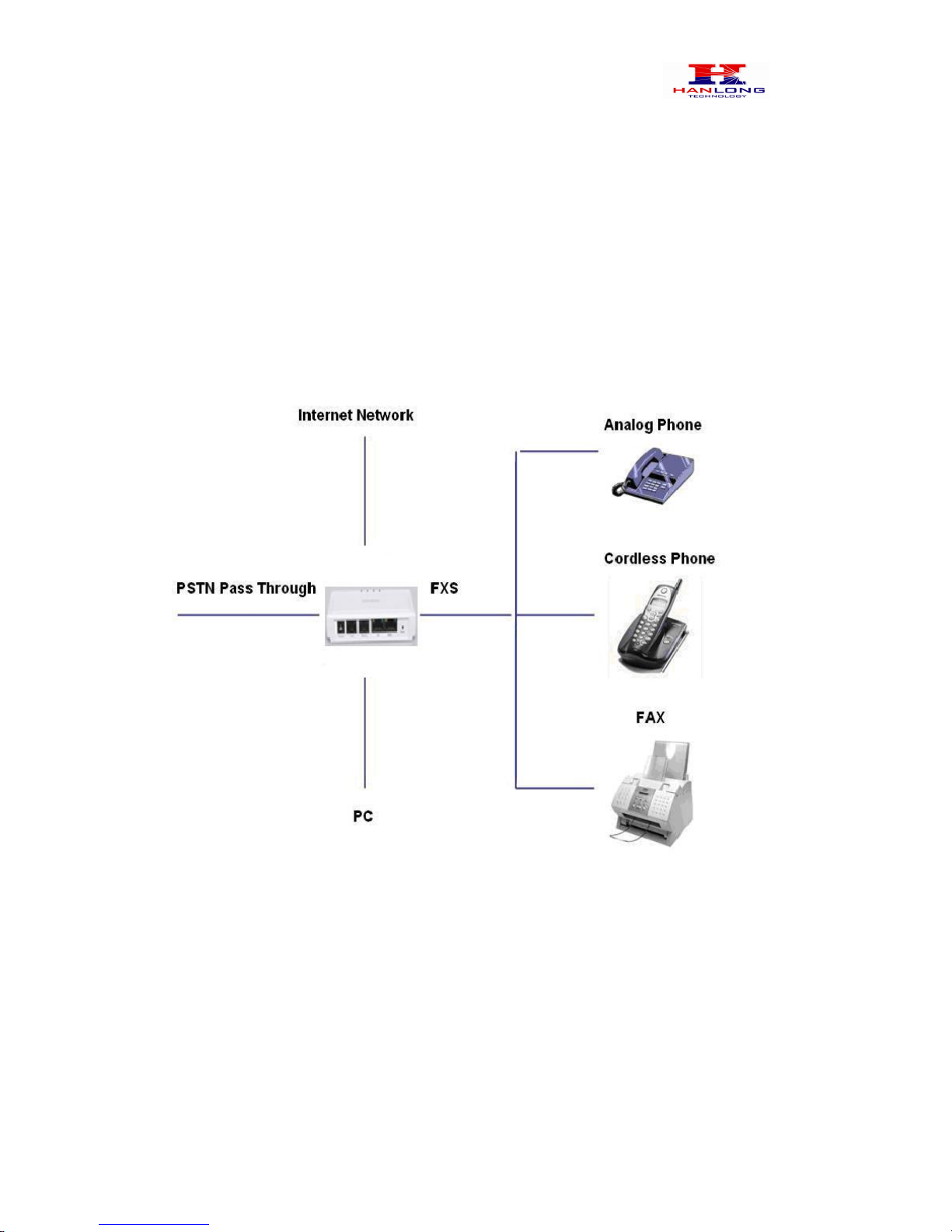

The following photo illustrates the Interconnection Diagram of the of a Unicorn 3101:
Following are the steps to install a Unicorn 3101:
Connect a standard touch-tone analog telephone to the “Phone” port.
Insert a standard RJ11 telephone cable (included with package) into the “Line” port
and connect the other end of the telephone cable to a wall jack.
Connect a PC to the LAN port of Unicorn 3101 (Ethernet cable is included with
package).
Insert another Ethernet cable into the WAN port of Unicorn 3101 and connect the
other end of the Ethernet cable to an uplink port (a router, switch, hub, modem, etc)

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 6 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
Insert the powers supply (included with package) into the Unicorn 3101 and connect
it to a power outlet.
4.1 Safety
The Unicorn 3101 is compliant with various safety standards including FCC/CE and C-
Tick. Its power adaptor is compliant with UL standard. The Unicorn 3101 should only
operate with the universal power adaptor provided in the package.
Warning: Please do not use a different power adapter. Using other power
adapter may damage the Unicorn 3101 and will void the manufacturer
warranty!
Caution: Changes or modifications to this product not expressly approved by Hanlong
Technology, or operation of this product in any way other than as detailed by this User
Manual, could void your manufacturer warranty.
Information in this document is subject to change without notice. No part of this document
may be reproduced or transmitted in any form or by any means, electronic or mechanical,
for any purpose without the express written permission of Hanlong Technology.
5 BASIC OPERATIONS
5.1 Get Familiar with Voice
Unicorn 3101 has stored a voice prompt menu for quick access to settings and simple
configuration. You can enter this voice prompt menu one ways
Pick up the receiver (or press the Handsfree button) of the analog telephone and
press “***”
A voice will say, “Enter the new option.” At this point, you can select from the following
menu voice prompt options to begin using the Unicorn 3101:
Menu Voice Will Say the Following:
Main
Menu “Enter a Menu Option” Enter “*” for the next menu option
Enter “#” to return to the main menu
Enter 01 – 07,12 - 17, 47, 86 or 99 Menu
option
01 “DHCP Mode”, “Static IP Mode” Enter ‘9’ to toggle the selection
If user selects “Static IP Mode”, user need
configure all the IP address information
through menu 02 to 05.
If user selects “Dynamic IP Mode”, the
device will retrieve all IP address
information from DHCP server

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 7 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
automatically when user reboots the
device.

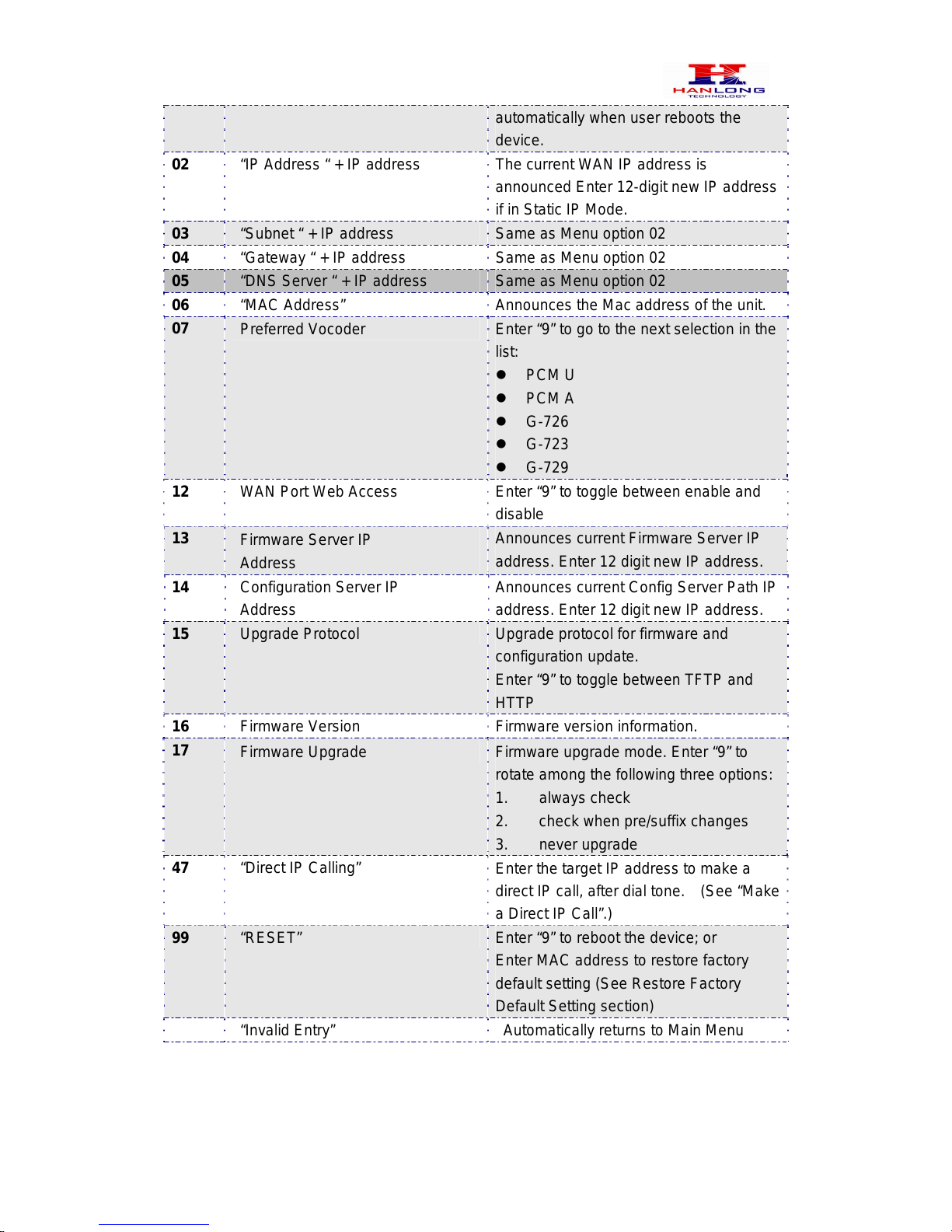

02 “IP Address “ + IP address The current WAN IP address is
announced Enter 12-digit new IP address
if in Static IP Mode.
03 “Subnet “ + IP address Same as Menu option 02
04 “Gateway “ + IP address Same as Menu option 02
05 “DNS Server “ + IP address Same as Menu option 02
06 “MAC Address” Announces the Mac address of the unit.
07 Preferred Vocoder Enter “9” to go to the next selection in the
list:
PCM U
PCM A
G-726
G-723
G-729
12 WAN Port Web Access Enter “9” to toggle between enable and
disable
13 Firmware Server IP
Address Announces current Firmware Server IP
address. Enter 12 digit new IP address.
14 Configuration Server IP
Address Announces current Config Server Path IP
address. Enter 12 digit new IP address.
15 Upgrade Protocol Upgrade protocol for firmware and
configuration update.
Enter “9” to toggle between TFTP and
HTTP
16 Firmware Version Firmware version information.
17 Firmware Upgrade Firmware upgrade mode. Enter “9” to
rotate among the following three options:
1. always check
2. check when pre/suffix changes
3. never upgrade
47 “Direct IP Calling” Enter the target IP address to make a
direct IP call, after dial tone. (See “Make
a Direct IP Call”.)
99 “RESET” Enter “9” to reboot the device; or
Enter MAC address to restore factory
default setting (See Restore Factory
Default Setting section)
“Invalid Entry” Automatically returns to Main Menu
Other Menu Prompt Features:
Just like pressing “***” on the analog telephone, you will hear “Direct IP Calling”,

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 8 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
which is just like selecting option 47 from the table above.
“*” shifts down to the next menu option
“#” returns to the main menu
“9” functions as the ENTER key in many cases to confirm an option
All entered digit sequences have known lengths - 2 digits for menu option and 12
digits for IP address. Once all of the digits are collected, the input will be processed.
Incorrect keyed entry cannot be deleted or undone. The Unicorn 3101 will prompt you
to start over by telling you that you made an error.
5.2 Make Phone call
5.2.1 Calling Phone or Extension Numbers
Dial the number directly and wait for 4 seconds (Default is 4 seconds. To change the
default, change the settings via the web configuration page under “No Key Entry
Timeout”). Or
Dial the number directly, and press # (assuming that “Use # as Dial Key” is set to
“YES” during web configuration of your Unicorn 3101).
Other functions available during the call are call-waiting/flash, call-transfer, and call-
forward. Your SIP gatekeeper/proxy server needs to support these features in order for
them to work.
5.2.2 Call Hold
While in conversation, pressing the “FLASH” button on the attached phone will put the
remote end on hold. Pressing the “FLASH” button again will release the previously Hold
party and the bi-directional media will resume.
5.2.3 Call Waiting
If call waiting feature is enabled, while the user is in a conversation, he will hear a special
stutter tone if there is another incoming call. User can press the flash button to put the
current call party on hold and switch to the other call. Pressing flash button toggles
between two active calls.
5.2.4 3-way Conferencing
Unicorn3101 supports 3-way conference in two styles: star code style or Bellcore style.
Star Code Style 3-way Conference
Assuming that call party A and B are in conversation. A wants to bring C in a conference:

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 9 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
1. A presses FLASH (on the analog phone, or Hook Flash for old model phones) to get a
dial tone.
2. A dials *23 then C’s number then # (or wait for 4 seconds).
3. If C answers the call, then A press “flash” to bring B, C in the conference.
4. If C does not answer the call, A can press “flash” back to talk to B.
Bellcore Style 3-way Conference
Bellcore style 3-way conference is also supported. To do this, user needs to enable “Use
Bell-style 3-way Conference” in FXS web configuration.
Assuming that call party A and B are in conversation. A wants to bring C in a conference:
1. A presses FLASH (on the analog phone, or Hook Flash for old model phones) to get a
dial tone.
2. A dials C’s number then # (or wait for 4 seconds).
3. If C answers the call, then A press “flash” to bring B, C in the conference.
4. If C does not answer the call, A can press “flash” back to talk to B.
5.2.5 Direct IP-to-IP Calls
Direct IP calling allows two parties, that is, a FXS Port with an analog phone and another
VoIP Device, to talk to each other in an ad hoc fashion without a SIP proxy.
Elements necessary to completing a Direct IP Call:
1. Both Unicorn3101 and other VoIP Device, have public IP addresses, or
2. Both Unicorn3101 and other VoIP Device are on the same LAN using private IP
addresses, or
3. Both Unicorn3101 and other VoIP Device can be connected through a router using
public or private IP addresses (with necessary port forwarding or DMZ).
Unicorn3101 supports two ways to make Direct IP Calling:
Using IVR
1. Pick up the analog phone then access the voice menu prompt by dial “***”
2. Dial “47” to access the direct IP call menu
3. Enter the IP address using format ex. 192*168*0*160 after the dial tone.
Using Star Code
1. Pick up the analog phone then dial “*47”
2. Enter the target IP address using same format as above.
Note: NO dial tone will be played between step 1 and 2.
Destination ports can be specified by using “*” (encoding for “:”) followed by the port
number.
Examples:
a) If the target IP address is 192.168.0.160, the dialing convention is
*47 or Voice Prompt with option 47, then 192*168*0*160.
followed by pressing the “#” key if it is configured as a send key or wait 4 seconds. In this
case,the default destination port 5060 is used if no port is specified.

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 10 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
b) If the target IP address/port is 192.168.1.20:5062, then the dialing convention would be:
*47 or Voice Prompt with option 47, then 192*168*0*160*5062 followed by pressing the
“#” key, if it is configured as a send key or wait for 4 seconds.
NOTE: When completing direct IP call, the “Use Random Port” should set to “NO”.
5.2.6 Blind Transfer
Assuming that call party A and party B are talking to each other on the phone. Party A
wants to transfer party B to party C:
Party A presses FLASH (on the analog phone, or Hook Flash for old model phones)
to get a dial tone.
Then party A dials *87 then dials party C’s number, and then # (or wait for 4 seconds)
Party A can hangs up the phone.
Note: Call features have to be activated during web configuration by selecting YES to
“Enable Call Features”. These features need to be supported by your
SIP gatekeeper/proxy server in order to work.
Party A can hold on to the phone and wait for one of the three following events:
1. A quick confirmation tone (temporarily using the call waiting indication tone) followed
by a dial tone.This indicates the transfer is successful (transferee has received a 200
OK signal from transfer target). At this point, party A can either hang up or make
another call.
2. A quick busy tone followed by a restored call (on supported SIP
gatekeeper platforms only). This means the transferee has received a 4xx
response signal for the INVITE and will try to recover the call. The busy tone is just to
indicate to the transferor that the transfer has failed.
3. Busy tone keeps playing. This means the Unicorn 3101 has failed to receive the
second NOTIFY signal from the transferee and decided to time out.
Note: this does not indicate the transfer has been successful, nor does it indicate the
transfer has failed. When transferee uses a device that does not support the second
NOTIFY signal, this will be the case. In poor or unstable network scenarios, this could also
happen, although the transfer may have been completed successfully.
5.2.7 Attended Transfer
Assuming that call party A and party B are in conversation. Party A wants to Attend
Transfer party B to party C:
Party A presses FLASH (on the analog phone, or Hook Flash for old model phones)
to get a dial tone.
Party A then dials party C’s number then # (or wait for 4 seconds). Party A and party

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 11 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
C now are in conversation.
Party A can hang
Note: When Attended Transfer failed and if party A hangs up, the Unicorn 3101 will ring
party A again to remind party A that party B is still on the call, by pressing FLASH or Hook
again will restore the conversation between party A and party B.
5.2.8 Make and Receive PSTN Calls
Users can send and receive calls from PSTN. To receive PSTN calls, simply pick up the
phone receiver (or use handsfree) when the analog phone rings. To make a PSTN call,
first press *00 (*00 is default. You can change the “PSTN Access Code” via the web
configuration screen) to get the PSTN line dial tone and then dial the PSTN number you
want to call.
5.3 Call Features
5.3.1 Call Features Tables
Following table shows the call features of Unicorn 3101:
Key Call Features
*23 3-way conference
*87 Blind Transfer
*30 Block Caller ID (for all subsequent calls)
*31 Send Caller ID (for all subsequent calls)
*67 Block Caller ID (per call)
*82 Send Caller ID (per call)
*50 Disable Call Waiting (for all subsequent calls)
*51 Enable Call Waiting (for all subsequent calls)
*70 Disable Call Waiting. (Per Call)
*71 Enable Call Waiting (Per Call)
*72 Unconditional Call Forward.
To use this feature, dial “*72” and get the dial tone. Then dial the forward
number and “#” for a dial tone, then hang up.
*73 Cancel Unconditional Call Forward.
To cancel “Unconditional Call Forward”, dial “*73” and get the dial tone,
then hang up.
*90 Busy Call Forward.
To use this feature, dial “*90” and get the dial tone. Then dial the forward
number and “#” for a dial tone, then hang up.
*91 Cancel Busy Call Forward.

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 12 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
To cancel “Busy Call Forward”, dial “*91” and get the dial tone, then hang
up.
*92 Delayed Call Forward.
To use this feature, dial “*92” and get the dial tone. Dial the forward
number and “#” for a dial tone and then hang up.
*93 Cancel Delayed Call Forward.
To cancel this feature, dial “*93”, get the dial tone, and then hang up.
Flash/Hook call waiting indication.
When in conversation without an incoming call, this action will switch to a
new channel to make a new call.
5.3.2 PSTN Pass Through
When Unicorn 3101 is out of power or loses registration or if the network connection is
down, the RJ 11 line jack on the side of Unicorn 3101 will function as a pass through
connection for PSTN calls. Users will be able to use the same analog phone for PSTN
calls.
5.4 FAX
Unicorn3101 supports FAX in two modes: T.38 (Fax over IP) and fax pass through. T.38 is
the preferred method because it is more reliable and works well in most network
conditions. If the service provider supports T.38, please use this method by selecting Fax
mode to be T.38. If the service provider does not support T.38, pass-through mode may
be used. To send or receive faxes in fax pass through mode, users will need to select all
the Preferred Codecs to be PCMU/PCMA.
5.5 Status Light Indicator
Following tables show the Unicorn 3101 button light pattern indication.
Light Indicator Status Meaning
Power Light Indicates Power. Remains ON when power is connected
Run Light 1 second ON then 1 second OFF Indicates device software is running.
Fast blinking indicate the product in firmware upgrading or provision
state
Phone Light
Indicate status of the FXS Port on the back panel
Busy – ON (Solid Green)
Available – OFF
Fast blinking – Ringing
Slow blinking FXS LEDs indicates voicemail for that port.
Line
Indicate status of the Line Port on the back panel
Busy – ON (Solid Green)
Available – OFF
Fast blinking – Ringing

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 13 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
6 CONFIGURATION GUIDE
6.1 Configuring Unicorn3101 using Web Browser
Unicorn 3101 has embedded Web server and HTML pages that allow users to configure
the Unicorn 3101 through an easy-to-use Web browser interface such as Microsoft’s
Internet Explorer or Netscape browser. Below is a screen shot of the Unicorn 3101
configuration page:
6.1.1 Accessing the Web Configuration
The Unicorn 3101 configuration page can be accessed via the LAN or WAN port.
The GUI interface can be download at bellow:
http://www.hanlongtek.com/books/3101_gui.rar
This gui include bellow pages:
1. SCREENSHOT OF DEVICE STATUS PAGE
2. SCREENSHOT OF BASIC OPTIONS PAGE
3. SCREENSHOT OF SUPPER OPTIONS PAGE
4. SCREENSHOT OF FXS PORT PAGE
6.1.2 Programming Unicorn 3101 via the LAN Port
To program Unicorn 3101 via the LAN port, directly connect an Ethernet cable from your
PC to the LAN port of the Unicorn 3101. After connecting the cable, confirm that the
green light of the LAN port is on. If the green light is not on, this means that your PC is not
yet properly connected to the Unicorn 3101 via the LAN port.
For LAN port configuration, use the following default IP address to access the device:

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 14 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
http://192.168.22.1
6.1.3 Programming Unicorn 3101 via the WAN Port
The WAN port access for web configuration is disabled by default from the factory. To
access the web configuration menu from the WAN port, you must first access the device
via the device LAN port (see instructions above “Programming Unicorn 3101 via the LAN
port”) and enable the “Enable WAN Web Access” option.
After enabling WAN access, be sure that the WAN port of the Unicorn 3101 is connected
to an uplink (i.e. router, hub, switch, etc). Then, get the WAN IP address of the Unicorn
3101 by following section 5.1 of this user manual and selecting menu option 02. Then,
access the Unicorn 3101 via your web browser by entering the WAN IP address:
http://Unicorn 3101’s IP Address
Be sure that your PC is connected to the router/hub/switch directly or via the LAN port
(which also serves as a pass-through connection for internet/network access for your PC)
of the Unicorn 3101.
6.1.4 User Programming and Configuration
From your web browser, the Unicorn 3101 will show the following login screen:
Enter the password and click on the “Login” button
6.1.5 Passwords
Passwords are case sensitive and all Unicorn devices come with factory default
passwords as indicated below:
Advanced User Password for access to Super User Options: admin

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 15 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
End User Password for access to Basic User Options: 1234
Pages available for the end-user are:
• Device Status
• Basic Options
Additional pagess available to super user are:
• Super Options.
• FXS port
6.1.6 Configuration Options and Explanations
After a correct password is entered in the login screen, the embedded web server inside
the Unicorn 3101 will show the configuration page, which is explained in details below:
6.1.6.1 Device Status
DEVICE STATUS
Setting Options Definitions
MAC Address The device ID, in HEX format. This is a very important ID for
ISP troubleshooting.
WAN IP Address This field shows IP address of device
Product Model This product model is Unicorn3101
Software Version Information of software
System Uptime Show system uptime since last reboot
PPPoE Link Up Indicates where the PPPoE connection is up if the
Uicorn3101 is connected to the DSL modem.
NAT Indicate the NAT type behind which the device is when the
stun feature is defined.
Port Status Indicate the current status of the device such as hook
(on/off),registion(registered/unregistered) etc.
6.1.6.2 Basic Options Settings
BASIC OPTIONS Setting
Setting options Definitions
Web Port The default is 80.
IP Address There are 3 modes under which the Unicorn 3101 can
operate:
- If DHCP mode is enabled, then all the field values for the

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 16 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
Static IP mode are not used (even though they are still
saved in the chipset's memory). The Unicorn 3101 will
acquire its IP address from the first DHCP server it
discovers from the office/home network it is connected to.
-To use the PPPoE feature, the PPPoE account settings
need to be set. The Unicorn 3101 will attempt to establish
a PPPoE session if any of the PPPoE fields have been
entered with data.
- If Static IP mode is enabled, then the IP address, Subnet
Mask, Default Router IP address, DNS Server 1
(primary), DNS Server 2 (secondary) fields will need to be
configured by the user. These fields are reset to zero by
default.
Time Zone This parameter controls how the displayed date/time will
be adjusted according to the specified time zone.
Allow DHCP Option 2
to override Time Zone
setting
If set yes and under DHCP mode,the device will try to get
option 2 from DHCP configure and overwrite Time Zone.
Daylight Savings Time This parameter controls whether the displayed time will
be daylight savings time or not. If set to Yes, then the
displayed time will be 1 hour ahead of normal time.
Device Mode This parameter controls whether the device is working in
NAT router mode or Bridge mode. Need save the setting
and reboot the device before the setting start to work
LAN Subnet Mask Sets the LAN subnet mask. Default value is
255.255.255.0
LAN DHCP Base IP Base IP for the LAN port which functions as a Gateway
for the subnet. Default value is 192.168.22.1
DHCP IP Lease Time Value is set in units of hours. Default value is 120 hrs (5
Days.) The time IP address is assigned to the LAN
clients.
Port Map Forwards a matching (TCP/UDP) port to a specific LAN
IP address with a specific (TCP/UDP) port.
End User Password This contains the password to access the Web
Configuration Menu. This field is case sensitive.
Reply to ICMP on WAN
Port
If set to Yes, the Unicorn3101 will respond to the PING
command from other computers, but it also is vulnerable
to the DOS attack. Default is No.
WAN Side Http Access If this parameter is set to No, the Http access via WAN
port is disabled.
PSTN Access Code This field allows users to customize their own code to
access PSTN. Default is *00.

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 17 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
6.1.6.3 Super Options Setting
SUPER OPTIONS
Setting options Definitions
Admin Password
This contains the password to access the Advanced Web
Configuration page. This field is case sensitive. Only the
administrator can configure the “Advanced Settings”
page. Password field is purposely left blank for security
reasons after clicking update and saved. The maximum
password length is 26 characters,only digit or letter.
Layer 3 QoS This field defines the layer 3 QoS parameter which can be
the value used for IP Precedence or Diff-Serv or MPLS.
Default value is 48.
Layer 2 QoS This contains the value used for layer 2 VLAN tag. Default
setting is 0.
Data VLAN Tag When using Bridge Mode, Data VLAN Tag is supported.
when your PC connect to LAN Port, data (from your PC to
switch) will be tagged with "Data VLAN Tag".
STUN server IP address or domain name of stun server.
keep-alive interval This parameter specifies how often the Unicorn 3101
sends a blank UDP packet to the SIP server in order to
keep the “hole” on the NAT open.
Firmware Upgrade
and Provisioning
Upgrade or provisioning through TFTP or TFTP server.
--Upgrade Via:select HTTP or TFTP mode.
--Allow DHCP Option: support 66,128,150. If select
yes,device will get server information from DHCP option
and ignore the Config Server Path.
Option 66--TFTP server name(if you select Upgrade
Via->TFTP), HTTP server name(if you select Upgrade
Via->HTTP)
Option 128--TFPT Server IP address.(if you select
Upgrade Via->TFTP), HTTP Server IP address(if you
select Upgrade Via->HTTP)
Option 150--TFTP server address.(if you selectUpgrade
Via->TFTP), HTTP server address(if you select Upgrade
Via->HTTP)
Authenticate Conf File configure file would be authenticated before acceptance if
set to Yes
SNMP Service Enable If set Yes, The SNMP function will be work.
SNMP Get Community Set the community of read operation
SNMP Set Community Set the community of write operation

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 18 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
SNMP Manager IP 1 Set the ip address of snmp trap
SNMP Manager IP 2 Set another ip address of snmp trap
SNMP Manager IP 3 Set another ip address of snmp trap
SNMP Manager IP 4 Set another ip address of snmp trap
NTP Server This parameter defines the URI or IP address of the NTP
server which is used by the Unicorn 3101 to set the
current date/time.
Allow DHCP Option 42
to override NTP server If set Yes,device can get NTP server from DHCP option
42.
Lock Keypad Update If this parameter is set to Yes, the configuration update
via keypad is disabled.
Disable Voice Prompt Default is NO.
Syslog Server The IP address or URL of System log server. This feature
is especially useful for the ITSP (Internet Telephone
Service Provider)
Syslog Level Default is blank, the feature is useful for the Internet
Telephone Service Provider.
Download Device
Configuration: User can download configuration from the web page and
save to configuration file.
Call Progress Tones
Using these settings, users can configure tone
frequencies and cadence according to their preference.
By default they are set to North American frequencies.
Configure these settings with known values to avoid
uncomfortable high pitch sounds. ON is the period of
ringing (“On time” in ‘ms’) while OFF is the period of
silence. In order to set a continuous tone, OFF should be
zero. Otherwise it will ring ON ms and a pause of OFF ms
and then repeat the pattern.
Example configuration for N.A. Dialtone:
f1=350@-13,f2=440@-13,c=0/0;
Syntax: f1=freq@vol, f2=freq@vol,
c=on1/off1-on2/off2-on3/off3; [...] (Note: freq: 0 - 4000Hz;
vol: -30 - 0dBm)
Import TLS Certificate
File(Optional) User can import the TLS Certification
Restore Configuration User can restore the before configuration from the
configuration file saved at local pc
6.1.6.4 FXS Port
FXS PORT

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 19 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
Setting options Definitions
Account Active: Set to the YES, the account can be available
SIP Server SIP Server’s URI or IP address
Outbound Proxy SIP Outbound Proxy Server’s URI or IP address
SIP transport(Optional) Select transport between UDP and TLS, default is UDP.
NAT Traversal
This parameter defines whether the Unicorn 3101 NAT
traversal mechanism will be activated or not.
If Choosing No,nothing to do.
If Choosing No, but send keep-alive, the Unicorn 3101
will periodically (every 20 seconds or so) send a blank
UDP packet (with no payload data) to the SIP server to
keep the “hole” on the NAT open.
If choosing STUN and a STUN server is also specified,
then the Unicorn 3101 will behave according to the
STUN client specification. Under this mode, the
embedded STUN client inside the Unicorn 3101 will
attempt to detect if and what type of firewall/NAT it is
sitting behind through communication with the specified
STUN server. If the detected NAT is a Full Cone,
Restricted Cone, or a Port-Restricted Cone, the Unicorn
3101 will attempt to use its mapped public IP address
and port in all its SIP and SDP messages. If choosing
STUN with no specified STUN server, the Unicorn 3101
will periodically (every 20 seconds or so) send a blank
UDP packet (with no payload data) to the SIP server to
keep the “hole” on the NAT open.
If choosing UPNP, the embedded UPNP client inside the
Unicorn 3101 will attempt to mapping ports with the
router by upnp protocol.
SIP User ID SIP service subscriber’s User ID
Authenticate ID SIP service subscriber’s Authenticate ID. Can be
identical to or different from SIP User ID
Authenticate Password SIP service subscriber’s account password
Name SIP service subscriber’s name which will be used for
Caller ID display
Use DNS SRV Default is No. If set to Yes the client will use DNS SRV
for server lookup
User ID is phone
number
If the Unicorn 3101 has an assigned PSTN telephone
number, this field should be set to “Yes”. Otherwise, set
it to No. If Yes is set, a “user=phone” parameter will be
attached to the “From” header in SIP request
SIP Registration This parameter controls whether the Unicorn 3101

Hanlong Technology Co., Ltd Unicorn 3101 User Manual Page 20 of 28
Firmware 1.0.0.46 LastUpdated
1/19/2012
needs to send REGISTER messages to the proxy
server. The default setting is Yes.
Unregister On Reboot Default is No. If set to Yes, the SIP user will be
unregistered on reboot.
Register Expiration
This parameter allows the user to specify the time
frequency (in minutes) the Unicorn 3101refreshes its
registration with the specified registrar. The default
interval is 6 minutes, The maximum interval is 65535
minutes (about 45 days).
Outgoing Call without
Registration
Default is No. If set to “Yes,” user can place outgoing
calls even when not registered (if allowed by ITSP) but is
unable to receive incoming calls.
Local SIP port This parameter defines the local SIP port the Unicorn
3101 will listen and transmit. The default value for FXS
port is 5060. The default value for FXO port is 5062.
Local RTP port
This parameter defines the local RTP-RTCP port pair
the Unicorn 3101 will listen and transmit. It is the base
RTP port for channel 0. When configured, channel 0 will
use this port _value for RTP and the port_value+1 for its
RTCP; channel 1 will use port_value+2 for RTP and
port_value+3 for its RTCP. The default value for FXS
port is 5004. The default value for FXO port is 5008.
Use random port
This parameter, when set to YES, will force random
generation of both the local SIP and RTP ports. This is
usually necessary when multiple Unicorn 3101 are
behind the same NAT.
Refer-To Use Target
Contact
Default is NO. If set to YES, then for Attended Transfer,
the “Refer-To” header uses the transferred target’s
Contact header information.
DTMF Payload Type Sets the payload type for DTMF using RFC2833
DTMF in Audio
This parameter specifies the mechanism to transmit
DTMF digit in audio which means DTMF is combined in
audio signal(not very reliable with low-bit-rate codec),
Default is YES.
DTMF via RFC2833 This parameter specifies the mechanism to transmit
DTMF digit via RTP (RFC2833).
Default YES.
DTMF via SIP INFO This parameter specifies the mechanism to transmit
DTMF digit via SIP INFO.
Default is NO.
Send Flash Event This parameter allows users to control whether to send
an SIP NOTIFY message indicating the Flash event, or
