Hanna Instruments HI 2314 User manual

HI 2314
HI 2315•HI 23151
Multi-Range
Conductivity Meters
for Laboratories
Instruction Manual
www.hannainst.com

3
2
PRELIMINARY EXAMINATION
HI 2314 and HI 2315 are bench top multi-range conductivity meters for
the laboratory.
Four measurement ranges ensure the highest resolution and precision for
your measuring requirements.
Single point calibration is performed manually simply by adjusting a
knob on the front of the meter.
Temperature compensation of the readings is automatic for the HI 2315
and HI 23151 models, thanks to the temperature sensor incorporated in
probe, with userselectable temperature coefficient.
With HI 2314 the temperature compensation is manual and the tempe-
rature value can be also set with a knob.
The rugged probe with platinum 4-ring sensor responds faster than
conventional stainless steel models and can be also used for measuring
highly acidic or alkaline samples, or at high temperature.
In addition, the HI 23151 model offers analog output of 0 to 5V that
represents the full conductivity scale across all 4 ranges.
GENERAL DESCRIPTION
Remove the instrument from the packing material and examine it
carefully to make sure that no damage has occurred during shipping.
If there is any damage, notify your dealer.
Each meter is supplied complete with:
•4-ring conductivity probe with 1 m (3.3’) cable
• HI 76300 for HI 2314
• HI 76303 for HI 2315 and HI 23151
•12 Vdc adapter
•Instruction manual
Note: Save all packing material until you are sure that the instrument
functions correctly. All defective items must be returned in the
original packing with the supplied accessories.
TABLE OF CONTENTS
WARRANTY ................................................................................. 2
PRELIMINARY EXAMINATION ....................................................... 4
GENERAL DESCRIPTION ............................................................... 4
FUNCTIONAL DESCRIPTION HI 2314 ........................................... 5
SPECIFICATIONS HI 2314 ........................................................... 6
FUNCTIONAL DESCRIPTION HI 2315 ........................................... 7
SPECIFICATIONS HI 2315 AND HI 23151 ................................... 8
OPERATIONAL GUIDE .................................................................. 9
CALIBRATION ............................................................................ 11
CONDUCTIVITY VS. TEMPERATURE CHART................................... 14
DETERMINATION OF THE TEMPERATURE
COEFFICIENT OF A SOLUTION (HI 2315)................................... 15
PROBE MAINTENANCE ............................................................... 16
ACCESSORIES ............................................................................ 17
Dear Customer,
Thank you for choosing a Hanna Instruments product.
Please read this instruction manual carefully before using these
instruments. This manual will provide you with the necessary
information for correct use of these instruments, as well as a precise
idea of their versatility.
If you need additional technical information, do not hesitate to
e-mail us at [email protected] or view our worldwide contact list
at www.hannainst.com.
WARRANTY
HI 2314, HI 2315 and HI 23151 are guaranteed for two years
against defects in workmanship and materials when used for their
intended purpose and maintained according to instructions.
Electrodes and probes are guaranteed for six months.
This warranty is limited to repair or replacement free of charge.
Damages due to accidents, misuse, tampering or lack of prescribed
maintenance is not covered.
If service is required, contact the dealer from whom you purchased the
instrument.
If under warranty, report the model number, date of purchase, serial
number and the nature of the problem.
If the repair is not covered by the warranty, you will be notified of the
charges incurred.
If the instrument is to be returned to Hanna Instruments, first obtain
a Returned Goods Authorization number from the Technical Service
department and then send it with shipping costs prepaid.
When shipping any instrument, make sure it is properly packed for
complete protection.

5
4
SPECIFICATIONS HI 2314
EGNAR
mc/Sµ9.991ot0.0
mc/Sµ9991ot0
mc/Sm99.91ot00.0
mc/Sm9.991ot0.0
NOITULOSER
mc/Sµ1.0
mc/Sµ1
mc/Sm10.0
mc/Sm1.0
YCARUCCA
)F°77/C°52@( )rorreeborpgnidulcxe(SF%1±
noitarbilaC ,tniopelgnis,launaM
bonktnorfhguorht
erutarepmeT
noitasnepmoC
)F°221ot23(C°05ot0,launaM
w C°/%2=ßhti
eborP
)dedulcni(
00367IH ,rosnesgnir-4munitalp,
elbac)'3.3(m1htiw
ylppuSrewoP )dedulcni(retpadacdV21
tnemnorivnE )F°221ot23(C°05ot0
gnisnednoc-non%59xamHR
snoisnemiD mm901x222x532
)”3.4x7.8x2.9(
thgieW )sbl9.2(gK3.1
FUNCTIONAL DESCRIPTION HI 2314
Front Panel
Rear Panel
1) Liquid Crystal Display (LCD)
2) 199.9 µS key for range selection
3) 1999 µS key for range selection
4) 19.99 mS key for range selection
5) 199.9 mS key for range selection
6) EC/°C key, to select conductivity reading or temperature setting
for manual compensation
7) Temperature setting knob for manual compensation
8) Conductivity Calibration knob
9) Sample holders
10) Probe connector
11) Power adapter socket
12) ON/OFF switch

7
6
SPECIFICATIONS HI 2315 / HI 23151
EGNAR
mc/Sµ9.991ot0.0
mc/Sµ9991ot0
mc/Sm99.91ot00.0
mc/Sm9.991ot0.0
NOITULOSER
mc/Sµ1.0
mc/Sµ1
mc/Sm10.0
mc/Sm1.0
YCARUCCA
)F°77/C°52@( )rorreeborpgnidulcxe(SF%1±
noitarbilaC ,tniopelgnis,launaM
bonktnorfhguorht
erutarepmeT
noitasnepmoC
)F°221ot23(C°05ot0,citamotuA
w C°/%5.2ot0morfelbatsujdaßhti
eborP
)dedulcni(
0367IH ni-tliub,rosnesgnir-4munitalp,3
elbac)'3.3(m1dnarosneserutarepmet
tuptuOgolanA
(ylno15132IH )
;tuptuodetalositonccV5ot0
;gnidaerfo%1.0±ycarucca
Vm5.2±noituloser
ylppuSrewoP )dedulcni(retpadarewopcdV21
tnemnorivnE )F°221ot23(C°05ot0
gnisnednoc-non%59xamHR
snoisnemiD mm901x222x532
)”3.4x7.8x2.9(
thgieW )sbl9.2(gK3.1
FUNCTIONAL DESCRIPTION
HI 2315 / HI 23151
Front Panel
Rear Panel
7) Conductivity Calibration knob
8) Sample holders
9) Analog output (HI 23151 only)
10) Probe connector
11) Power adapter socket
12) ON/OFF switch
1) Liquid Crystal Display (LCD)
2) 199.9 µS key for range selection
3) 1999 µS key for range selection
4) 19.99 mS key for range selection
5) 199.9 mS key for range selection
6) Temp. Coefficient knob for manual compensation

9
8
Note: If the display shows range limit value blinking, there is an
over-range condition. Select the next higher range.
••
••
•Allow a few minutes for the reading to stabilize. The LCD will
display the temperature compensated conductivity reading.
TAKING CONDUCTIVITY MEASUREMENTS WITH HI 2315
••
••
•Switch the instrument on by pressing ON/OFF.
••
••
•Immerse the probe in the solution while
completely submerging the holes of the sleeve.
Tap the probe lightly on the bottom of the
beaker to remove any air bubbles trapped
inside the sleeve.
••
••
•Adjust the Temp. Coefficient knob to the temperature coefficient
value of the solution (see “Determination of the Temperature
Coefficient of a Solution” section for details).
••
••
•Select the appropriate conductivity range.
Note: If the display shows range limit value blinking, there is an
over-range condition. Select the next higher range.
••
••
•Allow a few minutes for the reading to stabilize. The LCD will
display the temperature compensated conductivity reading.
OPERATIONAL GUIDE
Power connection
Plug the 12 Vdc adapter into the power supply socket.
Note: Make sure the main line is protected by a fuse.
Probe connection
Connect the conductivity probe to the proper socket on the rear panel.
Note: Make sure that the instrument has been calibrated before
taking any measurement (see “Calibration” section).
Note: If possible, use plastic beakers to minimize EMC interferences.
TAKING CONDUCTIVITY MEASUREMENTS WITH HI 2314
••
••
•Switch the instrument on by pressing ON/OFF.
••
••
•Immerse the probe in the solution while
completely submerging the holes of the sleeve.
Tap the probe lightly on the bottom of the
beaker to remove any air bubbles trapped
inside the sleeve. Measure the solution
temperature with a
Checktemp or another
accurate thermometer.
••
••
•Press and hold the EC/°C key to select
temperature setting.
••
••
•Adjust the Temperature knob to display the
temperature of the solution on the LCD.
••
••
•Release the EC/°C key to select conductivity
reading.
••
••
•Select the appropriate conductivity range.

11
10
HI 7030
•Release EC/°C to select conductivity reading
and select the appropriate range:
199.9 µS for HI 7033
1999 µS for HI 7031
19.99 mS for HI 7030
199.9 mS for HI 7034
Note: If the display shows range limit value blinking, there is an
over-range condition. Select the next higher range.
••
••

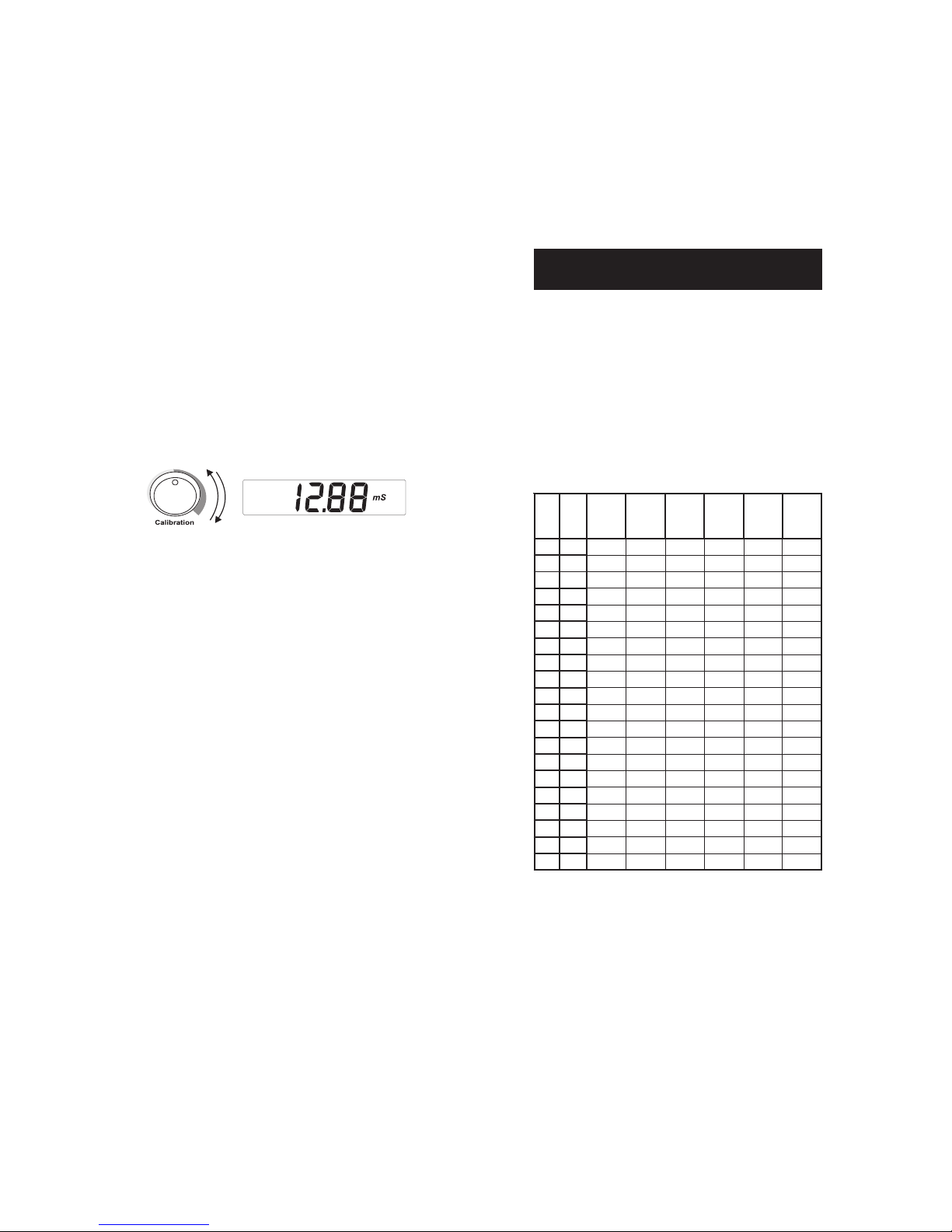

•Allow a few minutes for the reading to stabilize, then adjust the
Calibration knob to read the calibration solution conductivity
value at 25°C (77°F), e.g. 12.88 mS/cm.
•All subsequent measurements will be referenced to 25°C (77°F).
•To reference the measurements to 20°C (68°F), adjust the
Calibration knob to read the calibration solution conductivity
value at 20°C (68°F), e.g. 11.67 mS/cm. See the “Conductivity
vs. Temperature Chart” on page 13.
•Calibration is now complete and the instrument is ready for use.
PROCEDURE FOR HI 2315
•Pour a small quantity of the appropriate
calibration solution, e.g. HI 7030
(12.88 mS/cm @ 25°C), into a plastic
beaker.
•Immerse the probe in the solution while
completely submerging the holes of the
sleeve. Tap the probe lightly on the bottom
of the beaker to remove any air bubbles
trapped inside the sleeve.
HI 7030
CALIBRATION
The instrument should be calibrated at least once a month, or when
the probe is changed.
INITIAL PREPARATION
For better accuracy of measurements it is recommended to use the
calibration solution with a conductivity value as close as possible to
the sample to be measured. See the “Accessories” section for a
complete list of available HANNA calibration solution.
Rinse the probe thoroughly in distilled water.
If possible, use plastic beakers to minimize any EMC interferences.
PROCEDURE FOR HI 2314
•Pour a small quantity of the appropriate
calibration solution, e.g. HI 7030
(12.88 mS/cm @ 25°C), into a plastic
beaker.
•Immerse the probe in the solution while
completely submerging the holes of the
sleeve. Tap the probe lightly on the bottom
of the beaker to remove any air bubbles
trapped inside the sleeve. Measure the
solution temperature with a Checktemp
or another accurate thermometer.
•Press and hold the EC/°C key to select
temperature setting.
•Adjust the Temperature knob to display the temperature of the
solution on the LCD.

13
12
CONDUCTIVITY VERSUS
TEMPERATURE CHART
The conductivity of an aqueous solution is the measure of its ability to
carry an electrical current by means of ionic motion.
The conductivity invariably increases with increasing temperature.
It is affected by the type and number of ions in the solution and by
the viscosity of the solution itself. Both parameters are temperature
dependent. The dependency of conductivity on temperature is
expressed as a relative change per degree Celsius at a particular
temperature, commonly as %/°C.
Since a small difference in temperature causes a large change in
conductivity, the readings are usually normalized at 25°C.
HI 2314 manually compensates for temperature differences with a
fixed coefficient of 2%/°C.
HI 2315 automatically compensates for temperature differences, and
features an user-selectable coefficient that can be manually adjusted
through a front knob, from 0 (no compensation) to 2.5%/°C.
•Adjust the Temp. Coefficient knob to 2%/°C.
•Select the appropriate range:
199.9 µS for HI 7033
1999 µS for HI 7031
19.99 mS for HI 7030
199.9 mS for HI 7034
Note: If the display shows range limit value blinking, there is an
over-range condition. Select the next higher range.
•Allow a few minutes for the reading to stabilize, then adjust the
Calibration knob to read the calibration solution conductivity
value at 25°C (77°F), e.g. 12.88 mS/cm.
•All subsequent measurements will be referenced to 25°C (77°F).
•To reference the measurements to 20°C (68°F), adjust the
Calibration knob to read the calibration solution conductivity
value at 20°C (68°F), e.g. 11.67 mS/cm. See the “Conductivity
vs. Temperature Chart” on page 13.
•Calibration is now complete and the instrument is ready for use.
Cº Fº
0307IH
0308IH
(µ)mc/S
1307IH
1308IH
(µ)mc/S
3307IH
3308IH
(µ)mc/S
4307IH
4308IH
(µ)mc/S
5307IH
5308IH
(µ)mc/S
9307IH
9308IH
(µ)mc/S
0 23 0517 677 46 00384 00456 0672
5 14 0228 698 56 00535 00147 0813
01 05 0339 0201 76 00695 00238 5163
51 95 08401 7411 86 00456 00529 3604
61 8.06 02701 3711 07 00276 00449 5514
71 6.26 05901 9911 17 00586 00369 5424
81 4.46 09111 5221 37 00896 00289 7334
91 2.66 03411 1521 47 00317 002001 9244
02 86 07611 8721 67 00427 001201 3254
12 8.96 01911 5031 87 00047 000401 7164
22 6.17 05121 2331 97 00257 009501 1174
32 4.37 09321 9531 18 00567 009701 5084
42 2.57 04621 6831 28 00387 008901 2094
52 77 08821 3141 48 00008 008111 0005
62 8.87 03131 0441 68 00318 008311 6905
72 6.08 07331 7641 78 00038 007511 0915
82 4.28 02631 4941 98 00948 007711 6825
92 2.48 07831 1251 09 00368 007911 3835
03 68 02141 8451 29 00288 008121 9745
13 8.78 07341 5751 49 00009 009321 5755

15
14

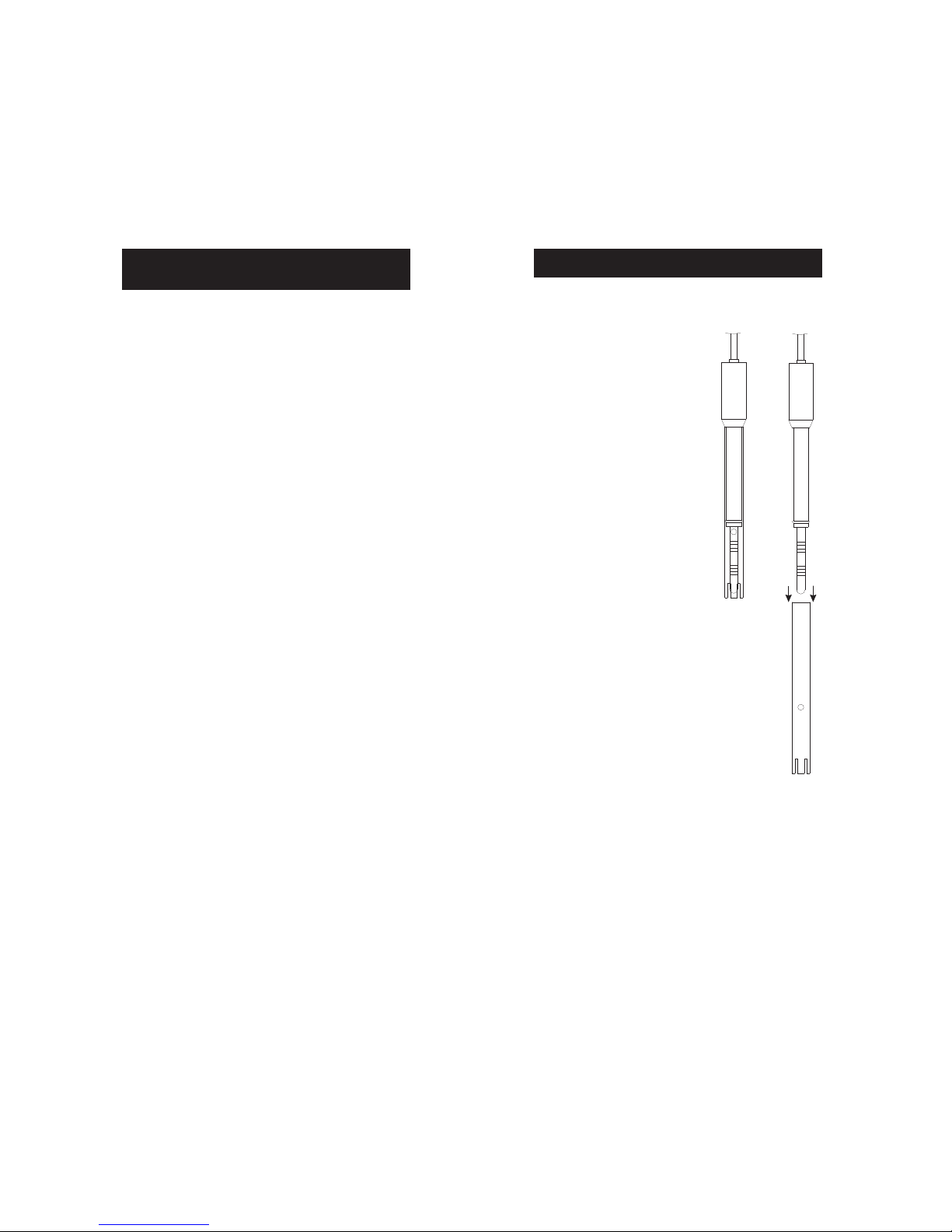

PROBE MAINTENANCE
After every series of measurements, rinse
the probe with tap water.
If a more thorough cleaning is required,
remove the sleeve and clean the probe
with a cloth or a nonabrasive detergent.
After cleaning the probe, always
recalibrate the instrument.
The 4-ring platinum probe body is made
of glass. For this reason great care while
handling the probe must be taken.
•Immerse the probe into a solution sample and adjust the
Temp. Coefficient knob to 0% (no compensation).
•Condition sample and probe at 25°C, and note the conductivity
reading C25.
•Condition sample and probe to a temperature t°C (approximately
5°C to 10°C different from 25°C), and note the conductivity
reading Ct.
•The temperature coefficient (β) of the solution is then calculated
using the following formula:
β= 100 x (Ct- C25) / [(t - 25) x C25]
The above procedure is suitable for determining the temperature
coefficient in the laboratory where the temperature of the solution can
be determined and controlled.
If this is not possible, e.g. during on-site measurements, the following
procedure should be used:
•Immerse the probe into the test solution and turn the
Temp. Coefficient knob to 0% (no compensation).
•Allow the conductivity reading to stabilize (the reading should
not change by more than ±0.2 mS within 1 minute) and
record the value, C.
•Repeat the procedure with a different solution temperature,
changed by more than 10°C. Wait for the reading to stabilize.
•Adjust the Temp. Coefficient knob until the display reads the
previously recorded C value.
•The value indicated by the knob is the temperature coefficient of
the solution.
DETERMINATION OF THE TEMPERATURE
COEFFICIENT OF A SOLUTION (HI 2315)

17
16
OTHER ACCESSORIES
HI 98501 ChecktempC electronic thermometer
(range -50.0 to 150.0°C)
HI 710005 115 Vac / 12 Vdc voltage adapter, US plug
HI 710006 230 Vac / 12 Vdc voltage adapter, European
plug
HI 740036 100 mL plastic beaker (6 pcs)
HI 740034 Cap for 100 mL beakers (6 pcs)
HI 76404 Probe holder
CONDUCTIVITY PROBES
HI 76300 Platinum 4-ring conductivity probe with 1 m
(3.3') cable (for HI 2314)
HI 76303 Platinum 4-ring conductivity probe with built-in
temperature sensor and 1 m (3.3') cable (for
HI 2315)
CONDUCTIVITY CALIBRATION SOLUTIONS
HI 7030M 12880 µS/cm, 230 mL bottle
HI 7030L 12880 µS/cm, 500 mL bottle
HI 8030L 12880 µS/cm, 500 mL FDA bottle
HI 7031M 1413 µS/cm, 230 mL bottle
HI 7031L 1413 µS/cm, 500 mL bottle
HI 8031L 1413 µS/cm, 500 mL FDA bottle
HI 7033M 84 µS/cm, 230 mL bottle
HI 7033L 84 µS/cm, 500 mL bottle
HI 8033L 84 µS/cm, 500 mL FDA bottle
HI 7034M 80000 µS/cm, 230 mL bottle
HI 7034L 80000 µS/cm, 500 mL bottle
HI 8034L 80000 µS/cm, 500 mL FDA bottle
HI 7035M 111800 µS/cm, 230 mL bottle
HI 7035L 111800 µS/cm, 500 mL bottle
HI 8035L 111800 µS/cm, 500 mL FDA bottle
HI 7039M 5000 µS/cm, 230 mL bottle
HI 7039L 5000 µS/cm, 500 mL bottle
HI 8039L 5000 µS/cm, 500 mL FDA bottle
PROBE MAINTENANCE SOLUTIONS
HI 7061M General cleaning solution, 230 mL bottle
HI 8061M General cleaning solution, 230 mL FDA bottle
HI 7061L General cleaning solution, 500 mL bottle
HI 8061L General cleaning solution, 500 mL FDA bottle
ACCESSORIES

19
18
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Hanna Instruments reserves the right to modify the design,
construction or appearance of its products without advance notice.
RECOMMENDATIONS FOR USERS
Before using this product, make sure that it is entirely suitable for the
environment in which they are used.
Operation of this instrument in residential area could cause unacceptable
interferences to radio and TV equipment, requiring the operator to
take all necessary steps to correct interferences.
The metal band at the end of the sensor is sensitive to electrostatic
discharges. Avoid touching this metal band at all times. During
calibration, ESD wrist straps should be worn to avoid possible damage
to the sensor by electrostatic discharge.
Any variation introduced by the user to the supplied equipment may
degrade the instrument's EMC performance. To avoid electrical shock,
do not use this instrument when voltages at the measurement surface
exceed 24 Vac or 60 Vdc. Use plastic beakers to minimize any EMC
interferences.
To avoid damages or burns, do not perform any measurement in
microwave ovens.

Printed in EUROPE
ROMANIA MAN2315 10/12
Hanna Instruments Inc.
Highland Industrial Park
584 Park East Drive
Woonsocket, RI 02895 USA
Technical Support for Customers
Tel. [phone]
Fax [phone]
E-mail [email protected]
www.hannainst.com
Local Sales and Customer Service Office
