Bego Nautilus CC plus User manual

Translation of the original instructions
Nautilus®CC plus
Nautilus®T
en
English
NAUTILUS®CC plus
357.00001
NAUTILUS®T
358.00001

2
86066 BA-en/00 357.00001.../ 358.00001...
English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
en
Table of contents
General information................................................3
Important notes ......................................................5
Safety instructions..................................................7
Unit description ....................................................10
Scope of delivery, wearing parts and extras ........14
Technical data ......................................................15
Installation ............................................................16
Basic principles: Wax-up......................................18
Basic principles: Crucible .....................................20
Basic principles: Moulds.......................................22
Basic principles: Work..........................................23
Program tables.....................................................27
Operation .............................................................30
Care and maintenance.........................................43
Elimination of malfunctions ..................................50
Signs and stickers ................................................52
Disposal ...............................................................54
Spare parts list ..........................................Appendix
Wiring diagram ..........................................Appendix
Certificate of Conformity............................Appendix
GOST certificate........................................Appendix
This unit documentation is part of the unit
and must be enclosed when selling or
passing on the unit.
• The unit has been designed solely for use in
dental laboratories and comparable establish-
ments for research, commercial and training
purposes. The unit must only be operated by
dental professionals, or they must provide
supervision if trainees or other persons operate
unit.
• The operating instructions must be read and
understood before the device is used. This par-
ticularly applies to the Safety information. The
warranty is void in cases of damage which is
caused by non-observance of the operating
instructions. We will also not accept liability for
any resulting consequential damages.
• Symbols used
This symbol indicates very important
information. Failure to comply with it may
result in personal injury.
Prohibited for persons with pacemakers.
This symbol warns about hot parts.
This symbol indicates that safety gloves
have to be worn.
This symbol marks important information.
Failure to comply with it may result in
damage to the unit or the work result may
be unsuccessful.

English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
3
86066 BA-en/00 357.00001.../ 358.00001...
en
General Information
Importance of the operating Instructions
These operating instructions cover all the infor-
mation that is necessary according to the relevant
regulations for the safe operation of the device
described herein.
The operating instructions are a part of the machine.
The operating instructions should therefore
• always be kept at hand near the device until the
device is disposed of,
• and should be passed on with the device when
it is purchased, sold, or lent.
Contact the manufacturer if you do not understand
something in the operating instructions.
We welcome any suggestions or criticism. Please
feel free to notify us. Your effort will help us make the
operating instructions more user-friendly and
respond more effectively to your wishes and needs.
Target group
This document is directed toward everyone who
works with this device or performs service tasks that
are described in this document.
Contact information
Address
BEGO Bremer Goldschlägerei Wilh. Herbst GmbH & Co. KG
Wilhelm-Herbst-Str. 1
28359 Bremen
Telephone: [phone]
Fax: [phone]
Service-Hotline Tel.: [phone]
e-mail: [email protected]m
Web: www.bego.com
©Copyright by BEGO Bremer Goldschlägerei Wilh. Herbst GmbH & Co. KG
This user guide is protected by copyright. All rights reserved.
No part of this document may be reproduced without the express written permission of BEGO Bremer
Goldschlägerei Wilh. Herbst GmbH & Co. KG!

4
86066 BA-en/00 357.00001.../ 358.00001...
English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
en
Conventions
These operating instructions contain references to
residual hazards, important user tips and handling
instructions that are identified with the following
symbols and words.
Warranty and liability
Our general terms and conditions of sale and
delivery apply. These are made available to the
customer on completion of the contract, at the latest.
Warranty and liability claims in the event of physical
injury or damage to property are invalid if they are
caused by one or more of the following:
• Improper use of the device
• Improper installation, putting into operation,
operating and maintenance of the device;
• Operating the device with safety and protective
facilities that are defective, improperly installed
or inoperative
• Failure to heed the information in this manual
concerning the transport, storage, installation,
putting into operation, operation and service
and maintenance of this device;
• Unauthorized structural modifications to this
device;
• Inadequate monitoring/checking of parts of the
device that are subject to wear;
• Improperly performed repairs;
• Catastrophes caused by alien elements or
force majeure.
Exclusion of liability in case of modifications:
If a modification by the user affects any aspect of the
performance data or intended functioning, as
described in the relevant standards, of a previously
classified device, the person or organization that
undertook the modification is responsible for
obtaining a new classification and new labeling for
the device. This person or organization then
assumes the status of "manufacturer".
DANGER
This reference identifies hazards that
can cause serious bodily injury or
death if the relevant hazard instruc-
tions are not followed or not followed
properly.
WARNING
This reference identifies hazards that
can cause bodily injury or property
damage if the relevant hazard instruc-
tions are not followed or not followed
properly.
CAUTION
This reference identifies only those
hazards that are potential damaging
to property and the environment.
NOTE
This symbol identifies user tips and particularly
useful information. It helps you optimally exploit
all the functions of your machine.
1. Sequential actions are described in sequentially
numbered paragraphs.
→Cross-references are identified with this symbol.

English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
5
86066 BA-en/00 357.00001.../ 358.00001...
en
Important notes

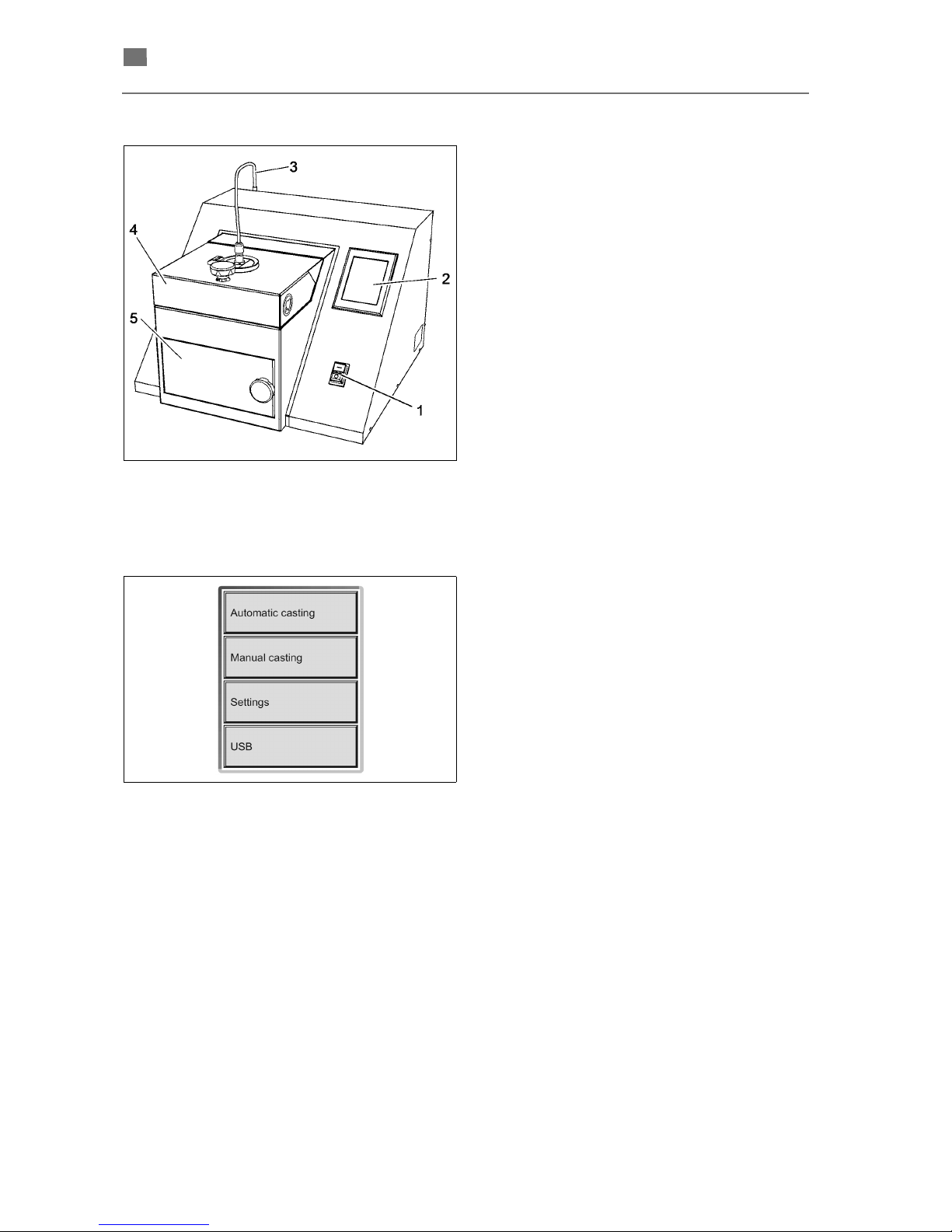

Nautilus®CC plus

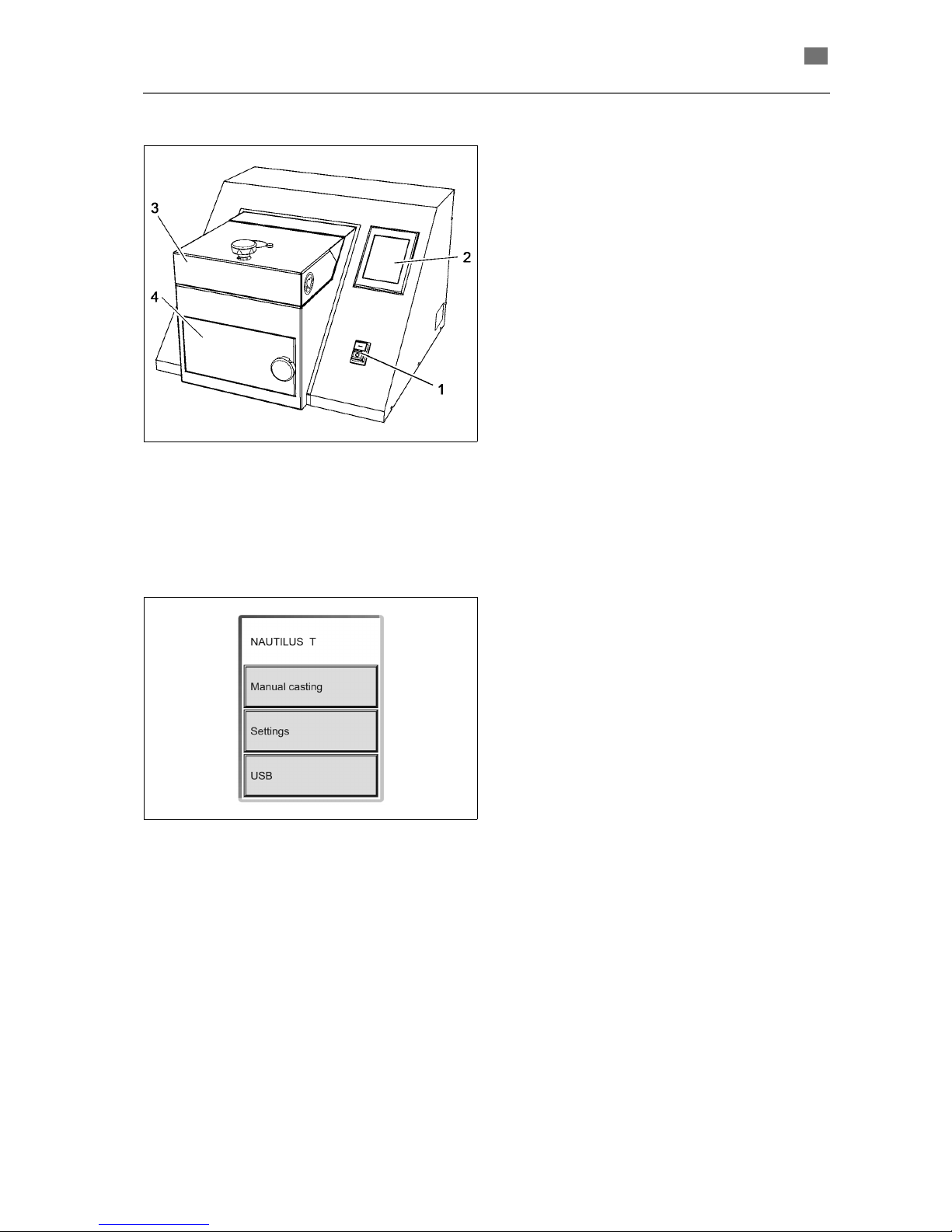

Nautilus®T
The touchscreen (screen for input of commands)
can be damaged by pointed or sharp objects!
Nautilus®CC plus
The optical waveguide (the cable above the
machine) is sensitive to bending and heat!
NAUTILUS
WARNING
Any liquid that leaks as a result
of damage is toxic and
corrosive! Avoid contact with
the skin, swallowing or
breathing in!
Only touch the touchscreen with the
fingertips! Do not use pens or finger-
nails!
CAUTION
Bending and touching with hot
objects must always be
avoided!
If necessary, grasp the hinged screen
at the base, not the optical
waveguide!

6
86066 BA-en/00 357.00001.../ 358.00001...
English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
en
Unpacking / Packing

English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
7
86066 BA-en/00 357.00001.../ 358.00001...
en
Safety instructions
The NAUTILUS®vacuum pressure casting machine
is designed exclusively for casting dental alloys,
with the exception of titanium. Any other use is
considered to be improper. We shall not be liable for
damage resulting from improper use.
ATTENTION! Casting titanium is not permissible!
There is a risk of personal injury and damage to the
machine!
Alloys containing beryllium produce strong oxides
during melting, cause substantial wear to the
crucibles and remain there in significant amounts.
ATTENTION! Carcinogenic particles are released
when beryllium is processed! Cast and finish only
while taking suitable protective measures!
The safety instructions must be followed in order to
prevent personal injury and damage to the machine.
We shall not be liable for damage due to failure to
comply with the safety instructions.
General safety instructions
Place of use
The unit has been designed solely for use in dental
laboratories and comparable establishments for
research, commercial and training purposes.
The unit may only be installed on an adequately
stable surface.
The unit must only be used in dry rooms.
Operator and operating personnel
The unit must only be operated by dental profes-
sionals, or they must provide supervision if trainees
or other persons operate unit.
Wear the protective clothing prescribed for use in
dental laboratories and observe the rules of
conduct.
The unit may only be operated by staff members
who are familiar with and follow the instructions of
this operating manual.
The operating manual must be easily accessible
when the machine is operated.
Observe the national accident prevention regula-
tions in addition to this operating manual.
Handling the machine

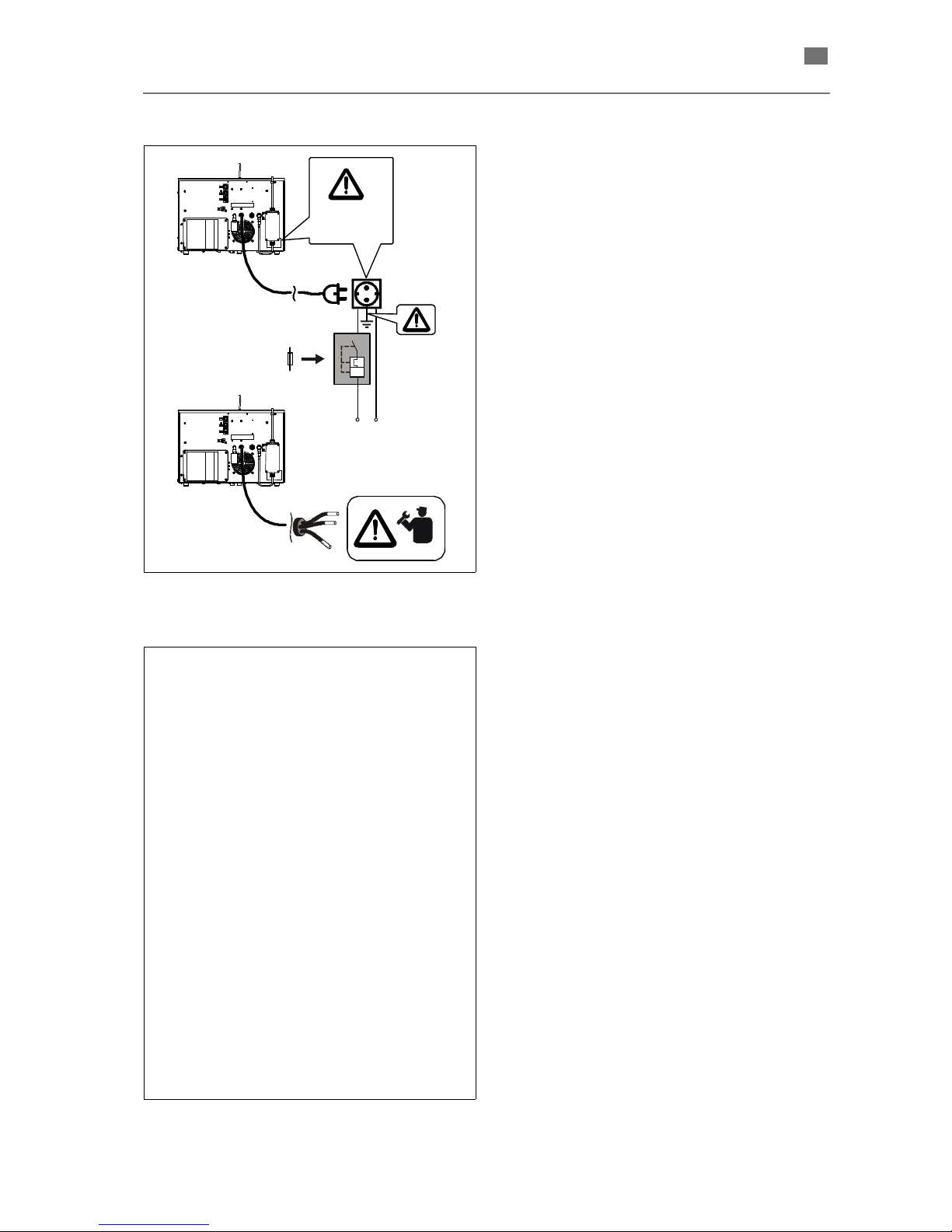

Prior to the electrical connection check whether the
specifications on the rating plate correspond to the
power supply network. In the case of uncertainty,
consult an electrician.
The unit is categorised under protection class 1 and
may only be connected to properly earthed power
sources (earth contact sockets).
Modifications of the machine are not permitted.
Always keep signs and stickers such that they are
easy to read. They must not be removed.
Check the machine and leads for damage regularly.
The machine must not be operated if it has any
defects that may result in risks for the employees or
third persons.
Protect the leads against heat, oil and sharp edges.
The leads must not be used to carry the machine or
to pull out the mains plug.
Care and maintenance
Switch off the machine and pull out the mains plug
before performing any care, cleaning or mainte-
nance work.
Only use dry or slightly moist cloths for cleaning. Do
not spray the machine with water or immerse it in
water.

8
86066 BA-en/00 357.00001.../ 358.00001...
English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
en
Repairs
Repairs may be carried out solely by BEGO
customer service or by persons authorised by
BEGO customer service.
Metallic housings must be grounded properly so
as to prevent them from carrying current.
Otherwise they are extremely dangerous because
the housings may be live due to damage to the
machine! Since a check to ensure a de-energized
state is mandatory after every intervention in the
machine (Germany: check in accordance with DIN
VDE 0701-1), only qualified electricians may open
the machine!
Only BEGO replacement and wearing parts may be
used.
Installation
The unit is categorised under protection class 1 and
may only be connected to properly earthed power
sources (earth contact sockets).
When laying cables and hoses, ensure that they are
protected from hot components (e.g., moulds).
The cooling water temperature must never drop
below 10°C (50°F). Otherwise condensation water
may land on the hot moulds and vaporize explo-
sively.
Danger of burns when draining the cooling water! If
there was casting beforehand, the water can reach
temperatures of up to 70 °C.
Maintenance of safety-relevant compo-
nents
The unit has been designed for a service life of 10
years from the date of manufacture. No liability is
accepted for damages arising from operation of the
unit after this period.
Safety-relevant components must be checked
regularly and replaced as required. This work must
be carried out solely by BEGO customer service or
by repair centres authorised by BEGO customer
service. To that end, users are recommended to
take out a maintenance agreement covering annual
checks (or checks after every 10,000 castings) and
a check after five years (or after 50,000 castings).

English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
9
86066 BA-en/00 357.00001.../ 358.00001...
en
Special safety instructions regarding this machine
WARNING
Hazards due to electromagnetic
radiation
• Persons with electronic implants
(for instance, pacemakers) may not
remain in the same room in which
the ready-to-operate machine is
located.
• The warning signs provided (sym-
bol: "pacemaker") are to be placed
at the entrances to the room in
which the ready-to-operate machine
is located.
WARNING
Risk of burns due to hot parts!
• Wear protective clothing (protective
apron), safety shoes, safety gog-
gles and protective gloves.
• Heat-resistant gloves must be worn
when holding the handles of the cru-
cible.
• Open the lower chamber only to
move the moulds. Otherwise always
keep it closed.
• Always use mould tongs to move
moulds and hot crucibles.
• Touch hot crucible inserts and hot
cast metal parts only with forceps.
WARNING
Danger of deflagration
• Ensure alloys, crucible and crucible
inserts do not become contaminat-
ed. Oil or fat impurities may evapo-
rate explosively during the casting
process.
Danger from waste gases
• Ensure there is adequate ventilation
in view of the waste gases arising
during the casting of dental alloys.
Dangers from the touchscreen
• Any liquid that leaks as a result of
damage is toxic and corrosive!
Avoid contact with the skin, swal-
lowing or breathing in!
NOTE
Important !
Never operate the machine without supervision,
even in automatic mode!

10
86066 BA-en/00 357.00001.../ 358.00001...
English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
en
Unit description
NAUTILUS®CC plus and NAUTILUS®T - Compact tabletop casting units with inte-
grated cooling and user-friendly touchscreen
Both units utilise tried-and-tested HF vacuum
pressure casting with split crucible and have
integrated cooling as well as user-friendly touch-
screens.
Special emphasis was placed on security systems
with double redundancy. The closing of both casting
chambers is indicated by the double closing sound.
To lower energy consumption during longer periods
of non-use, both units have an eco mode that starts
after 3 minutes and ends after 10 minutes with the
switching off of the touchscreen illumination. In this
state, Nautilus®requires only 10 W. A quick touch
on the touchscreen is enough to make the unit
functional again after a few seconds.
New software versions can be transmitted via a
USB interface on the back of the unit which means
both casting units are, therefore, "updatable".
In addition, NAUTILUS®CC plus has a pyrometer
that not only measures the temperature of the melt
without contact. Together with specially developed
software, it also makes it possible to largely
automate the casting process. This makes repro-
ducible quality during casting possible, that can also
be documented and archived in the form of casting
protocols via the USB interface. In the event of
malfunctions, it is also possible to call up diagnostic
protocols and send them to the BEGO Service.
For easier handling of these additional features that
the USB interface provides, a USB docking station
and a USB stick is also supplied with NAUTILUS®
CC plus.
Determination of the casting temperature for dental alloys with NAUTILUS®CC
plus
The flowability of the melt and thus the casting
temperature are of decisive importance for the
quality of the cast object. The problems that may
result due to a melt that is too cold or too hot are
known in practice and described in the relevant liter-
ature and therefore they are not dealt with in detail
here.
Dental alloys have the property of not having a fixed
melting point, but a melting interval. Within the
melting interval alloys occur in viscous as well as in
crystalline form.
The melting interval can easily be identified in the
melting and hardening curve by the characteristic
"salient points", which result due to irregularities in
the temperature curve.
When an alloy is melted, the first "salient point" is
the so-called solidus and the second the liquidus,
from which point the alloy exists entirely as a melt.
These characteristics in the temperature curve are
utilized by NAUTILUS®CC plus by means of a
thermal analysis process.
To ensure optimal flowability of the melt in the dental
casting mould, the melt is heated beyond the
liquidus point. Depending on the casting method
and alloy, a temperature increase between 100°C
and 180°C has proven to be optimal in practice.
Corresponding recommendations on these casting
temperatures, which have been verified by empirical
tests as a rule, are given by the manufacturers of
alloys and casting equipment. With most casting
machines the accuracy for achieving the recom-
mended casting temperature through visual
assessment of the developing temperature still
depends on the individual skills of the user.

English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
11
86066 BA-en/00 357.00001.../ 358.00001...
en
In the new NAUTILUS®CC plus casting machine,
by contrast, a mechanical measuring method is
used to determine the casting moment, enabling
precise determination of the casting temperature
within a very short time, even with small quantities
of alloy. At the same time the light information of the
melt is evaluated by means of an optical system and
a so-called pyrometer with a multichannel
measuring system and converted into temperature
values. The melting process is monitored on the
basis of the data captured in this way and casting
can be triggered automatically (on request also
manually) after the alloy-specific casting temper-
ature is reached. The measuring method applied is
able to compensate for influences due to fluctua-
tions in the light emission of the melt, such as those
occurring when the oxide skin opens during melting.
Through this innovative technology in the
NAUTILUS®CC plus the optimal casting tempera-
tures were determined for BEGO alloys and stored
in special casting programs for the machine control.
Thanks to the new measuring technique, it is now
possible to determine the casting temperatures very
reliably and on a reproducible basis. The standard
values recommended thus far for the casting
temperatures of BEGO alloys have consequently
been adapted to the newly defined values in some
cases and are summarized in the casting table of
this operating manual.
If alloys of other manufacturers are used in the
NAUTILUS®CC plus, the casting program of a
BEGO alloy can be copied with maximum
conformity to alloy composition and properties. Now
only the casting temperature and the name of the
non-BEGO alloy have to be adapted according to
the respective manufacturer's specifications. Users
can manually cast non-BEGO alloys for which
casting temperatures are lacking according to their
visual impression and then utilize the displayed
temperature to create their own casting programs
for automatic operation with these alloys. The
procedure for creating a casting program for a non-
BEGO alloy in the program memory of the
NAUTILUS®CC plus involves only a few steps and
is described in the operating manual.

12
86066 BA-en/00 357.00001.../ 358.00001...
English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
en
Nautilus®CC plus
NAUTILUS®CC plus (CC = Cast Control) is a
compact benchtop unit for vacuum pressure casting
with induction heating in the dental laboratory.
Sophisticated software and non-contact temper-
ature measurement with the help of a so-called
multichannel pyrometer enable automatic casting
and at the same time optimal, reproducible casting
results.
1 Main switch
2 Touchscreen
3 Optical waveguide to the pyrometer
4 Crucible door
5 Mould door
Overview
After switching on the unit, the following functions
can be called up via the touchscreen:
Automatic casting
In the automatic mode casting is carried out
automatically at the optimal casting moment without
any action on the part of the operator. It is only
necessary to call up the program location of the
alloy, which can be found in the program tables.
In the automatic mode it is also possible to intervene
manually, if desired, for example to trigger casting
before the machine would do it.
Manual casting
In the manual mode casting is carried out at the
push of a button. The temperature measurement
also takes place in the manual mode with pyrometer
support and it reminds the operator by means of
additional optical signals that the casting temper-
ature has been reached.
As a rule, manual casting only takes place in order
to create a program for a non-BEGO alloy (with
pyrometer, see page 26) or represents an
"emergency operation" if the pyrometer is defective
(without pyrometer).
Settings
Here, for example, new program locations for non-
BEGO alloys are created.
USB
With the aid of the USB stick and the USB docking
station (included in delivery), casting protocols can
be saved and printed or archived via a PC. In the
event of malfunction, diagnostic protocols can be
called up and sent to the BEGO Service. The unit
can be "updated" with the new software versions
from the BEGO homepage.

English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
13
86066 BA-en/00 357.00001.../ 358.00001...
en
Nautilus®T
NAUTILUS®T does not have a pyrometer and,
thus, any temperature measurement. The casting
must be carried out manually while observing the
melt. Casting and diagnostic protocols without
giving the casting temperature are not conclusive
and, thus, not possible. Updates of the unit,
however, can be carried out via a USB stick (not
included in delivery).
1 Main switch
2 Touchscreen
3 Crucible door
4 Mould door
Overview
After switching on the unit, the following functions
can be called up via the touchscreen:
Manual casting
In the manual mode casting is carried out at the
push of a button.
Settings
Here, for example, new program locations for non-
BEGO alloys are created.
USB
New software versions from the BEGO homepage
can be transmitted to the unit with the aid of a USB
stick (not included in delivery).

14
86066 BA-en/00 357.00001.../ 358.00001...
English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
en
Scope of delivery, wearing parts and extras
Scope of delivery
* Wearing part. Expendable and wearing parts are neither subject to the warranty nor the guarantee.
Wearing parts and extras
NOTE
The spare parts list is appended.
When ordering spare parts please quote the REF,
quantity and equipment serial no.
REF qty REF qty REF qty
52488* 4 13362 1 14990* 2
52436* 2 37618 1 31658* 1
52467* 2 10073 1 14994 1
52468*
Graphite
insert
2 52627* 1 16232* 1
52473*
Glassy
carbon
insert
1 52628* 1 16092 2
30002 1 52629* 1 86066 1
15932* 1 52068* 100 Only Nautilus®CC plus
30259 1 50166 1 Test Wirobond
280 16237 1
12257 1 50042 3 Wironit extra-
hard 16371* 1
18554
83388
1 USB docking station
1 USB stick
3 / 6
1 / 9
REF qty REF qty
39754
(55 mm) 1 16260 1
52066 1
52525 Auromelt
65 g 52477 Lolipot
100 ml
bar
bar

English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
15
86066 BA-en/00 357.00001.../ 358.00001...
en
Technical data
Nautilus®CC plus
Height max..................................................650 mm
Width...........................................................600 mm
Depth ..........................................................670 mm
Weight.............................................................64 kg
Nominal voltage ................. 200 .... 240 V, 50/60 Hz
Nominal output....................... 4100 VA (Eco 10 VA)
Short-time operation .............................. max. 5 min
Compressed air.............................. 1/4 ", 5 .... 8 bar
(0.5 .... 0.8 MPa), (72.5 .... 116 psi),
≥100 l / min
Noise emission...................................... < 70 dB (A)
Ambient temperature (max.) .................. 10… 30 °C
(50…86 °F)
Nautilus®T
Hight........................................................... 420 mm
Width .......................................................... 600 mm
Depth.......................................................... 670 mm
Weight .............................................................63 kg
Nominal voltage..................200 .... 240 V, 50/60 Hz
Nominal output .......................4100 VA (Eco 10 VA)
short-time operation ...............................max. 5 min
Compressed air.............................. 1/4 ", 5 .... 8 bar
(0.5 .... 0.8 MPa), (72.5 .... 116 psi),
≥100 l / min
Noise emission ...................................... < 70 dB (A)
Ambient temperature (max.) ..................10… 30 °C
(50…86 °F)
230 V, 50 / 60 Hz, 4100 VA ................... REF 26415
200 V, 50 / 60 Hz, 4100 VA ................... REF 26416
210 V, 50 / 60 Hz, 4100 VA ................... REF 26417
240 V, 50 / 60 Hz, 4100 VA ................... REF 26418
230 V, 50 / 60 Hz, 4100 VA ................... REF 26420
200 V, 50 / 60 Hz, 4100 VA ................... REF 26421
210 V, 50 / 60 Hz, 4100 VA ................... REF 26422
240 V, 50 / 60 Hz, 4100 VA ................... REF 26423

16
86066 BA-en/00 357.00001.../ 358.00001...
English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
en
Installation
Cooling
The internal cooling enables a maximum of 50
quickly successive castings. If the E 20 message is
issued, switch off the unit and let it cool.
1. Remove the panel on the left side (loosen
knurled screws).
2. As shown, remove both stoppers and take out
the funnel.
3. Fill up to the "max" mark with approx. 1.5 litres
of drinking water.
4. Drain excess water as shown!
5. Finally, replace both stoppers and stow the
funnel.
WARNING
The warning signs provided (symbol:
"pacemaker") are to be placed at the
entrances to the room in which the
ready-to-operate machine is located!
WARNING
Burn hazard!
If there was casting beforehand, the
water can reach temperatures of up to
70 °C!

English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
17
86066 BA-en/00 357.00001.../ 358.00001...
en
Electricity
Prior to the electrical connection check whether the
specifications on the rating plate correspond to the
power supply network. In the case of uncertainty,
consult an electrician.
The machine is subject to the provisions of class of
protection I and may only be connected to properly
grounded power sources.
Installation in countries without 230 V network:
The electrical installation may only be carried out by
a qualified electrician!
Remove the mains plug and replace with a plug
suitable to local conditions.
The machine is subject to the provisions of class of
protection I and may only be connected to properly
grounded power sources.
Compressed air
1/4 "
5 .... 8 bar
(0.5 .... 0.8 MPa) (72.5 .... 116 psi)
≥100 l / min
An inadequate compressed air supply during
casting under pressure (warning message W 11)
can be compensated for with the compressed air
tank (REF 16260). An inadequate compressed air
supply during evacuation (warning messages W 02,
W 13) cannot be compensated for with the
compressed air tank.
Remove protective cap
Remove the cap from the precision optical system.
Docking station and USB stick
(only NAUTILUS®CC plus)
Connect the docking station and insert the USB
stick.
I >
NL
V / HZ
16 A

18
86066 BA-en/00 357.00001.../ 358.00001...
English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
en
Basic principles: Wax-up
After the crucible is opened, the melt flows into the
mould through gravity and immediately fills the
sprues. Immediately after that the entire mould
cavity is swiftly filled with the hot melt by means of
compressed air. The object should first harden and
must enable subsequent suction of the liquid melt
out of the reservoir of the sprues. The following rules
must always be observed for this purpose.
BEGO base socket mould formers are matched to
the flow of the melt from Nautilus®crucibles and
should therefore be used.
Do not provide with vents. Air vents cause the
compressed air to be fed incorrectly during
pressing.
The object should first harden and enable subse-
quent suction of the liquid melt from the heat centre
of the mould.
For this reason keep the spacing between the object
and the mould bottom and mould wall small (5 mm).
Arrange bridges in a ring shape at the mould wall.
Partial denture
Follow the illustrations and the instructions of the
alloy manufacturer when dimensioning the sprues.

English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
19
86066 BA-en/00 357.00001.../ 358.00001...
en
Bridges
a) A casting cone can be dispensed with.
b) Provide with sprue system indirectly so the
melt does not flow directly into the object,
but first fills the distribution channel.
c) Reinforce distribution channel in the case
of full pontics (the volume of the reinforce-
ment must correspond at least to the vol-
ume of the full pontics).
d) Dimension the distribution channel gener-
ously and allow it to project to enable sub-
sequent suction of liquid melt.
e) Maintain small spacing between object and
mould bottom and wall (5 mm).
Follow the instructions of the alloy manufacturer
with regard to dimensioning sprue systems and
sprues.
Crowns
a) Prevent the melt from flowing in directly
through sinuous sprue system.
b) Extend sprue beyond the sprue system of
the crown.
c) Maintain small spacing between object and
mould bottom and wall (5 mm).
Follow the instructions of the alloy manufacturer
with regard to dimensioning sprue systems and
sprues.

20
86066 BA-en/00 357.00001.../ 358.00001...
English ⋅ Nautilus
®
CC plus ⋅ Nautilus
®
T
en
Basic principles: Crucible
Recommendation: Only use BEGO crucibles
(identifiable by the BEGO logo)!
Always use crucible and inserts for the same alloy.
(Crucibles can be written on with a pencil.)
WARNING
Risk of burns due to hot parts!
• Only touch the crucible handles with
safety gloves.
• Grasp crucible inserts only with
tweezers.
NOTE
Crucibles of other manufacturers frequently have
incorrect dimensions. This leads to faulty casting
if the crucible opens too late or the melt leaves
the crucible too early.
Screw the handles firmly onto the crucible all the
way to the stop.
WARNING
ATTENTION
Inserts (made of graphite or glassy
carbon) require ceramic handles!
When inserts are used, the handles
become extremely hot: plastic
handles would melt!
