IMPORTANT
Ifyouhaveanyproblemswiththisproduct(missingordamagedparts,assemblyissues,etc.),
PLEASEDONOTRETURNTOTHERETAILER/STORE
fromwhereyoupurchasedtheproduct.
PleasecallourToll‐FreeCustomerServiceHotlineat:1‐800‐416‐3511
Between9:00AMand5:00PMEasternTime,MondaythroughFriday
Orvisitourwebsiteat:www.hanover‐products.com


Toexpediteanyfuturewarrantyclaims,pleaseretaintheInstructionSheet,Warranty
Cardandreceiptforfutureuse.
For additionalon‐linesupportonassembly,troubleshootingandcare&maintenanceofyouroutdoor
furniture,pleasevisitourwebsiteat:www.hanover‐products.com.
6/1/2015(a)

ASSEMBLY INSTRUCTIONS
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
WARNING:
USE FACTORY APPROVED
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE
OF UNAPPROVED PART OR
ACCESSORIES CAN VOID
THE WARRANTY ON THIS
PRODUCT AND RESULT IN A
HAZARDOUS CONDITION.
PLEASE CONTACT US FOR
INFORMATION REGARDING
REPLACEMNT HOSES,
THERMOCOUPLES,
ELECTRODES, IGNITION
MODULES, LAVAROCKS,
LOGS, FIRE ICE, ETC.
WARNING:
Improper installation, adjustment alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
FOR USE WITH 20LB (9KG) PROPANE
CYLINDER WITH TYPE 1 CONNECTION OR FOR
USE WITH NATURAL GAS AFTER CONVERSION
KIT IS INSTALLED (MUST BE PROFESSIONALLY
INSTALLED) ALSO THE LP REGULATOR MUST
BE SUPPLIED BY THE MANUFACTURER.
Aug-28-2013
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for future reference.
Questions, Problems, Missing Parts? Before returning to
your retailer, call our customer service department in the
US and Canada at 1-800-416-3511, Monday-Friday, 9 a.m.
– 5 p.m. Eastern Time.
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
DANGER CARBON MONOXIDE HAZARD
WARNING: For Outdoor Use Only
CSA Model 98900
Printed in China DRC02200

IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane
Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff
valve during any pressure testing of the gas supply system at test pressure equal to or less than 1/2
psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas control
which has been under water.
Children and adults should be alerted to the hazards of high surface temperatures and kept at
a safe distance to avoid burns or clothing ignition.
Young children should be carefully supervised when they are anywhere near the appliance.
Clothing or other flammable material should not be hung from the appliance, or placed on or
near the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to operating
the appliance.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent
cleaning may be required as necessary. It is imperative that the control compartments, burners
and circulating air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This
regulator is set for an outlet pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and inspect the LP
Hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to
the gas appliance being put into operation. Use only the replacement hose assembly specified in this
manual. Inspect the burner before each use of the appliance. The burner must be replaced prior to the
appliance being put into operation if it is evident that the burner is damaged. Use only the burner listed
in these instructions.
Keep the fuel supply hose away from any heated surfaces.

IMPORTANT SAFETY INFORMATION ABOUT
PROPANE (LP) GAS
A self contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must
be equipped with a Type 1 connector and an OPD (overfill protection device). See Figure 1.
The LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specification for LP-gas cylinders of the U.S. Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-B339, Cylinder, Sphere and Tubes for the Transportation of
Dangerous Goods.
zThe cylinder supply system must be arranged for vapor withdrawal.
zThe cylinder used must include a collar to protect the cylinder valve.
zThis appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or any other enclosed space.
zWhen this appliance is not is use, the gas must be turned off at the supply cylinder.
zStorage of this appliance indoors is permissible only if the cylinder is disconnected and
removed from the appliance.
zCylinders must be stored outdoors in a well-ventilated area out of the reach of
children .Disconnected cylinders must have threaded valve plugs tightly installed and must not
be stored in a building, garage or any other enclosed areas.
CSA (Canadian Standards Association) certified to ANSI Z21.97•CSA 2.41-2012 “ Outdoor
Decorative Gas Appliances”. The gas hose is routed through a “U” bolt to prevent the hose from
coming in contact with the burner. DO NOT remove the hose from the “U” bolt. See Figure 2.
Figure 1 Figure 2
SPECIFICATIONS
INPUT 40,000 Btu/hr 30,000 Btu/hr Low fire
Propane Regulator Pressure 11 inches water column
Natural Gas Minimum Inlet
Pressure 7 inches water column
Clearances to combustible surfaces Sides 24in./61cm Top: 72 in. / 183 cm
THE UNIT HAS BEEN PRE-ASSEMBLED BY MANUFACTURER AND DOES NOT
REQUIRE ASSEMBLY BY CUSTOMER.

INSTALLATION
1. Carefully unpack all items from the box. Place the table in its final position. There must be a
minimum of 24 inches of clearance from the side of the table top to any combustible walls.
2. With the help of another person, carefully place the natural stone table top onto the table base.
After making any necessary adjustments to the alignment of the natural stone table top and the
table base, use four bolts and washers as shown in Fig.3. Guide the bolts through hole in the
table base into the pre-drilled hole on the underside of the natural stone table top. Do not
tighten completely.
Figure3
3. Pour all of the lava rock into the burner pan. Completely cover the burner tube with lava rocks
asshowninFig.4.

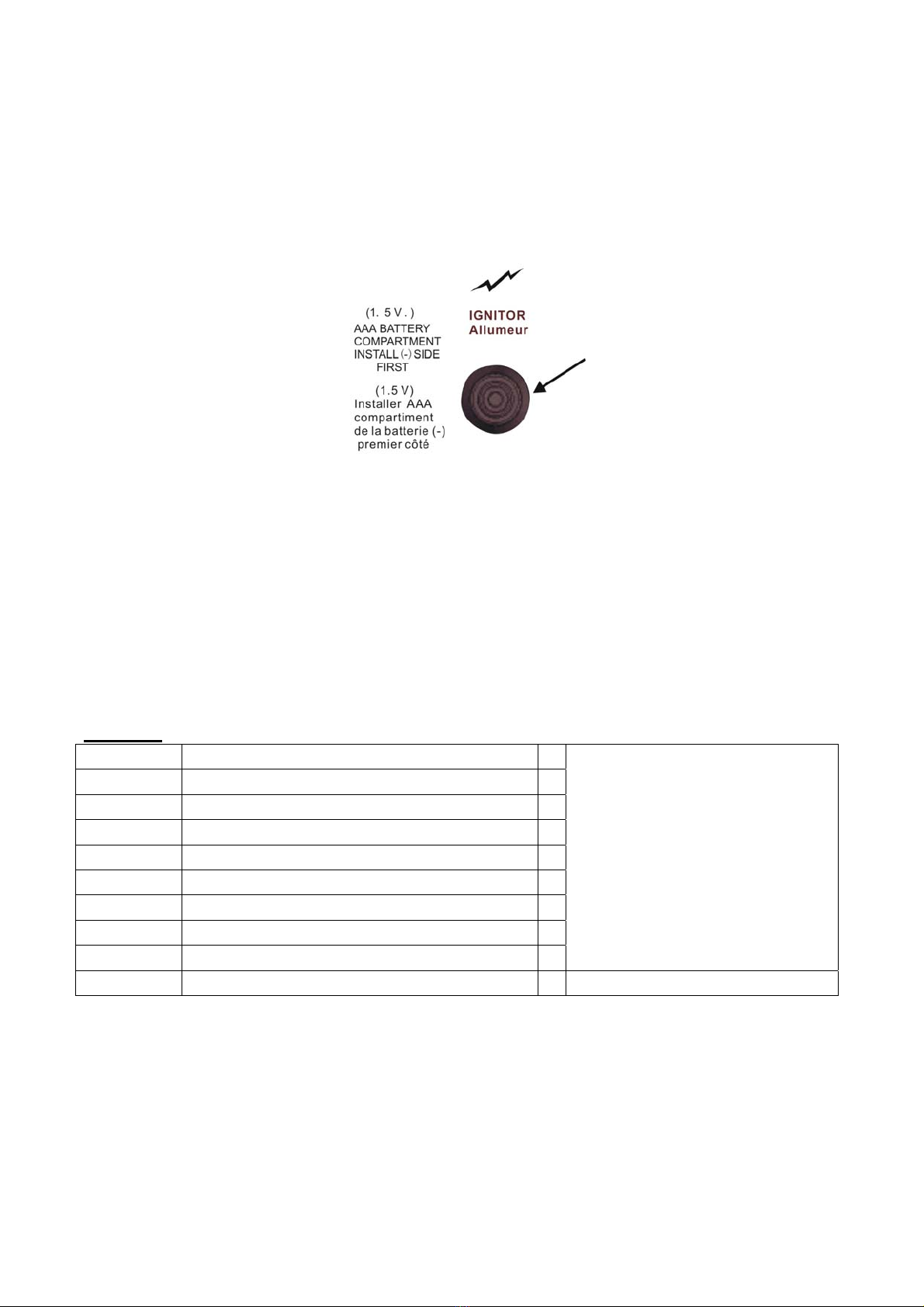

Remove any lava rock from the ignition well Figure 4
