Harbor Freight Tools 35559 User manual

PROPANE STOVE
Dual Burner with Manual Ignition
35559
Dual Burner with Auto-Ignite
35561
CLEANING, ASSEMBLY, AND OPERATION
INSTRUCTIONS
Using a propane stove indoors CAN KILL
YOU IN MINUTES.
Stove exhaust contains carbon monoxide.
This is a poison you cannot see or smell.
NEVER use inside a
home, tent, camper, or
garage, EVEN IF doors
and windows are open.
Only use OUTSIDE
and far away from
windows, doors,
and vents.
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2005, 2009 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any
artwork contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 09l

Page 2For technical questions, please call 1-800-444-3353.SKU 35559
35561
SAVE THIS MANUAL
Keep this manual for the safety
warnings and precautions, assembly,
operating, inspection, maintenance and
cleaning procedures. Write the product’s
serial number in the back of the manual
near the assembly diagram (or month
and year of purchase if product has no
number). Keep this manual and the
receipt in a safe and dry place for future
reference.
IMPORTANT SAFETY
INSTRUCTIONS
In this manual, on the labeling,
and all other information
provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
READ AND UNDERSTAND ALL
INSTRUCTIONS
Improper assembly, installation,
adjustment, alteration, service,
use, or maintenance can cause
property damage, PERSONAL
INJURY, or DEATH. The warnings,
precautions, and instructions
discussed in this instruction manual
cannot cover all possible conditions
and situations that may occur. It
must be understood by the operator
that common sense and caution are
factors which cannot be built into
this product, but must be supplied
by the operator. When using this
stove, safety precautions should
always be followed, including the
following:

Page 3For technical questions, please call 1-800-444-3353.SKU 35559
35561

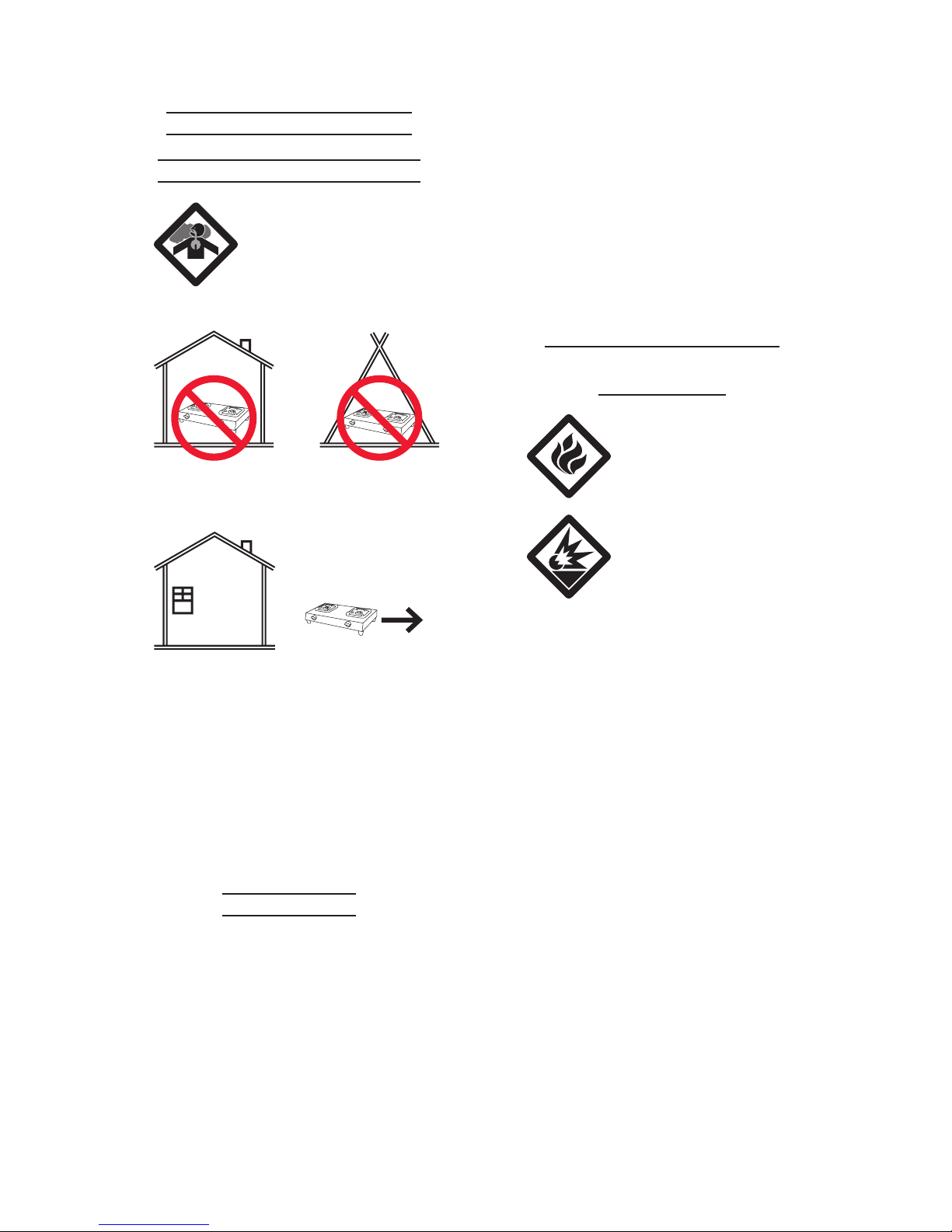

INHALATION HAZARDS
Carbon Monoxide Hazard
1. Using a propane stove
indoors CAN KILL YOU
IN MINUTES.
Stove exhaust contains
carbon monoxide. This is
a poison you cannot see or smell.
NEVER use inside a home, tent,
camper, or garage, EVEN IF doors
and windows are open.
Only use OUTSIDE and far away
from windows, doors, and vents.
Early signs of carbon monoxide2.
poisoning resemble the u, with
headaches, dizziness, or nausea. If
you have these signs, the Propane
Stove may not be working properly
or is improperly vented. Get fresh air
immediately.
Propane Gas
If you smell gas:1.
Shut off gas to the stove.a.
Extinguish any open ame.b.
Do not light a match or operate anc.
electrical switch.
Evacuate the area at once.d.
Call for professional help.e.
Propane gas is a gas you cannot see2.
or smell. Propane gas normally has
an odorant added to aid detection.
The odorant smells like “rotten eggs“.
The odorant may fade over time, so
leaking gas may not be detectable by
smell alone.
Propane gas is heavier than air and3.
will collect in low areas.
RISK OF FIRE AND/OR
EXPLOSION
1. Do not store extra
propane tanks in the
vicinity of the Propane
Stove.
2. If gas is smelled during
operation, immediately
close the valve on the
propane tank. Propane
gas is odorless. An odor-making
agent is added to propane/LP gas to
enable you to smell the gas if it may
be leaking.
If the Propane Stove shuts off3.
during operation, close the valve
on the propane tank. Check the
amount of gas in the tank and
wait 5 minutes for the gas to clear
before restarting. If it continues
to shut off during operation, have it
serviced by a qualied technician.
Never place the Propane Stove4.
within 15 feet of ammable objects
such as wood, trees, overhangs,
and umbrellas. This stove also
requires a clearance of at least 3
feet from non-ammable materials
to allow proper combustion.
Do not store propane near high5.
heat, open ames, pilot lights,

Page 4For technical questions, please call 1-800-444-3353.SKU 35559
35561
direct sunlight, other ignition
sources or where temperatures
exceed 120°F (49°C).
Keep solid combustibles such6.
as paper or cardboard a safe
distance away from the Propane
Stove. Never use the Stove in
spaces which do or may contain
volatile or airborne combustibles,
or products such as gasoline,
solvents, paint thinner, dust
particles or unknown chemicals.
Operate the Propane Stove with7.
the propane tank in its vertical
upright position, on a non-
combustible surface. While in
operation, do not tilt or lean the
propane tank on its side. Never turn
the tank upside down, not even when
it seems empty, as this may cause
clogging of valves and components
which could lead to dangerous are-
ups or re.
Do not install or remove the Propane8.
tank while the stove is lighted, near
ames, pilot lights or other ignition
sources or while the stove is hot.
This Propane Stove must be9.
positioned and operated so that
it is not directly exposed to water
spray, rain, or dripping water.
Make sure to remove ALL packing10.
materials before using the Propane
Stove.
Do not rell the disposable 11.
propane cylinders.
Clothing or other ammable 12.
materials should not be hung from
the Propane Stove or placed on or
near the Stove.
RISK OF BURNS -- STOVE GETS
VERY HOT DURING USE
1. Do not attempt to move
the Propane Stove while
it is in operation. Turn it
off and wait one-half hour
until it cools down before moving.
Do not touch the Grill(s) or2.
Burner(s) while the Propane Stove
is lit. Before servicing, wait one-half
hour for the Propane Stove to cool
down.
Children and adults should be3.
alerted to the hazards of high
surface temperatures and should
stay away to avoid burns or
clothing ignition.
Young children should be carefully4.
supervised when they are in the
area of the Propane Stove.
GENERAL SAFETY
WARNINGS AND
PRECAUTIONS
This Propane Stove must be used1.
only with HD-5 propane gas. The
propane tank should hold no more
than 20 pounds of LP gas. Do not
use bulk tanks of larger capacity.
Do not use any other fuel. The
Stove must be used only with a
vapor withdrawal LP propane tank
equipped with a POL valve. The tank
must be constructed and marked in
such a way as to comply with the
specications for LP gas tanks by the
U.S. Department of Transportation
(DOT).

Page 5For technical questions, please call 1-800-444-3353.SKU 35559
35561
The use of the Propane Stove must2.
be in conformity with local codes or,
in the absence of local codes, with
the standard for storage and Handling
of Liqueed Petroleum Gases, ANSI/
NFPA 58. For Canada, the use must
be in accordance with the current
CAN/CGA B149.2 installation codes.
Keep children away.3. Children must
never be allowed in the work area.
Do not let them handle, move, or
adjust this product.
Store idle equipment.4. When not in
use, this product must be stored in
a dry location to inhibit rust. Always
lock up stoves and keep out of reach
of children.
Use this appliance only as a cooking5.
device. Do not alter it in any way,
or use with any accessory not
specically designed for this product.
Check for damaged parts.6. Before
using, any part that appears
damaged should be carefully
checked to determine that it will
operate properly and perform its
intended function. Check for any
broken parts or mounting xtures,
and any other condition that may
affect proper operation. Any part
that is damaged should be properly
repaired or replaced by a qualied
technician. Do not use the product if
any switch does not turn on and off
properly.
Replacement parts and7.
accessories. When servicing, use
only identical replacement parts.
Use of any other parts will void the
warranty. Only use accessories
intended for use with this product.
Approved accessories are available
from Harbor Freight Tools.
Do not operate this product if8.
under the inuence of alcohol or
drugs. Read warning labels if taking
prescription medicine to determine
if your judgement or reexes are
impaired while taking drugs. If there
is any doubt, do not operate this
product.
Maintenance.9. For your safety,
service and maintenance should be
performed regularly by a qualied
technician. The Propane Stove
should be inspected before use
and at least annually by a qualied
service technician.
Read these instructions carefully10.
before setting up and using the
Propane Stove. Do not allow anyone
who has not read the instructions to
assemble, light, or operate the Stove.
More frequent cleaning may11.
be required as necessary. It is
imperative that the Burner(s),
Temperature Control Knob(s), Piezo
Ignition, and circulating fuel/air
passageways of the Propane Stove
should be kept clean.
The brass components of this product12.
contain lead, a chemical known to
the State of California to cause birth
defects (or other reproductive harm).
(California Health & Safety Code §
25249.5, et seq.)

Page 6For technical questions, please call 1-800-444-3353.SKU 35559
35561

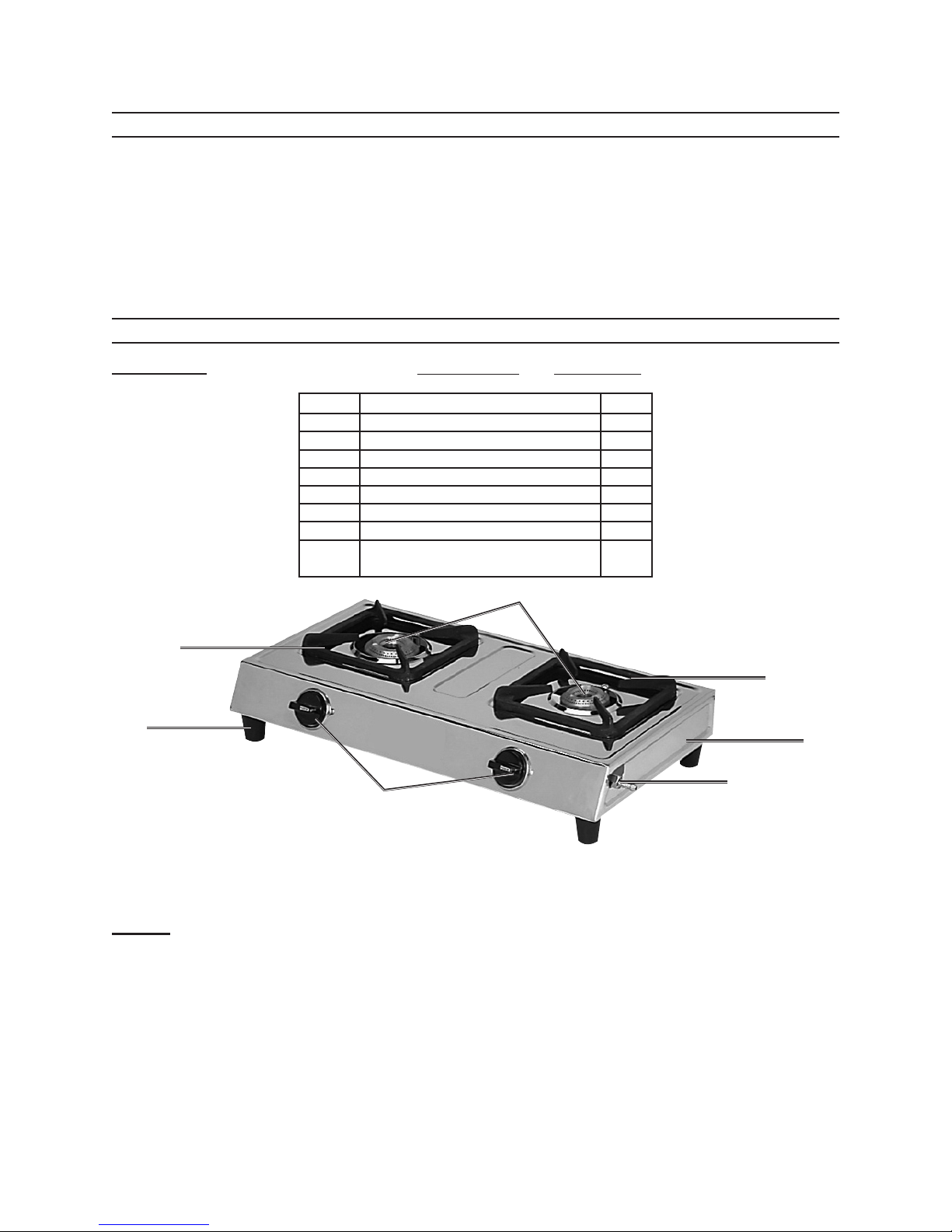

SPECIFICATIONS
Model 35559 35561
Ignition System
Manual
(Light w/
Matches)
Piezo Electric
(Matchless
Ignition)
Fuel Source Standard LP Gas Tank
(not included)
Compatibility
For Use With UL Listed:
Model 97333 LP Regulator &
Hose Kit
(not included)
BTU per burner 15,000 Maximum
Number of Burners 2
UNPACKING
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at 1-800-444-3353 as soon
as possible.
ASSEMBLY INSTRUCTIONS
WARNING! Close the valve on the
propane tank (not included) prior to
assembling, performing maintenance,
or making any adjustments to the
stove.
CAUTION! This product is machine
manufactured. Be aware of sharp
edges. Use heavy-duty work gloves
and ANSI-approved safety goggles
when assembling.
Turn the Propane Stove upside down,1.
and attach a Rubber Foot (7) to each
corner of the unit.
To attach the Temperature Control2.
Knobs (4), insert the Knob onto the
Burner Control Shaft by aligning the
at edges of the Knob and Shaft.
Make sure that the Knobs are seated
properly. (See Figure A.)
WARNING: The Propane Stove requires
the attachment and use of the Model
97333 LP Regulator & Hose Kit (UL
Listed) which are sold separately by
Harbor Freight Tools. (See Figure
A.)
To attach the Model 97333 LP3.
Regulator & Hose Kit to the Propane
Stove, remove the plastic protective
cap from the Inlet Connection Nozzle
(5) on the Stove. Then, screw the
Hose Connector rmly onto the Inlet
Connection Nozzle. (See Figure A.)
GAS VALVE PROPANE TANK
(NOT INCLUDED)
TEMPERATURE
CONTROL KNOB
(4)
INLET
CONNECTION
NOZZLE
(5)
HOSE
CONNECTOR
MODEL 97333
LP REGULATOR & HOSE KIT
(NOT INCLUDED)
FIGURE A
REV. 09l

Page 7For technical questions, please call 1-800-444-3353.SKU 35559
35561
NOTE: The propane tank used must
be constructed and marked in
accordance with the specications
for LP propane cylinders by the U.S.
Department of Transportation. Use
16.4 oz disposable propane cylinder
tanks.
To connect to the propane tank, rst 4.
make sure the Control Knobs (4)
of the Propane Stove are “OFF”.
Then, screw the Gas Valve of the LP
Regulator & Hose Kit rmly onto the
propane tank’s discharge pipe. (See
Figure A.)

Page 8For technical questions, please call 1-800-444-3353.SKU 35559
35561
OPERATING INSTRUCTIONS
CAUTION! Only use clean equipment and
utensils. Before using the Propane
Stove, and after using this product,
clean all parts in warm, clean water
and anti-bacterial soap. Then,
thoroughly dry.
NOTE: High altitudes affect cooking
efciency.
Locate the Propane Stove and1.
propane tank on a clean, dry, level
surface capable of supporting the
weight of the Stove, the utensils and
the propane tank. Keep the Propane
Stove and propane tank away from
other ammable objects.
Check to make sure the Temperature2.
Control Knob (4) on the Propane
Stove is in its “OFF” position. Open
the gas valve on the propane tank
and check and smell for gas leaks.
Perform a bubble test by applying
warm soapy water over every joint,
regulator, tting, and anywhere
else there may be a possible leak.
Observe carefully to see if bubbles
expand, indicating a leak. A large
leak can blow the soapy solution
away instead of forming bubbles.
If leaks are found, do not use the
Propane Stove until the leaks have
been stopped. After testing, make
sure to close the gas valve on the
propane tank.
For the manual ignition model (SKU3.
35559), open the gas valve on the
propane tank. Apply a lighted match
to the Burner (2) which is to be lit.
Next, push the Temperature Control
Knob (4) and turn it counterclockwise
to its “ON” position. Once the Burner
is lit, safely dispose of the match and
adjust the Temperature Control Knob
to the desired setting.
For Piezo Electric ignition model4.
(SKU 35561), a Burner (2) can
be lit by pushing and turning the
Temperature Control Knob (4) to its
“ON” position without having to use a
match. Once the Burner is lit, adjust
the Temperature Control Knob to the
desired setting.
NOTE: For both models, if the Burner
does not ignite, turn the Temperature
Control Knob to its “OFF” position
and wait 5 minutes before trying
again.

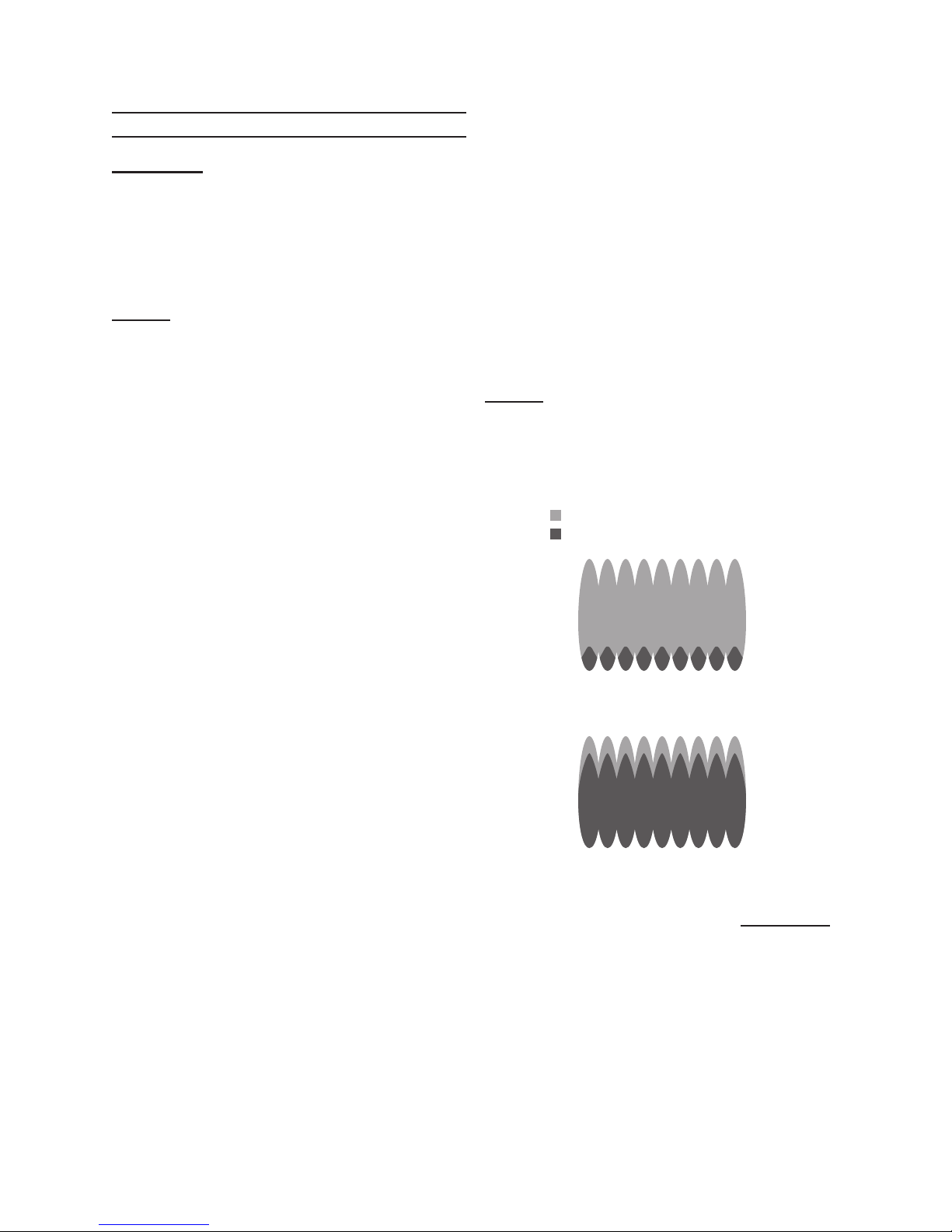

= Yellow/Orange Flames
= Blue Flames
Improper Flames
(Yellow Flames)
Proper Flames
(Yellow tips on the top of the blue ames)
FIGURE B
5. During each use, visually check the
burner’s ame. If the ames look
improper, have the Propane Stove
serviced by a qualied technician
before use. (See Figure B.)

Page 9For technical questions, please call 1-800-444-3353.SKU 35559
35561
While cooking, avoid spills as this6.
may result in extinguishing the ame
and clogging the Burner holes.
Before removing a pan from the7.
Burner (2), or when nished using the
Propane Stove, turn the Temperature
Control Knob (4) to its “OFF”
position. Then, close the gas valve
on the propane tank.
To store, turn off the propane tank8.
and remove it from the stove. Store
propane tanks outdoors in a well-
ventilated area out of reach of
children. Disconnected propane
tanks must have threaded valve
plugs (not included) tightly installed,
and must not be stored in a building,
garage, or any other enclosed area.
Store the stove in a safe dry place,
covered to protect it from dust and
dirt.
WARNING! Do not
attempt to move the
Propane Stove while it is
on or while it is hot. Do
not touch any area of the Burner
(2), Grill (3), or top of the Stove’s
Body (1). Serious burns will occur.
Turn the Propane Stove off and
wait one-half hour until it cools
down before moving.
INSPECTION, MAINTENANCE,
AND CLEANING
Any guard or other protective1.
device removed for servicing the
Propane Stove must be replaced
prior to operating the Stove.
Before each use,2. check all gas
ttings for tightness.
Before each use,3. check for cracks,
excessive abrasion or wear, and any
other damage.
Before and after each use:4. Before
using the Propane Stove, and after
using this product, clean all parts in
warm, clean water and anti-bacterial
soap.
Store the Propane Stove5. in a clean,
dry location out of reach of children.
If storing the unit indoors, rst shut
off and remove the propane tank and
leave it outdoors. Keep the area near
the Propane Stove clear and free
from combustible materials, gasoline,
and other ammable vapors and
liquids.
CAUTION: All maintenance,6.
service, or repairs not listed in this
manual are only to be attempted
by a qualied service technician.

Page 10For technical questions, please call 1-800-444-3353.SKU 35559
35561
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN
THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES
THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED
TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISKS AND LIABILITY ARISING OUT OF
HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT
OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
PARTS LISTS AND ASSEMBLY DIAGRAMS
IMPORTANT: When ordering parts, specify Model Number and Part Number.
Part Description Qty
1 Body 1
2 Burner 2
3 Grill 2
4 Temperature Control Knob 2
5 Inlet Connection Nozzle 1
6 Pipe Assembly 2
7 Rubber Foot 4
8Piezo Electric Start Assembly
(model 35561 only) 1
1
2
3
3
5
7
4
6: Pipe Assembly (Not shown - hidden beneath body).
8: Piezo Electric Start Assembly (Not shown).
NOTE: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
