DOUBLE BURNER STOVE
CAST IRON
MODEL #44894
ASSEMBLY AND OPERATING INSTRUCTIONS
Copyright © 2001 by Harbor Freight Tools. All rights reserved. No portion of this manual or any
artwork contained herein may be reproduced in any shape or form without the express written
consent of Harbor Freight Tools.
Visit our Web site at http://www.harborfreight. com
3491 Mission Oaks Blvd., Camarillo, CA 93011
For technical questions and replacement parts, please call 1-800-444-3353

#44894 Page 2
SPECIFICATIONS
Connstruction: Cast Iron
Finish: Flat Black
Overall Size: 19-7/8”L x 11”W x 5-3/8”H
Burner Diameter: 4-3/4” x 7/8”
Fuel Type: Liquid Propane
SAVE THIS MANUAL
You will need the manual for the safety warnings and precautions, assembly
instructions, operating and maintenance procedures, parts list and diagram. Keep
your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep the manual and invoice in a safe and dry place for future reference.
SAFETY WARNINGS AND PRECAUTIONS
WARNING: When using product, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
Read all instructions before using this product!
1. Avoid using alone. If an accident happens, an assistant can bring help.
2. Keep area clean. Cluttered areas invite injuries.
3. Observe area conditions. Do not use product in damp or wet locations. Do not expose
to rain.
4. Keep children away. Children must never be allowed in the use area. Do not let them
handle propane, tools, or cords.
5. Store idle equipment. When not in use, this product must be stored in a dry location to
inhibit rust.
6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in parts.
Wear restrictive hair covering to contain long hair.
7. Use eye protection. Always wear ANSI approved impact safety goggles.
8. Do not overreach. Keep proper footing and balance at all times. Do not reach over or
across stove. Be aware that all parts of the stove become very hot when in opera-
tion.
9. Maintain product with care. Inspect product periodically and, if damaged, have it re-
paired by an authorized technician.
10. Use the right tool for the job. Do not attempt to force a small product or attachment to
do the work of a larger industrial product. There are certain applications for which this
stove was designed. Do not modify this product and do not use this product for a purpose
for which it was not intended.

#44894 REV 02d, 07l Page 3
11. Stay alert. Watch what you are doing, use common sense. Do not operate any tool when
you are tired.
12. Check for damaged parts. Before using this product, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its in-
tended function. Check for alignment and binding of moving parts; any broken parts or
mounting fixtures; and any other condition that may affect proper operation.Any part that is
damaged should be properly repaired or replaced by a qualified technician. Do not use the
stove if any switch does not turn On and Off properly.
13. Replacement parts and accessories. When servicing, use only identical replacement
parts. Use of any other parts will void the warranty. Only use accessories intended for use
with this tool. Approved accessories are available from Harbor Freight Tools.
14. Do not operate this product if under the influence of alcohol or drugs. Read warn-
ing labels on prescriptions to determine if your judgment or reflexes are impaired while
taking drugs. If there is any doubt, do not operate this product.
15. Maintenance. For your safety, maintenance should be performed regularly by a qualified
technician.
Warning: The brass components of this product contain lead, a chemical known to the State
of California to cause birth defects (or other reproductive harm). (Californa Health &
Safety code § 25249.5, et seq .)
Warning: The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be under-
stood by the operator that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
CAUTIONS FOR OPERATING
1. THIS STOVE IS DESIGNED FOR OUTDOOR USE ONLY. Do not use this product in a
trailer, tent, house, garage, or any enclosed area because carbon monoxide may accumulate
and cause serious personal injury or death.
2. ALWAYS USE THE STOVE IN AN OPEN AREA AWAY FROM BUILDINGS, DRY
LEAVES OR BRUSH. Be aware of wind blown sparks.
3. AVOID HIGH PEDESTRIAN TRAFFIC AREAS. Do not allow people or pets to conduct
any activities near the Stove while the unit is in use, or following its use. The Stove body is hot
during the period of use and will remain hot for a period of time after its use.
4. NEVER USE GASOLINE, KEROSENE, OR OTHER HIGHLY VOLATILE FLUIDS AS A
STARTER AS THEY CAN EXPLODE.
5. NEVER ATTEMPT TO MOVE A HOT STOVE.
6. MAKE SURE ALL PARTS OF THE STOVE ARE FIRMLY IN PLACE AND THE STOVE
IS POSITIONED ON A FLAT, LEVEL, FIRE RETARDING SURFACE.

#44894 REV 02d Page 4
10. NEVER SMOKE WHILE ATTEMPTING TO LIGHT THE STOVE. MAKE SURE ALL
SURROUNDING FLAMES ARE EXTINGUISHED.
11. USE BAKING SODA TO CONTROL A GREASE FIRE AND HAVE A FIRE EXTIN-
GUISHER HANDY. A bucket of sand or a garden hose should be near if you do not have a
commercial extinguisher.
12. ALWAYS CHECK THE MALE CONNECTION THREADS ON THE LPG PROPANE
CYLINDER AND THE FEMALE CONNECTION THREADS ON THE GAS VALUE ASSEM-
BLY (PART #5) OF THE STOVE FOR DAMAGE. If you suspect damage to the propane
cylinder, return the cylinder to the gas distributor and have it replaced. If you suspect damage
to the Gas Valve Assembly, discontinue using the Stove and contact Harbor Freight Tools for a
replacement Gas Valve Assembly.
13. TURN OFF AND HAVE A QUALIFED TECHNICIAN CHECK THE STOVE IMMEDI-
ATELY IF ANY OF THE FOLLOWING EXISTS:
14. This stove is designed to be used and operated on Low Pressure Gas (Propane) usually
found in a gas cylinder (like the type used on gas barbecues).
15. This stove will not operate at the gas pressure coming from an L.P. gas cylinder. An L.P.
regulator (set at 11” Water Column) is needed to properly operate the stove. L.P. Regulator
and Hose Kits such as Hurricane Products item #33447, are available from Harbor
Freight Tools. Your local L.P gas supplier can assist you in setting up and using the L.P.
Regulator.
16. Before each use, always check all gas connections and joints to make sure no
leaks are present. Check hoses for cracks and wear and replace a damaged hose.
17.The lit burner should operate with a blue flame, with a small yellow tip. Adjust the air screw
if the flame is sputtering or popping. If the flame is not operating normally, shut off the gas
valve before checking to see if anything is obstructing the gas flow. Do not operate the
Propane Stove if you feel that it is not operating in a normal fashion.
18. Do not use or store any flammable liquid or material in the area surrounding the
Propane stove.
a. The smell of gas in conjunction with extreme yellow tipping of the burner flames.
b. The Stove does not reach temperature.
c. The burner makes a popping noise during use. (A slight popping noise is normal when
the burner is extinghished.)
7. NEVER LEAVE THE STOVE UNATTENDED ONCE IT IS LIT.
8. DO NOT CLEAN THE STOVE WITH CLEANERS THAT ARE COMBUSTIBLE OR
CORROSIVE.
9. MAKE SURE THE PROPANE CYLINDER IS DISCONNECTED FROM THE UNIT
WHEN THE STOVE IS NOT IN USE.

#44894 REV 02d Page 5
Unpacking
When unpacking, check to make sure the parts shown below are included. If any parts
are missing or broken, please call Harbor Freight Tools at the number on the cover of
this manual.
Assembly Instructions
Note: See page 8 for Parts Diagram.
1. Attach the four Legs (#4) to the stove Body Frame (#1), using supplied screws, flat washer,
and nuts.
2. The Burners (#2) are already assembled to the Body Frame (#1).
3. TheAdjustable Screws (#6) are already assembled on the Burner assembly. It is used for
adjusting the volume of air into each burner. It can be adjusted to obtain the desired flame.
4. Screw in the Gas Valve Assembly (#5) firmly, with the Valve Handle (#7) on top.
5. The stove is ready to be hooked up to the L.P. regulator and L.P. tank.
To Attach An LPG Gas Cylinder To The Stove:
1. Make sure the Gas Valve Assembly Valve Handles (part #7) are in its locked “OFF” position
(Valve Handle faces sideways) before attaching the LPG propane cylinder to the Stove.
2. Attach the LPG propane cylinder outdoors, away from pilot lights, flames, sparks, or other
ignition sources.
3. Hand tighten (clockwise) the LPG propane cylinder onto the Gas Valve Assembly (part #5)
of the Stove. Never use tools to tighten.
4. Check for gas leaks in one or more ways: Apply soapy water to all connections and look for
bubbles. Listen for the hiss of escaping gas. Feel the LPG propane cylinder for extreme cold.
Smell for a rotten egg odor.
(Do not use the Stove if gas is leaking.)
19. If while using this product you notice a gas odor, IMMEDIATELY SHUT OFF THE GAS
FUELING THIS PRODUCT. Extinguish all open flames and carefully check for leaks by using
soapy water. If the odor continues, do not use the propane stove. Call your gas supplier for
assistance.
20. Never reach across the stove when cooking. Be aware that all parts of the stove become
very hot when in operation.
21. Never allow children to use the propane stove. Keep children away from the stove when in
use. The stove is very hot immediately after being used.

#44894 REV 02d Page 6
To Operate the Stove:
Warning: Before operation, make sure the stove is on a flat, level surface capable of support-
ing weight of the stove and items to be heated.
1. As an alternative to using a match, an electric, solid, metal chimney, or other starter specifi-
cally made for lighting propane fueled stoves from a distance is recommended for use.
2. Place a lit match, or alternative starter device, next to the Burner (part #2).
3. To ignite the Burner (part #2), slightly open the Valve Handle (part #7).
4. Remove the starter device immediately after the Burner (part #2) ignites.
5. To shut off the Stove, turn the Valve Handle (part #7) sideways.
6. Allow sufficient time for Stove to completely cool before removing the LPG propane cylinder.
7. To remove the LPG propane cylinder, unscrew the canister from the Gas Valve Assembly
(part #5) in a counterclockwise direction.
To Store the Stove:
1. When not in use, the Stove should be stored and locked up in a dry location to inhibit rust.
Always allow sufficient time for the Stove to completely cool before storing. Keep out of reach
of children.
2. When storing, the LPG propane cylinder must be removed from the Stove. The LPG pro-
pane cylinder should be stored indoors in a well ventilated area above ground level.
3. Always make sure the Valve Handle (part #7) is in the “OFF” positon after each use to
prevent accidents.
CLEANING AND INSPECTION
NOTE: ALWAYS disconnect the LPG propane cylinder from the unit and allow the
Stove to completely cool before performing any cleaning, maintenance, or repair.
1. Clean with a damp cloth and mild detergent, and dry.

NOTE: Some parts are listed and shown for illustration purposes only and are not available individually as
replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER
NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND
TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE
PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE
PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS
OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
#44894 Page 7

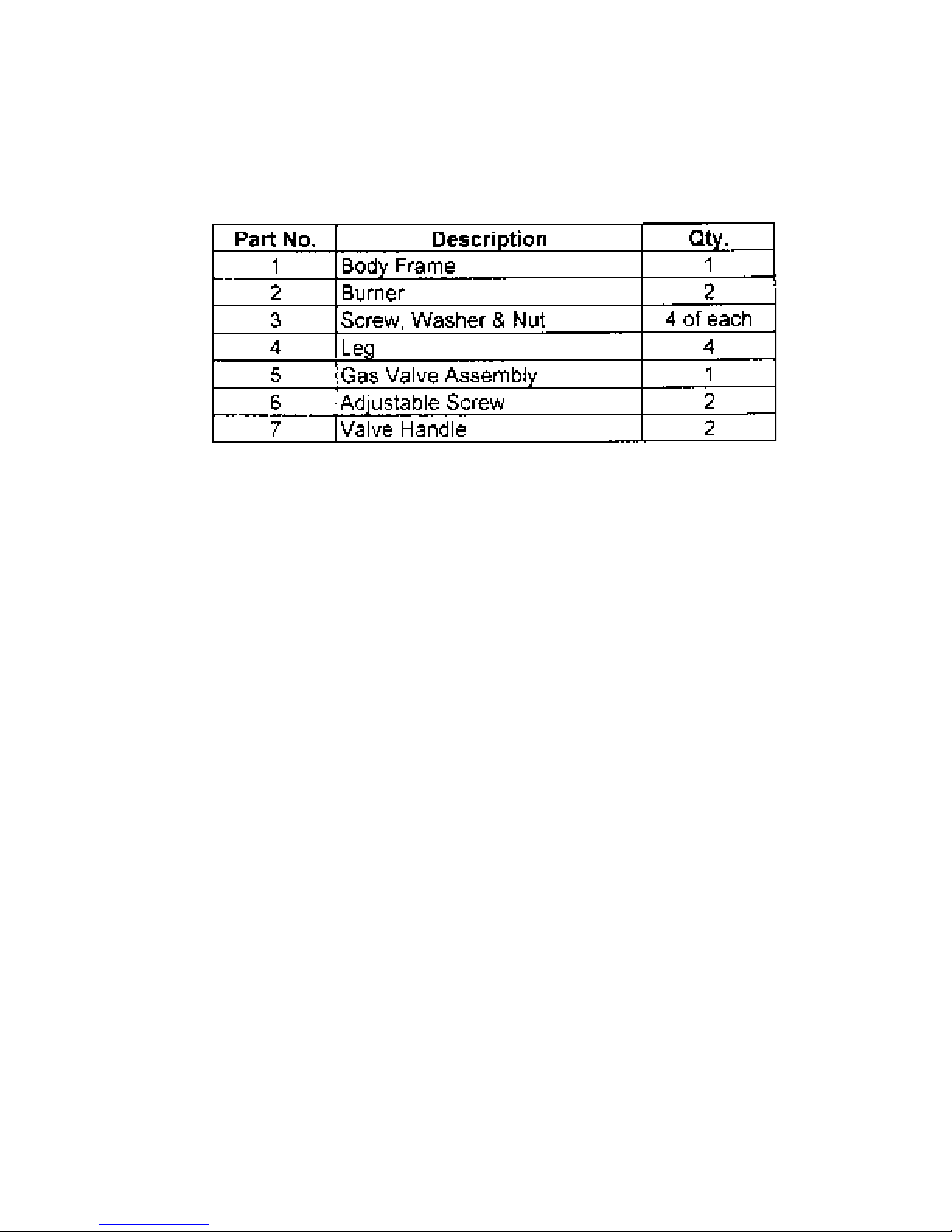

Parts List
Note: L.P. regulator and L.P. tank not included.

#44894 Page 8

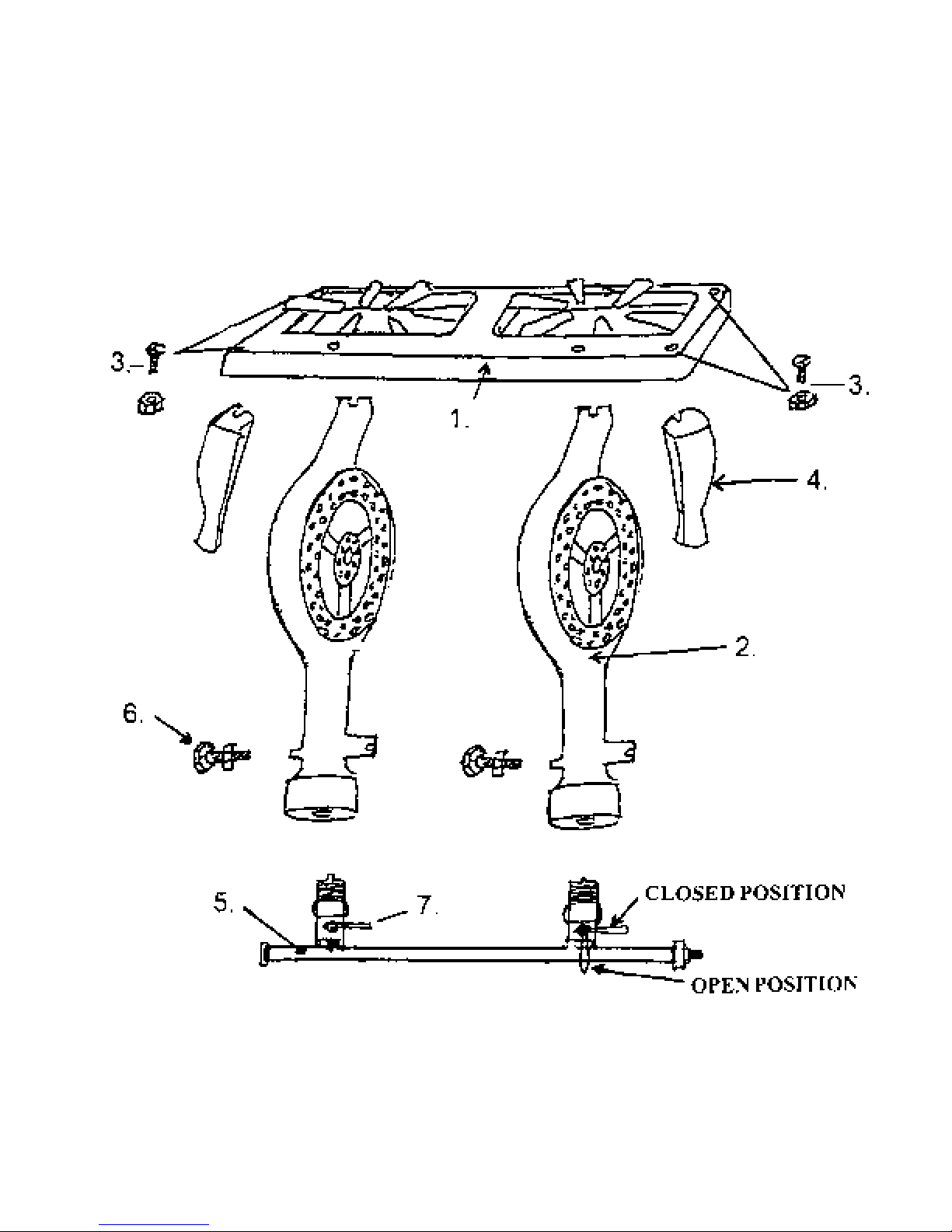

Parts Diagram
