Harbor Freight Tools 43343 User manual

SKU 43343 For technical questions, please call 1-800-444-3353. PAGE 1
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
Copyright 2005 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
®
©
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
COOK & GRILL STOVE
Model 43343
ASSEMBLY AND OPERATING INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.

SKU 43343 For technical questions, please call 1-800-444-3353. PAGE 2
PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep
your invoice with this manual. Write the invoice number on the inside of the front cover.
Keep this manual and invoice in a safe and dry place for future reference.
UNPACKING
When unpacking, check to make sure all the parts shown for your Model in the Parts List
on page 10 are included. If any parts are missing or broken, please call Harbor Freight
Tools at the number shown on the front cover of this manual as soon as possible.
GENERAL SAFETY WARNINGS AND PRECAUTIONS
WARNING! When using this product, basic safety precautions
should always be followed to reduce the risk of personal injury and damage
to equipment.
1. Keep children away. Children must never be allowed in the work area. Do not
let them handle, move, or adjust this product.
2. Store idle equipment. When not in use, this product must be stored in a dry
location to inhibit rust. Always lock up tools and keep out of reach of children.
Item Description
Fuel Source Standard LP Gas Tank (not included)
Product Compatibility For Use With UL Listed LP Regulator & Hose Kits such as:
Model 91357 Or Model 91359 (neither included)
Number of Burners 3
Maximum BTU Output 21,000 Total BTU’s (7,800 BTU’s Big Burner, 6,600 BTU’s
Grill Burner, 6,600 BTU’s Small Burner)
Ignition System Manual (Requires Lighting w/Matches)
Overall Dimensions 24-1/2” W x 13-1/2” Deep x 7” H
Center Grill Dimensions 5-7/8” W x 8-3/4” L
Oven Dimensions 8-1/2” W x 11” Deep x 3-3/4” H
Oven Rack Dimensions 6-3/4” W x 7-1/4” Deep x 2” H
Oven Tray Dimensions 8” W x 9-1/2” Deep
Rev 02/07

SKU 43343 For technical questions, please call 1-800-444-3353. PAGE 3
SPECIFIC SAFETY WARNINGS AND PRECAUTIONS
1. WARNING! This unit must only be used with an approved, UL listed LP
regulator. NEVER attempt to use this item without a regulator.
2. Read these instructions carefully before setting up and using the Propane
Stove. Do not allow anyone who has not read the instructions to assemble,
light, or operate the Stove.
3. Improper assembly, installation, adjustment, alteration, service, use, or
maintenance can cause property damage, PERSONAL INJURY, or DEATH.
4. Service and repair should be done only by a qualified service technician. The
Propane Stove should be inspected before each use and at least annually by
a qualified service technician. More frequent cleaning may be required as
necessary. It is imperative that the Burner(s), Temperature Control Knob(s),
and circulating fuel/air passageways of the Propane Stove should be kept
clean.
5. This Propane Stove must be used only with HD-5 propane gas. The propane
tank should hold no more than 20 pounds of LP gas. Do not use bulk tanks of
larger capacity. Do not use any other fuel. The Stove must be used only with
a vapor withdrawal LP propane tank equipped with a POL valve. The tank
must be constructed and marked in such a way as to comply with the
specifications for LP gas tanks by the U.S. Department ofTransportation (DOT).
3. Check for damaged parts. Before using any product, any part that appears
damaged should be carefully checked to determine that it will operate properly
and perform its intended function. Check for any broken parts or mounting
fixtures, and any other condition that may affect proper operation. Any part that
is damaged should be properly repaired or replaced by a qualified technician. Do
not use the product if any switch does not turn on and off properly.
4. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use
accessories intended for use with this product. Approved accessories are
available from Harbor Freight Tools.
5. Do not operate this product if under the influence of alcohol or drugs. Read
warning labels if taking prescription medicine to determine if your judgement or
reflexes are impaired while taking drugs. If there is any doubt, do not operate
this product.
6. Maintenance. For your safety, service and maintenance should be performed
regularly by a qualified technician.

SKU 43343 For technical questions, please call 1-800-444-3353. PAGE 4
CARBON MONOXIDE INHALATION HAZARD
1. The Propane Stove is an unvented LP Gas-fired stove. It must never
be used inside vehicles, campers, in a house, or any other sealed
structure. Carbon monoxide is produced during operation and is
DEADLY in a closed environment. Early signs of carbon monoxide poisoning
resemble the flu, with headaches, dizziness, or nausea. If you have these signs,
the Propane Stove may not be working properly or is improperly vented. Get fresh
air immediately.
2. If you smell gas: Shut off gas to the appliance. Extinguish any open flame.
Never light a match. Never turn on an electrical switch. Evacuate the area at
once. Call for professional help.
RISK OF FIRE AND/OR EXPLOSION
1. Do not store extra propane tanks in the vicinity of the Propane Stove
or any other appliance.
2. If gas is smelled during operation, immediately close the valve on the
propane tank. Propane gas is odorless. An odor-making agent is added
to propane/LP gas to enable you to smell the gas if it may be leaking.
3. If the Propane Stove shuts off during operation, close the valve on the
propane tank. Check the amount of gas in the tank and wait 5 minutes for
the gas to clear before restarting. If it continues to shut off during operation,
have it serviced by a qualified technician.
4. Never place the Propane Stove within 15 feet of flammable objects such as
wood, trees, overhangs, and umbrellas. This stove also requires a clearance
of at least 3 feet from nonflammable materials to allow proper combustion.
6. The use of the Propane Stove must be in conformity with local codes or, in the
absence of local codes, with the standard for storage and Handling of Liquefied
Petroleum Gases, ANSI/NFPA 58. For Canada, the use must be in
accordance with the current CAN/CGA B149.2 installation codes.

SKU 43343 For technical questions, please call 1-800-444-3353. PAGE 5
6. Always operate the Propane Stove with the propane tank in its vertical
upright position, on a noncombustible surface. While in operation, do not tilt
or lean the propane tank on its side. Never turn the tank upside down, not even
when it seems empty, as this may cause clogging of valves and components
which could lead to dangerous flare-ups or fire.
7. This Propane Stove must be positioned and operated so that it is not
directly exposed to water spray, rain, or dripping water.
8. Make sure to remove ALL packing materials before using the Propane
Stove.
RISK OF BURNS -- STOVE GETS VERY HOT DURING USE.
1. Do not attempt to move the Propane Stove while it is in operation.
Turn it off and wait one-half hour until it cools down before moving.
2. Do not touch the Grill(s) or Burner(s) while the Propane Stove is lit. Before
servicing, wait one-half hour for the Propane Stove to cool down.
3. Children and adults should be alerted to the hazards of high surface
temperatures and should stay away to avoid burns or clothing ignition.
4. Young children should be carefully supervised when they are in the area of
the Propane Stove.
5. Clothing or other flammable materials should not be hung from the Propane
Stove, or placed on or near the Stove.
6. WARNING! The brass components of this product contain lead, a
chemical known to the State of California to cause birth defects (or other
reproductive harm). (California Health & Safety Code 25249.5, et seq.)
7. WARNING! The warnings, precautions, and instructions discussed in
this instruction manual cannot cover all possible conditions and situations that
may occur. It must be understood by the operator that common sense and caution
are factors which cannot be built into this product, but must be supplied by the
operator.
5. Keep solid combustibles such as paper or cardboard a safe distance away
from the Propane Stove. Never use the Stove in spaces which do or may
contain volatile or airborne combustibles, or products such as gasoline,
solvents, paint thinner, dust particles or unknown chemicals.

SKU 43343 For technical questions, please call 1-800-444-3353. PAGE 6
ASSEMBLY INSTRUCTIONS
1. WARNING! Always make sure to close the valve on the propane tank (not
included) prior to assembling the Propane Stove, performing maintenance, or
making any adjustments to the unit.
2. CAUTION! This product is
machine manufactured . Be aware of sharp edges.
Use heavy duty work gloves and ANSI approved safety impact eye goggles when
assembling.
3. Turn the Propane Stove upside down, and attach a Rubber Foot (7) to each

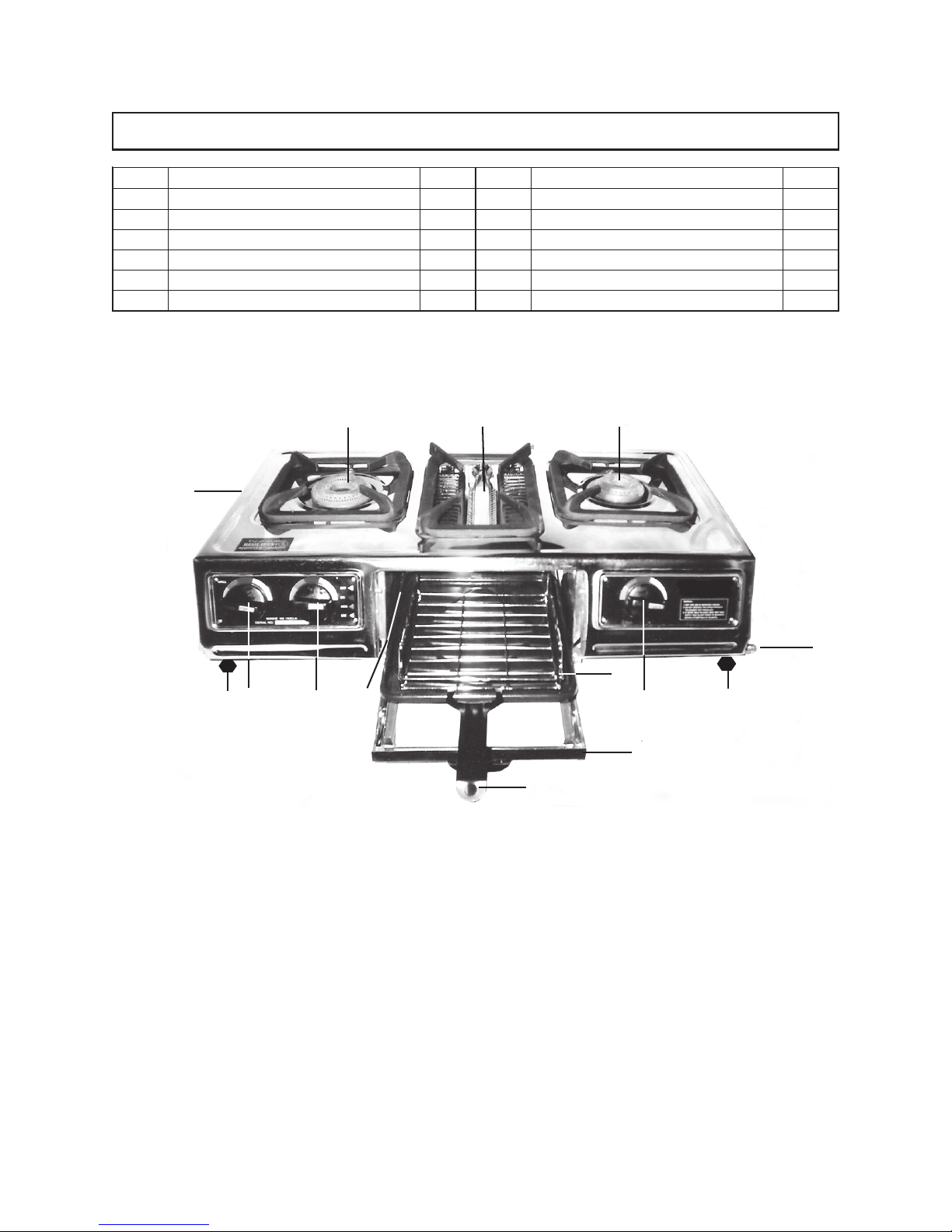

corner of the unit. (See Assy. Diagram.)
4. To attach the
three Temperature Control Knobs (4), loosen the countersunk Screw
in the Knob. Insert the Knob onto the Burner Control Shaft by aligning the flat
edges of the Knob and Shaft. Then, firmly tighten the Screw.
(See Figure A.)
5. NOTE: The Propane Stove requires the attachment and use of the Model 91357
LP Regulator & Hose Kit or Model 91359 LP Regulator & Hose Kit which are
sold separately by Harbor Freight Tools. (See Figure A.)
6. A LP regulator MUST be used: To attach the LP Regulator & Hose Kit to the
Propane Stove, remove the plastic protective cap from the Inlet Connection
Nozzle (5) on the Propane Stove. Then, screw the Hose Connector firmly onto
the Inlet Connection Nozzle. (See Figure A.)
PROPANE TANK
(NOT INCLUDED)
MODEL 91357 OR MODEL 91359
LP REGULATOR & HOSE KIT
(NOT INCLUDED)
GAS VALVE
HOSE
CONNECTOR
INLET
CONNECTION
NOZZLE
(5)
TEMPERATURE
CONTROL KNOB
(4)
FIGURE A

SKU 43343 For technical questions, please call 1-800-444-3353. PAGE 7
OPERATING INSTRUCTIONS
1. CAUTION! Always use clean equipment and utensils. Before using the
Propane Stove, and after using this product, clean all parts in warm, clean water
and antibacterial soap. Then, thoroughly dry.
2. NOTE: Higher altitudes may affect the cooking efficiency of the Propane Stove.
3. Make sure the Propane Stove and propane tank are located on a clean, dry, level
surface capable of supporting the weight of the Stove and propane tank. Keep
the Propane Stove and propane tank away from other flammable objects.
WARNING! NOT FOR INDOOR USE.
4. Check to make sure the Temperature Control Knobs (4) on the Propane Stove are
in their “OFF” positions. Open the gas valve on the propane tank and check and
smell for gas leaks. Perform a bubble test by applying warm soapy water over
every joint, regulator, fitting, and anywhere else there may be a possible leak.
Observe carefully to see if bubbles expand, indicating a leak. A large leak can
blow the soapy solution away instead of forming bubbles. If leaks are found, do
not use the Propane Stove until the leaks have been stopped. After testing, make
sure to close the gas valve on the propane tank.
5. To use the Burners (2 and 2A), open the gas valve on the propane tank. Apply a
long, lighted match or a fireplace lighter to the Burner which is to be lit. Keep
fingers and hands well away from the Burners. Next, push the relevant Tem-
perature Control Knob (4) and turn it to its “ON” position. Once the Burner is lit,
safely dispose the match and adjust the Temperature Control Knob to the desired
setting. The Grill Chamber (3) will be hot while the Middle Burner is in use.
(See Assy. Diagram.)
6. To use the Grill Chamber (3), open the Grill Door (8) and remove the Tray with
Rack (9). Place the food on the Rack and push the Tray into the Grill Chamber.
Close the Grill Door securely. Then, light the center Burner (2A) to grill the food.
When the food is cooked, turn off the gas and use the Grill Handle (10) to remove
the Tray with Rack. The center burner will have an open flame while the Grill
Chamber (3) is in use; take appropriate precautions. (See Assy. Diagram.)
7. NOTE: The propane tank used must be constructed and marked in accordance
with the specifications for LP propane cylinders by the U.S. Department of
Transportation. (See Figure A.)
8. To connect to the propane tank, first make sure the Temperature Control Knobs (4)
of the Propane Stove are in their “OFF” positions. Then, screw the Gas Valve of
the LP Regulator & Hose Kit firmly onto the propane tank’s discharge pipe.
(See Figure A.)
REV 12/06, 02/07

SKU 43343 For technical questions, please call 1-800-444-3353. PAGE 8
8. Always turn the Temperature Control Knobs (4) to their “OFF” positions before
removing a pan from the Burners (2 and 2A) or Grill Chamber (3).
(See Assy. Diagram.)
9. When finished using the Propane Stove, turn the Temperature Control Knobs (4)
to their “OFF” positions. Then, close the gas valve on the propane tank.
(See Assy. Diagram.)
10. The propane tank must be stored outside. If the Propane Stove is to be stored
inside a building, the propane tank should be turned off, removed from the
Stove, and left outside. Propane tanks must be stored outdoors in a
well-ventilated area out of reach of children. Disconnected propane tanks must
have threaded valve plugs (not included) tightly installed, and must not be stored
in a building, garage, or any other enclosed area.
11. WARNING! Do not attempt to move the Propane Stove while it
is on or while it is hot. Do not touch any area of the Burners (2),
Tray with Rack (9), or top of the Stove’s Body (1). Serious burns
will occur. Turn the Propane Stove off and wait one-half hour until it
cools down before moving. (See Assy. Diagram.)
INSPECTION, MAINTENANCE, AND CLEANING
1. Any guard or other protective device removed for servicing the Propane
Stove must be replaced prior to operating the Stove.
2. Before each use, check all gas fittings for tightness.
3. Before each use, check for cracks, excessive abrasion or wear, and any other
damage.
4. Before and after each use: Before using the Propane Stove, and after using
this product, clean all parts in warm, clean water and antibacterial soap.
5. During each use, visually check the burner’s flame. If the flame looks improper,
have the Propane Stove serviced by a qualified technician before use.
(See Figure B, next page.)
6. Store the Propane Stove in a clean, dry location out of reach of children. If
storing the unit indoors, first shut off and remove the propane tank and leave it
outdoors. Keep the area near the Propane Stove clear and free from combustible
materials, gasoline, and other flammable vapors and liquids.
7. While cooking, avoid spills as this may result in extinguishing the flame and
clogging the Burner holes.
REV 12/06

SKU 43343 For technical questions, please call 1-800-444-3353. PAGE 9
7. CAUTION: All maintenance, service, or repairs not listed in this
manual are only to be attempted by a qualified service technician.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSEDTECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISKS AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF
REPLACEMENT PARTS THERETO.
Improper Flames
(Yellow Flames)
Proper Flames
(Yellow tips on the top of the cones)
= Yellow/Orange Flames
= Blue Flames
FIGURE B

SKU 43343 For technical questions, please call 1-800-444-3353. PAGE 10
NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
PARTS LIST AND ASSEMBLY DIAGRAM
1
22A 2
3
444
5
6: PIPE ASSY. NOT SHOWN.
77
8
9
10
traPnoitpircseD.ytQtraPnoitpircseD.ytQ
1ydoB16ylbmessAepiP1
2srenruBretuO27tooFrebbuR4
A2renruBretneC18rooDllirG1
3rebmahCllir
G19kcaRhtiwyarT1
4bonKlortnoCerutarepmeT301eldnaHllirG1
5elzzoNnoitcennoCtelnI1
REV 12/06; 02/07
