Hardi AutoHeight User manual

HARDI
AutoHeight
Original
Instruction book - SW 7(x)
67020400-110 - Version 1.10
GB - 01.2011
www.hardi-international.com

The original instruction book is approved and published in English. All other languages are translations of the
original. In the event of any conflicts, inaccuracies or deviations between the English original and other languages
the English version shall prevail.
Illustrations, technical information and data in this book are to the best of our belief correct at the time of printing.
As it is HARDI INTERNATIONAL A/S policy permanently to improve our products, we reserve the right to make
changes in design, features, accessories, specifications and maintenance instructions at any time and without
notice.
HARDI INTERNATIONAL A/S is without any obligation in relation to implements purchased before or after such
changes.
HARDI INTERNATIONAL A/S cannot undertake any responsibility for possible omissions or inaccuracies in this
publication, although everything possible has been done to make it complete and correct.
As this instruction book covers more models and features or equipment, which are available in certain countries
only, please pay attention to paragraphs dealing with precisely your model.
Published and printed by HARDI INTERNATIONAL A/S
We congratulate you for choosing a HARDI plant protection product. The reliability and
efficiency of this product depend upon your care. The first step is to carefully read and pay
attention to this instruction book. It contains essential information for the efficient use
and long life of this quality product.
Acknowledgements:
UC4+ and Roll Control are trademarks of NORAC Systems International Inc., Canada
NORAC® is a registered trademark of NORAC Systems International Inc., Canada

3
Table of Contents
1 - Declaration
This page is intentionally left blank ............................................................................................................................................................ 5
2 - Safety notes
Operator safety .....................................................................................................................................7
Precautions ................................................................................................................................................................................................................ 7
3 - Description
General info ...........................................................................................................................................9
Introduction .............................................................................................................................................................................................................. 9
Key features ............................................................................................................................................................................................................... 9
General description ........................................................................................................................................................................................... 10
Software .................................................................................................................................................................................................................... 10
Hardware components ................................................................................................................................................................................... 11
Understanding Your AutoHeight System ............................................................................................14
Understanding Performance Issues ........................................................................................................................................................ 14
Sensitivity (Sensi) Setting ............................................................................................................................................................................... 14
Boom Reaction Time ......................................................................................................................................................................................... 14
AutoHeight over Ditches, Waterways and Outside Rounds .................................................................................................... 14
Driving Through Ditches and Over Terraces ...................................................................................................................................... 15
Sensor Capabilities ............................................................................................................................................................................................. 15
Understanding Crop Mode And Soil Mode ........................................................................................................................................ 15
Areas of "No Crop" in CROP Mode ........................................................................................................................................................... 16
Thin Crop .................................................................................................................................................................................................................. 16
Boom Lift Sensor in Wheel Track ............................................................................................................................................................... 16
Sensing Further Ahead of the Boom ...................................................................................................................................................... 16
AutoHeight Sensor Capabilities and Limitations ............................................................................................................................ 17
Optional kits ........................................................................................................................................18
General info ............................................................................................................................................................................................................ 18
Severe Terrain Kit ................................................................................................................................................................................................. 18
Enhanced Stability Kit ....................................................................................................................................................................................... 18
Menu Structure .................................................................................................................................................................................................... 19
Full Menu Structure ........................................................................................................................................................................................... 20
Glossary ..................................................................................................................................................................................................................... 21
4 - System setup
System preparation .............................................................................................................................23
General info ............................................................................................................................................................................................................ 23
Automatic System Setup ............................................................................................................................................................................... 24
Retune ........................................................................................................................................................................................................................ 27
Manual System Setup ....................................................................................................................................................................................... 28
Setting Up Hydraulic Valves ......................................................................................................................................................................... 29
Quick Install ............................................................................................................................................................................................................. 34
Options ................................................................................................................................................35
HeadlandAssist ..................................................................................................................................................................................................... 35
5 - Operation
System operation ................................................................................................................................37
General info ............................................................................................................................................................................................................ 37
Power Up Sequence ......................................................................................................................................................................................... 37
Typical Operation ................................................................................................................................38
Basic operation ..................................................................................................................................................................................................... 38
Run screen ............................................................................................................................................................................................................... 38
Press & Hold Functions .................................................................................................................................................................................... 39
Changing between AUTOMATIC or MANUAL Mode ................................................................................................................... 39
Adjusting the Target Height (Setpoint) ................................................................................................................................................. 40
Viewing the Actual Boom Height ............................................................................................................................................................. 40
Sprayer switches .................................................................................................................................................................................................. 40
Changing the Sensitivity of the System ................................................................................................................................................ 40

Table of Contents
4
Changing Between SOIL and CROP Mode .......................................................................................................................................... 41
Severe Terrain Mode ......................................................................................................................................................................................... 41
Changing the units ............................................................................................................................................................................................ 41
Options ................................................................................................................................................42
HeadlandAssist ..................................................................................................................................................................................................... 42
Remote Switches ................................................................................................................................................................................................. 43
Crop filter toggle ................................................................................................................................................................................................. 43
High Oil Temperature Alarm ........................................................................................................................................................................ 43
Sensor Reading Alarm ...................................................................................................................................................................................... 43
Minimum Height Mode .................................................................................................................................................................................. 44
Valve and Air Temperature ........................................................................................................................................................................... 44
Operational Messages ...................................................................................................................................................................................... 45
6 - Maintenance
Service info ..........................................................................................................................................47
General info ............................................................................................................................................................................................................ 47
Before each day of operation ...................................................................................................................................................................... 47
Sensor preparation and maintenance ................................................................................................................................................... 47
At the end of a season .................................................................................................................................................................................... 48
Lubrication of the sprayer .............................................................................................................................................................................. 49
7 - Fault finding
Operational problems .........................................................................................................................51
General info ............................................................................................................................................................................................................ 51
General operation ............................................................................................................................................................................................... 51
Setup Messages ................................................................................................................................................................................................... 52
Sensor Related Issues ........................................................................................................................................................................................ 53
Different cases of Sensor related issues are discussed below: ................................................................................................ 53
Sensor Swapping ................................................................................................................................................................................................ 53
Sensor Alignment ............................................................................................................................................................................................... 54
Hydraulic Related Issues ................................................................................................................................................................................. 55
Boom Stability ....................................................................................................................................................................................................... 56
8 - Technical specifications
Specifications ......................................................................................................................................57
Sprayer types ......................................................................................................................................................................................................... 57
9 - Index
Index ....................................................................................................................................................59

5
1 - Declaration
This page is intentionally left blank

1 - Declaration
6

7
2 - Safety notes
Operator safety
€This symbol means DANGER. Be very alert as your safety is involved!
±This symbol means WARNING. Be alert as your safety can be involved!
μThis symbol means ATTENTION. This guides to better, easier and more safe operation of your sprayer!
÷This symbol means NOTE.
Precautions
Note the following recommended precautions and safe operating practices before using the sprayer and AutoHeight
system.
General info
€Note the following recommended precautions and safe operating practices.
€Read and understand this instruction book before using the equipment. It is equally important that other operators
of this equipment read and understand this book.
€Keep children away from the equipment.
€If any portion of this instruction book remains unclear after reading it, contact your HARDI dealer for further
explanation before using the equipment.
€Turn electrical power off before connecting and disconnecting the display and transducers, servicing or using a
battery charger.
€If an arc welder is used on the equipment or anything connected to the equipment, disconnect power leads before
welding.
€Test sprayer with clean water prior to filling with chemicals.
€Do not use a high pressure cleaner to clean the electronic components.
Operating AutoHeight
±WARNING! Always ensure that the AutoHeight system is powered down or in MANUAL mode:
•Before leaving the operator's seat
•While the machine is not moving
•When transporting the machine
±WARNING! Under no circumstances should any service work be performed on the machinery while the AutoHeight
system is in the AUTOMATIC mode.
±WARNING! Before working on any part of the booms:
•Set the AutoHeight system to MANUAL mode
•Turn the sprayer engine off

2 - Safety notes
8
μATTENTION! Do not operate this system before:
•Reading and understanding the Operator’s Manual
•Thoroughly understanding your machine operation
÷NOTE! The AutoHeight system will greatly improve your spraying height accuracy and protect the boom against
damage in a wide variety of field conditions. However, under some circumstances performance may be limited. The
OPERATOR of the sprayer must remain ALERT at all times and override the automatic control when necessary.

9
3 - Description
General info
Introduction
Congratulations on your purchase of the HARDI AutoHeight system (UC4+ version). The system is manufactured with top
quality components and is engineered using the latest technology to provide operating features and reliability unmatched
for years to come.
When properly used, the AutoHeight system can provide protection from sprayer boom damage, improve sprayer
efficiency, and ensure chemicals are applied correctly.
This manual is intended to be used in conjunction with the:
•AutoHeight Installation Manual
•Sprayer Instruction Book
The manual provides a general description of the spray height control system, a section regarding system operation, and
discussion related to understanding performance issues. Also provided are instructions for the use of the control panel,
information regarding system setup, regular maintenance and troubleshooting.
Please take the time to read the complete instruction book before attempting to use the system. Although the AutoHeight
system has been designed for easy set-up and use, a thorough understanding of the information provided will ensure that
you receive the maximum benefit from the system.
Key features
The key features of the HARDI AutoHeight is:
Non-contact Sensing
•Sensing is done using ultrasonic sensors which means no parts of the HARDI AutoHeight system come in contact with
the ground.
•Using a non-contact system means there will be no additional forces put on the boom, which could cause damage to
the sprayer boom.
Automatic Software Setup
•The system completes an automatic system setup, which calibrates the software specifically for the sprayer.
•This provides the maximum performance for the height control system.
Individual Boom Overrides
•When necessary one boom section can be put into manual mode to avoid an obstacle, while the other boom sections
stay in automatic.
•This can take the stress out of spraying along obstacles such as fences because you only have to watch the boom along
the obstacle, knowing that the HARDI AutoHeight system is maintaining the height on the rest of the boom sections.
Smart Sensor Technology
•All sensors are designed specifically for the agricultural industry.

3 - Description
10
General description

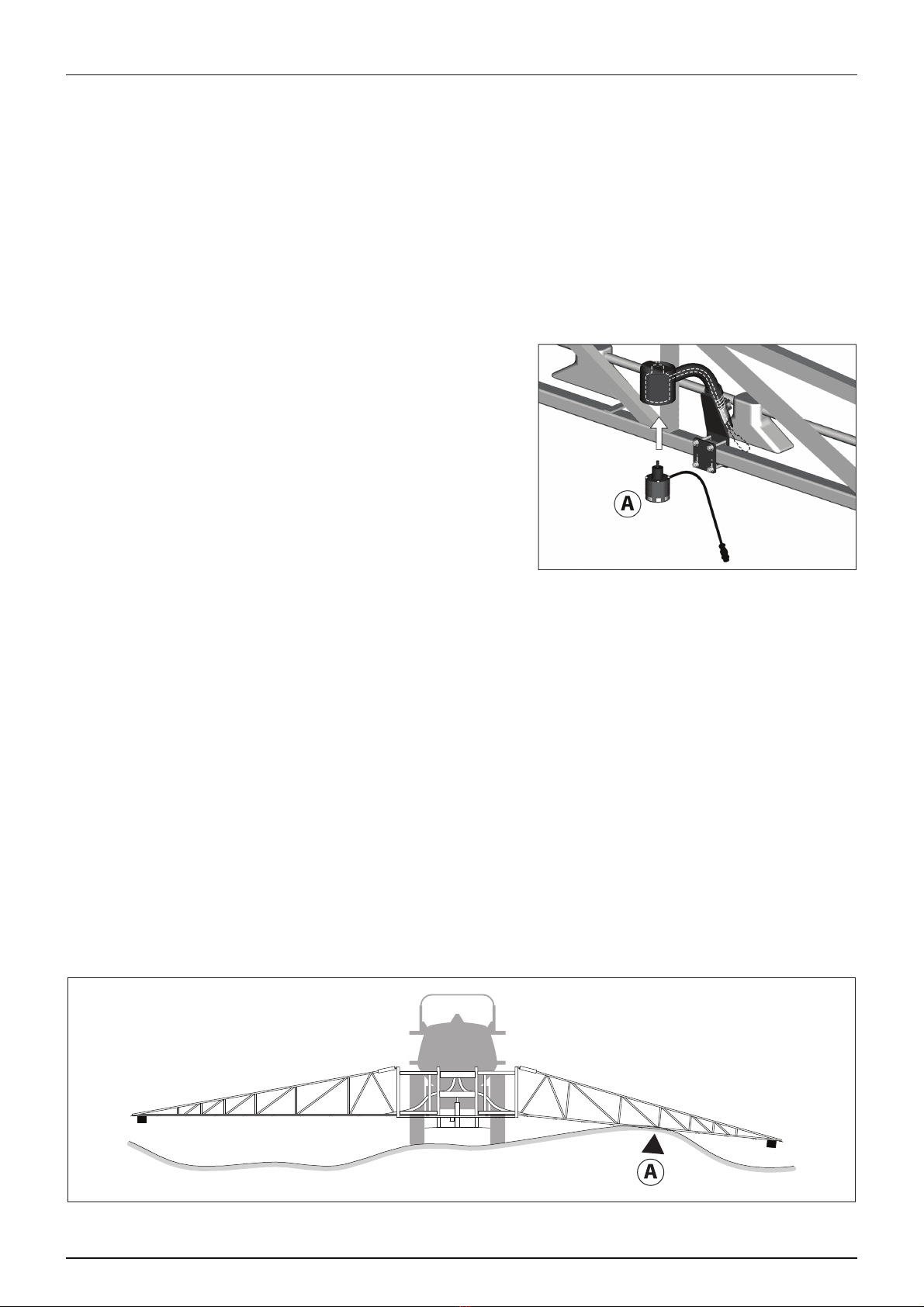

Figure 1 - System Components and General Location
A. Control Panel
B. Power Cable
C. Extension and Trunk Cables
D. AutoHeight Valve
E. Roll Sensors
F. Boom lift Sensor
G. Left Outer Sensor
H. Optional Left Inner Sensor
I. Optional Right Inner Sensor
J. Right Outer Sensor
÷NOTE! Some kits may not include all of the components shown.
μFor more information on each component, please refer to the AutoHeight Installation Manual.
Software
The information in this manual applies to systems with Version 7 AutoHeight panel software. When the panel is turned on,
the software version and revision will be displayed for a few seconds as described in “Power Up Sequence” on page 37.
All AutoHeight panels can have their software upgraded. It is recommended that all panels with earlier software are updated
to the current software version. Contact your local dealer or HARDI for more information.

3 - Description
11
Hardware components
The components of the HARDI AutoHeight are:
Cables
The system will function properly with a power supply between 12 and 28 volts and may draw up to 10 amperes during
normal operation.
The AutoHeight panel contains intelligent valve drive circuitry that helps to protect the sprayer's system against short
circuits and other wiring problems. However, it is still recommended to connect the AutoHeight power cable to a fused
supply that turns on and off with the ignition key of the sprayer/tractor. For more information on cables, please see the
AutoHeight Installation Manual.
Sensors
Three sensors are provided with your AutoHeight boom control kit. The
sensors use an ultrasonic signal to measure the distance to the ground,
or the top of the crop. Three sensors are required to provide good
overall height management of the boom. Two sensors are mounted on
the outer sections of each wing (Figure 2). These sensors maintain each
wing at the set target height independently.
The third sensor is mounted on the centre section. The boom lift sensor
is useful for setting your initial spray height when you begin spraying in
a field.
It is true that the centre section height will not change much, in
consistent soil conditions, since both ends of the centre section follow
the height of the power unit. However, it is extremely difficult to judge
the boom's actual height accurately from the cab. It is also very difficult
for the operator to see the main section nozzles. It is common for
operators to be in error from 20 to 30 cm or more. The AutoHeight panel will give you an actual height reading in the cab
and allow active control to the desired height.
The reason for the centre section sensor is that soil conditions change along with the weight of the machine. As the sprayer
tank fluid level changes throughout the day and soil conditions vary, the centre section height will change because of the
amount the tires sink into the soil.
Special attention must be taken into consideration when mounting the centre section sensor, as explained in the
AutoHeight Installation Manual for your sprayer.
The ultrasonic sensors are designed to work best in the brackets provided (Figure 2). If you decide to use a different style of
sensor mount, you may limit the performance of the sensor and/or void your warranty. Further, it is important to follow the
guidelines in the AutoHeight Installation Manual for mounting the sensors. The sensors should be at least 25 cm above and
25 cm in front of the spray nozzles.
For large boom or severe terrain applications, an additional sensor may be mounted near the midpoint of each boom to
obtain an average height reading. The average height reading will provide improved height control over the length of the
boom and protect the boom in severe terrain conditions. See “Figure 3 - Severe Terrain - Additional Sensors Required” on
page 12.

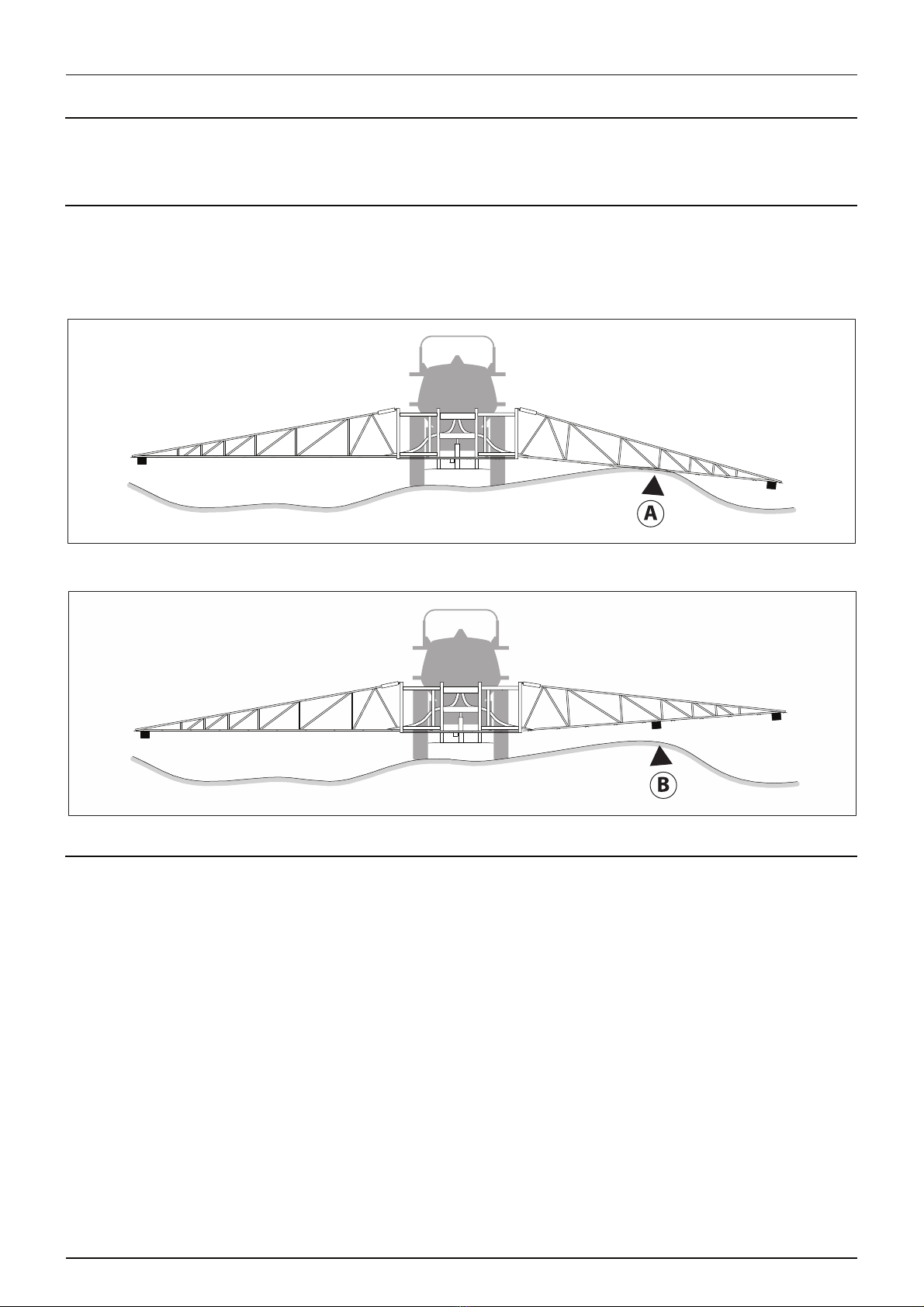

A. Possible crash without additional sensors
Figure 2 - AutoHeight Sensor and Mounting Bracket

3 - Description
12
B. Crash avoided with additional sensors
Figure 3 - Severe Terrain - Additional Sensors Required
The centre section sensor can also be used to adjust the slant angle of the entire boom. Alternatively, slant sensors can also
be used to adjust the main slant angle of the entire boom. Addition of this sensor to the AutoHeight system can greatly
improve the speed and stability of the automatic control actions.
Figure 4 - Slant Control of the Main Frame
Height Sensors
•Height sensors use an ultrasonic signal to measure distance to the ground or crop canopy.
•Normally there are three height sensors used, but a system may have as many as 6 sensors. A sensor is mounted to the
outer part of each boom tip, and another sensor is mounted to the centre section.
Roll Sensors
•Roll sensors are important for measuring boom and sprayer roll dynamics.
•Two roll sensors are normally used for a UC4+ Spray Height Control System.
•The mounting position of the roll sensors varies from sprayer to sprayer depending on boom geometry and
suspension.

3 - Description
13
Control Panel
The AutoHeight panel (Figure 5) is the main component of the AutoHeight system. The control panel uses the readings from
the ultrasonic sensors to control solenoid operated valves that in turn adjust the boom height. The control panel will:
•Indicate when the system is in AUTOMATIC or MANUAL mode.
•Indicate any hydraulic action which is underway.
•Accept input to adjust all control system settings.
Control panel functions are:
A. Power Switch
B. Sensor Display/Setup Switch (No)
C. +/- Switch (Up/Down)
D. Auto/Manual Switch (Yes)
E. LCD Screen
Figure 5 - AutoHeight Panel

3 - Description
14
Understanding Your AutoHeight System
Understanding Performance Issues
Your AutoHeight will work well in most situations. However, as with any equipment, it is important that the operator remains
alert at all times. There may be some field and terrain situations where performance is diminished. In these situations the
operator must resume height control of the booms manually. A discussion of performance issues is given below to help
clarify these situations.
Sensitivity (Sensi) Setting
The AutoHeight system is configured to work well in most conditions, with warm hydraulic oil, at a sensitivity (Sensi)
setting of five. When you first begin operation at the start of a day, it may be necessary to operate at a higher sensitivity until
the oil has reached normal temperature. After warmup, keep decreasing the Sensi setting until the performance is
optimized, to avoid overheating of the hydraulic oil.
Different types of terrain may require different Sensi settings. The Sensi setting controls more than just response
time. It also determines how accurately the AutoHeight system will try to correct for height errors. The higher the sensitivity
the higher the accuracy. At low sensitivity, a few cm of error will be tolerated. At high sensitivity, virtually no error will be
tolerated. Therefore, the system will be much more active at high sensitivity than at low sensitivity.
÷NOTE! Running AutoHeight at high sensitivity will increase heat build-up of the oil. Specially when AutoHeight
system is used with tractors that have an open centre system without load sensing, it may require lower sensitivity
settings to avoid overheating of hydraulic oil. See “Hydraulic hook-up” on page 23.
÷NOTE! Field conditions and operator preferences determine the appropriate Sensi setting.
Boom Reaction Time
There are two key factors that determine how quickly your boom can react to changes in terrain. The first factor is the
available hydraulic speed. The maximum hydraulic speed of your boom was designed by the sprayer manufacturer and is
not improved or diminished with the addition of the AutoHeight height control system.
The second factor is the mechanical design of the sprayer. The Sensi setting does affect the reaction time of your boom
- the higher the number the quicker the response. However, how high you can run the Sensi setting is determined to a
large extent by mechanical issues related to the boom and sprayer.
Important design issues include the style of boom mount (for example, centre pivot or nonparallel links), the amount of
mechanical damping and spring centring on the boom lift mount, and whether a boom slant system is available on the
sprayer. All of these factors together determine the maximum Sensi setting you can run on your AutoHeight system.
This, in turn, will set the reaction time of the boom in a given situation.
The AutoHeight electronics are rarely the limiting factor in determining overall automatic height control performance.
AutoHeight over Ditches, Waterways and Outside Rounds
Many situations exist where one sensor may be reading over terrain that does not accurately reflect the situation for the rest
of the boom. For example, if you are spraying along a waterway, it may be necessary to run the outer boom sensor out into
the waterway itself. This situation is similar to the picture in “Figure 3 - Severe Terrain - Additional Sensors Required” on
page 12. In this example, the outer sensor will bring the boom lower than desired and may put the mid-point of the boom
at risk. Outside rounds adjacent to very weedy areas or tall thick grass are examples of the opposite situation.
In these situations the operator must remain alert and override AUTO mode when necessary. Addition of the optional severe
terrain (inner) sensors will greatly improve performance in these situations.
±WARNING! In most countries spraying over ditches and waterways is strictly prohibited! Always follow local
legislation!

3 - Description
15
Driving Through Ditches and Over Terraces
Changes in terrain that include driving over terraces or through ditches are special performance cases. This type of terrain
can cause the sprayer to pitch and roll significantly. Sprayer operation at speeds of 15-30 km/h in severe terrain may result
in rapid changes in boom tip height. In these situations, typical sprayer hydraulic systems are not capable of tip speeds high
enough to correct for the induced error.
The sprayer’s roll control system will compensate for the sprayer roll in this situation and also add stability to your boom in
normal operating conditions.
Alternative solution is for the operator to recognize these situations before they occur and manually raise the boom
section(s) to a safe height. To return to AUTO mode, use the "AUTO (YES)" switch.
Sensor Capabilities
In order for the AutoHeight system to work at its maximum level of performance, the AutoHeight sensors must be returning
accurate height readings at the designed frequency. Under typical conditions, the sensors can provide accurate height
readings from 0.2 to over 3.0 m and return many height readings in one second. The target in SOIL mode can be identified
through stubble, young crops, row crops, and normal trash. The target in CROP mode can be identified over cereal grains,
specialty crops, and row crops. See the next section for more information on CROP and SOIL mode guidelines.
There are two main steps to ensure sensor performance. The first step is proper mounting. See “Hardware components” on
page 11 for more information on sensor mounting. The second step is to ensure that the protective foam covers on the
sensors are kept clean, and that the ultrasonic transducer behind the foam does not become corroded or excessively dirty.
Extra foam pieces are shipped with your kit. The transducer is a maintenance item and can be replaced at HARDI service
locations. Transducers can last up to ten years, depending on conditions. Refer to “6 - Maintenance” on page 47 for more
maintenance information.
If the mouth of the sensor becomes wet, it is normal for the sensor to return error messages until the transducer has dried
off. This could include rain or excessive overspray. Material can build up on the transducer if the sensor is mounted too close
to the spray nozzles. This is the reason that the sensor must be mounted at least 25 cm in front of the nozzles. It keeps the
sensor housing out of the normal region of overspray.
In the sprayer boom application, the sensors ignore any target that is closer than 25 cm from the bottom of the sensor
housing. This region is called the blanking range. Operating the sensor at heights near the blanking range is dangerous and
will affect performance because height readings can be very intermittent. This is the reason that each sensor must be
mounted at least 25 cm above the spray nozzles.
Understanding Crop Mode And Soil Mode
A unique feature of AutoHeight sensors is their ability to operate in CROP mode. In this mode the sensor will track the first
available sonic target. That is, when positioned over standing crop, the sensor will return the average height of the heads in
a circular area below the sensor. In the same situation in SOIL mode, the sensor will track the last available sonic target. That
is, signals from the heads, leaves, and trash will be ignored in favor of the ground.
It is important to note that the targets must be available and of sufficient strength for the sensor to "see" them. There may
be some crop and terrain situations that do not work well for CROP mode or SOIL mode. In these situations the operator
must resume height control of the booms manually.
In general, the addition of the severe terrain kit will improve performance in CROP mode. All of the situations discussed
below are lessened by the addition of the extra sensors on the wings.

3 - Description
16
Areas of "No Crop" in CROP Mode
If, while operating in CROP mode, the sensor encounters an area where there is no crop, the system will behave as follows.
The sensor will track the soil (A) because only one target is available. The boom will lower (B) as no crop is detected. Areas
like this may include missed areas during seeding, alkaline areas, and so on. When the problem area ends (C), it may not be
possible for the sensor to see the crop again unless the operator raises the boom manually. The sensor may be closer than
required 25 cm from heads of the crop (D), thus blanking out the desired target.
Figure 8 - Area of "No Crop" When Operating CROP Mode
Thin Crop
The AutoHeight ultrasonic sensors operate by bouncing sound waves off the desired target. A minimum signal level is
required from the crop in order to use it for control purposes. This is no different than the fact that your radio must be at a
certain minimum volume level before you can physically hear it. Different types of crop and crops at different stages of
development return varying levels of sound. The following are some general guidelines.
•Crops in growing stages are relatively good sonic targets.
•Bearded crops are relatively poor sonic targets.
•In row crops, the sensor must be positioned over the row to use the crop signal, or between the rows to use the
ground signal.
•The desired target must cover roughly 60 percent of the area to be tracked consistently. That is, when looking at the
ground, the heads should cover about 60 percent of the ground. Otherwise, you can use SOIL mode.
•If the sensor runs too close to the heads, they may not return enough signal to be seen, or they may be blanked out.
The nozzles must be at least 55 cm from the crop. Slightly higher target height settings will work better in thin crop.
Boom Lift Sensor in Wheel Track
The required location for the centre section sensor is determined by the AutoHeight Installation Manual for your sprayer and
by the options you have installed. Special attention is necessary when mounting the centre section sensor. Mounting the
centre section sensor directly behind a sprayer tire may impair boom lift control when operating in CROP mode. Height
readings from crop that is flattened by the sprayer wheel do not provide an accurate measurement of canopy height,
resulting in poor performance.
Sensing Further Ahead of the Boom
A common misconception is moving the sensor further ahead of the boom will increase performance. Moving the sensor
further ahead of the boom increases the distance between the nozzle and sensor. This puts the sensor at a different location
within the field than the nozzles, which introduces a height error at the nozzles. In severe terrain this height error can bring
the nozzles close to the ground as the sensor reads over the crest of the hill or down a ditch.
Similarly, aiming the sensors ahead (rather than pointing straight down) will reduce sensor performance by providing
inaccurate height readings.

3 - Description
17
AutoHeight Sensor Capabilities and Limitations
The AutoHeight sensors are designed and built specifically for agricultural purposes. However, the ultrasonic transducer
must be clean and dry for optimal performance. The foam disc fitted into the bottom of the sensor protects the transducer
from dust. If the protective foams become wet (from rain, drift from the spray nozzles etc.) the sensors may have trouble
reading.
The height sensors will provide height readings from 22 to 300 cm, under typical conditions. In order to optimize sensor
performance, the AutoHeight sensor has a minimum distance that it will read (also known as the blanking range). As a result,
the AutoHeight sensor is designed to ignore targets closer than 20 cm from the bottom of the sensor housing.

3 - Description
18
Optional kits
General info
The kits shown below are optional add on kits for the UC4+ Spray Height Controller. These kits will help improve the
performance for certain situations described below.
Severe Terrain Kit
•Additional sensors may be added to improve boom protection and system performance.
•More suitable for larger booms and in severe terrain conditions.
A. Possible chrash without additional sensors.
B. Chrash avoided with additional sensor.
Enhanced Stability Kit
•This kit is designed to provide enhanced boom stability for sprayers which are loosely coupled between the
intermediate frame (paralift arms) and the sprayer chassis.
•The roll sensor included in this kit will provide an additional measurement of the sprayer dynamics to allow for greater
stability of the boom.

3 - Description
19
Menu Structure
Table 1 - Main Menu Structure
Navigating past the end of the menu will return the control panel to the run screen
More? Toggle the "AUTO (YES)" switch to edit or view more sensor settings.

88 () 67 Displays diagnostics information used by technical staff.

56 Displays the current boom lift height, in the selected units.

55 55 Displays the current right boom heights, in the selected units, from left to right.

55 55 Displays the current left boom heights, in the selected units, from left to right.

M55 M
SENSOR DISPLAY Menu

SENSOR DISPLAY / SETUP (NO) Switch

SETUP Menu
The run screen is usually displayed. If no switch is toggled for 30
seconds, the LCD will revert to this screen. Also, from any menu
prompt, if you toggle and hold the "SETUP (NO)" switch for two
seconds, the control panel will return to this screen. The heights are
adjusted for the offset between the sensor and nozzles.

Sensi 5 Displays the current control sensitivity (Sensi) setting. A higher number results in a quicker response. Range is from 1 to 10.

Soil ON Use the "+/-" switch to set the sensor target to SOIL or CROP mode.

ReTune? The ReTune will optimize your system for the best performance possible. This will take from one to three minutes. (Section 6.2). The
menu retunes Dead Zone (DZ) and Valve Gain (KP) - not for sensor problems.

More? Toggle the "AUTO (YES) " switch to edit or view more control settings.
Navigating past the end of the menu will return the control panel to the run screen

3 - Description
20
Full Menu Structure
Table 2
MHM SP
MHS 18
MHC 25
Units cm
“Adjusting the
Target Height
(Setpoint)” on
page 40
RF off
IF off
BFh- 215
BF 2080
MLht 27
ML 3567
“Setting Up
Sensors” on
page 28
RIht 30
RI 3571
ROht 32
RO 11070
“Setting Up
Sensors” on
page 28
LIht 28
LI 3569
LOht31
LO 11069
“Setting Up
Sensors” on
page 28
Other ?
Roll ?
Main ?
Right ?
Left ?
More ?
66 () 58
55 “Viewing the Actual Boom Height” on page 40
55 56
55 55 
Left ?
Right ?
Rems On
Install?
“Automatic
System Setup”
on page 24
Roll Off
DZ20
KP175
DZ20
KP150
“Setting Up
Hydraulic
Valves” on
page 29
Main On
DZ10
KP50
DZ5
KP50
“Setting Up
Hydraulic
Valves” on
page 29
Rght On
-DZ103
-KP49
-DZ99
-KP35
“Setting Up
Hydraulic
Valves” on
page 29
Left On
DZ- 100
KP- 50
DZ- 105
KP- 37
“Setting Up
Hydraulic
Valves” on
page 29
M 55 M “Power Up Sequence” on page 37
Sensi 5 “Changing the Sensitivity of the System” on page 40
Soil On “Changing Between SOIL and CROP Mode” on page 41
ReTune “Retune” on page 27
More ?
Main ?
Roll ?
Other ?
