Service and Repair Manual
Serial Number Range
Z®-30/20N
from Z30NF-22000
This manual includes:
Repair procedures
Fault Codes
Electrical and
Hydraulic Schematics
Z®-30/20N RJ
Z®-34/22
from Z34F-14000
from Z34NF-17
000
Z®-34/22N
For detailed maintenance
procedures, refer to the
appropriate Maintenance
Manual for your machine.
Part No. 1312293GT
Rev A
September 2021

Service and Repair Manual September 2021
Introduction
ii Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N Part No. 1312293GT
Intro ductio n Intro ductio n
Important
Read, understand and obey the safety rules and
operating instructions in the appropriate Operator's
Manual on your machine before attempting any
procedure.
This manual provides troubleshooting and repair
procedures for qualified service professionals.
Basic mechanical, hydraulic and electrical skills
are required to perform most procedures.
However, several procedures require specialized
skills, tools, lifting equipment and a suitable
workshop. In these instances, we strongly
recommend that maintenance and repair be
performed at an authorized Genie dealer service
center.
Compliance
Machine Classification
Group B/Type 3 as defined by ISO 16368
Machine Design Life
Unrestricted with proper operation, inspection and
scheduled maintenance.
Technical Publications
Genie has endeavored to deliver the highest
degree of accuracy possible. However, continuous
improvement of our products is a Genie policy.
Therefore, product specifications are subject to
change without notice.
Readers are encouraged to notify Genie of errors
and send in suggestions for improvement. All
communications will be carefully considered for
future printings of this and all other manuals.
Contact Us:
Internet: www.genielift.com
E-mail: [e-mail]
Find a Manual for this Model
Go to http://www.genielift.com
Use the links to locate Service Manuals,
Maintenance Manuals, Service and Repair
Manuals, Parts Manuals and Operator's Manuals.
Copyright © 2015 by Terex Corporation
1312293GT Rev A, September 2021
Second Edition, First Printing
Genie and "Z" are registered trademarks of Terex South
Dakota, Inc. in the U.S.A. and many other countries.

September 2021 Service and Repair Manual
Introduction
Part No. 1312293GT Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N iii
Revision History
Revision Date Section Procedure / Page / Description
A 9/2021 Initial Release
Reference Examples:
Electronic Version
Click on any content or procedure in the Table of Contents to view
the update.
Section – Repair Procedure, 4-2
Section – Fault Codes, All charts
Section – Schematics, Legends and schematics

Service and Repair Manual September 2021
Introduction
iv Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N Part No. 1312293GT
Serial Number Legend
1 Model
2 Facility code
3 Sequence number
1 Serial number (stamped on chassis)
2 Serial label (located under cover)
Z-30/20N
Z-30/20N RJ
5
Z-34/22
Z-34/22N
Model:
Serial number:
Electrical schematic number:
Year of manufacture:
Machine unladen weight:
Rated work load (including occupants):
Maximum number of platform occupants:
Maximum allowable side force:
Maximum allowable inclination of the chassis:
Z30NF-12345
Z30N F - 12345
123
4

September 2021 Service and Repair Manual
Safety Rules
Part No. 1312293GT Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N v
Sec ti on 1 Safety Rul es
Danger
Failure to obey the instructions and safety
rules in this manual and the appropriate
Operator's Manual on your machine will result
in death or serious injury.
Many of the hazards identified in the
operator's manual are also safety hazards
when maintenance and repair procedures are
performed.
Do not modify or alter a MEWP without prior
written permission from the manufacturer.
Do Not Perform Maintenance
Unless:
You are trained and qualified to perform
maintenance on this machine.
You read, understand and obey:
•manufacturer's instructions and safety
rules
•employer's safety rules and worksite
regulations
•applicable governmental regulations
You have the appropriate tools, lifting
equipment and a suitable workshop.

Service and Repair Manual September 2021
Safety Rules
vi Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N Part No.
1312293GT

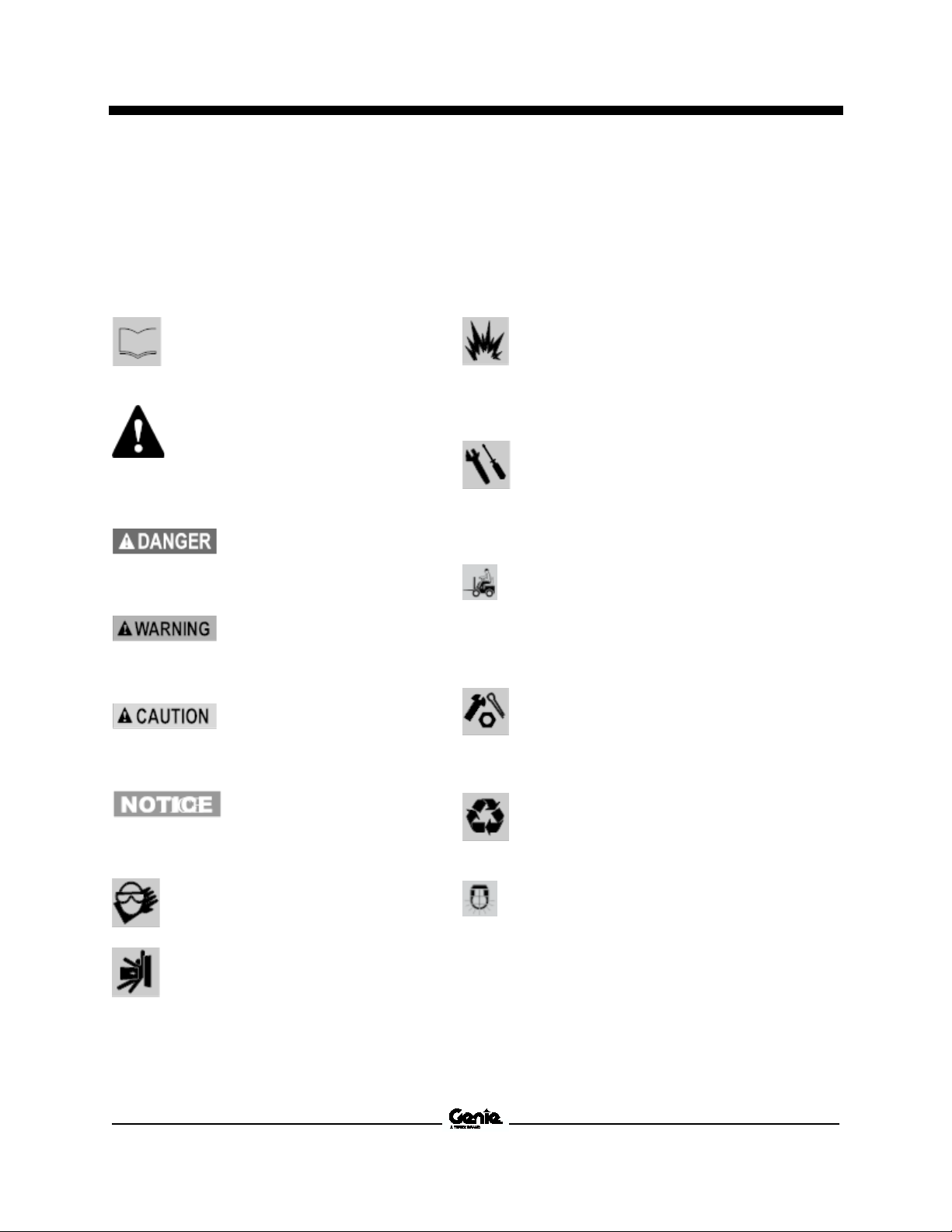

Personal Safety
Any person working on or around a machine
must be aware of all known safety hazards.
Personal safety and the continued safe
operation of the machine should be your top
priority.
Read eac
h procedure thoroughl
y. This
manual and the decals on the
machine, use signal words to identify
the following:
Safety alert symbol
—used to
alert personnel to potential
personal injury hazards. Obey
all safety messages that follow
this symbol to avoid po
ssible
injury or
death.
Indicates a imminently
hazardous situation which, if
not avoided, will result in death
or serious injury.
Indicates a potentially
hazardous situation which, if
not avoided, could result in
death or serious injury.
Indicates
a potentially
ha
zardous situation which, if
not avoided, may cause minor
or moderate injury.
Indicates a potentially
hazardous situation which, if
not avoided, may result in
property damage.
Be sure to wear protective eye wear
and other protective c
lothing if the
situation warrants it.
Be aware of potential crushing
hazards such as moving parts, free
swinging or unsecured components
when lifting or placing loads. Always
wear approved steel
-toed shoes.
Workplace Safety
Any person working on or around a machine
must be aware of all known safety hazards.
Personal safety and the continued safe
operation of the machine should be your top
priority.
Be sure to keep sparks, flames and
lighted tobacco away from flammable
and combustible materials like battery
gases and engine fuels. Always have
an approved fire extinguisher within
easy reach.
Be sure that all tools and working
areas are properly maintained and
ready for use. Keep work surfaces
clean and free of debris that could get
into machine
components and cause
damage.
Be sure any forklift, overhead crane or
other lifting or supporting device is
fully capable of supporting and
stabilizing the weight to be lifted. Use
only chains or straps that are in good
condition and of ample capacity.
Be
sure that fasteners intended for
one time use (i.e., cotter pins and self-
locking nuts) are not reused. These
components may fail if they are used
a second time.
Be sure to properly dispose of old oil
or other fluids. Use an approved
container. Please
be environmentally
safe.
Be sure that your workshop or work
area is properly ventilated and well lit.

September 2021
Table of Contents
Part No. 1312293GT Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N vii
Introduction Introduction ......................................................................................................ii
Important Information ......................................................................................... ii
Find a Manual for this Model............................................................................... ii
Revision History ................................................................................................ iii
Serial Number Legend....................................................................................... iv
Section 1 Safety Rules......................................................................................................v
General Safety Rules .........................................................................................v
Section 2 Specifications...................................................................................................1
Machine Specifications .......................................................................................1
Machine Component Weights.............................................................................2
Performance Specifications ................................................................................3
Hydraulic Oil Specifications ................................................................................4
Hydraulic Component Specifications...................................................................7
Manifold Component Specifications ....................................................................7
Machine Torque Specifications ...........................................................................8
Hydraulic Hose and Fitting Torque Specifications ...............................................9
Torque Procedure ............................................................................................10

September 2021
Table of Contents
viii Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N Part No. 1312293GT
Section 3 Repair Procedures ......................................................................................... 12
Introduction...................................................................................................... 12
Platform Controls........................................................................................... 14
1-1 Controllers ................................................................................................. 14
Platform Components.................................................................................... 16
2-1 Platform Leveling Slave Cylinder ................................................................ 16
2-2 Platform Rotator......................................................................................... 17
2-3 Platform Overload System.......................................................................... 18
Jib Boom Components.................................................................................. 21
3-1 Platform Overload System.......................................................................... 21
3-2 Jib Boom Bell Crank (models without rotating jib boom).............................. 22
3-3 Jib Boom Bell Crank (models with rotating jib boom) .................................. 23
3-4 Jib Boom Lift Cylinder ................................................................................ 25
Primary Boom Components .......................................................................... 26
4-1 Cable Track ............................................................................................... 26
How to Repair the Primary Boom Cable Track............................................. 26
4-2 Primary Boom ............................................................................................ 27
How to Remove the Primary Boom.............................................................. 27
How to Disassemble the Primary Boom....................................................... 29
4-3 Primary Boom Lift Cylinder......................................................................... 30
4-4 Primary Boom Extension Cylinder .............................................................. 32
4-5 Platform Leveling Master Cylinder.............................................................. 34
Secondary Boom Components ..................................................................... 35
5-1 Secondary Boom ....................................................................................... 36
5-2 Secondary Boom Lift Cylinders .................................................................. 41

September 2021
Table of Contents
Part No. 1312293GT Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N ix
Hydraulic Pump ..............................................................................................43
6-1 Auxiliary and Function Pump ......................................................................43
Manifolds ........................................................................................................44
7-1 Function Manifold Components ..................................................................44
7-2 Valve Adjustments - Function Manifold .......................................................48
How to Adjust the System Relief Valve ........................................................48
How to Adjust the Primary Boom Down Relief Valve....................................48
How to Adjust the Secondary Boom Down Relief Valve ...............................49
How to Adjust the Primary Boom Extend Relief Valve ..................................49
How to Adjust the Turntable Rotate Relief Valve..........................................50
7-4 Valve Coils .................................................................................................52
How to Test a Coil Diode .............................................................................53
Turntable Rotation Components ...................................................................54
8-1 Turntable Rotation Hydraulic Motor.............................................................54
Steer Axle Components .................................................................................55
9-1 Hub and Bearings.......................................................................................55
How to Remove the Hub and Bearings ........................................................55
How to Install the Hub and Bearings ............................................................55
Non-steer Axle Components..........................................................................57
10-1 Motor Controller........................................................................................57

September 2021
Table of Contents
x Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N Part No. 1312293GT
Section 4 Fault Codes .................................................................................................... 58
Introduction...................................................................................................... 58
Fault Code Charts....................................................................................... 60
Section 5 Schematics..................................................................................................... 63
Introduction...................................................................................................... 63
Electrical Symbol Legend................................................................................. 64
Hydraulic Symbols Legend............................................................................... 65
Limit Switch Location Legend........................................................................... 66
Electrical Schematics – Options ................................................................... 67
Power Cable Wiring Diagram ........................................................................... 68
Drive Contactor Panel Wiring Diagram ............................................................. 69
Manifold and Limit Switch Wiring Diagram........................................................ 72
LVI/BCI Option Wiring Diagram........................................................................ 73
Charger Interlock Option .................................................................................. 76
CTE Option, (CE Models)................................................................................. 77
Contact Alarm Option....................................................................................... 80
Electrical Schematics – ANSI / CSA Models ................................................. 81
Electrical Schematic [ANSI / CSA].................................................................... 82
Electrical Schematic [ANSI / CSA].................................................................... 83
Ground Control Box Terminal Strip Wiring Diagram [ANSI / CSA]..................... 86
Ground Control Box Switch Panel Wiring Diagram [ANSI / CSA] ...................... 87
Platform Control Box Wiring Diagram [ANSI / CSA] .......................................... 90
Electrical Schematics – CE / AS Models ....................................................... 91
Electrical Schematic [CE / AS].......................................................................... 92
Electrical Schematic [CE / AS].......................................................................... 93
Ground Control Box Terminal Strip Wiring Diagram [CE / AS]........................... 96
Ground Control Box Switch Panel Wiring Diagram [CE / AS] ............................ 97
Platform Control Box Wiring Diagram [CE / AS].............................................. 100
Hydraulic Schematics.................................................................................. 101
Hydraulic Schematic ...................................................................................... 102

September 2021 Service and Repair Manual
Specifications
Part No. 1312293GT Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N 1
Sec ti on 2 Speci fic ati o ns
Machine Specifications
Tires and wheels,
Z
-30/20N, Z-30/20N RJ and Z-34/22N
Tire size (solid r
ubber) 22 x 7 x 17.5 i
n
56 x 18 x 44 c
m
Load range
7600 lbs
3447 kg
Overall tire diameter
22 i
n
56 c
m
Wheel diameter
17.5 i
n
44 cm
Wheel width
7 i
n
18 c
m
Tires and wheels, Z-34/22
Tire size
9-
14.5 LT
Tire ply rating
12
Tire weight, new foam
-filled
(minimum)
175 l
bs
79 k
g
Overall tire diameter
28 i
n
71 c
m
Wheel diameter
14.5 i
n
37 c
m
Wheel width
7 in
18 c
m
Wheel lugs
Front
8 @ 5/8 -
18
Rear
9 @ 5/8 -
18
Lug nut torque, dry
125 ft-
lbs
169.5 Nm
Lug nut torque, lubricated
95 ft-
lbs
129 Nm
Fu
el capacities
Hydraulic tank
4 g
allons
15.1 l
iters
Hydraulic system (including tank)
6 g
allons
22.7 l
iters
Drive hubs
48:1
57:1
24.5 fl oz/725 c
c
24.5 fl oz/725 c
c
Drive hub oil type: SAE 9
0 multipurpose hypoid gear oil
API service classification GL5
For operational specifications, refer to the
Operator's Manual.

Service and Repair Manual September 2021
Specifications
2 Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N Part No. 1312293GT
Machine Component Weights
Z-30/20N and Z-30/20N RJ
Drive motor
45 l
bs
20 k
g
Torque hub
89 l
bs
40 k
g
Primary boom assembly
(including extension boom)
541 l
bs
226 k
g
Primary boom lift cyl
inder 59 l
bs
27 k
g
Primary boom extend cylinder
66 l
bs
30 k
g
Secondary boom linkage
1200 l
bs
544 kg
Secondary boom lift cylinder
48 l
bs
22 k
g
Jib boom assembly
63lbs
29kg
Jib boom cylinder
34 l
bs
15 k
g
4
ft / 1.5 m platform 99 l
bs
45 kg
5
ft / 2.4 m platform 105 l
bs
48 k
g
Battery
6 volt (wet) 88 l
bs
48 k
g
Battery
6 volt (maintenance free) 105 l
bs
48 k
g
Machine Component Weights
Z-34/22DC and Z-34/22N
Drive motor
64 l
bs
29 kg
Torque hub
113 l
bs
51 k
g
Primary boom assem
bly
(including extension boom)
647 l
bs
293 k
g
Primary boom lift cylinder
59 l
bs
27 k
g
Primary boom extend cylinder
75 l
bs
34 k
g
Secondary boom linkage
832 l
bs
377 kg
Secondary boom lift cylinder
54 l
bs
24 k
g
Jib boom assembly
53lbs
24kg
Jib boom cyli
nder 34 l
bs
15 k
g
4 ft / 1.5 m platform
99 lbs
45 kg
5
ft / 2.4 m platform 105 l
bs
48 k
g
Battery
6 volt (wet) 88 l
bs
48 k
g
Battery
6 volt (maintenance free) 105 l
bs
48 k
g

September 2021 Service and Repair Manual
Specifications
Part No. 1312293GT Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N 3
Performance Specifications
Z-30/20N and Z-30/20N RJ
Drive speed, maximum
Stowed position
3.0 m
ph
4.8 k
m/h
40 ft / 9.0 s
ec
12.2 m / 9.0 s
ec
Boom raised or extended
0.6 mph1 km/h40 f
t /
40 sec12.2 m / 40 sec
Braking distance, maximum
High range on paved surface
2 to 4 f
t
0.6 t
o 1.2m
Gradeability
See O
perator's
Manual
Boom function speeds, maximum from platform
controls (with rated load secured to platform)
Jib boom up
19 to 23 s
econds
Jib boom down
17 to 21 seconds
Jib boom rotate, 180°
13 to 17 seconds
Primary boom up
14 to 22 s
econds
Primary boom down
12 to 20 s
econds
Primary boom extend
15 to 19 s
econds
Primary boom retract
10 to 14 s
econds
Secondary boom up
11 to 18 s
econds
Secondary boom down
7 to 15 seconds
Turntable rotate, 355°
62 to 68 s
econds
Platform rotate, 180°
5 to 11 s
econds
Platform level up
14 to 19 s
econds
Platform level down
13 to 18 s
econds
Performance Specifications
Z-34/22 and Z-34/22N
Drive speed, maximum
Stowed position
4.0 m
ph
6.4 k
m/h
40 ft / 6.8 s
ec
12.2 m / 6.8 s
ec
Boom raised or extended
0.6 mph1 km/h40 f
t /
40 sec12.2 m / 40 sec
Braking distance, maximum
High range on paved surface
2 to 4 f
t
0.6 t
o 1.2m
Gradeability
See Operator's
Manual
Boom function speeds, maximum from platform
controls (with rated load secured to platform)
Jib boom up
20 to 24 s
econds
Jib boom down
18 to 22 seconds
Primary boom up
16 to 22 seconds
Primary boom down
13 to 20 s
econds
Primary boom extend
11 to 15 s
econds
Primary boom retract
13 to 17 s
econds
Secondary boom up
15 to 22 s
econds
Secondary boom down
11 to 18 seco
nds
Turntable rotate, 355°
62 to 68 seconds
Platform rotate, 180°
5 to 11 s
econds
Platform level up
14 to 19 s
econds
Platform level down
13 to 18 s
econds

Service and Repair Manual September 2021
Specifications
4 Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N Part No. 1312293GT
Hydraulic Oil Specifications
Hydraulic Fluid Specifications
Genie specifications require hydraulic oils which are
designed to give maximum protection to hydraulic
systems, have the ability to perform over a wide
temperature range, and the viscosity index should
exceed 140. They should provide
excellent antiwear,
oxidati
on prevention, corrosion inhibition, seal
conditioning, and foam and aeration suppression
properties.
Cleanliness level,
minimum
ISO 15/13
Water content,
maximum
250 p
pm
Recommended Hydraulic Fluid
Hydraulic oil type
Chevron Rando HD Premium
Viscosity
grade
32
Viscosity index
200
Optional Hydraulic Fluids
Mineral based
Shell Tellus S2 V 32
Shell Tellus S2 V 46
Shell Tellus S4 VX 32
Shell Donax TG (Dexron III)
Chevron 5606A
Biodegradable
Petro Canada Environ MV
46
Fire resistant
UCON Hydrolube HP-5
046
Note: Genie specifications require additional
equipment and special installation instructions for
the approved optional fluids. Consult Genie
Product Support before use.
Optional fluids may not have
the same hydraulic lifespan and
may result in com
ponent
damage.
Note: Extended machine operation can cause the
hydraulic fluid temperature to increase beyond its
maximum allowable range. If the hydraulic fluid
temperature consistently exceeds 200°F / 90°C an
optional oil cooler may be required.
Do not top off with incompatible
hydraulic fluids. Hydraulic fluids
may be incompatible due to the
differences in base additive
chemistry. When incompatible
fluids are mixed, insoluble
materials may form and deposit
in the hydraulic system,
plugging hydraulic l
ines, filters,
control valves and may result in
component damage.
Note: Do not operate the machine when the
ambient air temperature is consistently above
120°F / 49°C.
Hydraulic Fluid Temperature
Range
Ambient air temperature
1 Chevron hydraulic oil 5606A
2 Petro-Canada Environ MV 46
3 UCON Hydrolube HP-5046D
4 Chevron Rando HD premium oil MV

September 2021 Service and Repair Manual
Specifications
Part No. 1312293GT Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N 5
Chevron Rando HD Premium Oil
MV Fluid Properties
ISO Grade
32
Viscosity index
200
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @ 104°F / 40°C
7.5
33.5
Brookfield Visc
osity
cP @
-4°F / -20°C
cP @
-22°F / -30°C
1040
3310
Flash point
375°F / 190°C
Pour point
-58°F / -
50°C
Maximum continuous operating
temperature
171°F / 77°C
Note: A hydraulic oil heating system is
recommended when the ambient temperature is
consistently below 0°F / -18°C.
Note: Do not operate the machine when the
ambient temperature is below -20°F / -29°C with
Rando HD Premium MV.
Chevron 5606A Hydraulic Oil
Fluid Properties
ISO Grade
15
Viscosity index
300
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @ 104°F / 40°C
cSt @
-40°F / -40°C
5.5
15.0
510
Flash point
180°F / 82°C
Pour point
-81°F / -63°C
Maximum continuous operating
temperature
124°F / 51°C
Note: Use of Chevron 5606A hydraulic fluid, or
equivalent, is required when ambient temperatures
are consistently below 0°F / -17°C unless an oil
heating system is used.
Continued use of Chevron
5606A hydraulic fluid, or
equivalent, when ambient
temperatures are consistently
above 32°F / 0°C may result in
component damage

Service and Repair Manual September 2021
Specifications
6 Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N Part No. 1312293GT
Petro-Canada Environ MV 46
Fluid Properties
ISO Grade
46
Viscosity index
154
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @ 104°F / 40°C
8.0
44.4
Flash point
482°F /
250°C
Pour point
-49°F / -
45°C
Maximum continuous operating
temperature
180°F / 82°C
Shell Tellus S4 VX Fluid
Properties
ISO Grade
32
Viscosity index
300
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @ 104°F / 40°C
9
33.8
Brookfield
Viscosity
cSt @
-4°F / -20°C
cSt @
-13°F / -25°C
cSt @
-40°F / -40°C
481
702.4
2624
Flash point
>100
Pour point
-76°F / -
60°C
Maximum continuous operating
temperature
103°F / 75°C
UCON Hydrolube HP-5046 Fluid
Properties
ISO Grade
46
Viscosity index
192
Kinematic Viscosity
cSt @ 149°F / 65°C
cSt @ 104°F / 40°C
cSt @ 0°F /
-18°C
22
46
1300
Flash point
None
Pour po
int
-81°F / -63°C
Maximum continuous operating
temperature
189°F / 87°C

September 2021 Service and Repair Manual
Specifications
Part No. 1312293GT Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N 7
Hydraulic Component
Specifications
Function Pump
Type
Fixed displacement gear pump
Displacement per revolution
0.183 c
u in
3 c
c
Flow rate @28
00 psi / 172 bar 2.1 g
pm
7.9 L/min
Hydraulic tank return filter
10 micron with 25 p
si /
1.7 bar bypass
Function manifold
System relief valve pressure, maximum,
Z
-30/20N and Z-30/20N RJ
2800 p
si
193 b
ar
System relief valve pressure, maximum,
Z
-34/22 and Z-34/22N
3200 p
si
221 b
ar
Primary boom down relief valve pressure
1600 p
si
110 b
ar
Secondary boom down relief pressure
1600 p
si
110 b
ar
Primary boom extend relief pressure
Models with rotating jib
1800 p
si
124 bar
Turntable rotate relief pressure
1100 p
si
76 b
ar
Auxiliary Pump
Type
Fixed displacement gear pump
Displacement per revolution
0.3 g
pm
1.14 L/min
Manifold Component
Specifications
Plug torque
SAE No. 2
36 in-
lbs / 4 Nm
SAE No. 4
10 ft-lbs / 13 Nm
S
AE No. 6 14 ft-
lbs / 19 Nm
SAE No. 8
38 ft-
lbs / 51 Nm
SAE No. 10
41 ft-
lbs / 55 Nm
SAE No. 12
56 ft-
lbs / 76 Nm
Valve Coil Resistance
Note: The following coil resistance specifications are at
an ambient temperature of 68°F / 20°C. As valve coil
resi
stance is sensitive to changes in air temperature,
the coil resistance will typically increase or decrease by
4% for each 18°F / 10°C that your air temperature
increases or decreases from 68°F / 20°C.
Valve Coil Resistance Specification
Description
Speci
fication
Solenoid valve,
3 position 4 way, 20V DC
(schematic items A, J, K, U, V, Y, AA, AB
and CC)
22
Ω
Proportional solenoid valve, 24V DC
(schematic item H)
19.5
Ω
Solenoid valve, N.C. poppet, 20V DC
(schematic item M)
23.5
Ω
Solenoid valve, N.O. poppet, 20V DC
(schematic item P)
23.5
Ω

Service and Repair Manual September 2021
Specifications
8 Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N Part No. 1312293GT
Machine Torque Specifications
Note: All torque values are shown lubricated
unless otherwise noted.
Platform rotator and jib boom rotator (Z-30/20N RJ)
1
-8 center bolt, GR 5
(Jib boom
rotator)
480 ft-
lbs
650 Nm
3/4
-10 bolt, GR 8
(Platform rotator)
280 ft-
lbs
379 Nm
3/8
-16 bolts, GR 8
(Platform rotator)
35 ft-
lbs
47 Nm
1/2
-13 bolts, GR 5
(Jib boom rotator)
85 ft-
lbs
115 Nm
Platform Rotator
(Z-30/20N, Z-34/22 and Z-34/22N)
3/4
-10 bolt, GR 8 280 ft-
lbs
379 Nm
3/8
-16 bolts, GR 8 35 ft-
lbs
47 Nm
Turntable Rotate Bearing
Rotate bearing mounting bolts
160 ft-
lbs
217 Nm
Drive hubs, brakes and motors
Drive hub mounting bolts
180 ft-
lbs
244 Nm
Brake mounting bolts
93 ft-
lbs
126
Nm
Drive motor
mounting bolts 31 ft-
lbs
42 Nm

September 2021 Service and Repair Manual
Specifications
Part No. 1312293GT Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N 9
Hydraulic Hose and Fitting
Torque Specifications
Your machine is equipped with Parker Seal-Lok™
ORFS or 37° JIC fittings and hose ends. Genie
specifications require that fittings and hose ends
be torqued to specification when they are removed
and installed or when new hoses or fittings are
installed.
Seal-Lok™ Fittings
(hose end - ORFS)
SAE Dash Size
Torque
-4 18 ft-lbs / 25 Nm
-6 30 ft-lbs / 41 Nm
-8
40 ft-lbs / 55 Nm
-10 60 ft-lbs / 81 Nm
-12 85 ft-lbs / 115 Nm
-16 110 ft-lbs / 150 Nm
-20 150 ft-lbs / 205 Nm
-24 230 ft-lbs / 315 Nm
JIC 37° Fittings
(swivel nut or hose connection)
SAE Dash Size
Thread Size
Flats
-4 7/16-20 2
-6 9/16-18 1 1/2
-8 3/4-16 1 1/2
-10 7/8-14 1 1/2
-12 1 1/16-12 1 1/4
-16
1 5/16-12
1
-20 1 5/8-12 1
-24 1 7/8-12 1
SAE O-ring Boss Port
(tube fitting - installed into Aluminum)
(all types)
SAE Dash Size Torque
-4 14 ft-lbs / 19 Nm
-6 23 ft-lbs / 31,2 Nm
-8
36 ft-lbs / 49 Nm
-10 62 ft-lbs / 84 Nm
-12 84 ft-lbs / 114 Nm
-16 125 ft-lbs / 169,5 Nm
-20 151 ft-lbs / 204,7 Nm
-24 184 ft-lbs / 249,5 Nm
Adjustable Fitting Non-adjustable fitting
1 jam nut
SAE O-ring Boss Port
(tube fitting - installed into Steel)
SAE Dash Size
Torque
-4
ORFS / 37° (Adj)
ORFS (Non-adj)
37° (Non-adj)
15 ft-lbs / 20,3 Nm
26 ft-lbs / 35,3 Nm
22 ft-lbs / 30 Nm
-6
ORFS (Adj / Non-adj)
37° (Adj / Non-adj)
35 ft-lbs / 47,5 Nm
29 ft-lbs / 39,3 Nm
-8 ORFS (Adj / Non-adj)
37° (Adj / Non-adj)
60 ft-lbs / 81,3 Nm
52 ft-lbs / 70,5 Nm
-10 ORFS (Adj / Non-adj)
37° (Adj / Non-adj)
100 ft-lbs / 135,6 Nm
85 ft-lbs / 115,3 Nm
-12 (All types) 135 ft-lbs / 183 Nm
-16
(All types)
200 ft-lbs / 271,2 Nm
-20
(All types)
250 ft-lbs / 339 Nm
-24 (All types) 305 ft-lbs / 413,5 Nm

Service and Repair Manual September 2021
Specifications
10 Z®-30/20N • Z®-30/20N RJ • Z®-34/22 • Z®-34/22N Part No. 1312293GT
Torque Procedure
Seal-Lok™ fittings
1 Replace the O-ring. The O-ring must be
replaced anytime the seal has been broken.
The O-ring cannot be re-used if the fitting or
hose end has been tightened beyond finger
tight.
Note: The O-ring in Parker Seal Lok™ fittings and
hose end are custom-size O-rings. They are not
standard size O-rings. They are available in the O-
ring field service kit (Genie part number 49612).
2 Lubricate the O-ring before installation.
3 Be sure the O-ring face seal is seated and
retained properly.
4 Position the tube and nut squarely on the face
seal end of the fitting, and tighten the nut
finger tight.
5 Tighten the nut or fitting to the appropriate
torque. Refer to the appropriate torque chart
in this section.
6 Operate all machine functions and inspect the
hose, fittings and related components to
confirm there are no leaks.
JIC 37° fittings
1 Align the tube flare (hex nut) against the nose
of the fitting body (body hex fitting) and
tighten the hex nut to the body hex fitting to
hand tight, approximately 30 in-lbs / 3.4 Nm.
2 Using a permanent ink marker, make a
reference mark on one the flats of the hex nut
and continue the mark onto the body of the
hex fitting. Refer to Illustration 1.

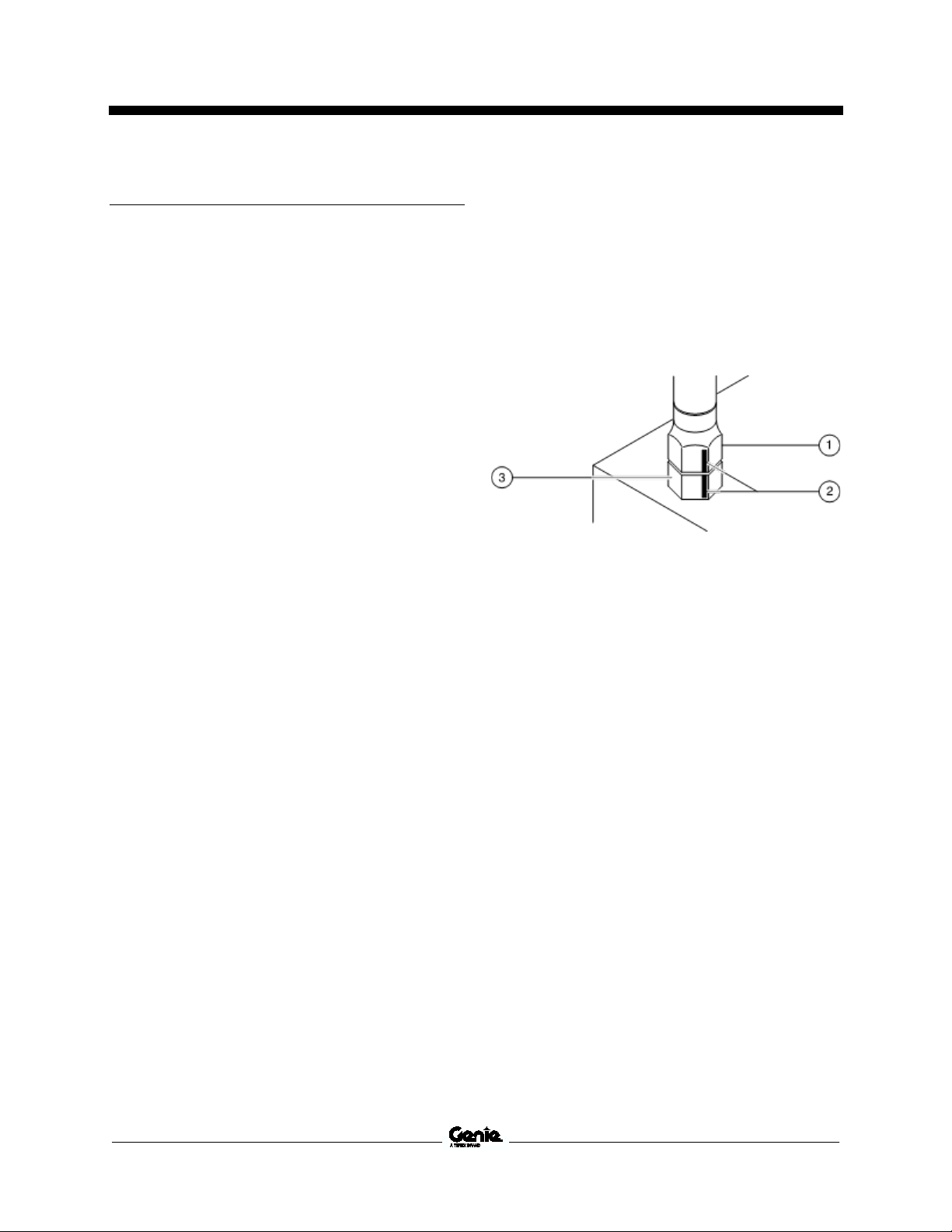

Illustration 1
1 hex nut
2 reference mark
3 body hex fitting
