Hargrove RME-PO User manual

HARGROVE GAS LOGS
ROBERT SHAW 7000MV(RME-PO)
MILLIVOLT GAS VALVE SYSTEM
INSTALLATION INSTRUCTIONS
This gas pilot safety valve provides 100% shut-off of
both pilot and main burner gas supply in the event of
pilot flame failure. This valve is equipped with a
manual gas control knob to provide for pilot lighting.
It also has a control knob that controls flame height.
If the pilot flame goes out during normal operation, or
if there is insufficient pilot flame to provide proper
thermocouple output, the safety valve will close,
stopping the flow of all gas. This valve is designed for
use on all domestic heating gases up to 1/2" PSI.
CAUTIONS
1. This valve should be installed only by an
experienced service technician trained in gas
safety equipment.
2. Turn off gas supply before installing valve.
3. All piping must meet applicable local codes
and ordinances and the national fuel gas code
(ANSI Z223.1/NFPA NO. 54)
4. All wiring must meet applicable electrical
codes and ordinances.
5. Check out the complete system after
installing the valve.
6. Prior to installation, verify conformance
with burner manufacturer's installation
instructions.
7. Make sure all piping is free of foreign matter.
FOR YOUR SAFETY
IF YOU SMELL GAS:
1. OPEN WINDOWS
2. DON'T TOUCH ELECTRICAL
SWITCHES
3. EXTINGUISH ALL OPEN FLAMES
4. IMMEDIATELY CALL YOUR GAS
SUPPLIER
FLAMMABLE VAPORS MAY BE
DRAWN BY AIR CURRENTS FROM
OTHER AREAS OF YOUR HOUSE
TO THIS APPLIANCE.
FOR YOUR SAFETY
DO NOT STORE OR USE
GASOLINE OR
OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.

Fig.2
INSTALLATION INSTRUC
TIONS
! WARNING !
F
ire hazard. Do not disassemble or attempt repair of this unit. Disassembly, reassembly or internal
adjustment could cause valve to malfunction,
resulting in personal injury, death or property damage.
If the control valve does not operate properly following installation or service, replace the unit.
W
ARNING
:
Valves may not shut off if flow is not
in direction of arrow on valve body.
W
ARNING
:
Warranty is void if the RSMV
-
C is
installed behind the burner pan in the fireplace.
(
Fi
g.1
)
Parts List (
Fig.2
):
DO NOT INSTALL RSMV
-
C BEHIND THE
EMBER BURNER PAN IN THE
FIREPLACE. RSMV
-
C MAY OVERHEAT.
RSMVNG
-
C
EMBER BURNER PAN
Note:
Piping from gas supply to valve and from valve
to burner must be supplied by installer when installed
outside the firebox.
Remote Control (optional)
-
ordered separately
A. RC A12V
-
J
-
12
-
Volt battery operated remote and receiver
B. RC 110
-
V
-
requires 110
-
Volt electricity for the receiver
Note:
Piping from gas supply to valve and from valve to burner
must be supplied by installer when installed
outside the firebox.

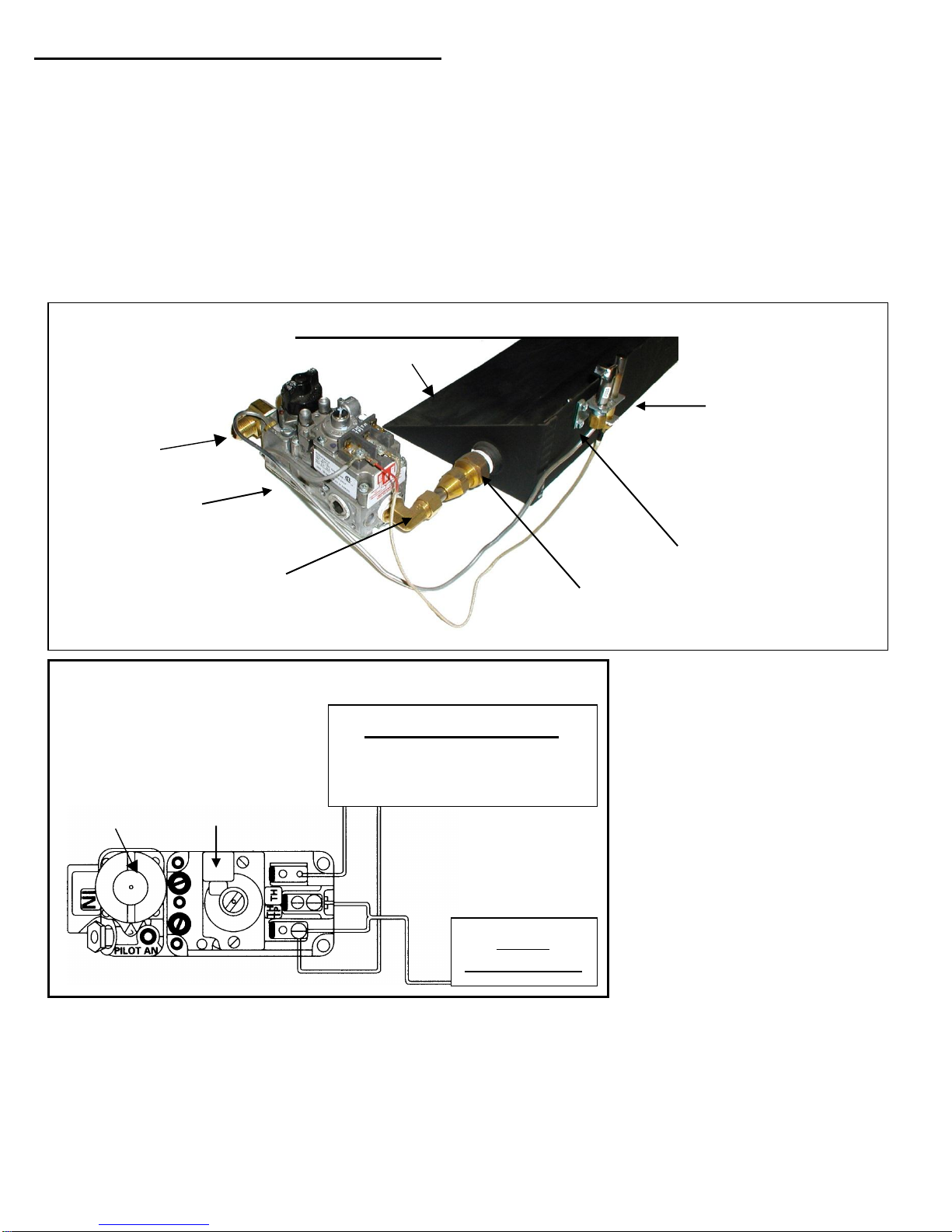

Parts Included In RME
-
PO Kit
1.
2.
3.
4.
5.
6.
6.
8.
7.
10.
1. (RSMVNG-C) Robertshaw Millivolt Safety Gas Valve
2. (RS-HS-225) Millivolt Valve Heat Shield w/Fiberglass Mat
3. (RSTPG-48”) Thermopile & Pilot Burner Assembly Kit
4. Wall Switch and Cover Plate
5. 20’ of 18 Gauge Wire
6. (2) #8 X ½” Screw
7. (1) 49-6-8 –½” X 3/8” 90 degree elbow
8. (69-6-8) ½ Mx3/8FL Tank Fitting
8.
W
ARNING
: Do not apply 110 VAC to this valve
as it will cause irreparable damage and therefore
will not covered under warranty.

Fig. 4
WIRING SCHEMATIC
GAS CONTROL
KNOB
RSMVNG-C
SWITCHING DEVICES
WALL SWITCH, REMOTE
CONTROL, BARK CHIP SWITCH,
& PINECONE SWITCH
PILOT
GENERATOR
RECOMMENDED GAUGE
OF WIRE
WALL SWITCH & REMOTE
CONTROL
WIRE
SIZE
MAXIMUM
LENGTH
14 Gauge
100 Ft.
16 Gauge
64 Ft.
18 Gauge
40 Ft.
20 Gauge
25 Ft.
22 Gauge
16 Ft.
EXTERANL THREAD BURNER
INSTALLATION INSTRUCTIONS
Fig.3
TOP VIEW OF EXTERNAL THREAD BURNER INSTALLLATION
RSTPG-48
(2)#8X1/2" Screw
EMBER BURNER
46-6-8 (in accessory kit)
49-6-8
RSMVNG-C
Pilot Bracket
WALL SWITCH- (use installation instructions accompanying any other switching device)
1. To install a wall switch mount a standard 3" X 2" electrical box in wall near the fireplace. Run thermostat
wire (18-gauge wire) from the electrical box to the millivolt valve. At the valve, connect the lead wires to the
two outside terminals labeled "TH". On the switch, connect a lead wire to each terminal.
(Fig.4)
2. Mount the wall switch to the electrical box and install cover plate.
* If installing a remote control attach the leads from the receiver to the same terminals as the
wall switch on the MV-C.
69-6-8
Thermopile and Pilot Burner Assembly
1. Attach the pilot generator (thermopile and pilot burner assembly) to the back side of the burner pan using the
(2) #8 X ½ screws.
2. Connect the opposite end of the pilot tubing to the pilot port on the gas valve.
3. Attach the leads from the thermopile (pilot generator) to the terminals labeled “TP” on the valve.
Make sure the pilot tubing and thermopile leads do not contact any parts that get hot or run through any
areas that may have flames.

INTERNAL THREAD BURNER
INSTALLATION INSTRUCTIONS
Thermopile and Pilot Burner Assembly
1. Attach the pilot generator (thermopile and pilot burner assembly) to the back side of the burner pan using the
(2) #8 X ½ screws.
2. Connect the opposite end of the pilot tubing to the pilot port on the gas valve.
3. Attach the leads from the thermopile (pilot generator) to the terminals labeled “TP” on the valve.
Make sure the pilot tubing and thermopile leads do not contact any parts that get hot or run through any
areas that may have flames.
TOP VIEW OF INTERNAL
THREAD BURNER
INSTALLATION
H-BURNER
49-6-8
RSMVNG-C
69-6-8
49-6-6Z2 (INCLUDED IN H-BURNER
ACCESSORY KIT)
(2) #8x1/2” Screws
RSTPG-48
WIRING SCHEMATIC
SWITCHING DEVICES
WALL SWITCH, REMOTE
CONTROL, BARK CHIP SWITCH,
AND PINECONE SWITCH
PILOT
GENERATOR
RSMVNG-C
VALVE
GAS
CONTROL
KNOB
WALL SWITCH –(use installation instructions accompanying any other switching device)
1. To install a wall switch, mount a standard 3” X 2” electrical box in the wall near the fireplace. Run thermostat
wire (18 gauge wire) from the electrical box to the millivolt valve. At the valve, connect the lead wires to the two
outside terminals labeled “TH”.
2. Mount the wall switch to the electrical box and install the cover plate.
If using a remote control attach the leads from the receiver to the same terminals as the Wall Switch on
the RSMVNG-C valve.

RECOMMENDED GAUGE
OF WIRE
WALL SWITCH & REMOTE
CONTROL
WIRE
SIZE
14 Gauge
16 Gauge
18 Gauge
20 Gauge
22 Gauge
MAXIMUM
LENGTH
100 ft.
64 ft.
40 ft.
25 ft.
16 ft.

LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
A. This appliance has a pilot, which must be lit by
hand. When lighting the pilot, follow these
instructions exactly.
B. Before lighting smell all around the appliance area
for gas. Be sure to smell next to the floor because
some gas is heavier than air and will settle on the
floor.
FOR YOUR SAFETY
"What to do if you smell gas"
* Do not try to light any appliance.
* Do not touch any electrical switch; do not use
any phone in your building.
* Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
* If you cannot reach your gas supplier, call the
fire department.
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand, don't try to repair it. Call a
qualified service technician. Forced or attempted
repair may result in a fire or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to replace any
part of the control system and any gas control, which
has been under water.
PILOT LIGHTING PROCEDURE
CAUTION: Make sure the wall switch and remote
are in the off position before lighting the pilot.
1. Turn the gas control knob to the off position (it will
be necessary to depress the knob slightly at the pilot
position). Allow five minutes for any gas in the
combustion chamber to escape (LP gas, which is
heavier than air, may require forced ventilation).
2. Turn the gas control knob to the pilot position.
3. Push in on the gas control knob and light the pilot
immediately. Hold the knob down for one full minute
after lighting the pilot.
4. When the gas control knob is released, the pilot
flame should continue to burn (if the pilot goes out;
repeat the above steps).
5. Rotate the gas control knob from pilot to on
position (full counterclockwise position) to supply full
flow of gas to main burner.
6. Leaving the control knob in the full on position.
The main burner can now be controlled by the remote
control or wall switch. You can adjust the flame
height by the control knob, if you turn it back towards
the pilot position you will decrease the gas flow, in
turn you will decrease the flame height.
PILOT FLAME ADJUSTMENT
These controls are factory preset and will not normally
require additional adjustment of the pilot flame. If
field adjustment of the pilot flame is required, remove
the pilot adjustment cover screw to expose the
adjusting screw. Turn the adjusting screw clockwise
reduce flame, or counterclockwise to increase flame.
Replace pilot adjustment cover screw and tighten
securely.
