Harman Kardon HK3500 User manual

HK3900
e harman/kardon
Stereo Receiver
WNERS
MANUAL

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
SS
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage’’ within the product’s
enclosure that may be of sufficient
magnitude ta constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION: to PREVENT ELECTRIC
SHOCK, DO NOT USE THIS (POLARIZED)
PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS
THE BLADES CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.
ATTENTION: pour PREVENIR LES
CHOCS ELECTRIQUES NE PAS UTILISER
CETTE FICHE POLARISEE AVEC UN
PROLONGATEUR, UNE PRISE DE COURANT
OU UNE AUTRE SORTIE DE COURANT, SAUF
S| LES LAMES PEUVENT ETRE INSEREES A
FOND SANS EN LAISSER AUCUNE PARTIE
ADECOUVERT.
{_

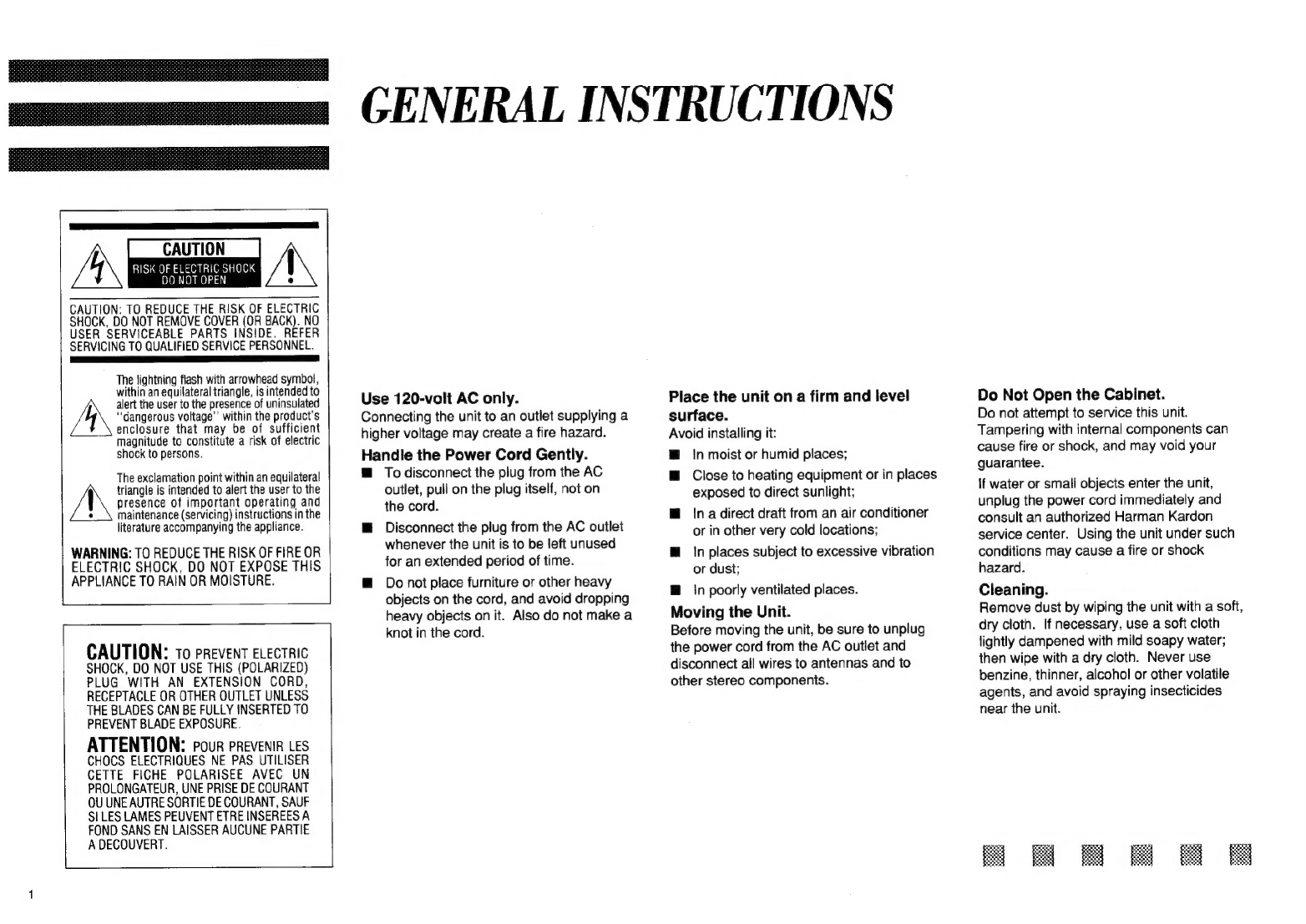

GENERAL INSTRUCTIONS
Use 120-volt AC only.
Connecting the unit to an outlet supplying a
higher voltage may create a fire hazard.
Handle the Power Cord Gently.
™@ To disconnect the plug from the AC
outlet, pull on the plug itself, not on
the cord.
Disconnect the plug from the AC outlet
whenever the unit is to be left unused
for an extended period of time.
H Do not place furniture or other heavy
objects on the cord, and avoid dropping
heavy objects on it. Also do not make a
knot in the cord.
Place the unit on a firm and level
surface.
Avoid installing it:
@ In moist or humid places;
Close to heating equipment or in places
exposed to direct sunlight;
In adirect draft from an air conditioner
or in other very cold locations;
M@ In places subject to excessive vibration
or dust;
Hin poorly ventilated places.
Moving the Unit.
Before moving the unit, be sure to unplug
the power cord from the AC outlet and
disconnect all wires to antennas and to
other stereo components.
Do Not Open the Cabinet.
Do not attempt to service this unit.
Tampering with internal components can
cause fire or shock, and may void your
guarantee.
If water or small objects enter the unit,
unplug the power cord immediately and
consult an authorized Harman Kardon
service center. Using the unit under such
conditions may cause a fire or shock
hazard.
Cleaning.
Remove dust by wiping the unit with a soft,
dry cloth. If necessary, use a soft cloth
lightly dampened with mild soapy water;
then wipe with a dry cloth. Never use
benzine, thinner, alcohol or other volatile
agents, and avoid spraying insecticides
near the unit.

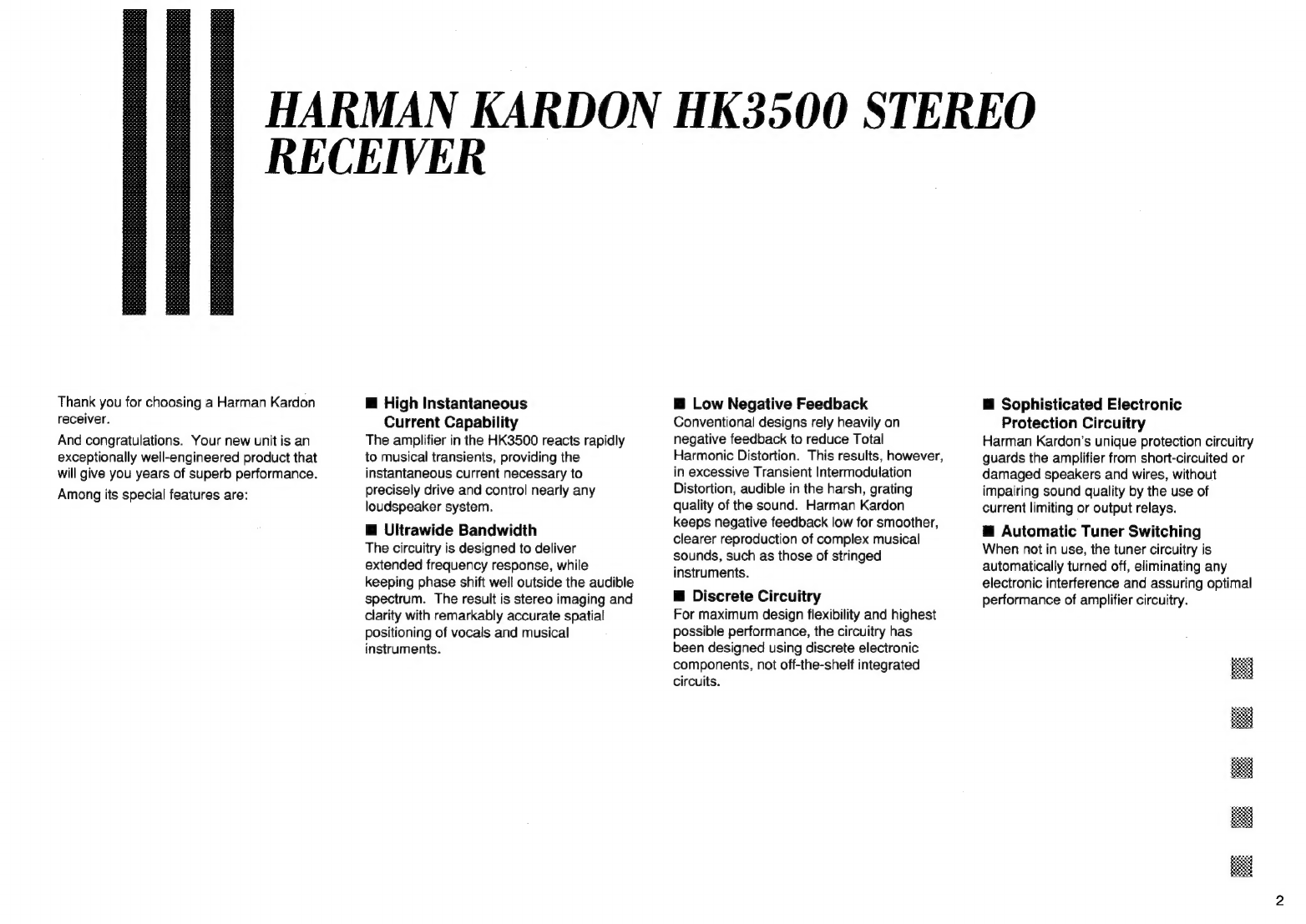

Thank you for choosing a Harman Kardon
receiver.
And congratulations. Your new unit is an
exceptionally well-engineered product that
will give you years of superb performance.
Among its special features are:
@ High Instantaneous
Current Capability
The amplifier in the HK3500 reacts rapidly
to musical transients, providing the
instantaneous current necessary to
precisely drive and control nearly any
loudspeaker system.
@ Ultrawide Bandwidth
The circuitry is designed to deliver
extended frequency response, while
keeping phase shift well outside the audible
spectrum. The result is stereo imaging and
clarity with remarkably accurate spatial
positioning of vocals and musical
instruments.
B Low Negative Feedback
Conventional designs rely heavily on
negative feedback to reduce Total
Harmonic Distortion. This results, however,
in excessive Transient Intermodulation
Distortion, audible in the harsh, grating
quality of the sound. Harman Kardon
keeps negative feedback low for smoother,
clearer reproduction of complex musical
sounds, such as those of stringed
instruments.
@ Discrete Circuitry
For maximum design flexibility and highest
possible performance, the circuitry has
been designed using discrete electronic
components, not off-the-shelf integrated
Circuits.
HARMAN KARDON HK3500 STEREO
RECEIVER
@ Sophisticated Electronic
Protection Circuitry
Harman Kardon's unique protection circuitry
guards the amplifier from short-circuited or
damaged speakers and wires, without
impairing sound quality by the use of
current limiting or output relays.
@ Automatic Tuner Switching
When not in use, the tuner circuitry is
automatically turned off, eliminating any
electronic interference and assuring optimal
performance of amplifier circuitry.

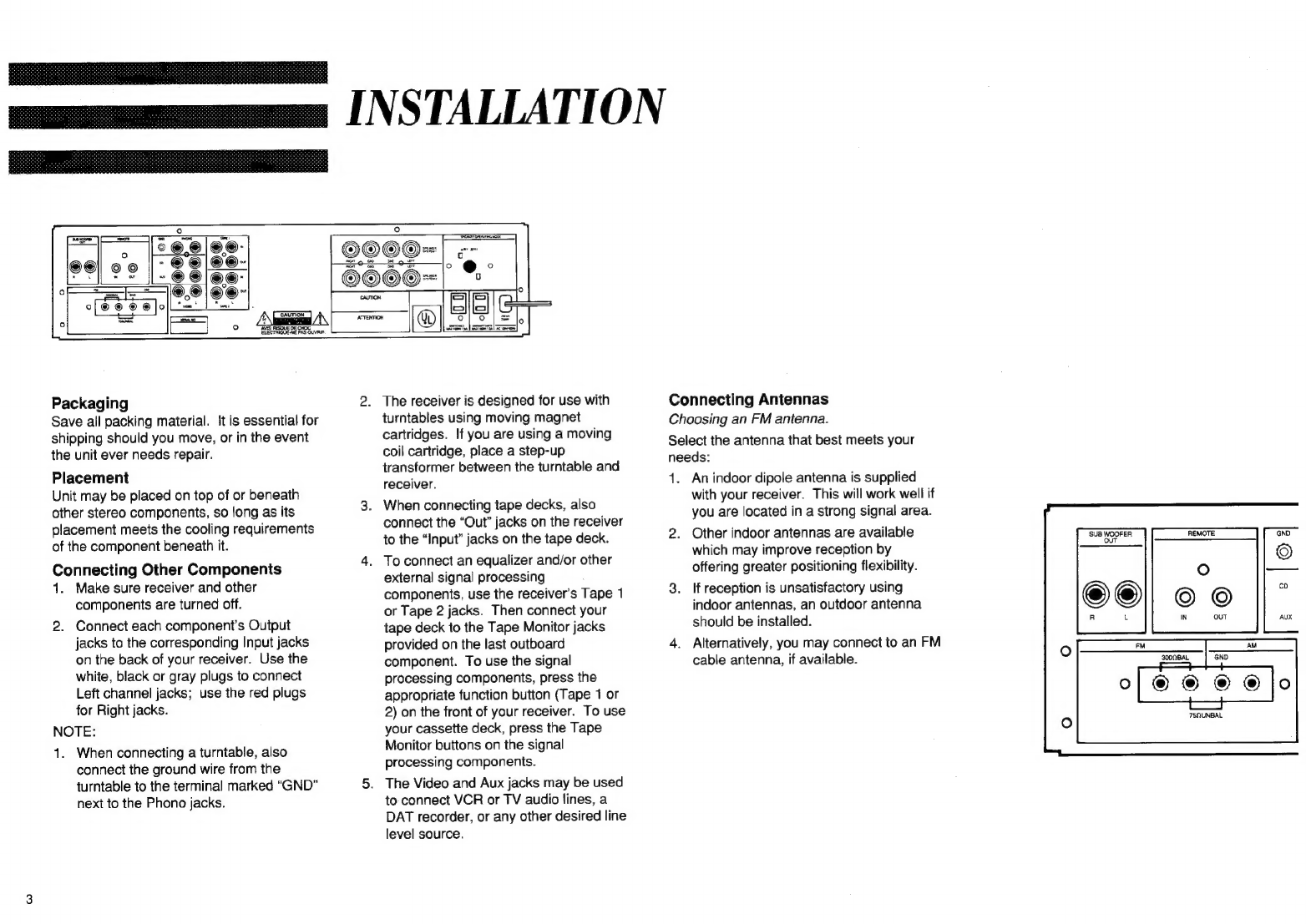

INSTALLATION
Axial A
"ANS, RISQUE DE CHOC.
ELECTRIQUE-NE PAS OUVRIR,
Packaging
Save all packing material. It is essential for
shipping should you move, or in the event
the unit ever needs repair.
Placement
Unit may be placed on top of or beneath
other stereo components, so long as its
placement meets the cooling requirements
of the component beneath it.
Connecting Other Components
1. Make sure receiver and other
components are turned off.
2. Connect each component's Output
jacks to the corresponding Input jacks
on the back of your receiver. Use the
white, black or gray plugs to connect
Left channel jacks; use the red plugs
for Right jacks.
NOTE:
1. When connecting a turntable, also
connect the ground wire from the
turntable to the terminal marked “GND”
next to the Phono jacks.
2. The receiver is designed for use with
turntables using moving magnet
cartridges. !f you are using a moving
coil cartridge, place a step-up
transformer between the turntable and
receiver.
3. When connecting tape decks, also
connect the “Out” jacks on the receiver
to the “Input” jacks on the tape deck. 2.
4. To connect an equalizer and/or other
external signal processing
componenis, use the receiver's Tape 1 3.
or Tape 2 jacks. Then connect your
tape deck to the Tape Monitor jacks
provided on the last outboard 4.
component. To use the signal
processing components, press the
appropriate function button (Tape 1 or
2) on the front of your receiver. To use
your cassette deck, press the Tape
Monitor buttons on the signal
processing components.
5. The Video and Aux jacks may be used
to connect VCR or TV audio lines, a
DAT recorder, or any other desired line
level source.
Connecting Antennas
Choosing an FM antenna.
Select the antenna that best meets your
needs:
1. An indoor dipole antenna is supplied
with your receiver. This will work well if
you are located in a strong signal area.
Other indoor antennas are available
which may improve reception by
offering greater positioning flexibility.
If reception is unsatisfactory using
indoor antennas, an outdoor antenna
should be installed.
Alternatively, you may connect to an FM
cable antenna, if available.
SUB WOOFER,
OUT
7SQUNBAL

PHONO TAPE 1
VIDEO TAPE 2
SERIAL NO.
12)
AVIS: RISQUE
ELECTRIQUE}
Connecting the FM antenna.
Connect the leads to the screw-down
terminals marked “FM 300QBAL” on the
back of the receiver.
If coaxial cable is used:
(a) Connect the cable center wire to
the FM screw terminal, and
connect the shield to the “GND”
terminal, as indicated by the lines
marked “75QUNBAL”.
(b) Or, connect a 75-300Q converter
to the coaxial cable. Then attach
the leads from the converter to the
terminals marked “3QOOQBAL”.
Connecting an AM Antenna.
Your receiver comes with an AM loop
antenna which provides good reception in
most locations. For best results, place this
antenna away from the unit and away from
contact with any metal object.
In areas where AM signals are weak, an
outdoor AM antenna may improve sound
quality.
Connect the AM antenna leads to the
screw-down terminals marked “AM” on the
back of the receiver.
Subwoofer Out
Connect these jacks, if desired, to a
powered subwoofer, or a power amplifier
driving a subwoofer. This output may also
be used for surround-sound equipment or
any external component requiring a line
level input.
Wired Remote Control
To control your receiver with an external
infrared remote sensor, connect the wire
from the remote sensor to the “Remote In”
jack on the back panel. Or, if you have a
stereo component with a built-in infrared
remote sensor and a “Remote Output” jack,
it may be possible to connect this jack to
the “Remote In” jack of your receiver. All
Harman Kardon products with “Remote In”
and “Remote Out” jacks are compatible with
one another, except for the Citation 22, 24
and 25. Other manufacturers’ remote
sensors may not be compatible, but it will
not hurt to experiment.
A second wire may be used to connect your
receiver's “Remote Out” jack to the
“Remote Input” of another stereo
component. Continue this process to
include additional components (if
compatible).

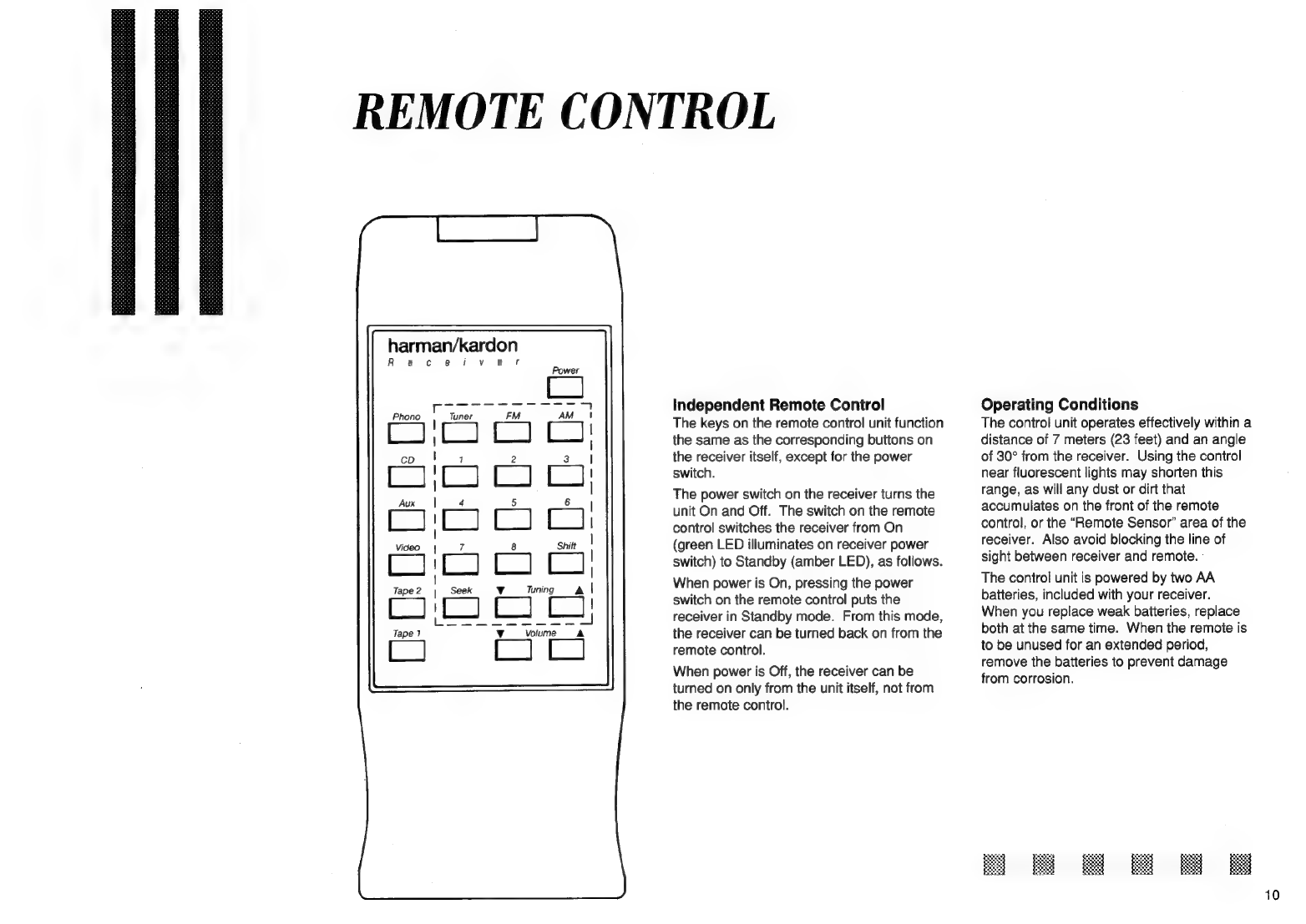

To control your receiver, you may use the
remote control supplied with the HK3500.
Or you may use a universal remote control
unit, such as Harman Kardon’s
Masterworks™, which can also control
other components, such as TVs, VCRs,
tape decks and CD players. Masterworks
is available from your Harman Kardon
dealer.

INSTALLATION
"AVIS. PIESQUE DE CHOC
ELECTROUF NE PASOLVAIR,
AC Power
Plug the cord into a polarized wall socket,
or polarized extension cord.
AC Convenience Receptacles
Other stereo components may be plugged
into the back of your receiver.
1. If acomponent is plugged into the
“Switched” receptacle, power will be
supplied to that component only when
your receiver is turned on.
2. Ifa component is plugged into the
“UOnswitched” receptacle, power will be
supplied whether your receiver is on-or
off.
NOTE: Do not connect any component
that requires more than 180 watts of power.
Check the owner's manual or the back of
the component to find its power
requirement.
Connecting
Speakers
4.
Connect
terminals
on
the
left-hand
1.
speaker to the “Left” and corresponding
“GND?” terminals on the receiver, again
being careful to maintain correct
For best performance, use high quality
speaker cables. However, ordinary
copper wire can be used if the gauge
meets the following requirements: polarity.
Wire
Length
Gauge
5.
If
you
are
using
a
second
set
of
Up
to
8
feet
18
AWG
speakers,
connect
them
in
the
same
Upto12feet
16AWG
way
to
the
terminals
marked
“Speaker
Up
to
20
feet
14
AWG
System
2.”
Over
20
feet
10-12
AWG
custom
speaker cable
Avoid coiling excess wire with or near
line level hook-up cords.
Note the difference between the two
conductors in each cable: different
colored insulation, ridged insulation, or
colored yarn. Connect the right-hand
speaker to the receiver, being careful to
connect the positive terminal on the
speaker to the terminal marked “Right”
on the receiver, and the negative or
ground terminal on the speaker to the
corresponding “GND” terminal on the
receiver.
OOO!
RIGHT GND GNC
RIGHT GND GND
OOO!
CAUTION
ATTENTION
E CHOC
E PAS OUVRIR.

SPEAKER OPERATING MOOE
SPEAKER
») Syste" m8) mat)
FT
<—lo @ «
SWITCHED UNSWITCHED
MAX 180W.1.54 I MAX 180W,1.54
IMPORTANT: When connecting two pairs
of speakers, determine the impedance of
each pair by looking on the back of the
speakers, or in your owner’s manual, or by
contacting your dealer or manufacturer.
Then refer to the following chart to see if
both sets may be played simultaneously.
Ifimpedance Can both pairs
of the two be played
pairs is: simultaneously?
80/80. YES
8Q/EQ NO
80/42 NO
6Q/6Q NO
6Q/4Q NO
4Q/4Q NO
WARNING: Do not play both sets of
speakers simultaneously except as
recommended above. Receiver may
overheat.
Setting the Speaker Operating Mode
1. Determine the impedance of your
speakers by looking on the back of the
speakers or in your owner’s manual, or
by contacting your dealer or the
manufacturer.
2. Be sure Power switch is turned off.
3. Locate the switch marked “4Q/8Q” on
the back of the receiver.
@ /f you are connecting only one set of
speakers, and their impedance is
8Q, set the switch to 82.
M@ |f your speaker's impedance is less
than 8Q, or if you are connecting
two sets of speakers, regardless of
their impedance, set the switch to
4Q.
NOTE: If you change or add speakers, be
sure to reset the switch accordingly.

Power
Press to turn the unit on and off. (For use
with Remote Control, see Page 10.)
Speaker
Turn to select either of two sets of
speakers, or poe or neither (headphone
output only). a4, eS
Bass
Turn to increase or decrease the proportion
of low frequency sound." ~~~ - Sa

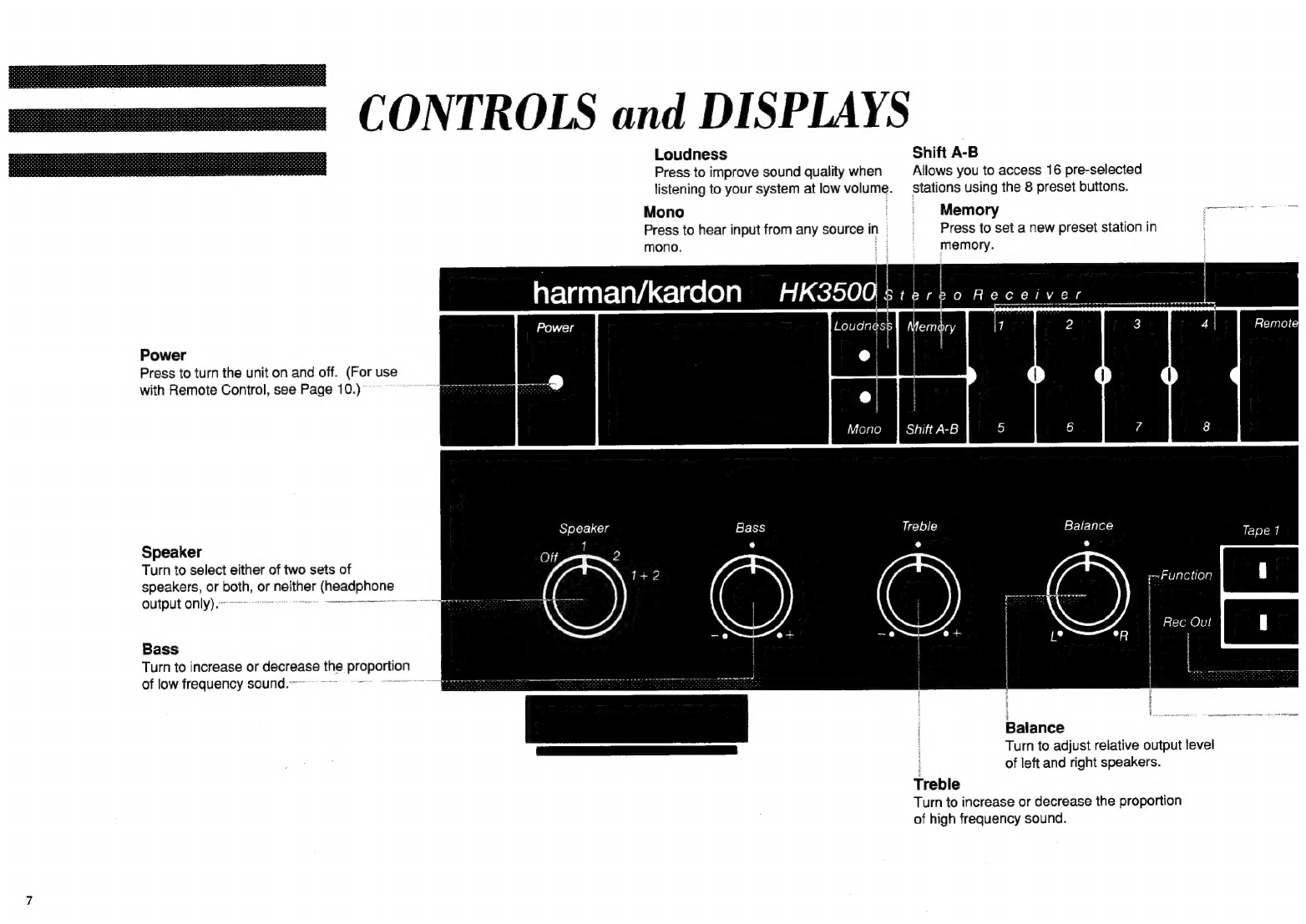

CONTROIS
and
DISPLAYS
Loudness Shift A-B
Press
to
improve
sound
quality
when
Allows
you
to
access
16
pre-selected
listening to your system at low volume. _ stations using the 8 preset buttons.
Mono
Memory
—
jovtgag.
tepeanlviaas
Press
to
hear
input
from
any
source
in
|
Press
to
set
a
new
preset
station
in
mono.
/
.
memory.
Speaker cel Balance
e e
Oft 2
OQ
Balance
Turn to adjust relative output level
of left and right speakers.
Treble
Turn to increase or decrease the proportion
of high frequency sound.

Preset Buttons
Press to access pre-selected stations.
----- Function Selector
Press desired key to choose listening
source.
FM/AM
Press to select FM or AM reception.
PRESET STEREO
oO
ZIG] © tuneoseek
Seek-Stereo 225]
Volume Subwoofer
Level
21 17 44 °
*Max
:
}
i
i
i
i
|
Record Selector
Press desired key to choose source for
tape recording.
- Tuning
Press A to tune to stations with higher
frequencies; press W for lower frequencies.
Seek-Stereo
Press to select Seek tuning in stereo, or
manual tuning in mono.
- Subwoofer Level
Turn to increase or decrease the subwoofer
output level relative to the speakers
connected to the HK3500.
~ Volume
Turn to raise or lower output volume.
» Headphone Jack
Plug in headphones if desired. (With
Speaker switch in Off position, output is
supplied only to headphones.)

DISPLAYS
Flashes during the period when a station
can be entered into memory. ---—;
Indicates AM or FM band and frequency of ;~--~Shows stereo broadcast is being received.
the
tuned
station.
nnn
=
senna
Remote Sensor i
a
ey
MHz | PRESET = STEREO
mA13| a, TUNED SEEK
ee
i
: {7 i
Shows when a Preset station is selected. Shows Seek function is on and stereo
reception is possible.
Indicates station is properly tuned.
